ETRUSKO natural red

ETRUSKO

Distinctively Mediterranean.

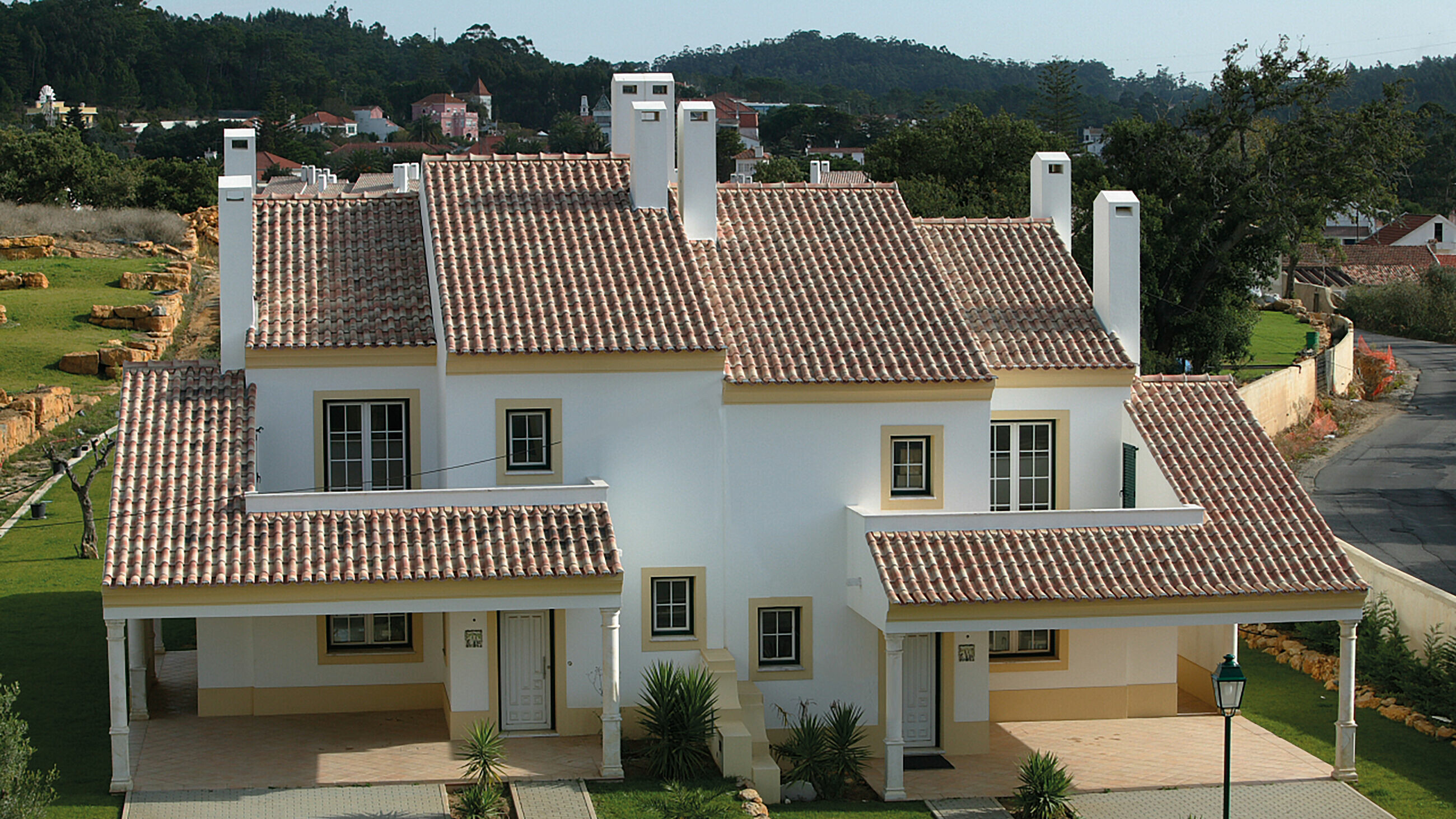

  • New colour variants inspired by the Mediterranean: NUANCE mottled natural red and Tuscany engobed
  • New verge variants: the longer verge laps offer more options for covering the substructure
  • Effective water drainage and optimum flow behaviour, thanks to technically perfected overlapping
  • Distinctive shape, with a warm Mediterranean feel

Attention: Discontinued model - the clay roof tile ETRUSKO is no longer available.

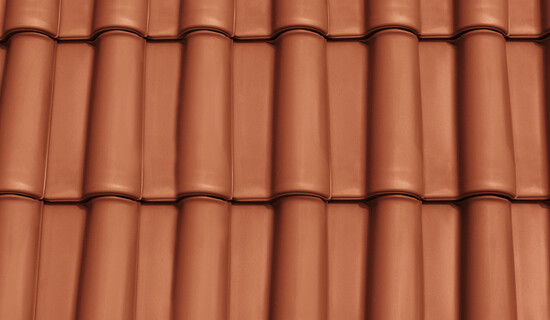

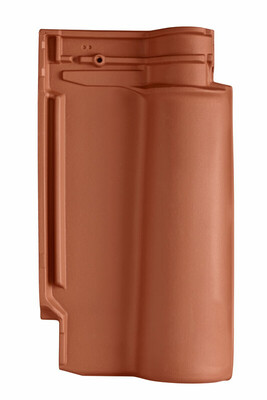

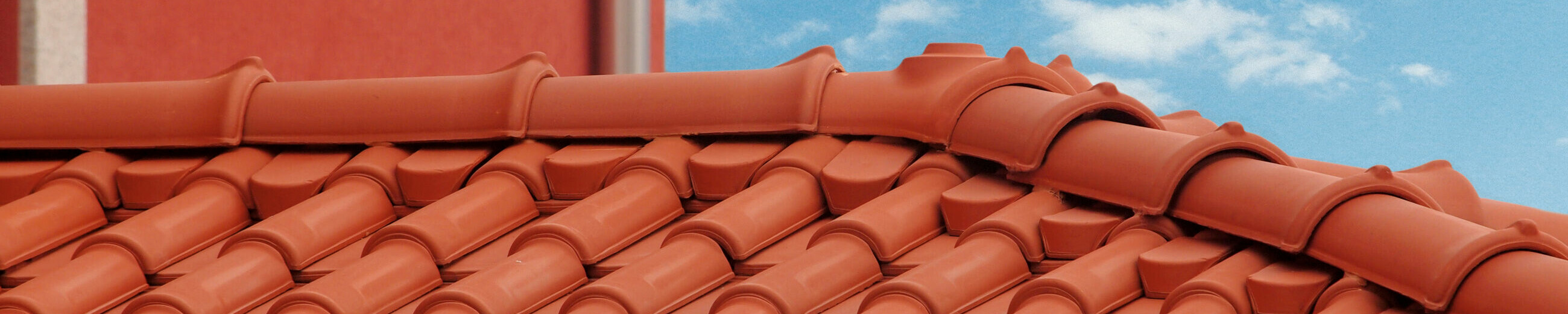

natural red
natural red
NUANCE natural red flamed
NUANCE natural red flamed
NUANCE Tuscany engobed
NUANCE Tuscany engobed

Technical data

Size (appr.)249 x 445 mm
Covering width min. approx.198 mm
Covering width on av. approx.200 mm
Max. coverage width (approx.)202 mm
Min. gauge (approx.)378 mm
Covering length on av. approx.382 mm
Max. gauge (approx.)385 mm
Tile requirement min. (approx.)12.9 pcs/m²
Average tile requirement (approx.)13.1 pcs/m²
Brickware max. approx.13.4 pcs/m²
Unit weight (approx.)3.15 kg/piece
Weight per m² (approx.)40.4 kg/m²
Weight per pallet (approx.)934 kg
Pcs per mini-pack9 piece
Pcs per pallet288 piece

Technical drawings

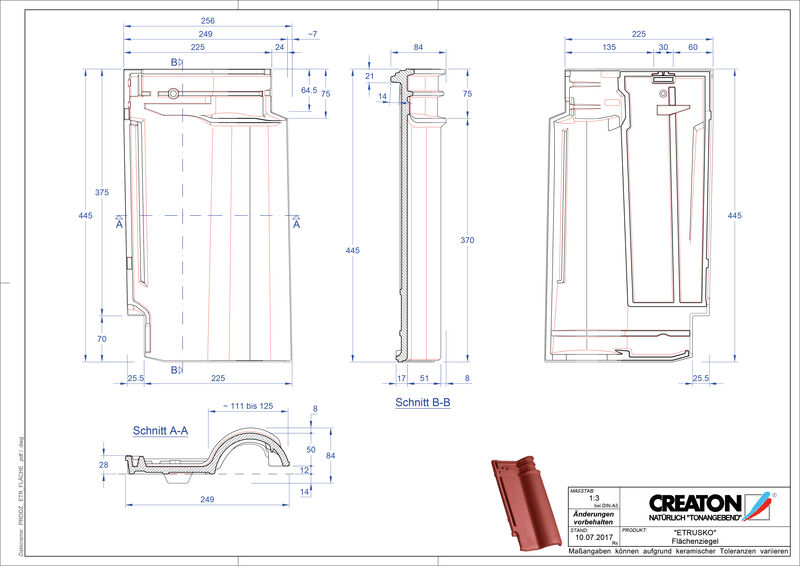

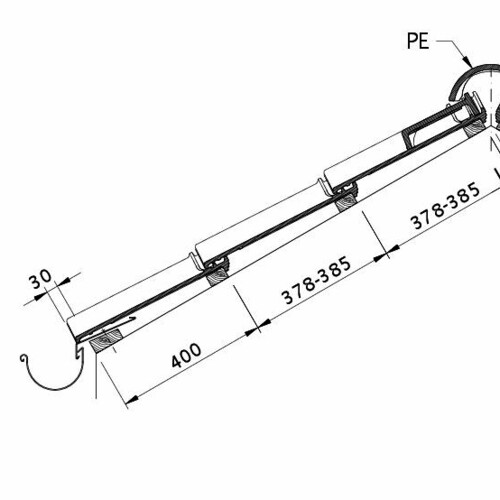

Drawing ETRUSKO roof cross-section DQF
Drawing ETRUSKO roof cross-section DQF

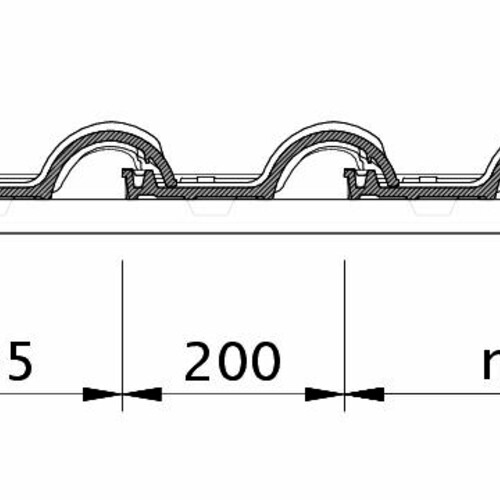

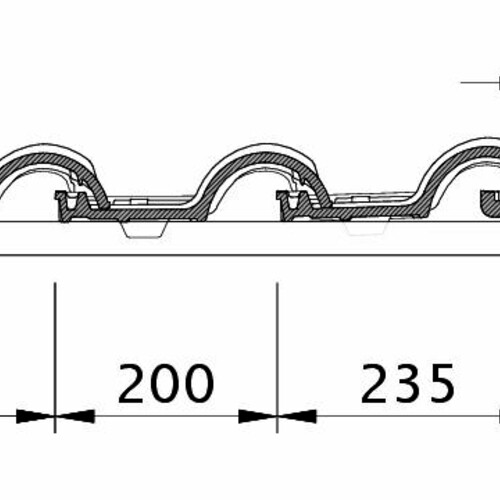

Drawing ETRUSKO verge right with barge board OBR
Drawing ETRUSKO verge right with barge board OBR
Drawing ETRUSKO verge left with verge sheet metal and double roll ODL
Drawing ETRUSKO verge left with verge sheet metal and double roll ODL

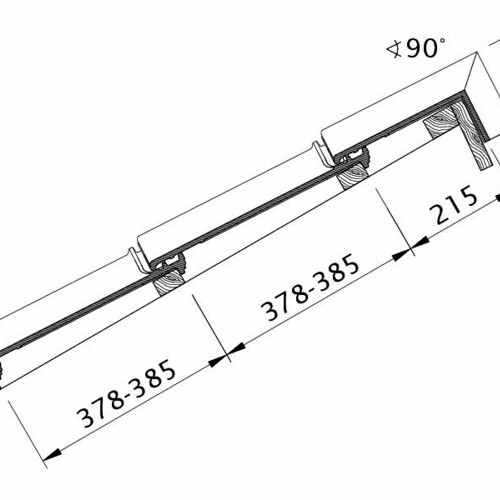

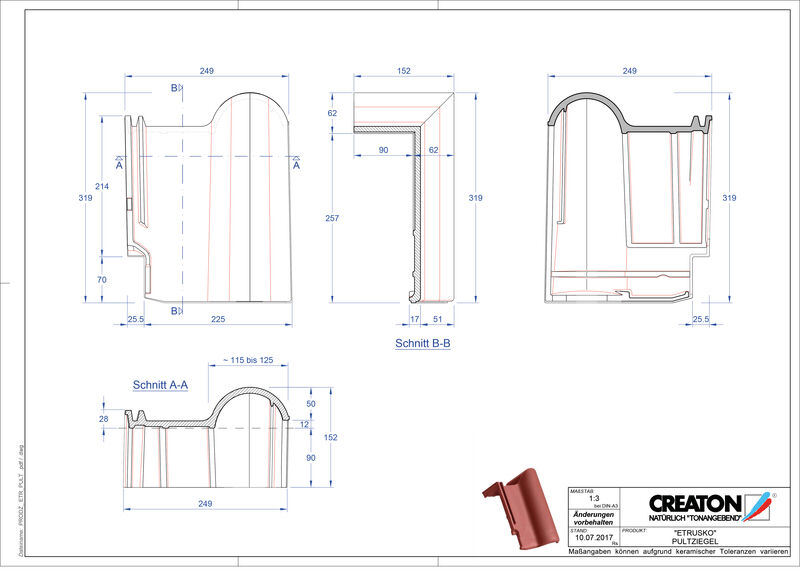

Drawing ETRUSKO shed roof version PDA
Drawing ETRUSKO shed roof version PDA

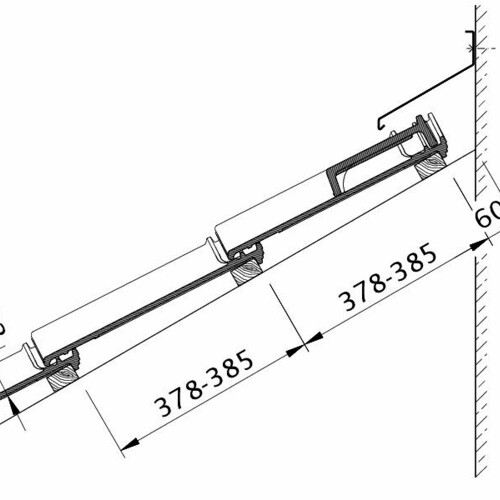

Drawing ETRUSKO wall connection WMF
Drawing ETRUSKO wall connection WMF

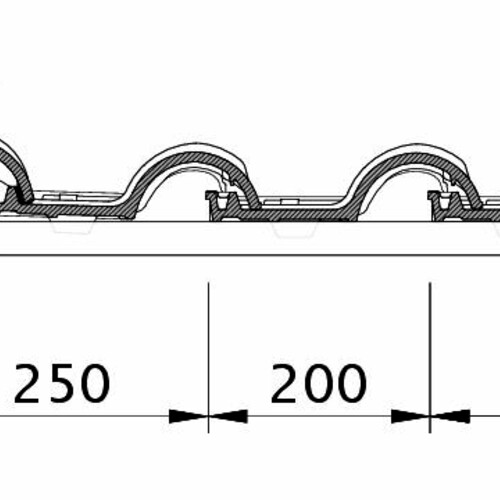

Drawing ETRUSKO verge left with barge board OBL
Drawing ETRUSKO verge left with barge board OBL

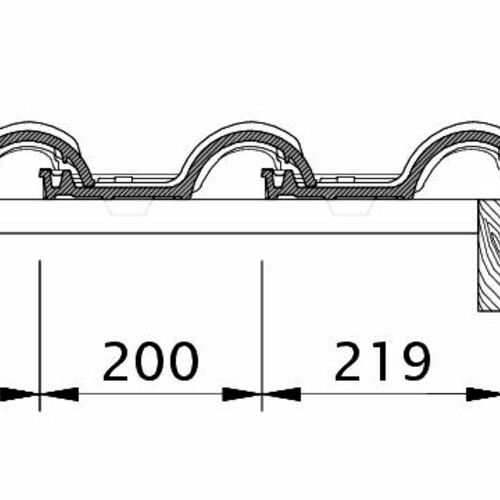

Drawing ETRUSKO verge right with verge sheet metal and field tile OFR
Drawing ETRUSKO verge right with verge sheet metal and field tile OFR

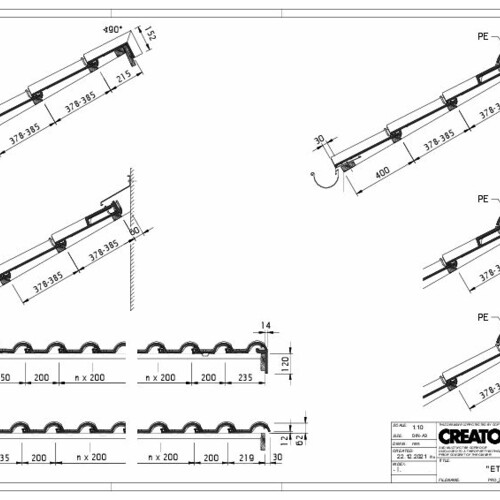

Zeichnung ETRUSKO Gesamtansicht GES
Zeichnung ETRUSKO Gesamtansicht GES

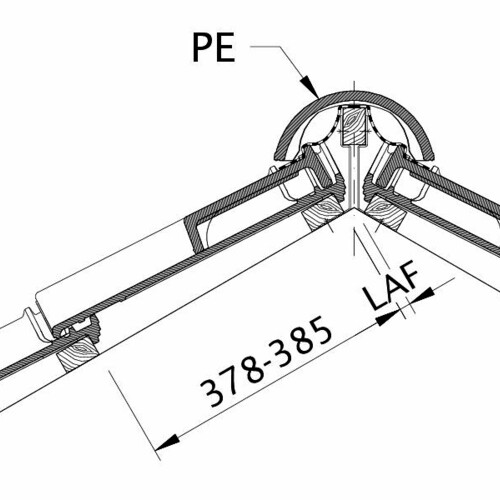

Zeichnung ETRUSKO Lattenabstand zum Firstschnittpunkt, Firstlattenabstand Sonderlösung LAFSON
Zeichnung ETRUSKO Lattenabstand zum Firstschnittpunkt, Firstlattenabstand Sonderlösung LAFSON
Drawing MAGNUM distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing MAGNUM distance from batten to ridge intersection point, ridge batten spacing LAF

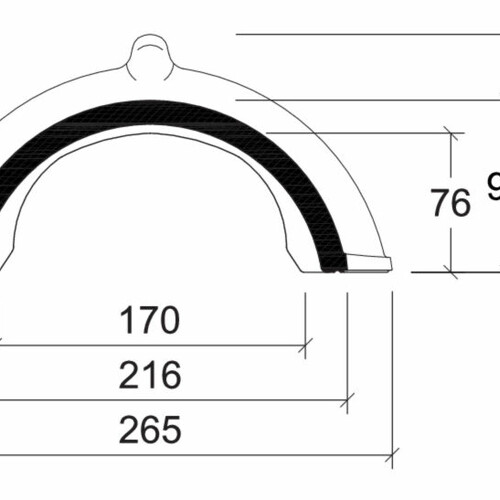

Drawing ridge and hip tile product range PE-Firstziegel
Drawing ridge and hip tile product range PE-Firstziegel

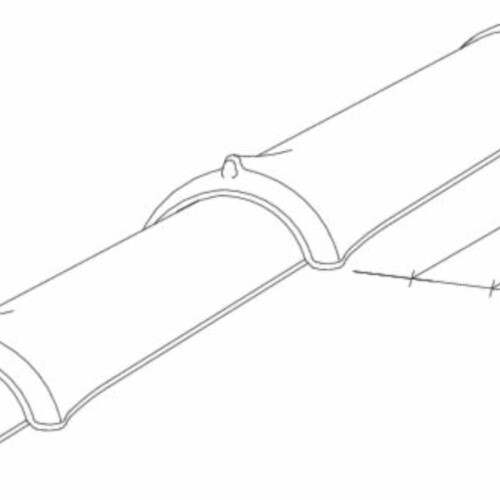

Drawing ridge and hip tile product range PE-Firstziegel-Perspektive
Drawing ridge and hip tile product range PE-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°
PE 2.5 pcs/mLAF50403020151055
PE 2.5 pcs/mFLA155150145135135130125125
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°
PE 2.5 pcs/mLAF50403015105
PE 2.5 pcs/mFLA165160155145145140
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°
PE 2.5 pcs/mLAF453525105
PE 2.5 pcs/mFLA175170165155150

References

more

more

more

Accessory range

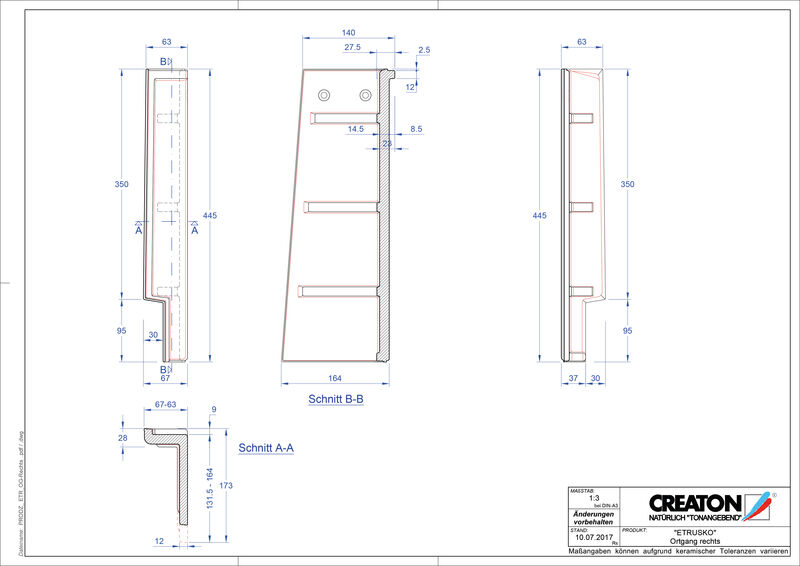

ETR verge tile right

ETR verge tile right

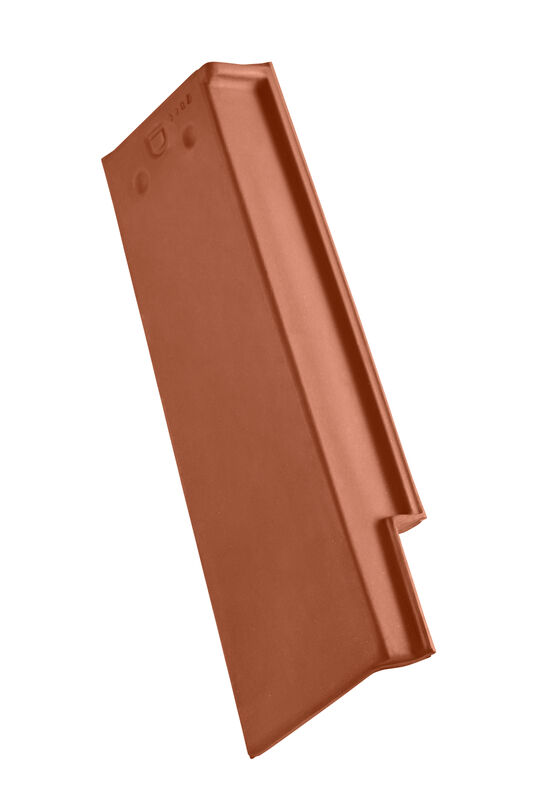

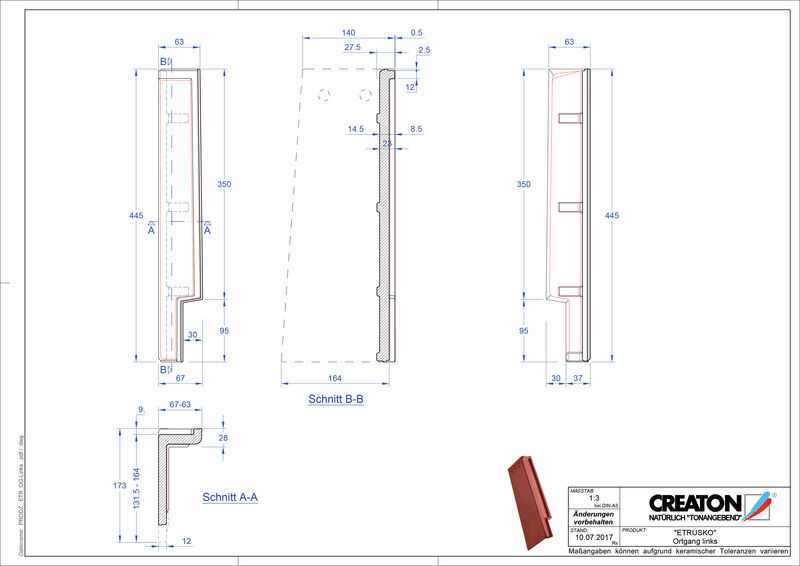

ETR verge tile left

ETR verge tile left

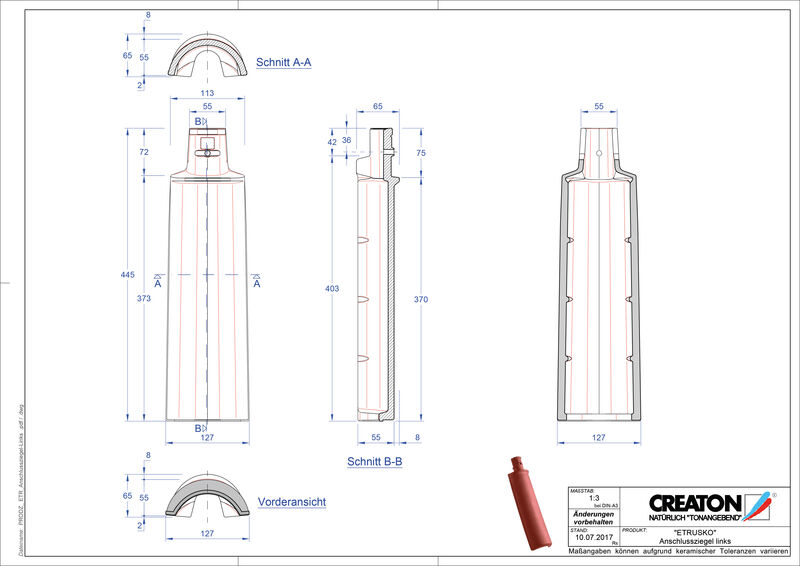

ETR connection tile left

ETR connection tile left

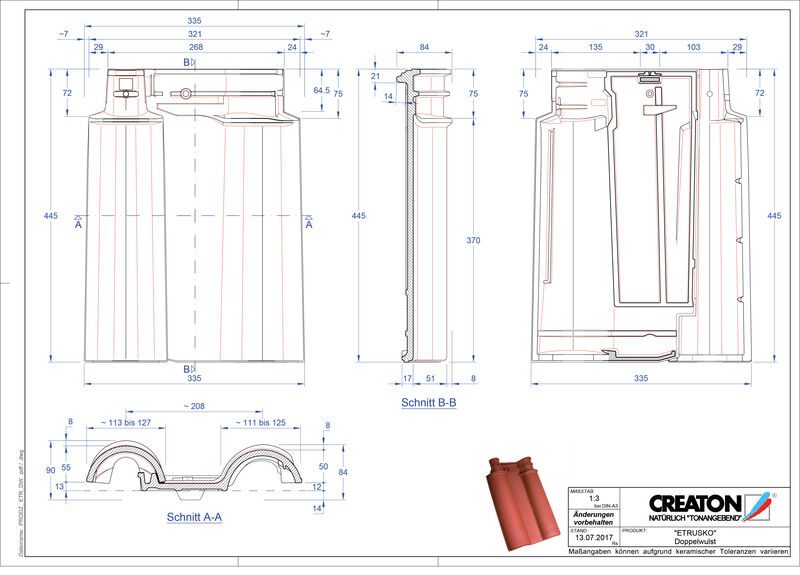

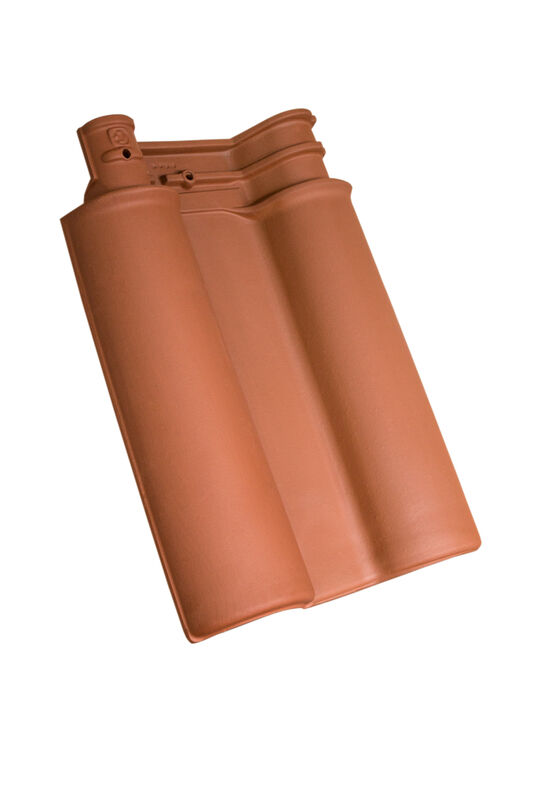

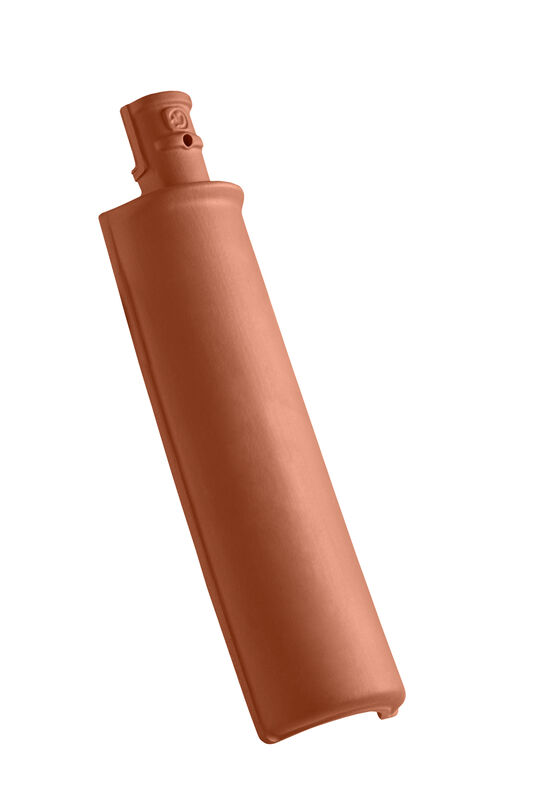

ETR double roll tile

ETR double roll tile

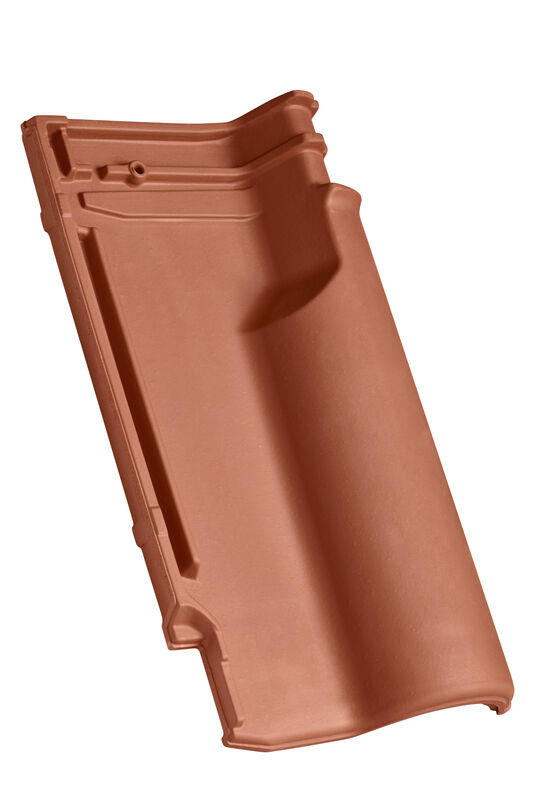

ETR ventilating tile

ETR ventilating tile

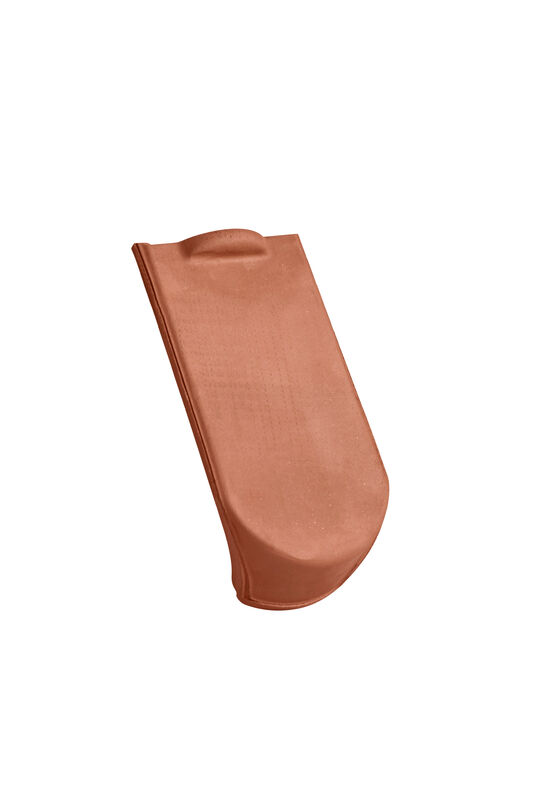

ETR ridge connection insert

ETR ridge connection insert

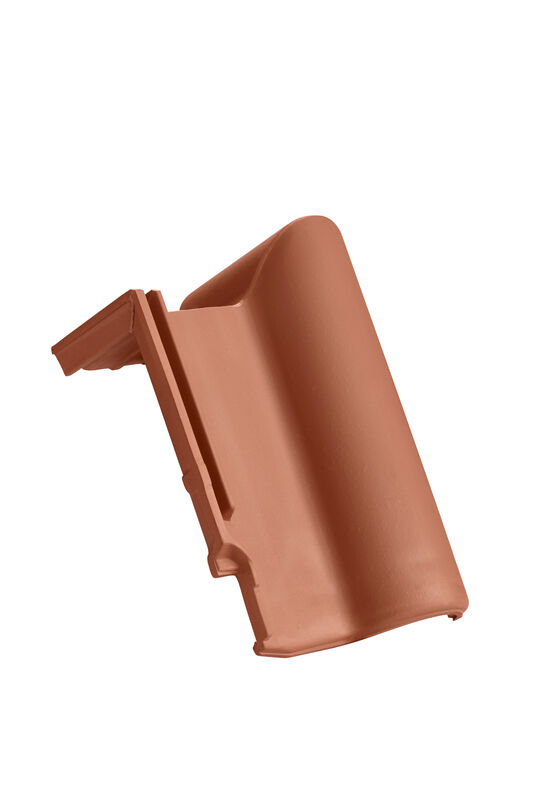

ETR shed roof tile decorated standard

ETR shed roof tile decorated standard

ETR shed roof verge tile decorated standard right

ETR shed roof verge tile decorated standard right

ETR shed roof verge tile decorated standard left

ETR shed roof verge tile decorated standard left

ETR shed roof tile decorated special size

ETR shed roof tile decorated special size

ETR shed roof verge tile decorated special size right

ETR shed roof verge tile decorated special size right

ETR shed roof verge tile decorated special size left

ETR shed roof verge tile decorated special size left

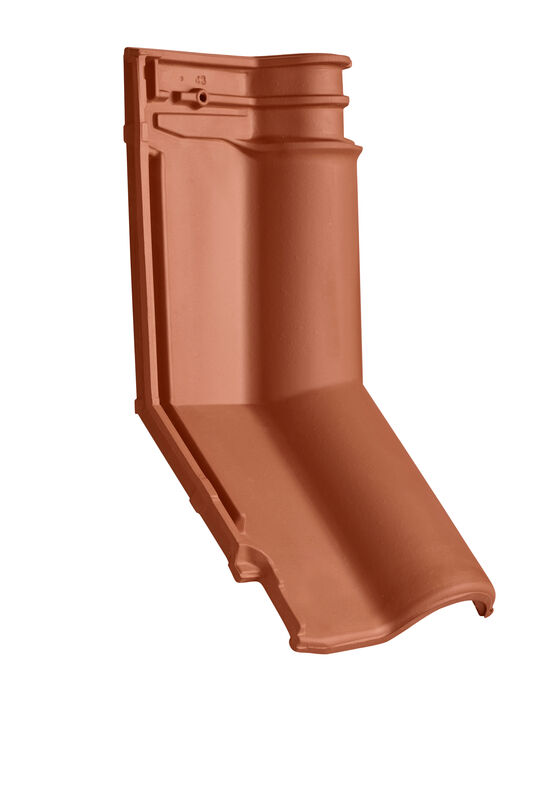

ETR mansard/pitch transition tile decorated special size

ETR mansard/pitch transition tile decorated special size

ETR mansard/pitch transition verge tile decorated special size right

ETR mansard/pitch transition verge tile decorated special size right

ETR mansard/pitch transition verge tile decorated special size left

ETR mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

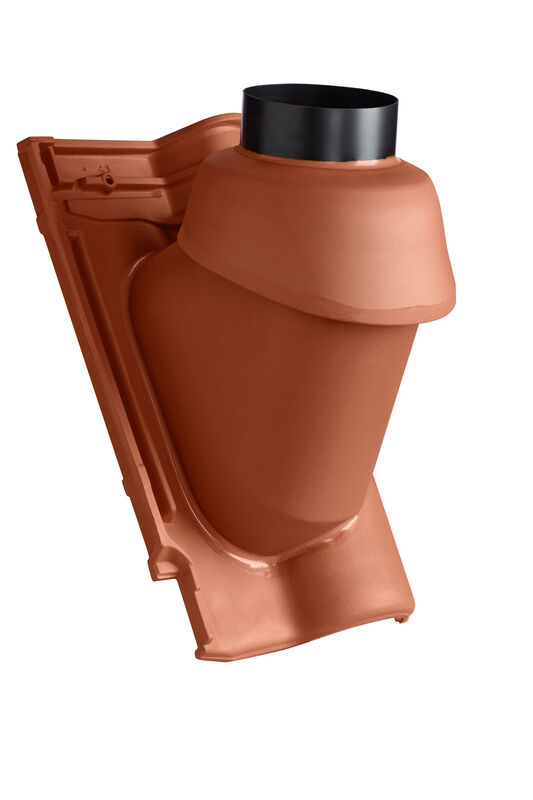

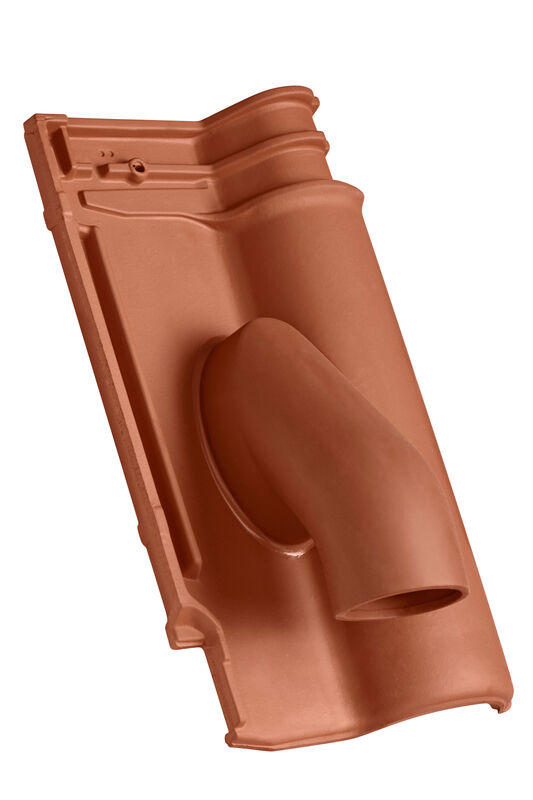

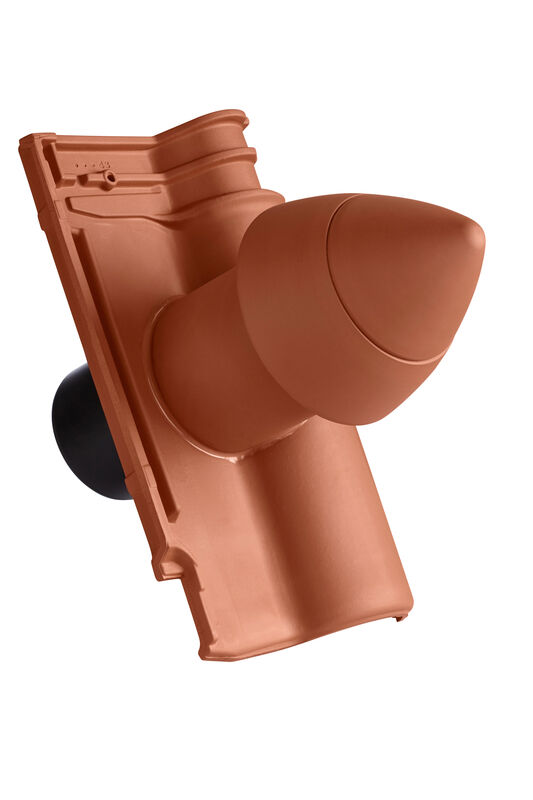

ETR SIGNUM ceramic outlet vent DN 100 mm with screw-on hood, incl. sub-roof connection adapter and flexible duct

ETR SIGNUM ceramic outlet vent DN 100 mm with screw-on hood, incl. sub-roof connection adapter and flexible duct

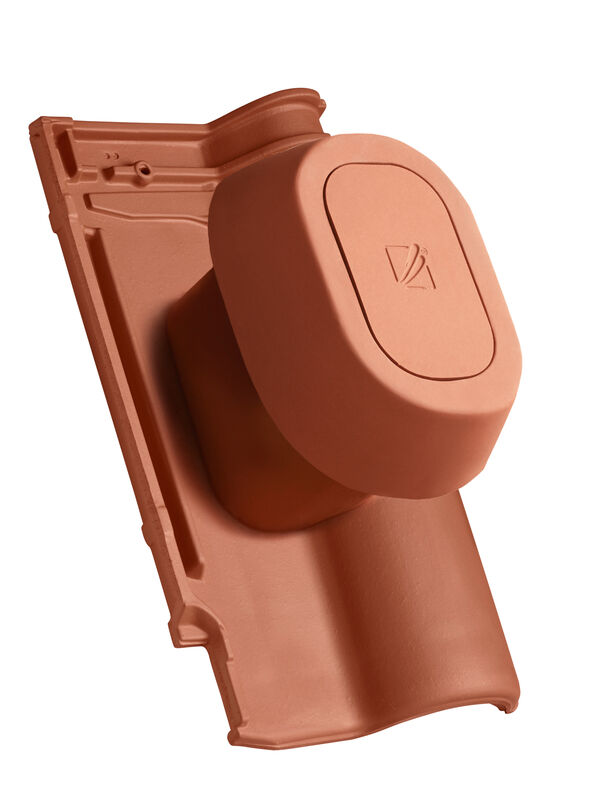

ETR SIGNUM ceramic outlet vent DN 125 mm with removable cap, incl. sub-roof connection adapter and flexible duct

ETR SIGNUM ceramic outlet vent DN 125 mm with removable cap, incl. sub-roof connection adapter and flexible duct

ETR SIGNUM ceramic vapour vent DN 150/160 mm incl. sub-roof connection adapter

ETR SIGNUM ceramic vapour vent DN 150/160 mm incl. sub-roof connection adapter

ETR SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

ETR SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

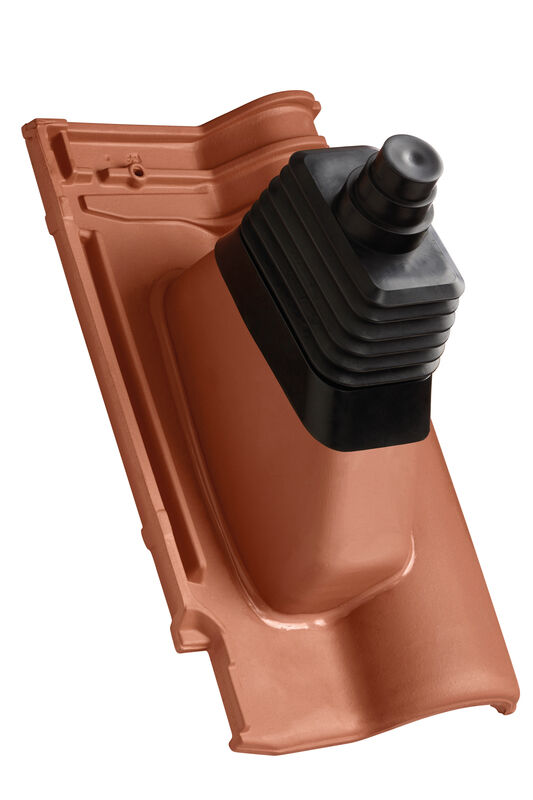

ETR aerial entry

ETR aerial entry

ETR solar entry tile

ETR solar entry tile

ETR flue pipe penetration NW 110

ETR flue pipe penetration NW 110

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

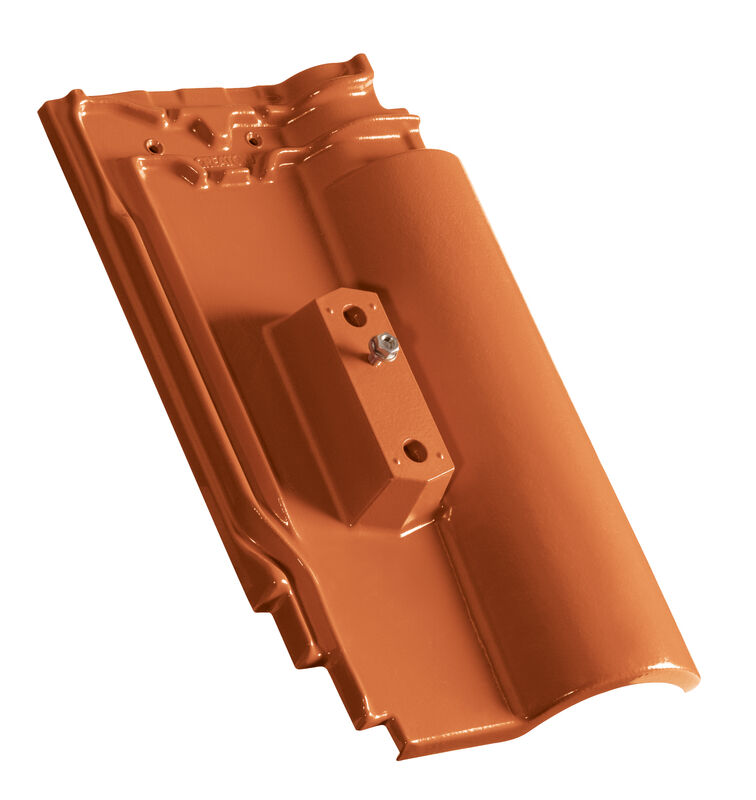

ETR aluminium base element

ETR aluminium base element

Solar element bracket

Solar element bracket

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard support

Mountain snow guard support

Cylindrical tube Ø 40 mm length 3 m

Cylindrical tube Ø 40 mm length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Log bracket

Log bracket

Coupling for tube Ø 32 mm

Coupling for tube Ø 32 mm

Ridge and hip tile product range

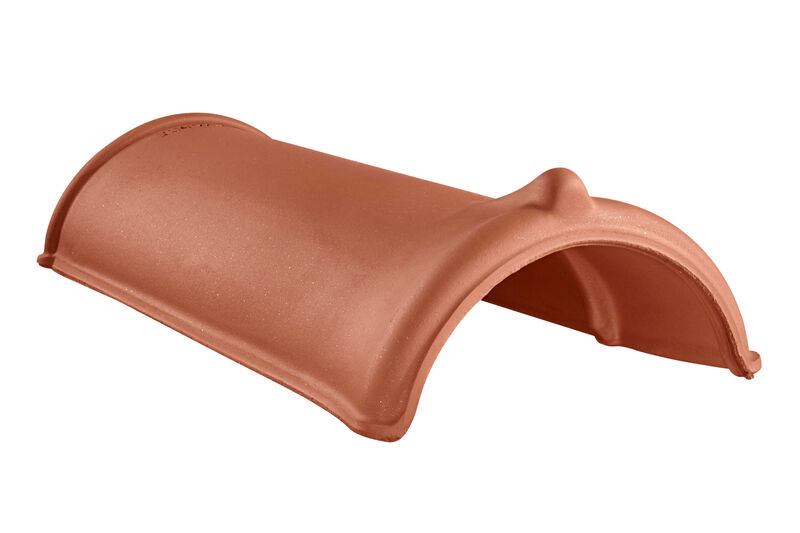

UMP ridge tile PE

UMP ridge tile PE

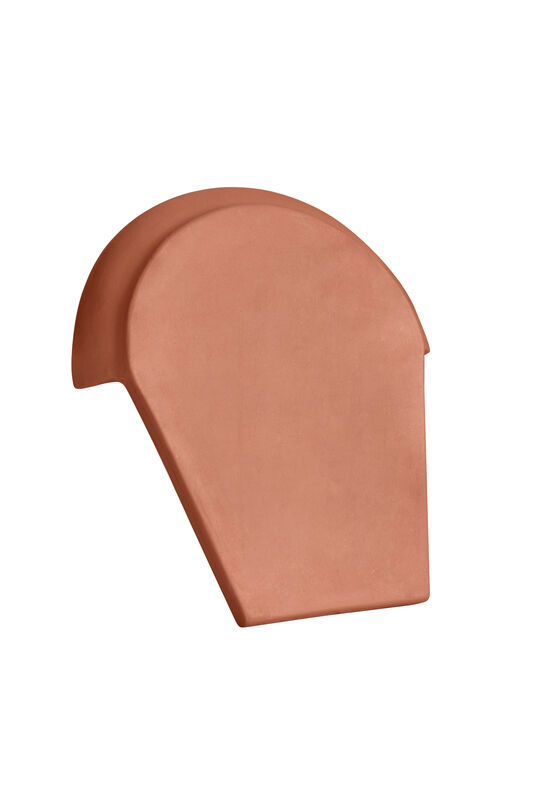

UMP ridge starter and termination plate ceramic PE

UMP ridge starter and termination plate ceramic PE

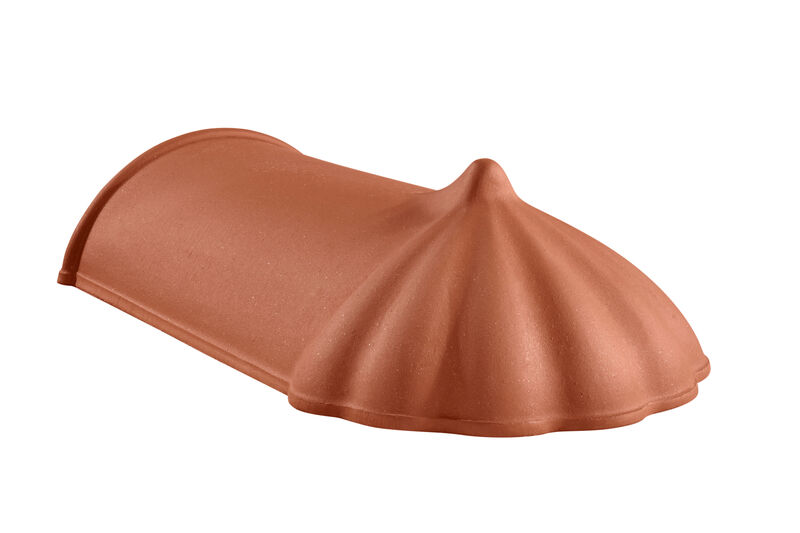

UMP hip starter ceramic PE

UMP hip starter ceramic PE

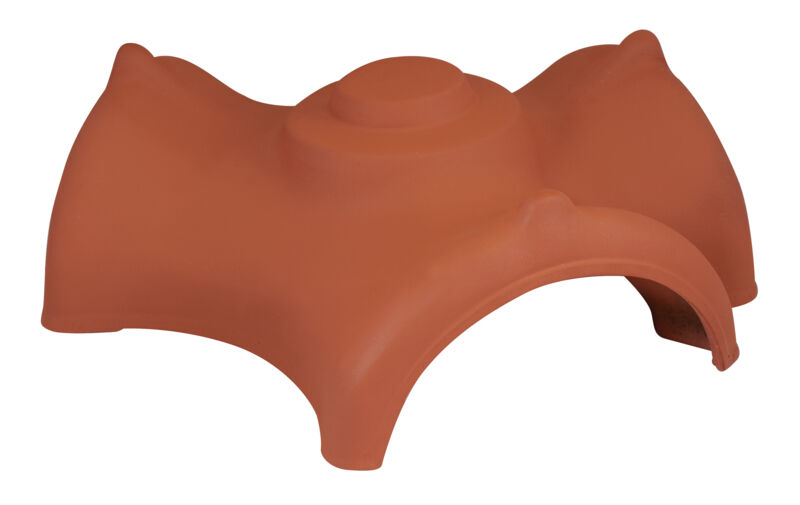

UMP hip cap 3-axis PE

UMP hip cap 3-axis PE

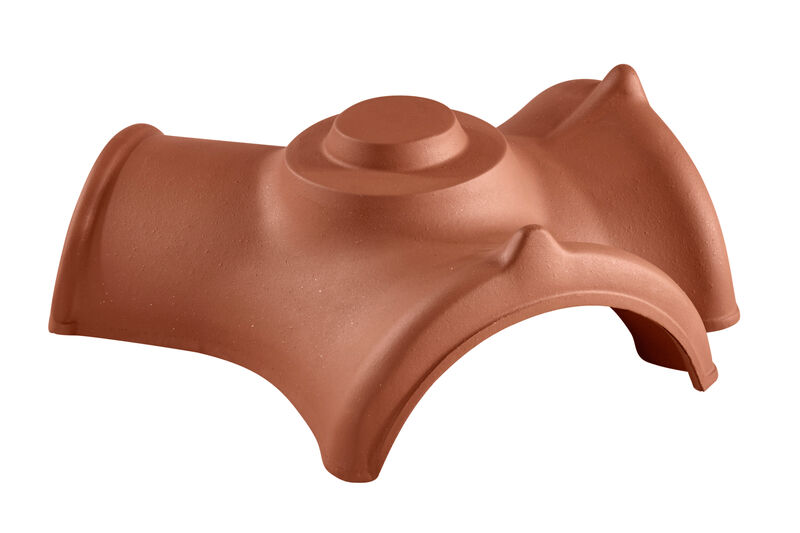

UMP hip cap, 3-axis PE (overlap on 2 sides, underlap on 1 side)

UMP hip cap, 3-axis PE (overlap on 2 sides, underlap on 1 side)

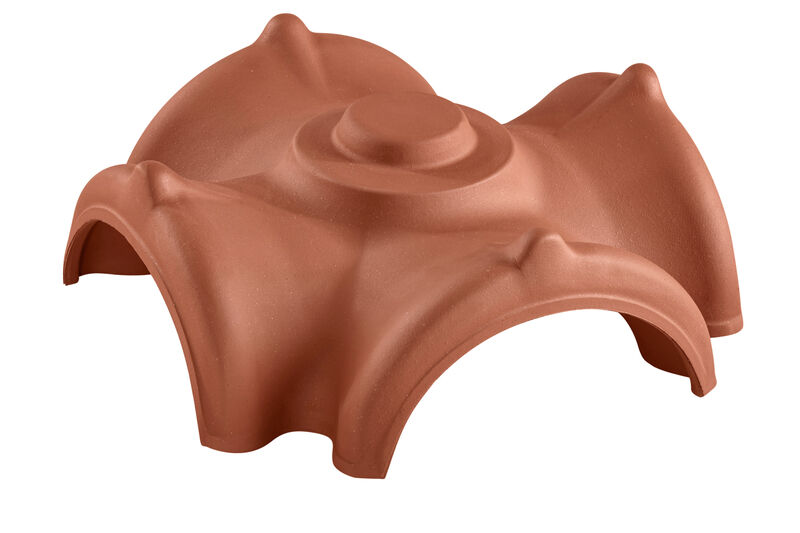

UMP hip cap 4-axis PE
