PROFIL Berlin plain tile natural red

PROFIL Berlin plain tile

The plain tile with the profiled surface.

natural red
natural red

Technical data

Size (appr.)160 x 380 x 16 mm
Max. coverage width (approx.)160 mm
Covering length on av. approx.155 mm
Max. gauge (approx.)165 mm
Min. gauge (approx.)145 mm
Average tile requirement (approx.)40 pcs/m²
Weight per m² (approx.)84 kg/m²
Weight per pallet (approx.)1051 kg
Unit weight (approx.)2.1 kg/piece
Pcs per pallet480 piece
Pcs per mini-pack6 piece

Applications

Valid for Germany
Roof pitch DUO extra (Germany)≥ 22 °
Roof pitch QUATTRO longlife extra (Germany)≥ 10 °
Roof pitch TRIO extra (Germany)≥ 18 °
Valid for Austria
Roof pitch DUO extra (Austria)≥ 25 °
Roof pitch QUATTRO longlife extra (Austria)≥ 25 °

Technical informations

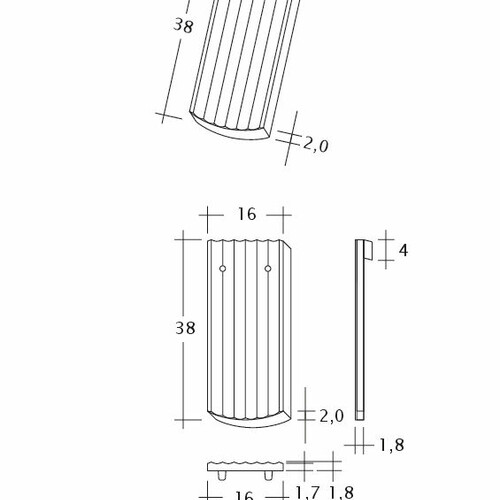

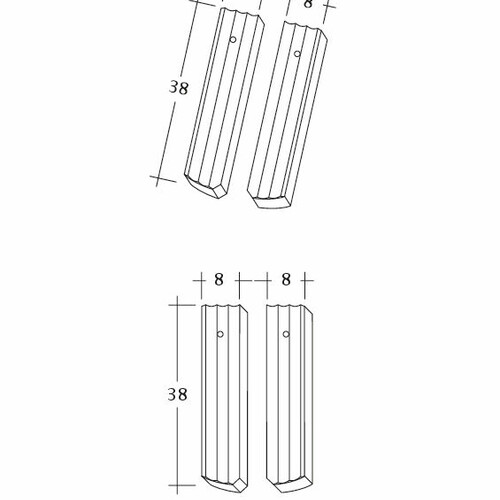

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
  • Bitte berücksichtigen Sie das Musterschreiben für die Regeldachneigungen CREATON.
