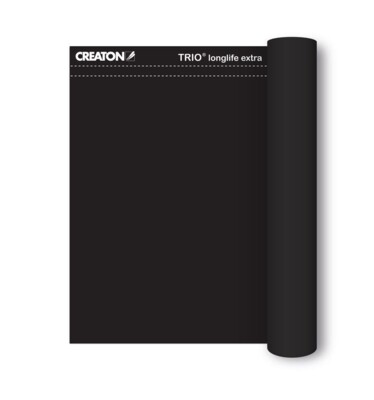

CREATON TRIO longlife extra

2-layer, highly UV resistant, vapour-permeable sub-roof and facade membrane with a special acrylic coating and a PES non-woven fabric
Suitable for supported or unsupported application, can be placed directly on thermal insulation or wood
Ensures a closed thermal insulation system and protects the wall and pitched roof from rain, wind, snow, dust and moisture
Suitable for installation on vertical wall surfaces and as a wind barrier for ventilated facades with open joints up to 50 mm wide comprising up to 40% of the total area
Resistant to chemical impregnation, chain saw oil, wood rot and mould
Two self-adhesive strips ensure perfect adhesion of the membranes

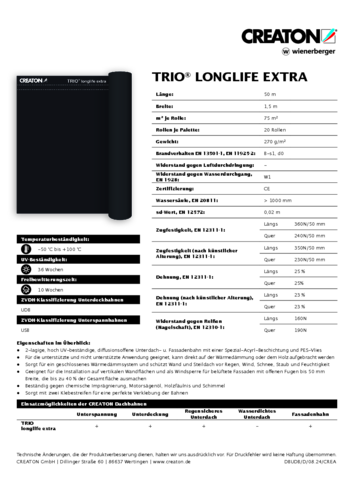

Technical data

Length	50 Metre
Width	1.5 Metre
m² per roll	75 m²
Packaging (quantity)	20
Weight per roll	20.25 kg
Fire performance	Class B-s1,dO
Resistance to air penetration	-
Resistance to water penetration	W1
Certification	CE
Water column, EN 20811	> 100 cm
sd value	0.02 Metre
Longitudinal tensile strength, EN 12311-1	360N/50 mm
Transverse tensile strength, EN 12311-1	240N/50 mm
Longitudinal tensile strength (after artificial ageing), EN 12311-1	350N/50 mm
Transverse tensile strength (following artificial ageing), EN 12311-1	230N/50 mm
Longitudinal expansion, EN 12311-1	25 %
Transverse expansion, EN 12311-1	25 %
Longitudinal expansion (after artificial ageing), EN 12311-1	23 %
Transverse expansion (following artificial ageing), EN 12311-1	23 %
Longitudinal tear resistance (nail shank) (after artificial ageing)	160 N
Transverse tear resistance (nail shank) (after artificial ageing)	190 N
Thermal stability	-50°C bis +100°C
UV resistance	At most 12 weeks
Outdoor exposure period	At most 10 weeks

Additional measures according to CREATON manufacturer's specifications
Ja	Trussing sheet/glued sub-roof without nail seals
Ja	Trussing sheet/glued sub-roof with nail seals
Ja	Rain-proof sub-roof
Nein	Watertight sub-roof
Nein	Special solution 7° roof
