Fastening and storm protection – how to make the CREATON roof as solid as a rock



Wind is an extremely cunning weather phenomenon; it not only hits surfaces and produces a lot of pressure, it also produces a second rather more treacherous effect. If the wind rebounds from a surface, turbulence is created that includes special suction effects. This effect acts much more powerfully on flat roof structures than pitched roofs. Germany is divided into four wind zones and, depending on the geographical location of the property, supplementary protection of clay roof tiles and concrete roof tiles can be mandatory. Of course, the mathematical calculation of required additional protection of clay roof tiles and concrete roof tiles – which may be requested by the insurance company for example – is part of the design of a roof.



High reliability in a clay tile roof – even when a storm is afoot and the wind is howling

There are various clips in the CREATON accessories for clay tile roofing to adequately protect the roof, even in high wind regions. Hook storm clips in aluminium or drive-in storm clips for even more robust protection are available in different variants. Special plain tile clips that make roofs storm resistant, even in the windiest regions, are available for plain tiles.



Montage einer Einhängeklammer

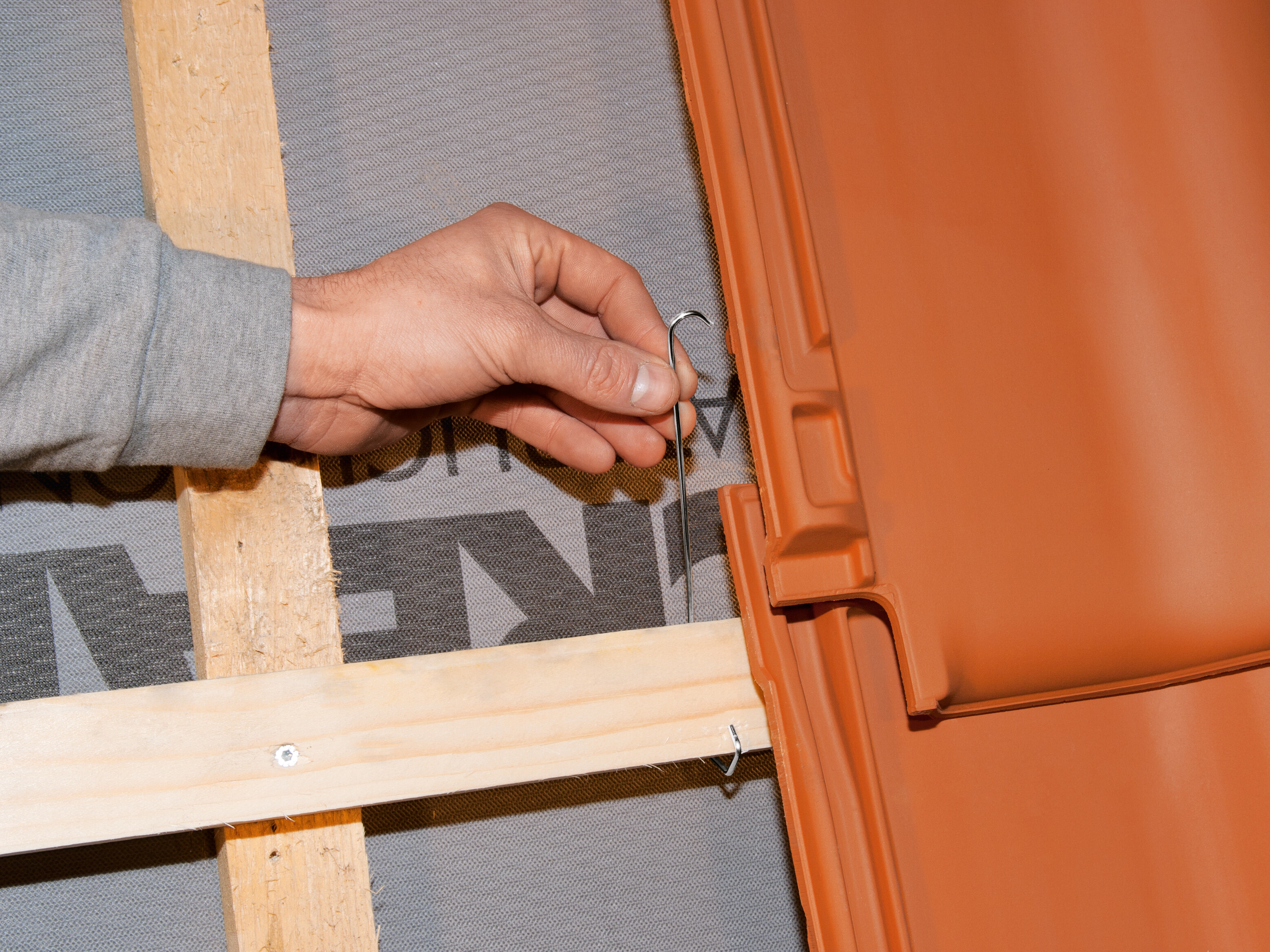

Installation of a hanger clip

The clip is pushed underneath the batten and hooked onto it and then fastened in the side groove with the long leg. The lower left-hand tile is not shown here but should be covered beforehand.

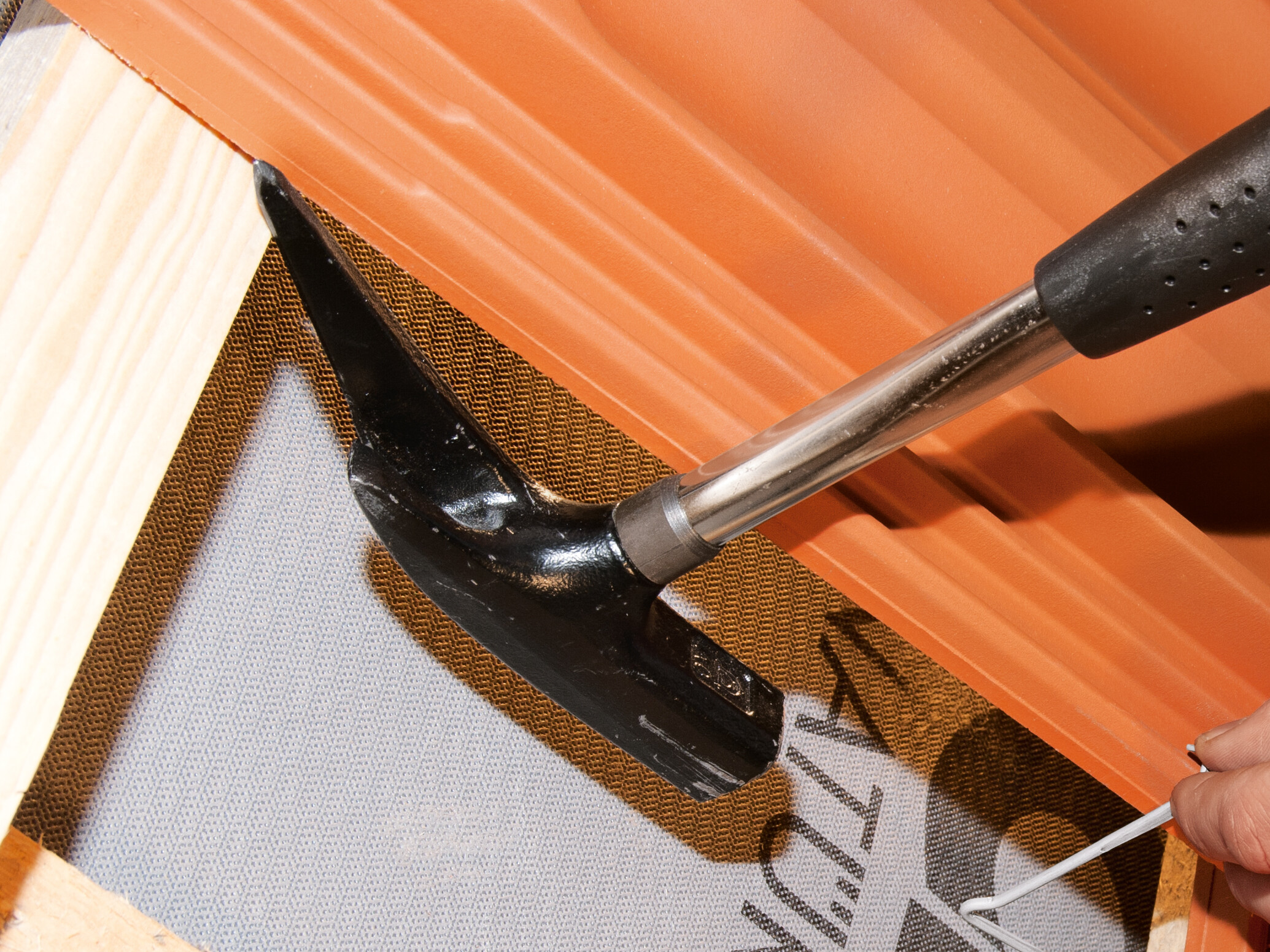

Montage einer Einschlagklammer

Installation of a drive-in clip

The clip is driven into the carrier batten with the nail and attached in the side groove by the U-shaped leg.

Einhängeklammer für Tondachziegel

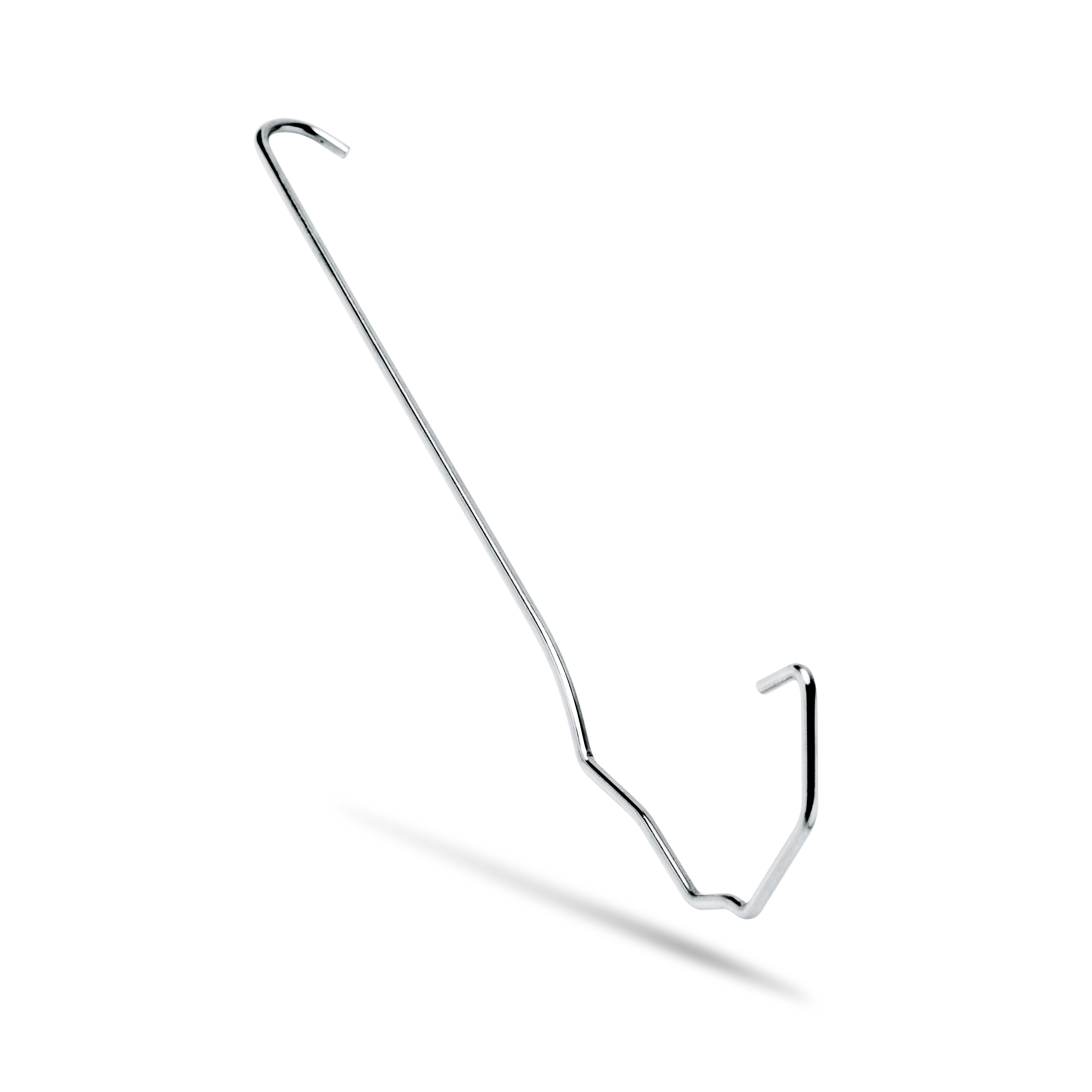

Hanger clip for clay roof tiles

The clip is pushed underneath the batten and hooked onto it and then fastened in the side groove with the long leg.

Einschlagklammer

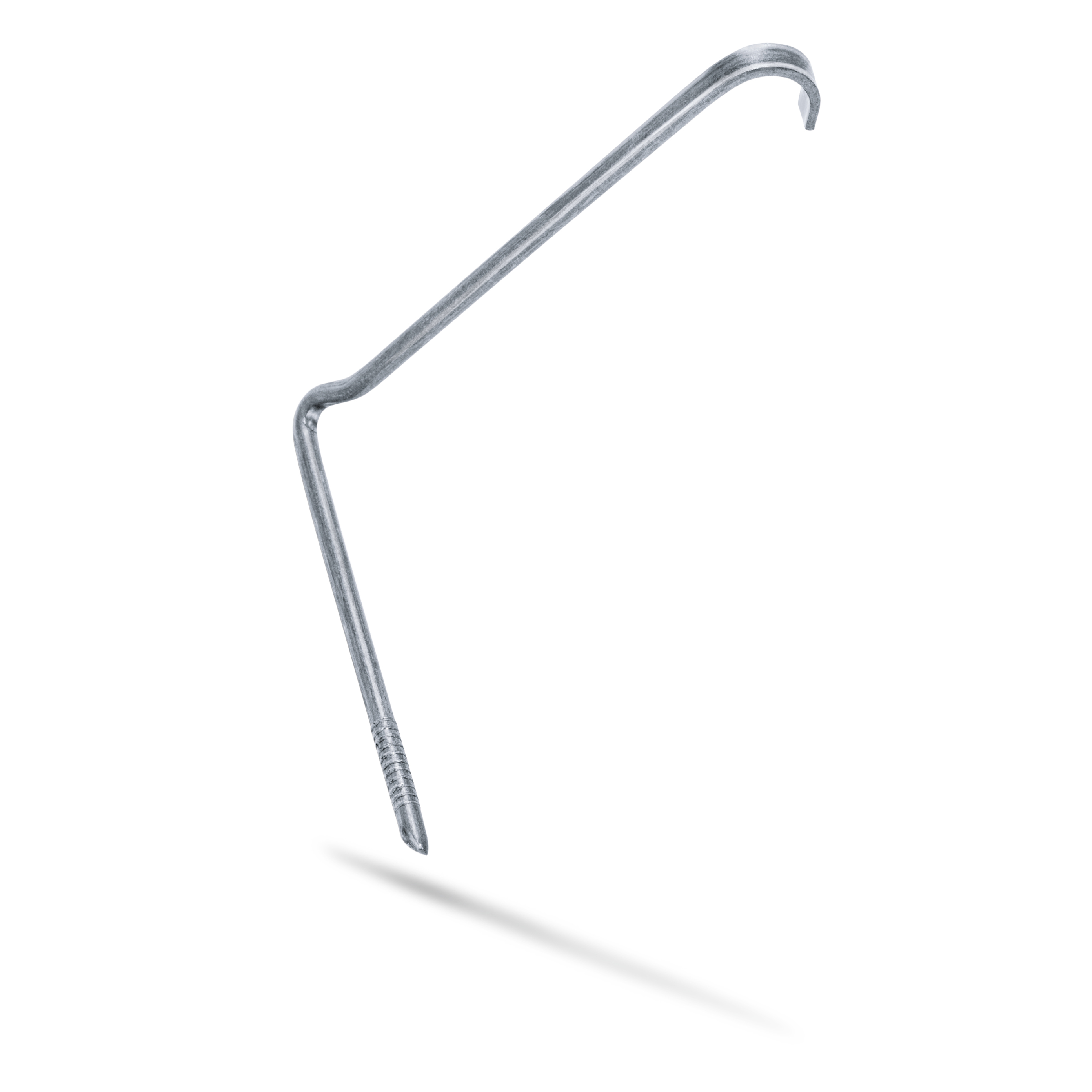

Drive in clip

The clip is driven into the carrier batten with the nail and attached to the side groove by the U-shaped leg.

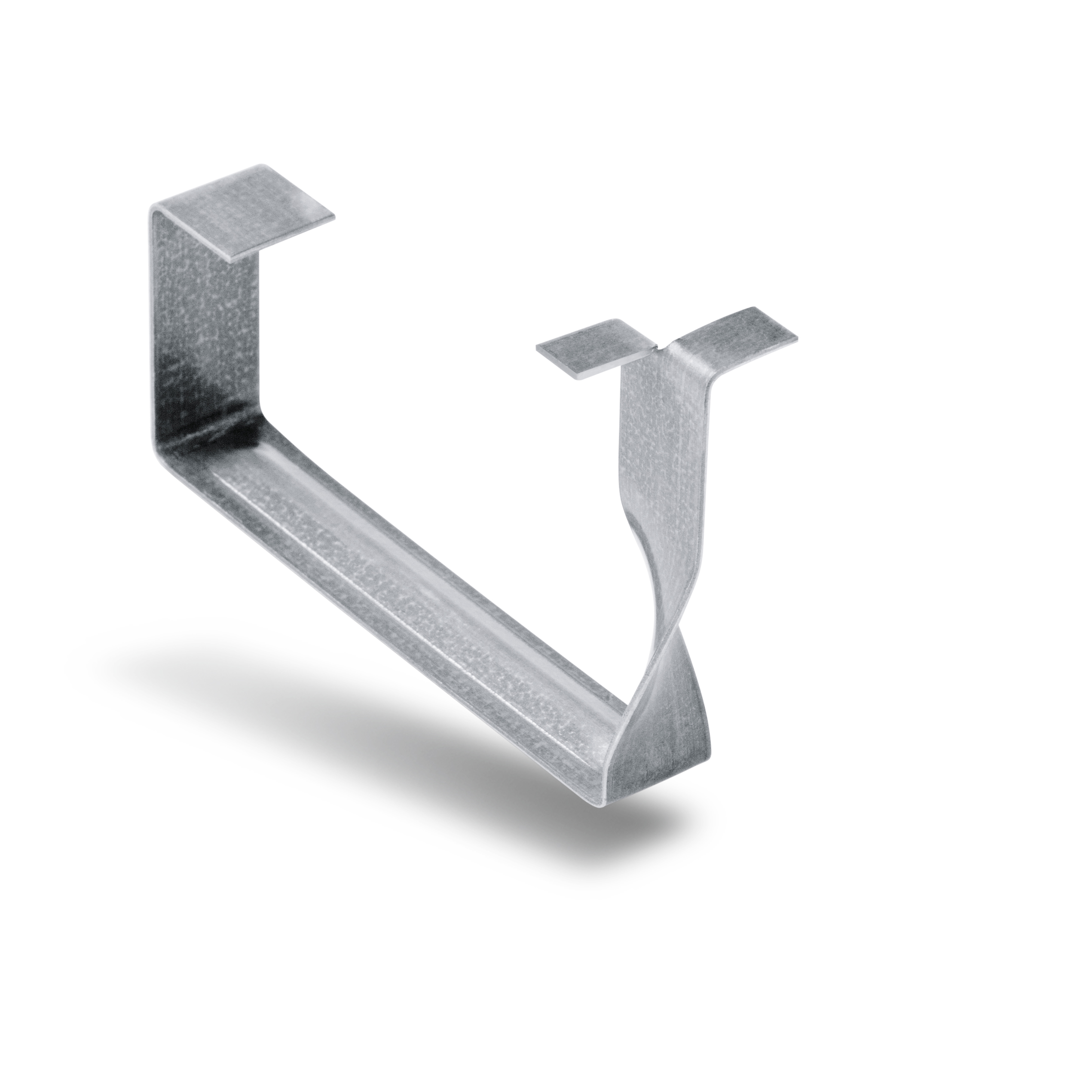

Einhängeklammer für Biberschwanzziegel

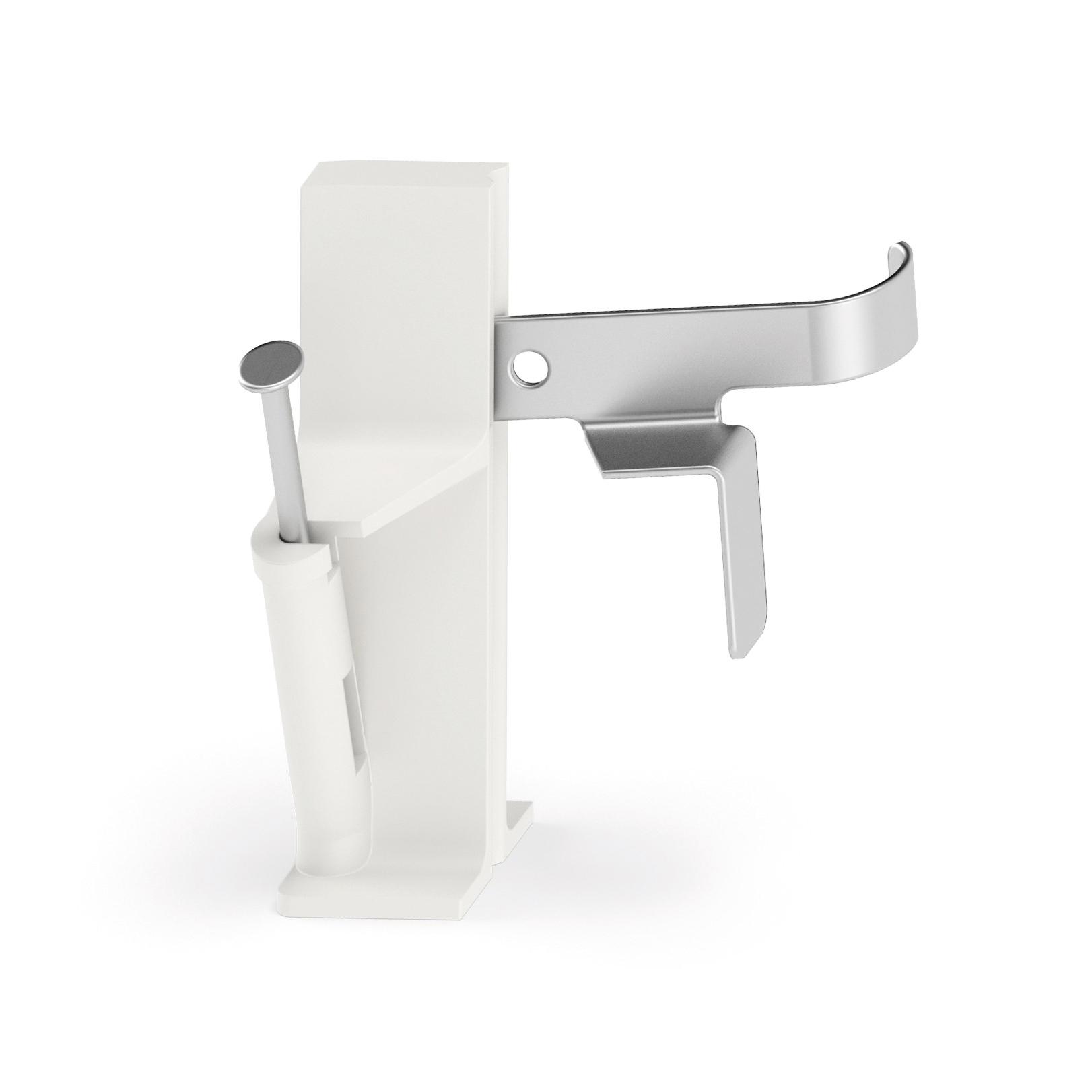

Hanger clip for plain tile

The clip is attached by passing it under the batten from above. The T leg holds the tile firmly from above.

Sonderklammer PROFIL Strangfalzziegel

Special clip for PROFIL side interlock tile

Both of the clip hooks are hooked into the lateral interlocking joint and set down on the head area of the side interlock tile below. The nail is then driven in.

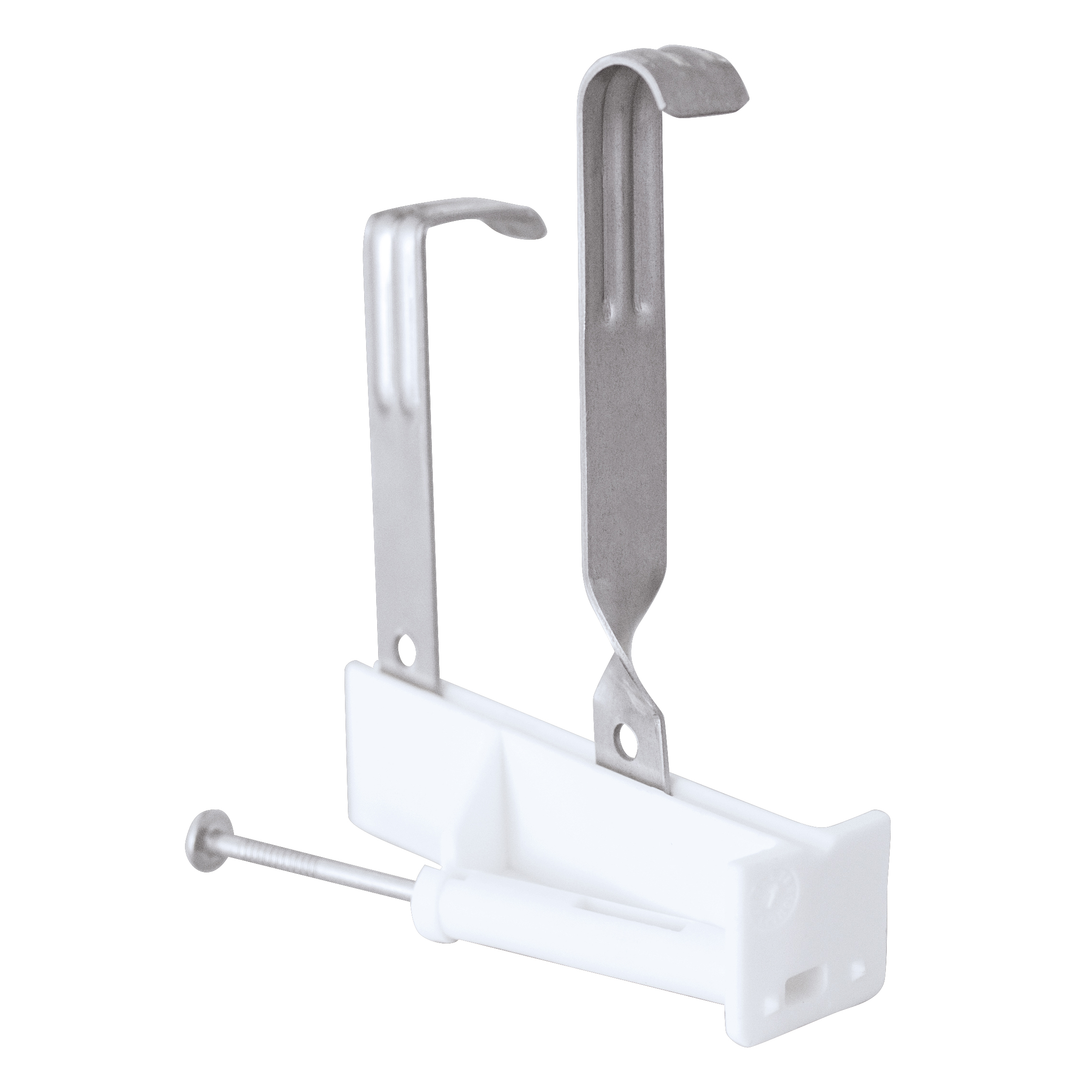

Sonderklammer ETRUSKO

Special Etrukso clip

Grat- und Kehlklammer Edelstahl

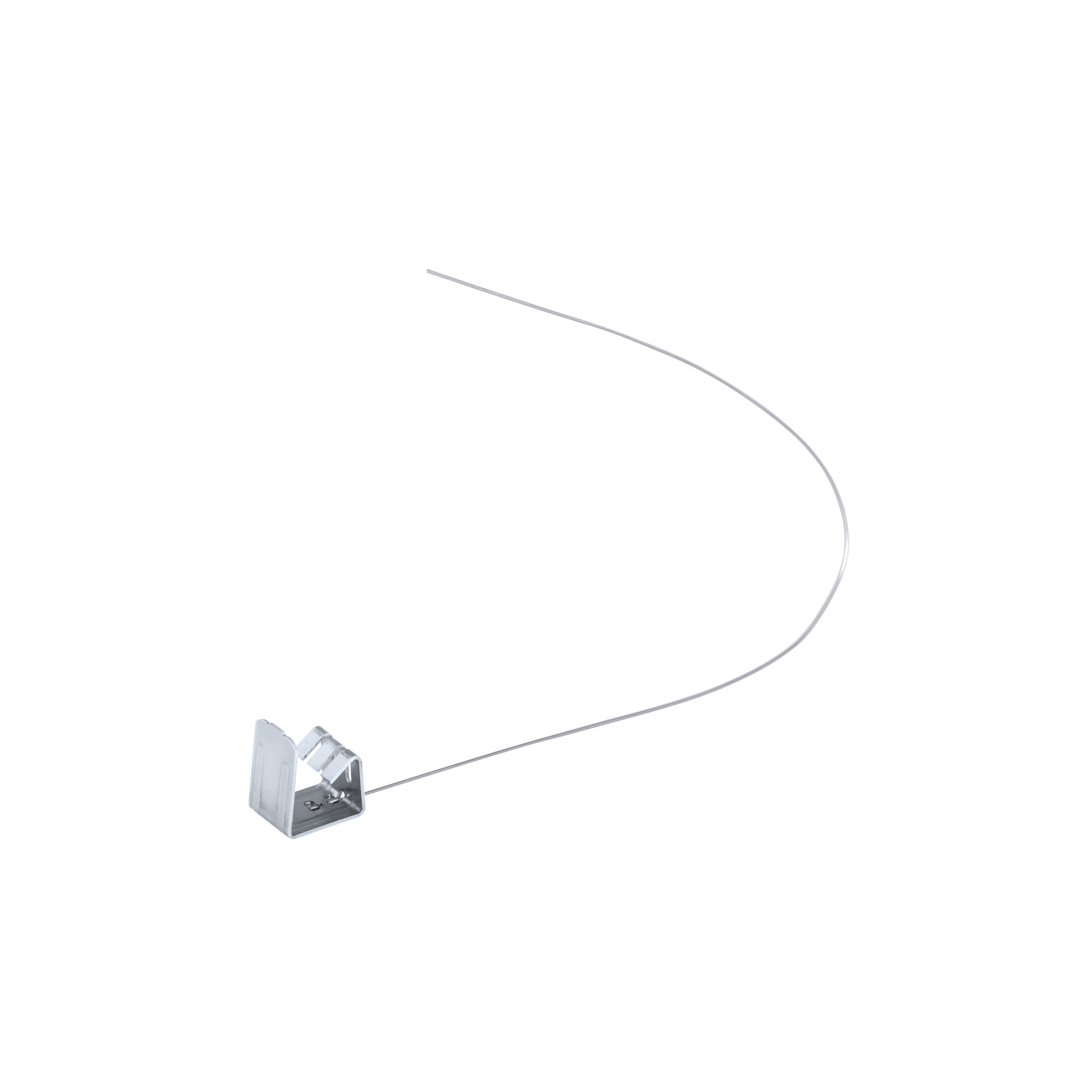

Stainless steel hip and valley clip

Universal-Sturmklammer Pultziegel

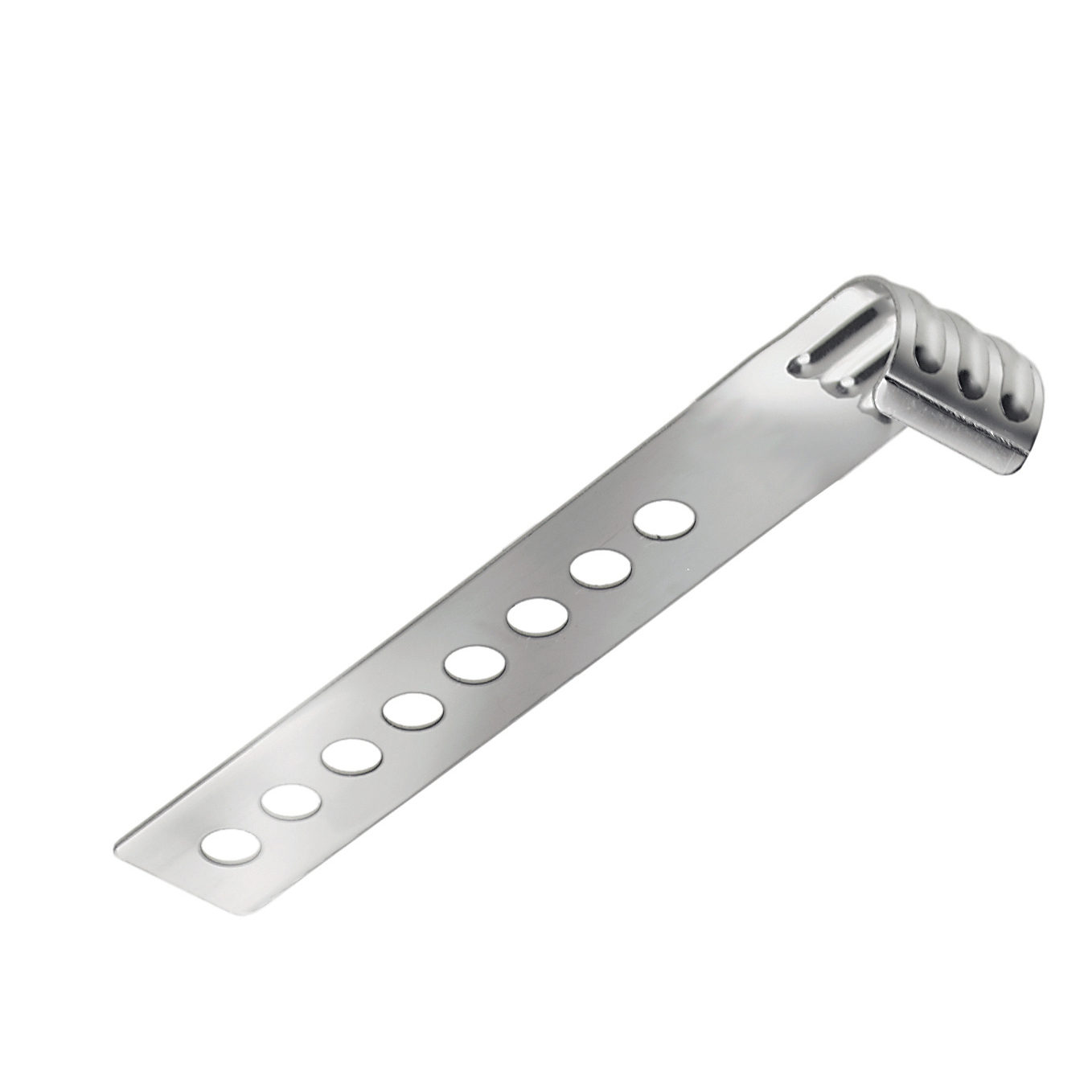

Universal shed roof tile storm clip

Fixation for concrete roof tiles – additional protection for the roof

Even concrete roof tiles with their inherent wind resistance may need an additional safeguard under certain conditions. Here too, there are storm clips made of steel with a zinc-aluminium alloy or stainless steel that are hooked or driven-in as an additional variant.



Einhängeklammer für Dachsteine

Hanger clips for concrete roof tiles

The hanger clips are suitable for the HEIDELBERG, VERONA and GÖTEBORG models.

Einschlagklammer für Dachsteine

Drive-in clips for concrete roof tiles

The drive-in clips are suitable for the HEIDELBERG, VERONA and GÖTEBORG models.

Einschlagklammer für KAPSTADT

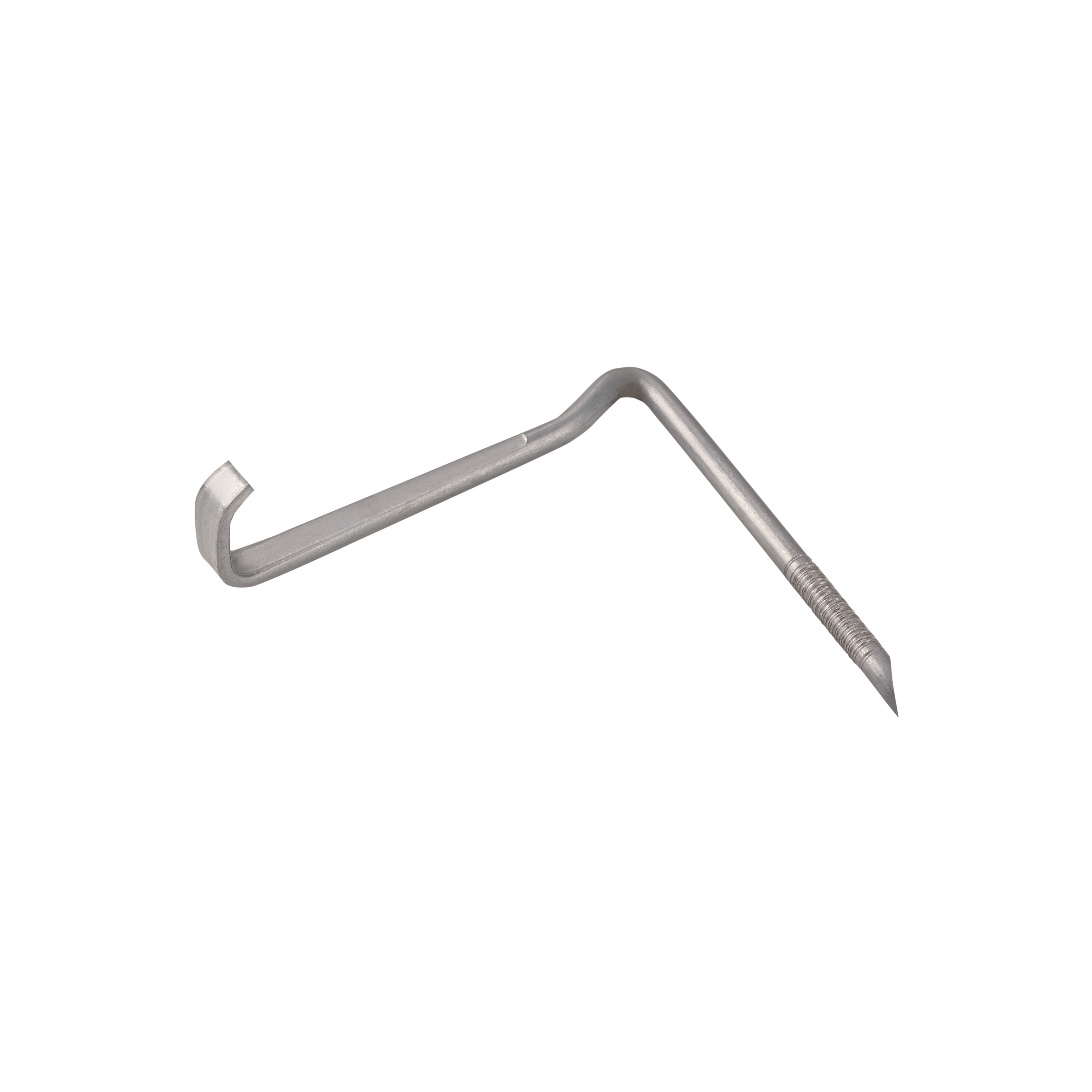

Drive-in clip for KAPSTADT
