AMBIENTE segmented cut NUANCE brown engobed

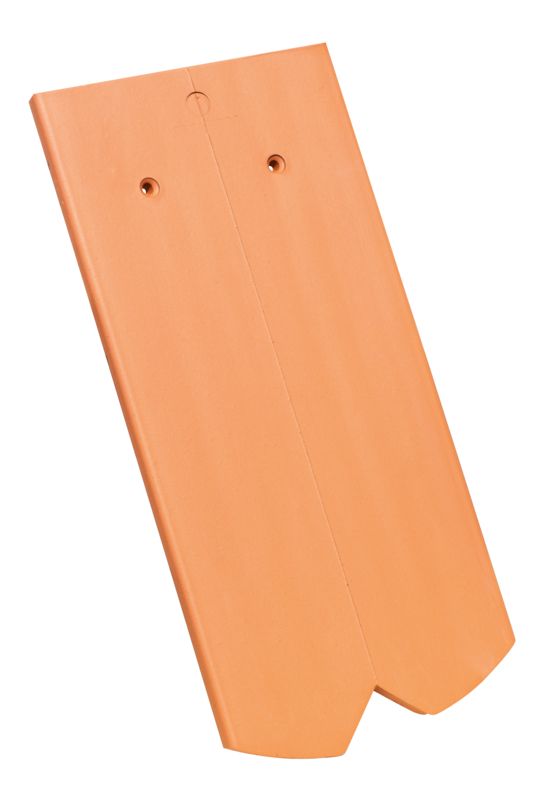

AMBIENTE segmented cut

  • Add subtle transitions to large-scale roofs
  • Numerous different cut shapes facilitate imaginative roof design at the highest level
  • This selection caters for almost every imaginable roof design, from traditional vernacular styles to pioneering modernity
  • Linking tradition and modernity

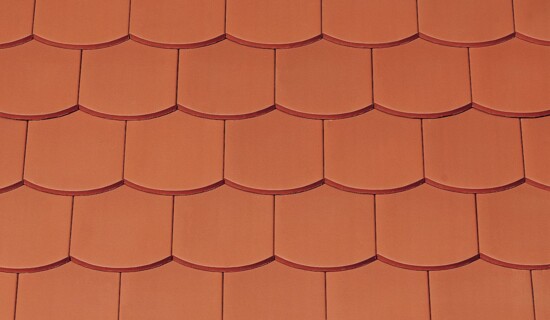

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE anthracite engobed
NUANCE anthracite engobed
NUANCE antique grey engobed
NUANCE antique grey engobed

Technical data

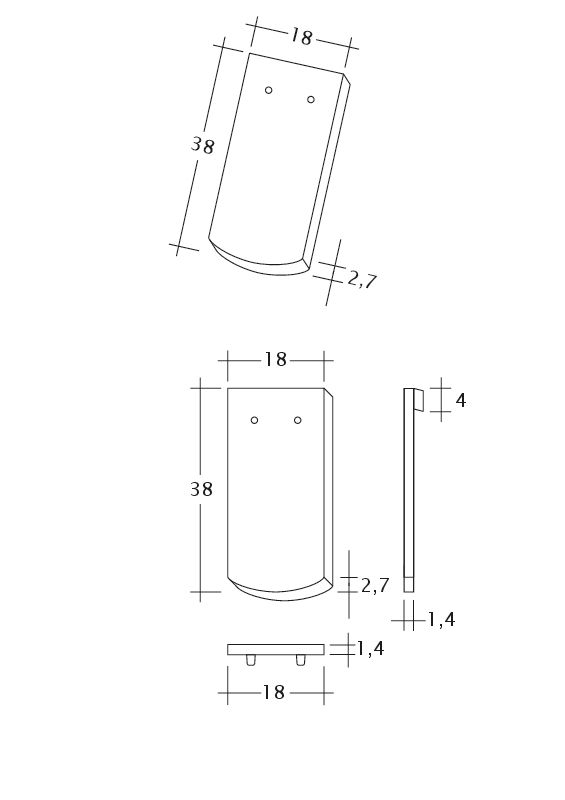

Size (appr.)180 x 380 x 18 mm
Max. coverage width (approx.)180 mm
Covering length on av. approx.155 mm
Max. gauge (approx.)165 mm
Min. gauge (approx.)145 mm
Average tile requirement (approx.)36 pcs/m²
Weight per m² (approx.)68.4 kg/m²
Weight per pallet (approx.)979 kg
Unit weight (approx.)1.9 kg/piece
Pcs per pallet480 piece
Pcs per mini-pack8 piece

Applications

Valid for Germany
Roof pitch DUO extra (Germany)≥ 22 °
Roof pitch QUATTRO longlife extra (Germany)≥ 10 °
Roof pitch TRIO extra (Germany)≥ 18 °
Valid for Austria
Roof pitch DUO extra (Austria)≥ 25 °
Roof pitch QUATTRO longlife extra (Austria)≥ 25 °

Technical informations

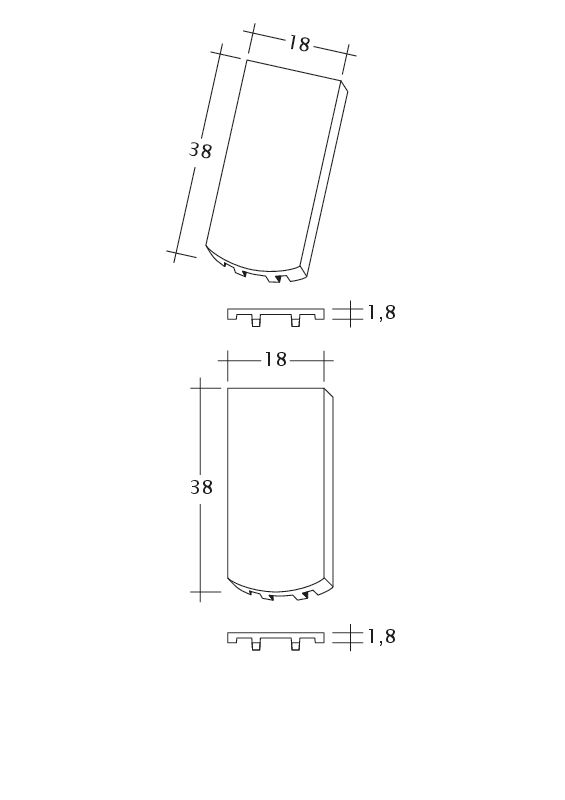

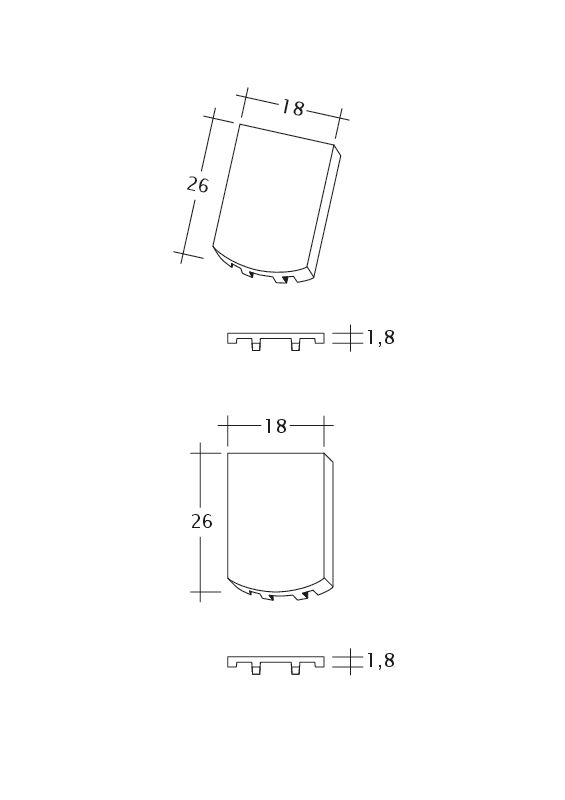

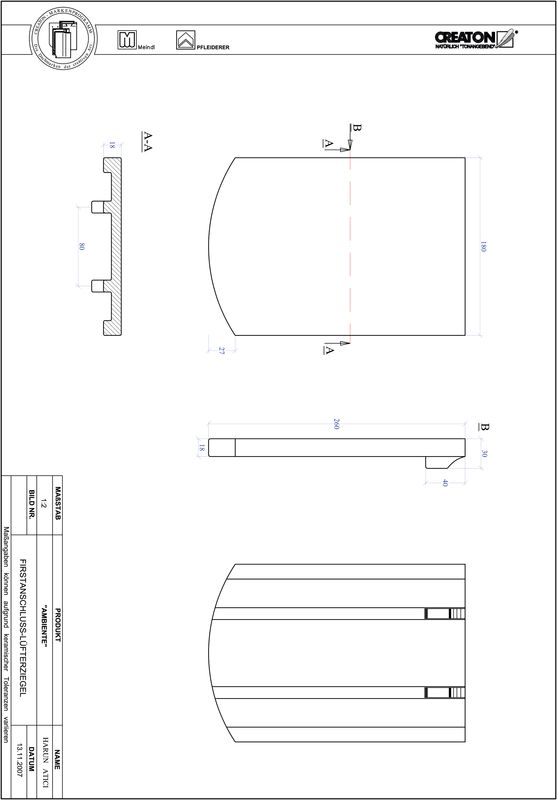

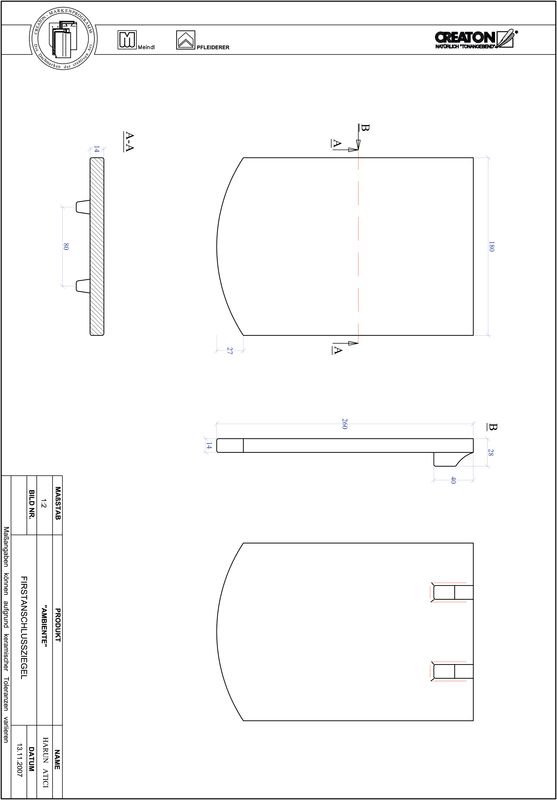

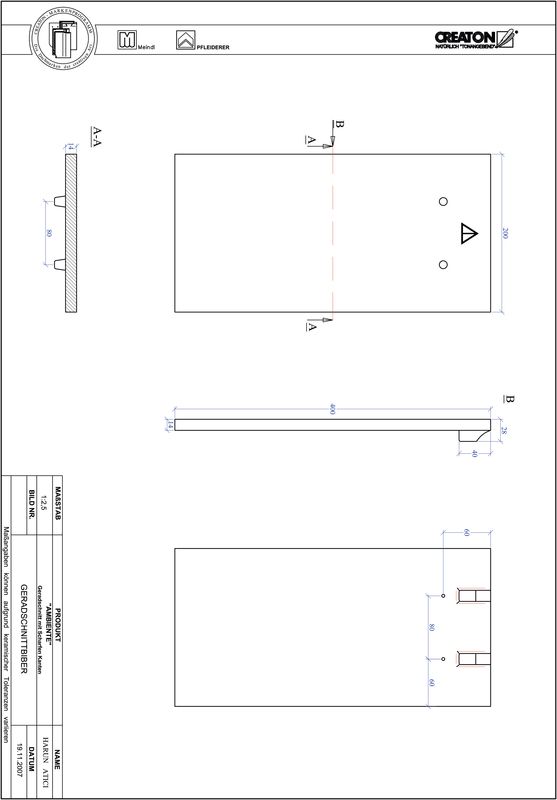

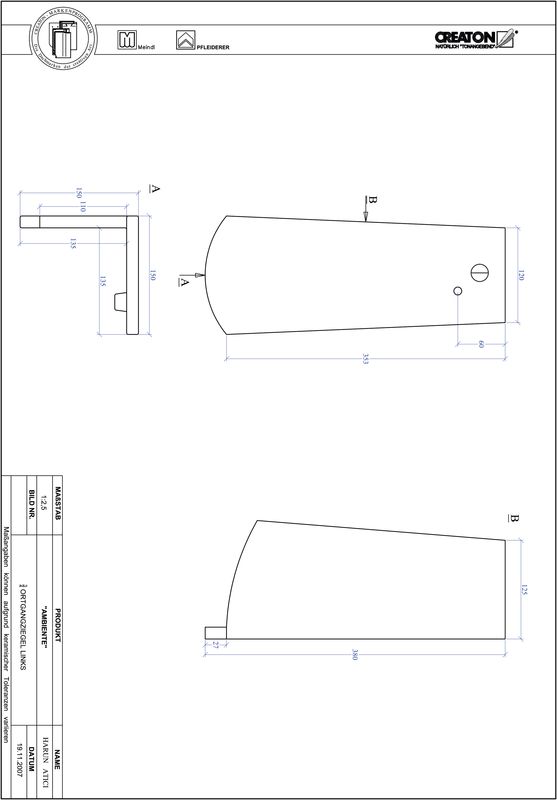

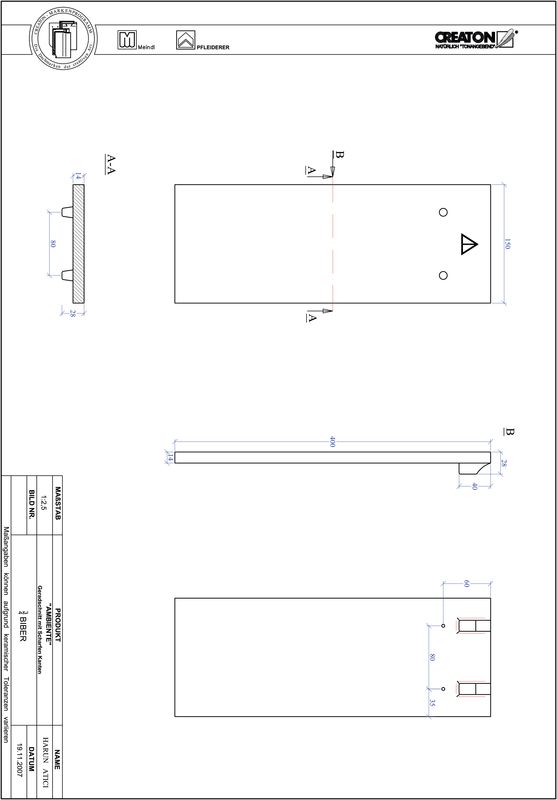

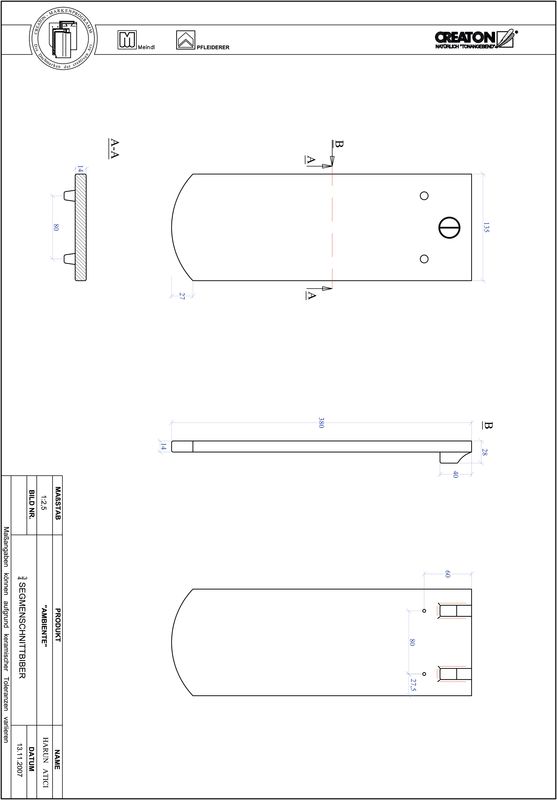

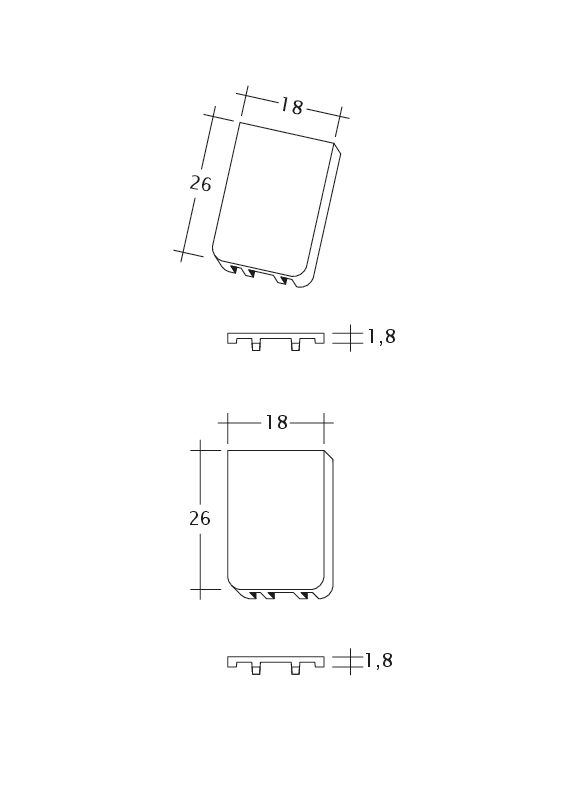

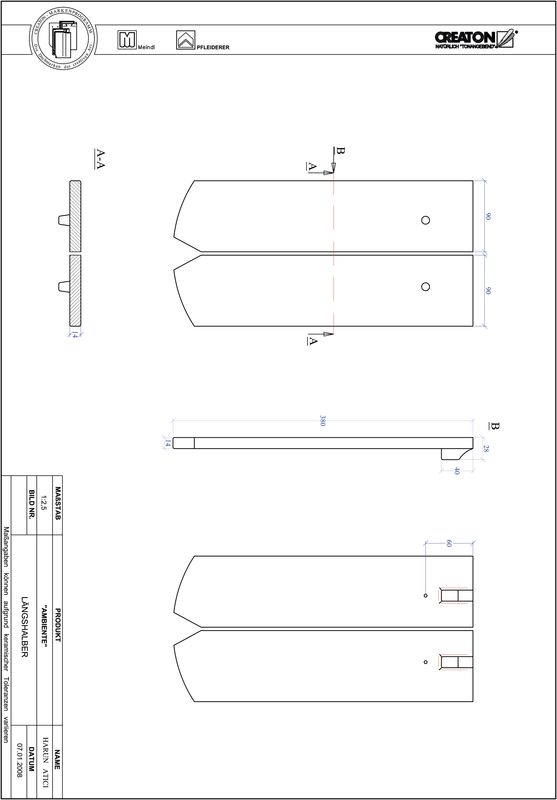

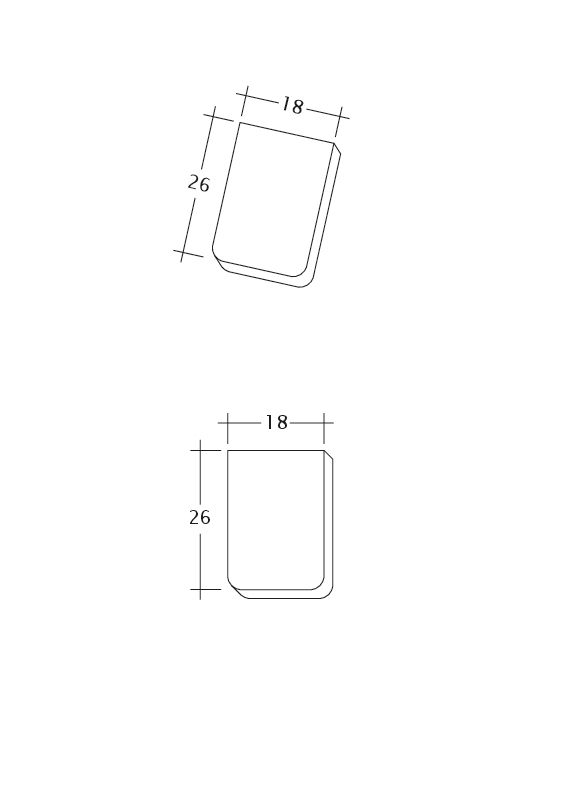

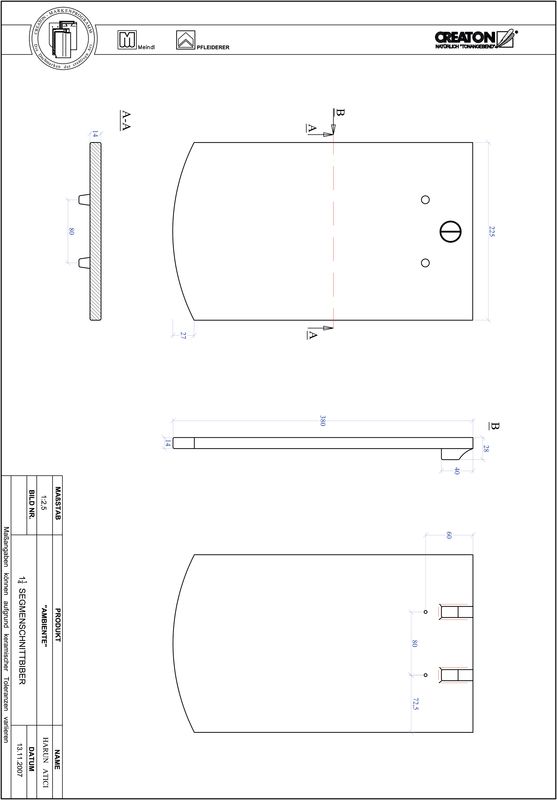

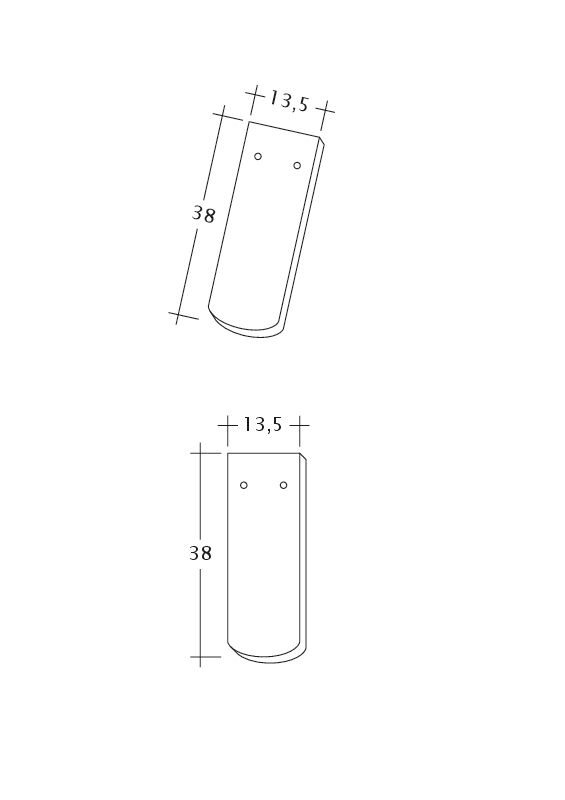

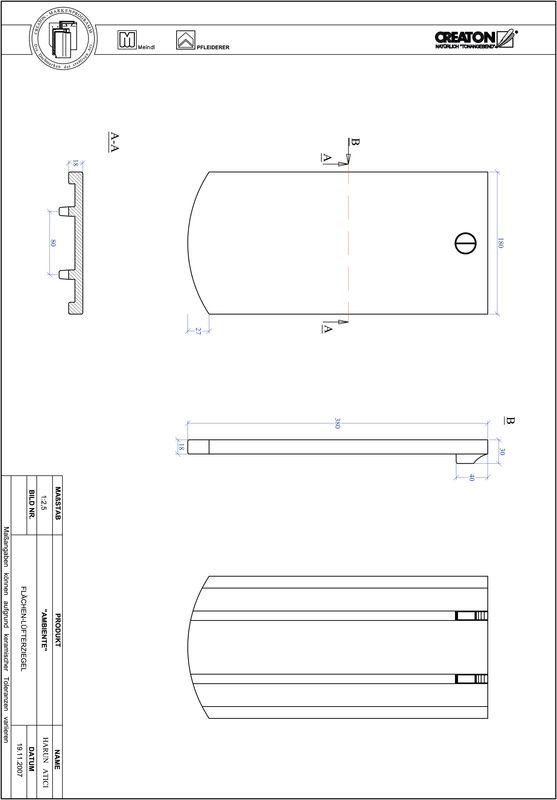

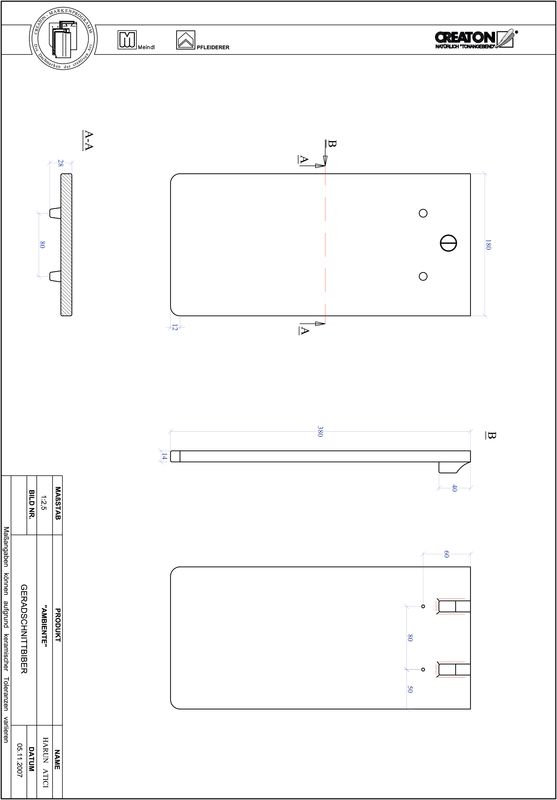

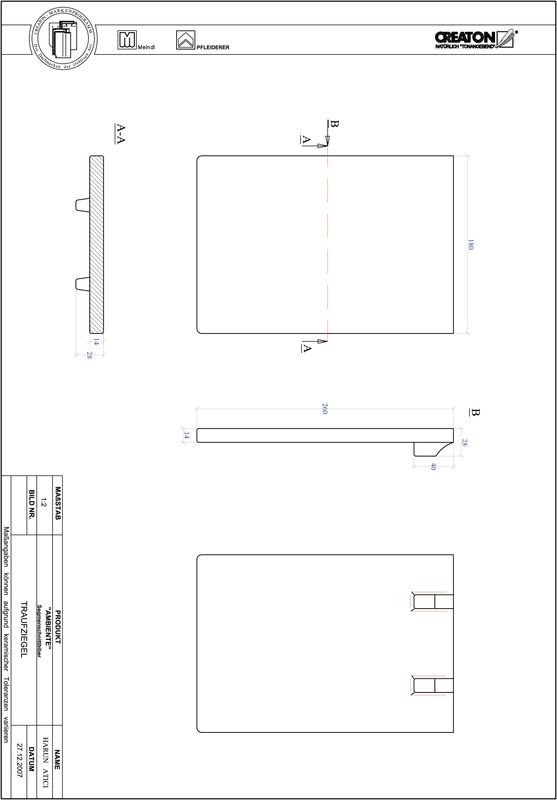

  • The technical drawing shown is merely an example.

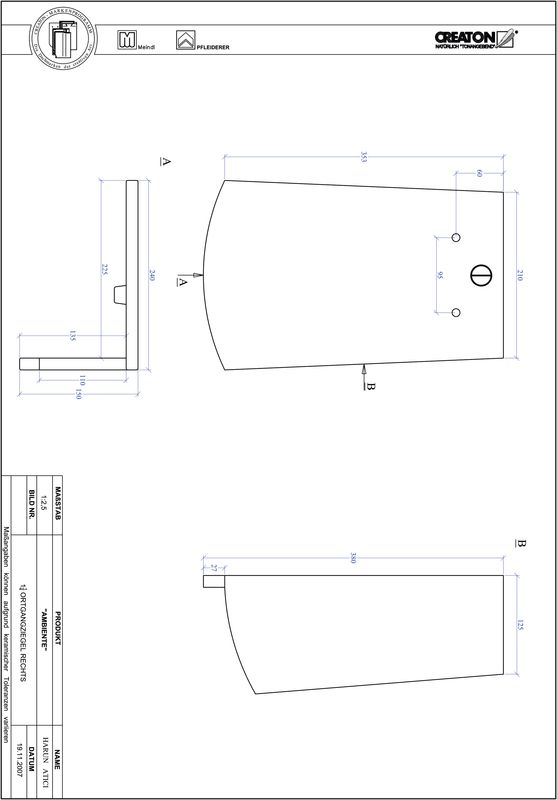

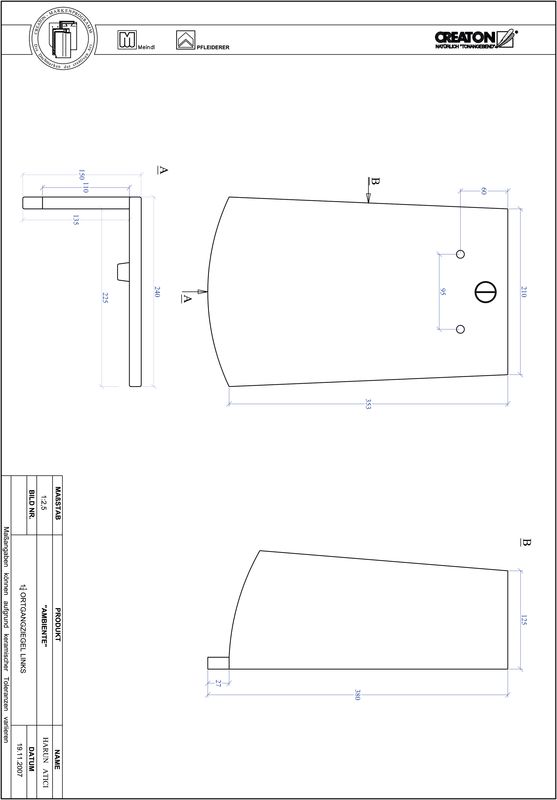

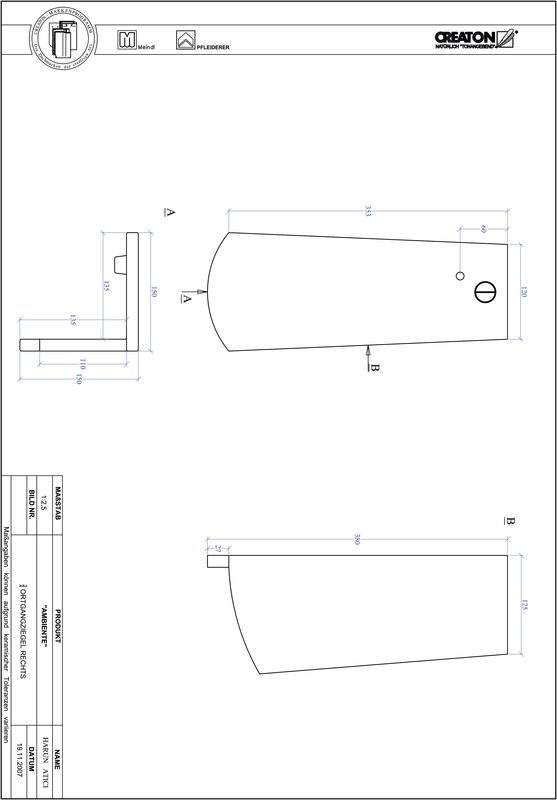

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Bitte berücksichtigen Sie das Musterschreiben für die Regeldachneigungen CREATON.

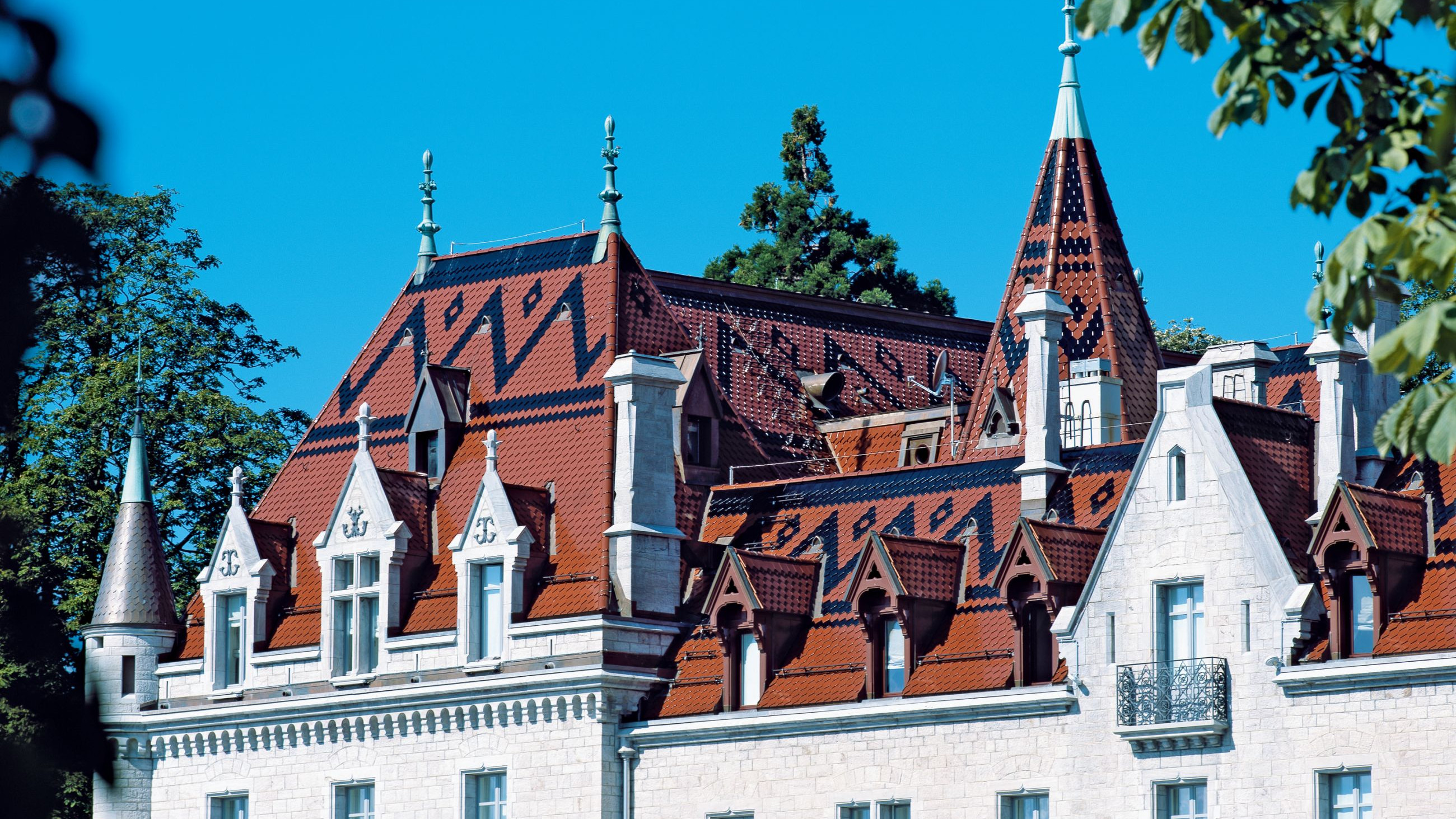

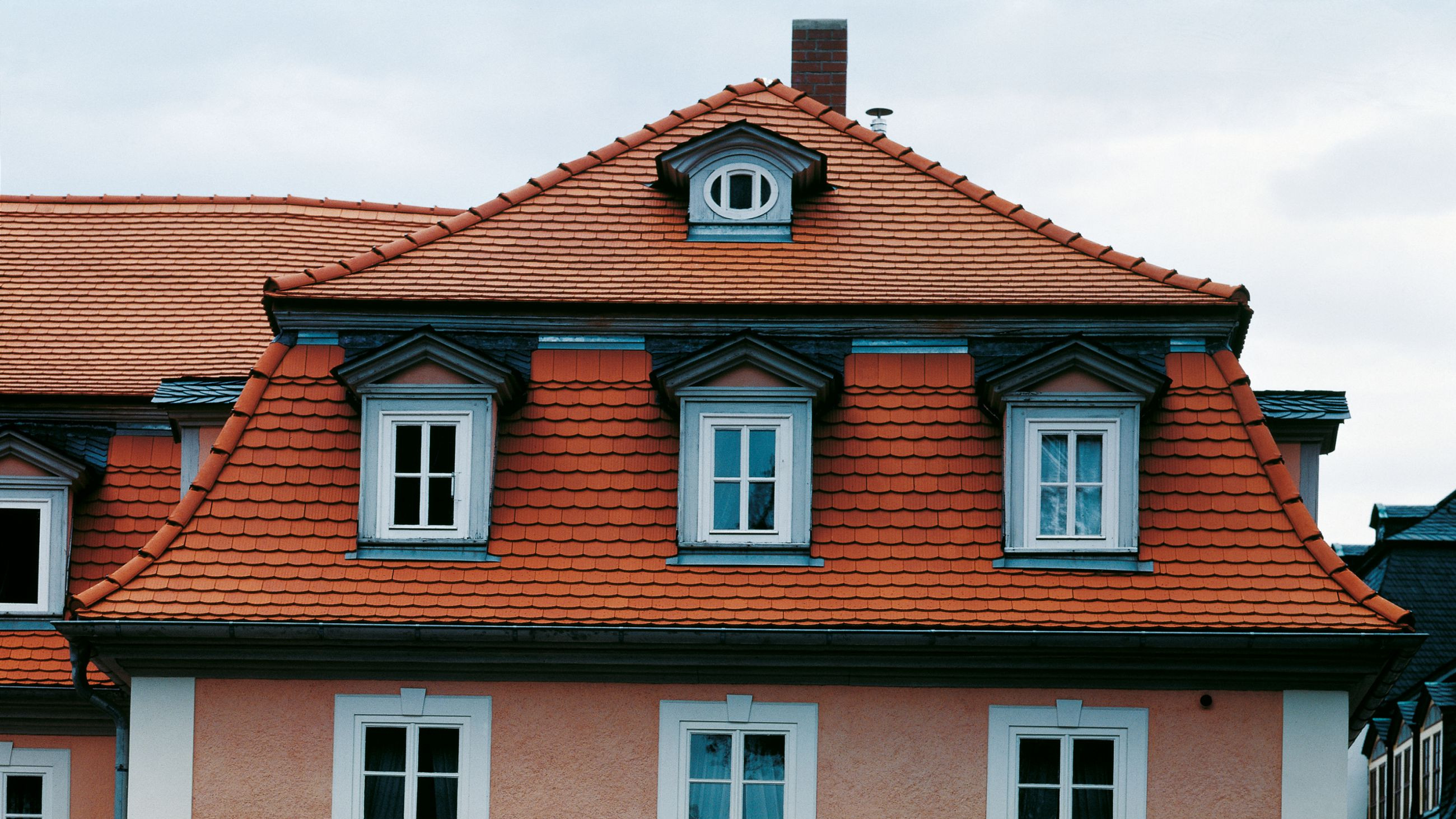

References
