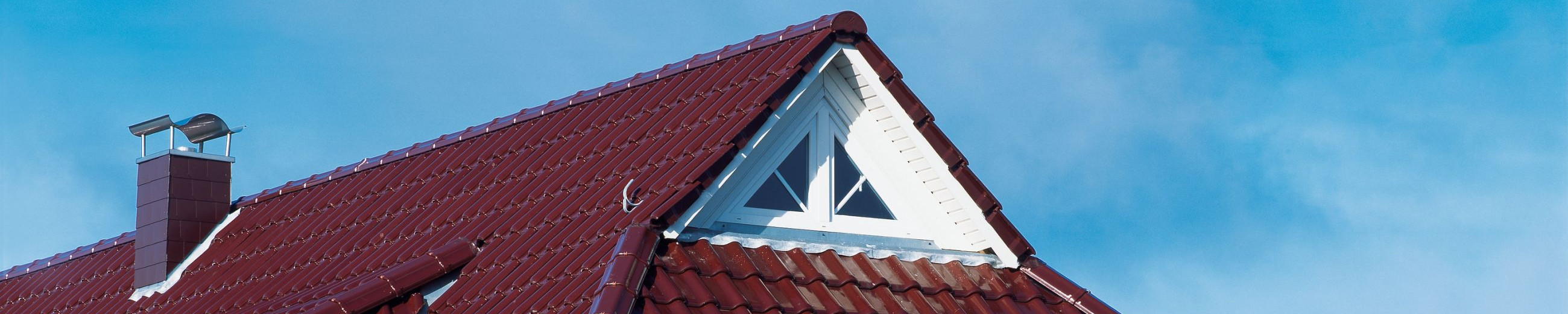

FUTURA FINESSE wine red glazed

FUTURA

Seamlessly into the future.

  • Generous adjustment range of 29 mm per tile
  • 15 captivating colours in four velvety surface finish variants, all from first-class materials
  • Seamless coverage and optimum flow behaviour thanks to technically innovative design
  • Also suitable for roof pitches as low as 7°, with a waterproof sub-roof
  • Labyrinth technology, with five specially-shaped protruding side ribs, prevents rainwater penetration, even in the fiercest storms
  • This interlock, the water flow features and especially good cw value make FUTURA an outstanding tile, suitable for very low-pitched and very steep roofs alike

In order to generally ensure the highest possible availability for you in the most important core products, we have decided to forego the production of isolated color and model combinations, at least temporarily. For the model FUTURA the colors NOBLESSE brown glazed, NOBLESSE antique flamed glazed, NOBLESSE dark blue glazed and NOBLESSE dark green glazed are not available until further notice.

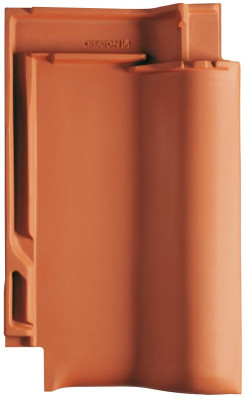

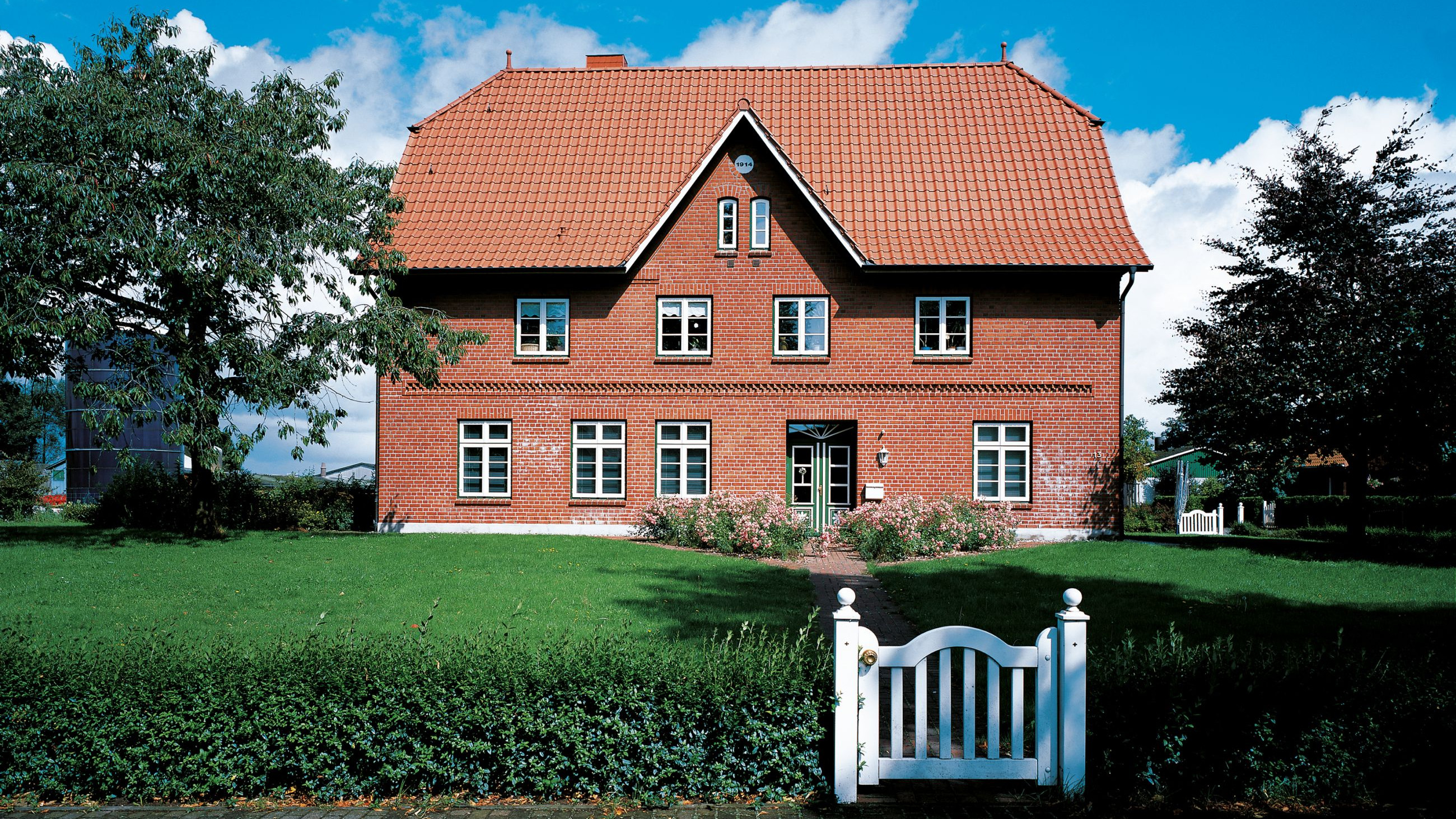

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE wine red engobed
NUANCE wine red engobed
NUANCE dark brown engobed
NUANCE dark brown engobed
NUANCE grey engobed
NUANCE grey engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE red glazed
FINESSE red glazed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE slate glazed
FINESSE slate glazed
FINESSE black glazed
FINESSE black glazed
NOBLESSE brown glazed
NOBLESSE brown glazed
NOBLESSE dark blue glazed
NOBLESSE dark blue glazed
NOBLESSE dark green glazed
NOBLESSE dark green glazed
NOBLESSE brown glazed
NOBLESSE brown glazed

Technical data

Size (appr.)300 x 482 mm
Covering width min. approx.235 mm
Covering width on av. approx.238 mm
Max. coverage width (approx.)240 mm
Min. gauge (approx.)360 mm
Covering length on av. approx.374 mm
Max. gauge (approx.)388 mm
Tile requirement min. (approx.)10.8 pcs/m²
Average tile requirement (approx.)11.3 pcs/m²
Brickware max. approx.11.9 pcs/m²
Unit weight (approx.)4.3 kg/piece
Weight per m² (approx.)48.6 kg/m²
Weight per pallet (approx.)1081 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Applications

Additional measures according to CREATON manufacturer's specifications
14 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 12 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
≥ 7 ° Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

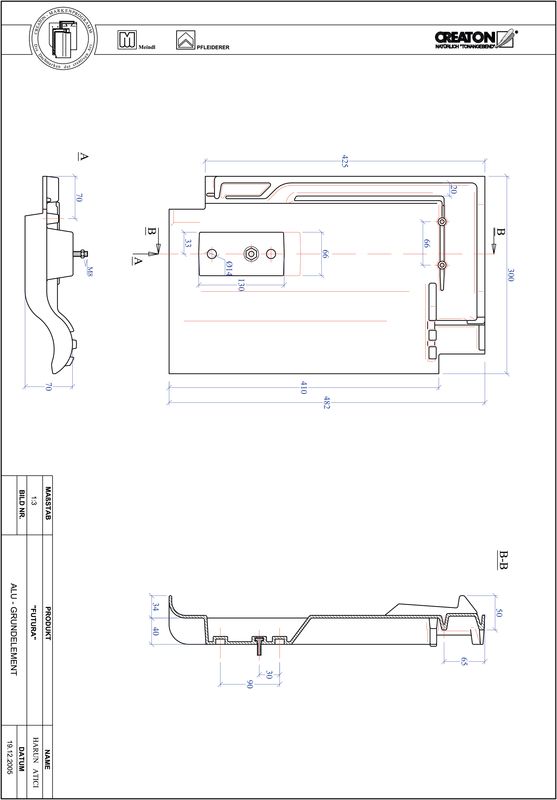

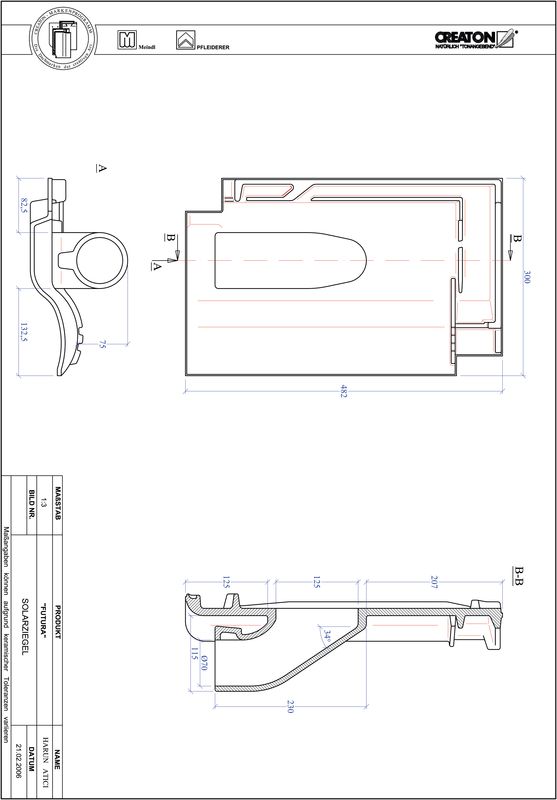

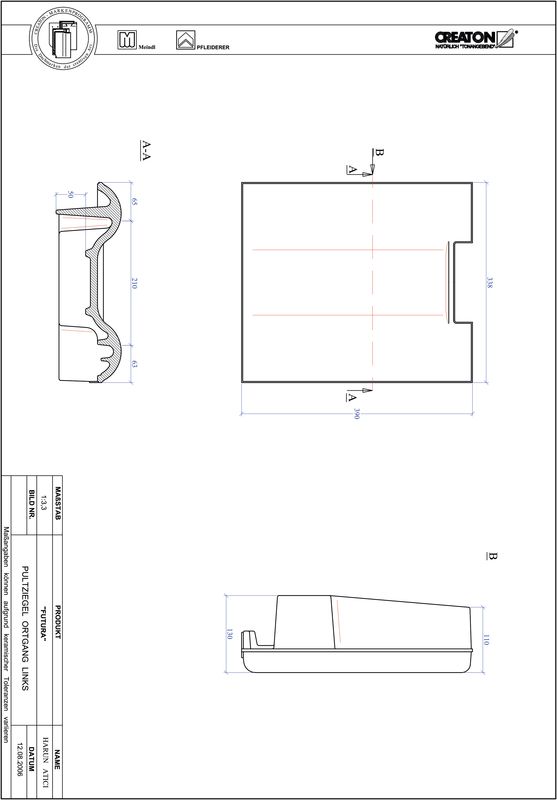

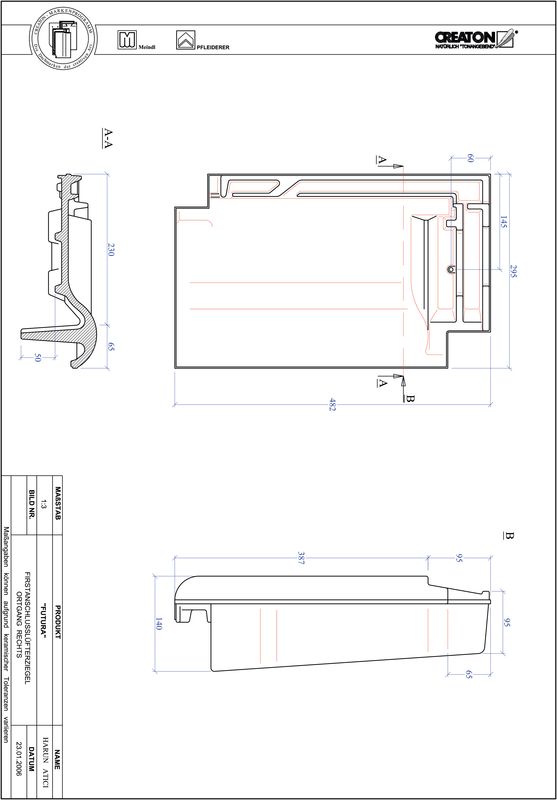

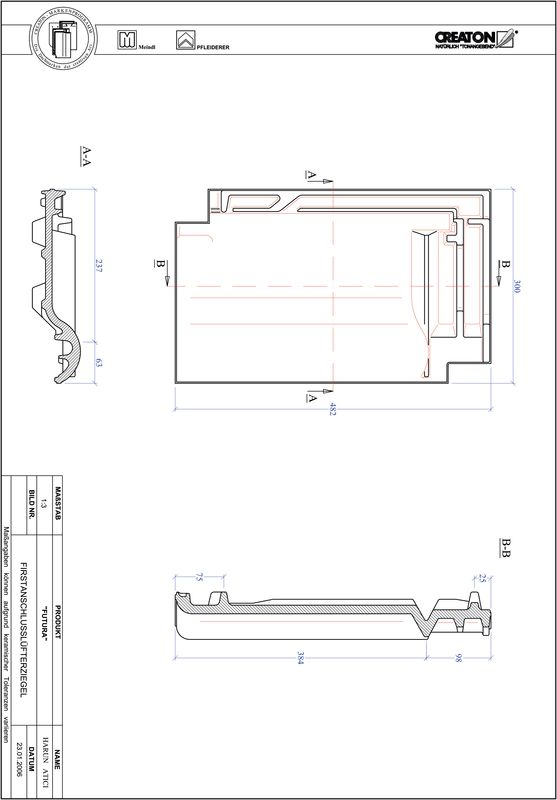

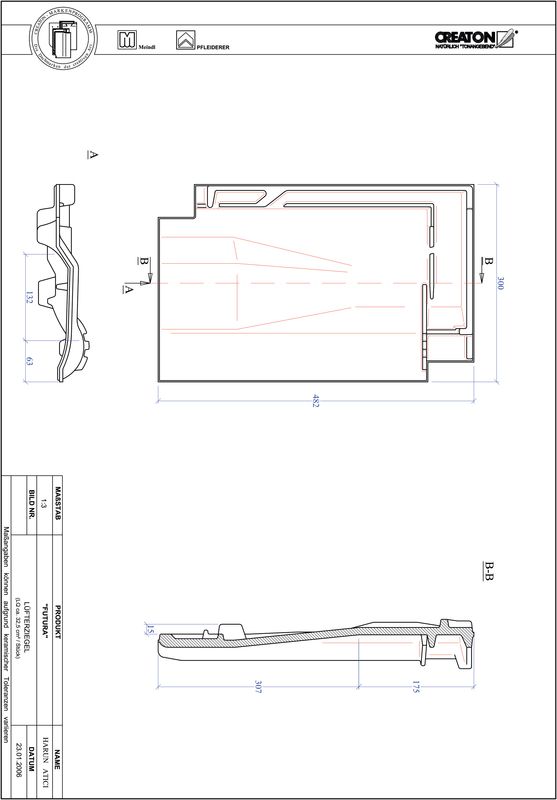

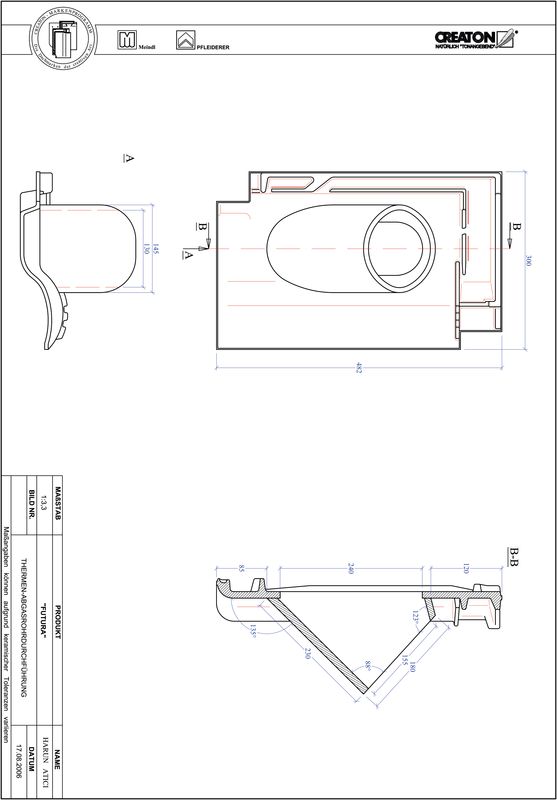

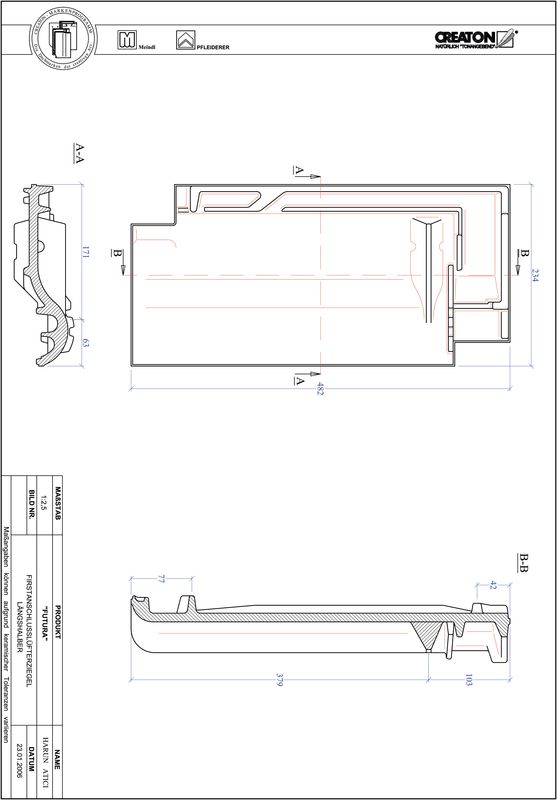

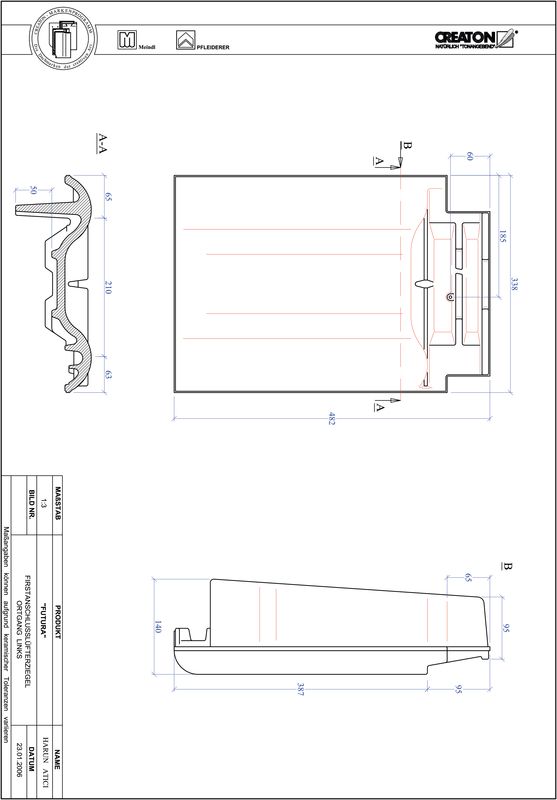

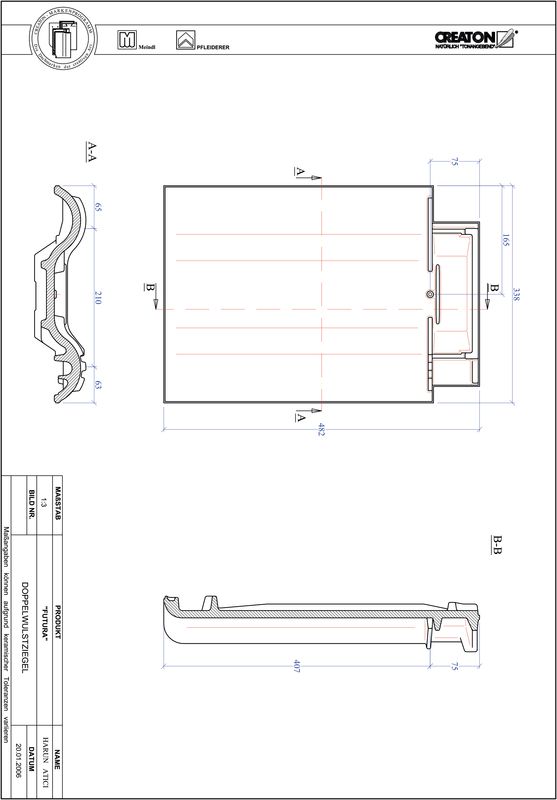

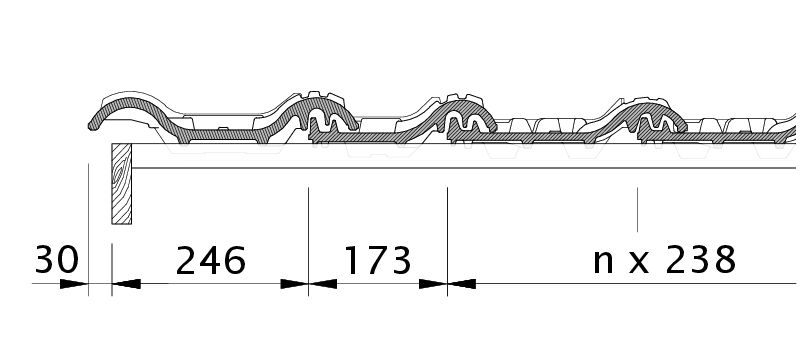

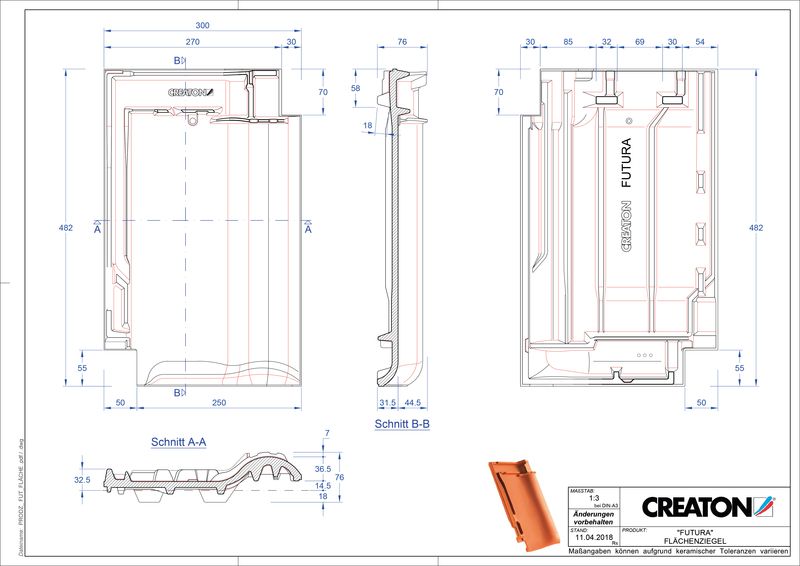

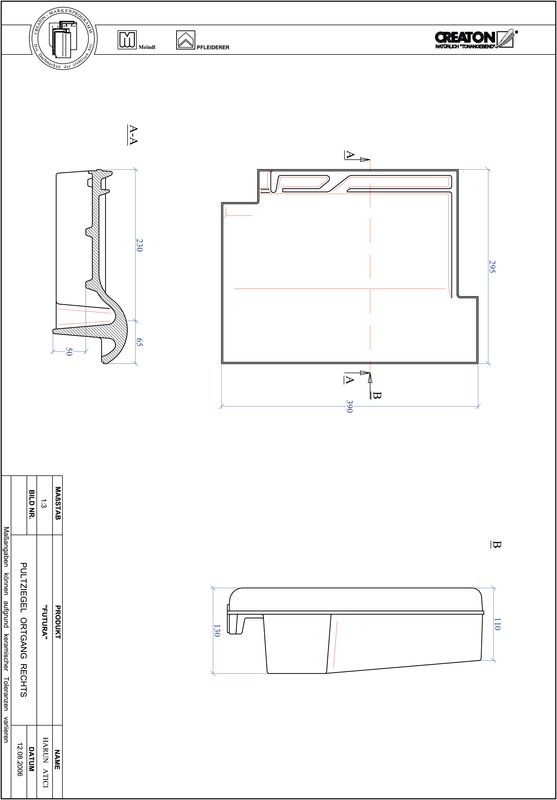

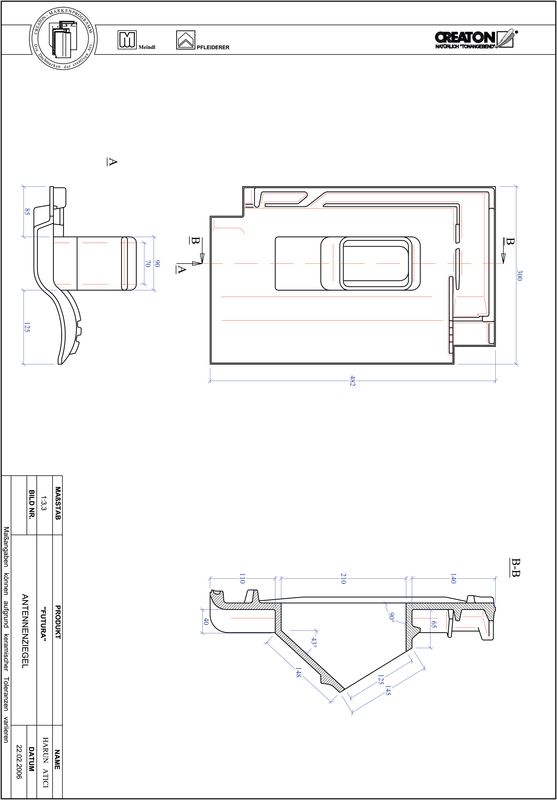

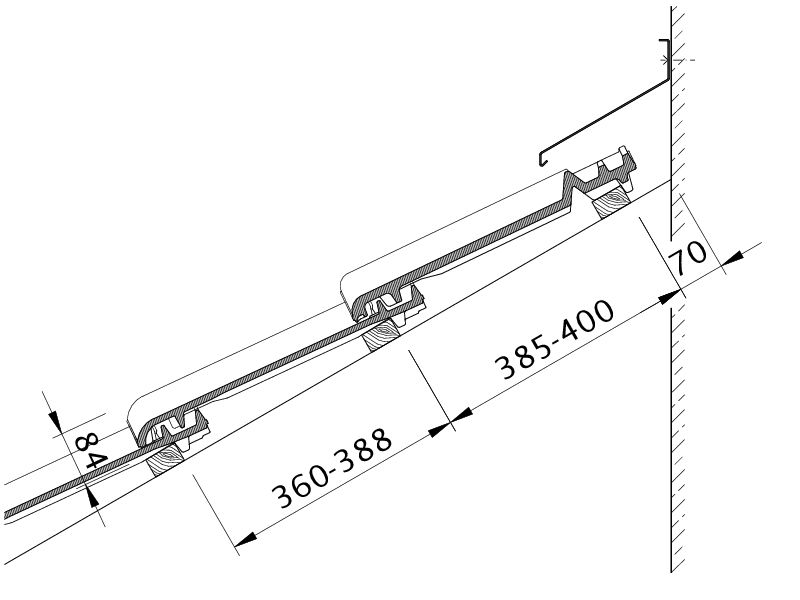

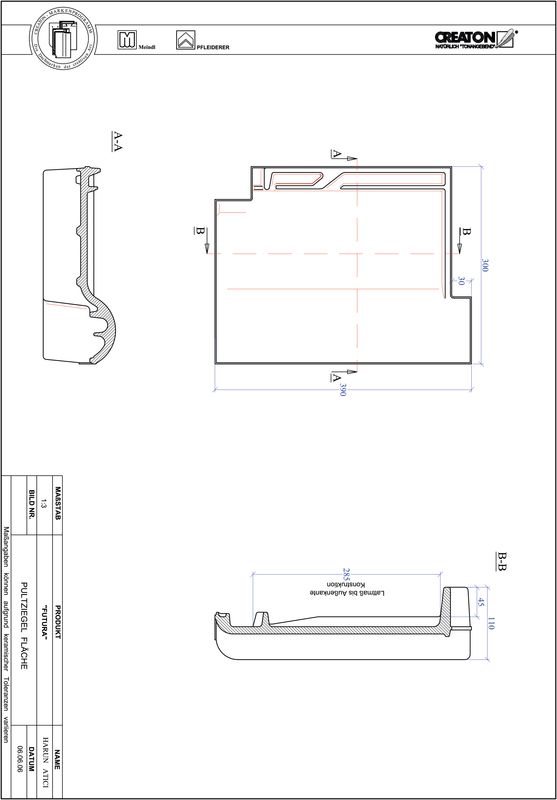

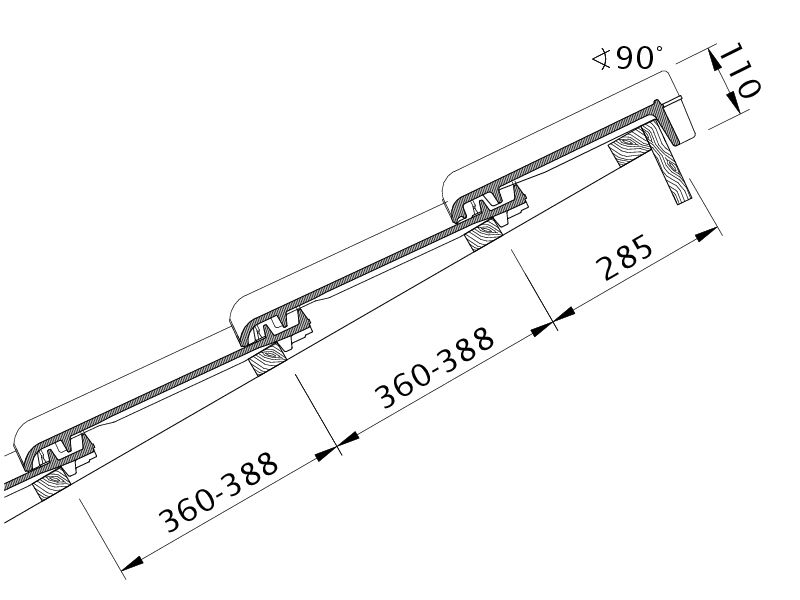

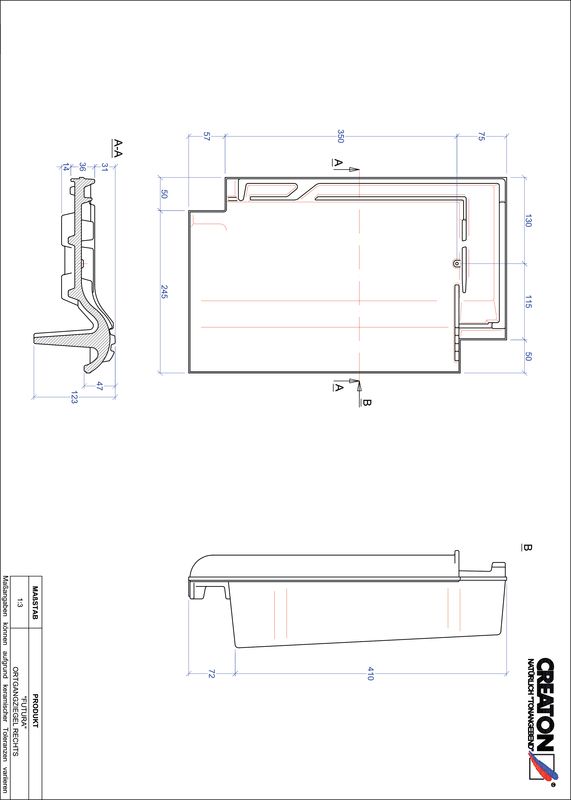

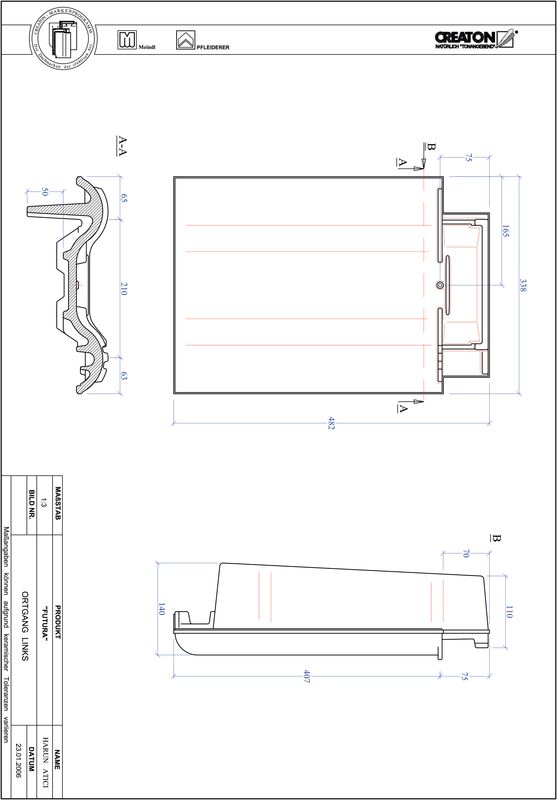

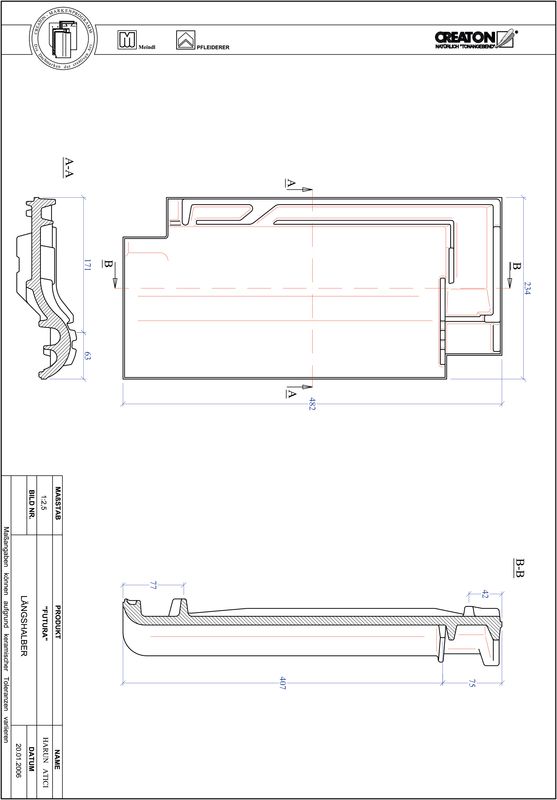

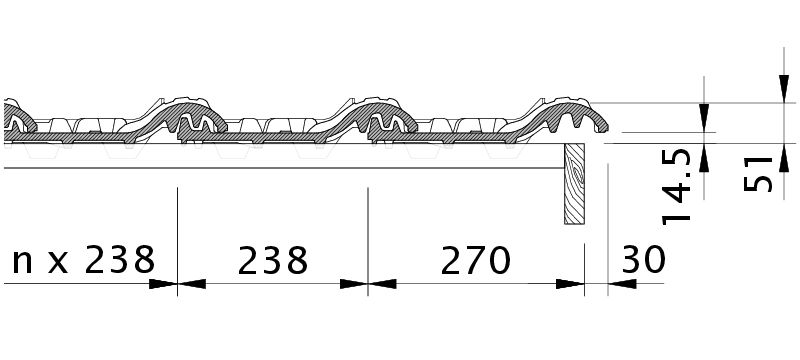

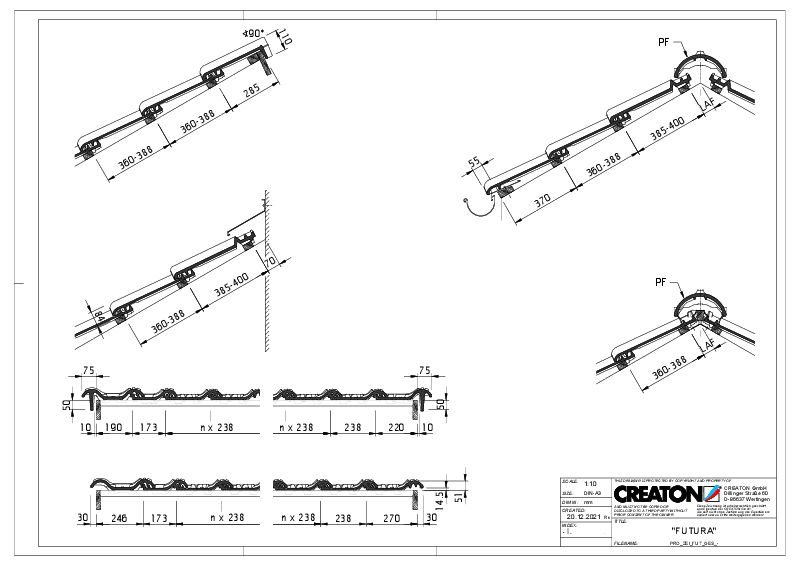

  • The technical drawing shown is merely an example.

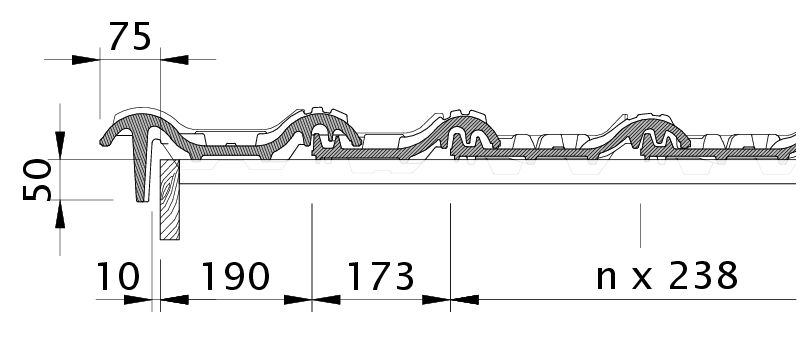

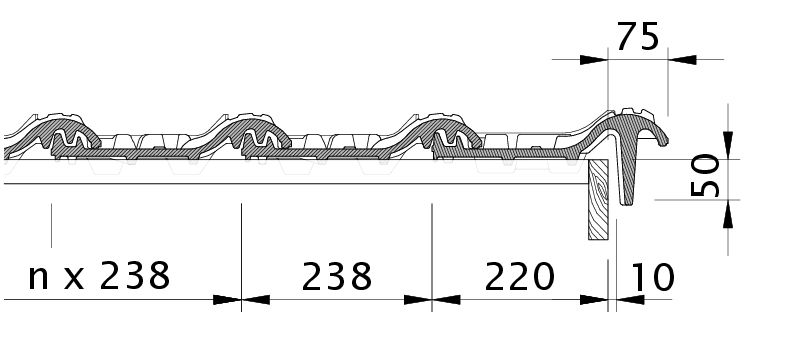

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.
  • Please consider the sample letter for the standard CREATON roof pitches.

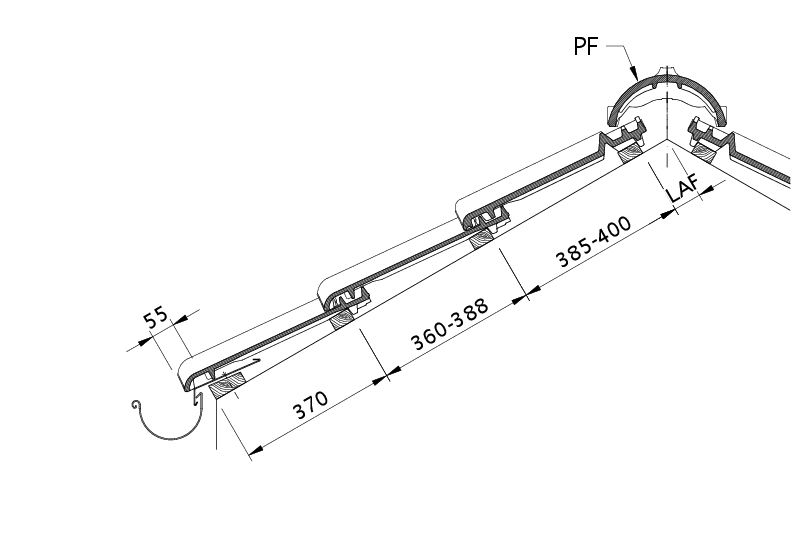

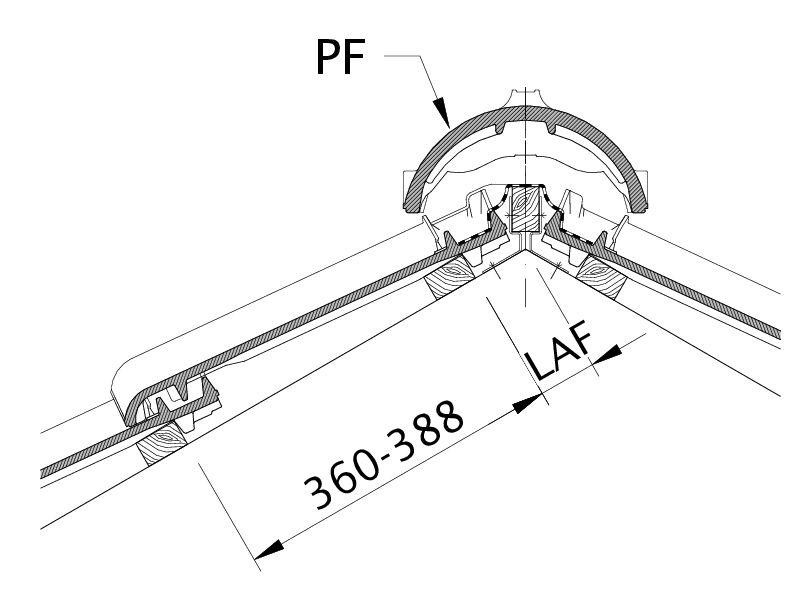

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF8080757065656050454545
PF 2.5 pcs/mFLA10095908070605555505040
PR 2.5 pcs/mLAF8080757065656050454545
PR 2.5 pcs/mFLA10095908070605555505040
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF8080756560605540303030
PF 2.5 pcs/mFLA1101051009080706565606050
PR 2.5 pcs/mLAF8080756560605540303030
PR 2.5 pcs/mFLA1101051009080706565606050
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PF 2.5 pcs/mLAF7575706055504530202015
PF 2.5 pcs/mFLA12011511010090858080808080
PR 2.5 pcs/mLAF7575706055504530202015
PR 2.5 pcs/mFLA12011511010030858080808080
