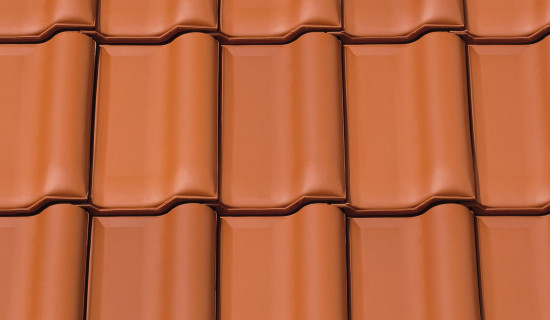

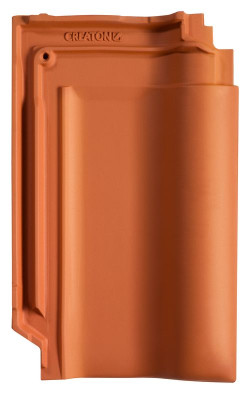

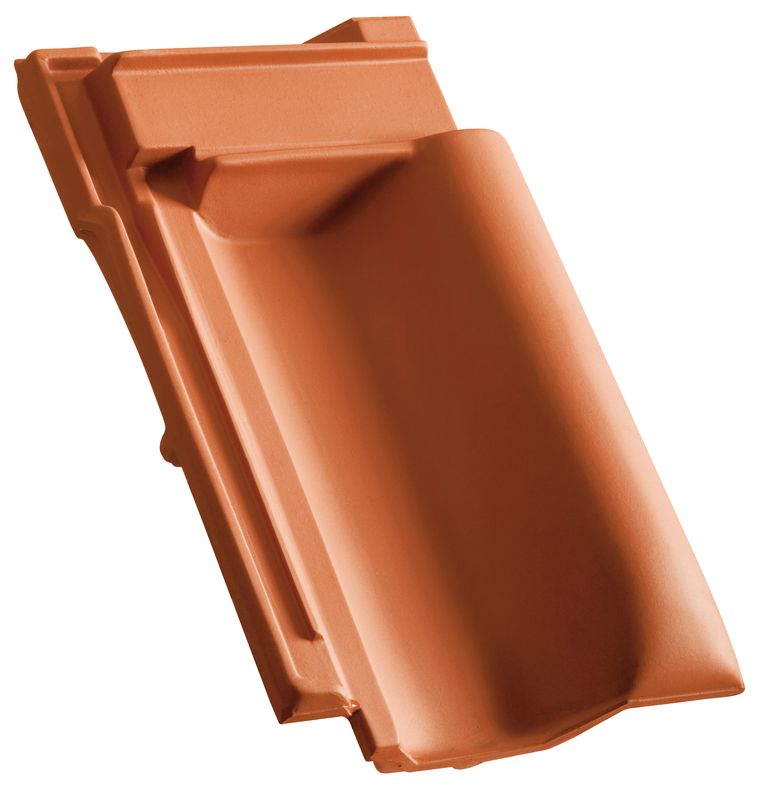

MZ3 KLASSIK

The proven flat roof tile.

Adjustment range up to 16 mm guarantees the best possible fit to any batten spacing
Effective water drainage and optimum flow behaviour, thanks to technically perfected overlapping

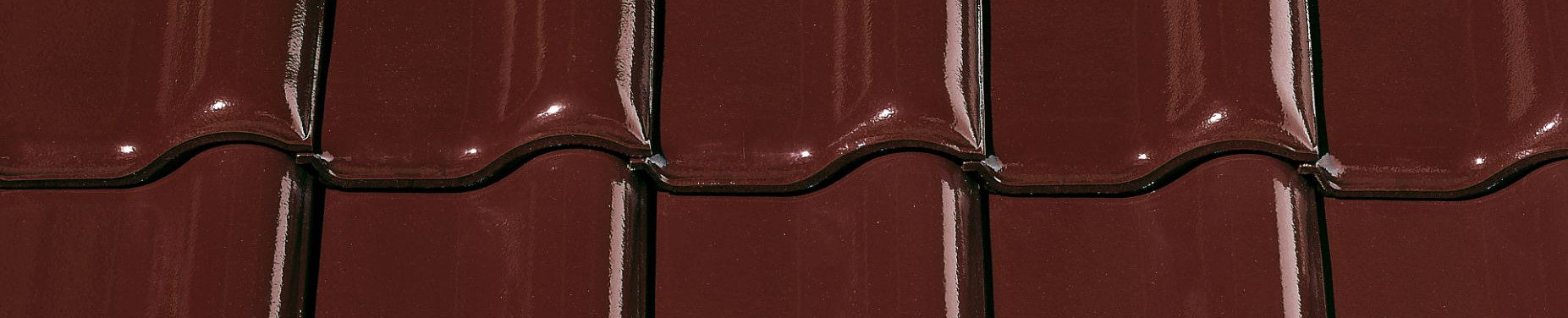

Available in 4 different colours, to give range and variety

Technical data

Size (appr.)	255 x 420 mm
Covering width min. approx.	203 mm
Covering width on av. approx.	205 mm
Max. coverage width (approx.)	207 mm
Min. gauge (approx.)	343 mm
Covering length on av. approx.	351 mm
Max. gauge (approx.)	358 mm
Tile requirement min. (approx.)	13.5 pcs/m²
Average tile requirement (approx.)	13.9 pcs/m²
Brickware max. approx.	14.4 pcs/m²
Unit weight (approx.)	3.6 kg/piece
Weight per m² (approx.)	50 kg/m²
Weight per pallet (approx.)	889 kg
Pcs per mini-pack	5 piece
Pcs per pallet	240 piece

Technical drawings

Applications

Additional measures according to CREATON manufacturer's specifications
16 °	Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °	Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °	Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °	Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °	Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °	Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
-	Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

The technical drawing shown is merely an example.
According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)	DN	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°
PMZ 2.6 pcs/m	LAF	45	45	40	35	35	30	25	20	15	10
PMZ 2.6 pcs/m	FLA	130	130	120	115	110	100	90	90	85	80
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)	DN	10°	15°	20°	25°	30°	35°	40°	45°
PMZ 2.6 pcs/m	LAF	45	45	40	30	30	25	20	10
PMZ 2.6 pcs/m	FLA	140	140	130	125	120	110	100	100
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)	DN	10°	15°	20°	25°	30°	35°	40°
PMZ 2.6 pcs/m	LAF	40	40	35	25	25	15	10
PMZ 2.6 pcs/m	FLA	150	150	140	135	130	125	115

Accessory range

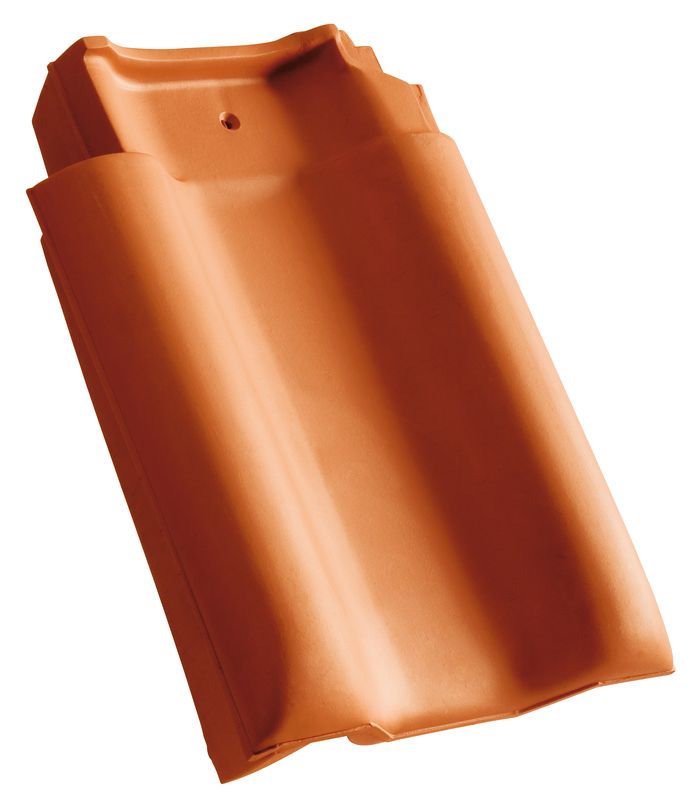

MZ3 KLASSIK verge tile right

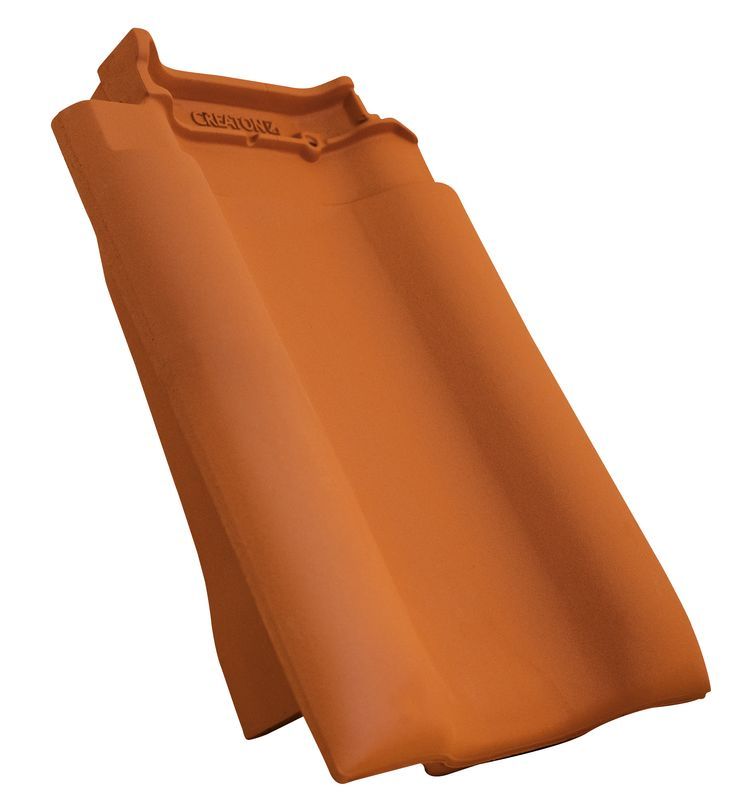

MZ3 KLASSIK verge tile left

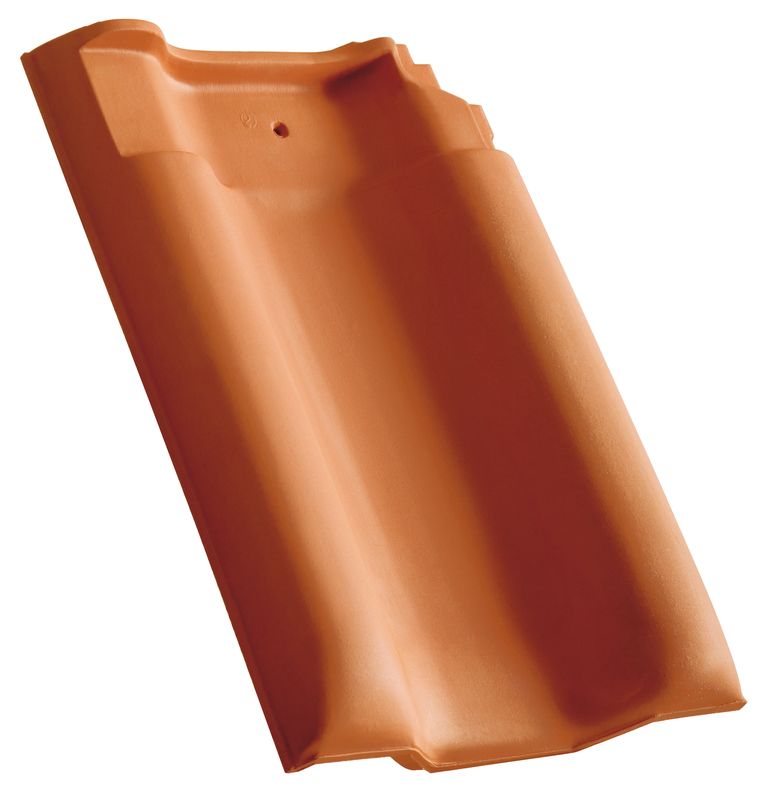

MZ3 KLASSIK double roll tile

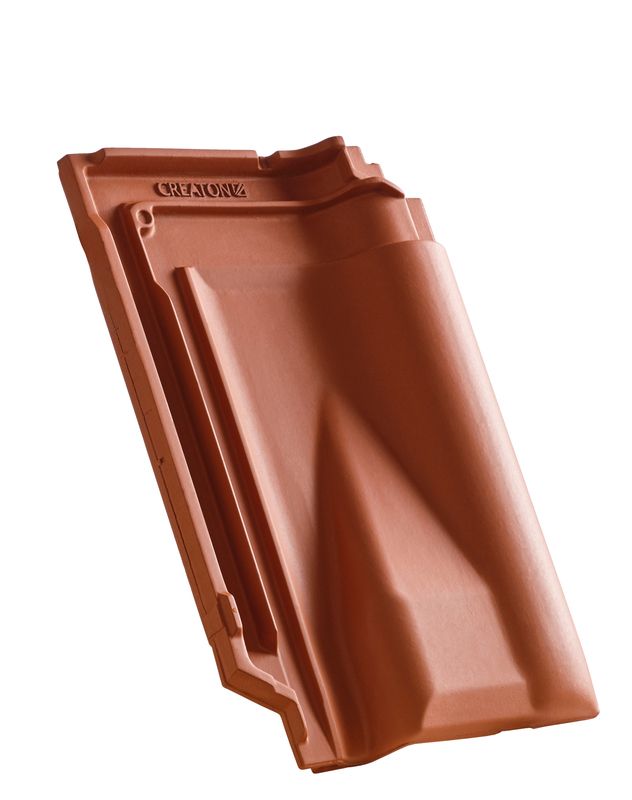

MZ3 KLASSIK ventilating tile

MZ3 KLASSIK ridge connection adjustable ventilating tile

MZ3 KLASSIK ridge connection adjustable ventilating verge tile right

MZ3 KLASSIK ridge connection adjustable ventilating verge tile left

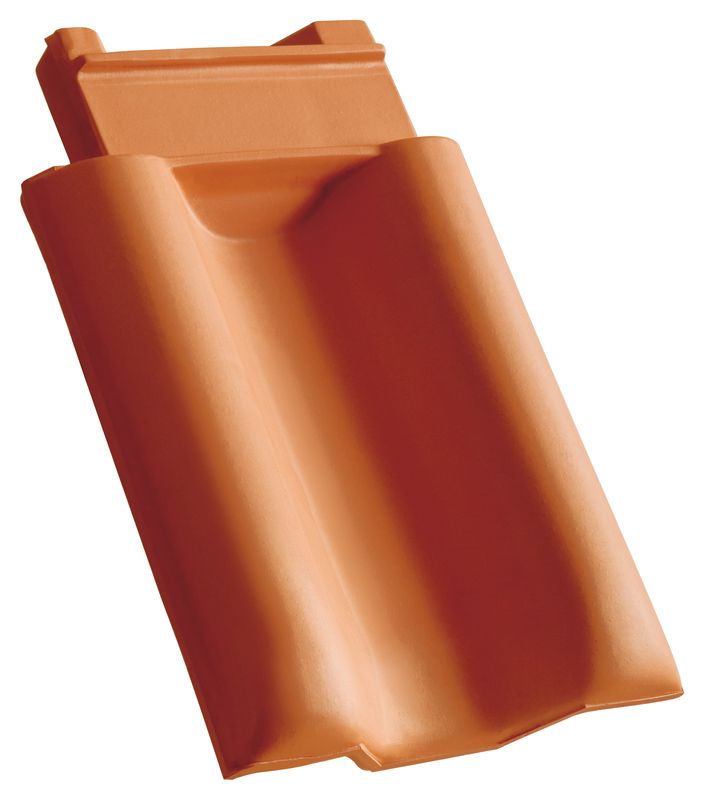

MZ3 KLASSIK ridge connection adjustable ventilating double roll tile

MZ3 KLASSIK shed roof tile decorated special size

MZ3 KLASSIK shed roof verge tile decorated special size right

MZ3 KLASSIK shed roof verge tile decorated special size left

MZ3 KLASSIK mansard/pitch transition tile decorated special size

MZ3 KLASSIK mansard/pitch transition verge tile decorated special size right

MZ3 KLASSIK mansard/pitch transition verge tile decorated special size left

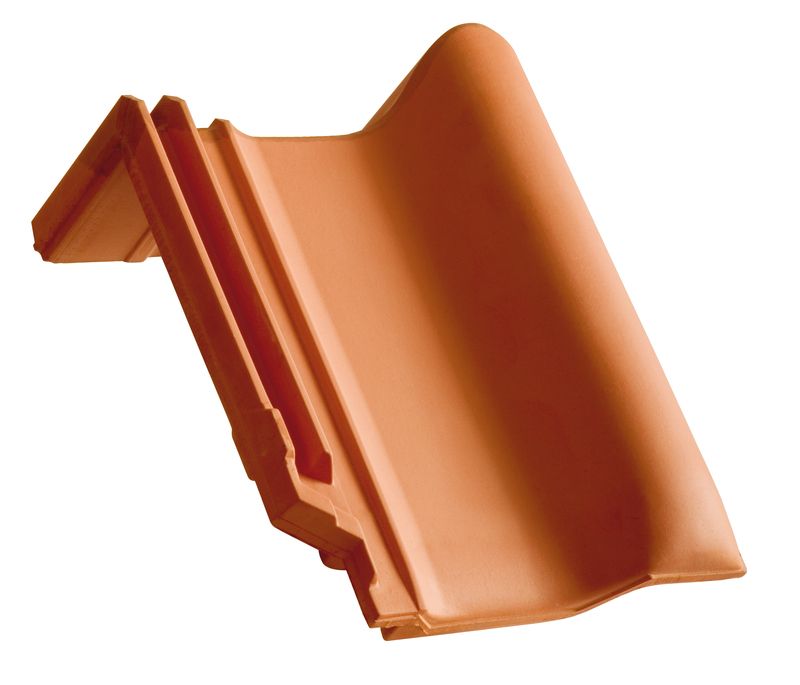

MZ3 KLASSIK shed roof tile decorated

WER universal shed roof tile PDZ

WER universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

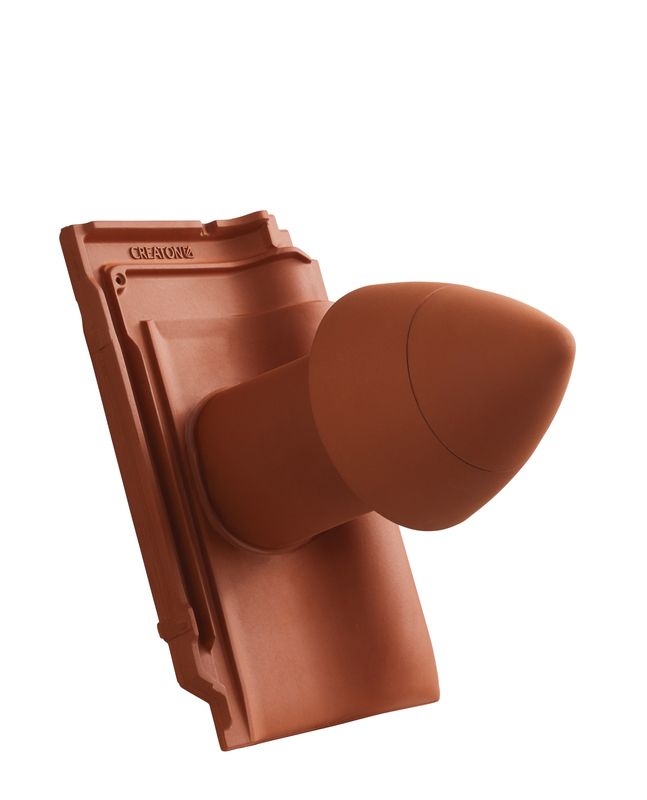

MZ3 KLASSIK SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

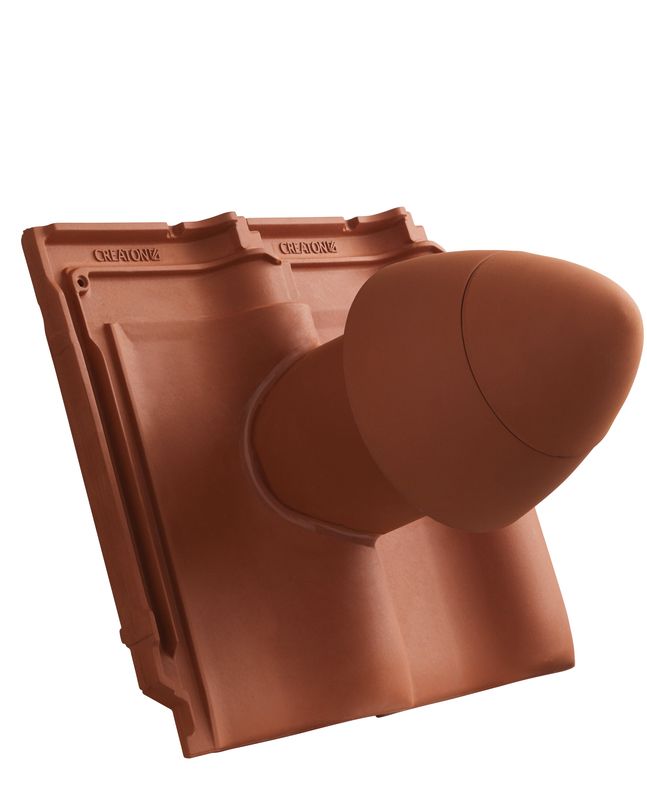

MZ3 KLASSIK SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

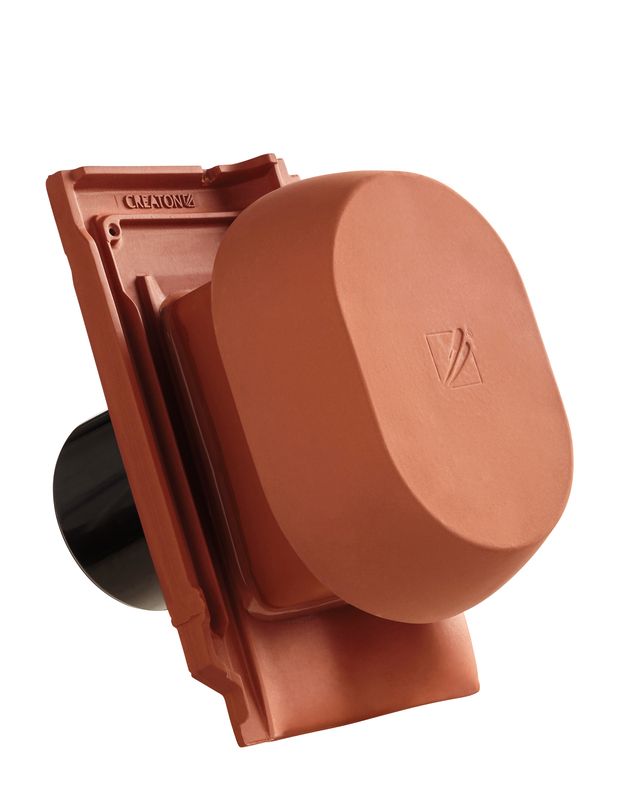

MZ3 KLASSIK SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

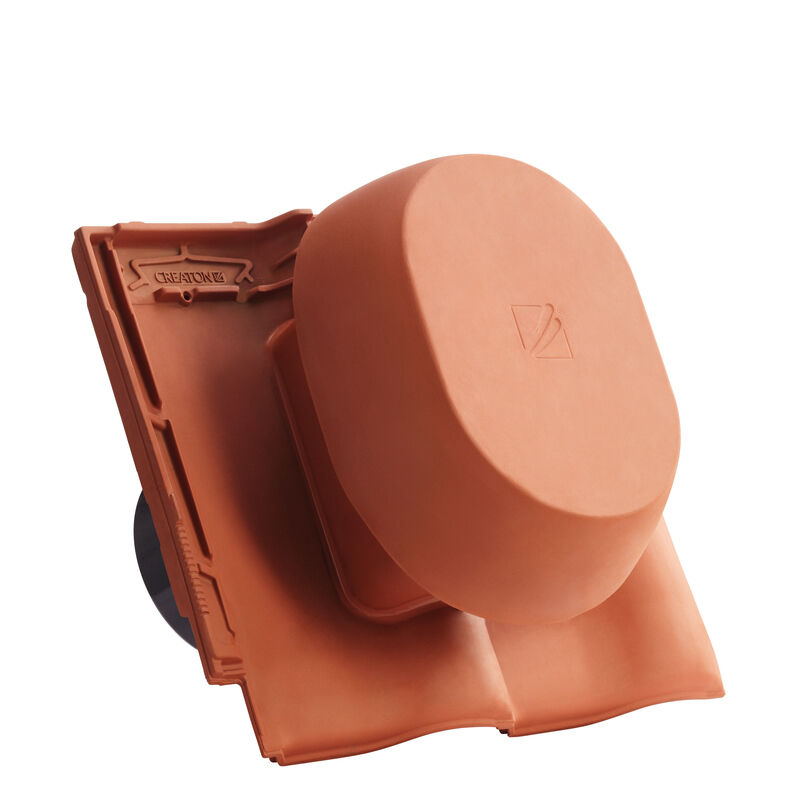

MZ3 KLASSIK SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

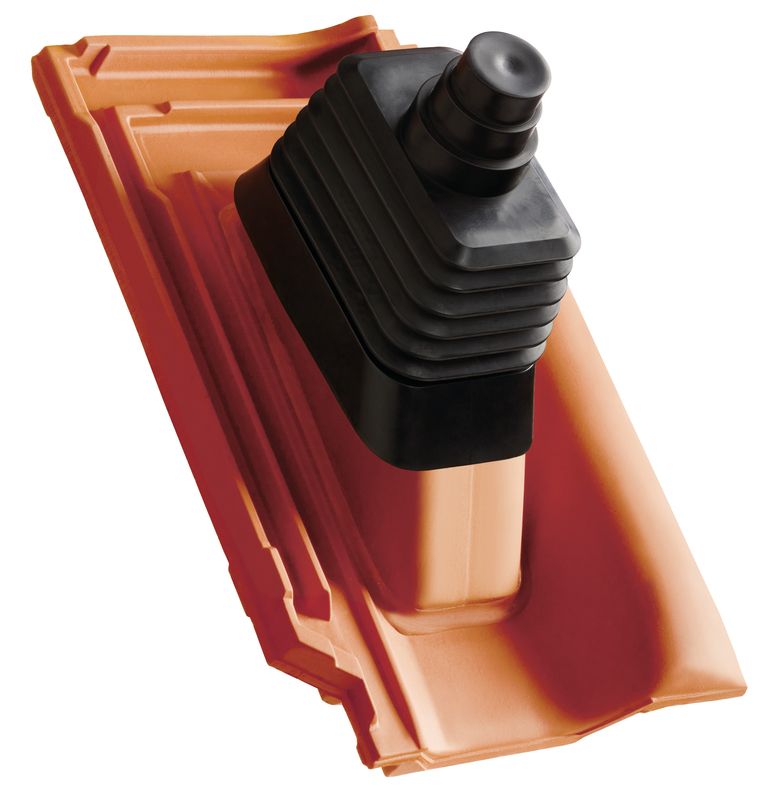

MZ3 KLASSIK aerial entry

MZ3 KLASSIK solar entry tile

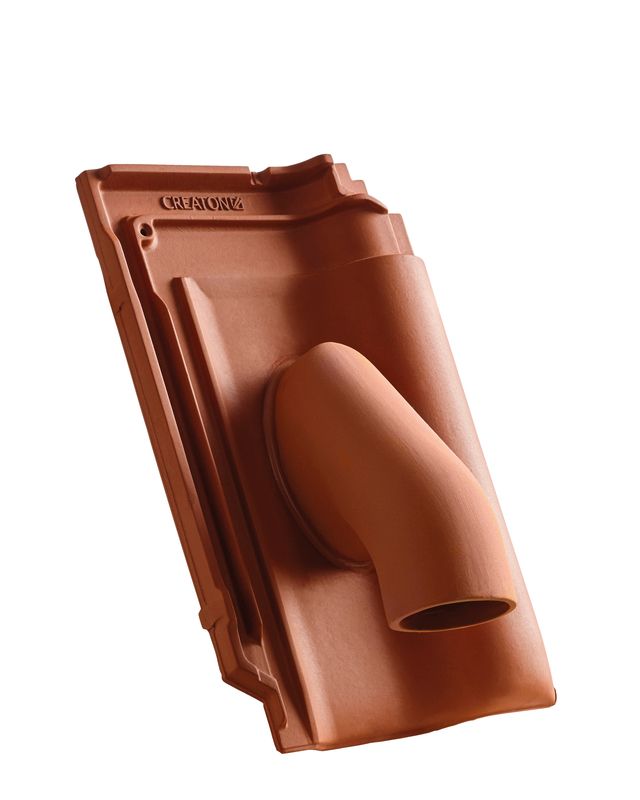

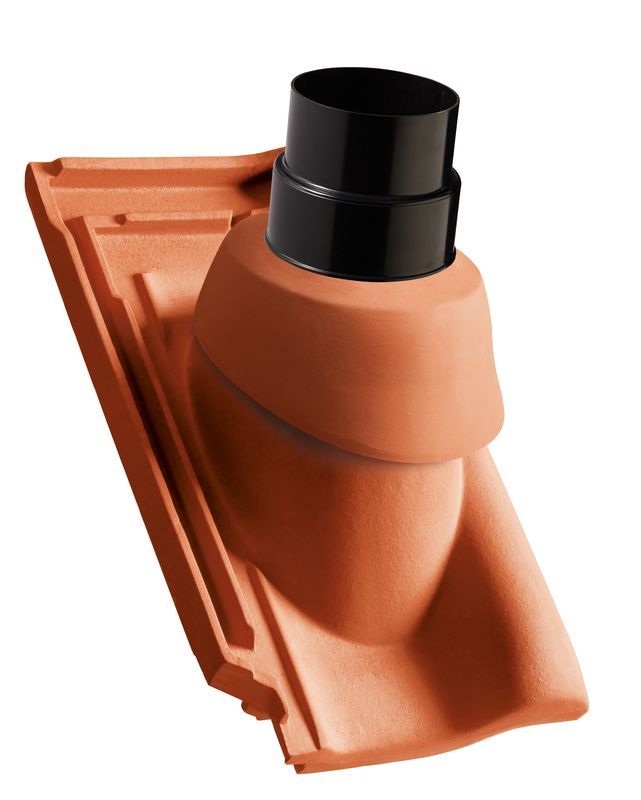

MZ3 KLASSIK flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

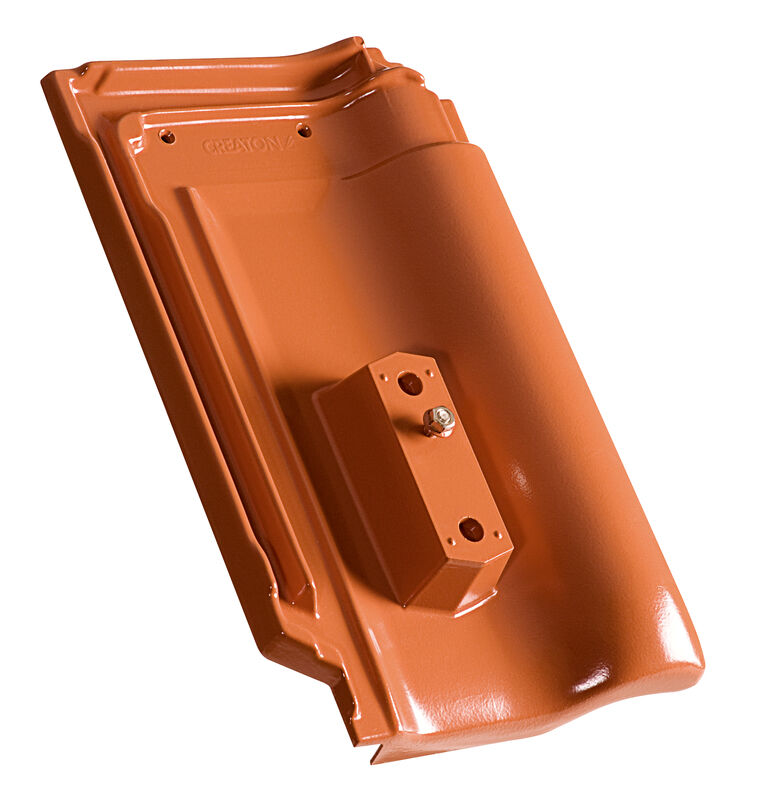

MZ3 KLASSIK aluminium base element

Solar element bracket GRUEL standard (clay)

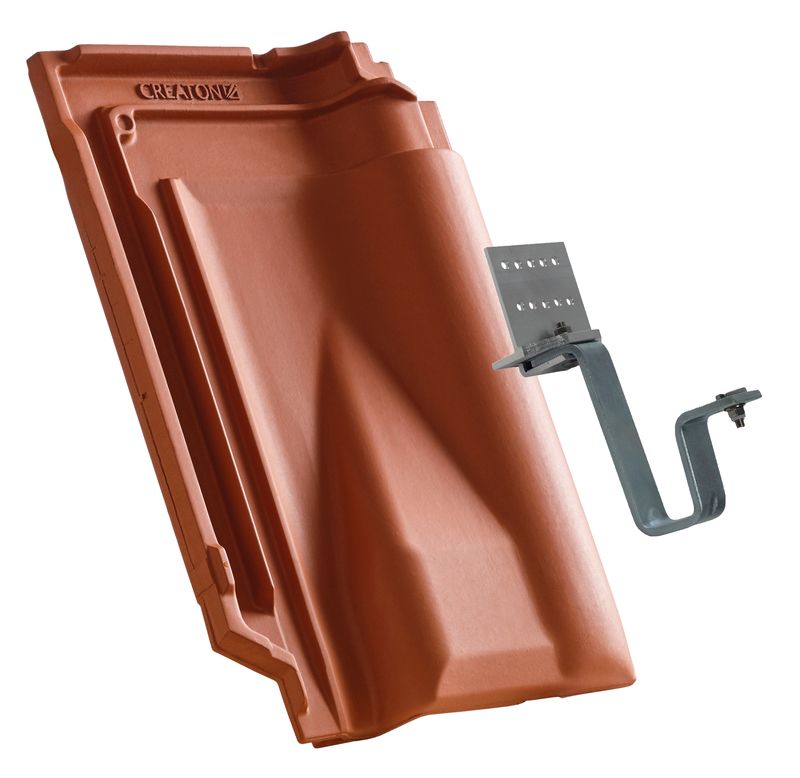

MZ3 KLASSIK solar system bracket kit for plank installation

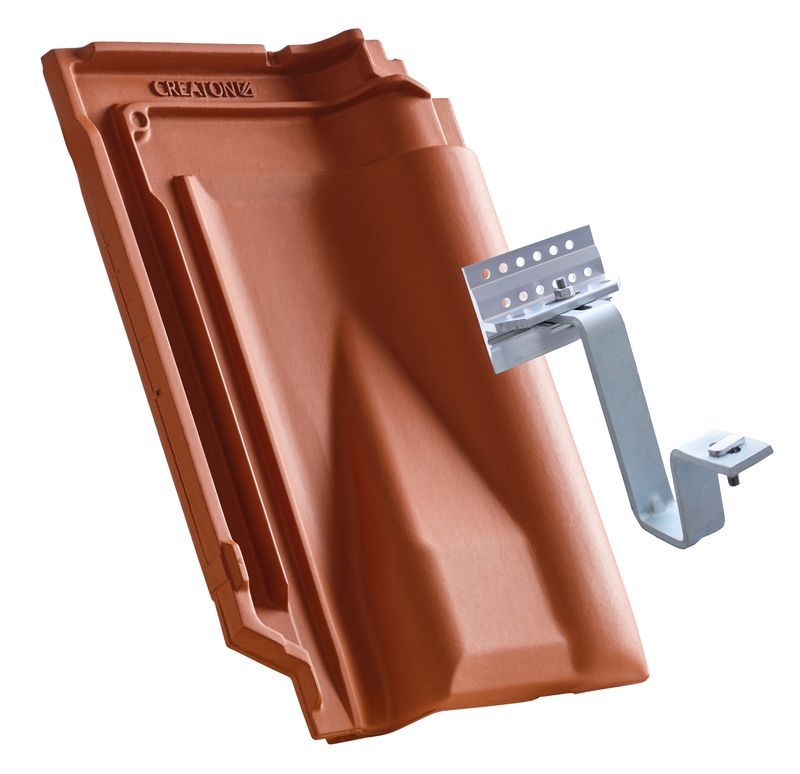

MZ3 KLASSIK solar system bracket kit for rafter installation

Single tread

Short grid

Long grating

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Roof ladder

Roof ladder bracket

Log bracket

MAG snow clip

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

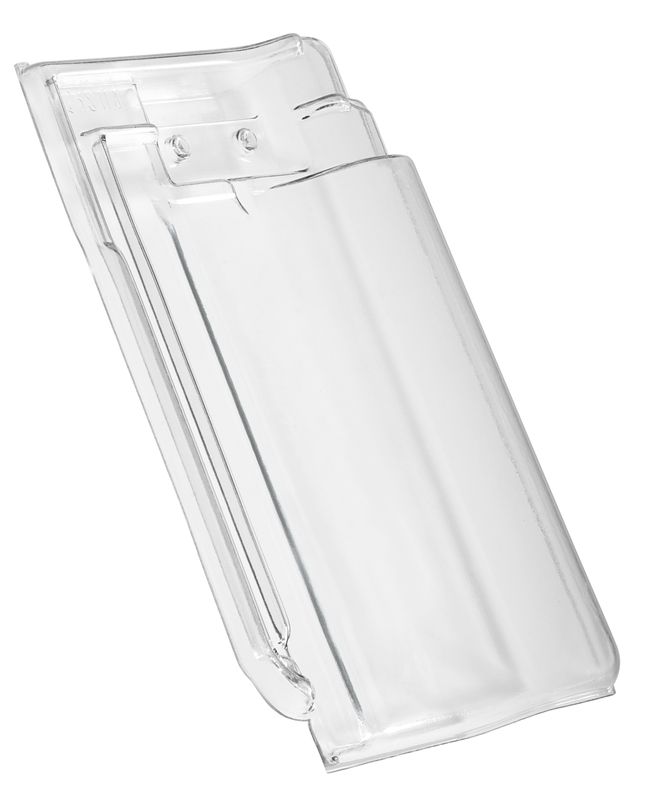

MZ3 KLASSIK transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, drive-in clip, all battens (MZ3, HAR, OPT)

Ridge clip aluminium PDZ (universal shed fastening clip)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

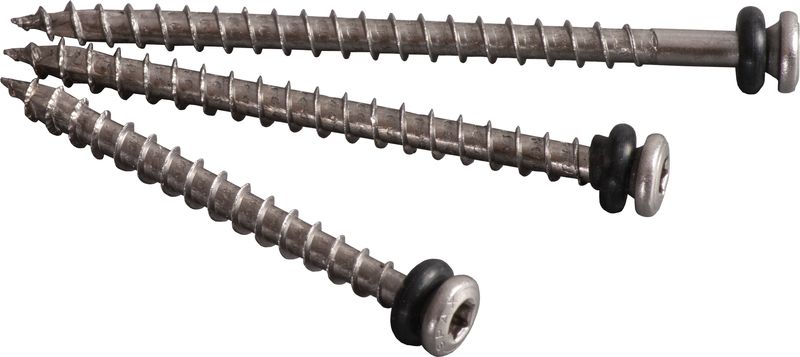

Stainless steel screw with seal, length 60 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Ridge and hip tile product range

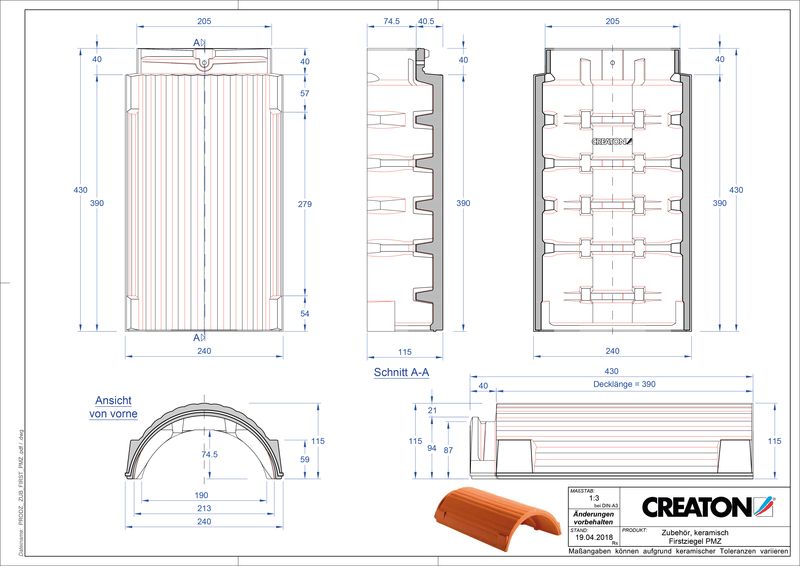

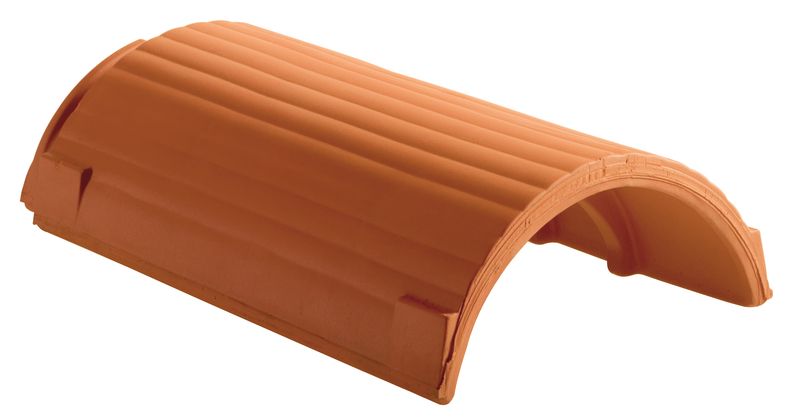

DOR ridge tile PMZ

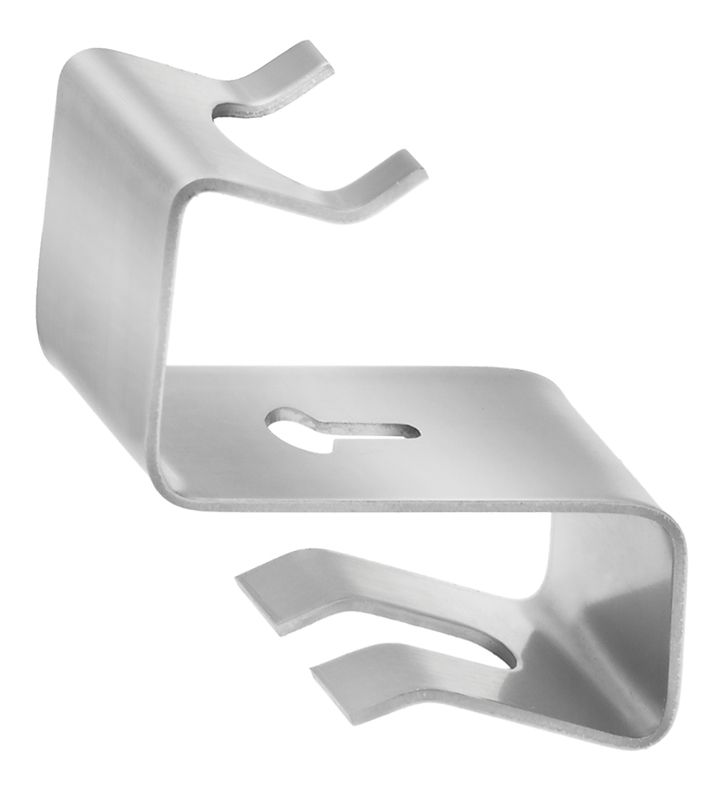

Ridge clip aluminium PMZ WER

FIRSTFIX ridge clip stainless steel PMZ WER

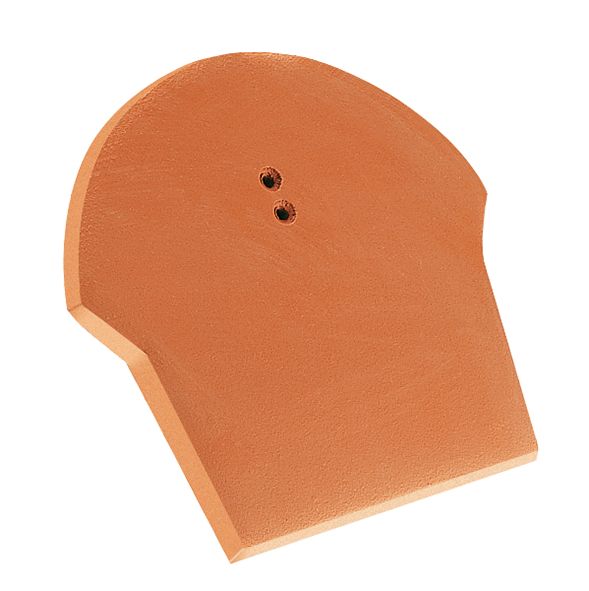

DOR ridge starter and termination plate ceramic PMZ

DOR function starter and termination plate ceramic PMZ

Hip starter ceramic PMZ WER (clay)

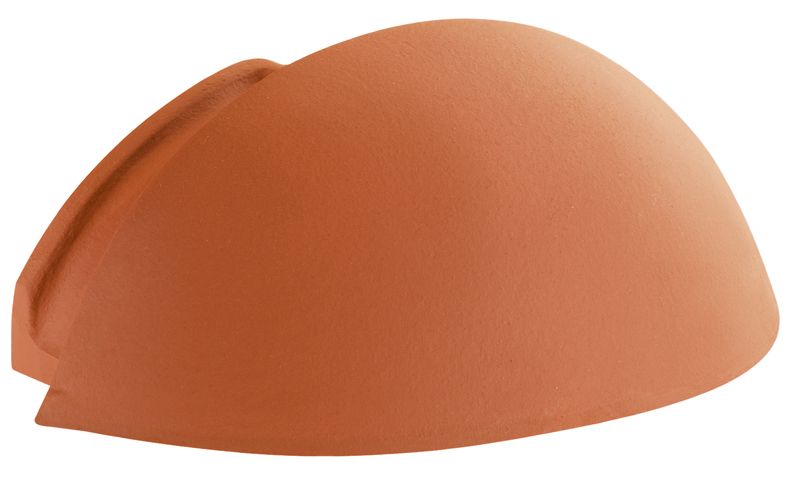

DOR hip starter ceramic round connection PMZ

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Downloads

Brochures and documents
Product brochure Farbvergleich-RAL
Product brochure MZ3-07-2019
Product brochure CREAFLEX-PIB-2020
Product brochure Flyer-Universal-Anschlussband-Aluminium-2018-08-DE
Product brochure Flyer-Universal-Anschlussband-Aluminium-2018-08-EN
Product data sheet Musterschreiben-CREATON-UDB-DE
Product brochure Zusatzgarantie-6aus10-02-2021
Product brochure Checkliste-Zusatzgarantie-6aus10-TDZ-02-2021
Product brochure CREAFLEX-ALU-BASIC-02-2021
Product order form Erhebungsbogen-Schneefangberechnung-DE
Product order form Erhebungsbogen-Windsogberechnung-DE
Product order form Erhebungsbogen-Knickziegel
Product order form Erhebungsbogen-Knickziegel-EN
Product order form Erhebungsbogen-Mansardziegel
Product order form Erhebungsbogen-Mansardziegel-EN
Product order form Erhebungsbogen-Pultziegel
Product order form Erhebungsbogen-Pultziegel-EN
Product brochure CREAROLL-PP-2022
Product brochure Gesamtprospekt-TDZ-03-2022-IT
Product brochure Gesamtprospekt-TDZ-04-2022-EN
Product declaration of performance Standard-Dachziegel-und-Zubehoerziegel
Product brochure Angebotsbeileger-Dachdurchdringungen-09-2022
Product brochure Dachbahnen-02-2023
Product brochure Dachplaner-02-2023-DE
Product brochure Falz-Firstfix-05-2023
Product brochure Solarhalter-05-2023
Product brochure Ueberlegene-Technik-07-2023
Product brochure Gesamtprospekt-TDZ-02-2024-DE
CAD

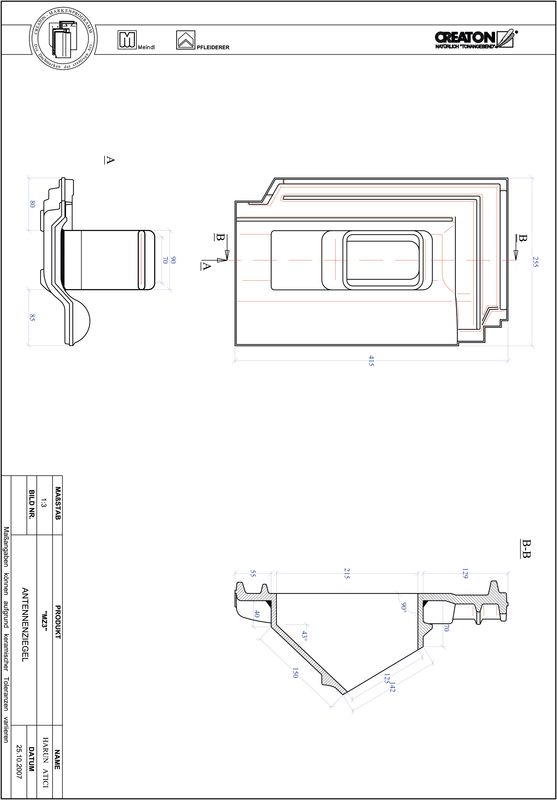

Product CAD file MZ3 Aerial ANTENNE
pdf | 106 kB
dwg | 95 kB
jpeg | 50 kB

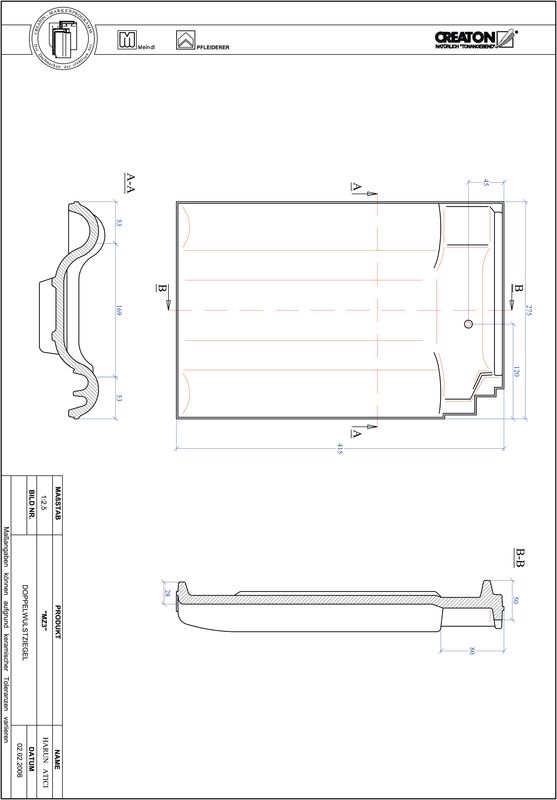

Product CAD file MZ3 double roll tile DWZ
pdf | 103 kB
dwg | 119 kB
jpeg | 51 kB

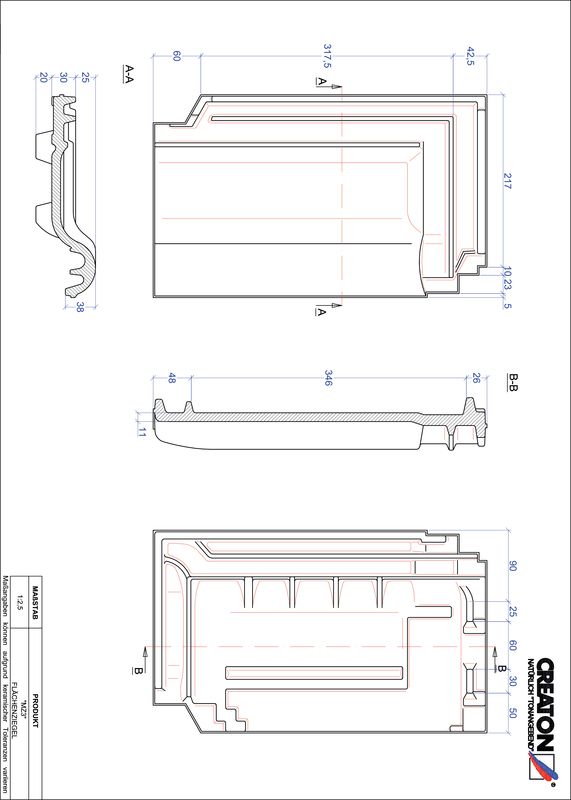

Product CAD file MZ3 field FLA
pdf | 69 kB
dwg | 100 kB
jpeg | 62 kB

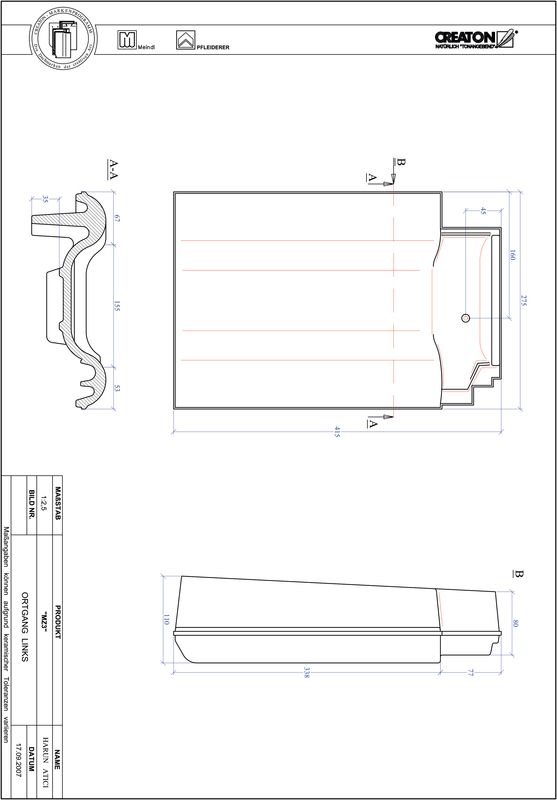

Product CAD file MZ3 verge left OGL
pdf | 100 kB
dwg | 133 kB
jpeg | 50 kB

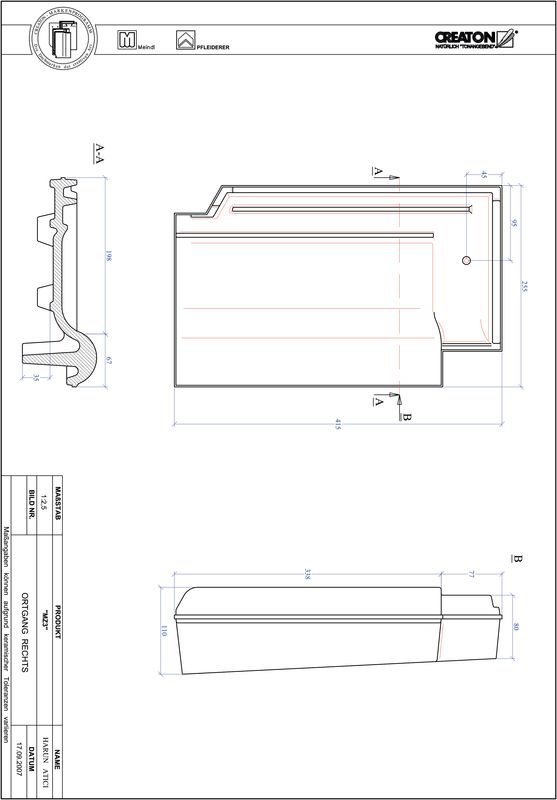

Product CAD file MZ3 verge right OGR
pdf | 100 kB
dwg | 133 kB
jpeg | 50 kB

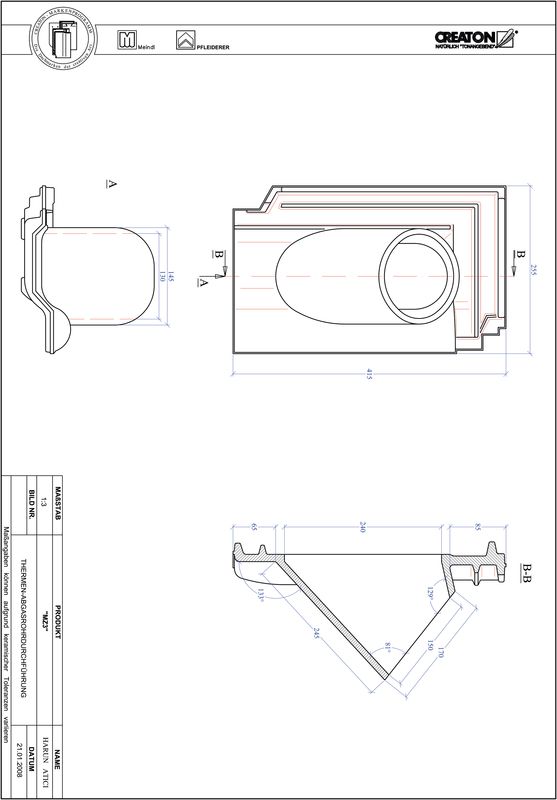

Product CAD file MZ3 Thermal THERME
pdf | 110 kB
dwg | 134 kB
jpeg | 53 kB

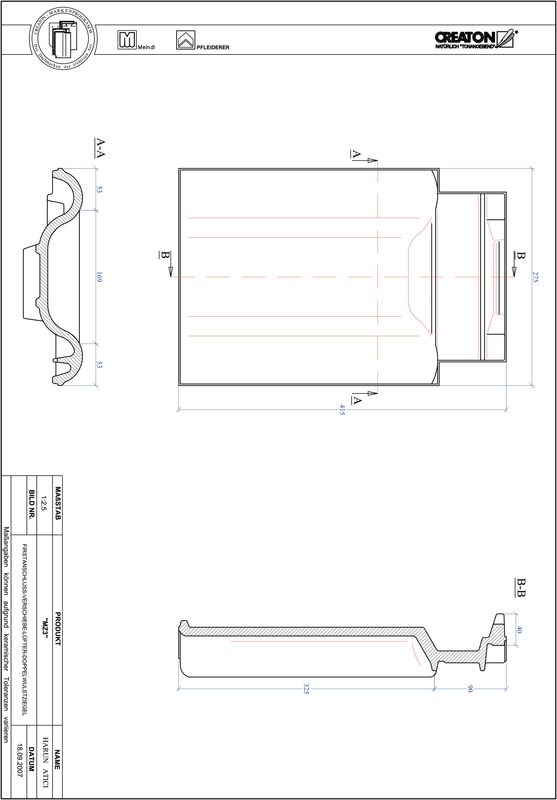

Product CAD file MZ3 adjustment range, double roll tile VSBDWZ
pdf | 106 kB
dwg | 127 kB
jpeg | 50 kB

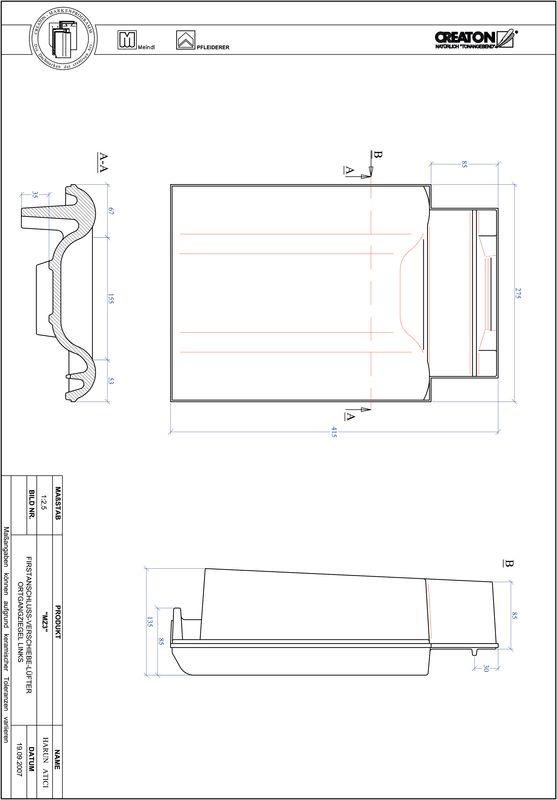

Product CAD file MZ3 adjustment range, verge left VSBOGL
pdf | 107 kB
dwg | 134 kB
jpeg | 50 kB

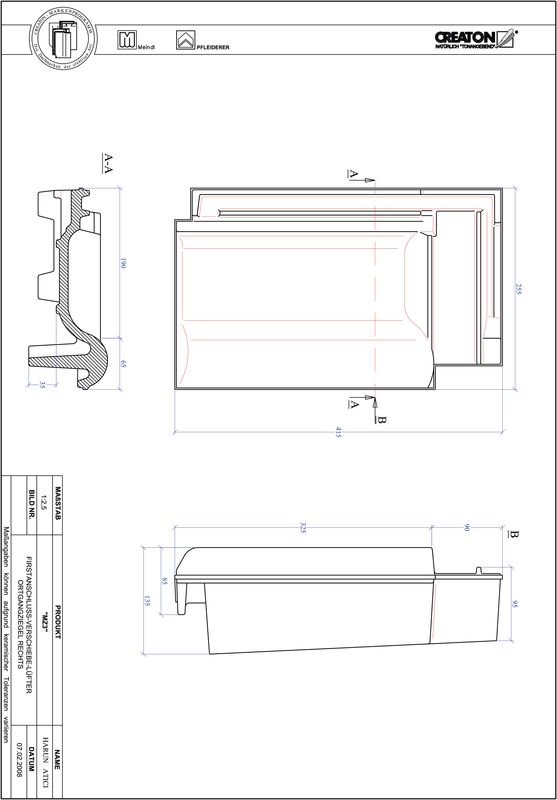

Product CAD file MZ3 adjustment range, verge right VSBOGR
pdf | 109 kB
dwg | 122 kB
jpeg | 53 kB

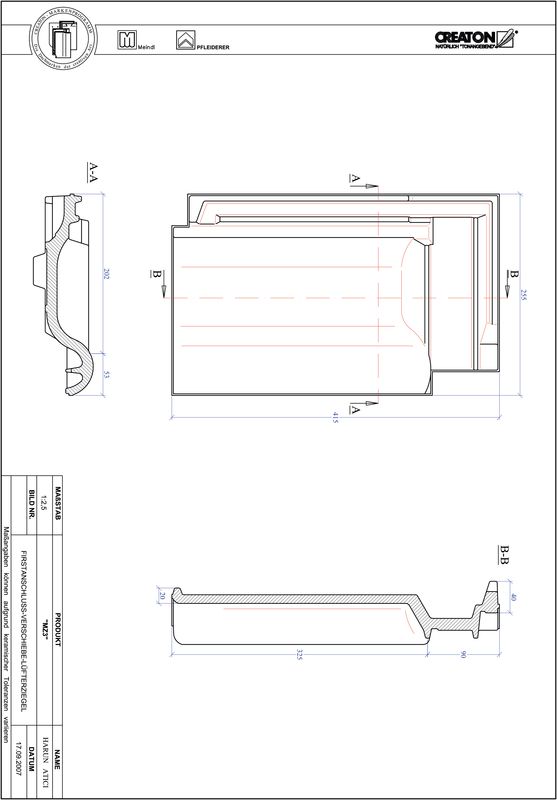

Product CAD file MZ3 adjustment range VSB
pdf | 106 kB
dwg | 128 kB
jpeg | 51 kB

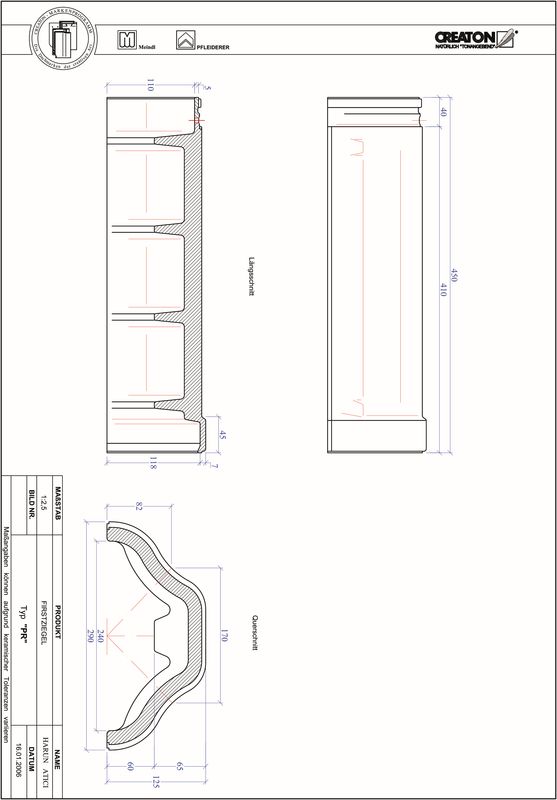

Product CAD file RIDGE accessory range FIRST-PR
pdf | 110 kB
dwg | 113 kB
jpeg | 45 kB
Product CAD file RIDGE accessory range FIRST-PMZ
pdf | 224 kB
jpeg | 89 kB

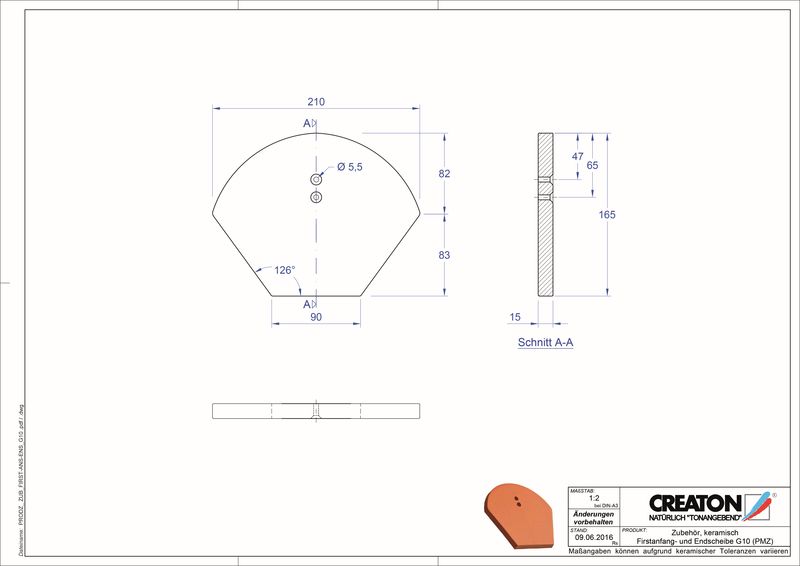

Product CAD file RIDGE accessory range FIRSTAESCH-G10-PMZ
pdf | 186 kB
dwg | 129 kB
jpeg | 35 kB

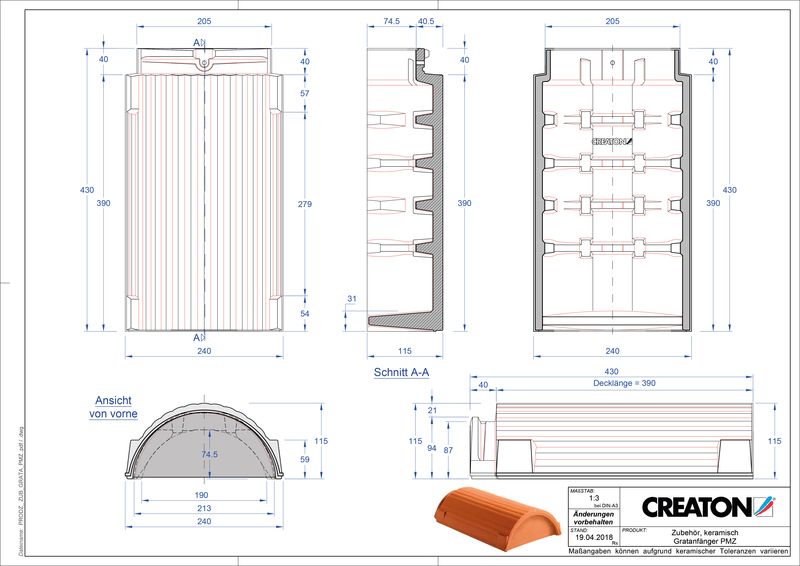

Product CAD file RIDGE accessory range GRATA-PMZ
pdf | 226 kB
jpeg | 89 kB
# ZUB_SIG100_SIGNUM100
pdf | 521 kB
dwg | 180 kB
jpeg | 53 kB
# ZUB_SIG125_SIGNUM125
pdf | 550 kB
dwg | 188 kB
jpeg | 55 kB

MZ3 KLASSIK

Technical data

Technical drawings

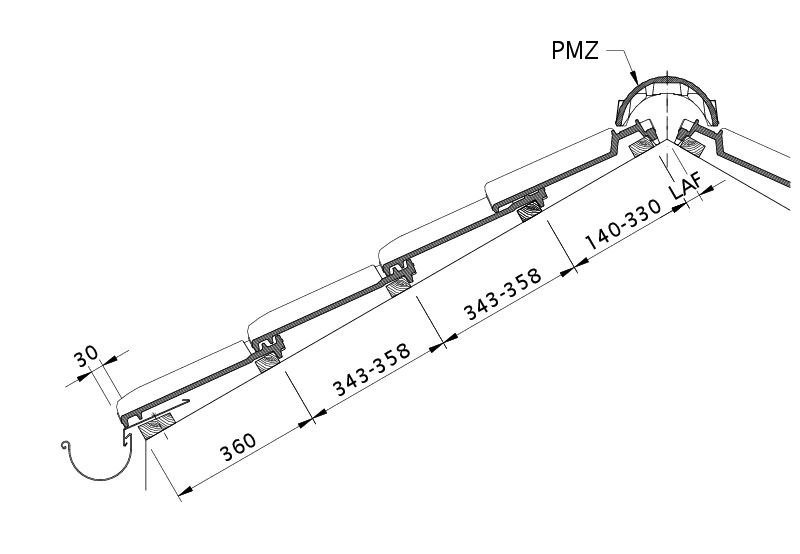

Drawing MZ3 roof cross-section DQF

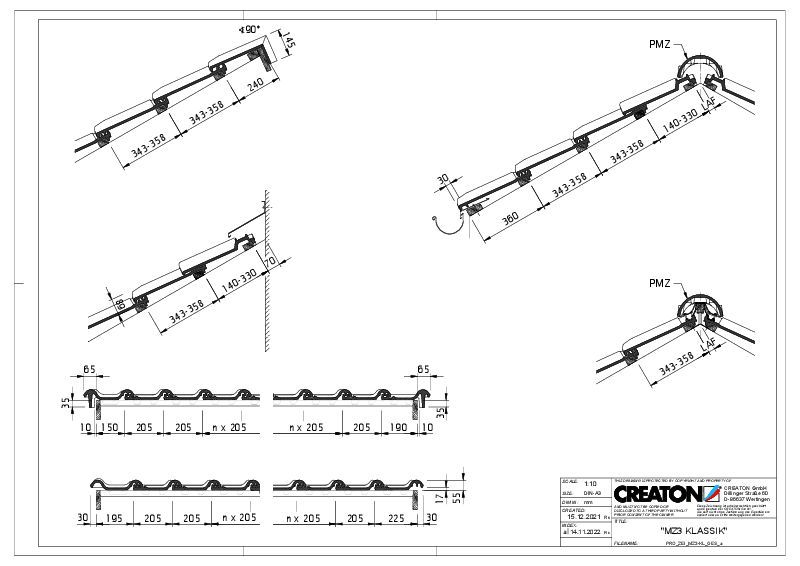

Drawing MZ3 general view GES

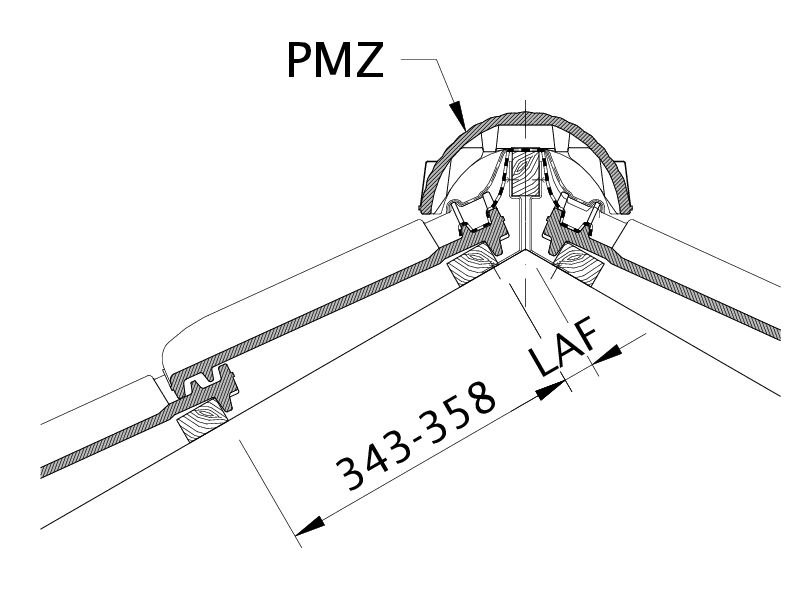

Drawing MZ3 distance from batten to ridge intersection point, ridge batten spacing LAF

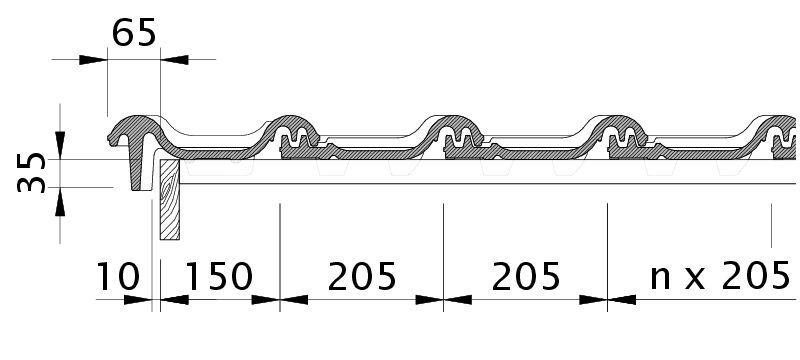

Drawing MZ3 verge tile left with barge board OBL

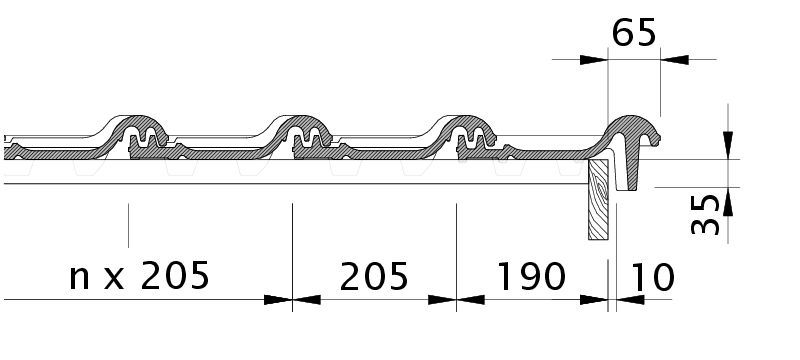

Drawing MZ3 verge tile right with barge board OBR

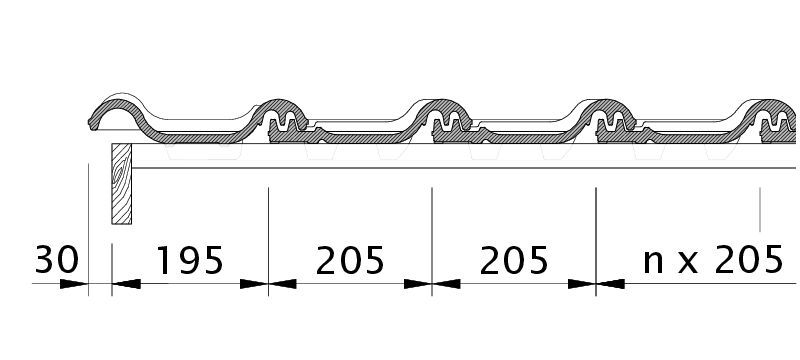

Drawing MZ3 verge left with verge sheet metal and double roll ODL

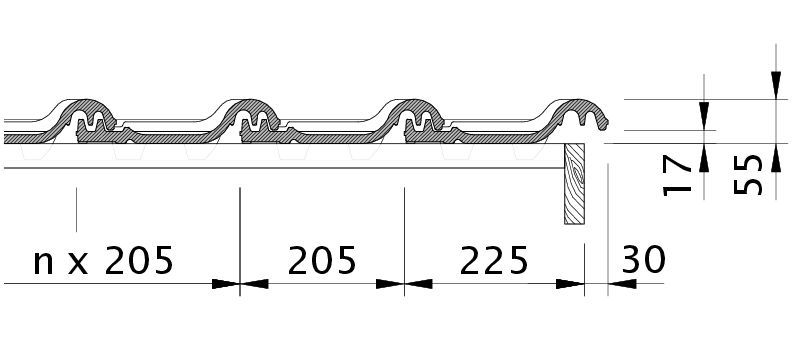

Drawing MZ3 verge right with verge sheet metal and field tile OFR

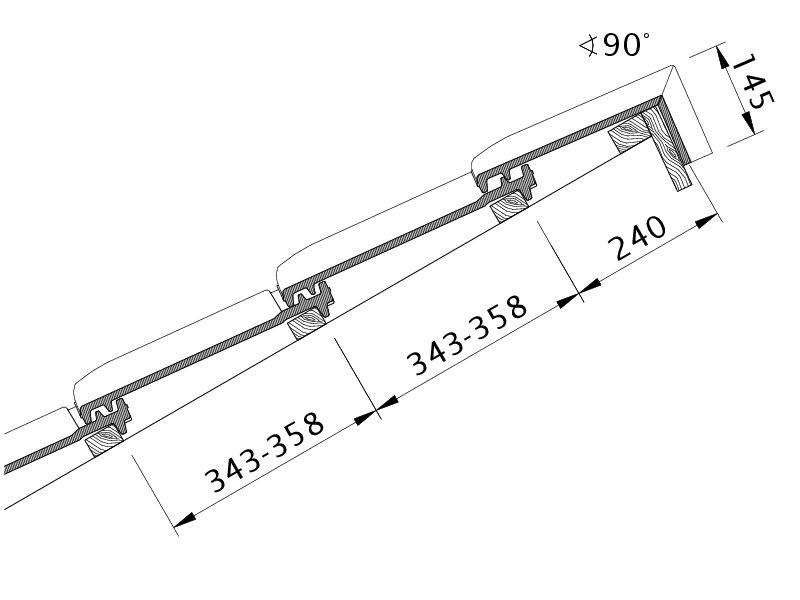

Drawing MZ3 shed roof version PDA

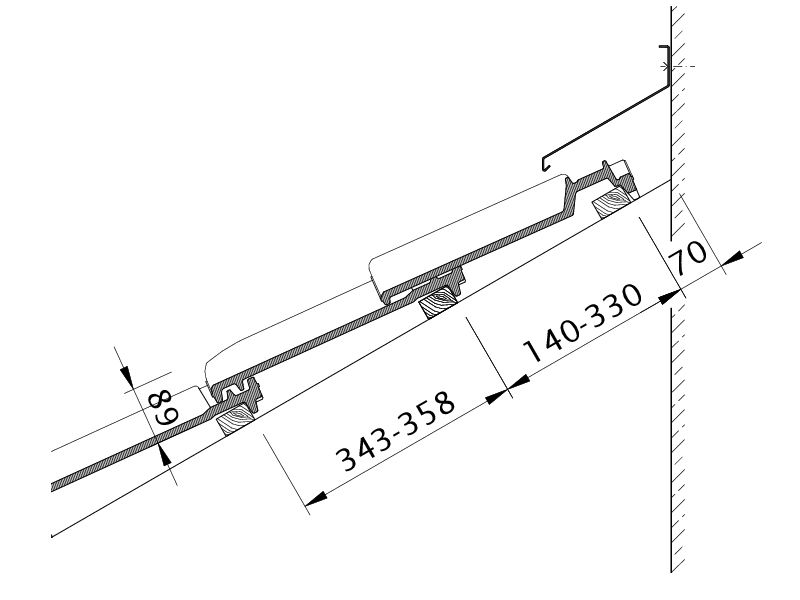

Drawing MZ3 wall connection (above) with FALZ WMF

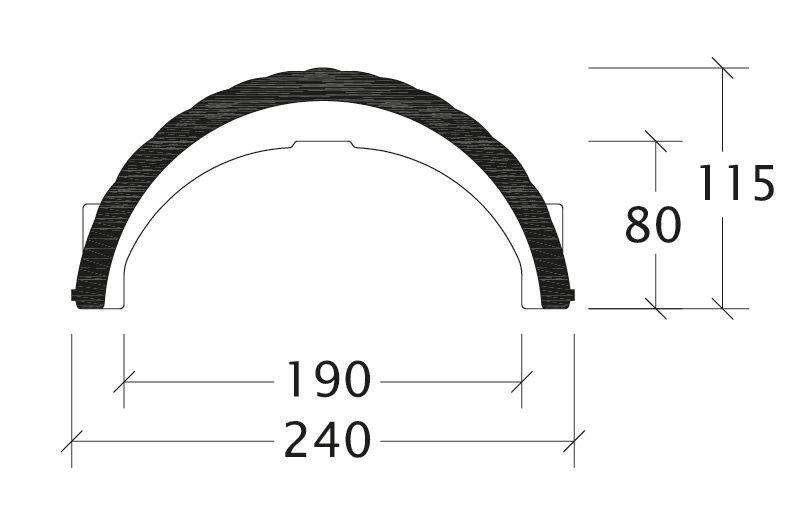

Drawing ridge and hip tile product range PMZ-Firstziegel

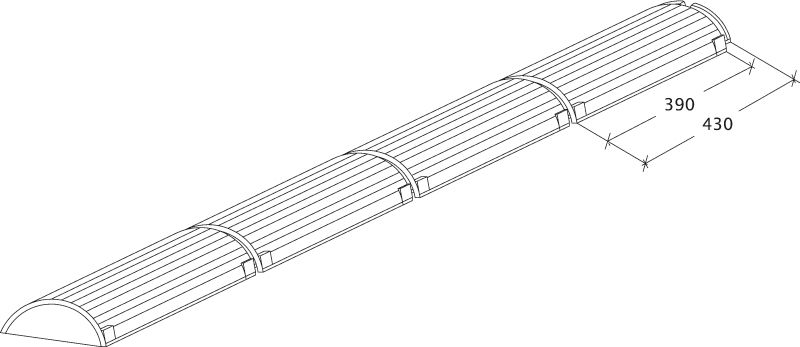

Drawing ridge and hip tile product range PMZ-Firstziegel-Perspektive
