MZ3 NEU NUANCE black matt engobed

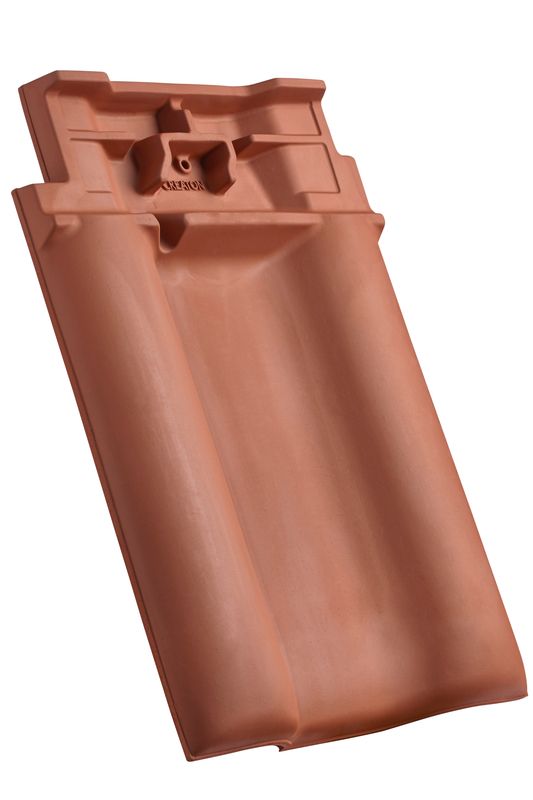

MZ3

The updated classic.

  • Distinctive side ribs prevent water penetration, even in the strongest winds
  • 28 mm adjustment range for optimum adjustment to suit batten spacing
  • Effective water drainage and optimum flow behaviour, thanks to technically perfected overlapping
  • First-rate raw materials ensure the smoothest tile surface
  • Double bottom ribbing ensures the tile stays firmly in place and prevents blown snow or sleet from penetrating
  • Improved water drainage thanks to optimised head interlock

In order to generally ensure the highest possible availability for you in the most important core products, we have decided to forego the production of isolated color and model combinations, at least temporarily. For the model MZ3, the colors NUANCE dark brown engobed, FINESSE wine red glazed and NOBLESSE black glazed are not available until further notice.

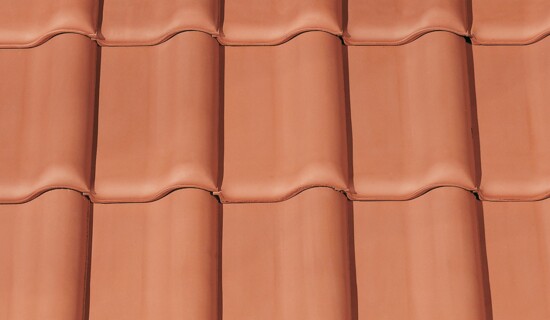

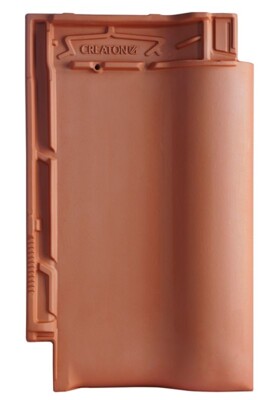

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE antique grey engobed
NUANCE antique grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE black glazed
FINESSE black glazed

Technical data

Size (appr.)268 x 442 mm
Covering width min. approx.216 mm
Covering width on av. approx.218 mm
Max. coverage width (approx.)220 mm
Min. gauge (approx.)334 mm
Covering length on av. approx.345 mm
Max. gauge (approx.)360 mm
Tile requirement min. (approx.)12.6 pcs/m²
Average tile requirement (approx.)13.3 pcs/m²
Brickware max. approx.13.9 pcs/m²
Unit weight (approx.)3.6 kg/piece
Weight per m² (approx.)47.9 kg/m²
Weight per pallet (approx.)889 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

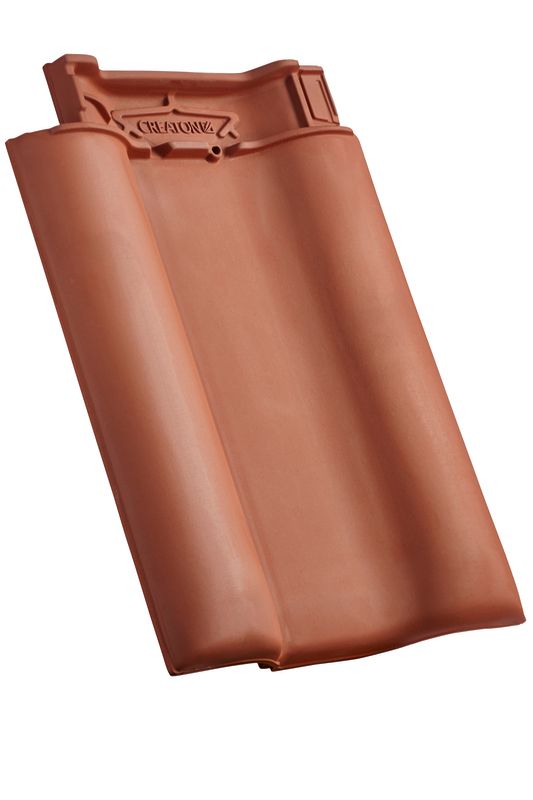

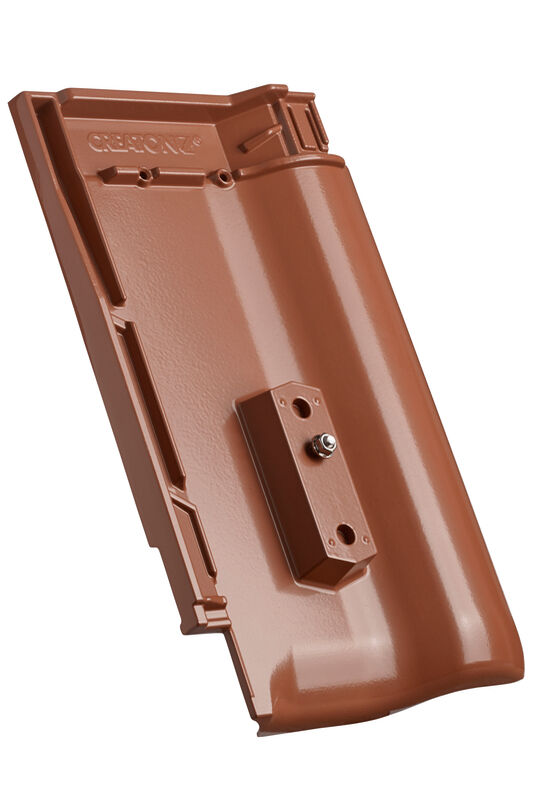

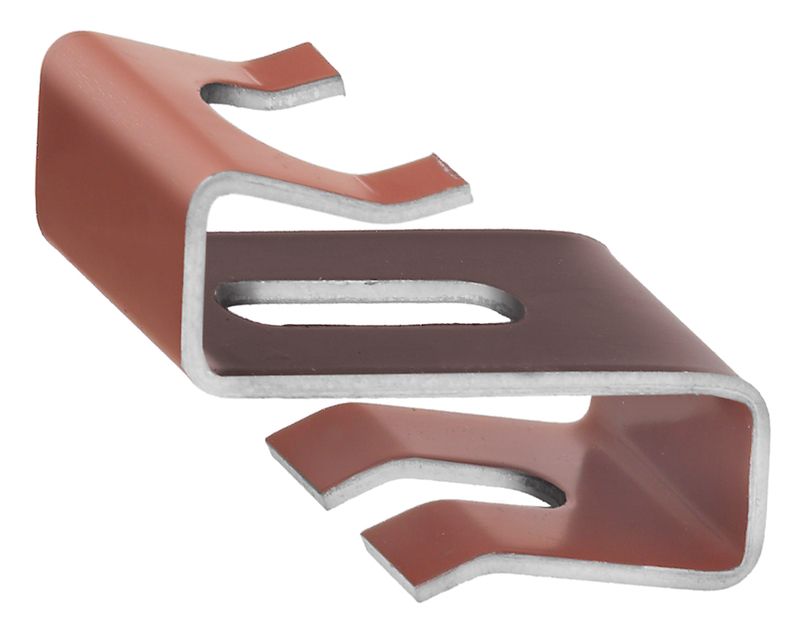

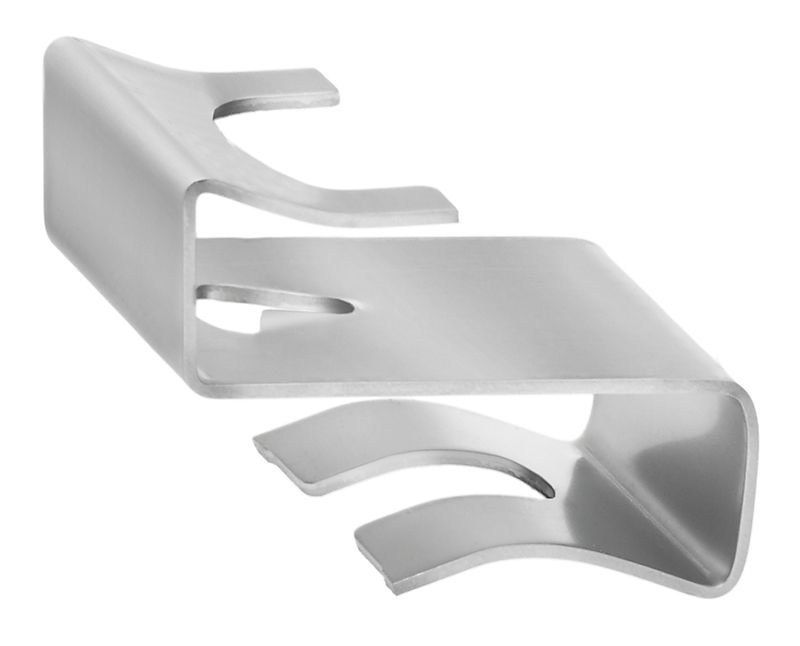

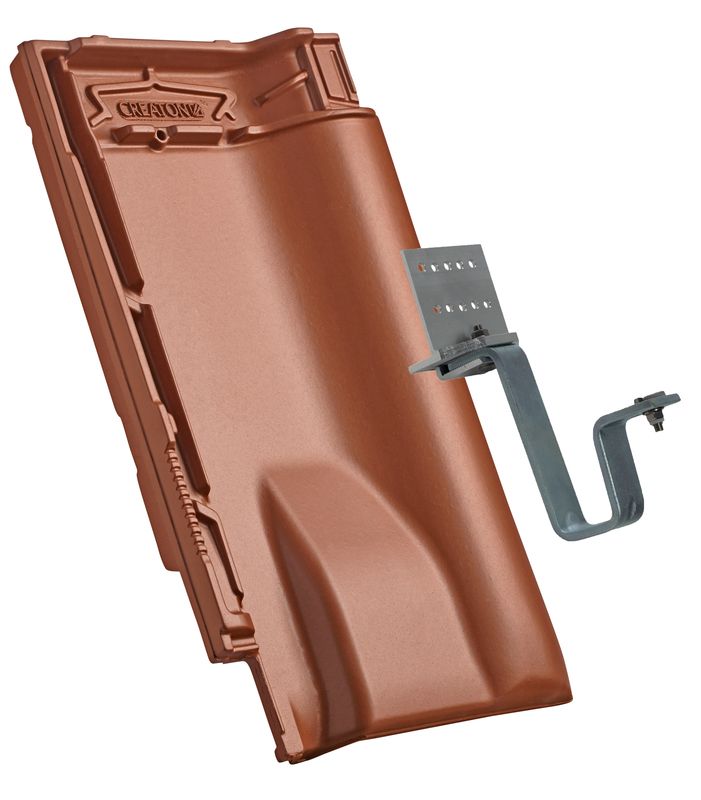

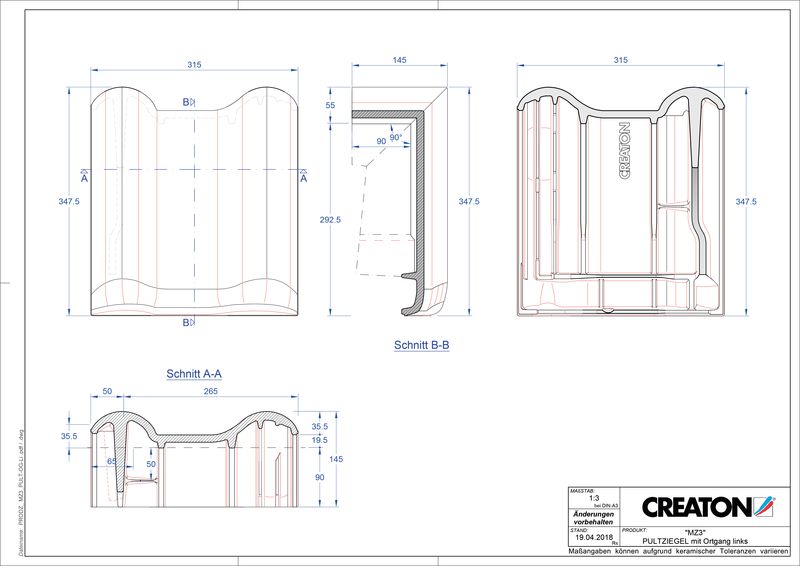

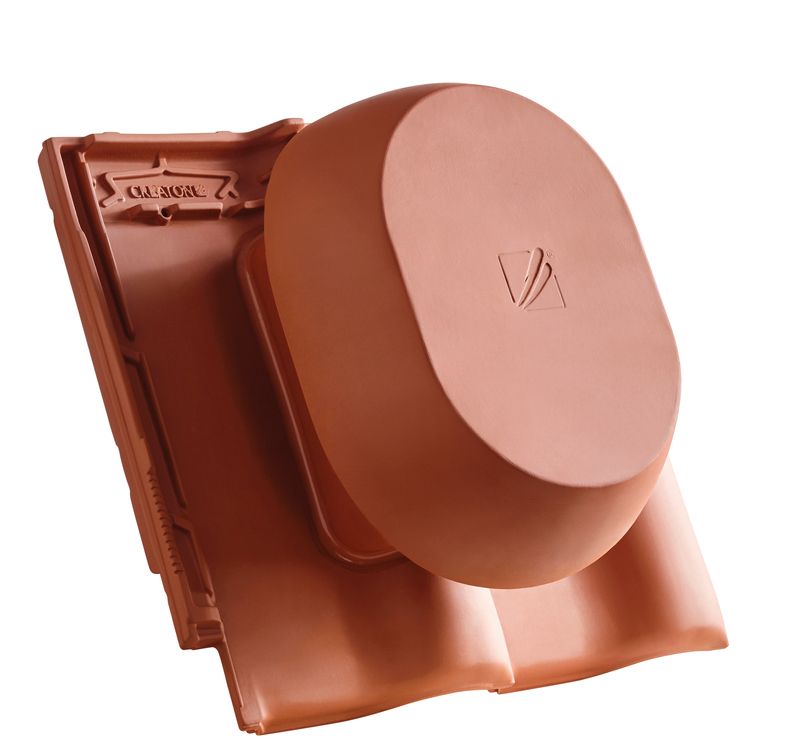

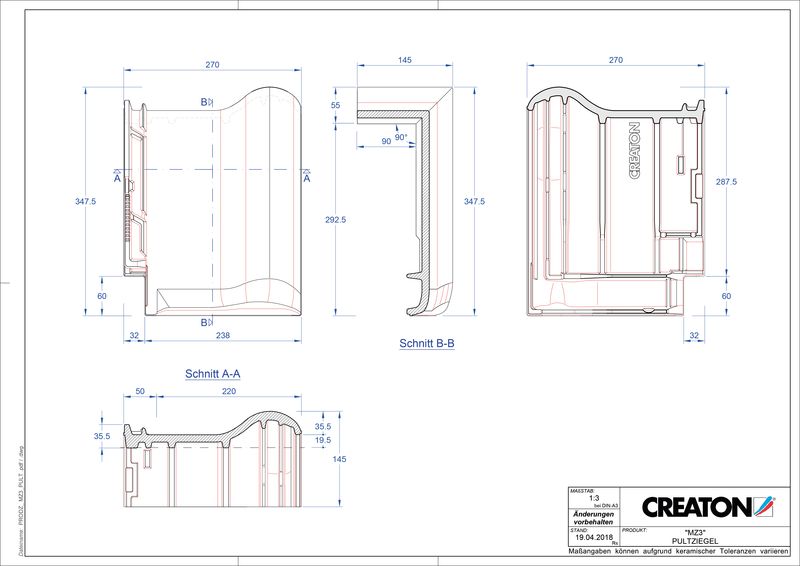

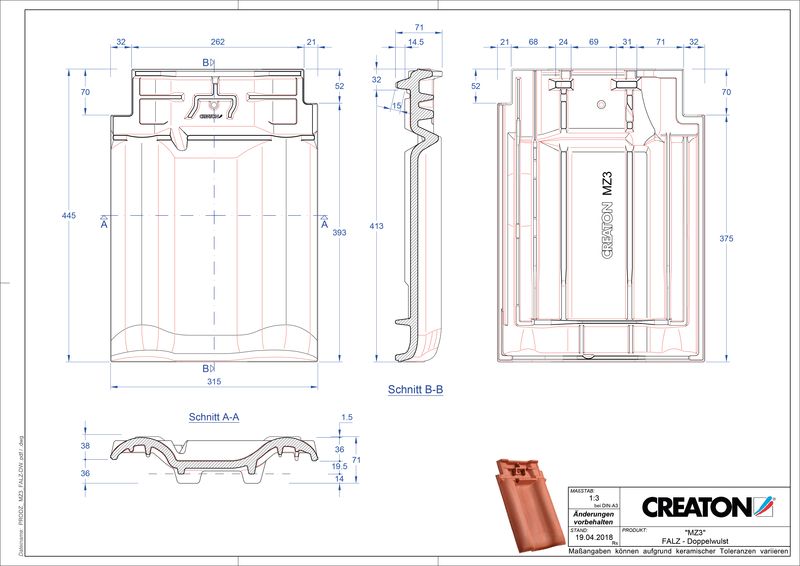

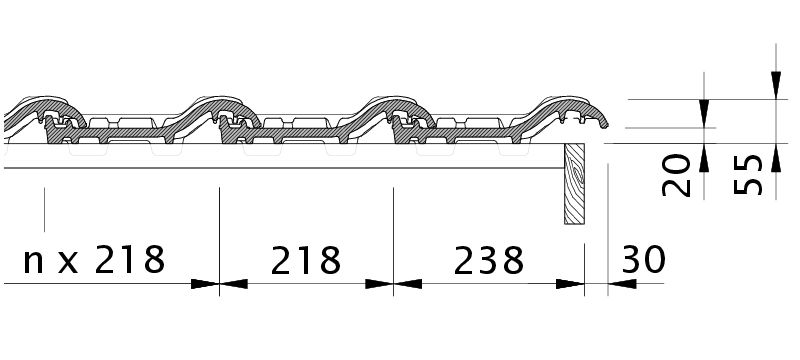

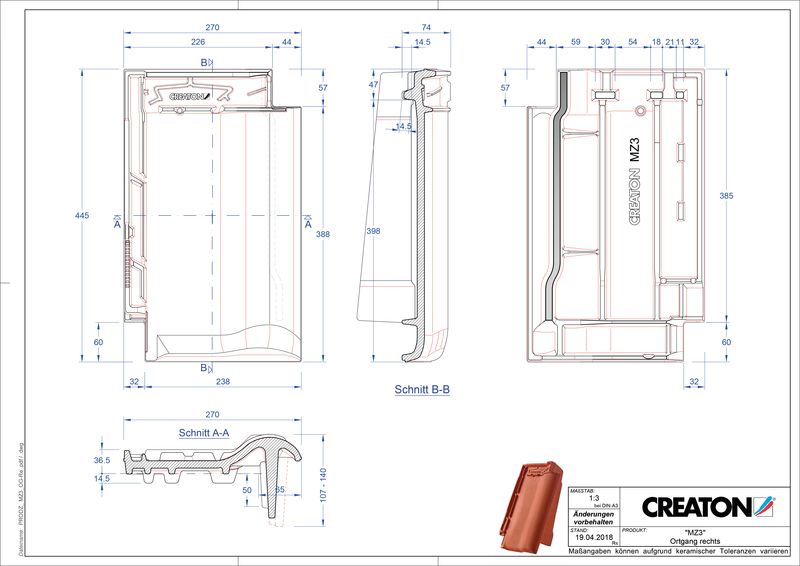

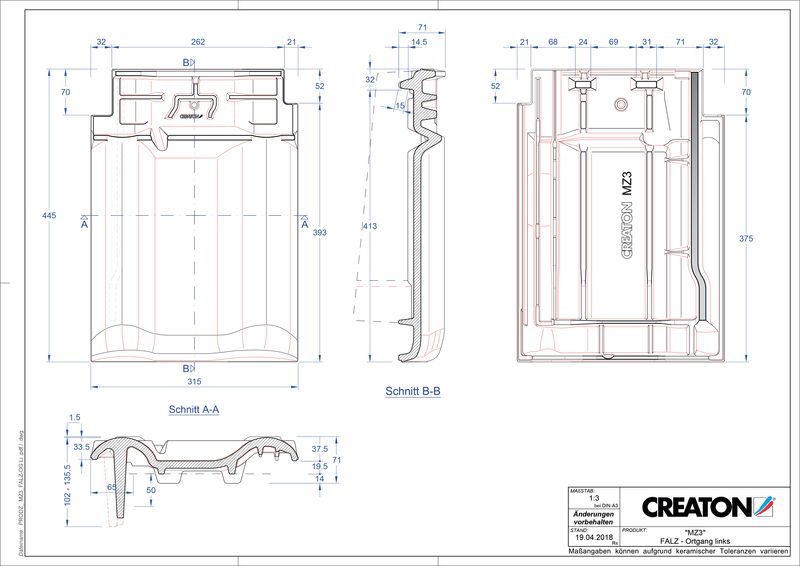

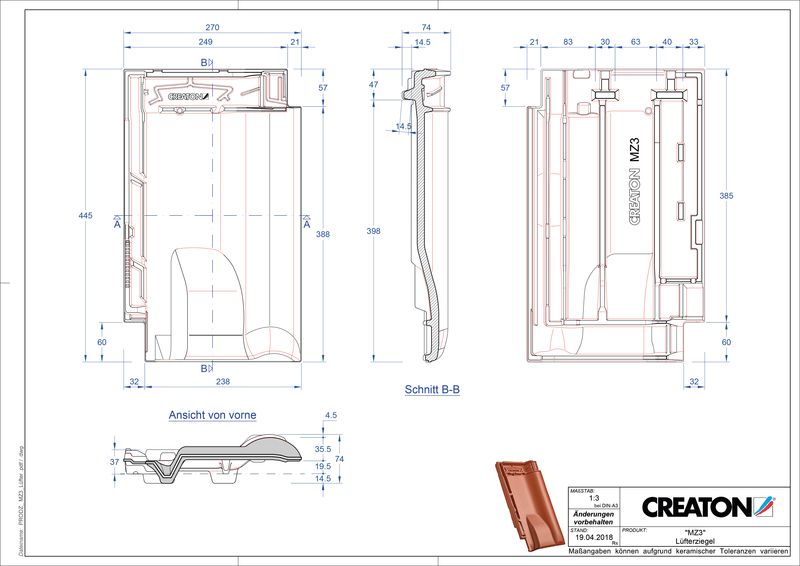

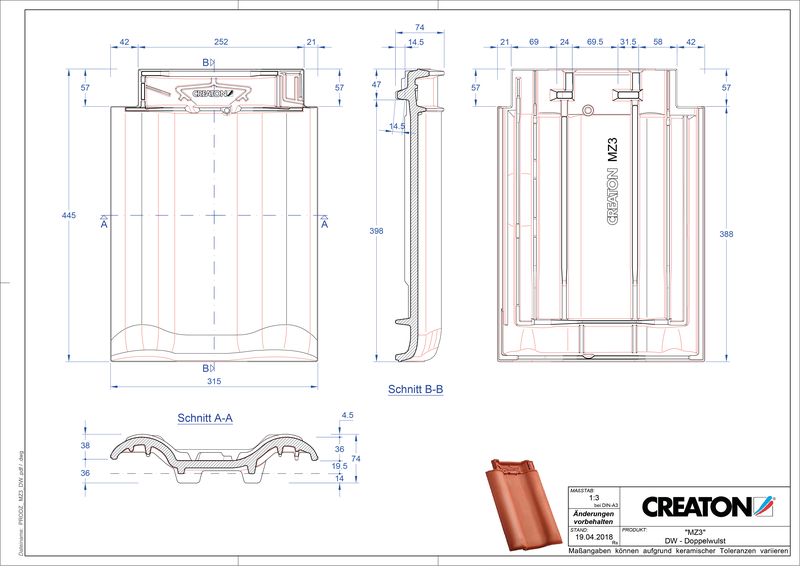

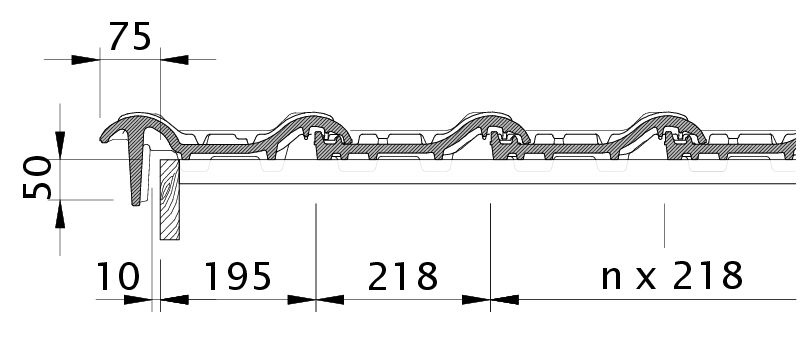

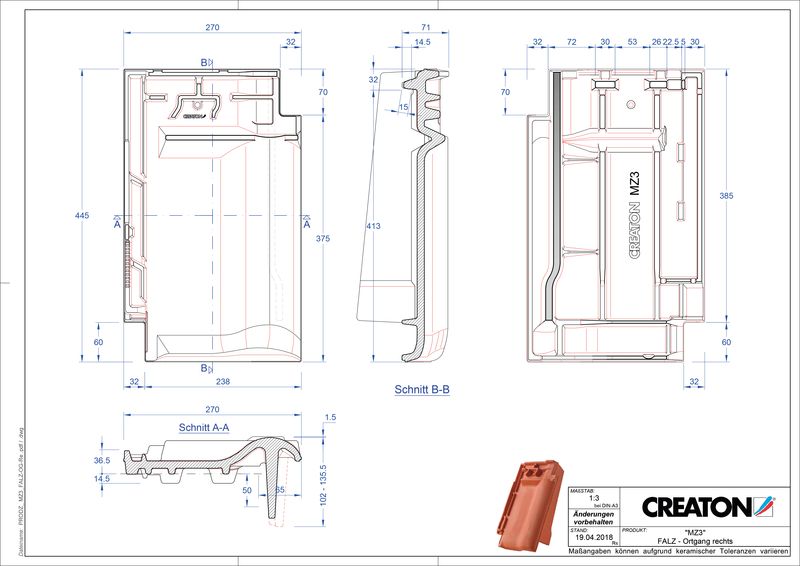

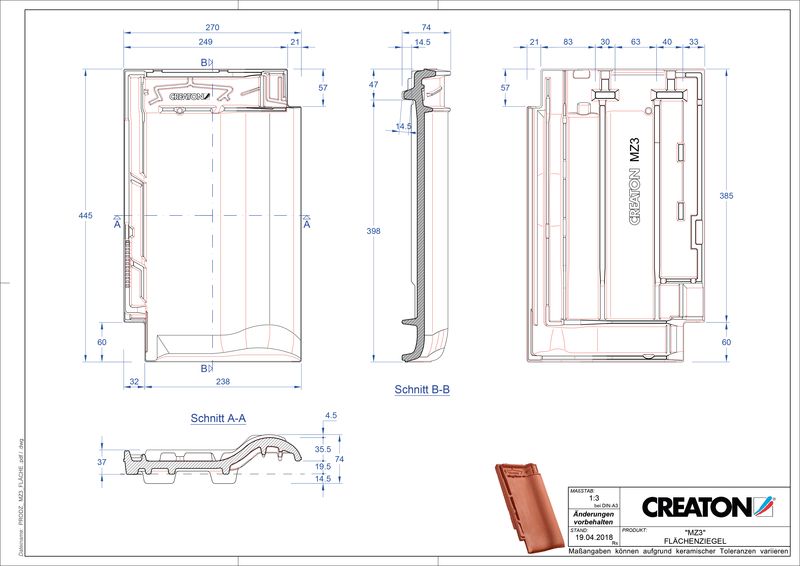

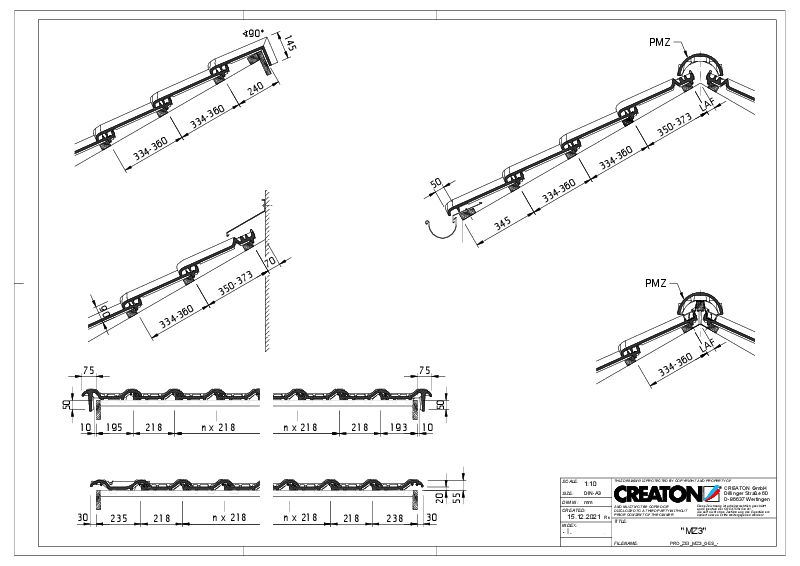

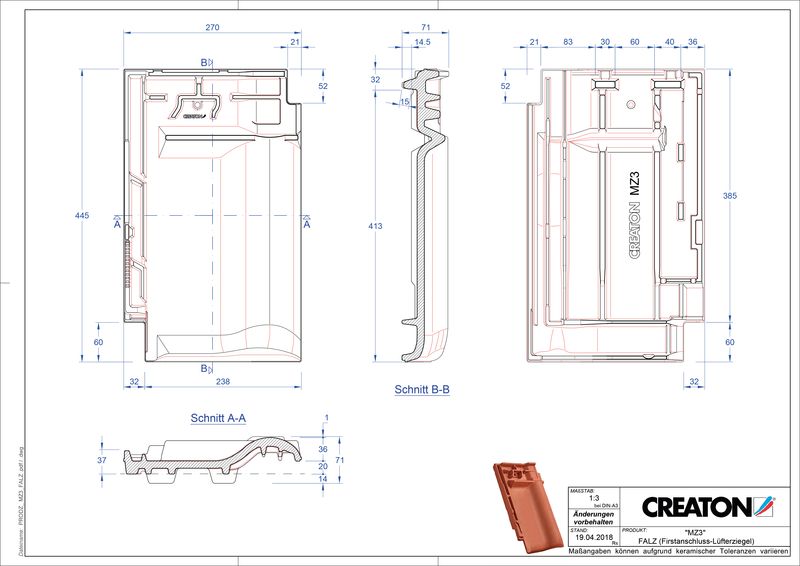

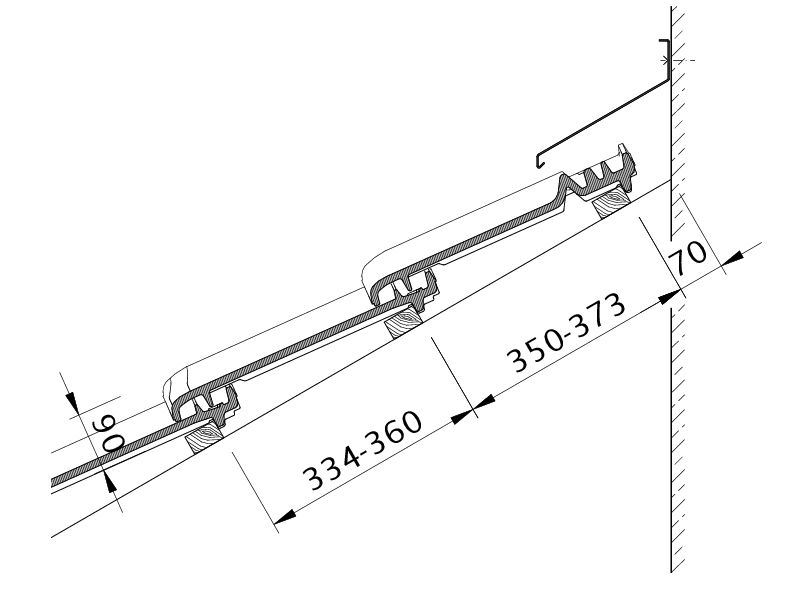

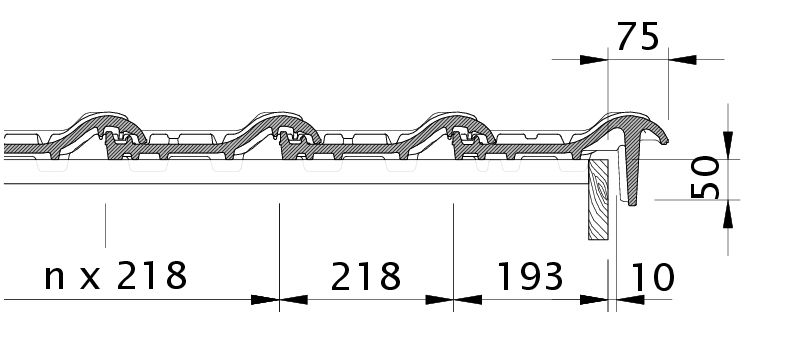

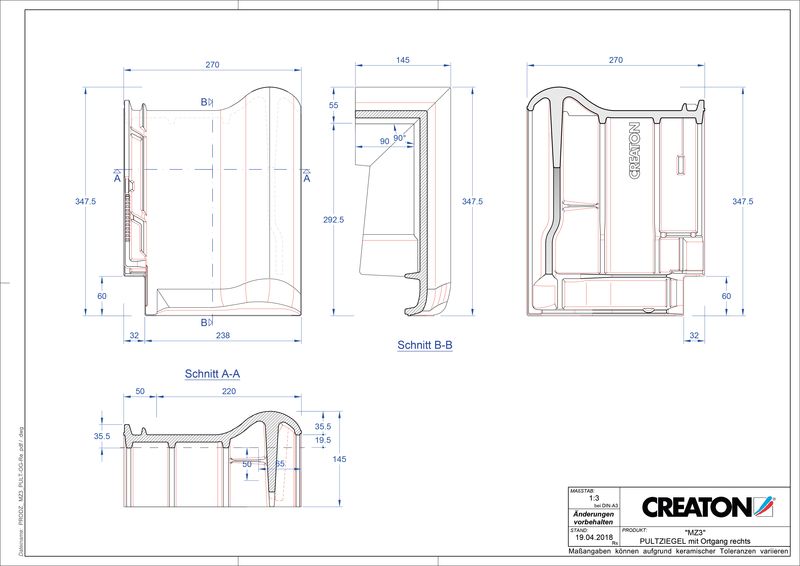

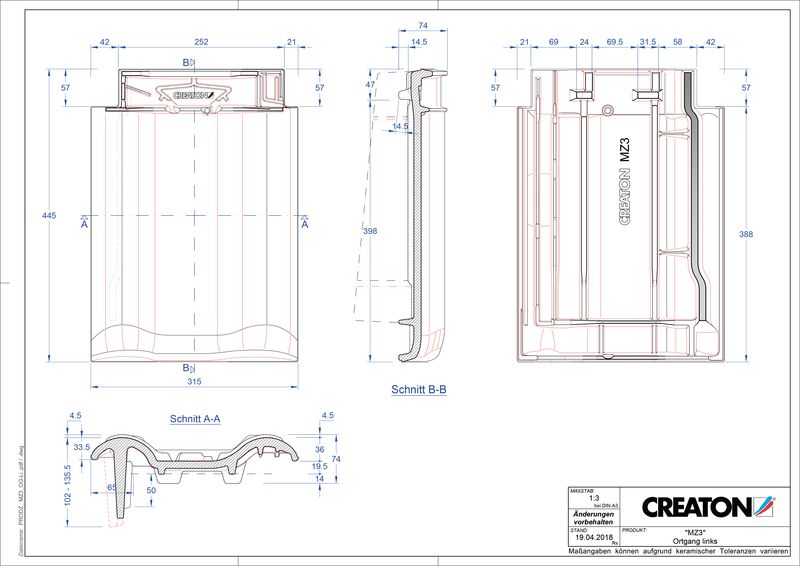

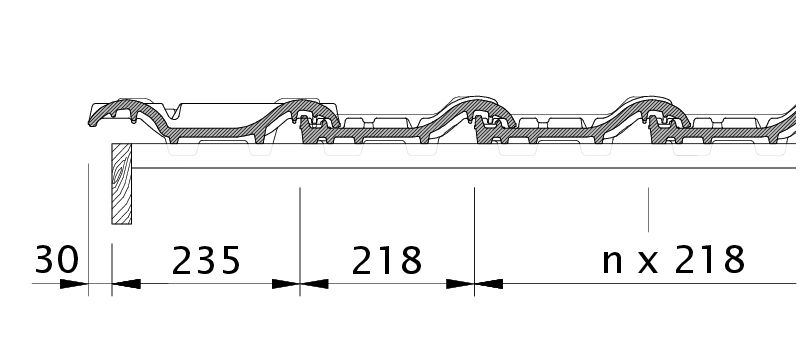

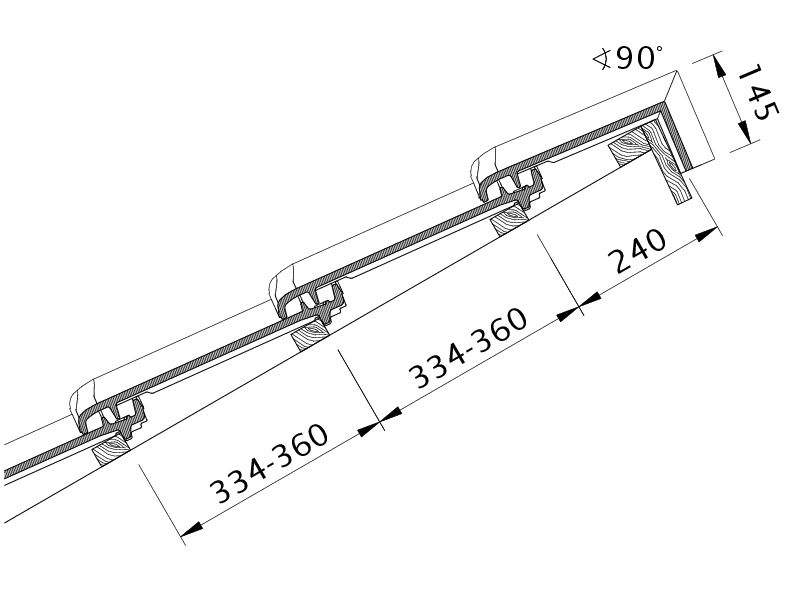

  • The technical drawing shown is merely an example.

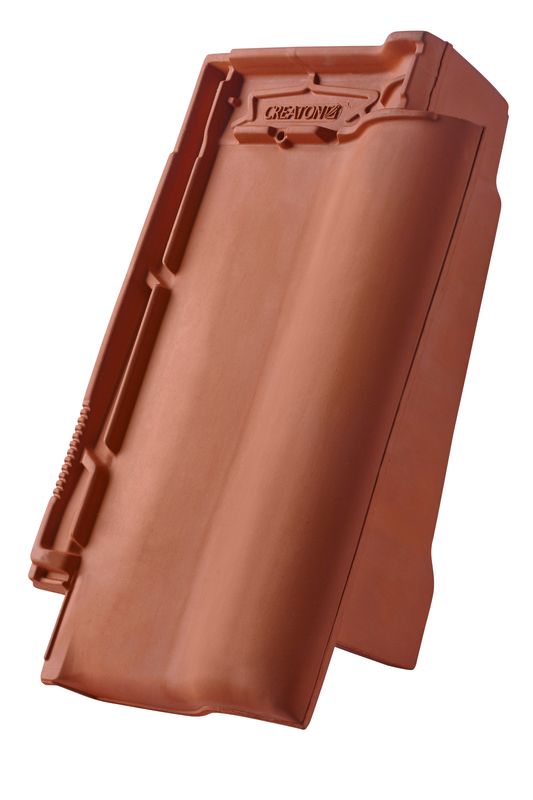

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

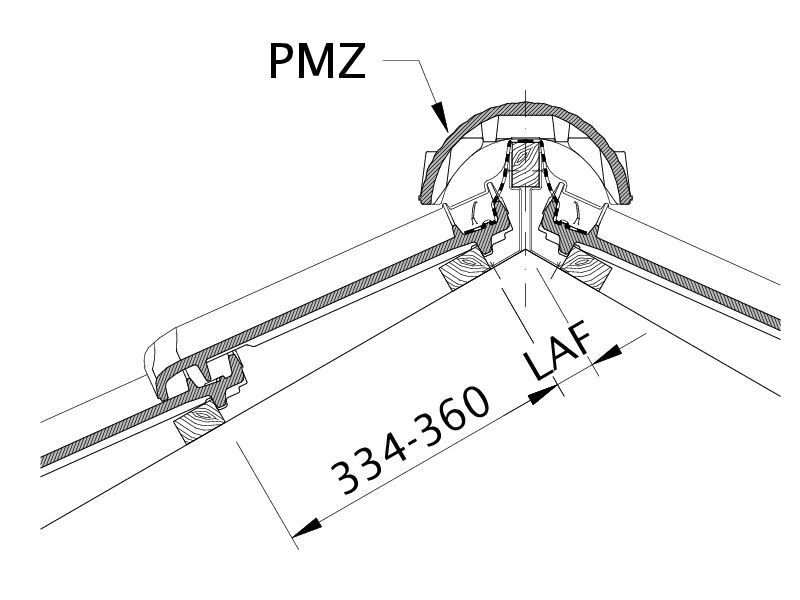

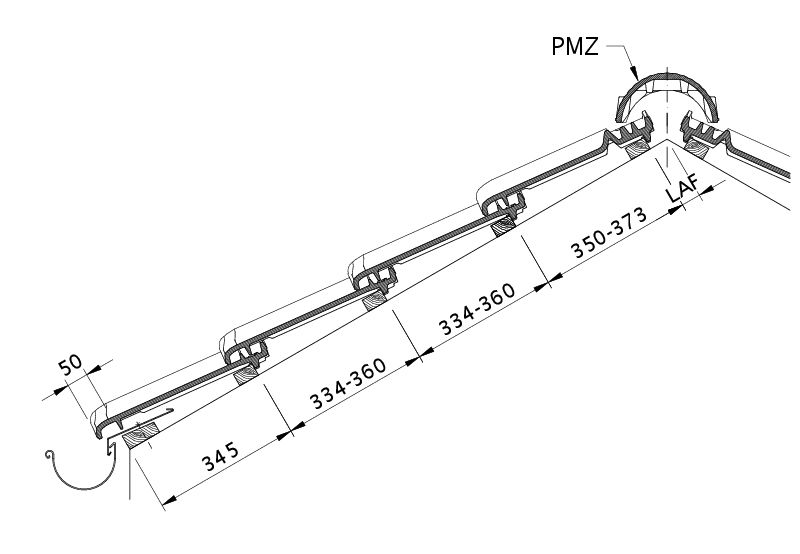

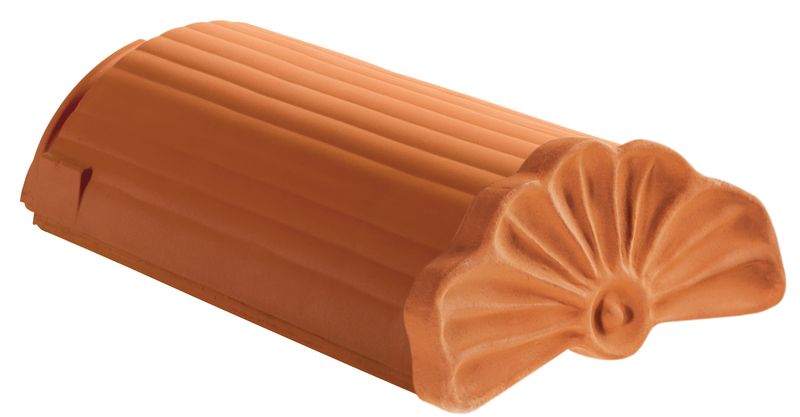

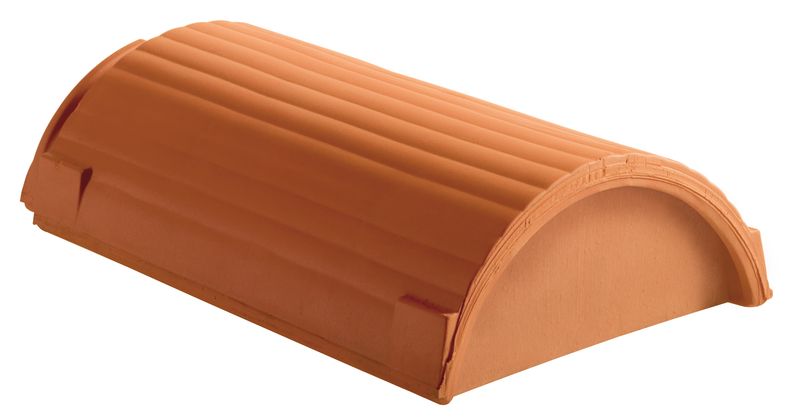

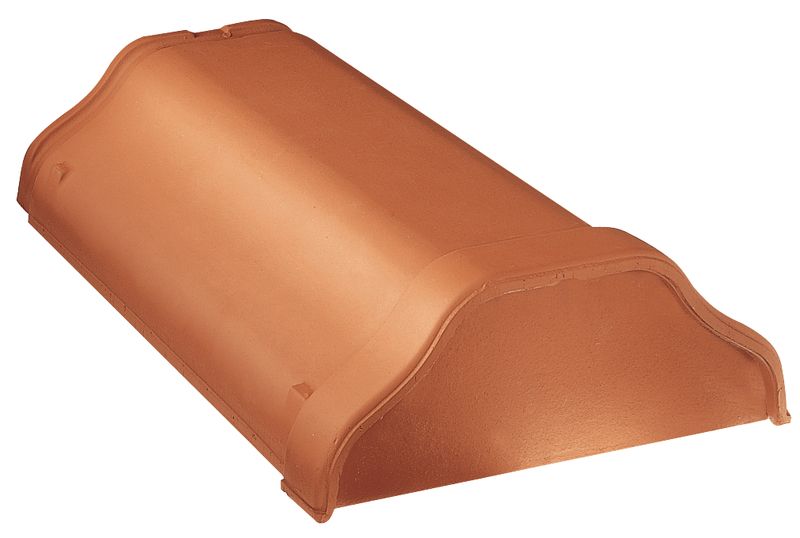

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens

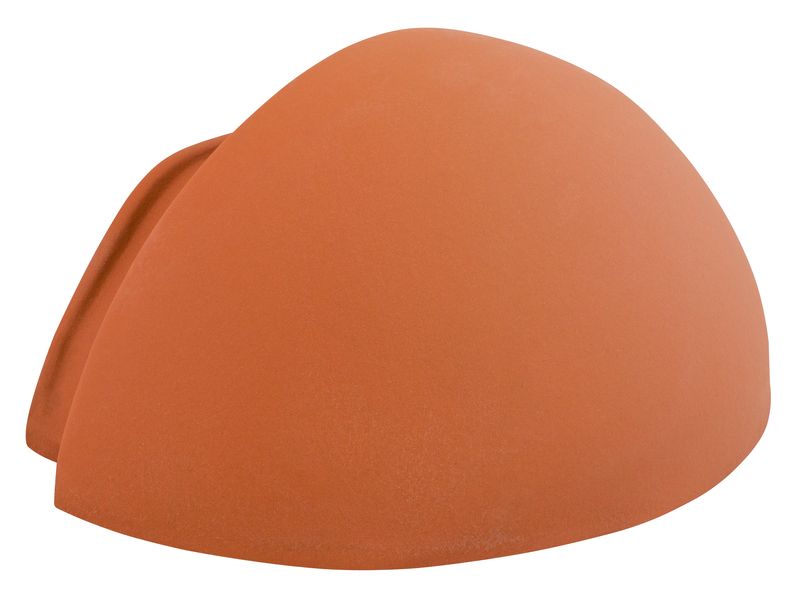

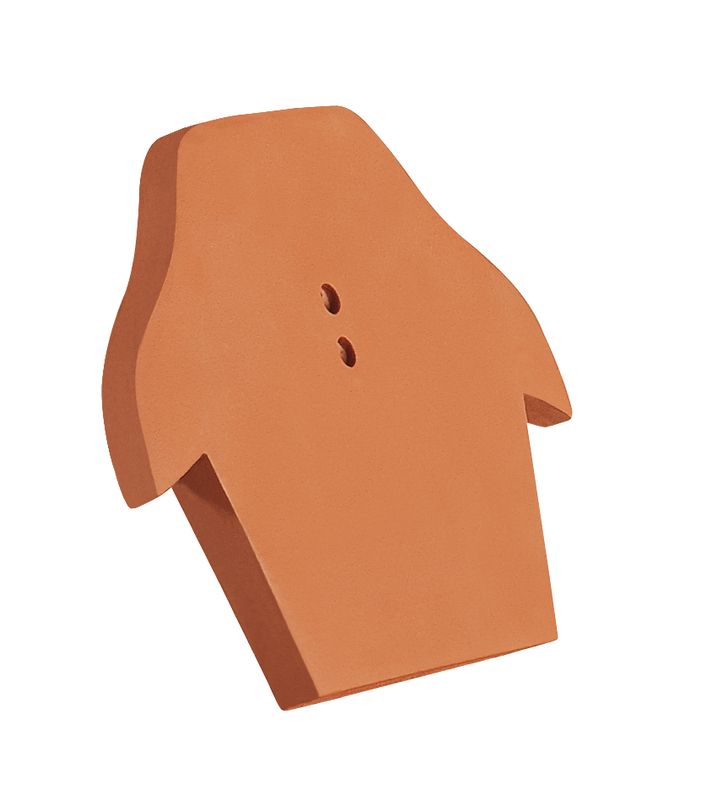

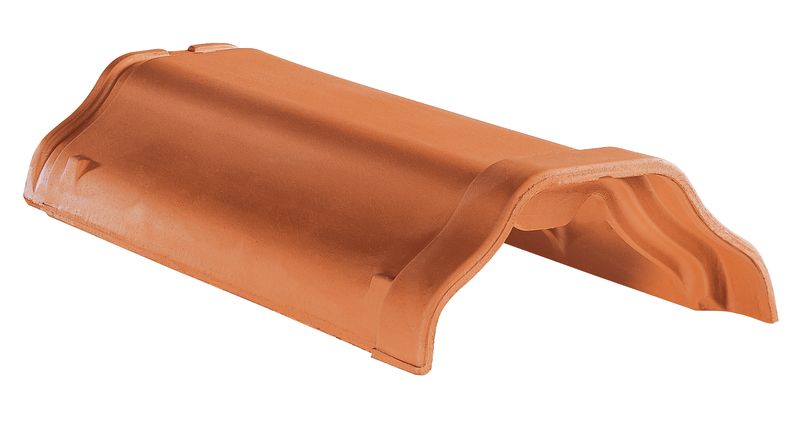

requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°
PMZ 2.6 pcs/mLAF65605550454035251510
PMZ 2.6 pcs/mFLA1251201151051009595909085
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PMZ 2.6 pcs/mLAF65605545403530155
PMZ 2.6 pcs/mFLA135130125115110105105100100
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°
PMZ 2.6 pcs/mLAF605550403525205
PMZ 2.6 pcs/mFLA145140135125120120120115
