PREMION NOBLESSE kristall-schwarz glasiert

PREMION

Flat roof tile with high baking factor.

  • Especially high quality and durable, thanks to the KERALIS production process
  • Especially generous adjustment range of 23 mm per tile
  • First class raw materials are used to create 12 colours, with four finish variants
  • Vertical interlocks using labyrinth technology prevent rainwater penetration even in the strongest winds
  • Also suitable for roof pitches as low as 7°, with a waterproof sub-roof

Note: This model will soon undergo a color change for the NUANCE copper red.

In order to generally ensure the highest possible availability for you in the most important core products, we have decided to forego the production of isolated color and model combinations, at least temporarily. For the PREMION model, the colors NUANCE brown engobed, NUANCE manganese matt, FINESSE brown glazed and FINESSE chestnut glazed are only available on request until further notice.

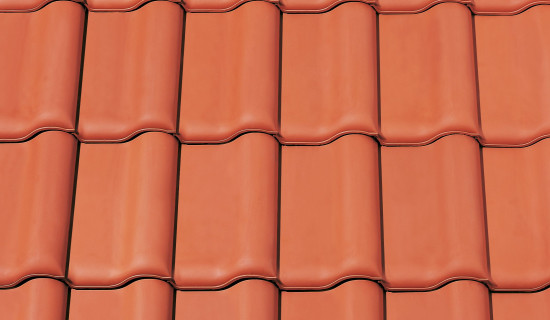

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE brown engobed
NUANCE brown engobed
NUANCE manganese engobed
NUANCE manganese engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE brown glazed
FINESSE brown glazed
FINESSE black glazed
FINESSE black glazed
FINESSE chestnut brown glazed
FINESSE chestnut brown glazed
NOBLESSE crystalline slate glazed
NOBLESSE crystalline slate glazed

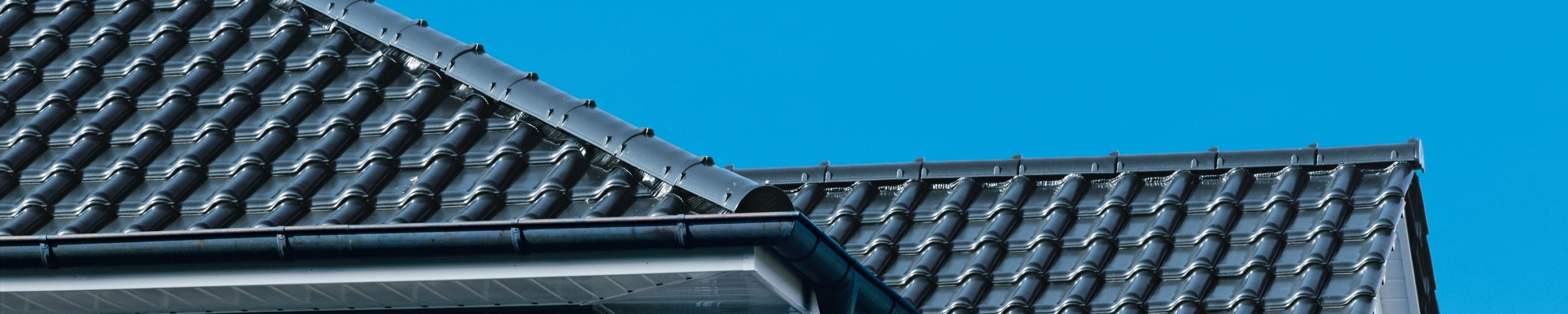

NOBLESSE crystalline black glazed
NOBLESSE crystalline black glazed

Technical data

Size (appr.)280 x 460 mm
Covering width min. approx.222 mm
Covering width on av. approx.225 mm
Max. coverage width (approx.)228 mm
Min. gauge (approx.)357 mm
Covering length on av. approx.368 mm
Max. gauge (approx.)379 mm
Tile requirement min. (approx.)11.6 pcs/m²
Average tile requirement (approx.)12.1 pcs/m²
Brickware max. approx.12.6 pcs/m²
Unit weight (approx.)3.5 kg/piece
Weight per m² (approx.)42.4 kg/m²
Weight per pallet (approx.)865 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Technical drawings

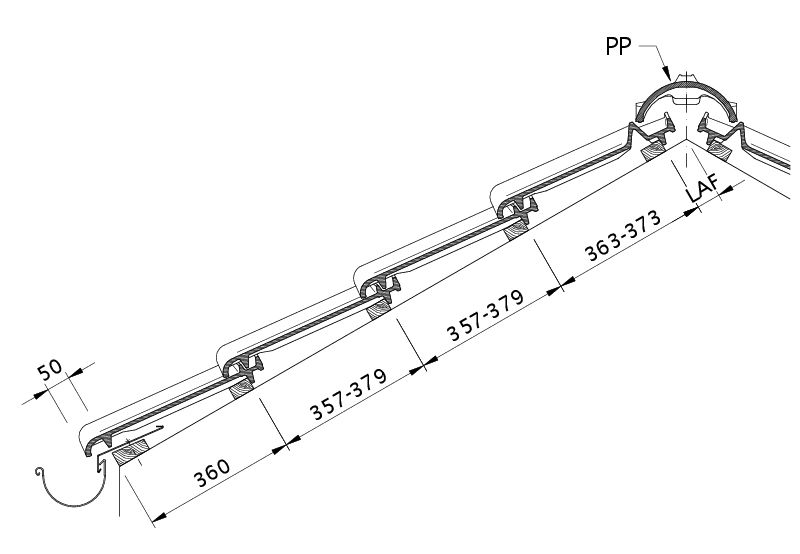

Drawing PREMION roof cross-section DQF
Drawing PREMION roof cross-section DQF

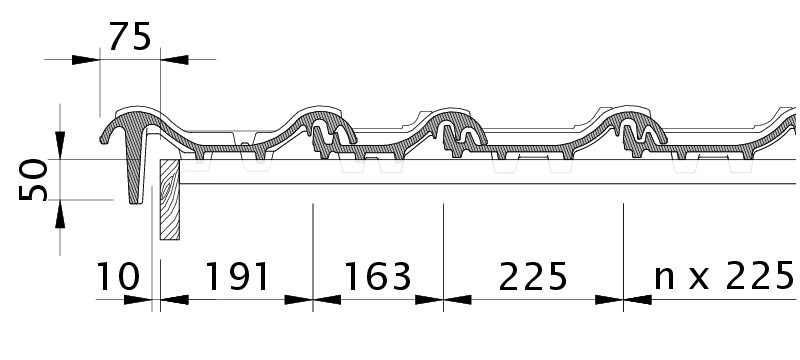

Drawing PREMION verge tile left with barge board OBL
Drawing PREMION verge tile left with barge board OBL

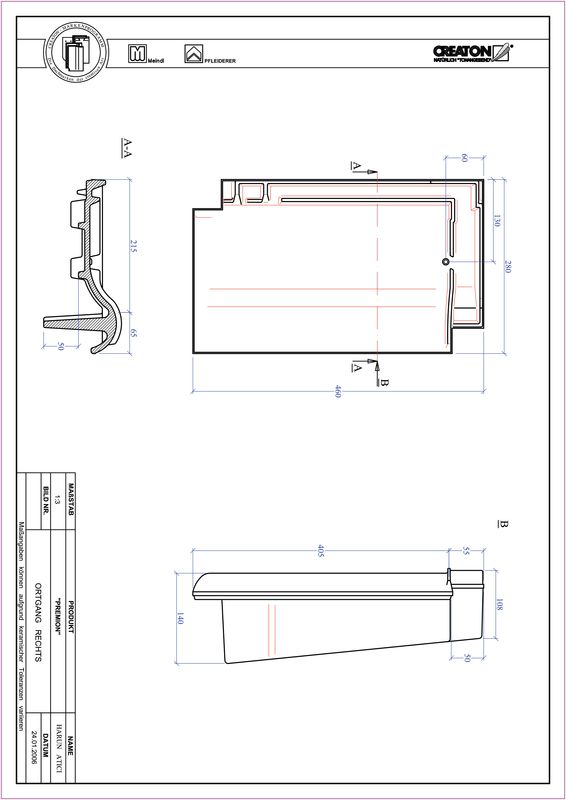

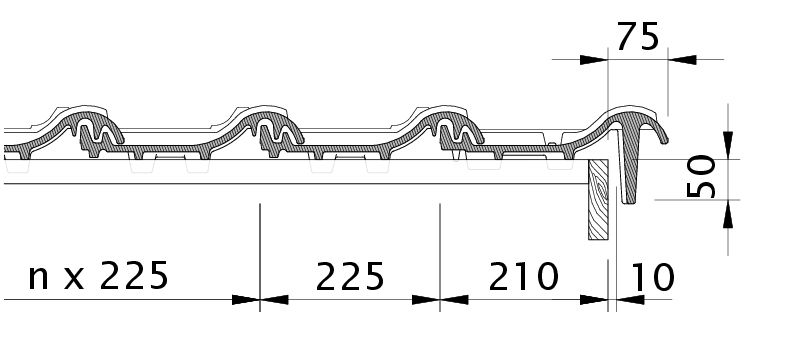

Drawing PREMION verge tile right with barge board OBR
Drawing PREMION verge tile right with barge board OBR

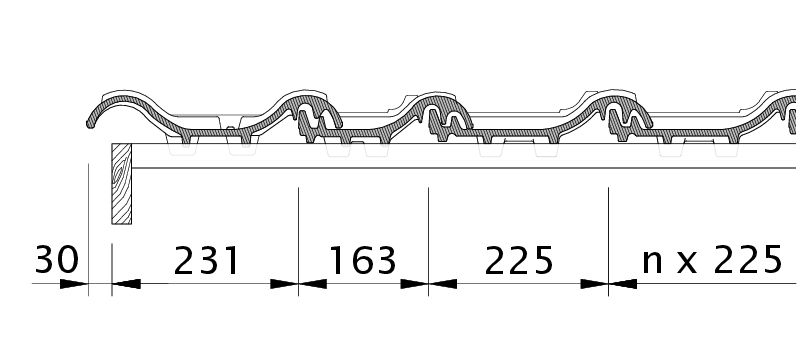

Drawing PREMION verge left with verge sheet metal and double roll ODL
Drawing PREMION verge left with verge sheet metal and double roll ODL

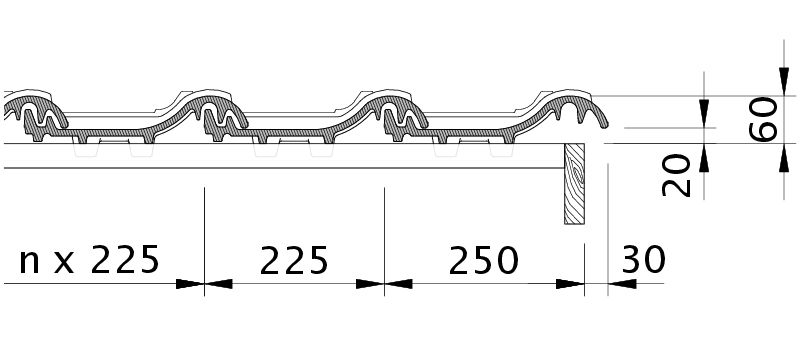

Drawing PREMION verge right with verge sheet metal and field tile OFR
Drawing PREMION verge right with verge sheet metal and field tile OFR

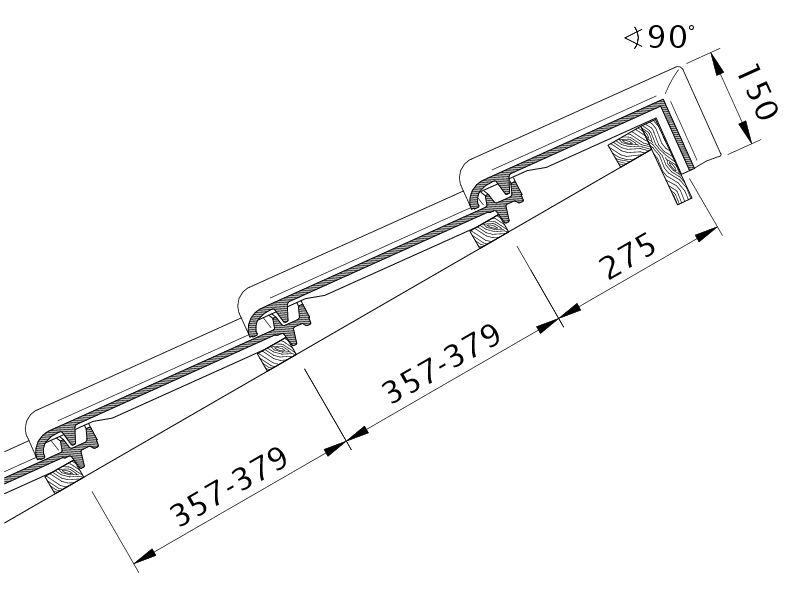

Drawing PREMION shed roof version PDA
Drawing PREMION shed roof version PDA

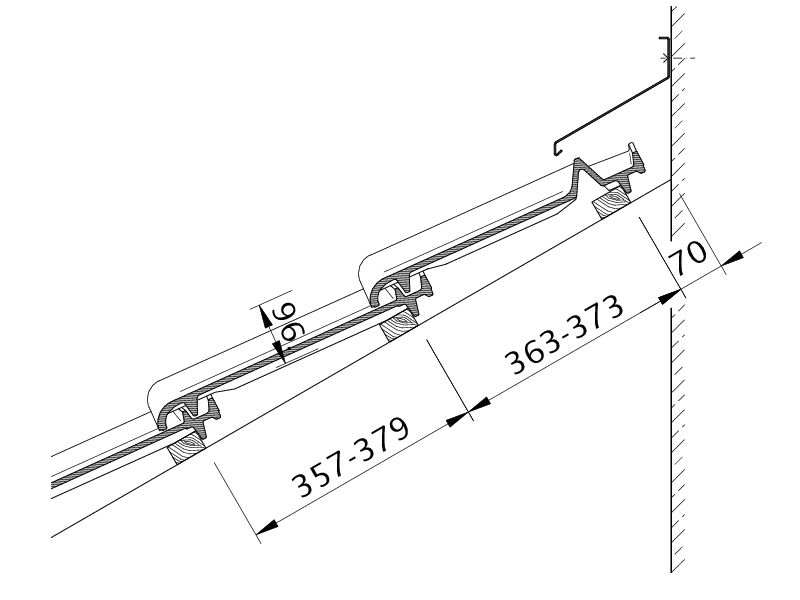

Drawing PREMION wall connection (above) with FALZ WMF
Drawing PREMION wall connection (above) with FALZ WMF

Applications

Additional measures according to CREATON manufacturer's specifications
14 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 12 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
≥ 7 ° Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.6 pcs/mLAF70706560605550403020
PHP 2.6 pcs/mFLA125125125120110105100959090
PP 2.5 pcs/mLAF8070656055504545403530
PP 2.5 pcs/mFLA100100908080757060604540
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.6 pcs/mLAF7070655555504530155
PHP 2.6 pcs/mFLA135135135130120115110105100100
PP 2.5 pcs/mLAF8070655550454035252015
PP 2.5 pcs/mFLA1101101009090858070705550
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°
PHP 2.6 pcs/mLAF65656050504035205
PHP 2.6 pcs/mFLA145145145140130130125120120
PP 2.5 pcs/mLAF75656050453530251510
PP 2.5 pcs/mFLA12012011010010010095859075

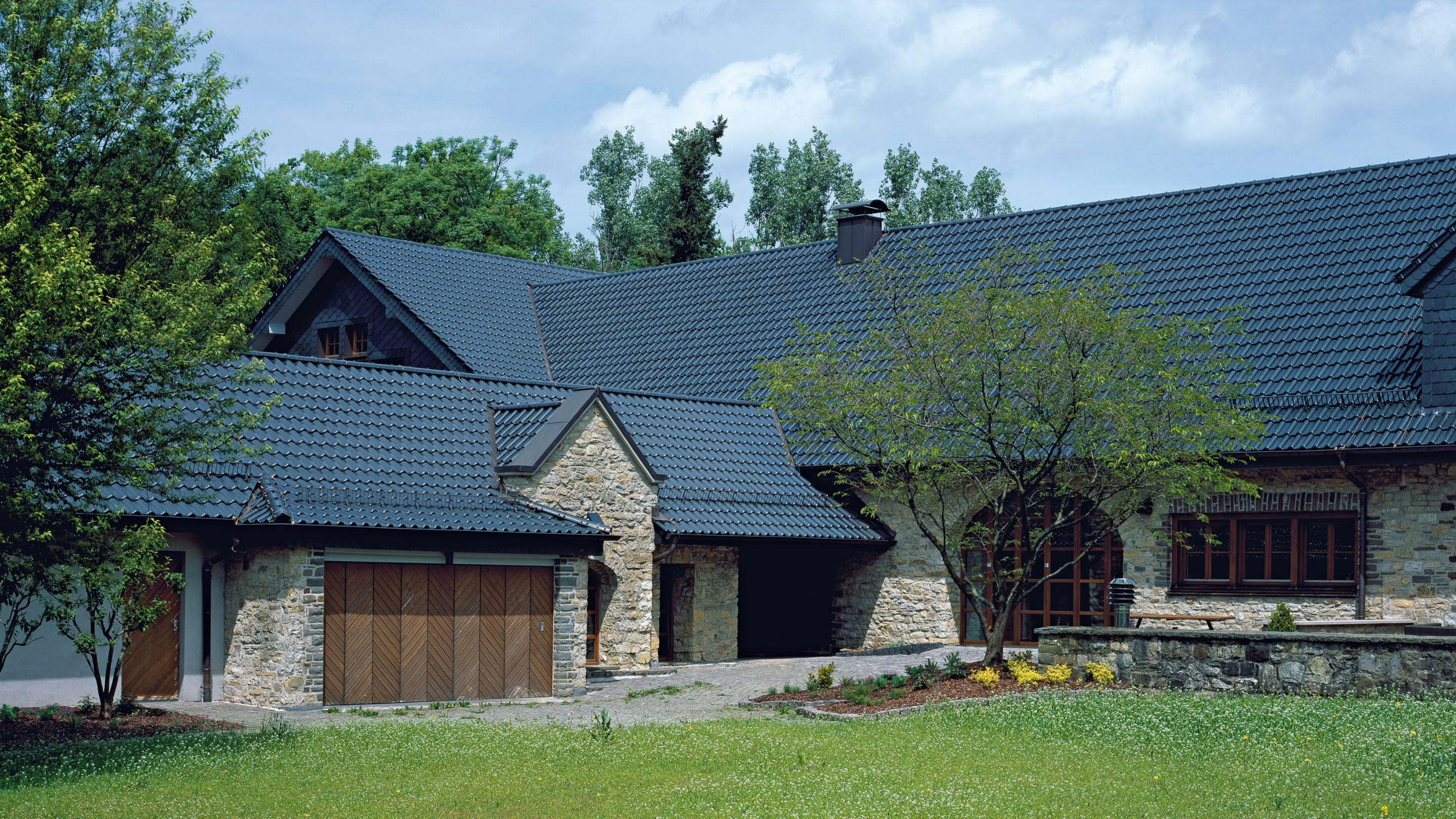

References

more

more

more

Accessory range

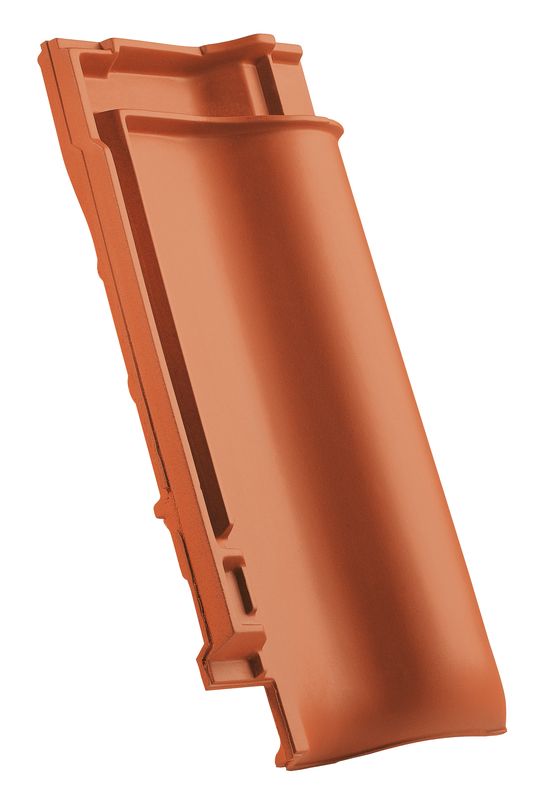

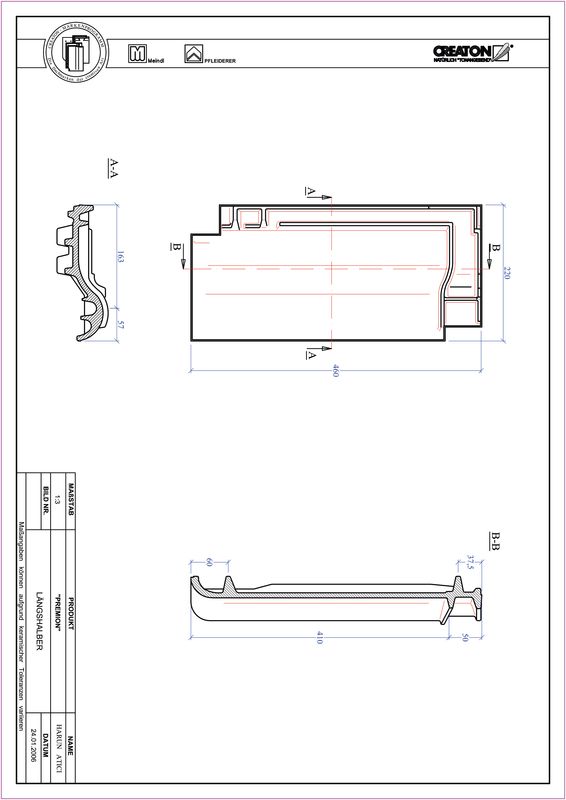

PRE half-width tile

PRE half-width tile

PRE verge tile right

PRE verge tile right

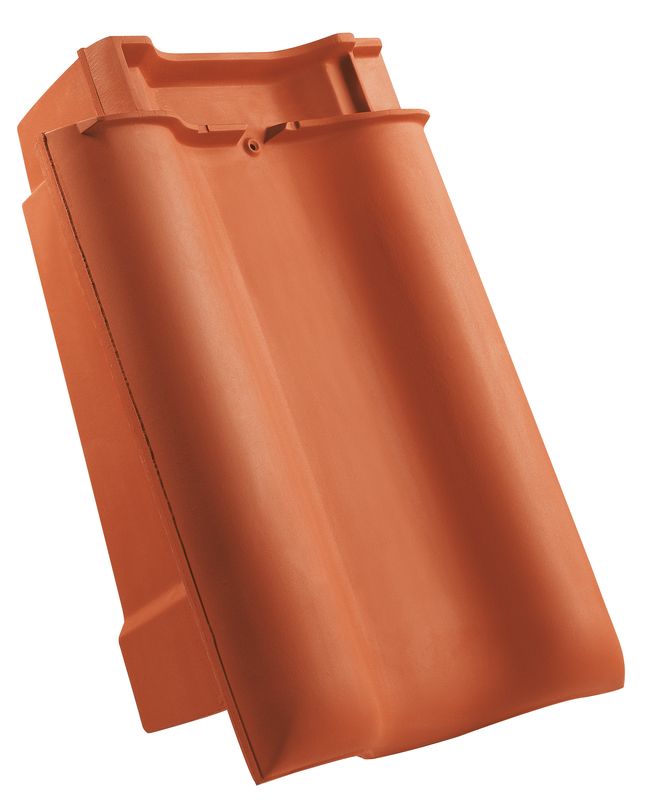

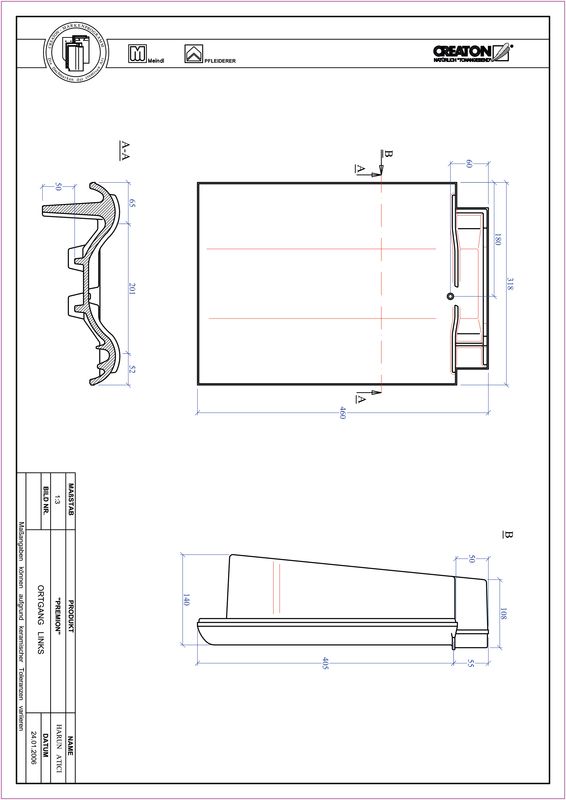

PRE verge tile left

PRE verge tile left

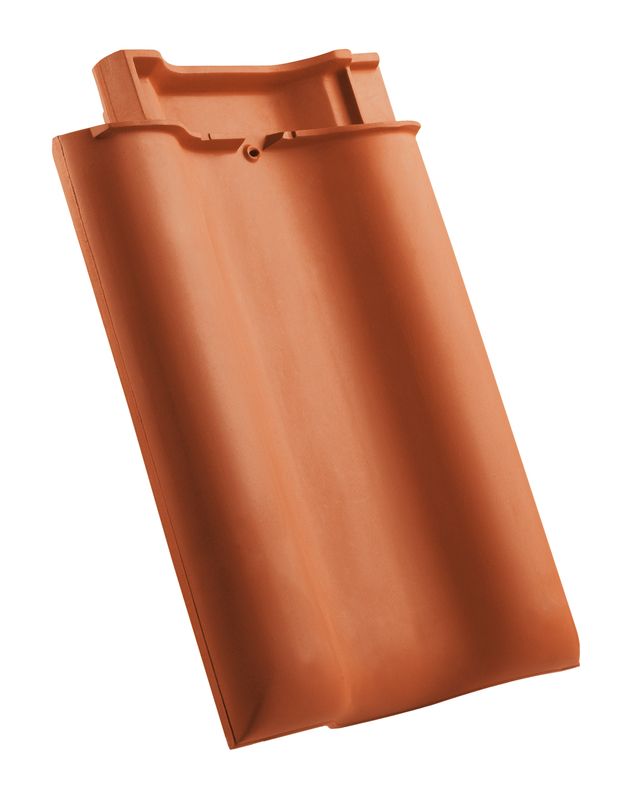

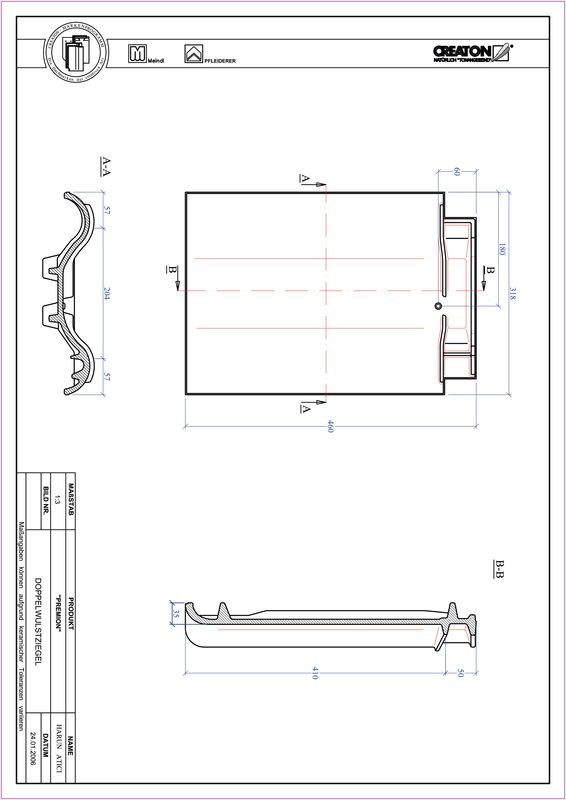

PRE double roll tile

PRE double roll tile

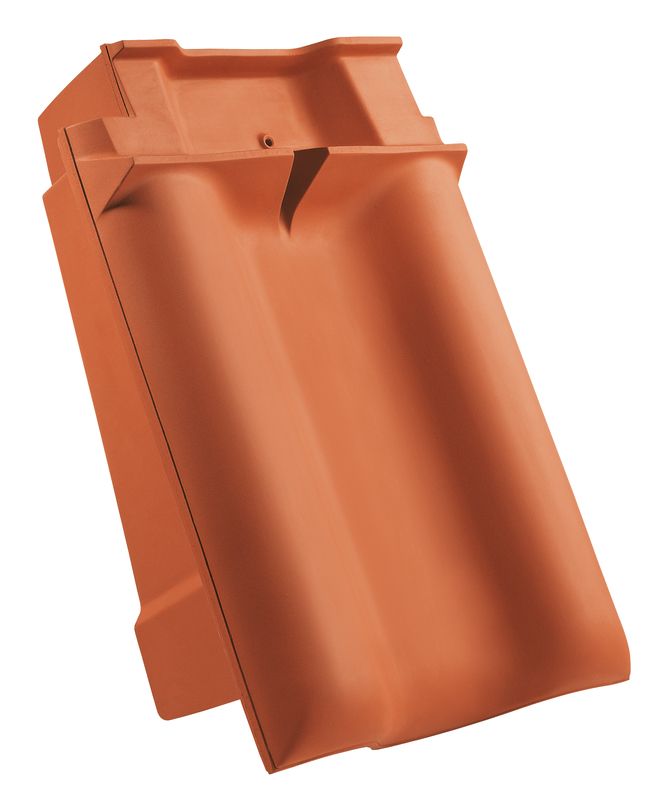

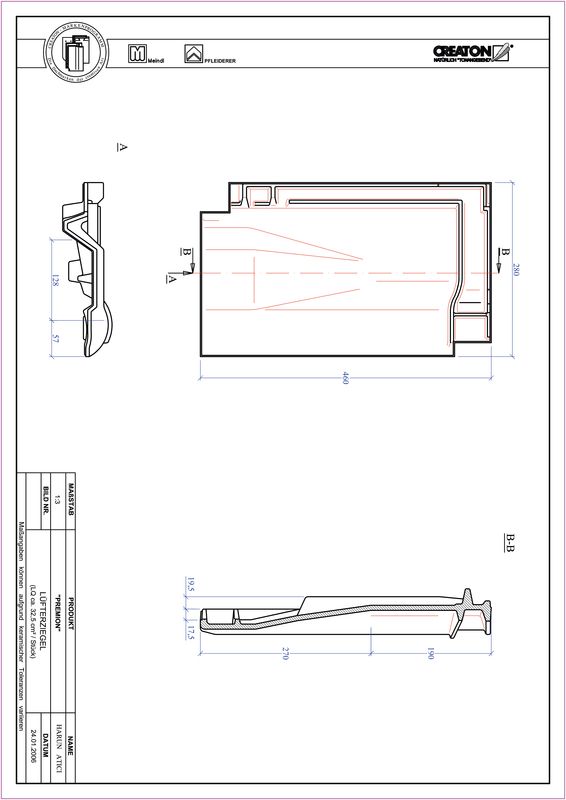

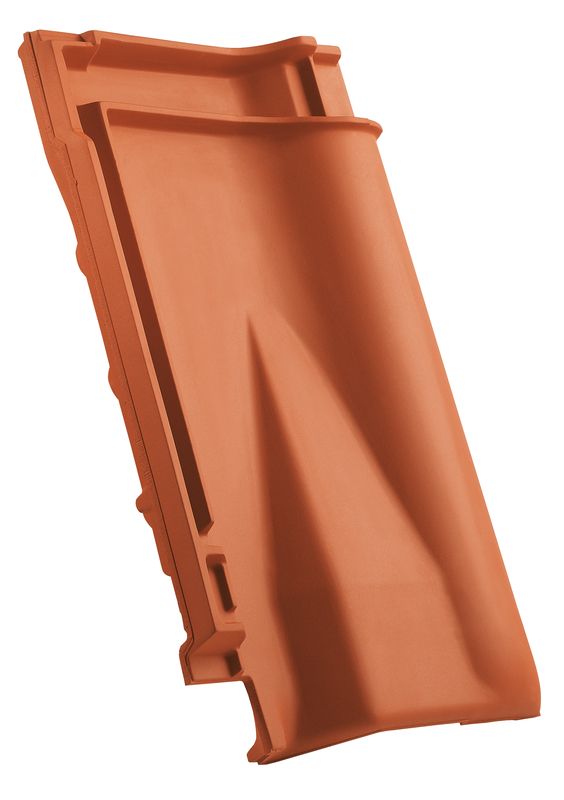

PRE ventilating tile

PRE ventilating tile

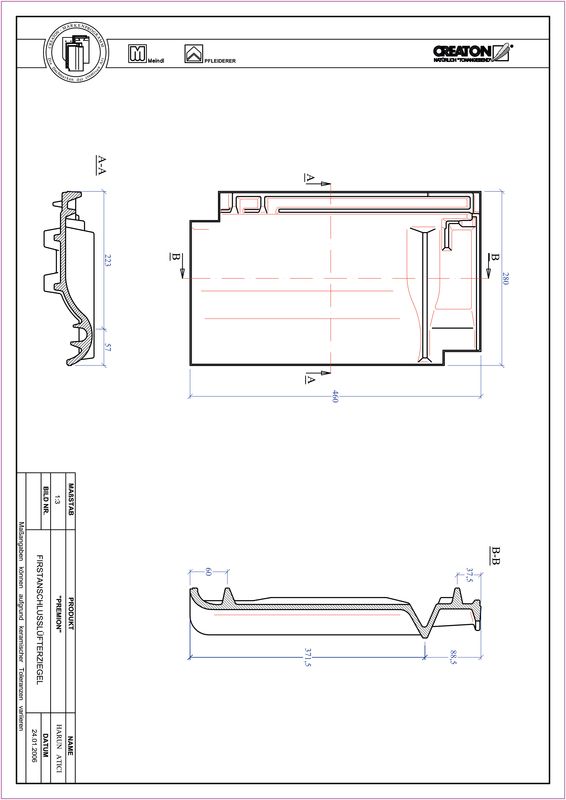

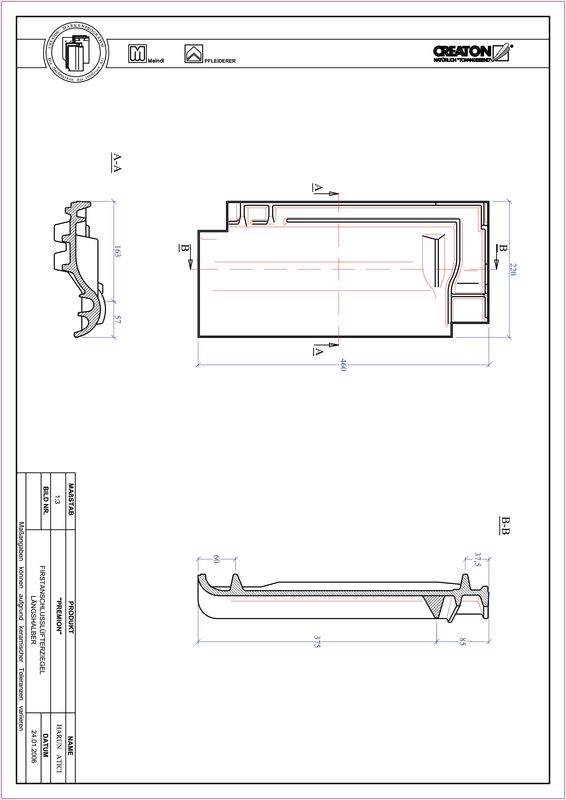

PRE ridge connection ventilating tile

PRE ridge connection ventilating tile

PRE ridge connection ventilating half-width tile

PRE ridge connection ventilating half-width tile

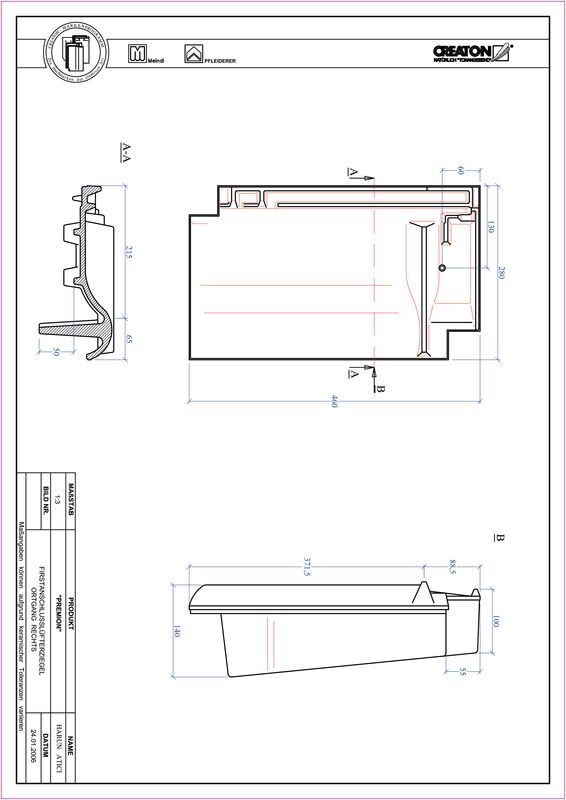

PRE ridge connection ventilating verge tile right

PRE ridge connection ventilating verge tile right

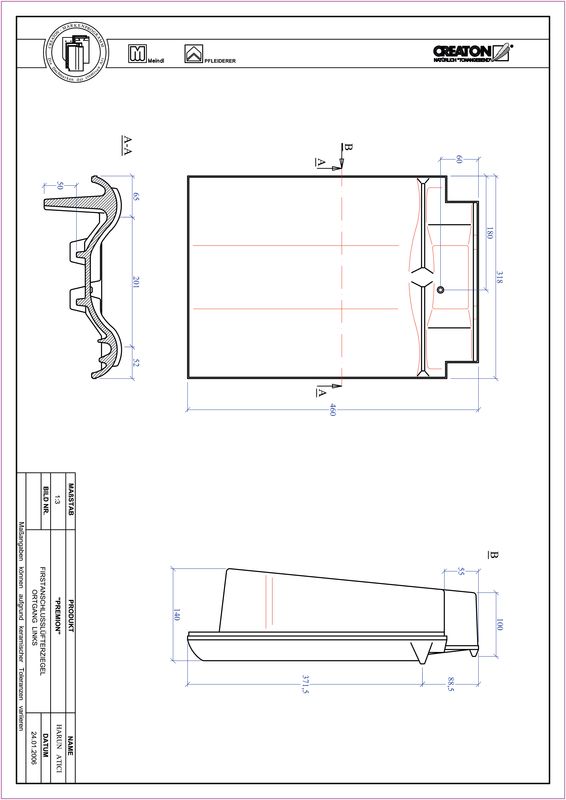

PRE ridge connection ventilating verge tile left

PRE ridge connection ventilating verge tile left

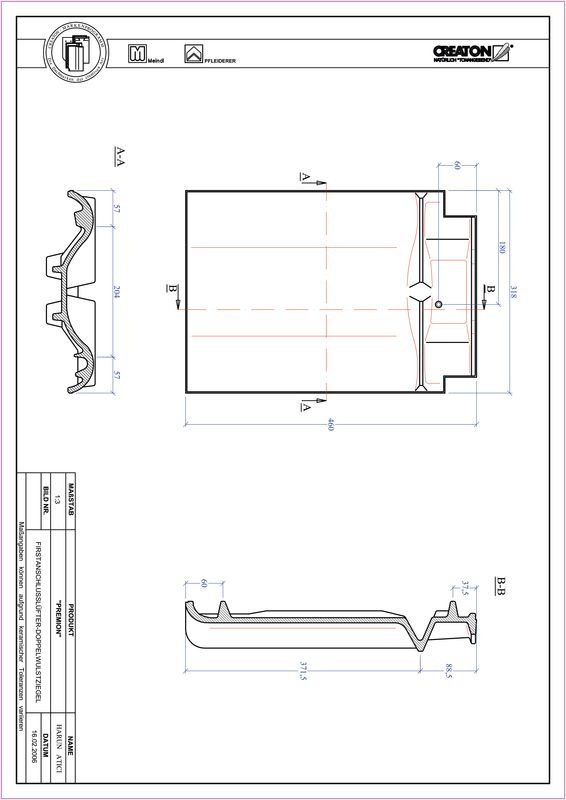

PRE ridge connection ventilating double roll tile

PRE ridge connection ventilating double roll tile

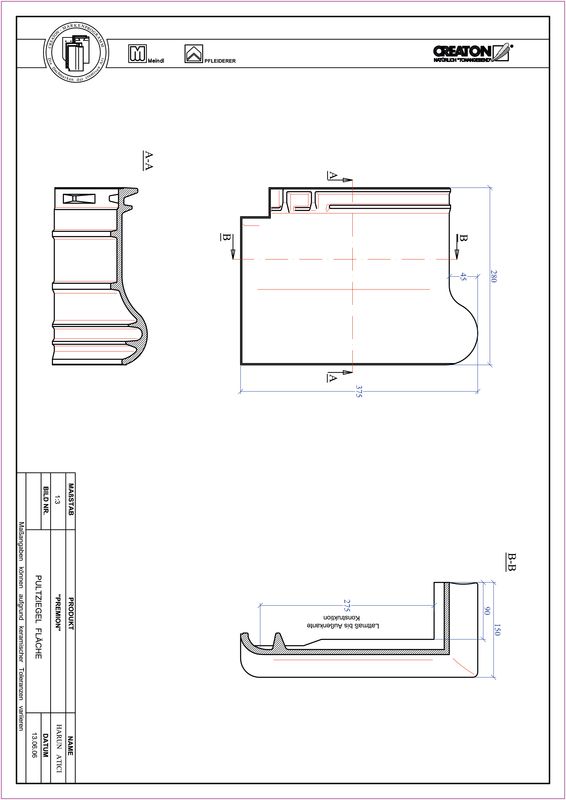

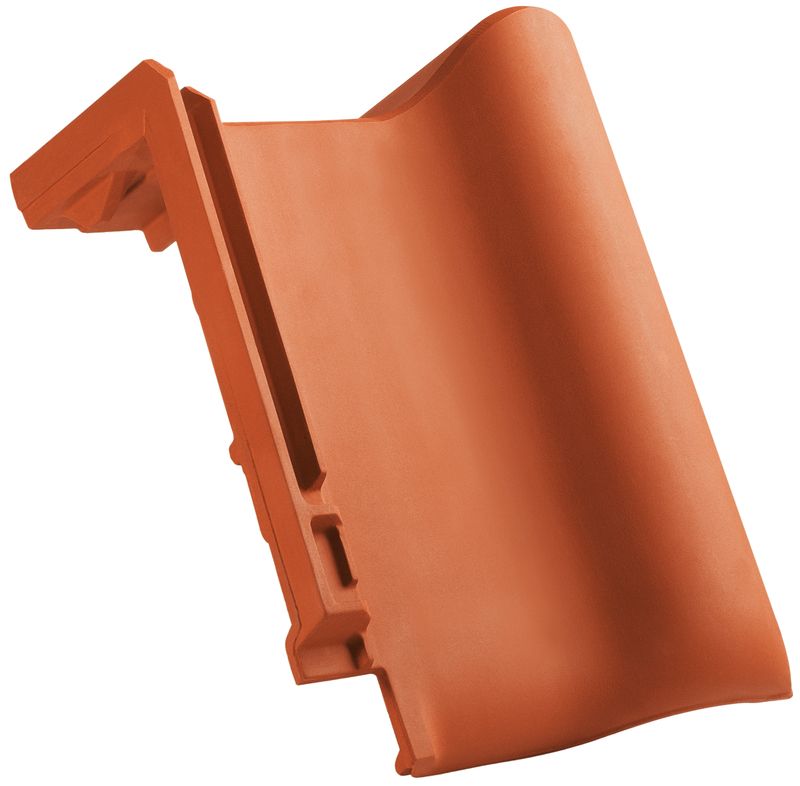

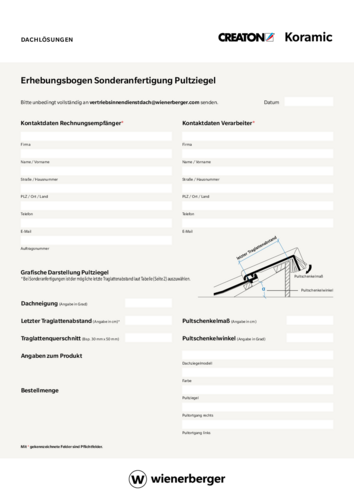

PRE shed roof tile decorated standard

PRE shed roof tile decorated standard

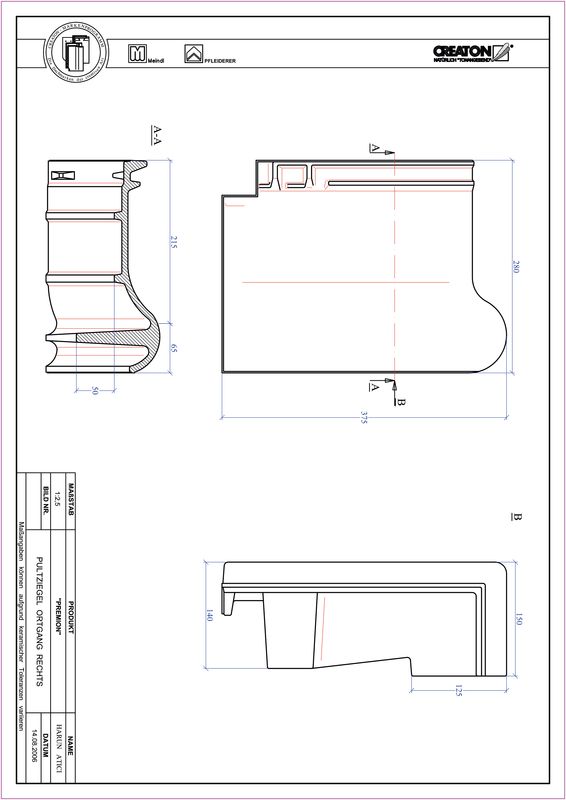

PRE shed roof verge tile decorated standard right

PRE shed roof verge tile decorated standard right

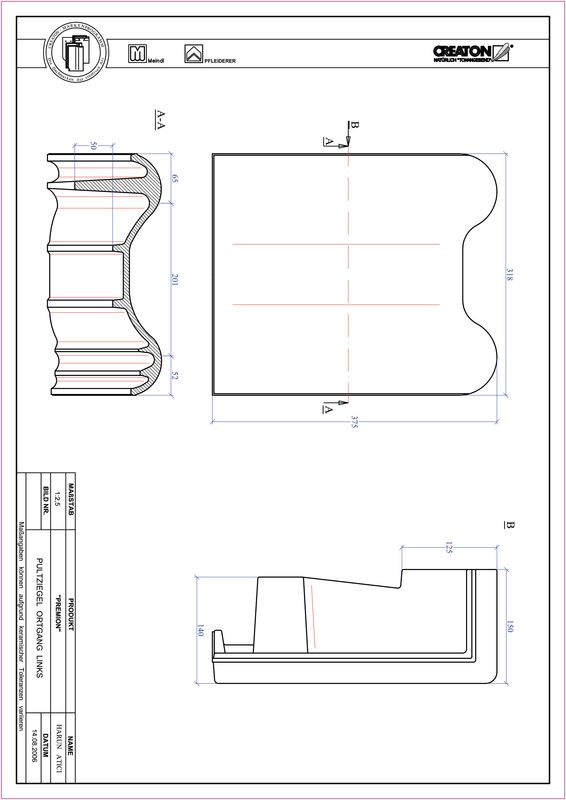

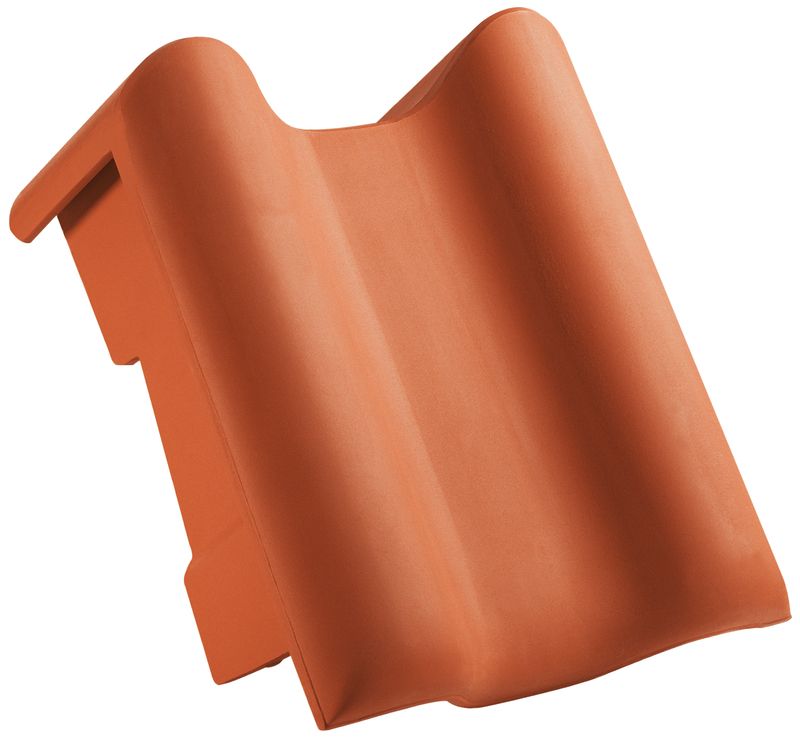

PRE shed roof verge tile decorated standard left

PRE shed roof verge tile decorated standard left

PRE shed roof tile decorated special size

PRE shed roof tile decorated special size

PRE shed roof verge tile decorated special size right

PRE shed roof verge tile decorated special size right

PRE shed roof verge tile decorated special size left

PRE shed roof verge tile decorated special size left

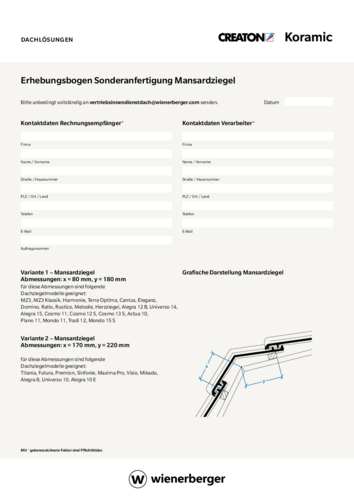

PRE mansard/pitch transition tile decorated special size

PRE mansard/pitch transition tile decorated special size

PRE mansard/pitch transition verge tile decorated special size right

PRE mansard/pitch transition verge tile decorated special size right

PRE mansard/pitch transition verge tile decorated special size left

PRE mansard/pitch transition verge tile decorated special size left

GUT universal shed roof tile PDZ

GUT universal shed roof tile PDZ

GUT universal shed roof starter and termination plate PDZ

GUT universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

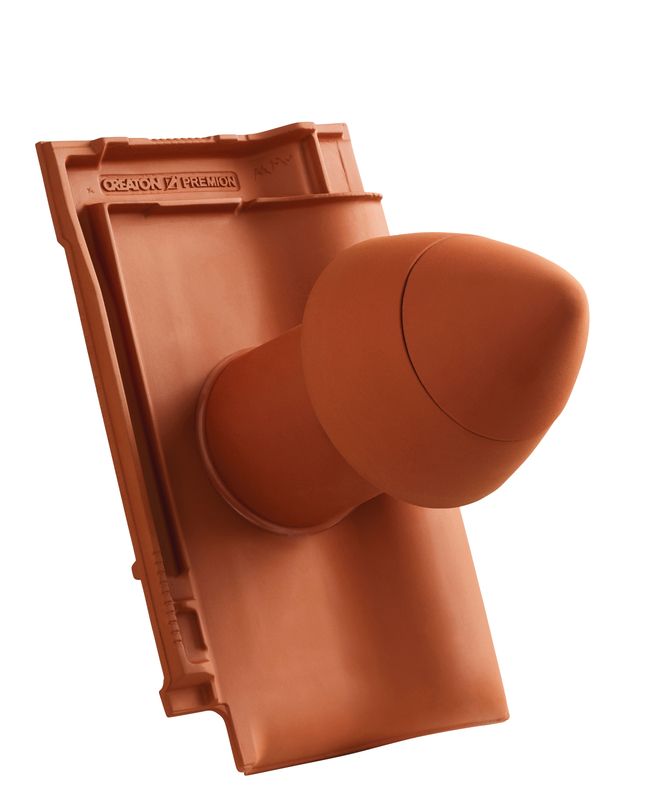

PRE SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

PRE SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

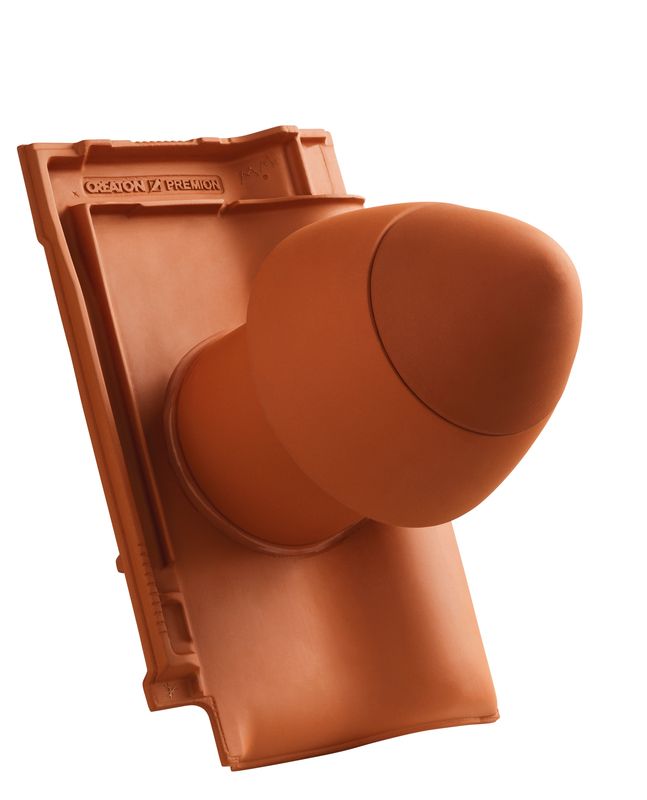

PRE SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

PRE SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

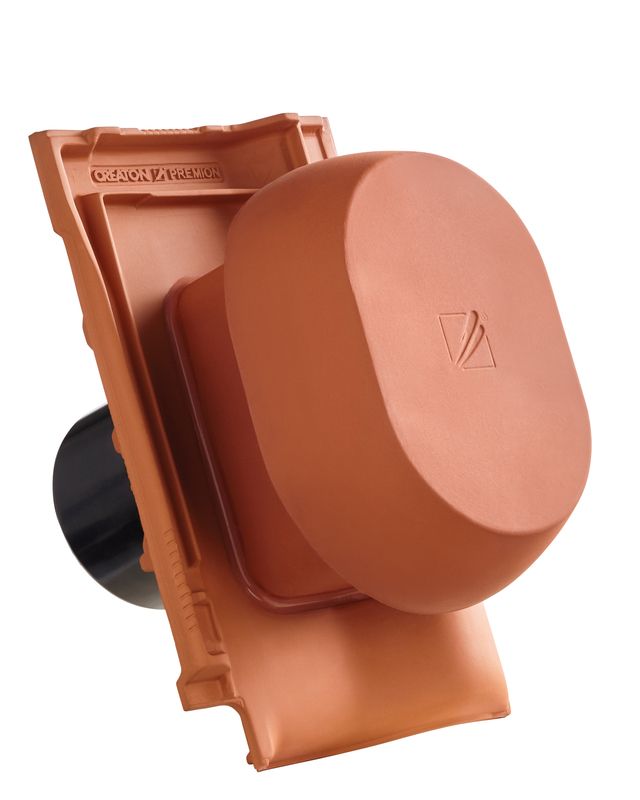

PRE SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

PRE SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

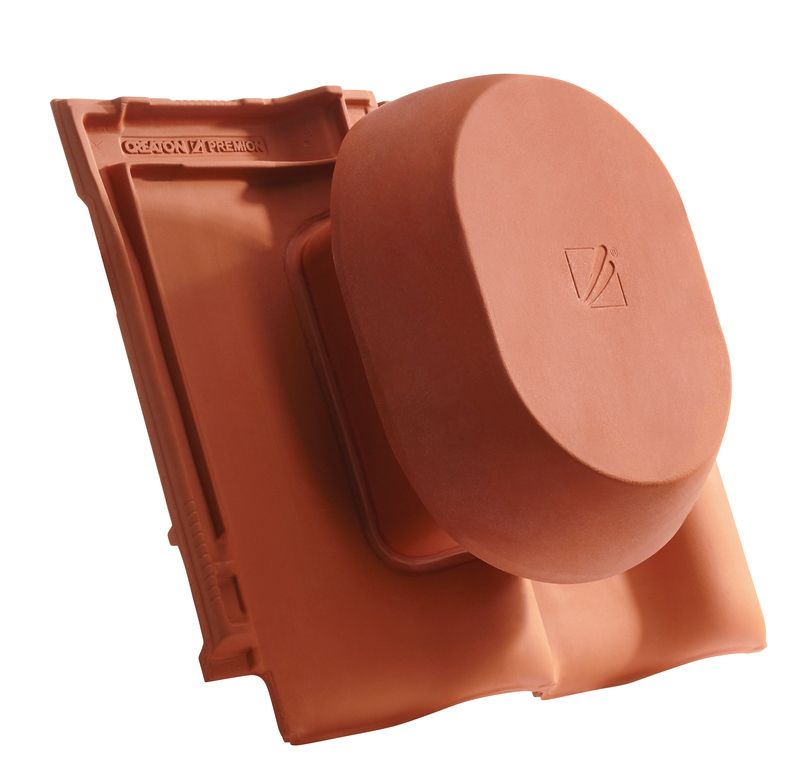

PRE SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

PRE SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

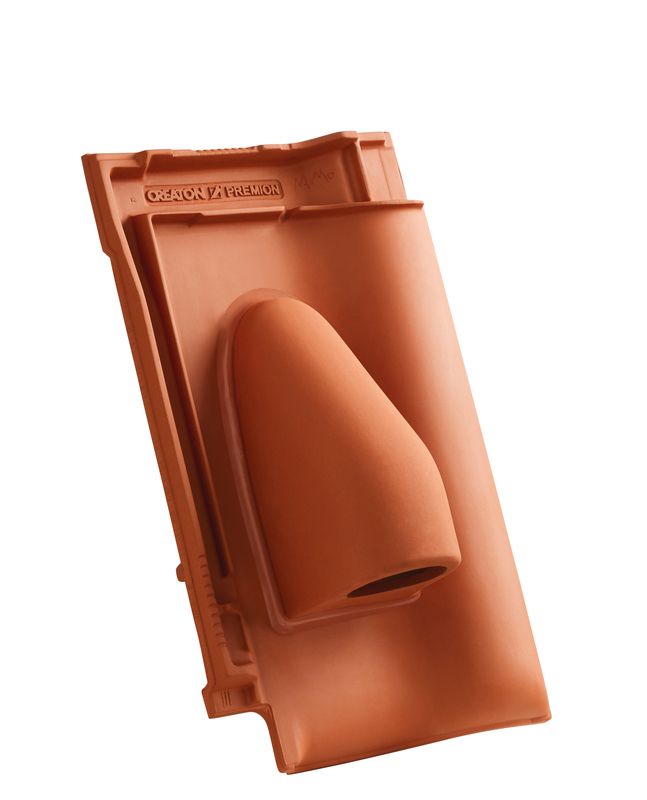

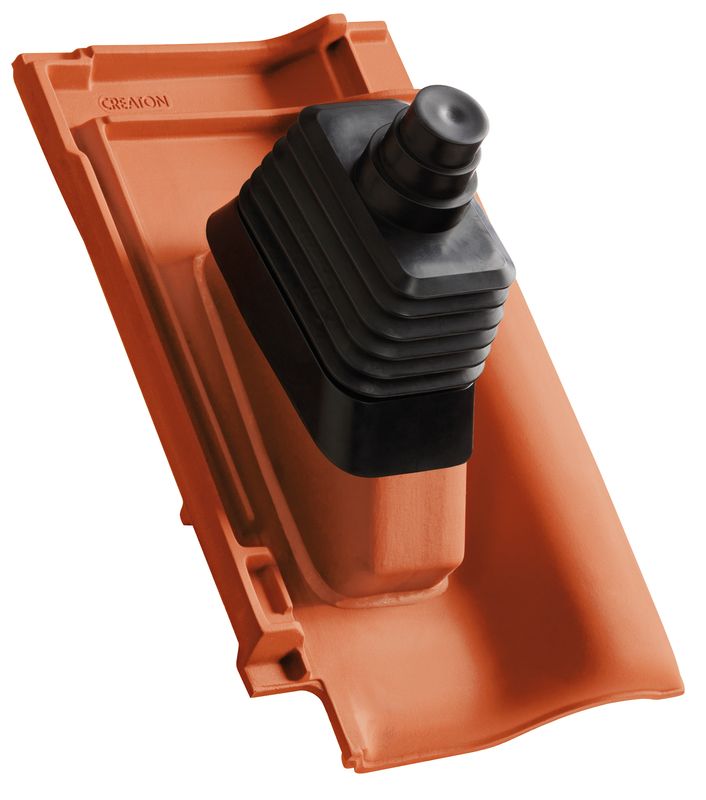

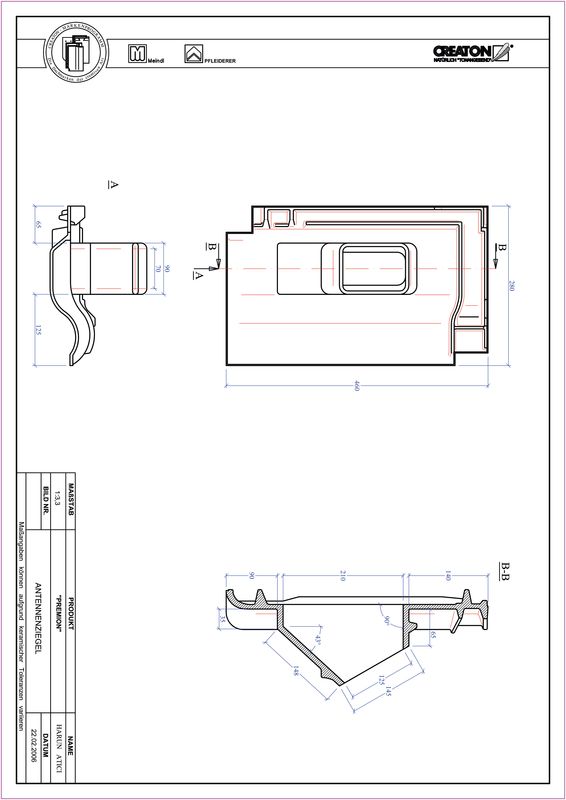

PRE aerial entry

PRE aerial entry

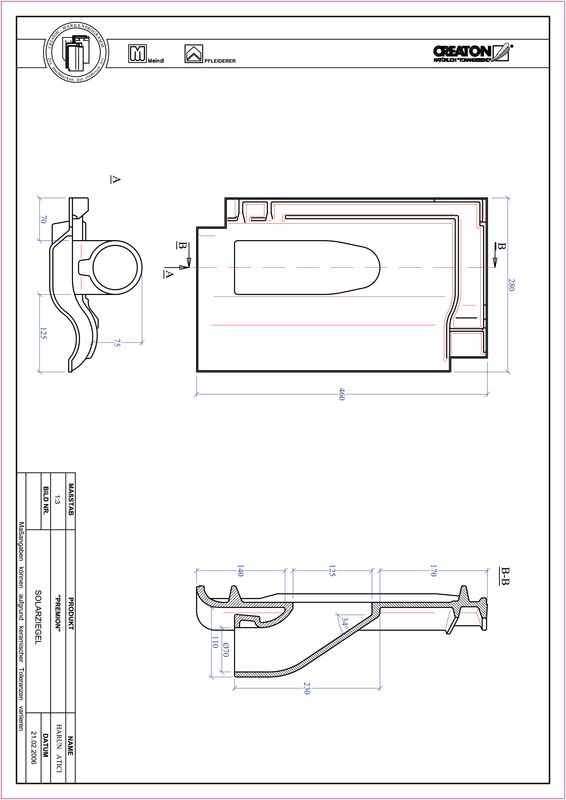

PRE solar entry tile

PRE solar entry tile

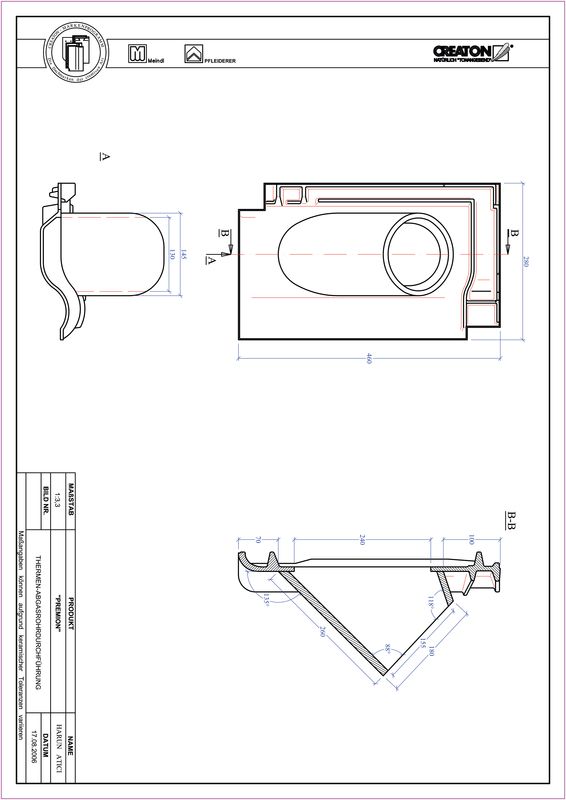

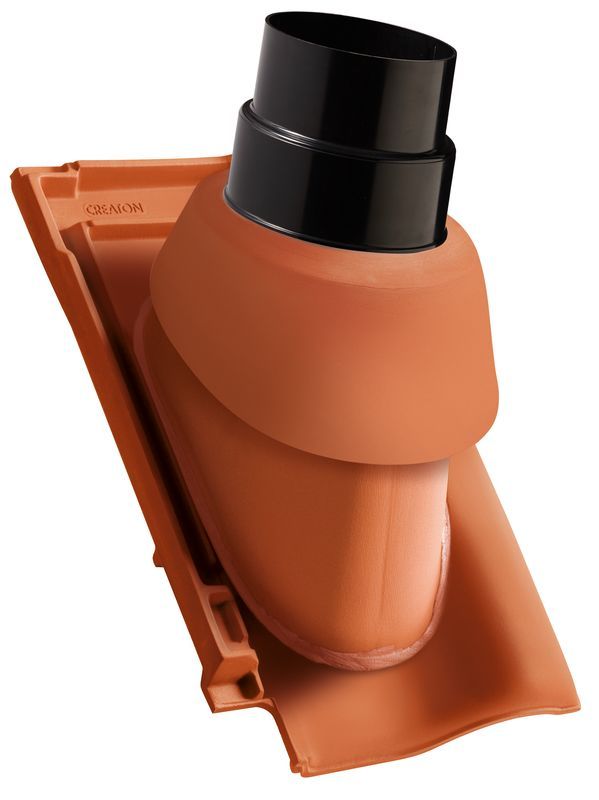

PRE flue pipe penetration NW 110/125

PRE flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

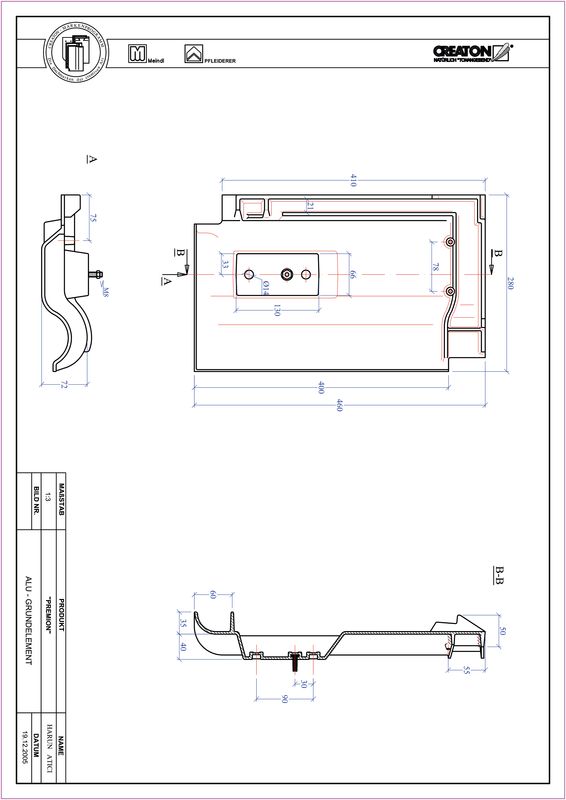

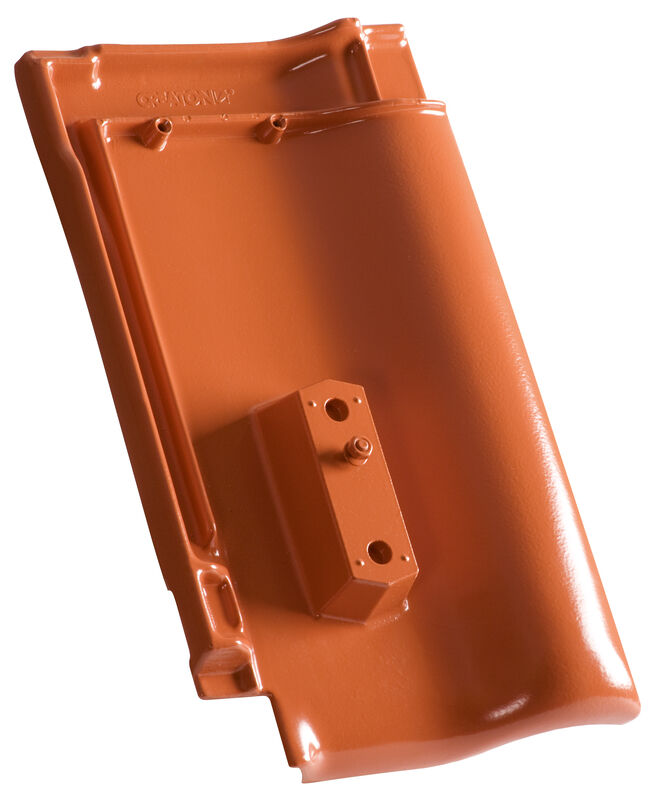

PRE aluminium base element

PRE aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

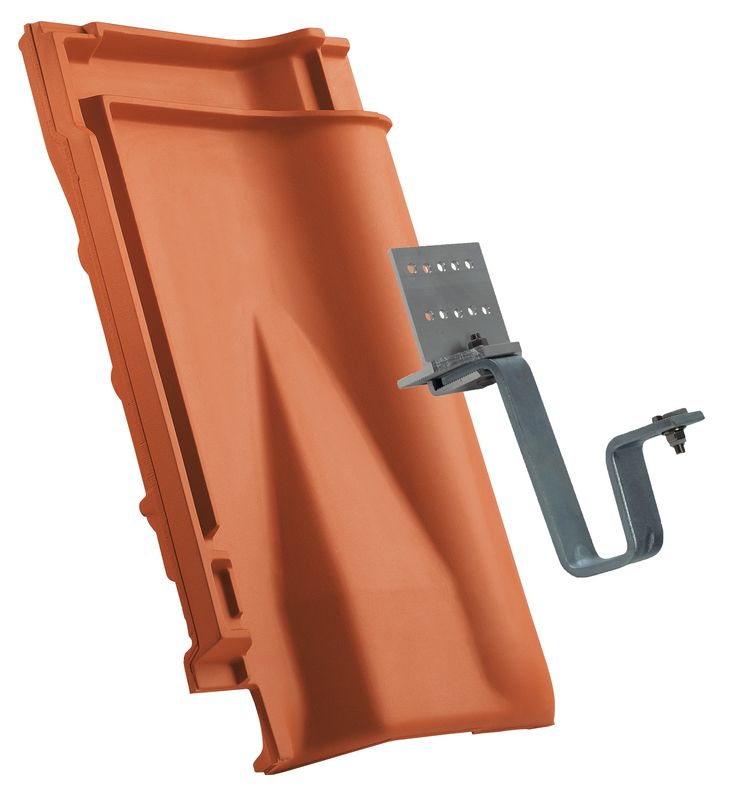

PRE solar system bracket kit for plank installation

PRE solar system bracket kit for plank installation

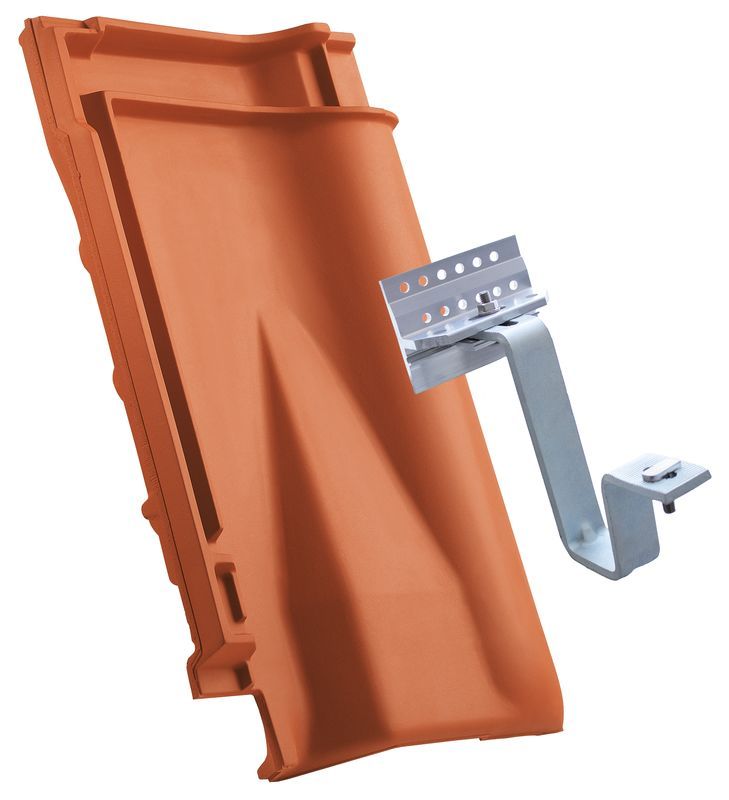

PRE solar system bracket kit for rafter installation

PRE solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

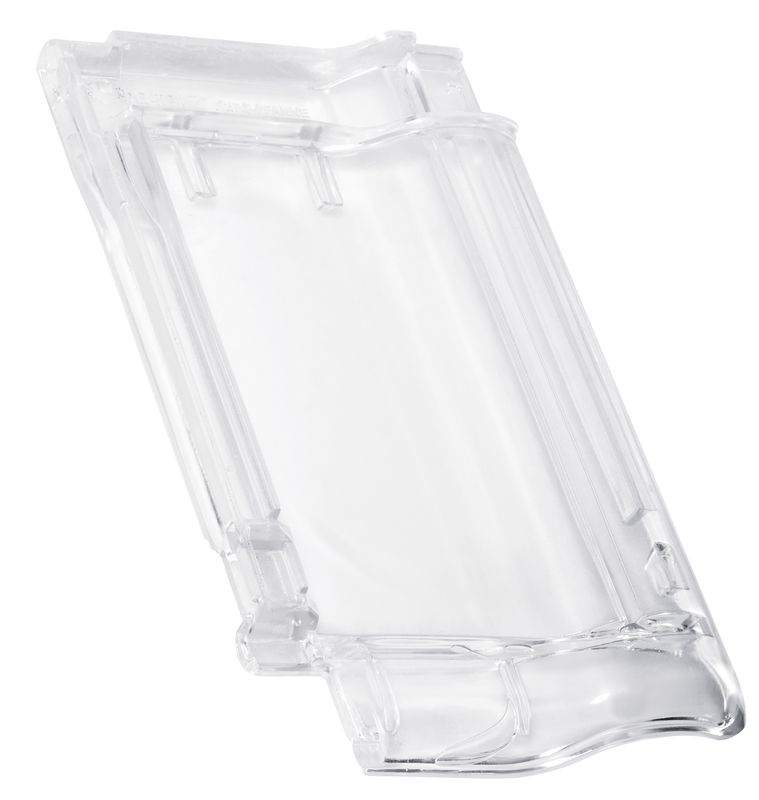

PRE transparent tile (acrylic)

PRE transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (BAL, PRE) and 40/50 battens (FUT, MAG)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (BAL, PRE) and 40/50 battens (FUT, MAG)

Storm clip in zinc-aluminium, drive-in clip, all battens (MAG, BAL, FUT, PRE)

Storm clip in zinc-aluminium, drive-in clip, all battens (MAG, BAL, FUT, PRE)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 60 mm

Stainless steel screw with seal, length 60 mm

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

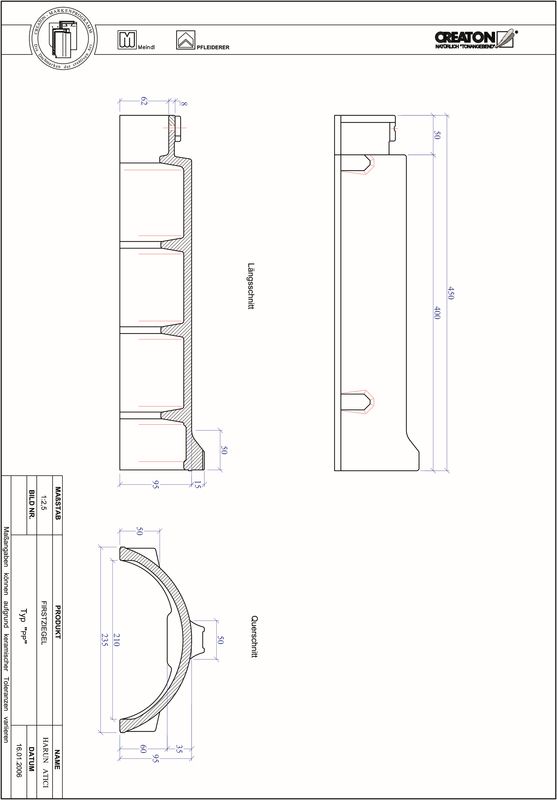

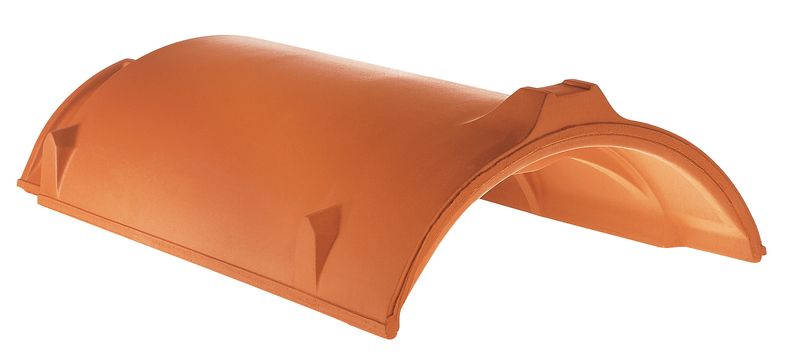

GUT ridge tile PP

GUT ridge tile PP

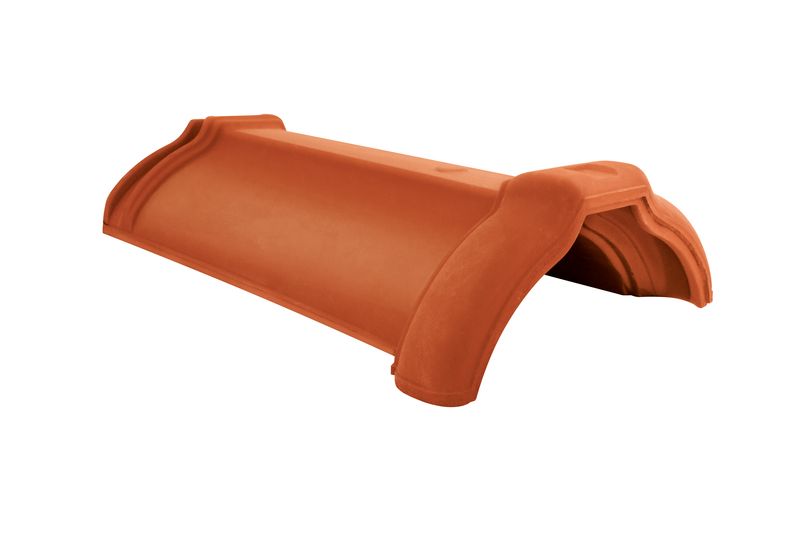

GUT ridge tile PHP

GUT ridge tile PHP

GUT ridge starter and termination plate ceramic PP

GUT ridge starter and termination plate ceramic PP

GUT function starter and termination plate ceramic PP

GUT function starter and termination plate ceramic PP

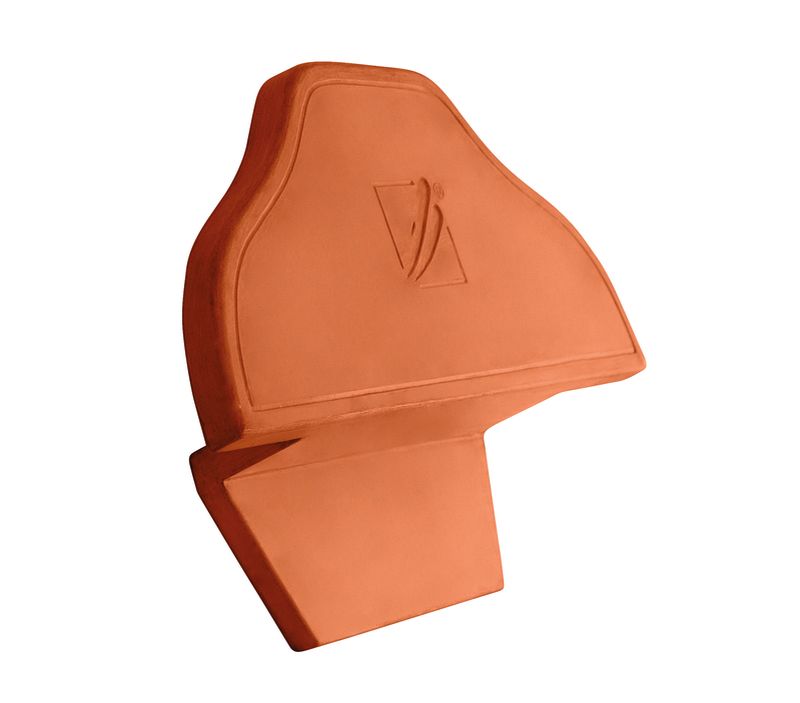

Function starter and termination plate ceramic type 1 PHP GUT (clay)

Function starter and termination plate ceramic type 1 PHP GUT (clay)

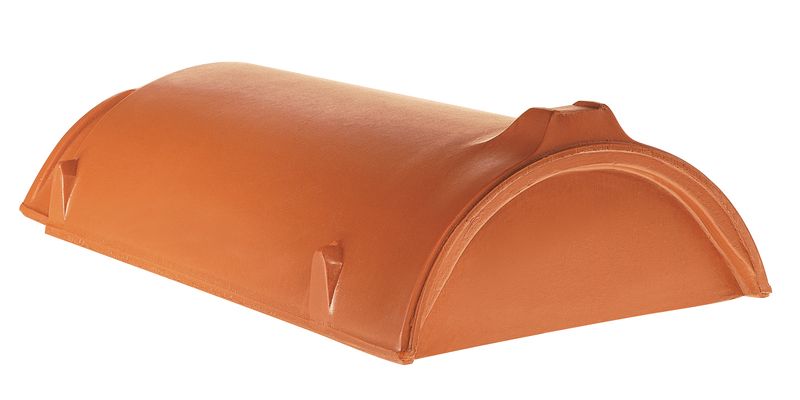

GUT hip starter ceramic PP

GUT hip starter ceramic PP

GUT hip starter ceramic PHP

GUT hip starter ceramic PHP

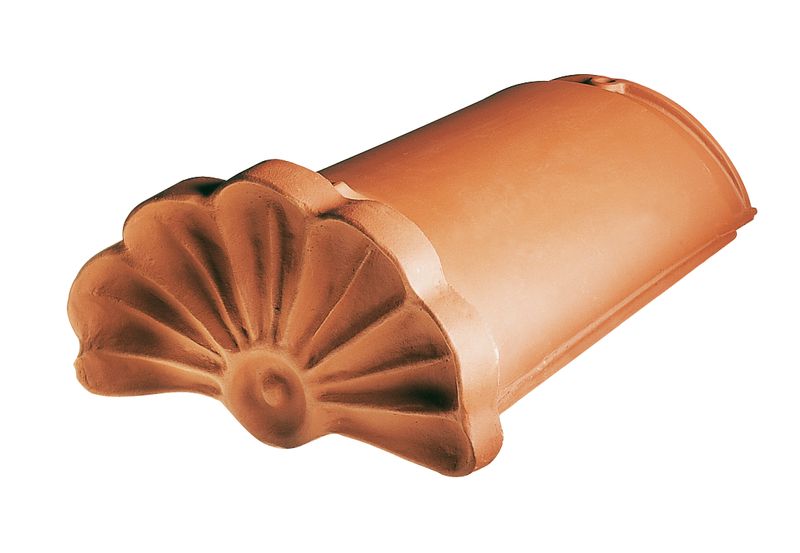

GUT hip starter ceramic with scallop PP

GUT hip starter ceramic with scallop PP

GUT hip starter ceramic with scallop PHP

GUT hip starter ceramic with scallop PHP

GUT hip cap 3-axis PHP

GUT hip cap 3-axis PHP

GUT hip cap 4-axis PHP

GUT hip cap 4-axis PHP

Ridge clip aluminium PHP

Ridge clip aluminium PHP

FIRSTFIX ridge clip stainless steel PP

FIRSTFIX ridge clip stainless steel PP

FIRSTFIX ridge clip stainless steel PHP

FIRSTFIX ridge clip stainless steel PHP

Ridge clip aluminium PP

Ridge clip aluminium PP

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Downloads
