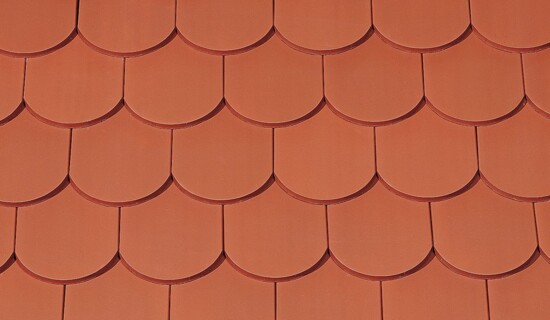

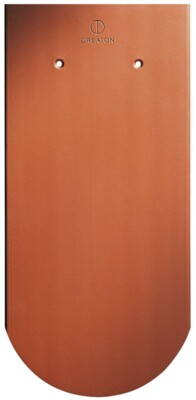

SAKRAL round cut natural red

SAKRAL round cut

  • Eye-catching peak and trough structure
  • Robust appearance thanks to the impressive thickness of its material
  • If requested, the surface can be roughened to aid the rapid development of a natural patina

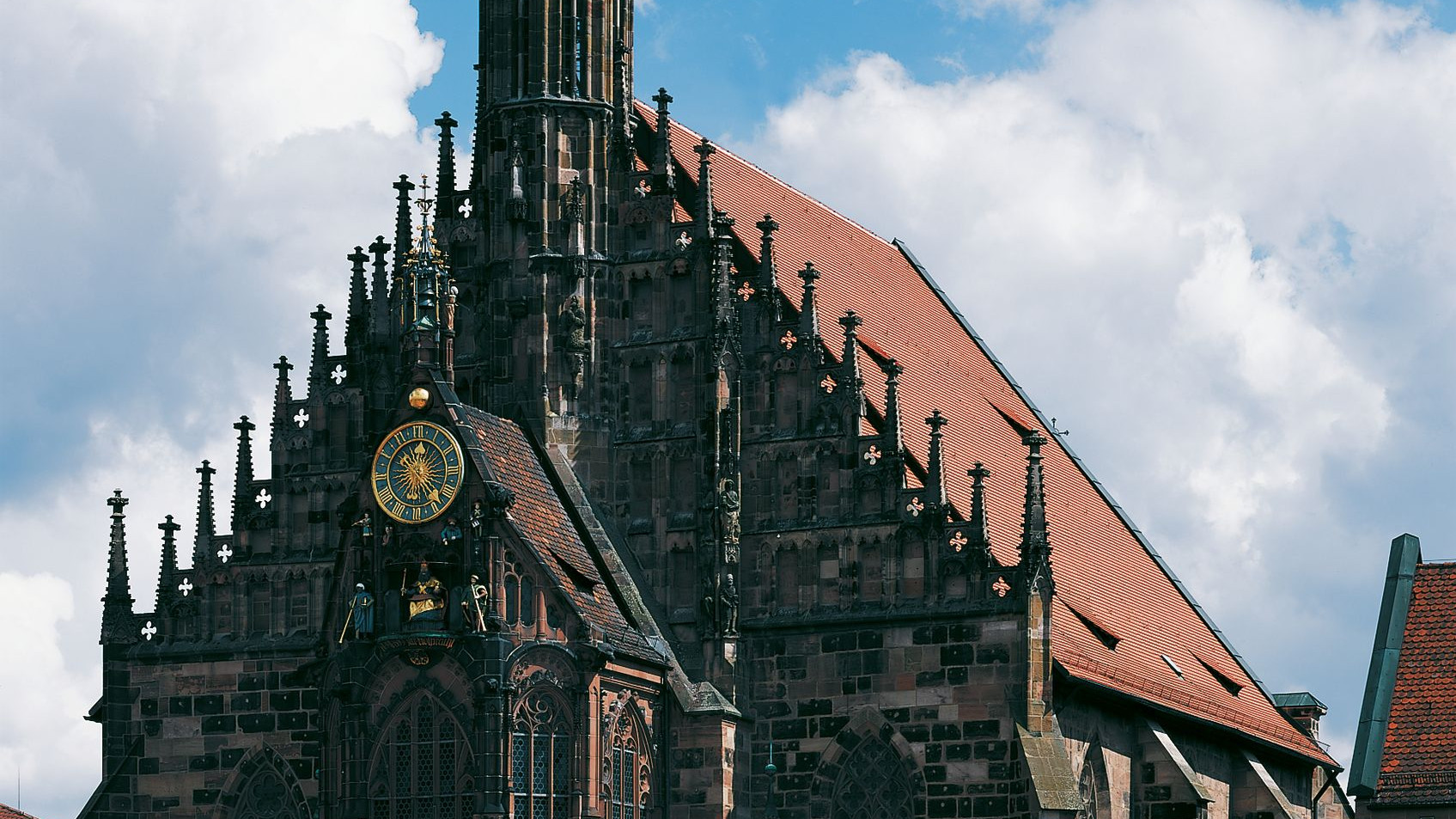

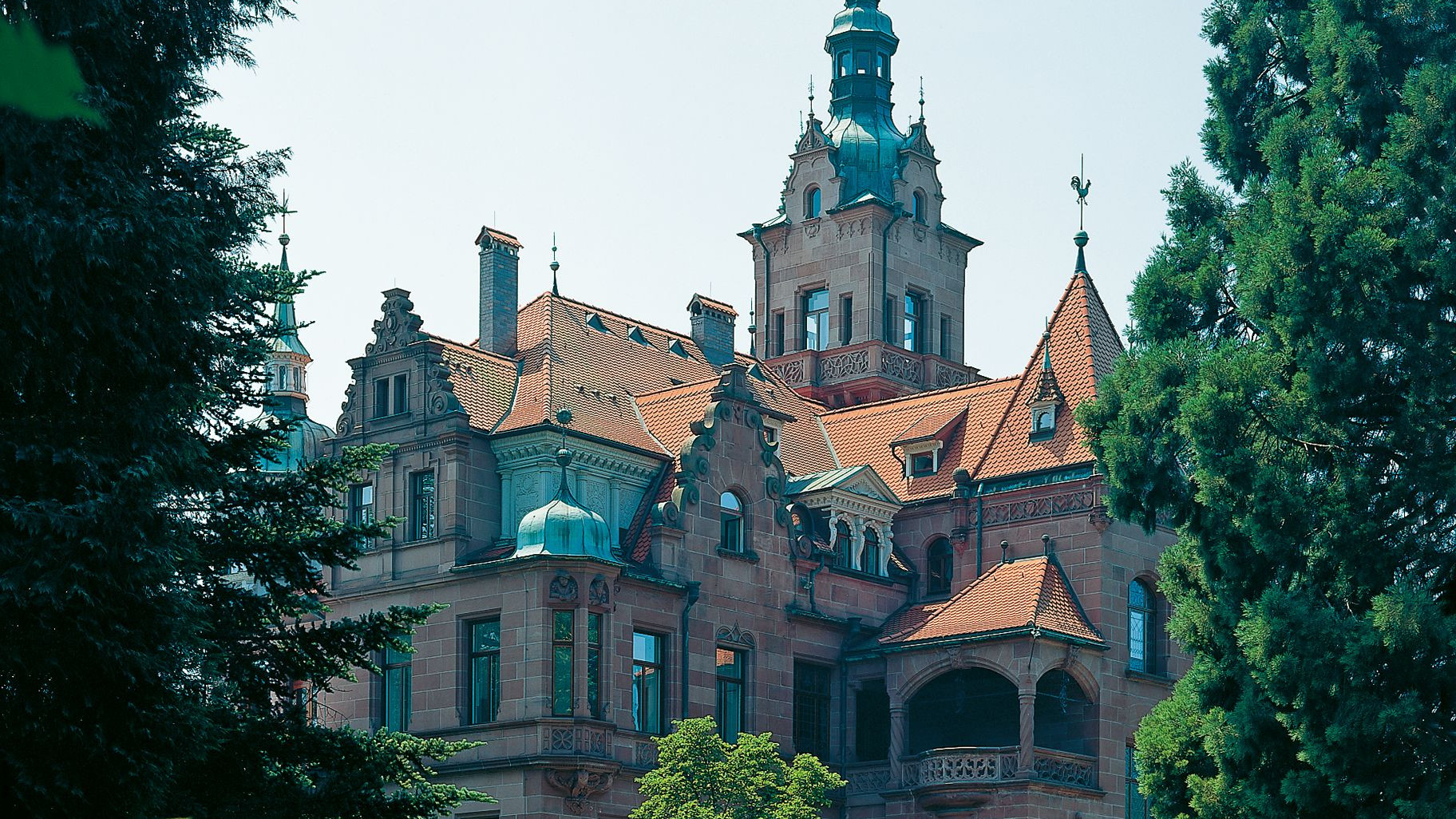

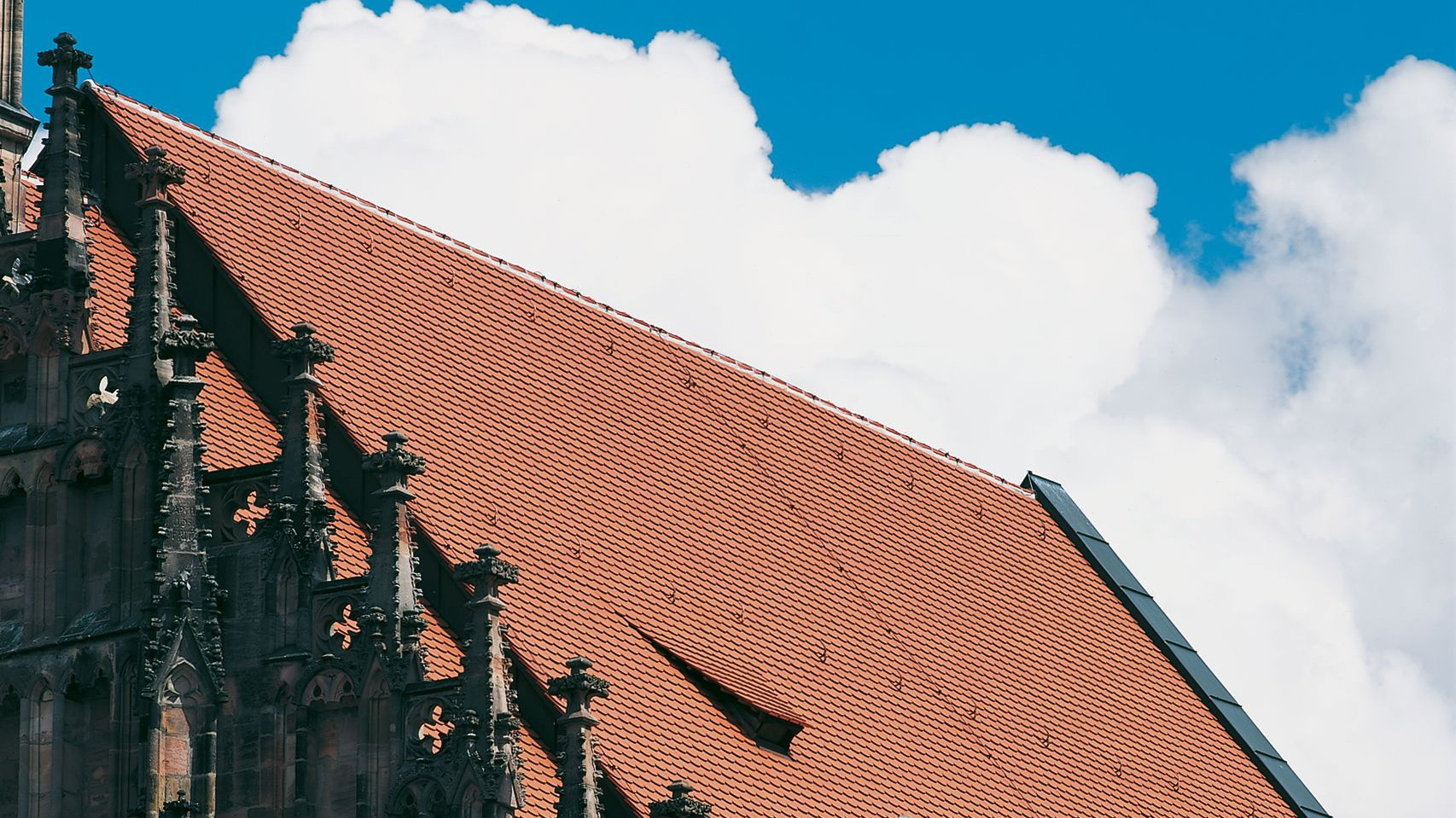

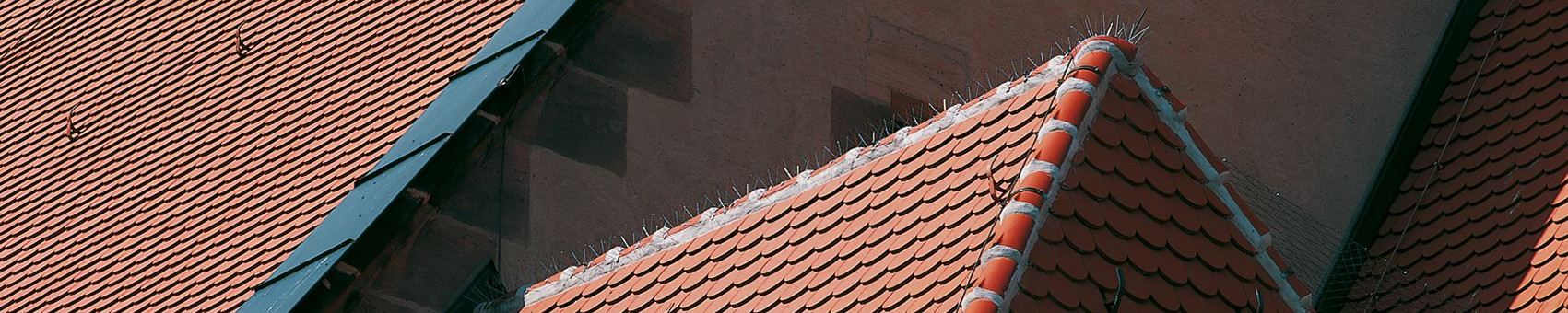

  • Especially suitable for old church roofs, castles and palaces
  • Natural, timeless and dignified beauty

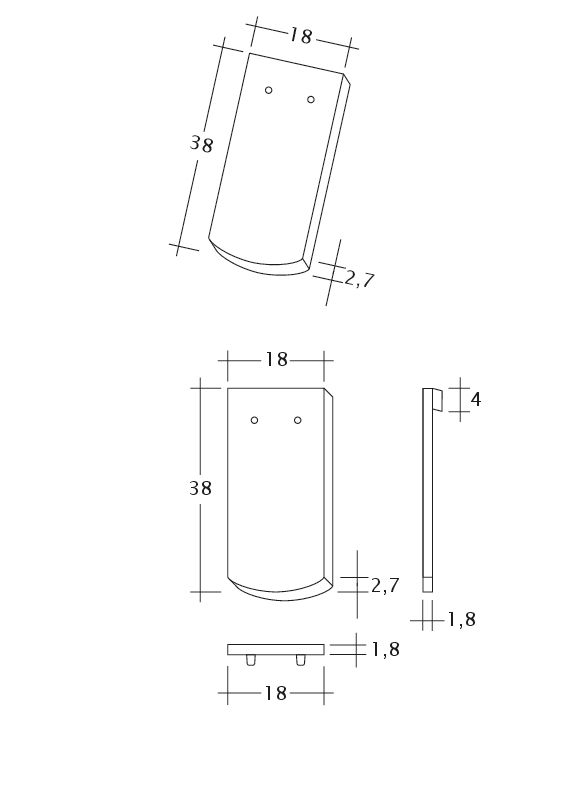

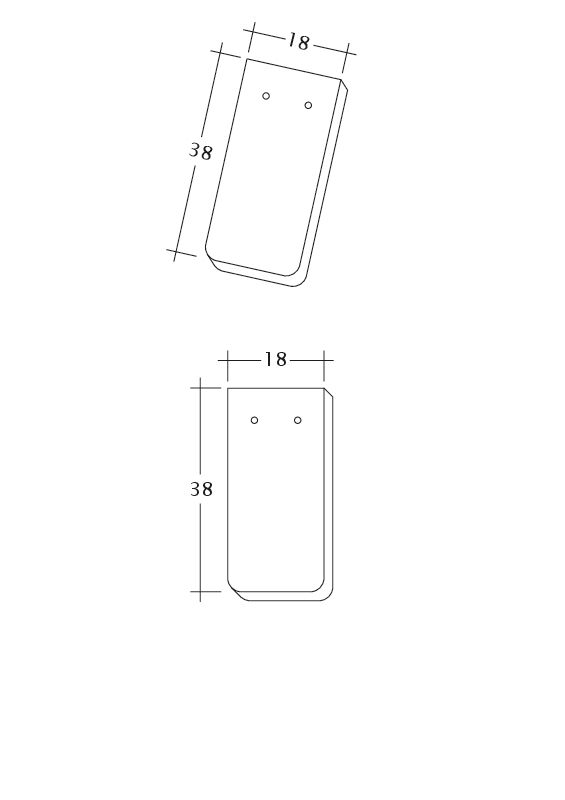

  • Configure roofs to suit your needs, thanks to the wide range of cut shapes
natural red
natural red

Technical data

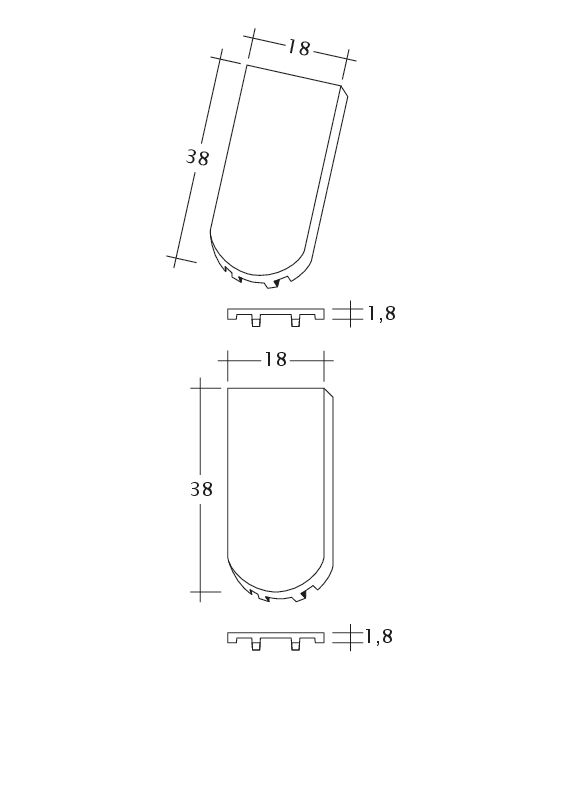

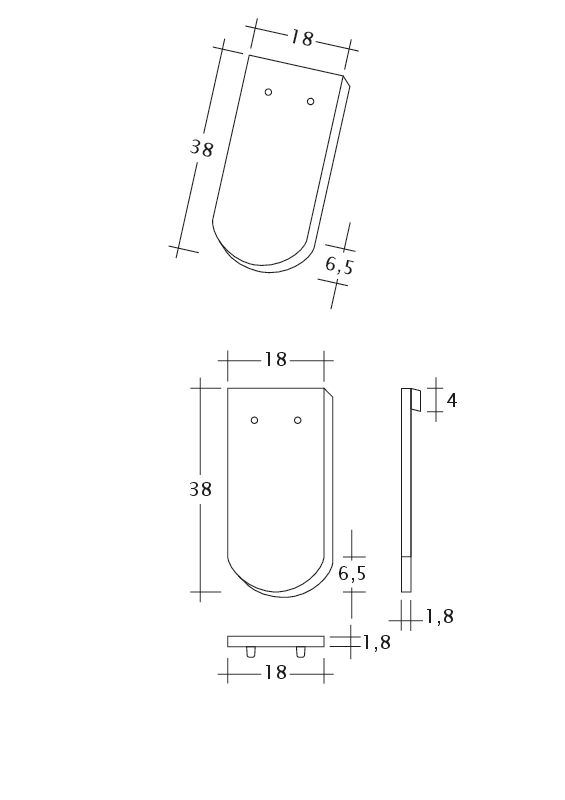

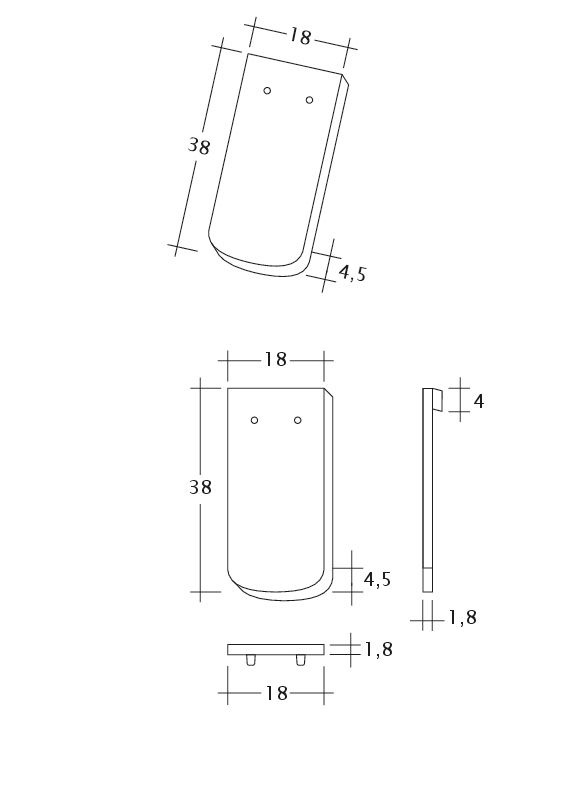

Size (appr.)180 x 380 x 18 mm
Max. coverage width (approx.)180 mm
Min. gauge (approx.)145 mm
Covering length on av. approx.155 mm
Max. gauge (approx.)165 mm
Average tile requirement (approx.)36 pcs/m²
Unit weight (approx.)2.5 kg/piece
Weight per m² (approx.)90 kg/m²
Weight per pallet (approx.)925 kg
Pcs per mini-pack6 piece
Pcs per pallet360 piece

Applications

Additional measures according to CREATON manufacturer's specifications
24 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 24 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 22 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 22 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 18 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • Please consider the sample letter for the standard CREATON roof pitches.
