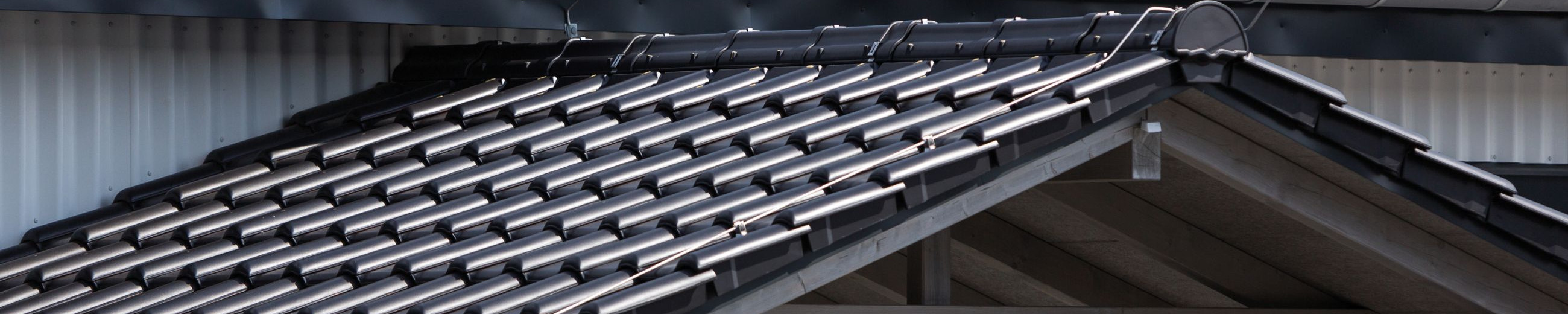

TITANIA NUANCE black matt engobed

TITANIA

Flexible with maximum adjustment range.

  • Top value for money at 9 units/m²
  • Very versatile and easy to install, thanks to a generous 44 mm adjustment range
  • Sophisticated interlock technology ensures optimum water control and provides increased protection against rain intrusion
  • The 44 mm adjustment tolerance is the largest in the CREATON flat roof tile series and guarantees the best possible fit to any batten spacing



Due to continuing high demand, the availability of the TITANIA roof tile in the color slate-colored engobed must be checked in advance. Please contact your technical consultant or building material dealer for this purpose.

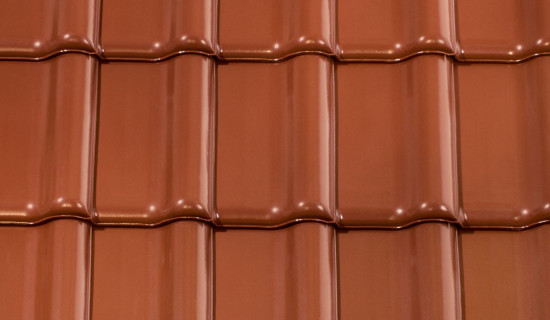

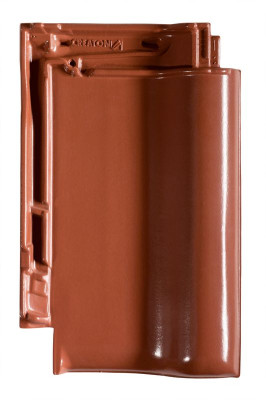

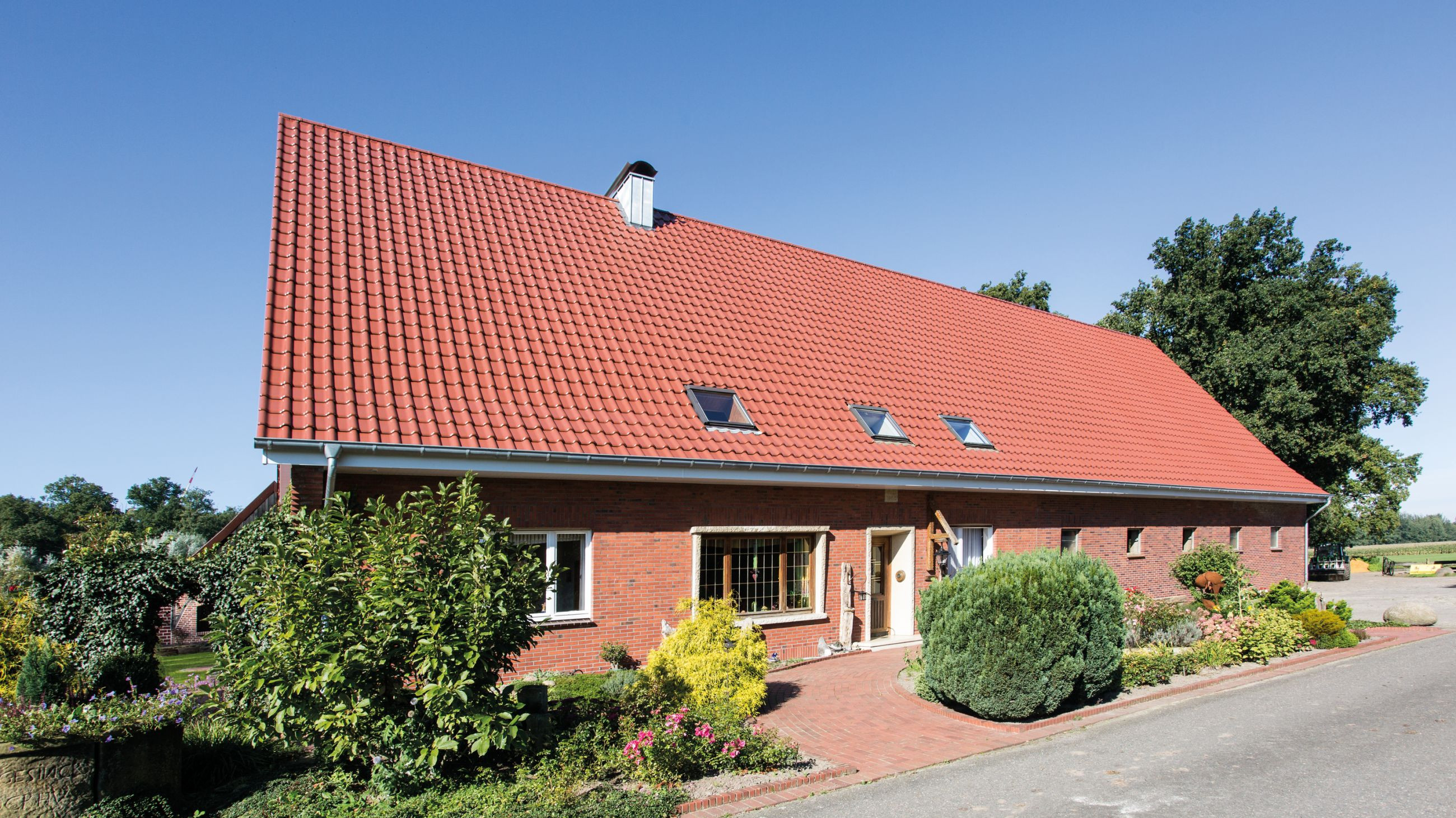

NUANCE copper red engobed
NUANCE copper red engobed
NUANCE slate grey engobed
NUANCE slate grey engobed

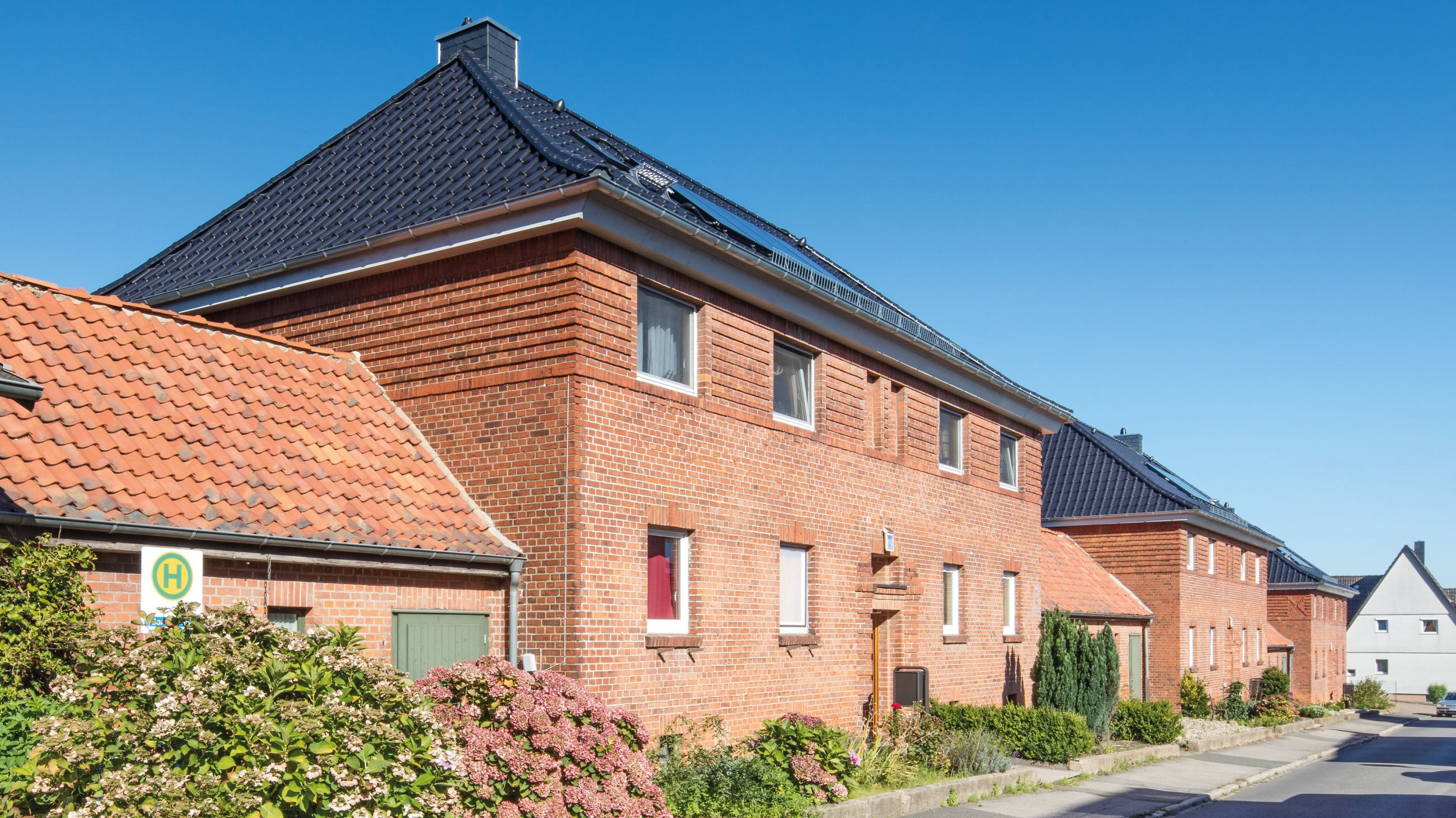

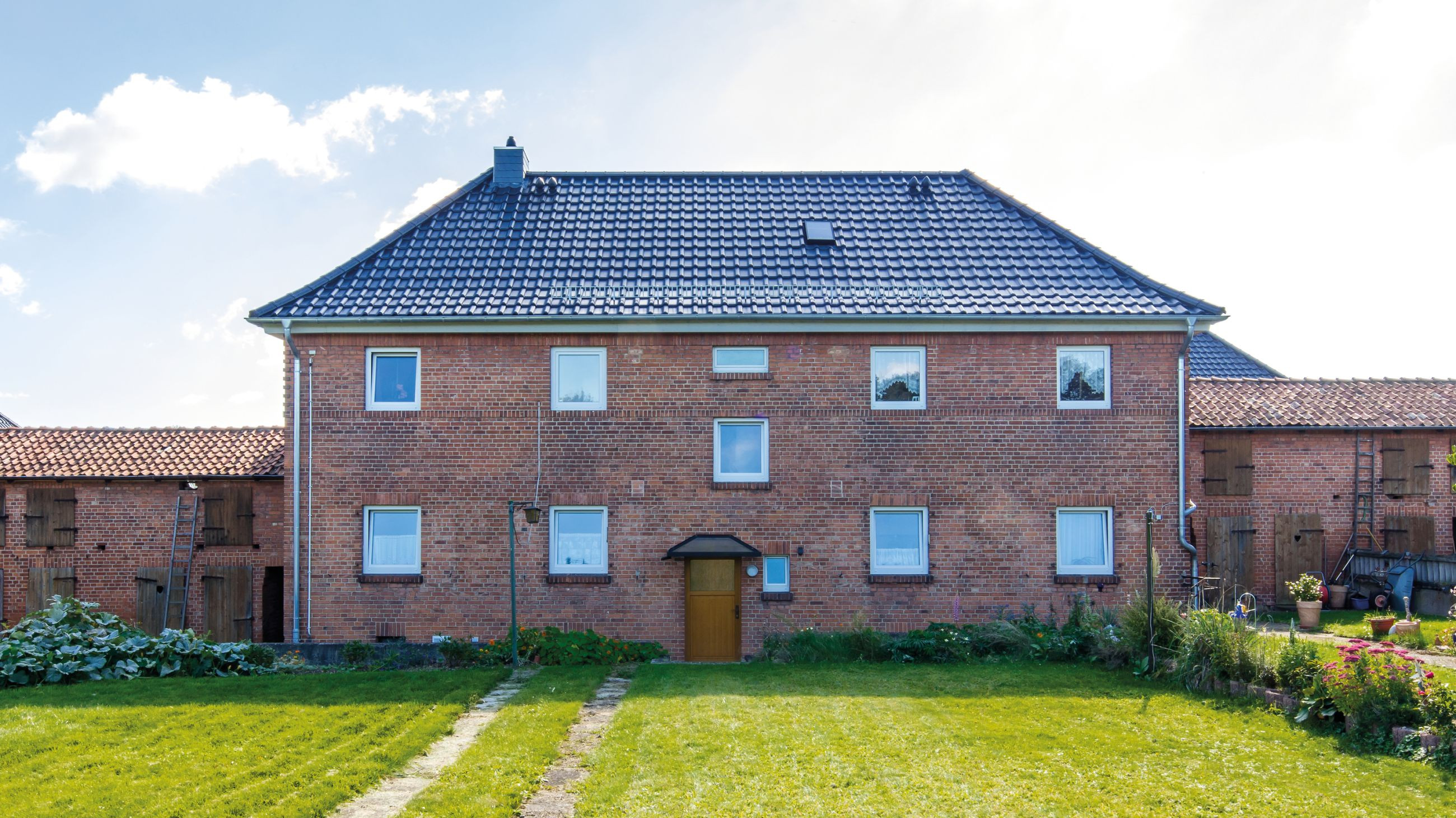

NUANCE black matt engobed
NUANCE black matt engobed
FINESSE slate glazed
FINESSE slate glazed
FINESSE black glazed
FINESSE black glazed
NOBLESSE brown glazed
NOBLESSE brown glazed

Technical data

Size (appr.)325 x 515 mm
Covering width min. approx.260 mm
Covering width on av. approx.262 mm
Max. coverage width (approx.)264 mm
Min. gauge (approx.)380 mm
Covering length on av. approx.402 mm
Max. gauge (approx.)424 mm
Tile requirement min. (approx.)9.0 pcs/m²
Average tile requirement (approx.)9.5 pcs/m²
Brickware max. approx.10.1 pcs/m²
Unit weight (approx.)4.9 kg/piece
Weight per m² (approx.)46.6 kg/m²
Weight per pallet (approx.)966 kg
Pcs per mini-pack4 piece
Pcs per pallet192 piece

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

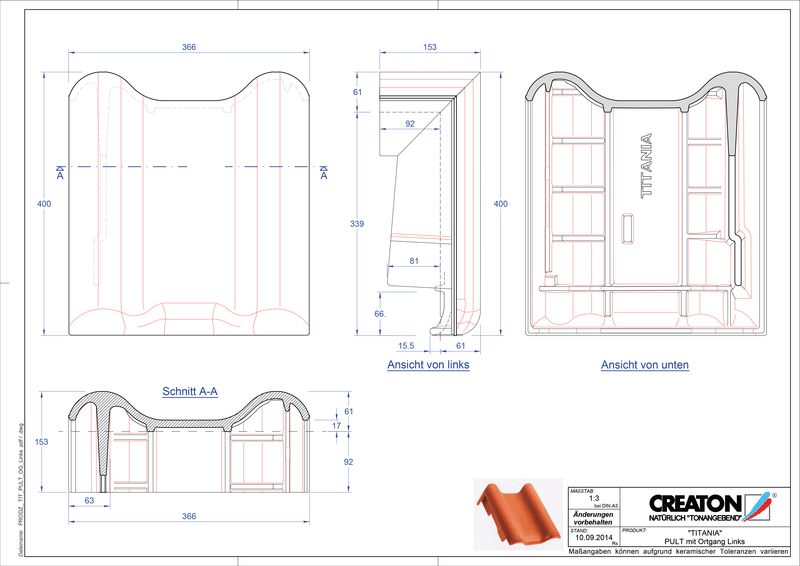

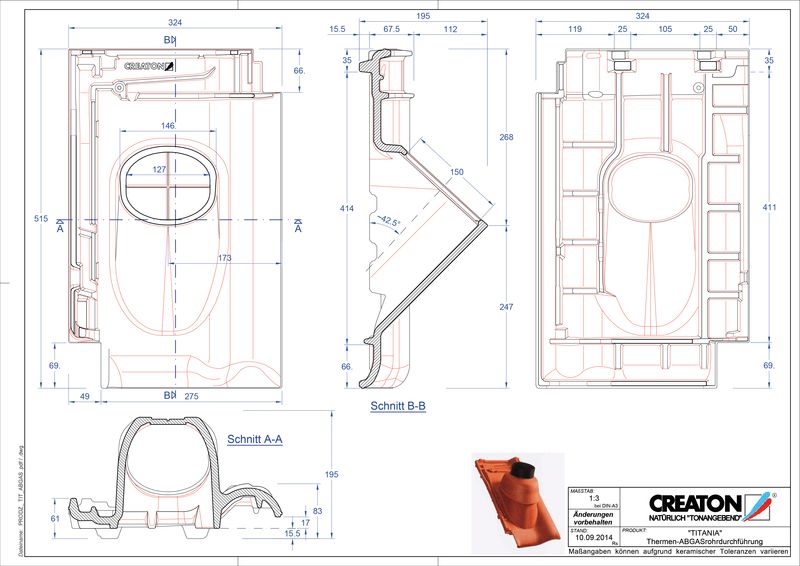

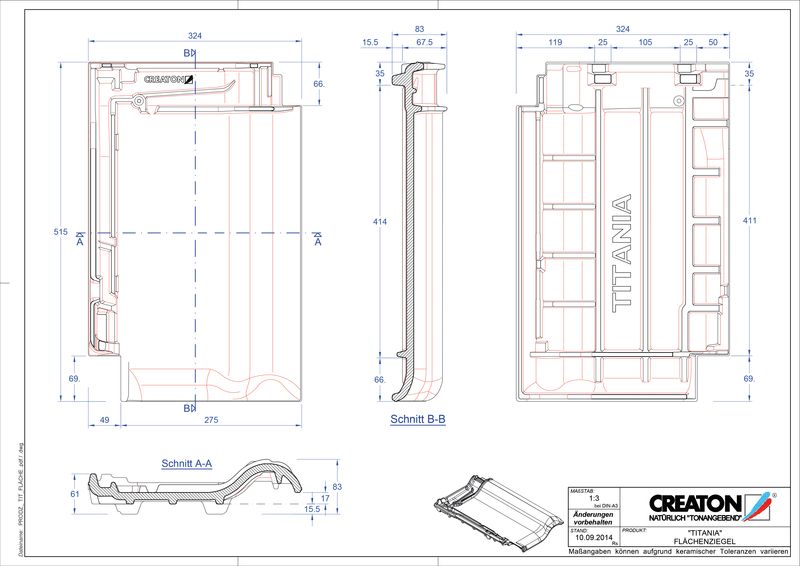

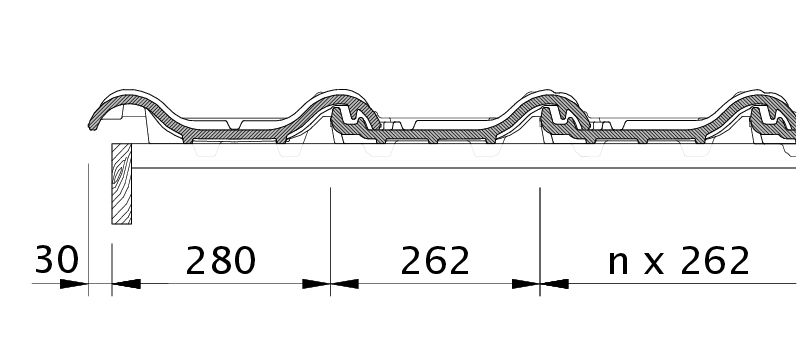

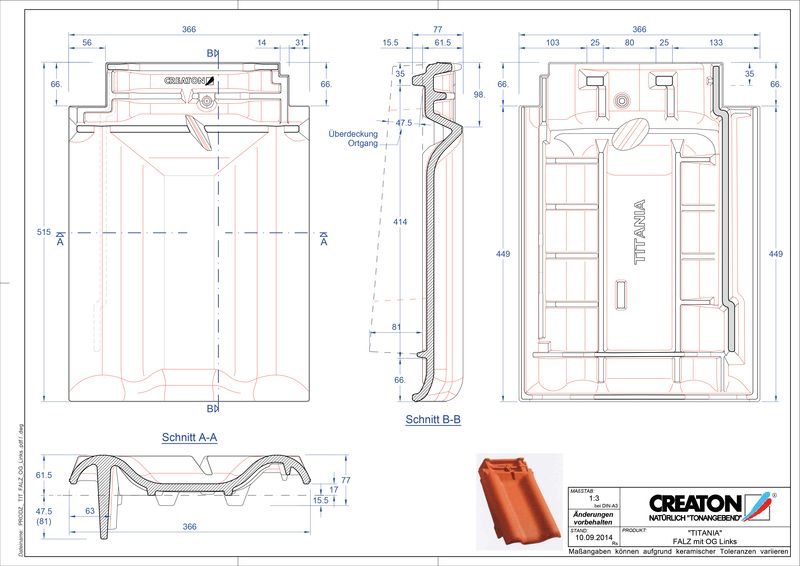

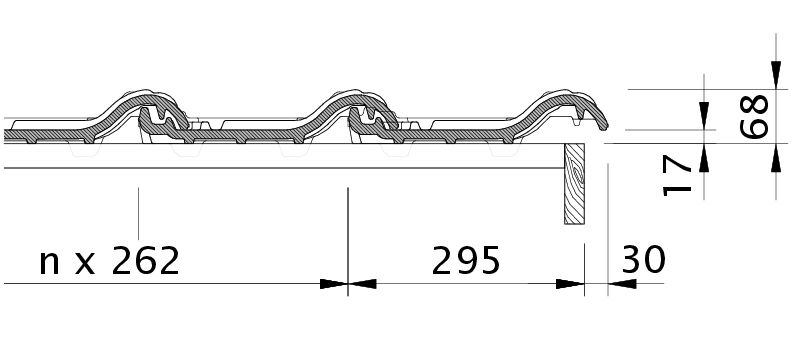

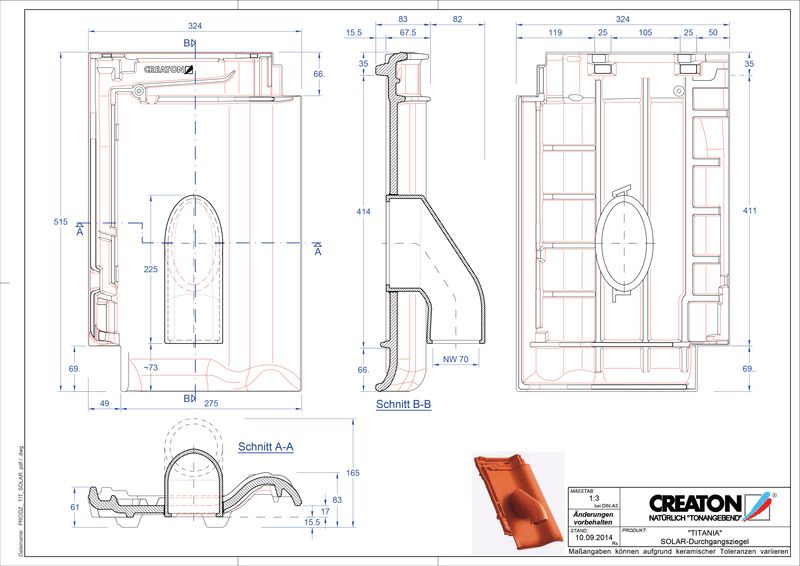

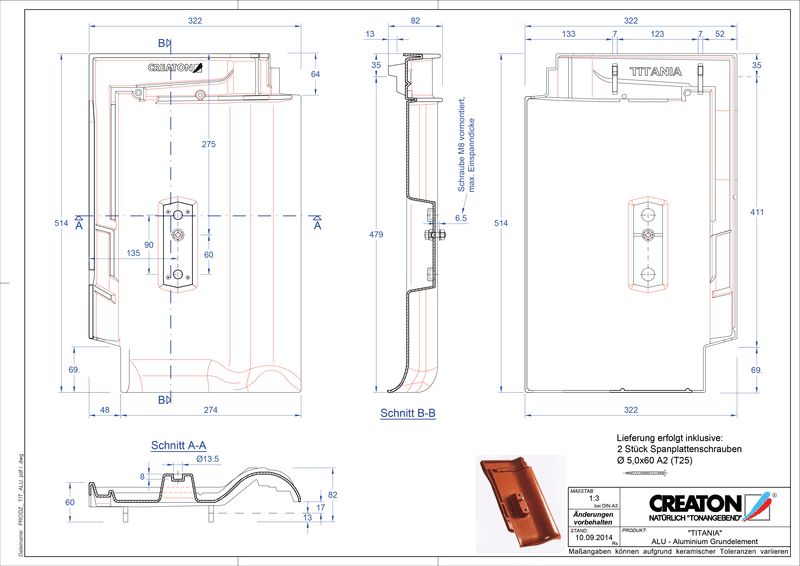

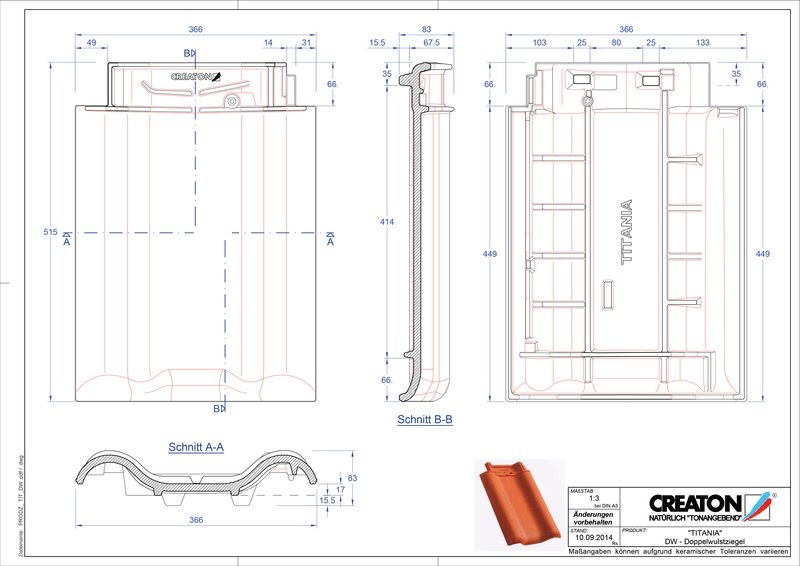

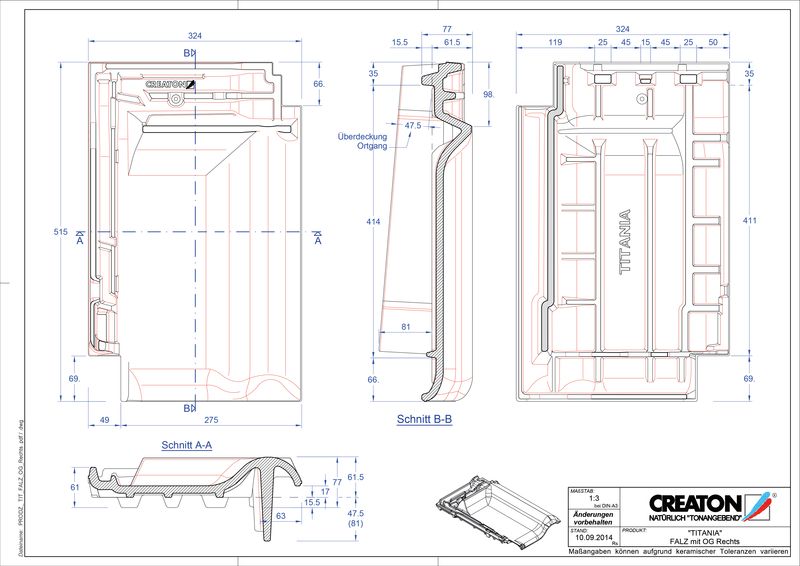

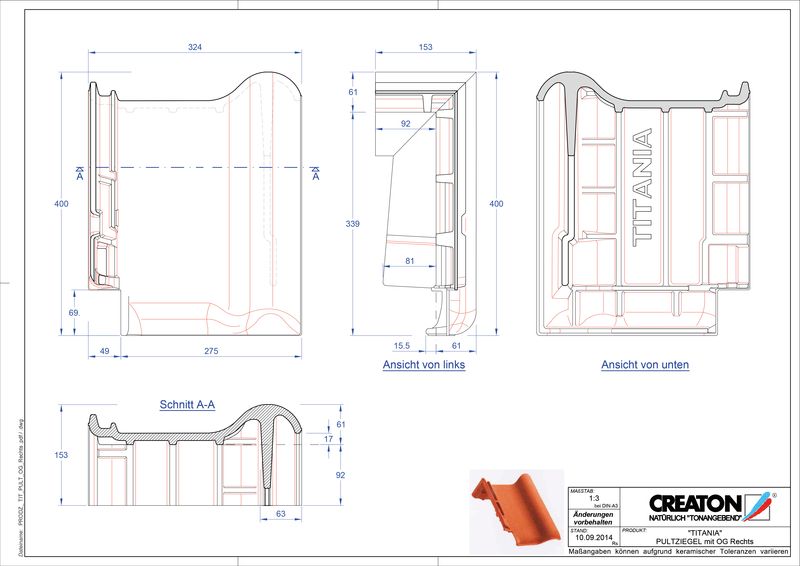

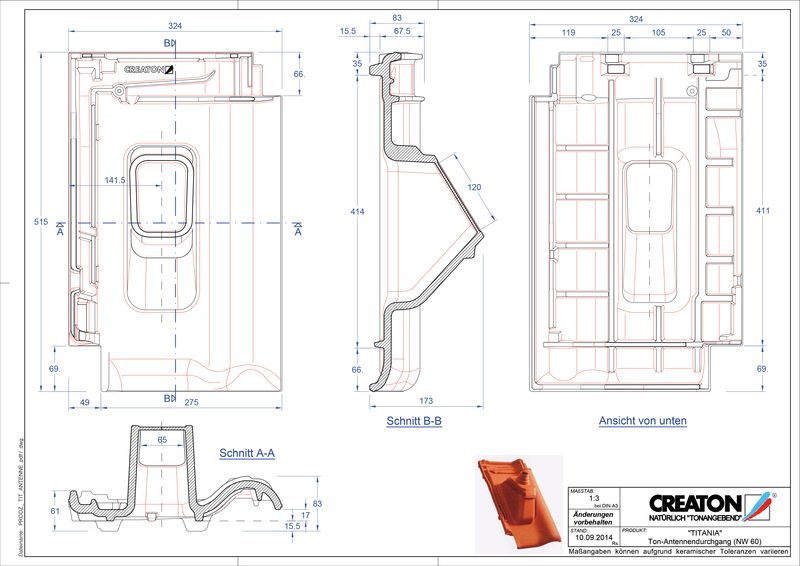

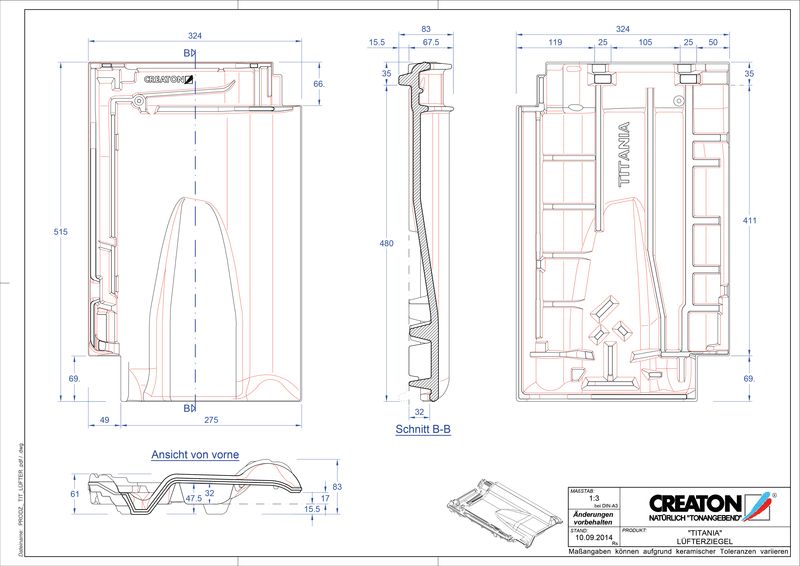

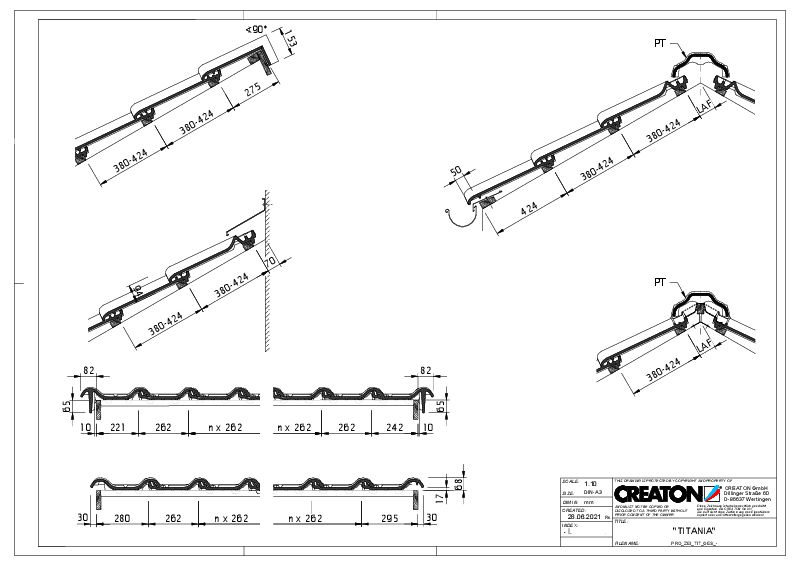

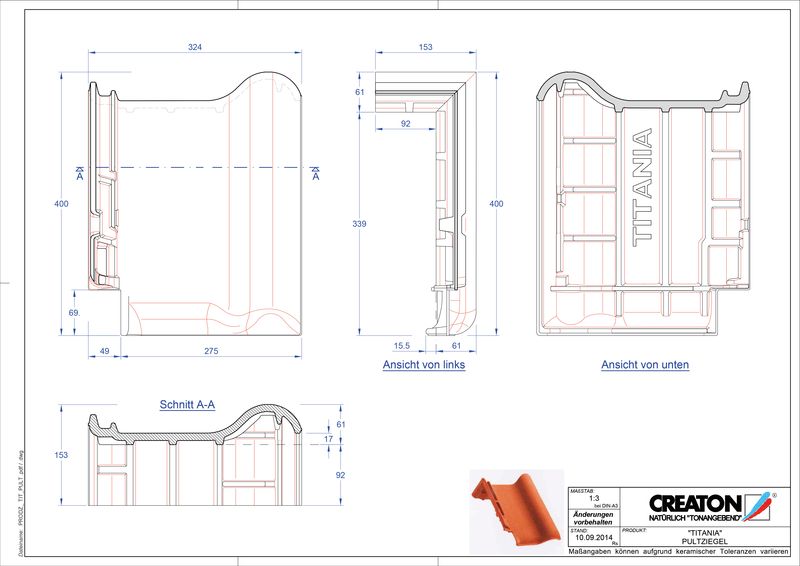

  • The technical drawing shown is merely an example.

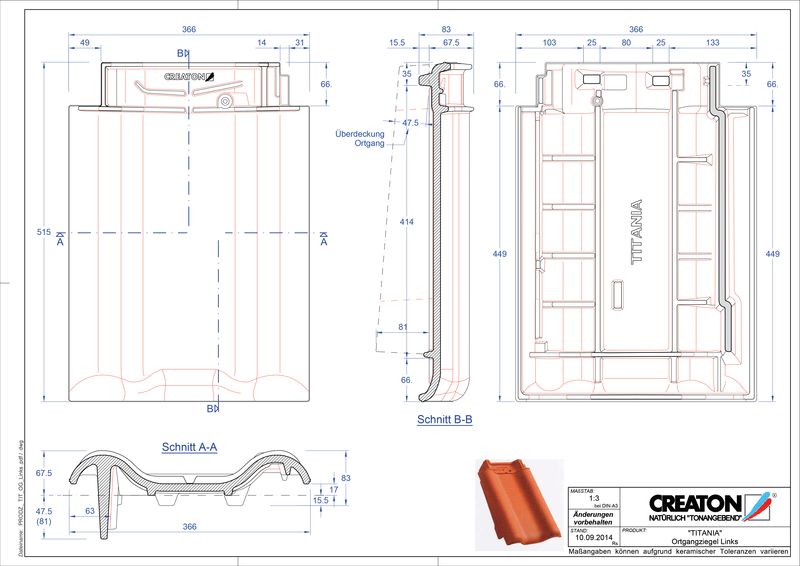

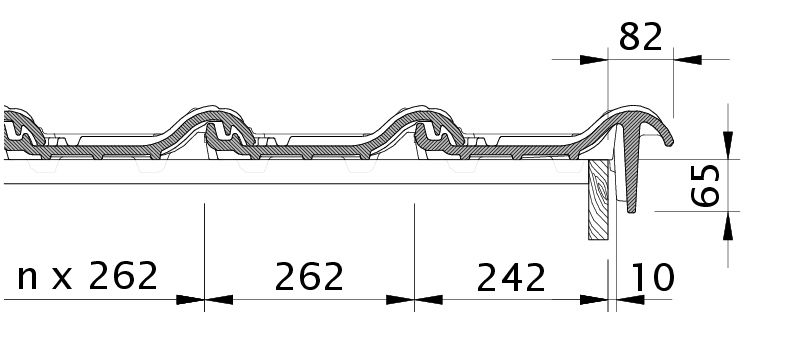

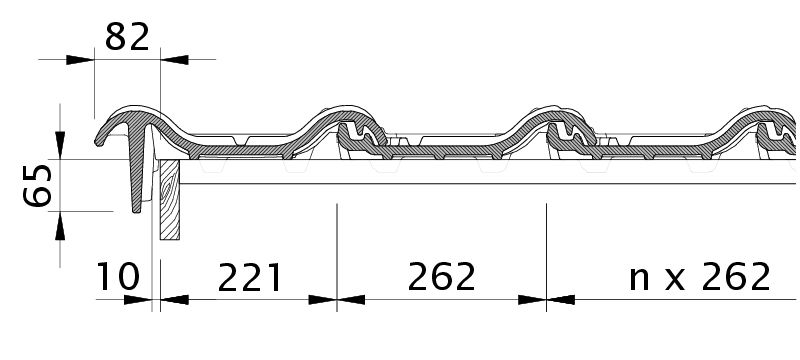

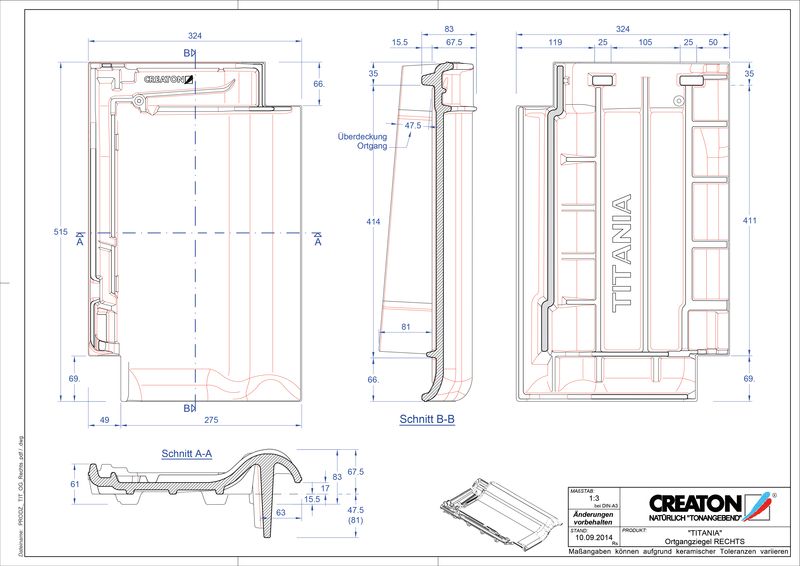

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

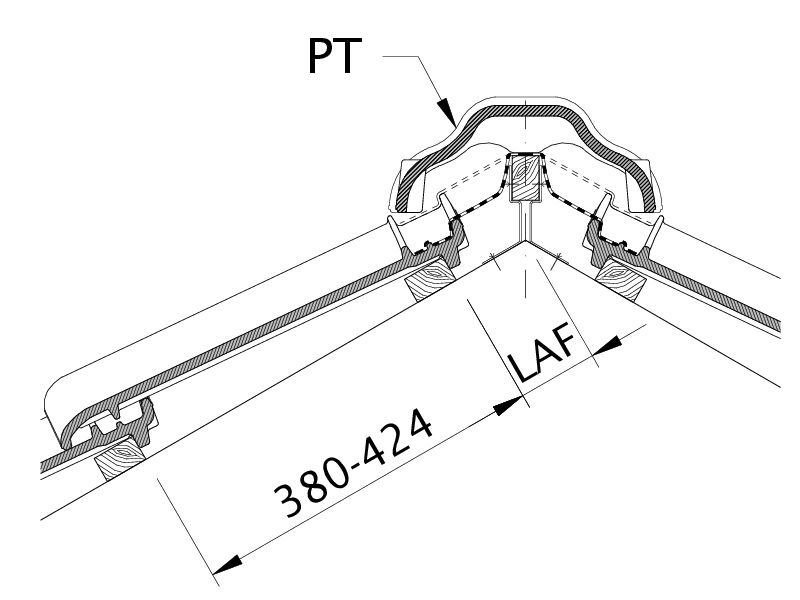

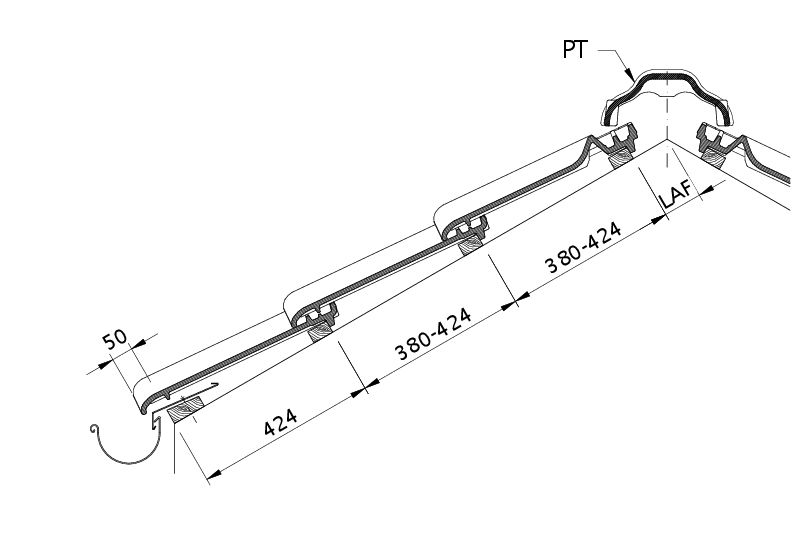

LAF-/FLA-VALUES

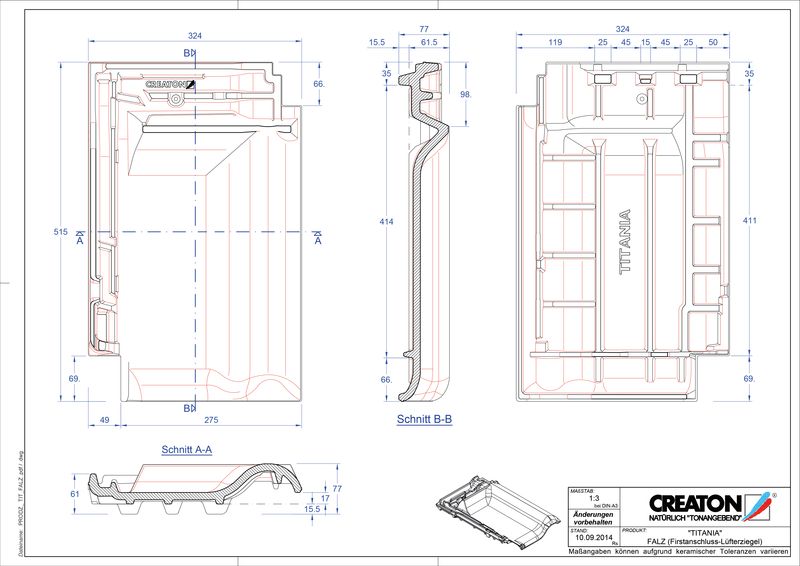

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF9090909090858080807575
PT 2.5 pcs/mFLA1101101008070706555453530
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF9090908585807570656060
PT 2.5 pcs/mFLA1201201109080807565554540
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PT 2.5 pcs/mLAF8585858080706560555045
PT 2.5 pcs/mFLA13013012010090959080756570
