RATIO NUANCE anthracite engobed

RATIO HÖN

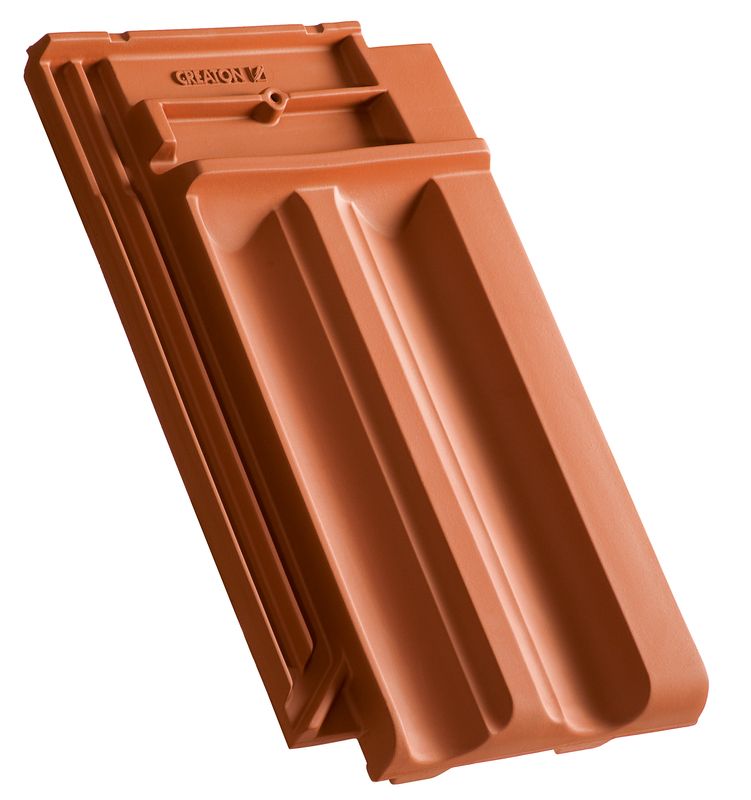

The economical, large interlocking tile.

  • Its large format (265 x 446 mm) makes this tile especially cost-effective
  • Flexible gauge for fast installation, thanks to an adjustment range of 24 mm
  • 5 mm adjustment tolerance for added flexibility
  • Extensive colour palette: 11 colours and four surface variations
  • Harmonious design inspired by the traditional Z1 model created by Ludowici
  • A water channel on the side of the tile takes the pressure off the side interlock to ensure water flows away smoothly

Note: For this model, a color change was made to the NUANCE copper red. Further information can be found here: Product range info

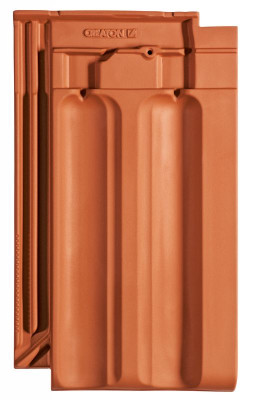

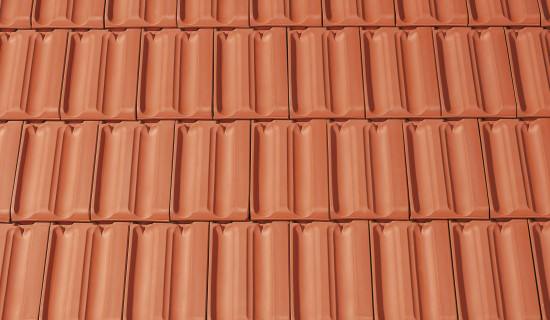

natural red
natural red
NUANCE red engobed
NUANCE red engobed
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE wine red engobed
NUANCE wine red engobed
NUANCE dark brown engobed
NUANCE dark brown engobed
NUANCE anthracite engobed
NUANCE anthracite engobed
FINESSE red glazed
FINESSE red glazed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE chestnut brown glazed
FINESSE chestnut brown glazed
FINESSE black glazed
FINESSE black glazed
NOBLESSE brown glazed
NOBLESSE brown glazed

Technical data

Size (appr.)265 x 446 mm
Covering width min. approx.221 mm
Covering width on av. approx.223 mm
Max. coverage width (approx.)225 mm
Min. gauge (approx.)357 mm
Covering length on av. approx.368 mm
Max. gauge (approx.)380 mm
Tile requirement min. (approx.)11.7 pcs/m²
Average tile requirement (approx.)12.2 pcs/m²
Brickware max. approx.12.7 pcs/m²
Unit weight (approx.)3.3 kg/piece
Weight per m² (approx.)40.3 kg/m²
Weight per pallet (approx.)975 kg
Pcs per mini-pack6 piece
Pcs per pallet288 piece

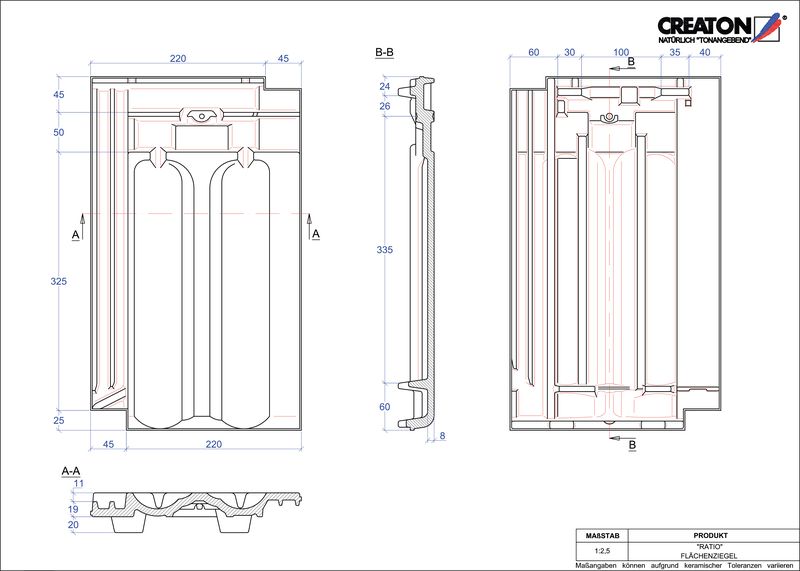

Technical drawings

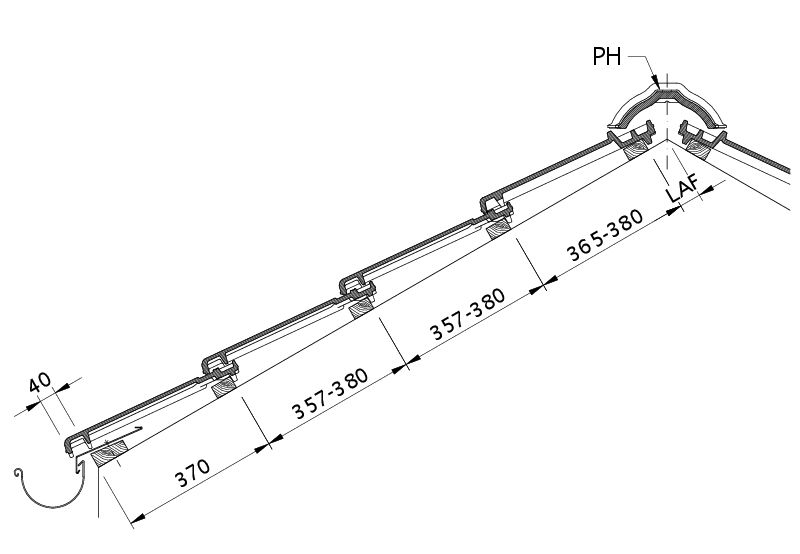

Drawing RATIO roof cross-section DQF
Drawing RATIO roof cross-section DQF

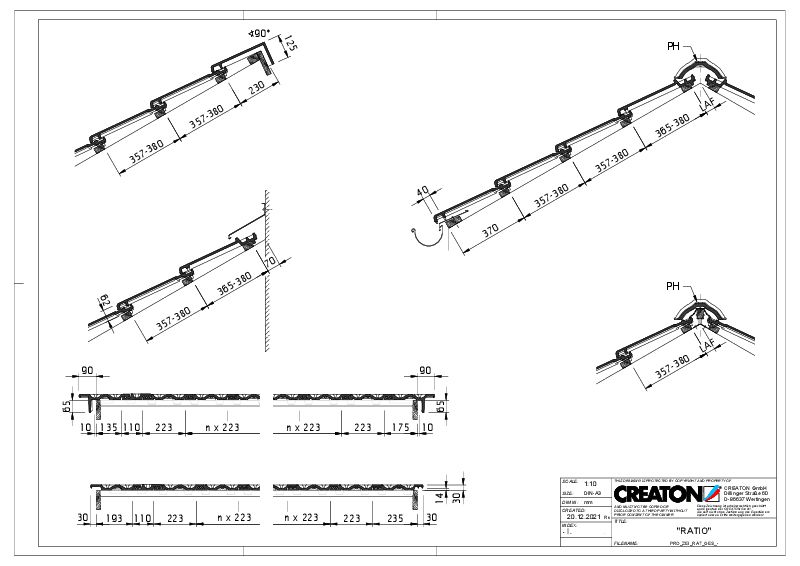

Drawing RATIO general view GES
Drawing RATIO general view GES

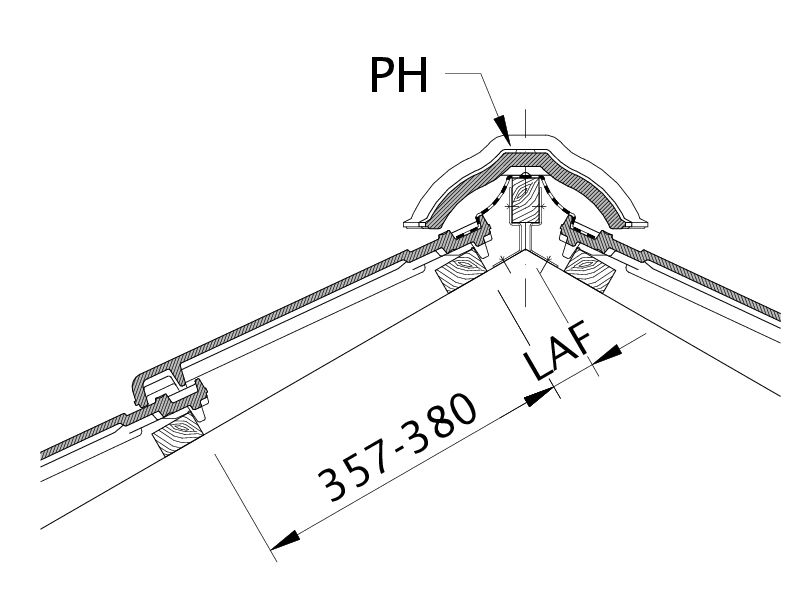

Drawing RATIO distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing RATIO distance from batten to ridge intersection point, ridge batten spacing LAF

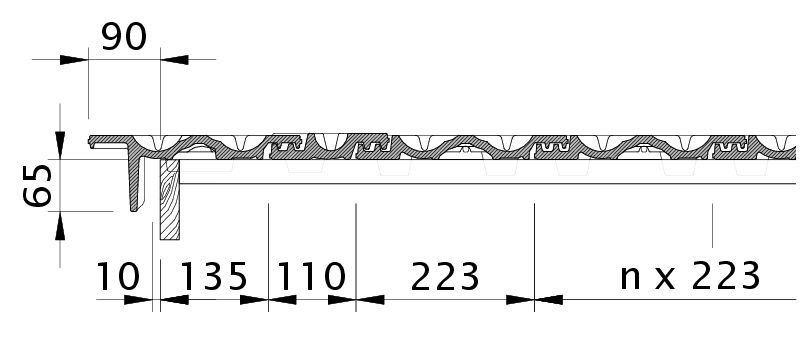

Drawing RATIO verge tile left with barge board OBL
Drawing RATIO verge tile left with barge board OBL

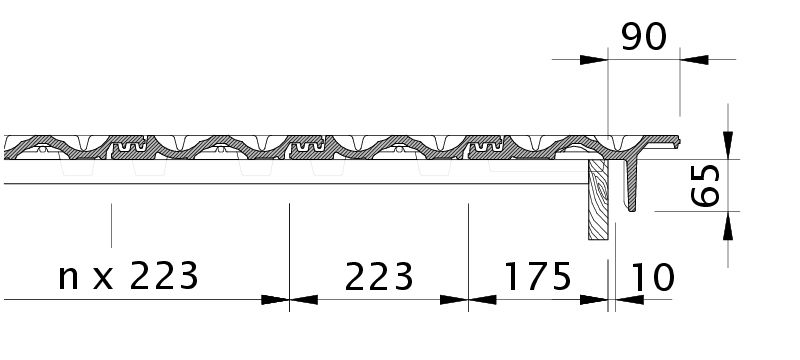

Drawing RATIO verge tile right with barge board OBR
Drawing RATIO verge tile right with barge board OBR

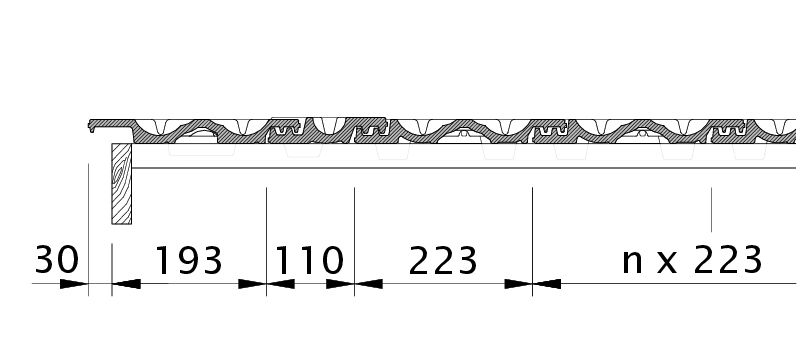

Drawing RATIO verge left with verge sheet metal and double roll ODL
Drawing RATIO verge left with verge sheet metal and double roll ODL

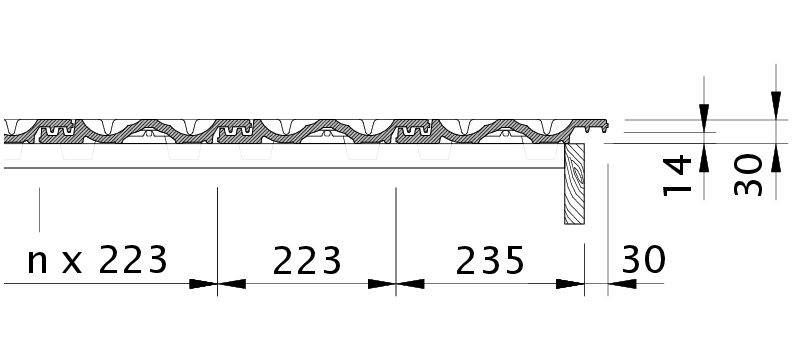

Drawing RATIO verge right with verge sheet metal and field tile OFR
Drawing RATIO verge right with verge sheet metal and field tile OFR

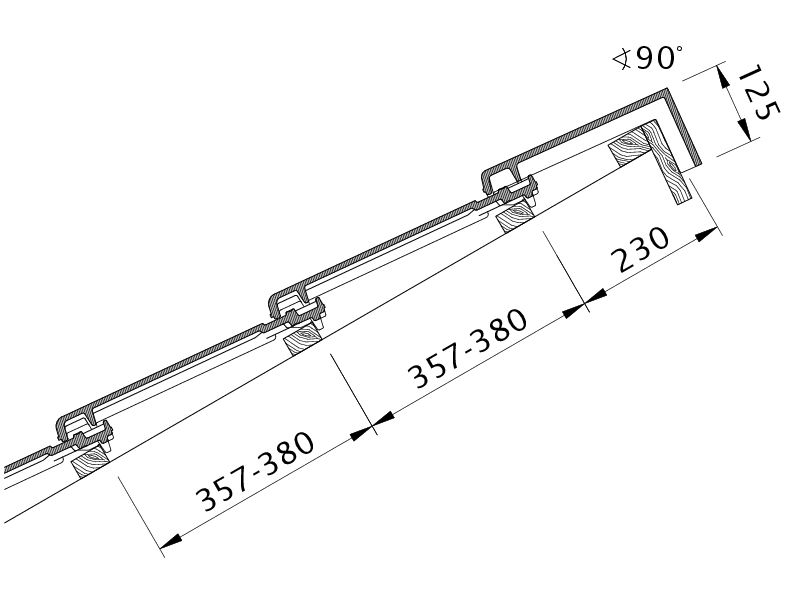

Drawing RATIO shed roof version PDA
Drawing RATIO shed roof version PDA

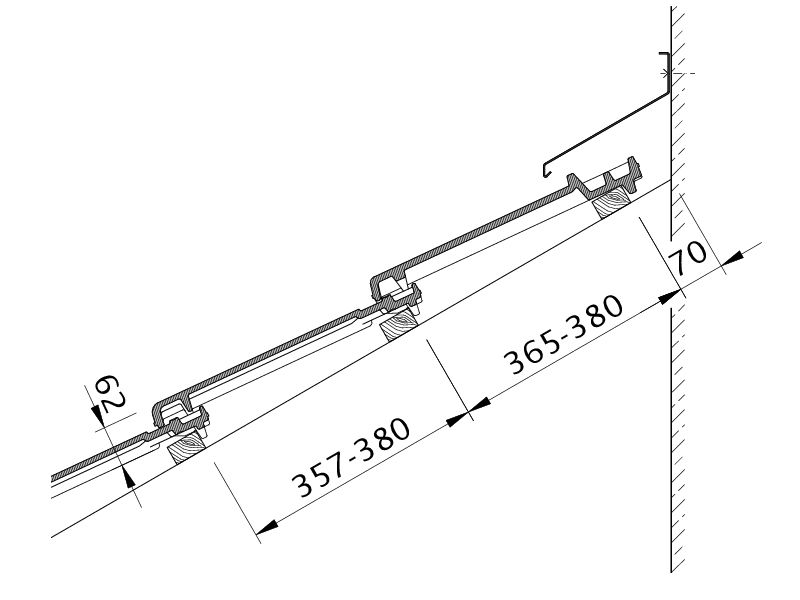

Drawing RATIO wall connection (above) with FALZ WMF
Drawing RATIO wall connection (above) with FALZ WMF

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°
PH 2.6 pcs/mLAF6055505045454030
PH 2.6 pcs/mFLA9580757065555555
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°
PH 2.6 pcs/mLAF6055454540403015
PH 2.6 pcs/mFLA10590858075656565
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°
PH 2.6 pcs/mLAF555040403030205
PH 2.6 pcs/mFLA115100959090808085

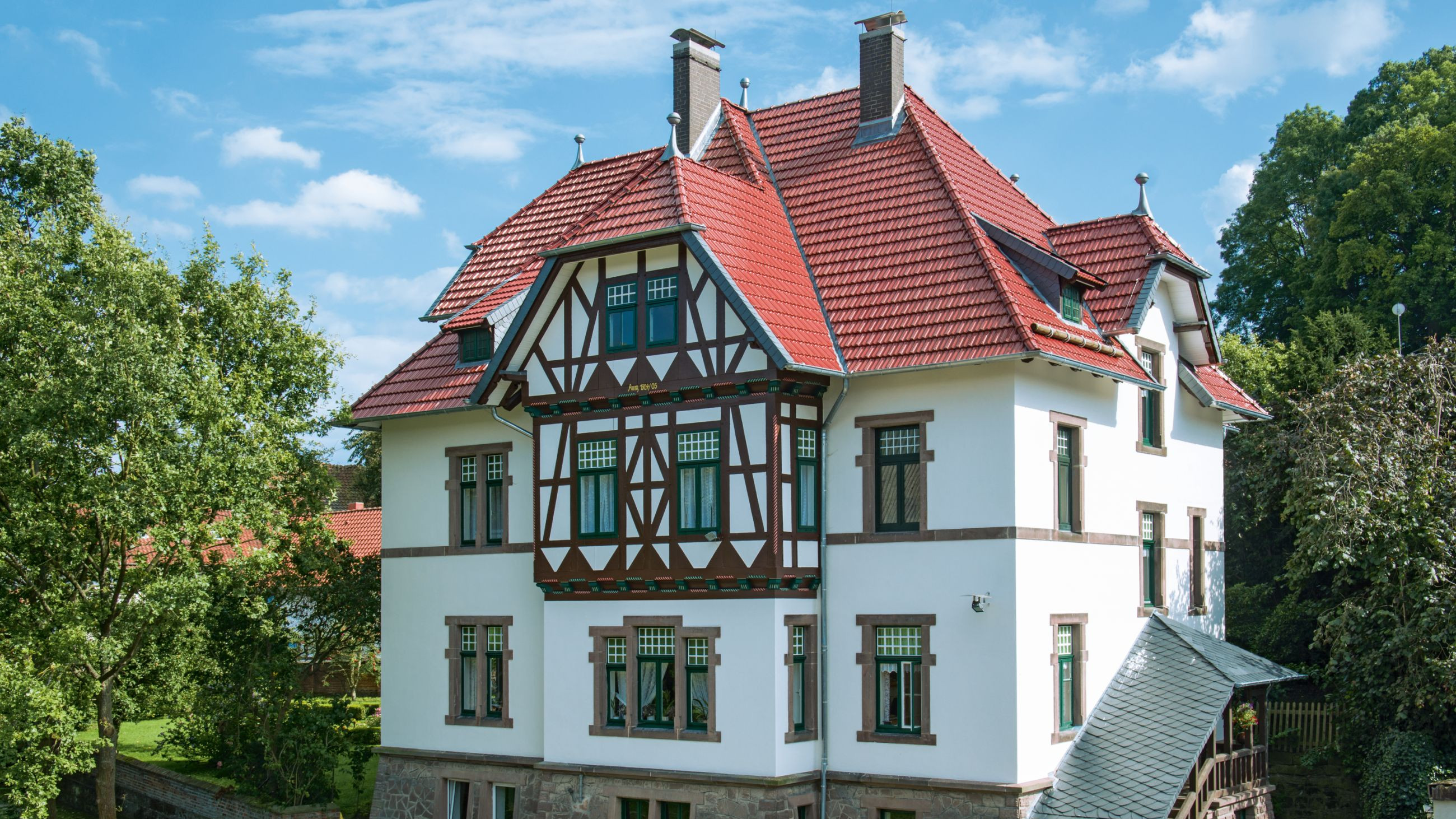

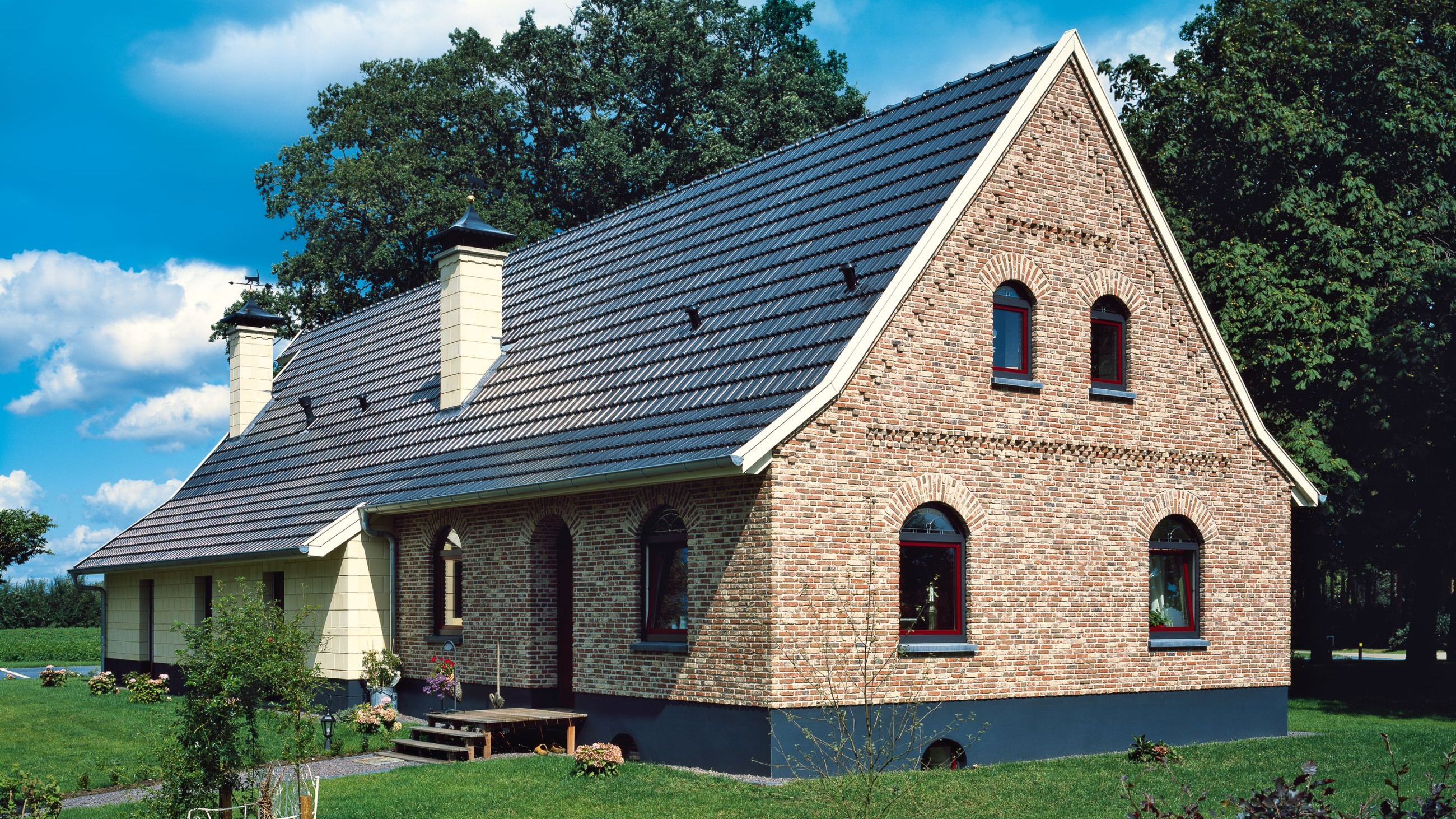

References

more

more

more

Accessory range

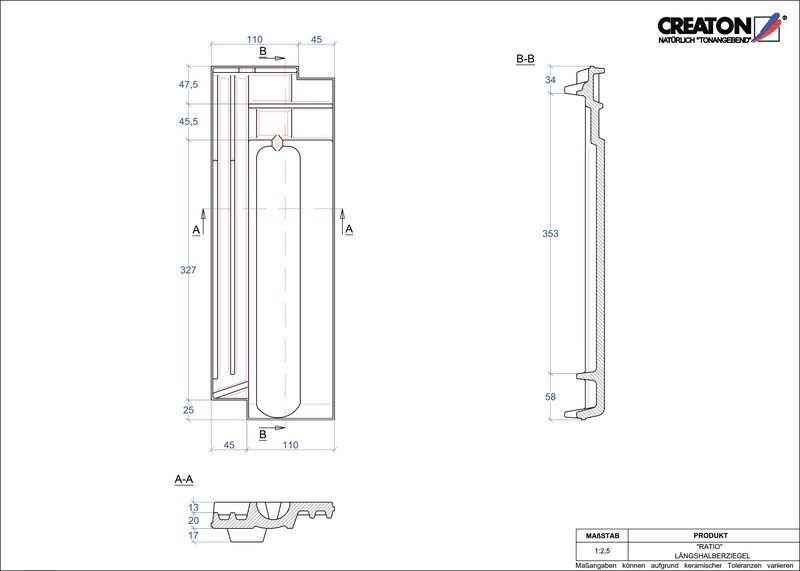

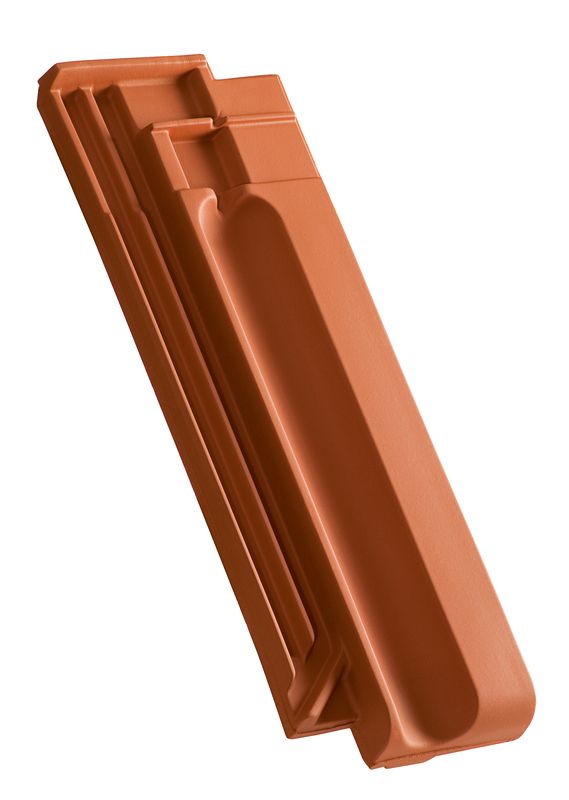

RAT HÖN half-width tile

RAT HÖN half-width tile

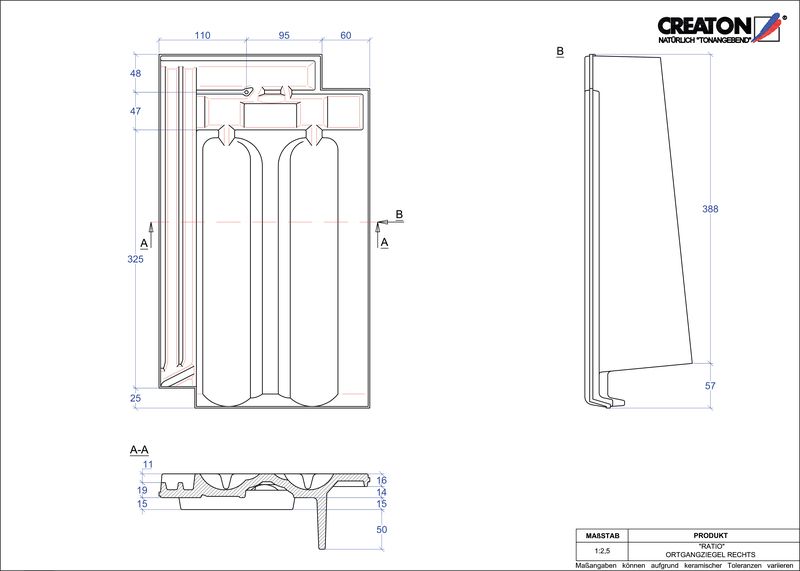

RAT HÖN verge tile right

RAT HÖN verge tile right

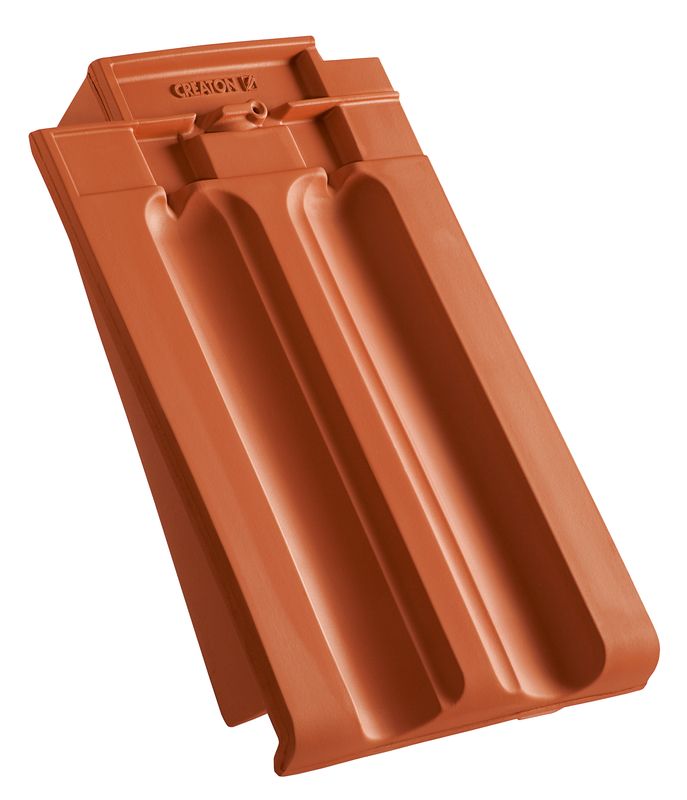

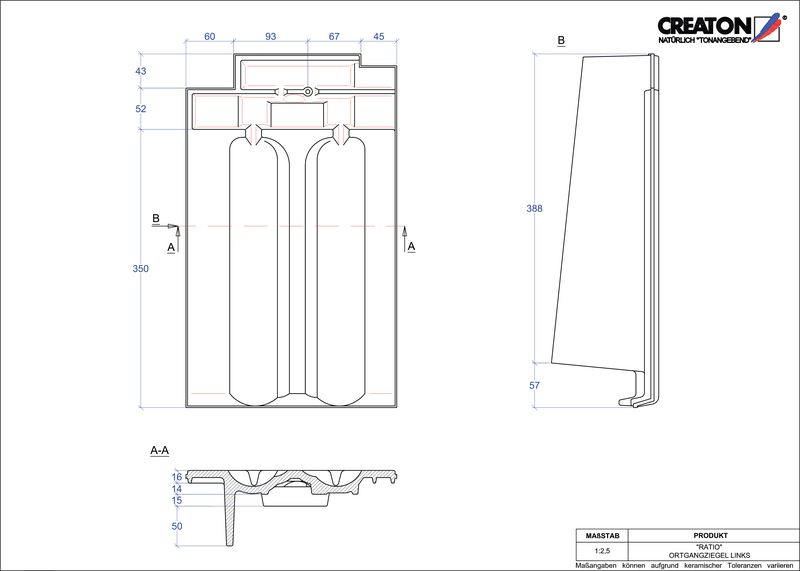

RAT HÖN verge tile left

RAT HÖN verge tile left

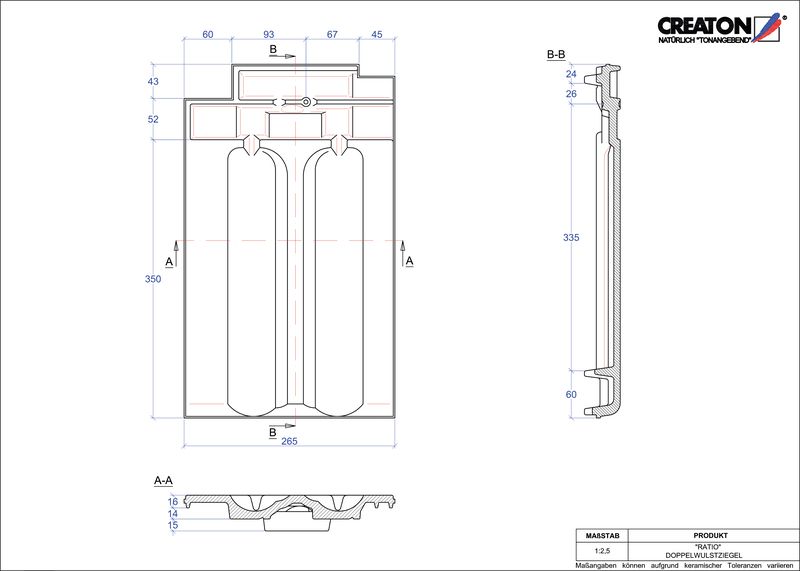

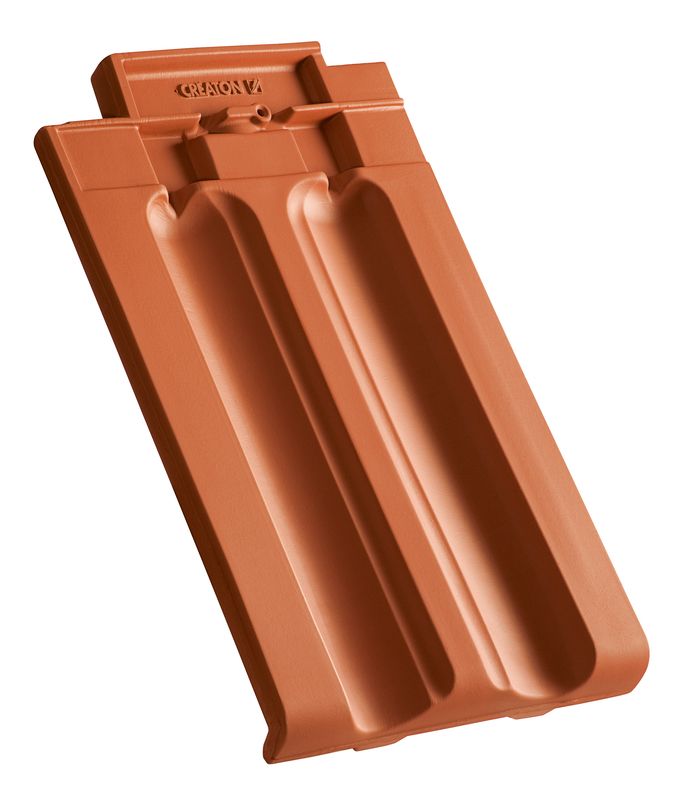

RAT HÖN double roll tile

RAT HÖN double roll tile

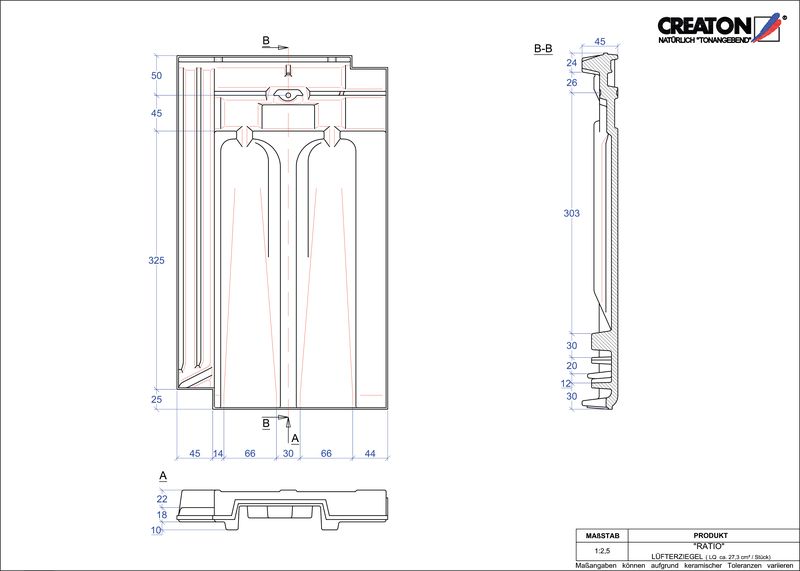

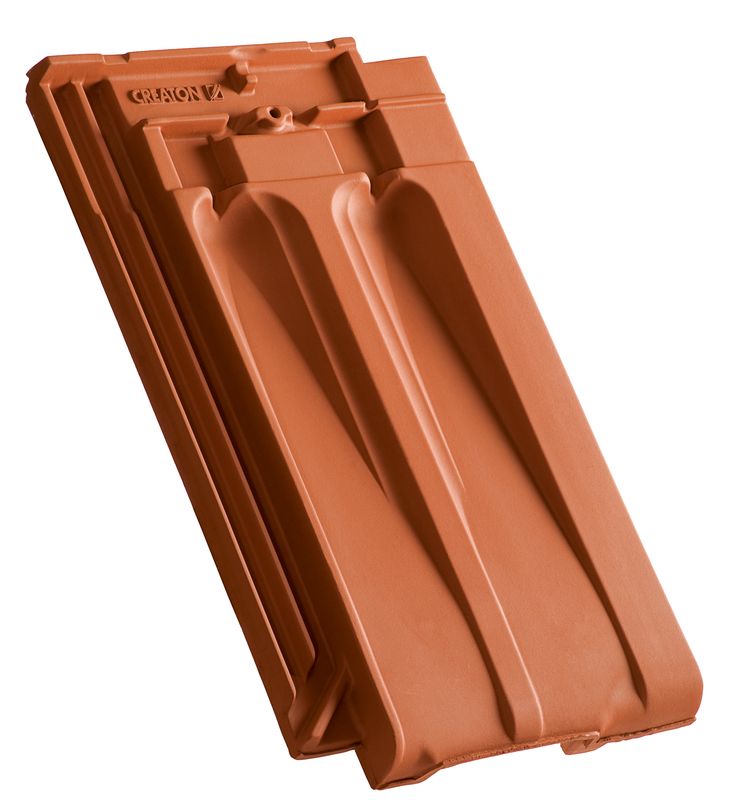

RAT HÖN ventilating tile

RAT HÖN ventilating tile

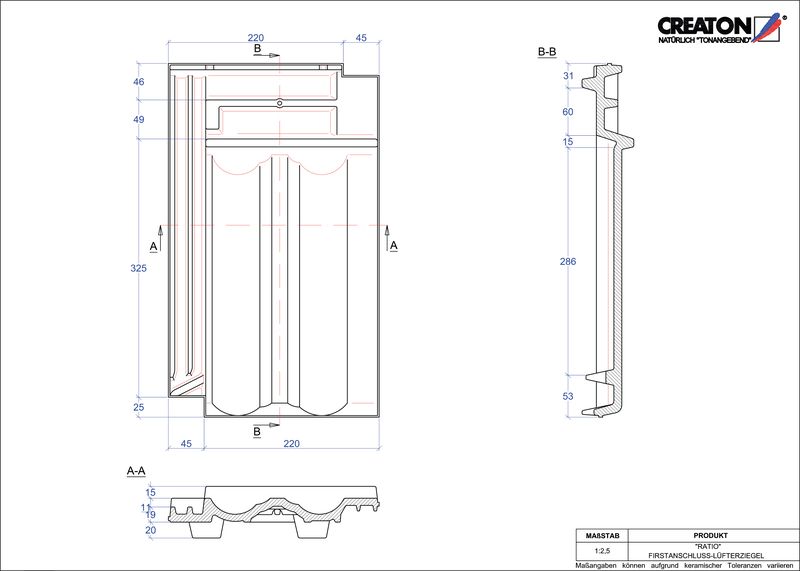

RAT HÖN ridge connection ventilating tile

RAT HÖN ridge connection ventilating tile

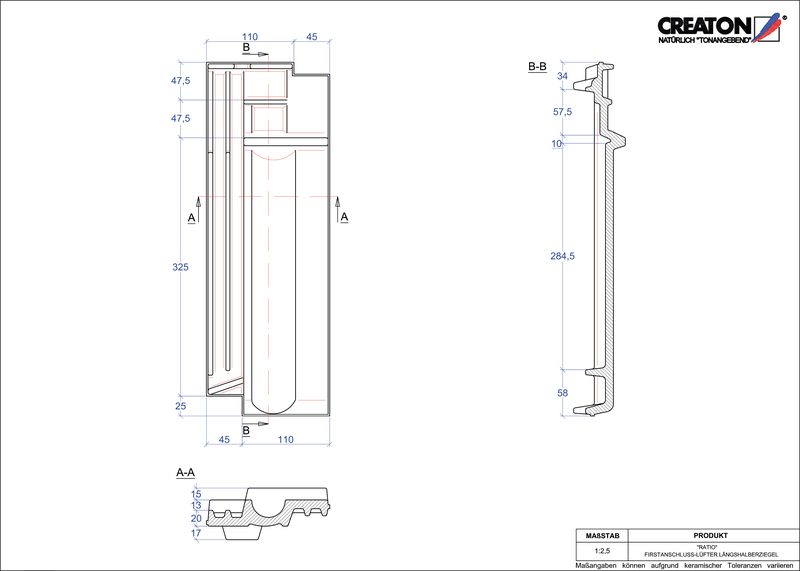

RAT HÖN ridge connection ventilating half-width tile

RAT HÖN ridge connection ventilating half-width tile

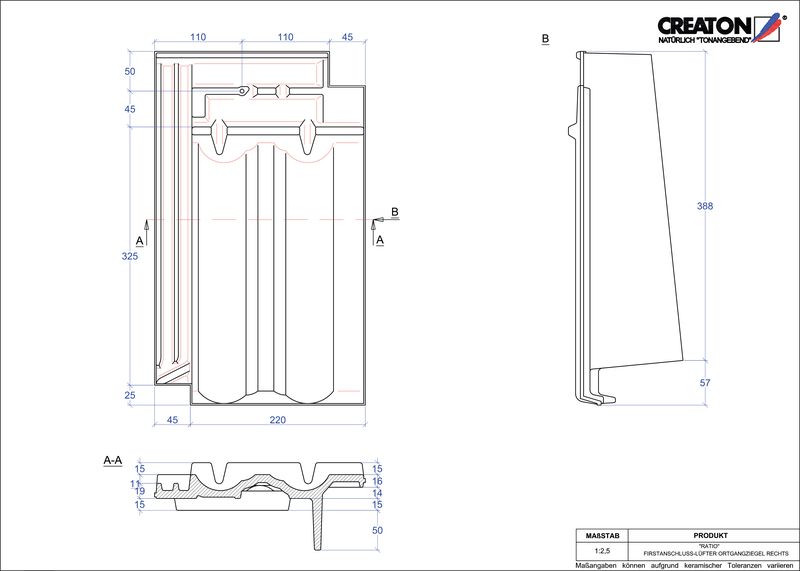

RAT HÖN ridge connection ventilating verge tile right

RAT HÖN ridge connection ventilating verge tile right

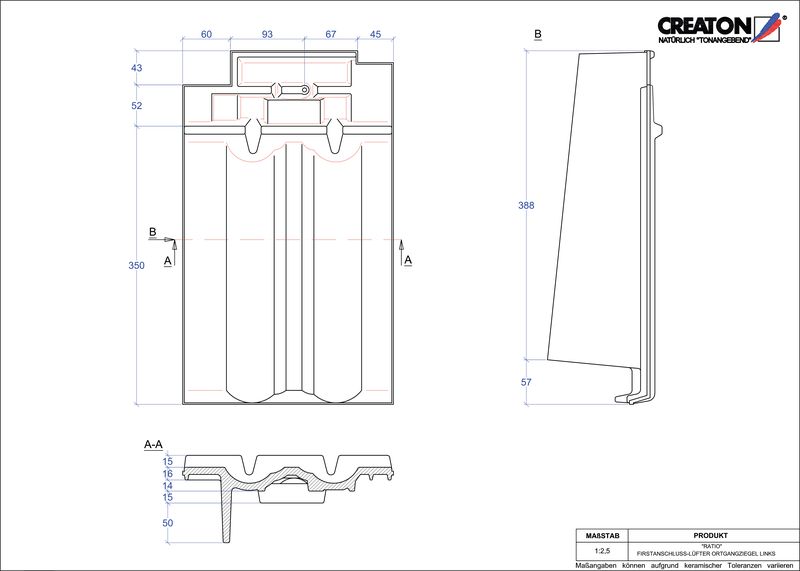

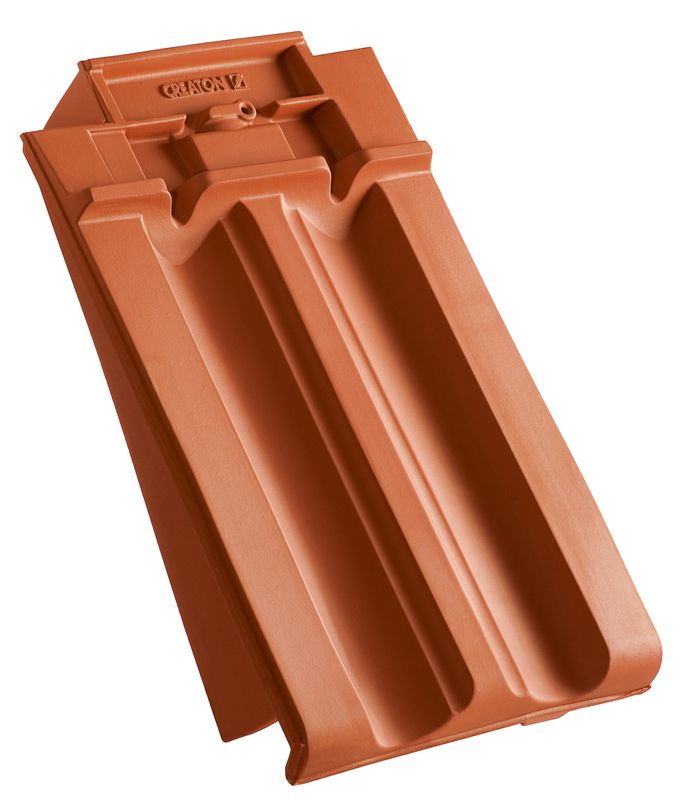

RAT HÖN ridge connection ventilating verge tile left

RAT HÖN ridge connection ventilating verge tile left

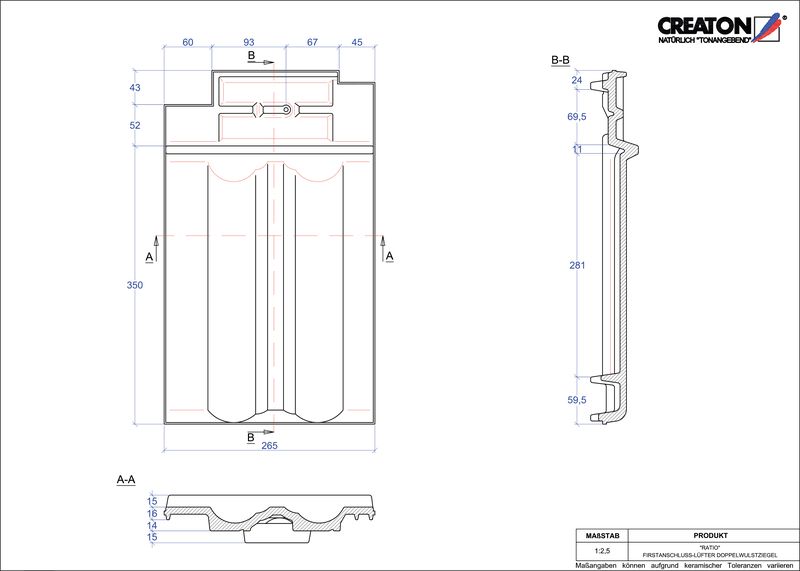

RAT HÖN ridge connection ventilating double roll tile

RAT HÖN ridge connection ventilating double roll tile

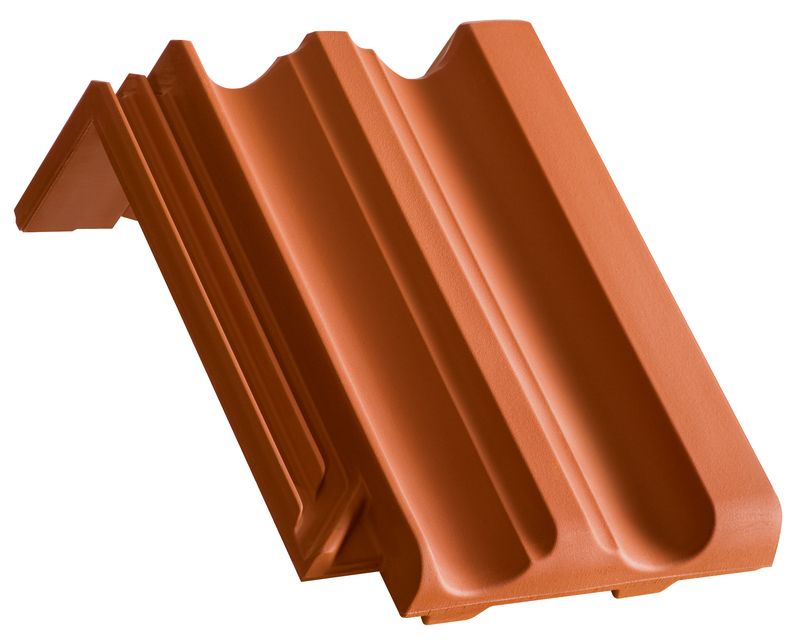

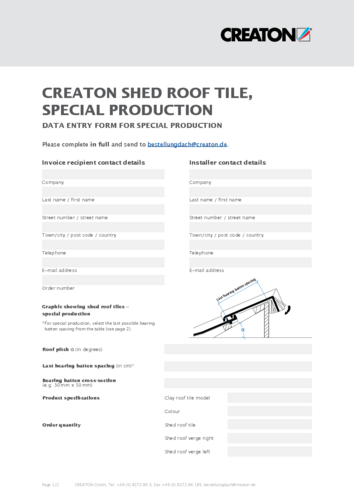

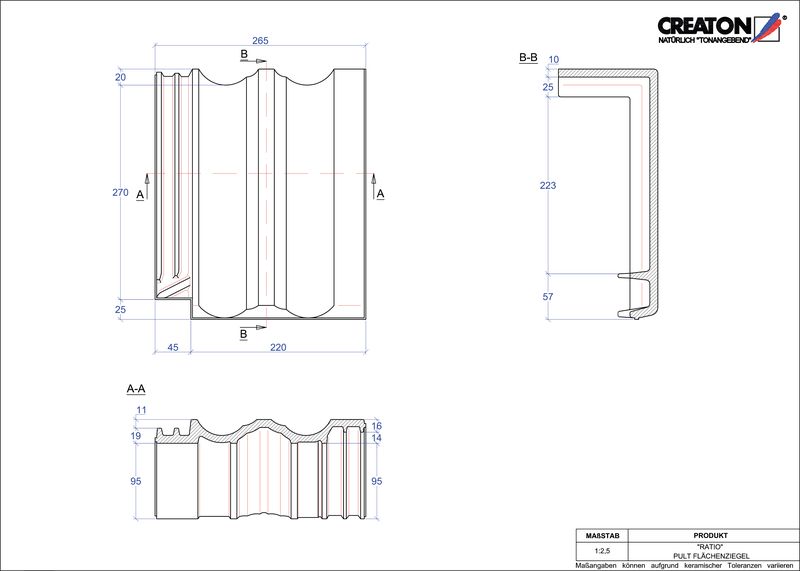

RAT HÖN shed roof tile decorated standard

RAT HÖN shed roof tile decorated standard

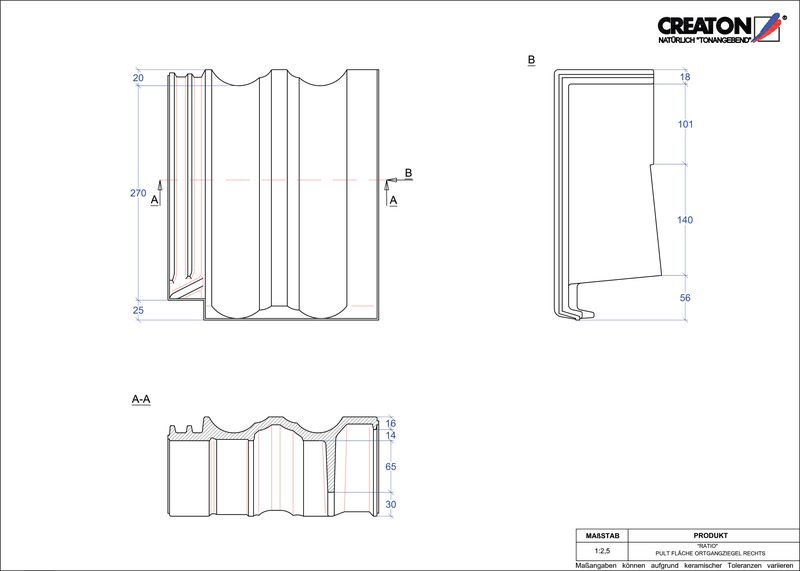

RAT HÖN shed roof verge tile decorated standard right

RAT HÖN shed roof verge tile decorated standard right

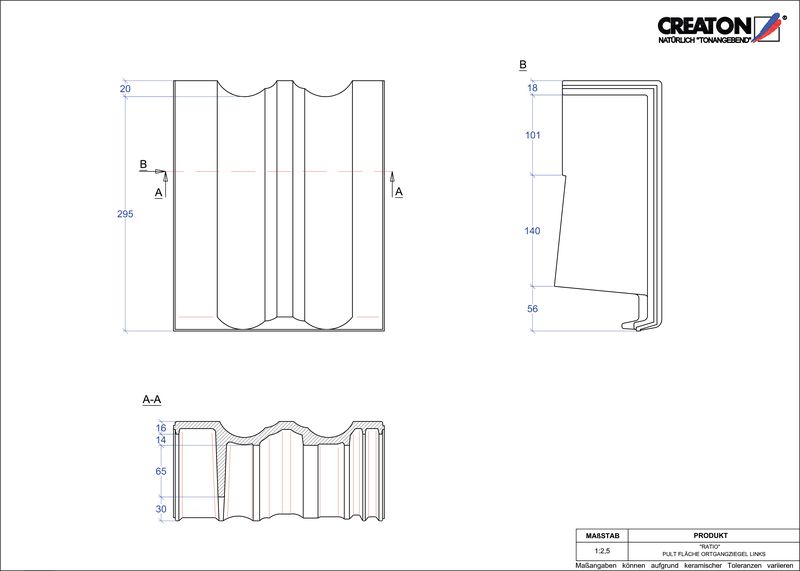

RAT HÖN shed roof verge tile decorated standard left

RAT HÖN shed roof verge tile decorated standard left

RAT HÖN shed roof tile decorated special size

RAT HÖN shed roof tile decorated special size

RAT HÖN shed roof verge tile decorated special size right

RAT HÖN shed roof verge tile decorated special size right

RAT HÖN shed roof verge tile decorated special size left

RAT HÖN shed roof verge tile decorated special size left

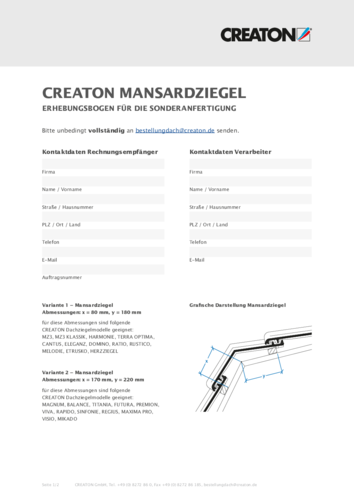

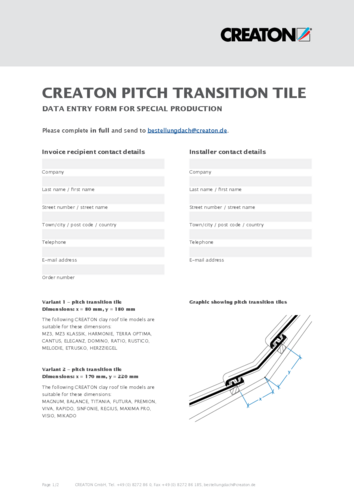

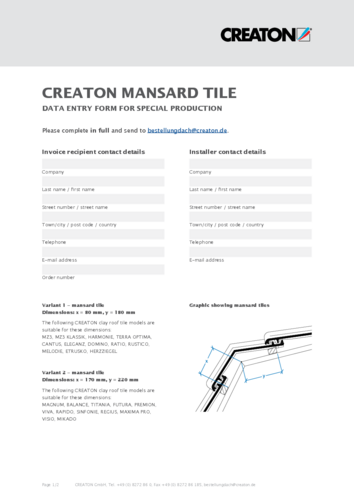

RAT HÖN mansard/pitch transition tile decorated special size

RAT HÖN mansard/pitch transition tile decorated special size

RAT HÖN mansard/pitch transition verge tile decorated special size right

RAT HÖN mansard/pitch transition verge tile decorated special size right

RAT HÖN mansard/pitch transition verge tile decorated special size left

RAT HÖN mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

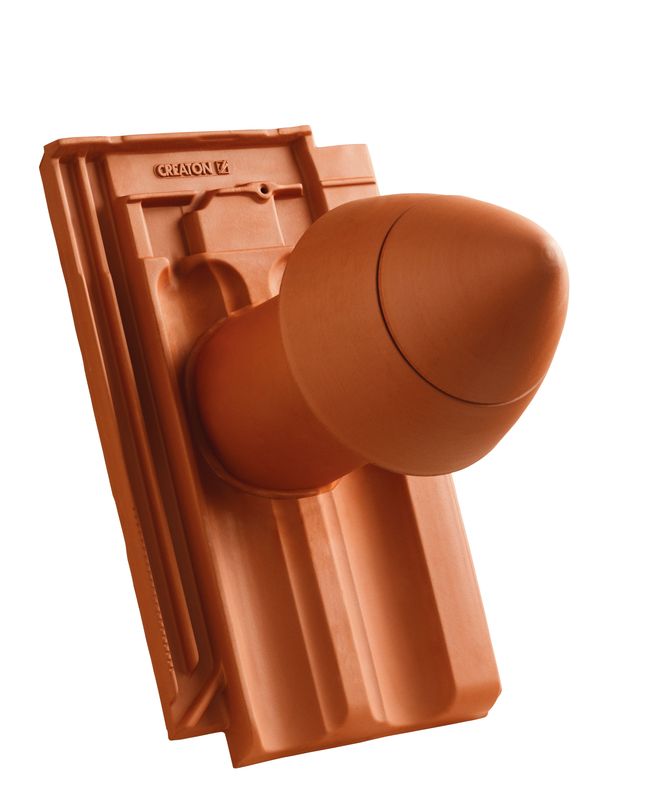

RAT HÖN SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

RAT HÖN SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

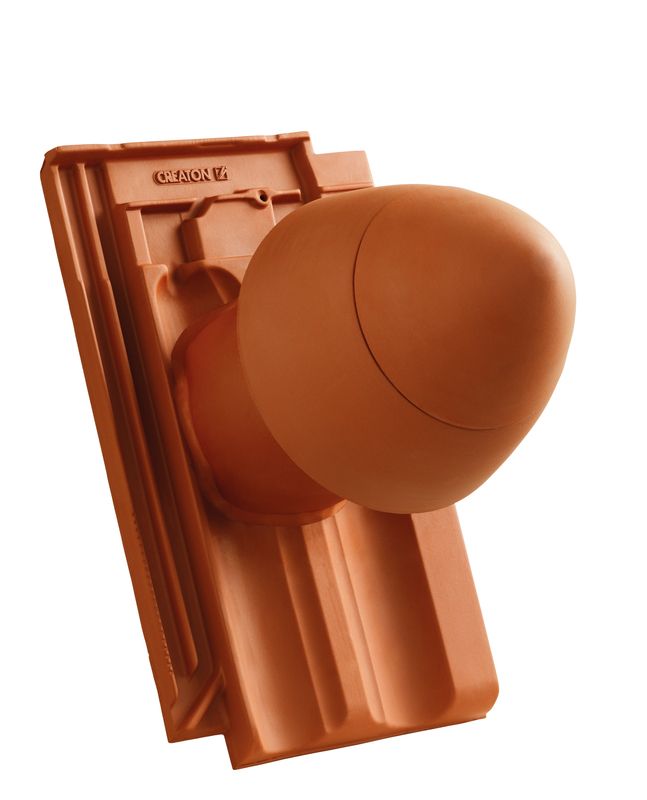

RAT HÖN SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

RAT HÖN SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

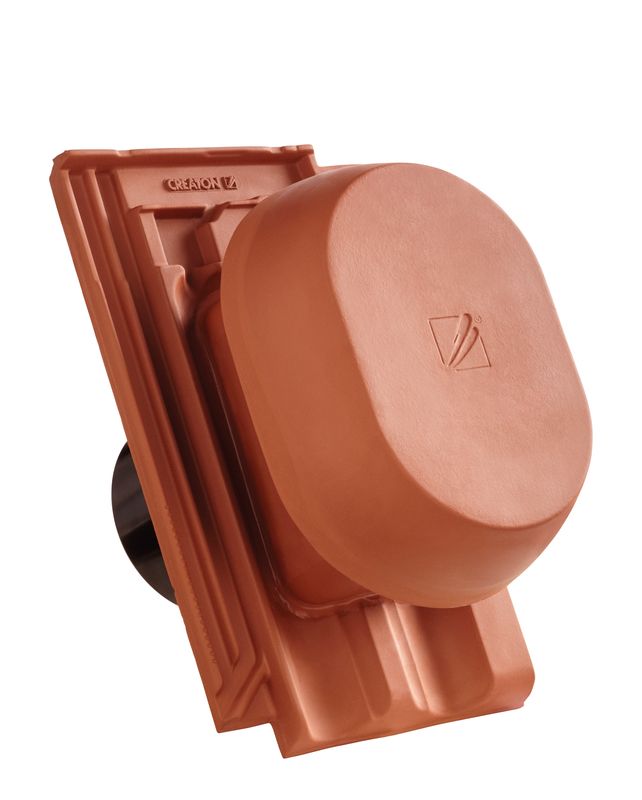

RAT HÖN SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

RAT HÖN SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

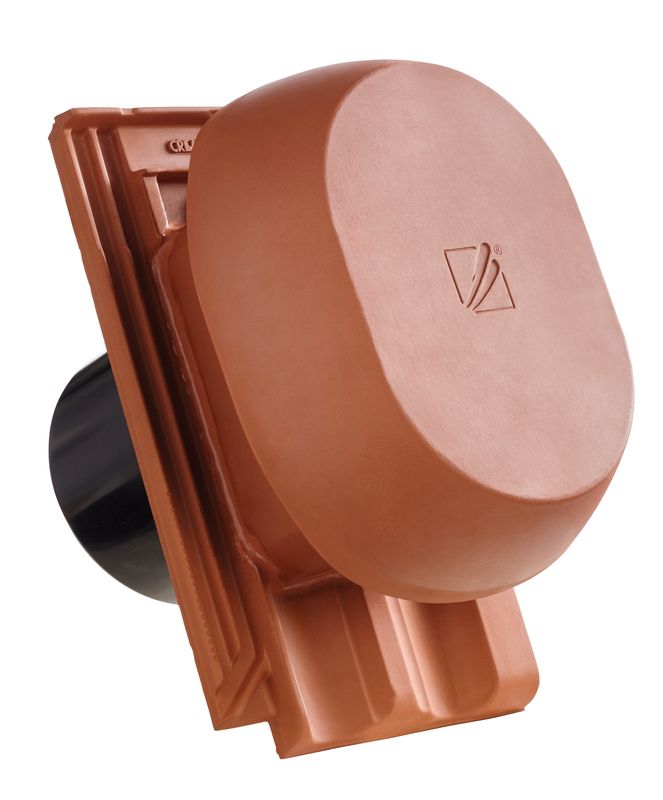

RAT HÖN SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

RAT HÖN SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

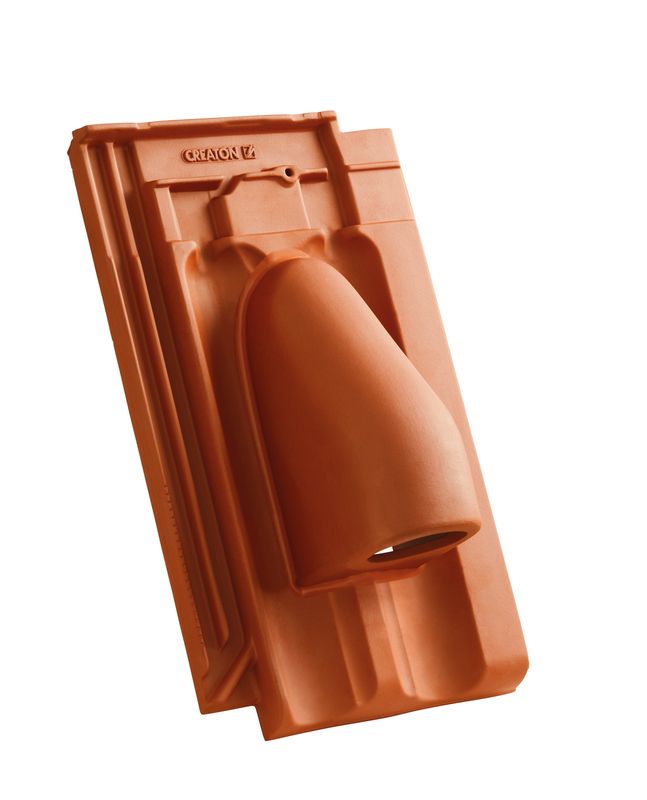

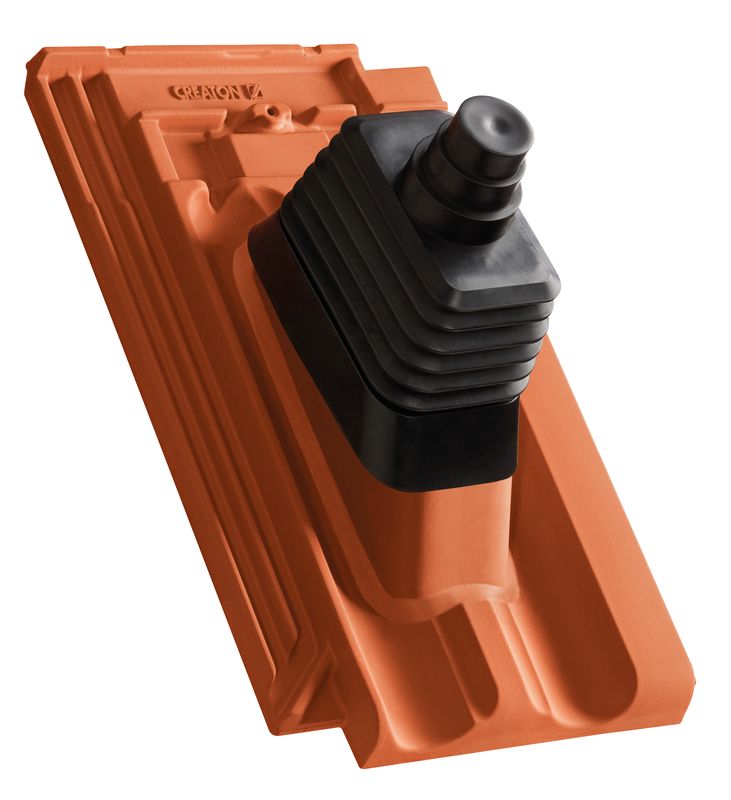

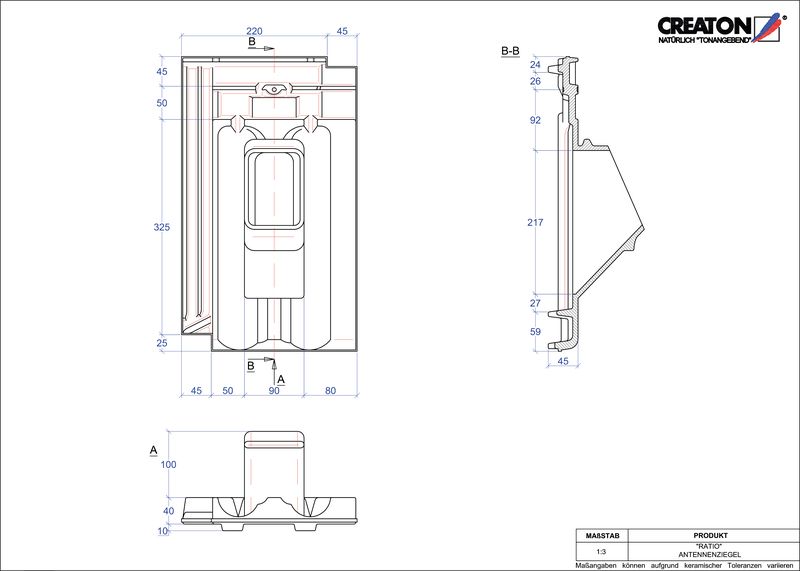

RAT HÖN aerial entry

RAT HÖN aerial entry

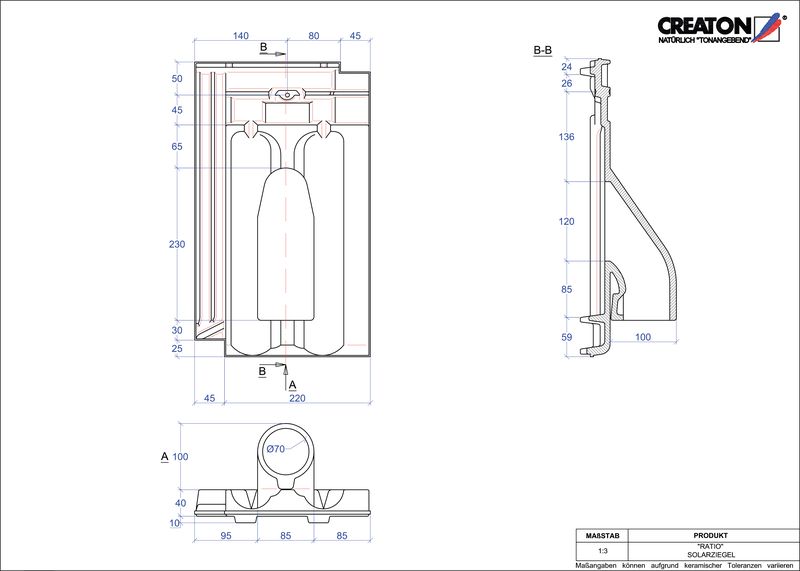

RAT HÖN solar entry tile

RAT HÖN solar entry tile

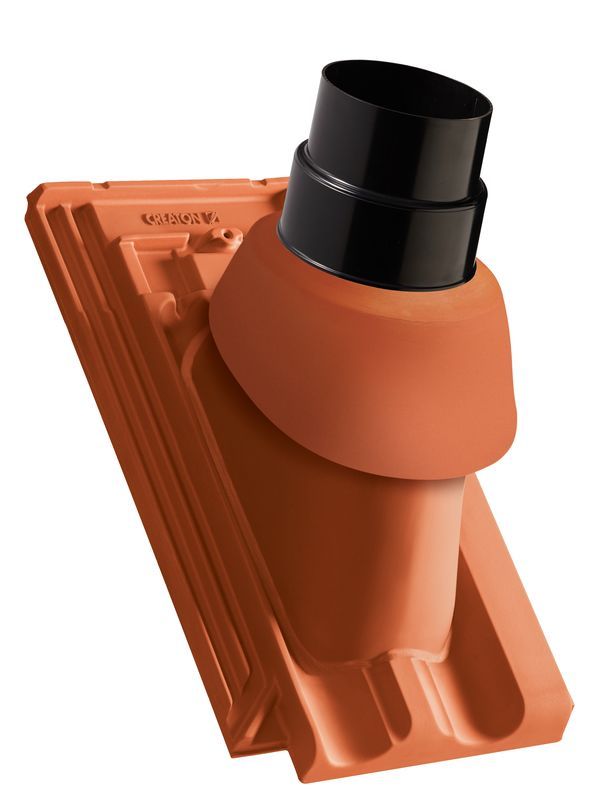

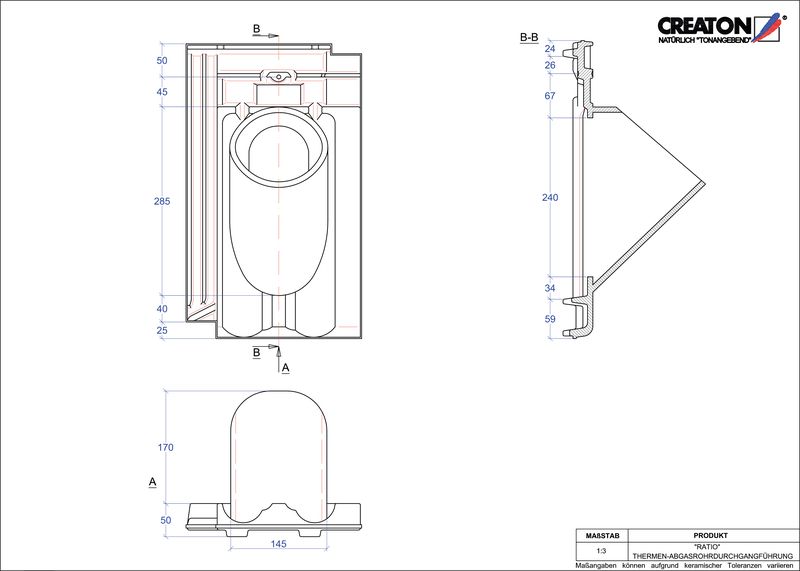

RAT HÖN flue pipe penetration NW 110/125

RAT HÖN flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

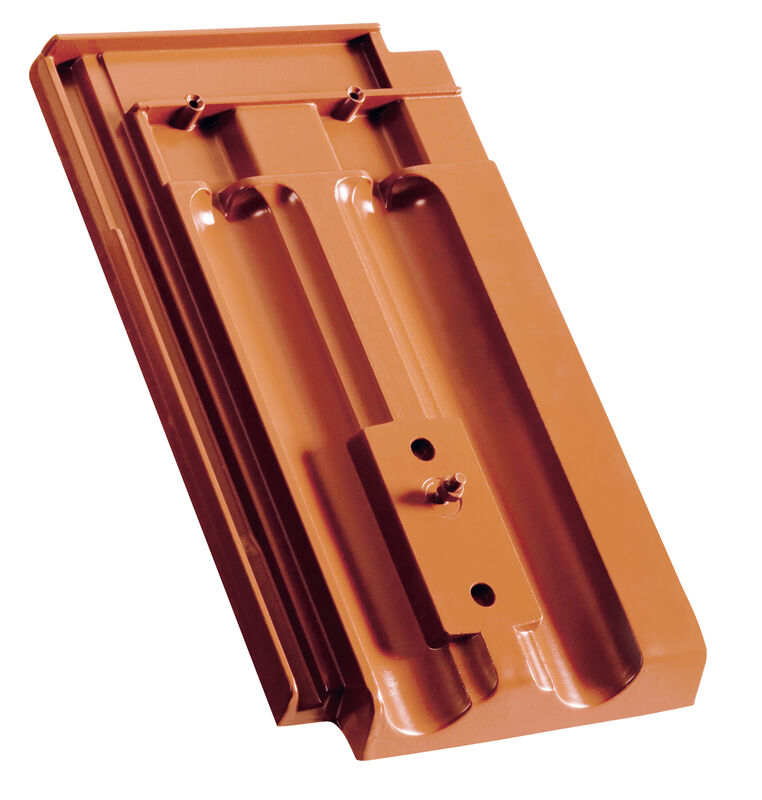

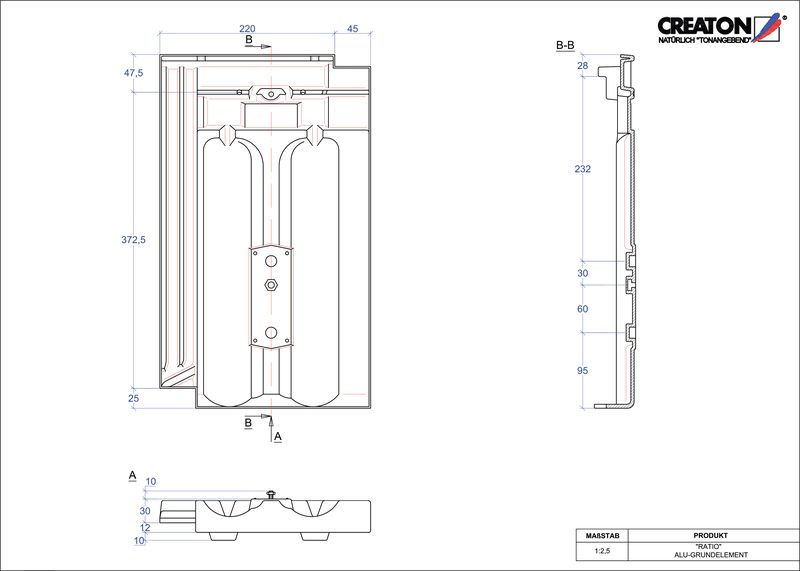

RAT HÖN aluminium base element

RAT HÖN aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

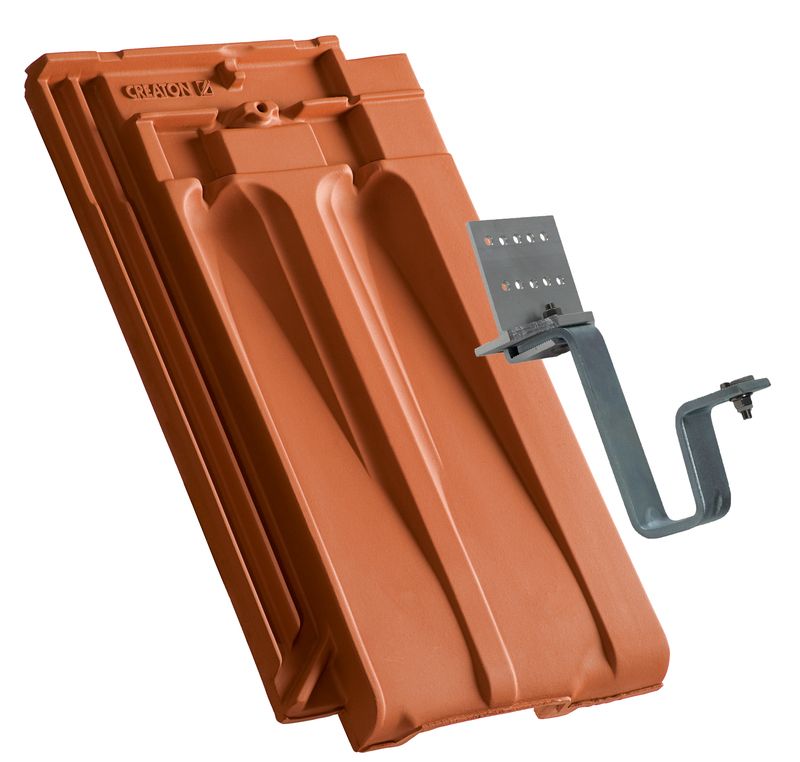

RAT solar system bracket kit for plank installation

RAT solar system bracket kit for plank installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

RAT HÖN transparent tile (acrylic)

RAT HÖN transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VIV, RAT HÖN, RAT DOR)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VIV, RAT HÖN, RAT DOR)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VIV, RAT HÖN, RAT DOR)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (VIV, RAT HÖN, RAT DOR)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 70 mm

Stainless steel screw with seal, length 70 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Storm clip in zinc-aluminium, drive-in clip, type N4 (DOM, CAN, ELE, HER, RAT, RUS, VIS)

Ridge and hip tile product range

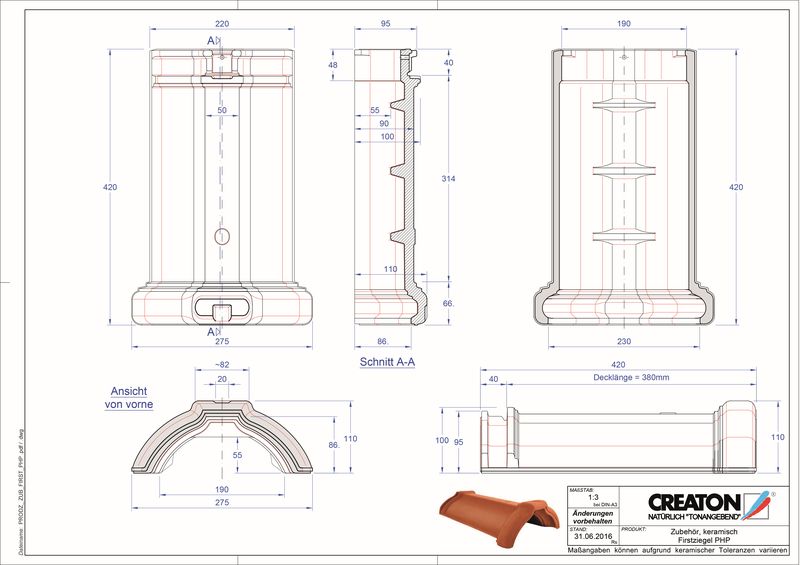

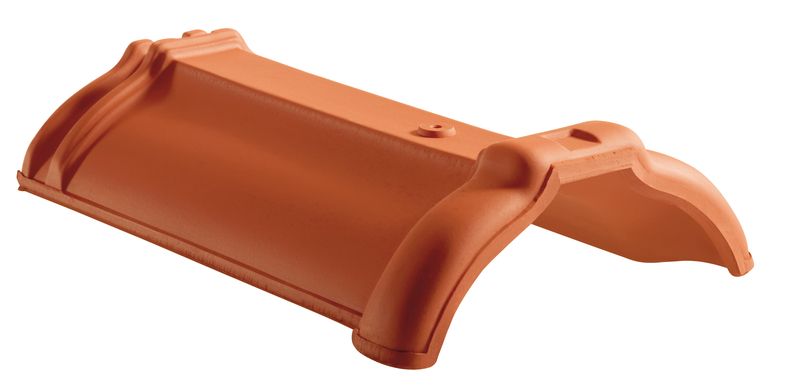

Ridge tile PH HÖN (clay)

Ridge tile PH HÖN (clay)

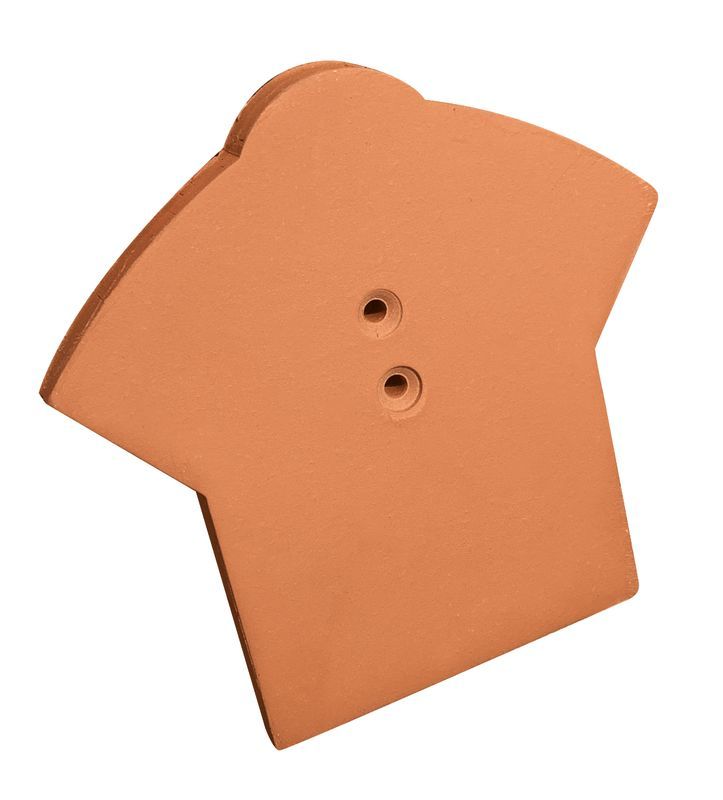

Ridge starter and termination plate with scallop PH HÖN (clay)

Ridge starter and termination plate with scallop PH HÖN (clay)

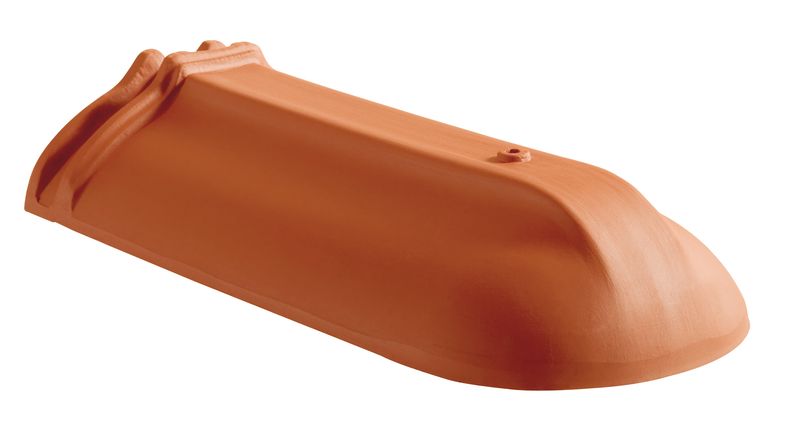

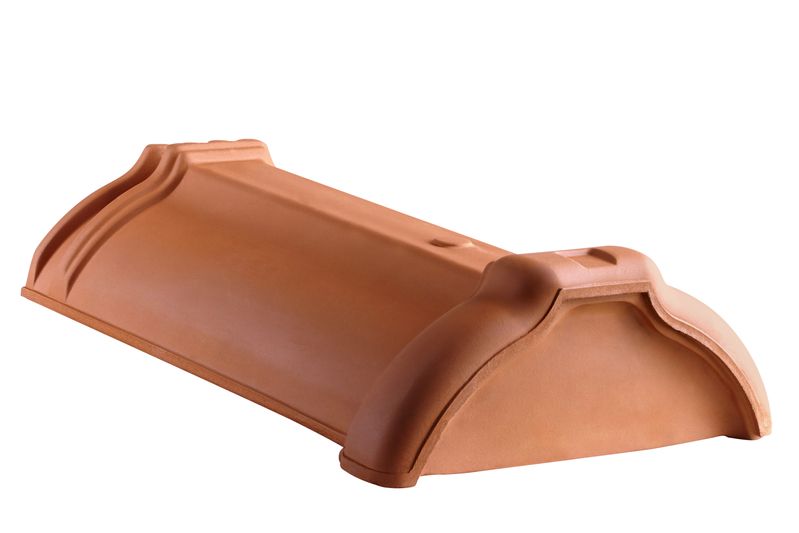

Hip starter ceramic PH HÖN (clay)

Hip starter ceramic PH HÖN (clay)

Hip starter ceramic round closure PH HÖN (clay)

Hip starter ceramic round closure PH HÖN (clay)

Ridge clip aluminium PH HÖN

Ridge clip aluminium PH HÖN

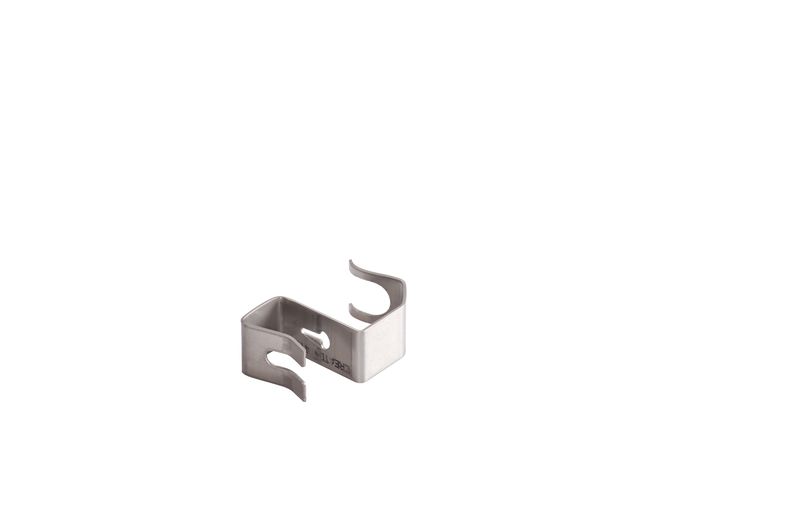

FIRSTFIX ridge clip stainless steel PH HÖN

FIRSTFIX ridge clip stainless steel PH HÖN

Ridge starter and termination plate ceramic PH HÖN (clay)

Ridge starter and termination plate ceramic PH HÖN (clay)

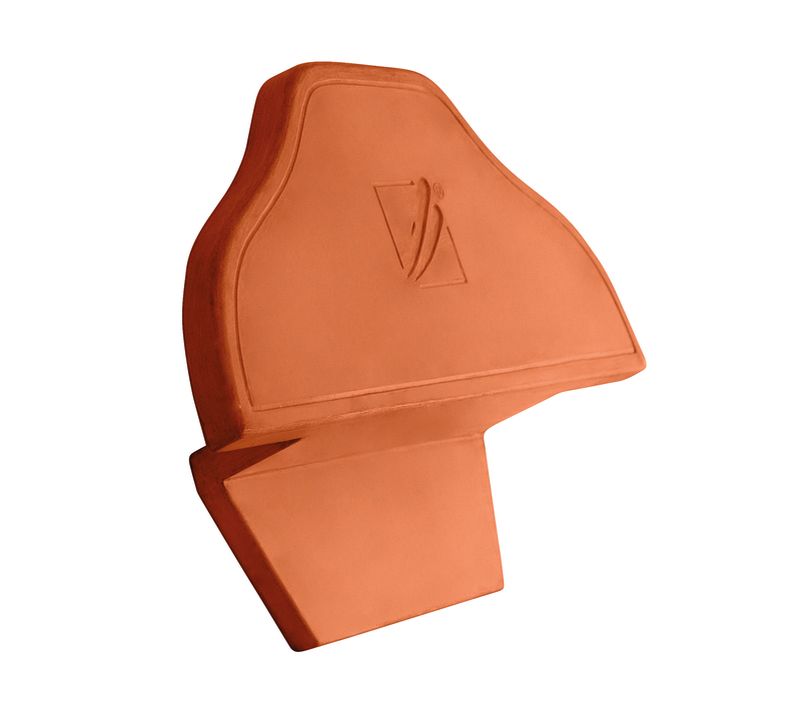

Function starter and termination plate ceramic type 1 PH HÖN (clay)

Function starter and termination plate ceramic type 1 PH HÖN (clay)

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

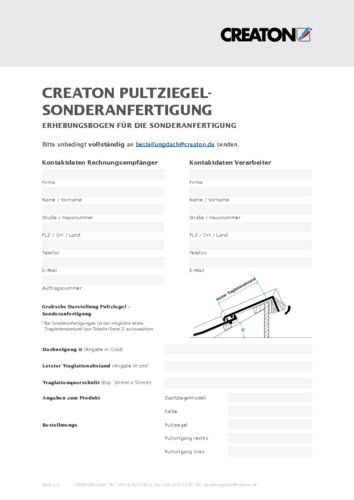

Downloads
