HARMONIE NUANCE slate shade engobed

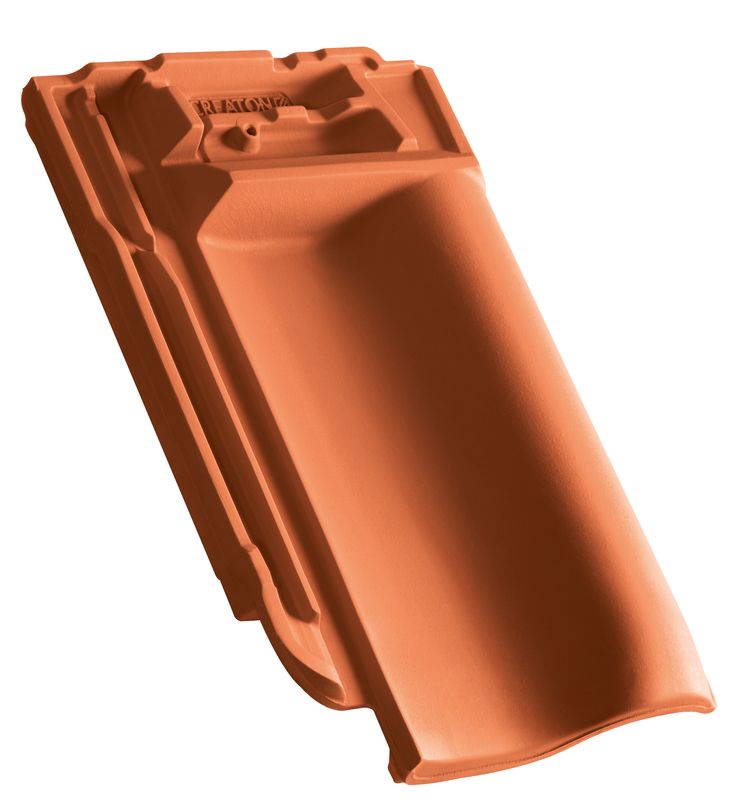

HARMONIE

Simple timeless beauty.

  • The most flexible small format flat roof tile of its kind
  • Can be used for almost every roof shape and pitch
  • Generous 25 mm adjustment tolerance
  • Well-balanced optimised appearance
  • Stays firmly in place, thanks to the fourfold overlapping of the top and side interlock
  • Available in 10 different colours, to give range and variety
  • HARMONIE fits seamlessly into almost any roof shape and can be installed quickly, easily and securely

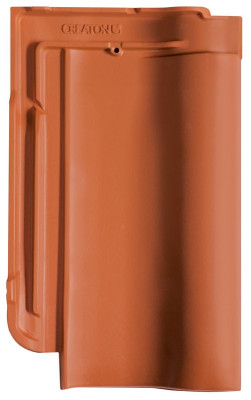

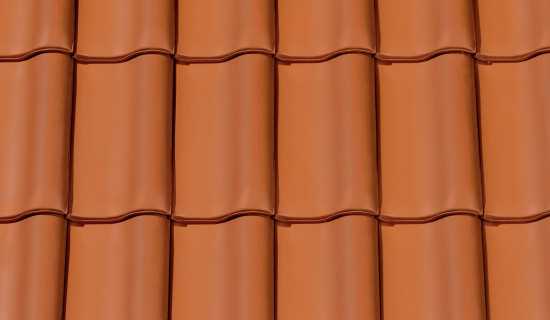

natural red
natural red
NUANCE red engobed
NUANCE red engobed
NUANCE tuscany engobed
NUANCE tuscany engobed
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE wine red engobed
NUANCE wine red engobed
NUANCE dark brown engobed
NUANCE dark brown engobed

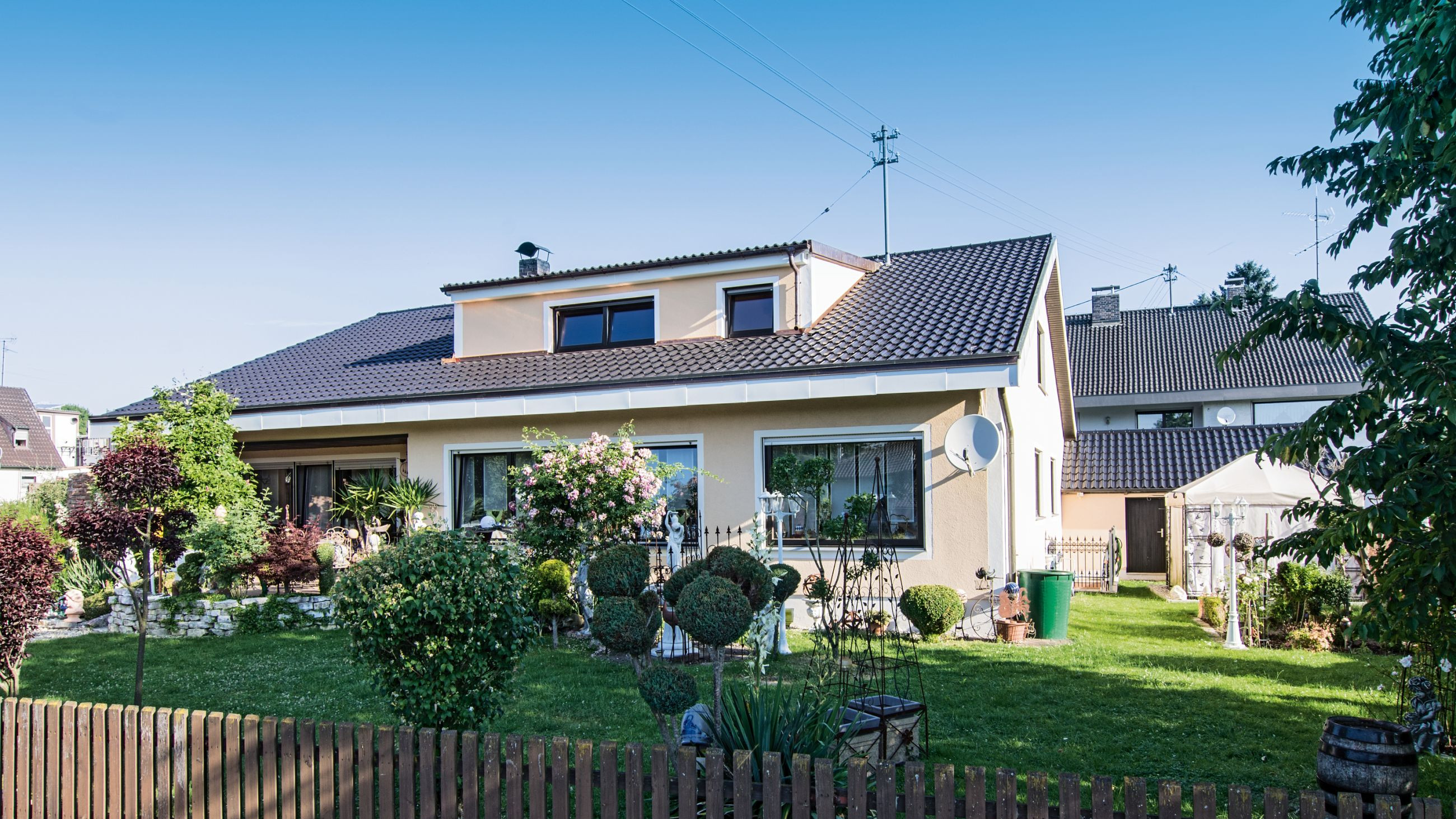

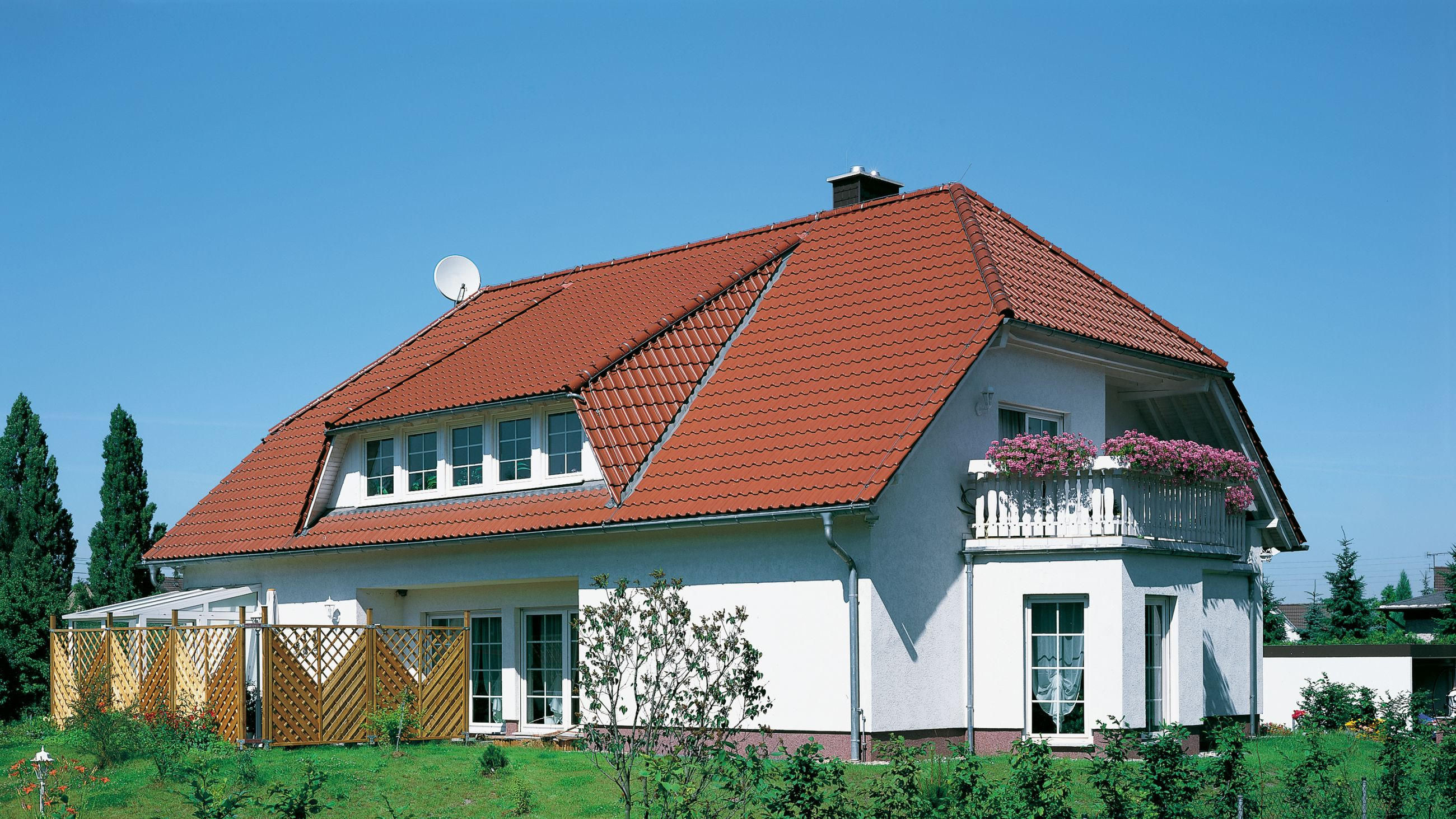

NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE anthracite engobed
NUANCE anthracite engobed
FINESSE black glazed
FINESSE black glazed
FINESSE brown glazed
FINESSE brown glazed

Technical data

Size (appr.)250 x 410 mm
Covering width min. approx.197 mm
Covering width on av. approx.199 mm
Max. coverage width (approx.)201 mm
Min. gauge (approx.)328 mm
Covering length on av. approx.340 mm
Max. gauge (approx.)352 mm
Tile requirement min. (approx.)14.2 pcs/m²
Average tile requirement (approx.)14.9 pcs/m²
Brickware max. approx.15.6 pcs/m²
Unit weight (approx.)3.1 kg/piece
Weight per m² (approx.)46.2 kg/m²
Weight per pallet (approx.)893 kg
Pcs per mini-pack5 piece
Pcs per pallet280 piece

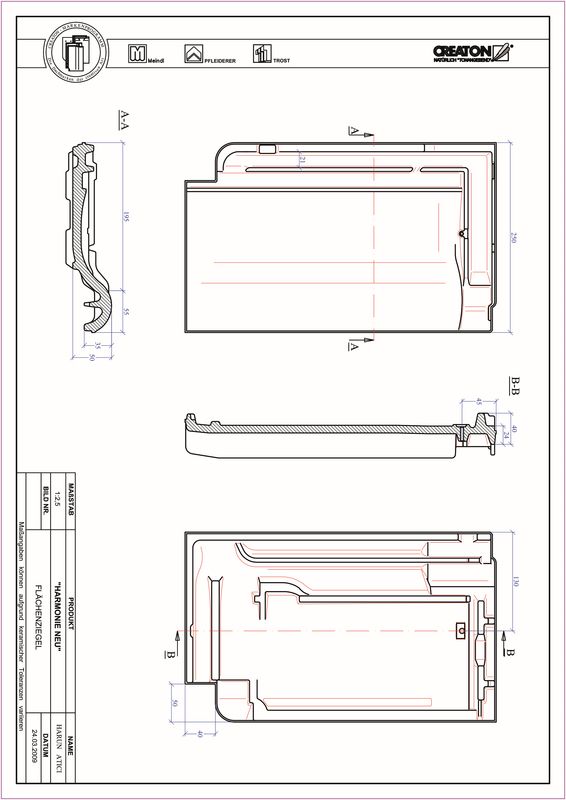

Technical drawings

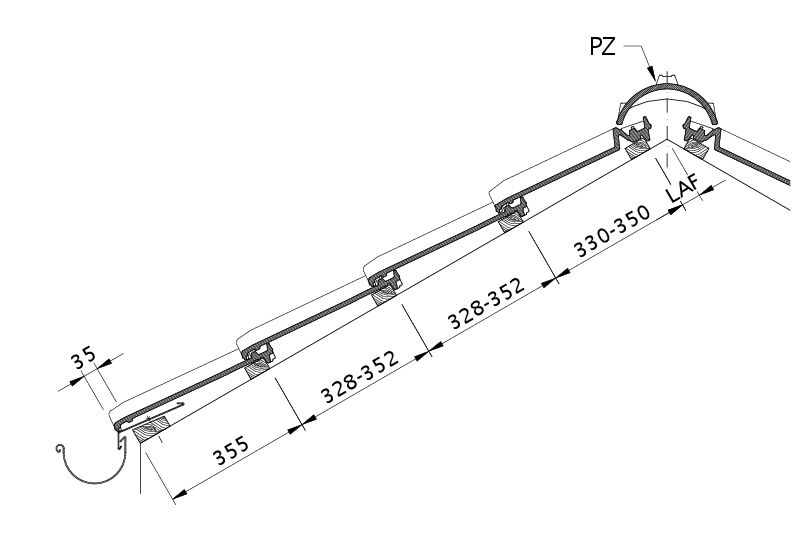

Drawing HARMONIE roof cross-section DQF
Drawing HARMONIE roof cross-section DQF

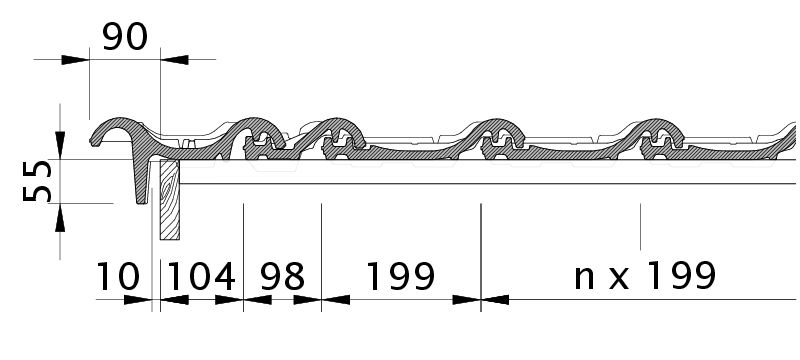

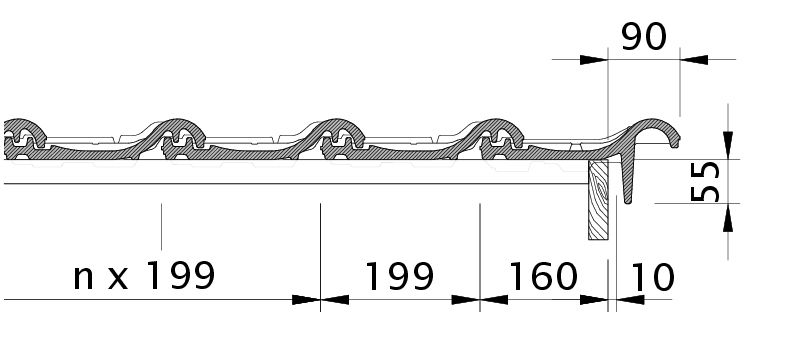

Drawing HARMONIE verge tile left with barge board OBL
Drawing HARMONIE verge tile left with barge board OBL
Drawing HARMONIE verge tile right with barge board OBR
Drawing HARMONIE verge tile right with barge board OBR

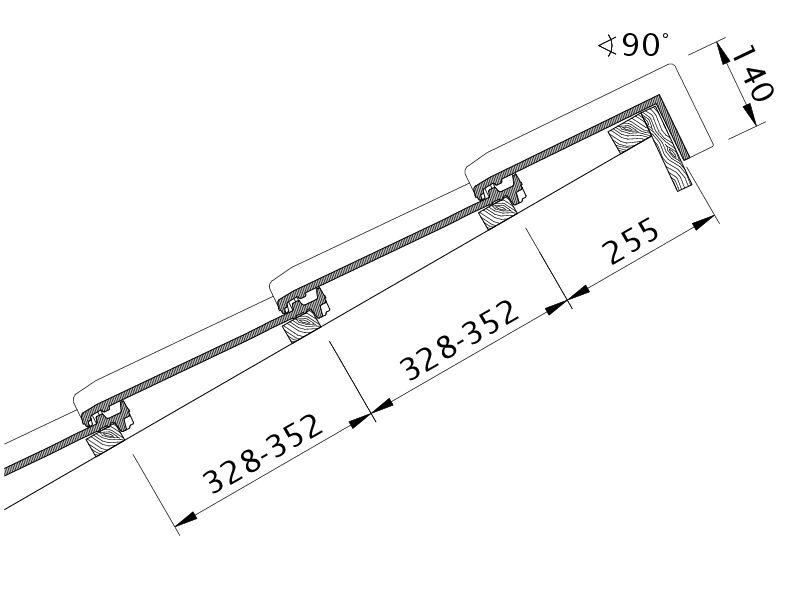

Drawing HARMONIE shed roof version PDA
Drawing HARMONIE shed roof version PDA

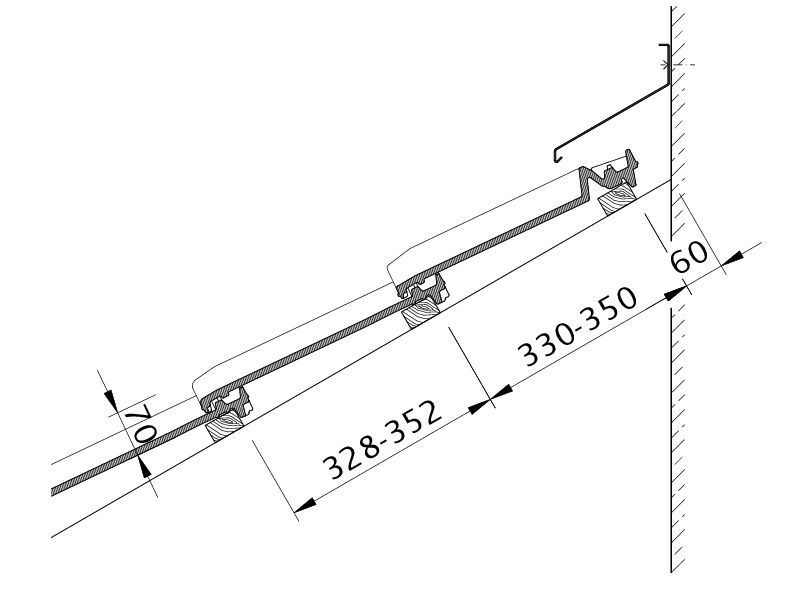

Drawing HARMONIE wall connection (above) with FALZ WMF
Drawing HARMONIE wall connection (above) with FALZ WMF

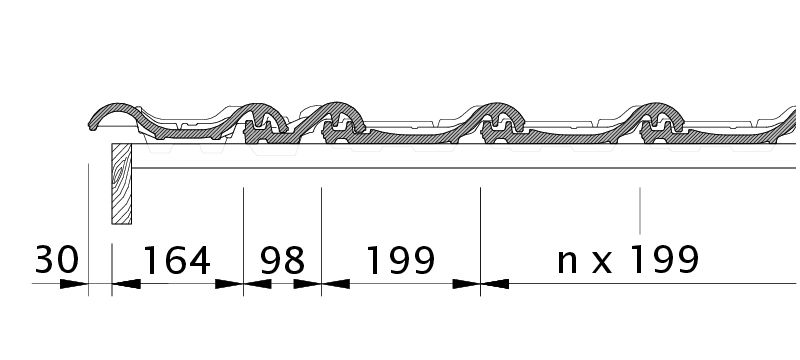

Drawing HARMONIE verge left with verge sheet metal and double roll ODL
Drawing HARMONIE verge left with verge sheet metal and double roll ODL

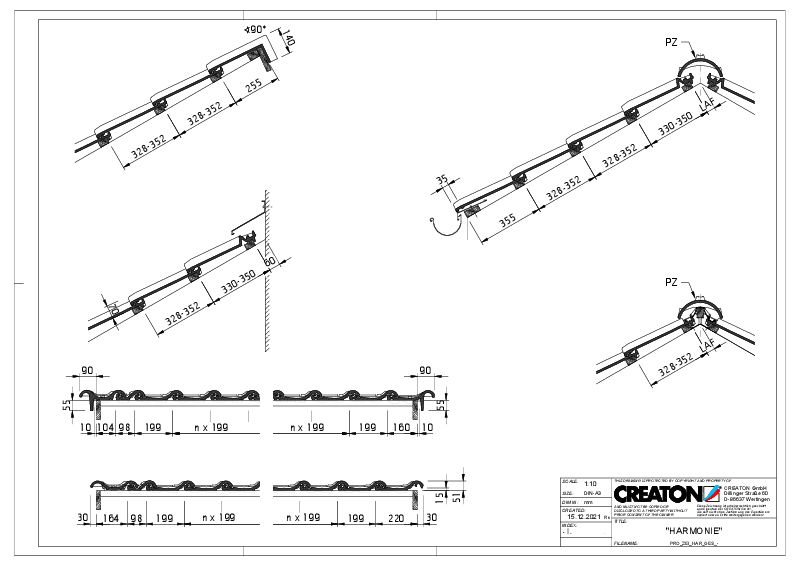

Drawing HARMONIE general view GES
Drawing HARMONIE general view GES
Drawing HARMONIE distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing HARMONIE distance from batten to ridge intersection point, ridge batten spacing LAF

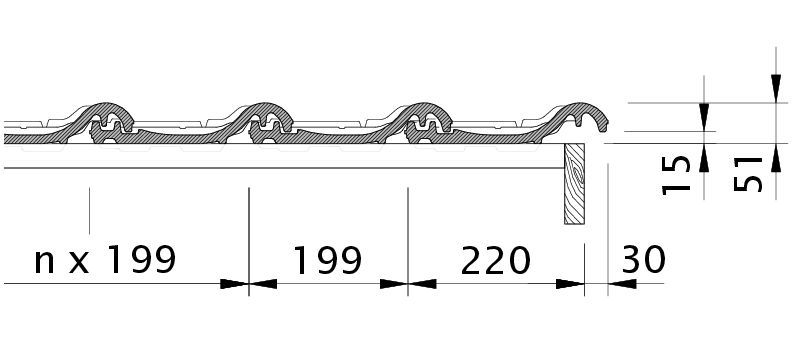

Drawing HARMONIE verge right with verge sheet metal and field tile OFR
Drawing HARMONIE verge right with verge sheet metal and field tile OFR
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive
Drawing ridge and hip tile product range PZ-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
16 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 14 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 12 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

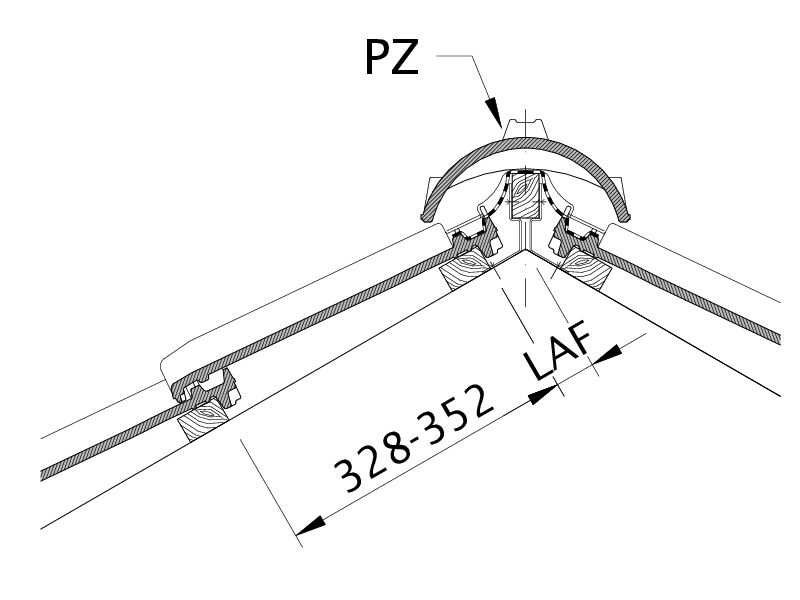

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PZ 2.5 pcs/mLAF6060555045403530302525
PZ 2.5 pcs/mFLA100100959085807070605550
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PZ 2.5 pcs/mLAF6060554540353020151010
PZ 2.5 pcs/mFLA11011010510095908080706560
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PZ 2.5 pcs/mLAF55555040352520105
PZ 2.5 pcs/mFLA120120115110105105959590

References

more

more

more

Accessory range

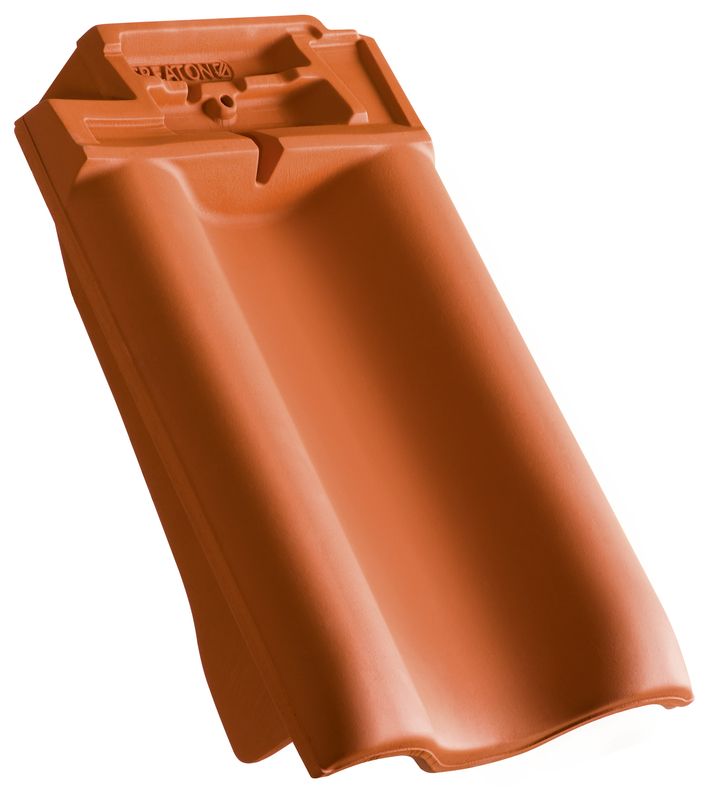

HAR half-width tile

HAR half-width tile

HAR verge tile right

HAR verge tile right

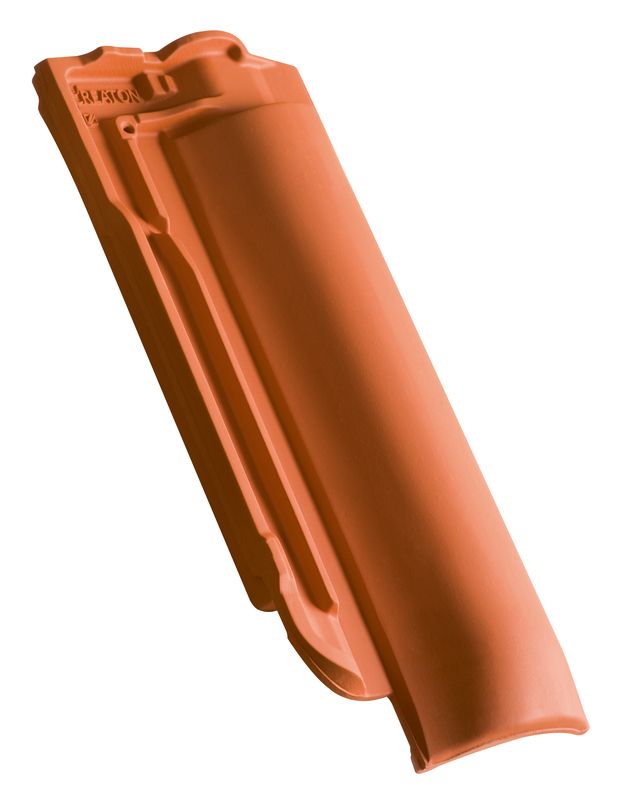

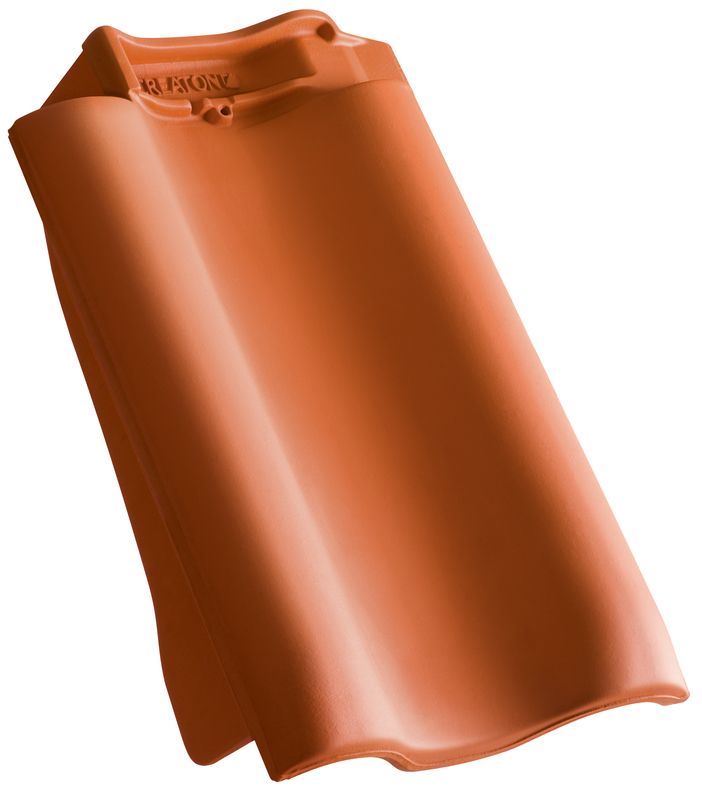

HAR verge tile left

HAR verge tile left

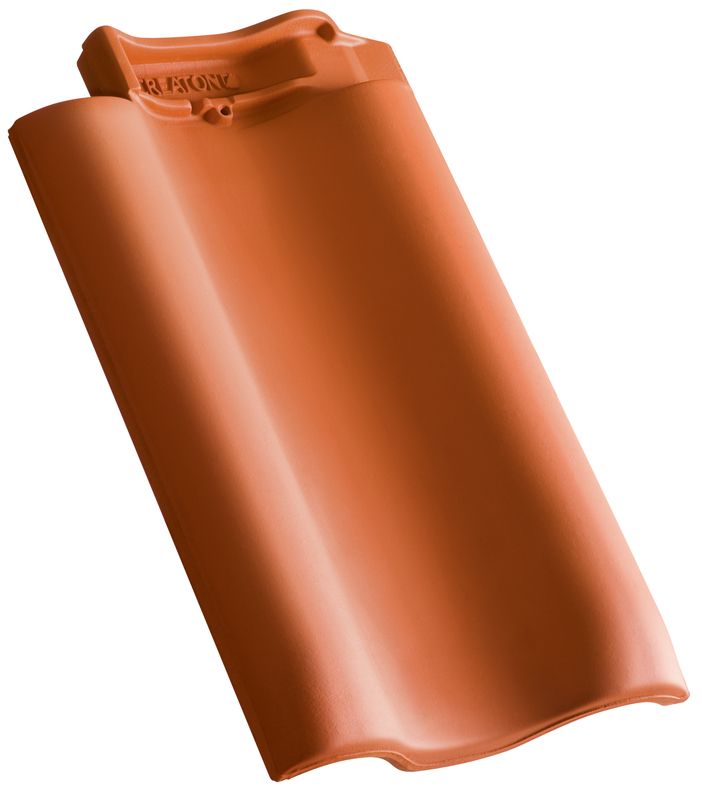

HAR double roll tile

HAR double roll tile

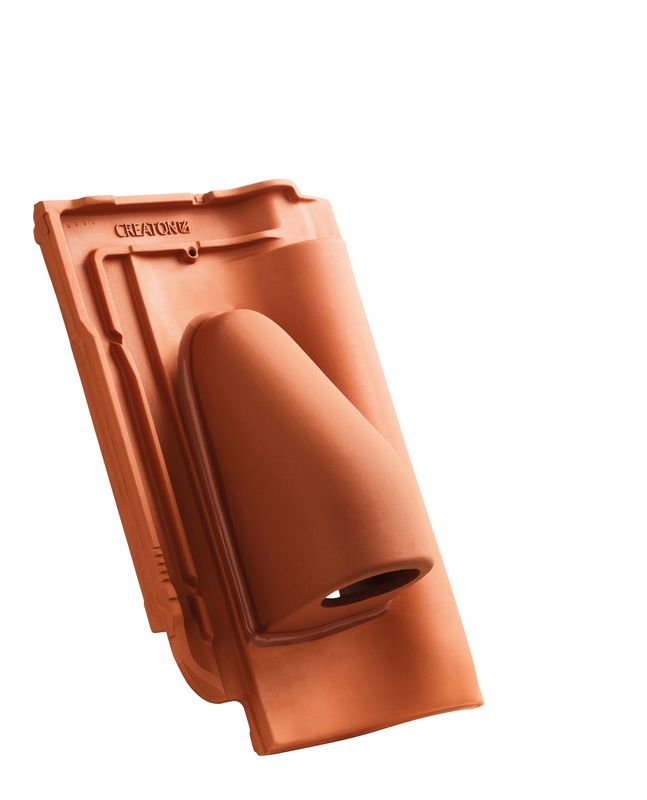

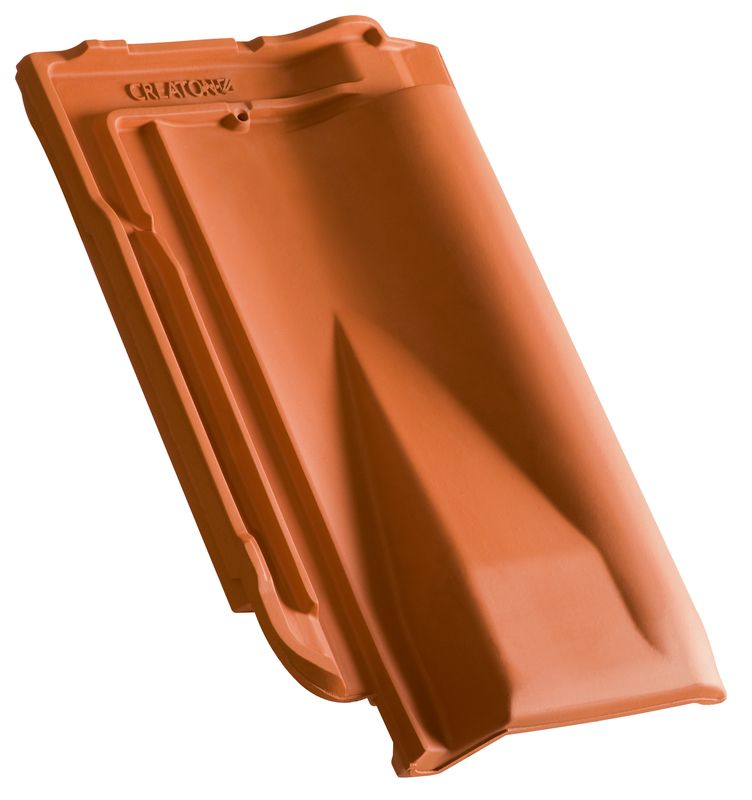

HAR ventilating tile

HAR ventilating tile

HAR ridge connection ventilating tile

HAR ridge connection ventilating tile

HAR ridge connection ventilating half-width tile

HAR ridge connection ventilating half-width tile

HAR ridge connection ventilating verge tile right

HAR ridge connection ventilating verge tile right

HAR ridge connection ventilating verge tile left

HAR ridge connection ventilating verge tile left

HAR ridge connection ventilating double roll tile

HAR ridge connection ventilating double roll tile

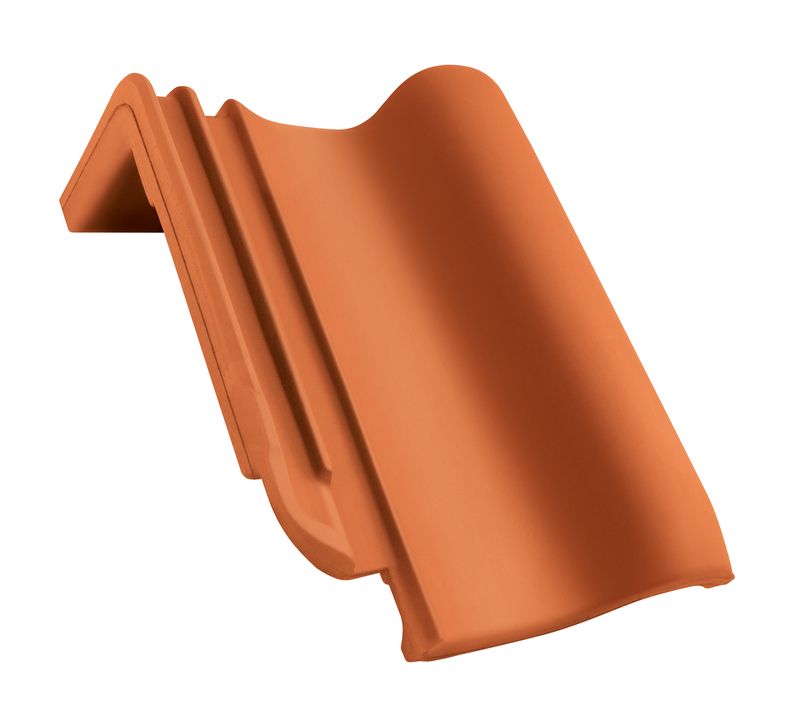

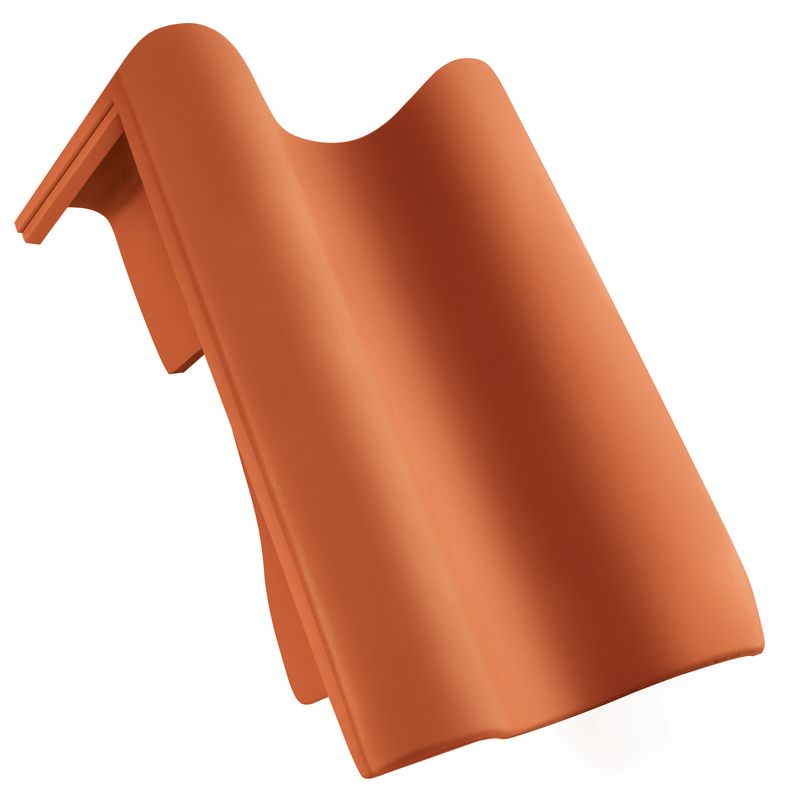

HAR shed roof tile pressed

HAR shed roof tile pressed

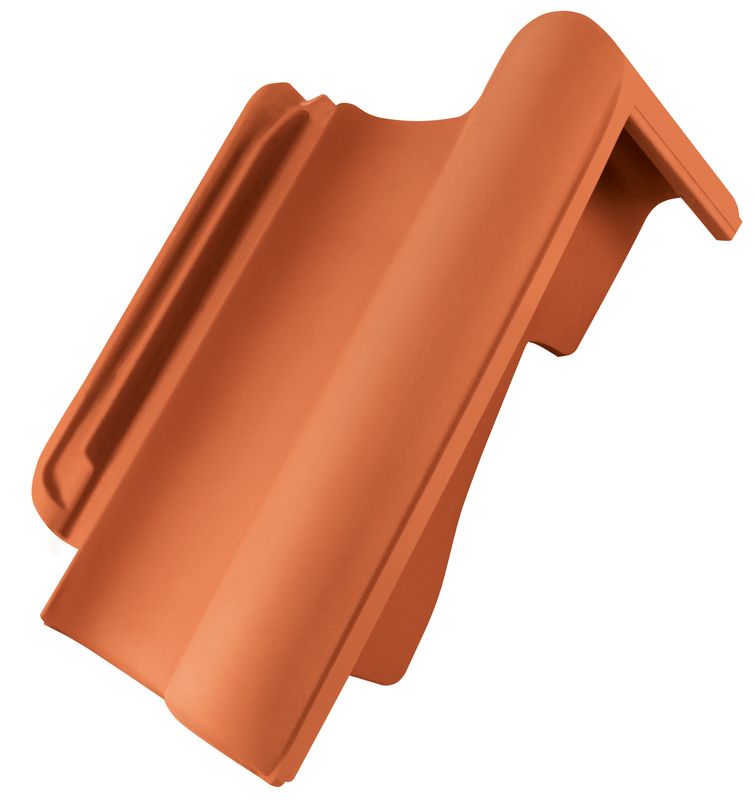

HAR shed roof verge tile pressed standard right

HAR shed roof verge tile pressed standard right

HAR shed roof verge tile pressed standard left

HAR shed roof verge tile pressed standard left

HAR shed roof tile decorated special size

HAR shed roof tile decorated special size

HAR shed roof verge tile decorated special size right

HAR shed roof verge tile decorated special size right

HAR shed roof verge tile decorated special size left

HAR shed roof verge tile decorated special size left

HAR mansard/pitch transition tile decorated special size

HAR mansard/pitch transition tile decorated special size

HAR mansard/pitch transition verge tile decorated special size right

HAR mansard/pitch transition verge tile decorated special size right

HAR mansard/pitch transition verge tile decorated special size left

HAR mansard/pitch transition verge tile decorated special size left

WER universal shed roof tile PDZ

WER universal shed roof tile PDZ

WER universal shed roof starter and termination plate PDZ

WER universal shed roof starter and termination plate PDZ

Ridge clip aluminium universal shed roof tile

Ridge clip aluminium universal shed roof tile

Product range for roof ventilation and penetrations

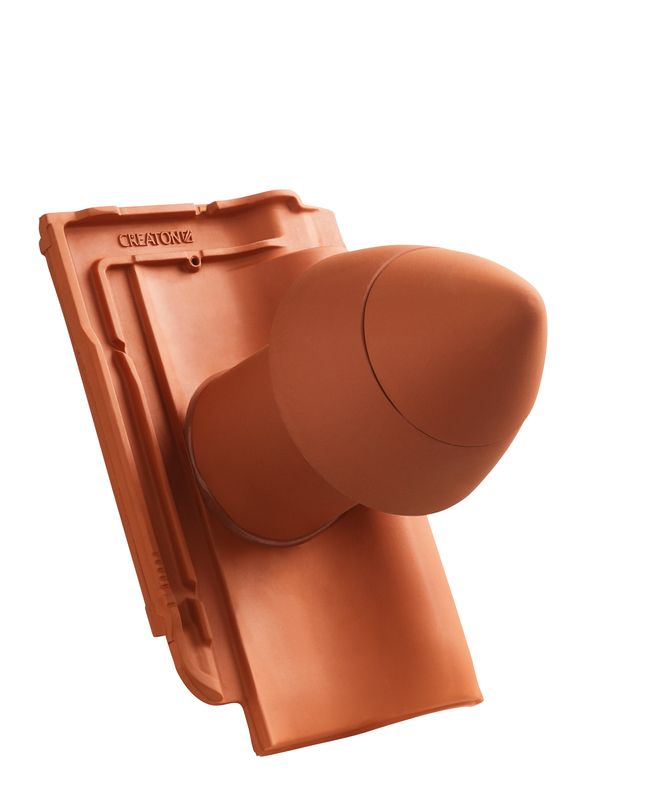

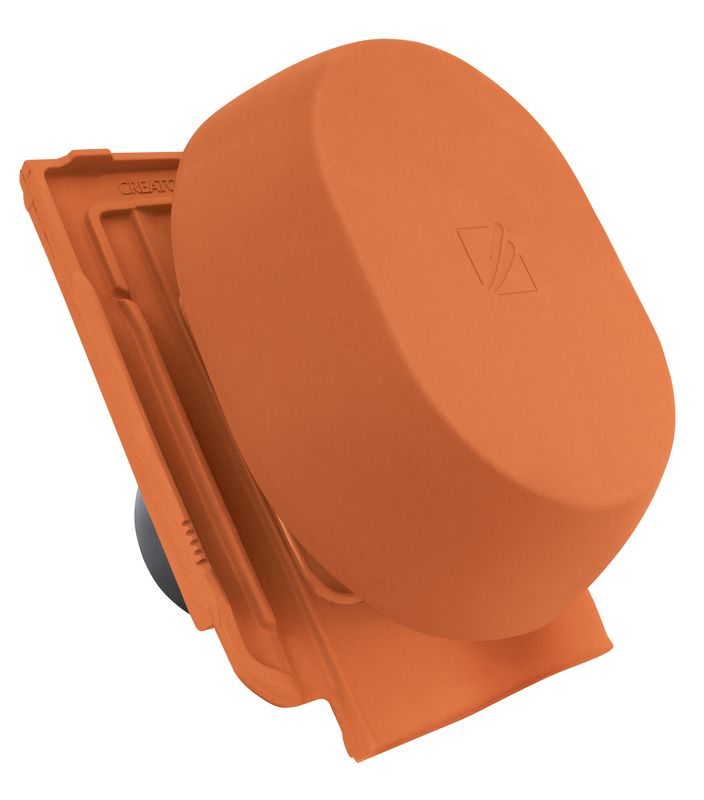

HAR SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

HAR SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

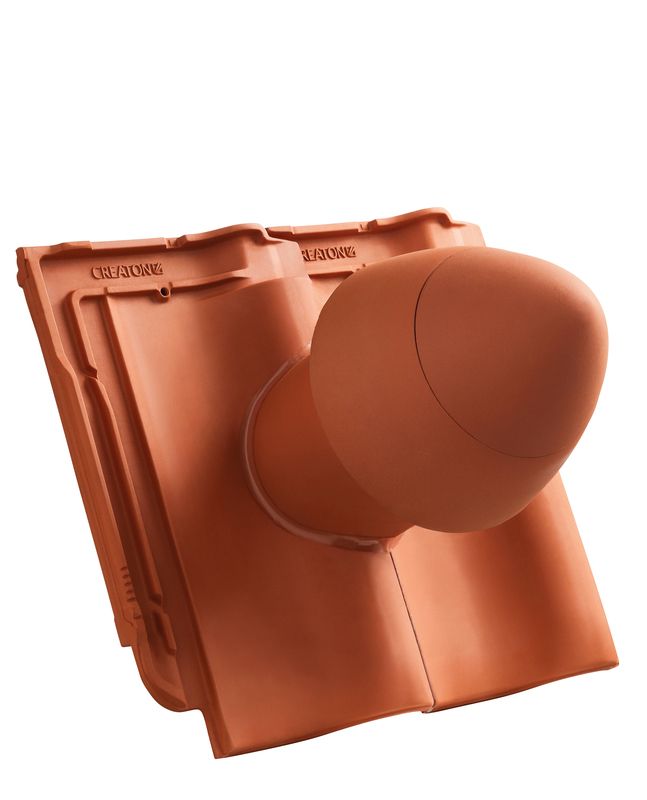

HAR SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

HAR SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

HAR SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

HAR SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

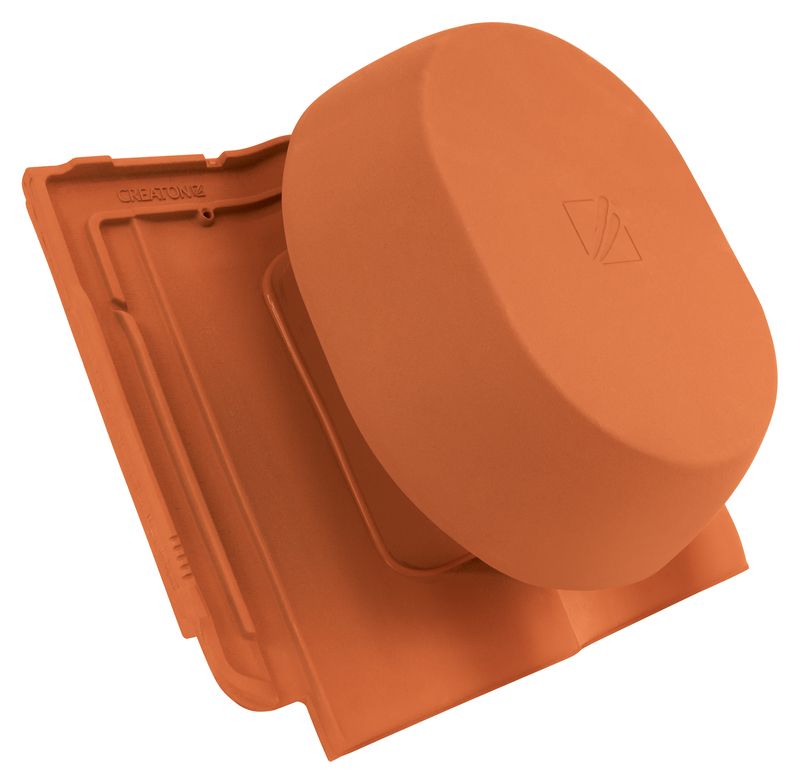

HAR SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

HAR SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

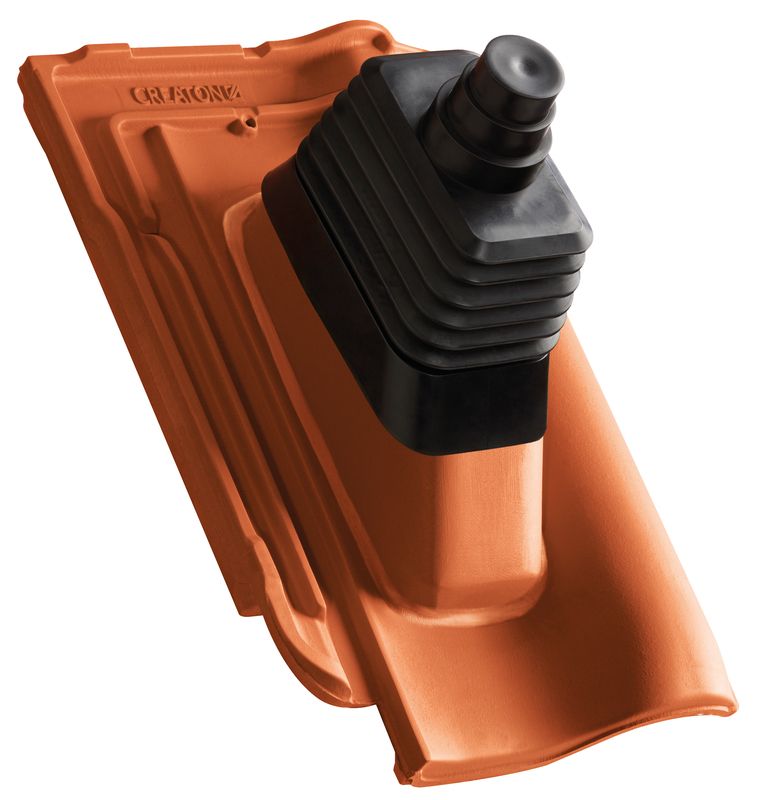

HAR aerial entry

HAR aerial entry

HAR solar entry tile

HAR solar entry tile

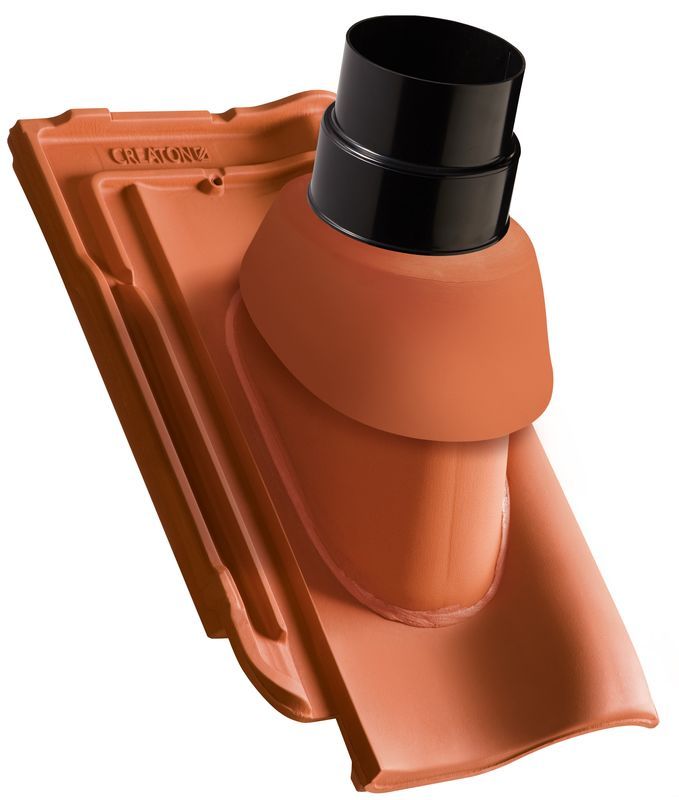

HAR flue pipe penetration NW 110/125

HAR flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

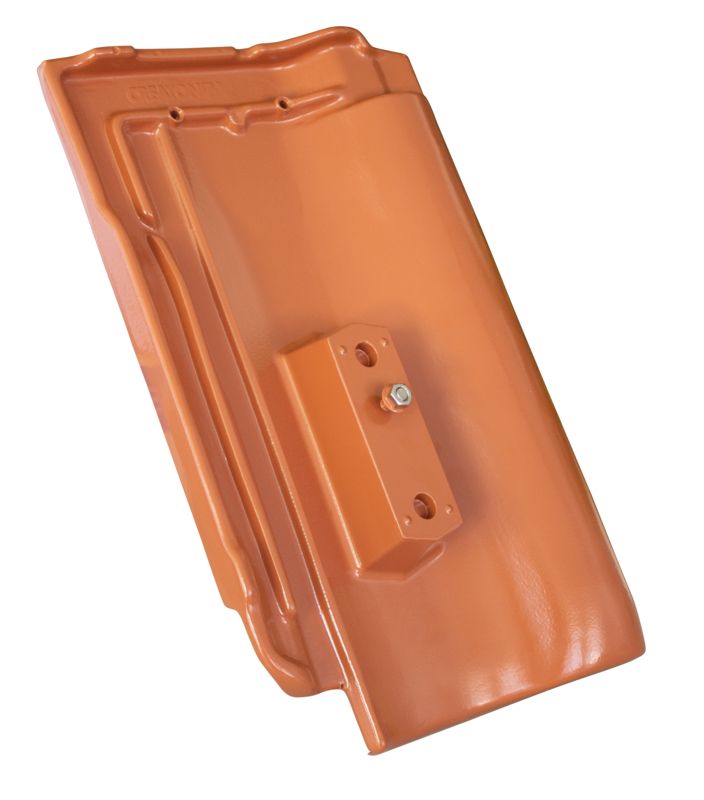

HAR aluminium base element

HAR aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

HAR solar system bracket kit for plank installation

HAR solar system bracket kit for plank installation

HAR solar system bracket kit for rafter installation

HAR solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

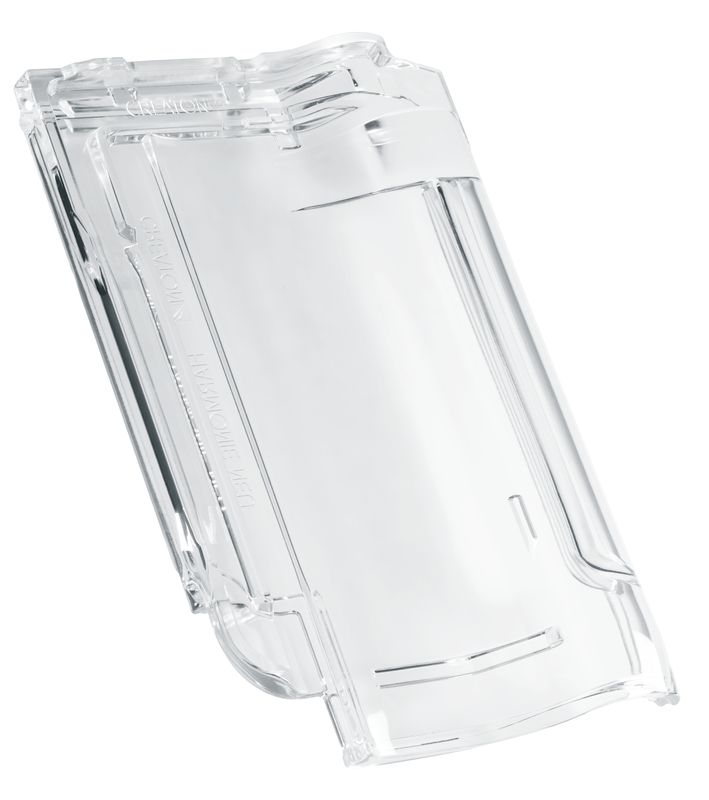

HAR transparent tile (acrylic)

HAR transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, drive-in clip, all battens (MZ3, HAR, OPT)

Storm clip in zinc-aluminium, drive-in clip, all battens (MZ3, HAR, OPT)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

WER ridge tile PZ

WER ridge tile PZ

WER ridge starter and termination plate ceramic PZ

WER ridge starter and termination plate ceramic PZ

WER hip starter ceramic PZ

WER hip starter ceramic PZ

ROG hip starter ceramic round connection PZ

ROG hip starter ceramic round connection PZ

WER hip starter ceramic with scallop PZ

WER hip starter ceramic with scallop PZ

Ridge clip aluminium PZ

Ridge clip aluminium PZ

FIRSTFIX ridge clip stainless steel PZ

FIRSTFIX ridge clip stainless steel PZ

WER function starter and termination plate ceramic PMoN

WER function starter and termination plate ceramic PMoN

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

WER hip cap 3-axis PRU

WER hip cap 3-axis PRU

WER hip cap 4-axis PRU

WER hip cap 4-axis PRU

Downloads
