• ventilated roof superstructures
  • non-ventilated/breathable roof superstructures
  • structures demanding windproofness
  • roof superstructures demanding laying on shuttering
  • execution as bonded trussing sheet or bonded sub-coverage

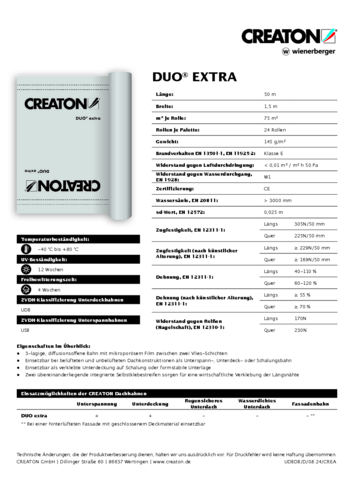

Technical data

Length50 Metre
Width1.5 Metre
m² per roll75 m²
Packaging (quantity)24
Weight per roll11.25 kg
Fire performanceClass E
Resistance to air penetration< 0,005 m³/m² h 50 Pa
Resistance to water penetrationW1
Water column, EN 20811> 300 cm
sd value0.02 Metre
Longitudinal tensile strength, EN 12311-1310N/50 mm
Transverse tensile strength, EN 12311-1240N/50 mm
Longitudinal tensile strength (after artificial ageing), EN 12311-1280N/50 mm
Transverse tensile strength (following artificial ageing), EN 12311-1215N/50 mm
Longitudinal expansion, EN 12311-150 %
Transverse expansion, EN 12311-180 %
Longitudinal expansion (after artificial ageing), EN 12311-135 %
Transverse expansion (following artificial ageing), EN 12311-165 %
Longitudinal tear resistance (nail shank) (after artificial ageing)180 N
Transverse tear resistance (nail shank) (after artificial ageing)210 N
Thermal stability-40°C bis +80°C
UV resistanceAt most 12 weeks
Outdoor exposure periodAt most 4 weeks


Additional measures according to CREATON manufacturer's specifications
Ja Trussing sheet/glued sub-roof without nail seals
Ja Trussing sheet/glued sub-roof with nail seals
Nein Rain-proof sub-roof
Nein Watertight sub-roof
Nein Special solution 7° roof
