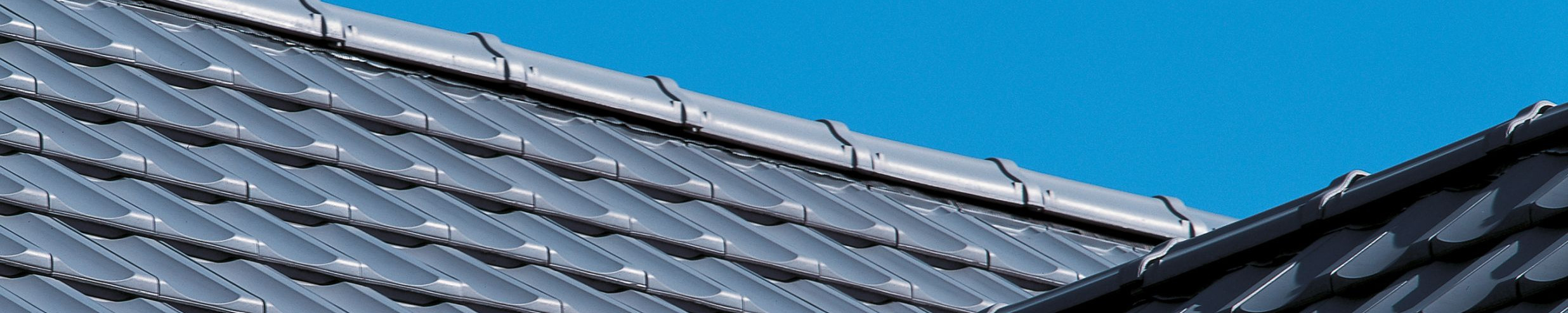

TERRA OPTIMA NUANCE grey engobed

TERRA OPTIMA

The multi-purpose reform tile.

  • Exceeds the quality requirements of DIN EN 1304
  • First class raw materials and the modern firing process enable the diversity of 10 colours
  • Side water drainage and the double side interlock offers optimal moisture protection
  • Suitable for roofs from 10° to 90° pitch
  • Two robust suspension lugs ensure a secure hold and reliable rear ventilation of the roof battens
  • An especially large adjustment range of 51 mm makes them ideal, even on Mansard roofs with short rafters

Note: For this model, a color change was made to the NUANCE copper red. Further information can be found here: Product range info.

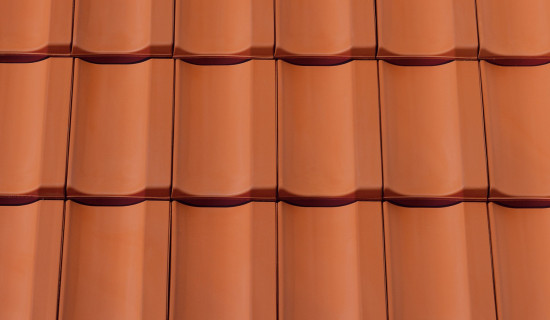

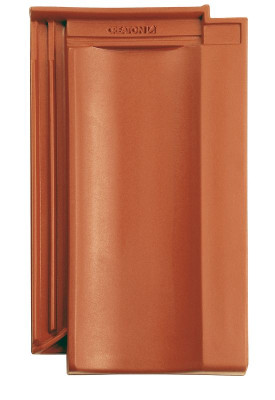

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE wine red engobed
NUANCE wine red engobed
NUANCE brown engobed
NUANCE brown engobed
NUANCE dark brown engobed
NUANCE dark brown engobed
NUANCE grey engobed
NUANCE grey engobed
NUANCE slate grey engobed
NUANCE slate grey engobed

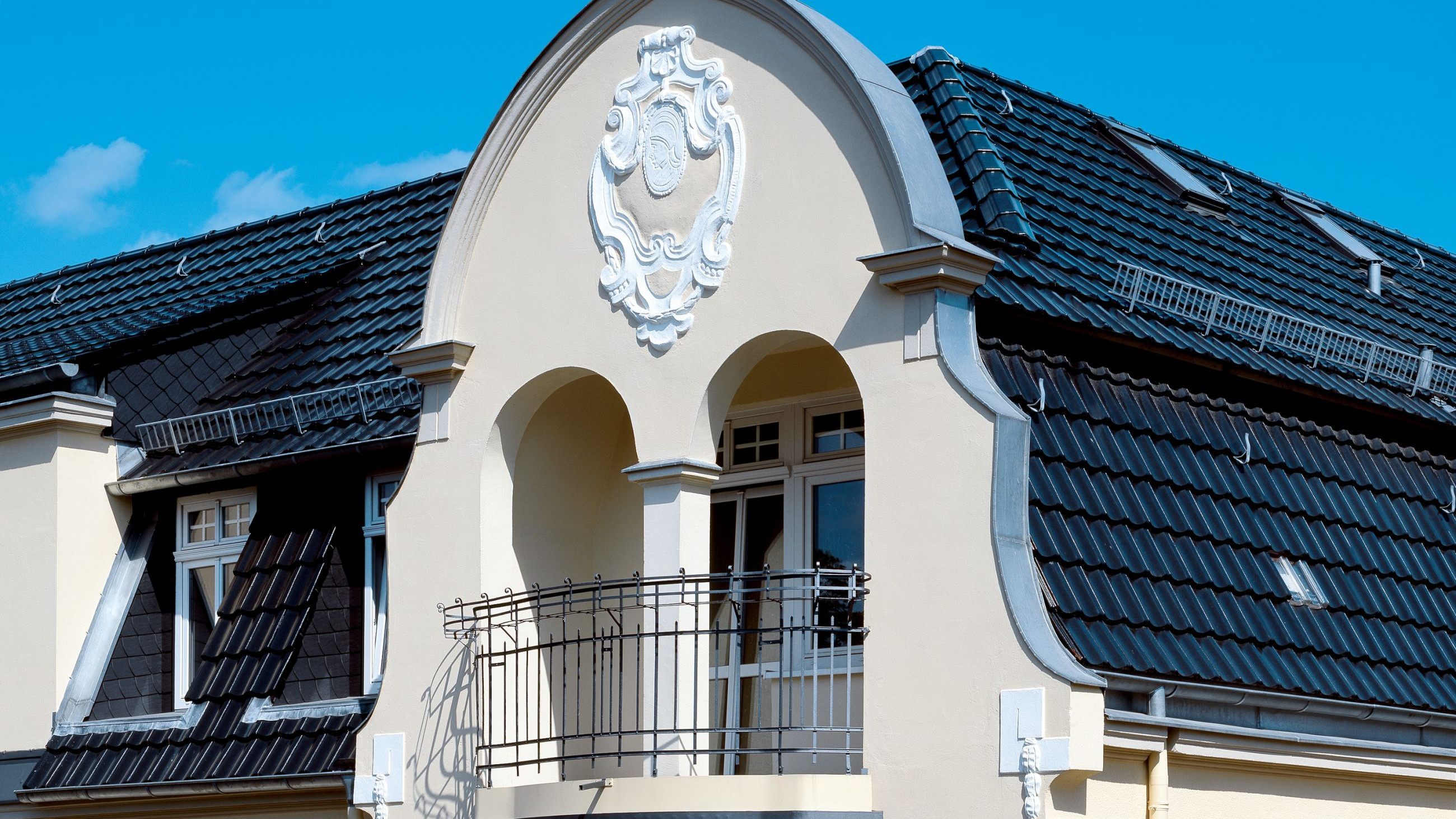

NUANCE anthracite engobed
NUANCE anthracite engobed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE black glazed
FINESSE black glazed

Technical data

Size (appr.)262 x 444 mm
Covering width min. approx.221 mm
Covering width on av. approx.222 mm
Max. coverage width (approx.)223 mm
Min. gauge (approx.)330/350 mm
Covering length on av. approx.355 mm
Max. gauge (approx.)380 mm
Tile requirement min. (approx.)11.9 pcs/m²
Average tile requirement (approx.)12.8 pcs/m²
Brickware max. approx.13.7 pcs/m²
Unit weight (approx.)3.3 kg/piece
Weight per m² (approx.)42.2 kg/m²
Weight per pallet (approx.)975 kg
Pcs per mini-pack6 piece
Pcs per pallet288 piece

Technical drawings

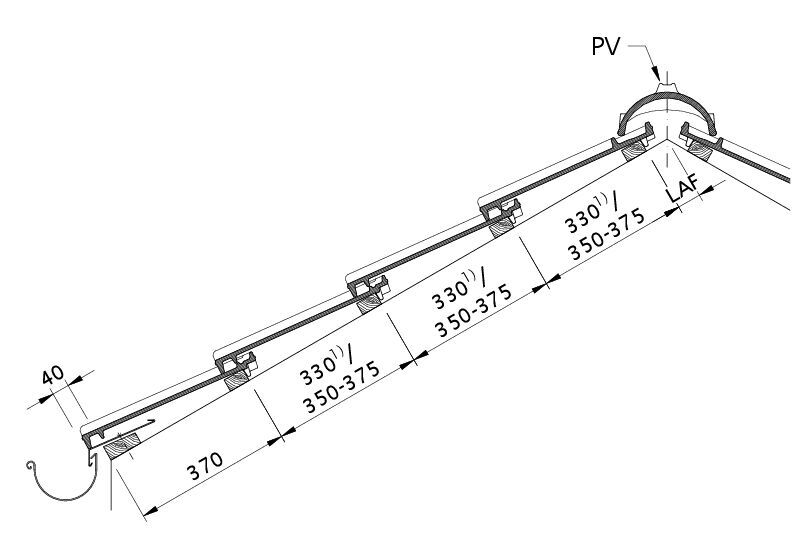

Drawing OPTIMA roof cross-section DQF
Drawing OPTIMA roof cross-section DQF

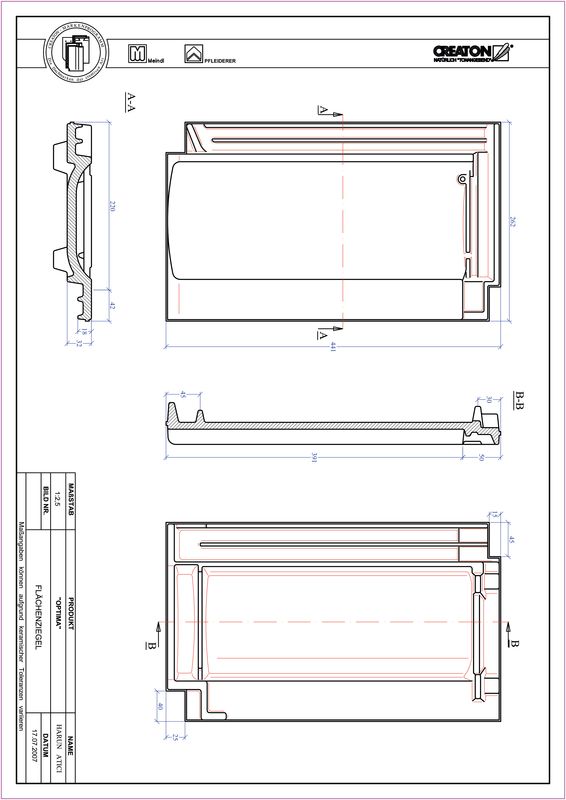

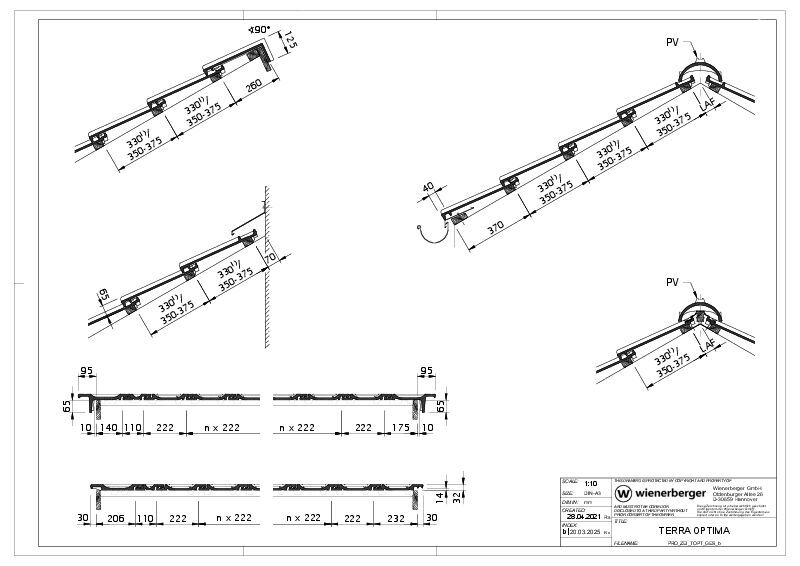

Drawing TERRA OPTIMA general view GES
Drawing TERRA OPTIMA general view GES

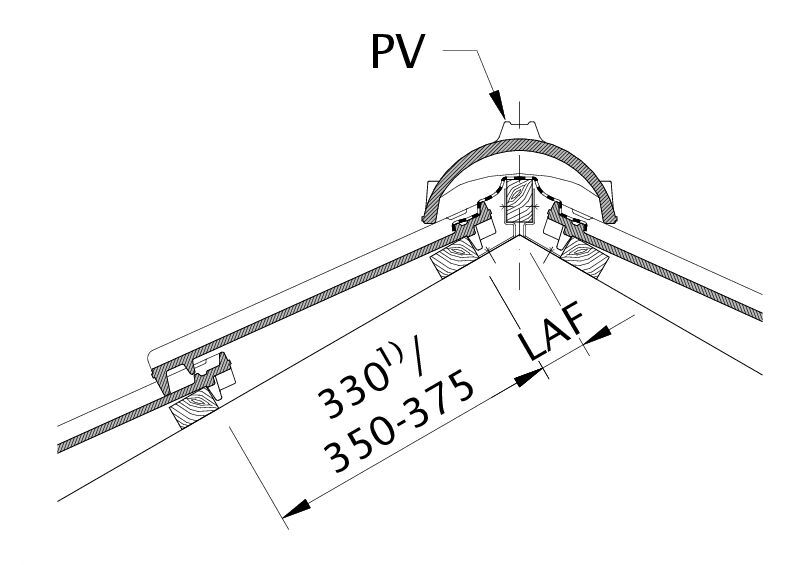

Drawing OPTIMA distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing OPTIMA distance from batten to ridge intersection point, ridge batten spacing LAF

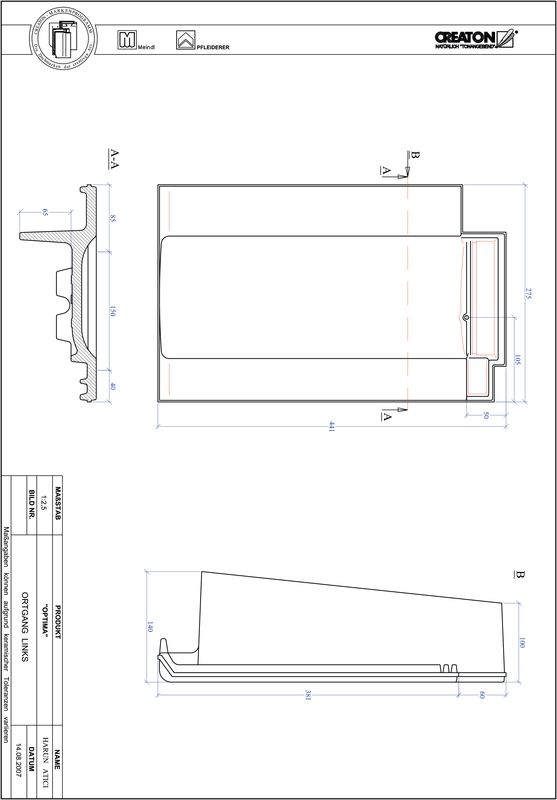

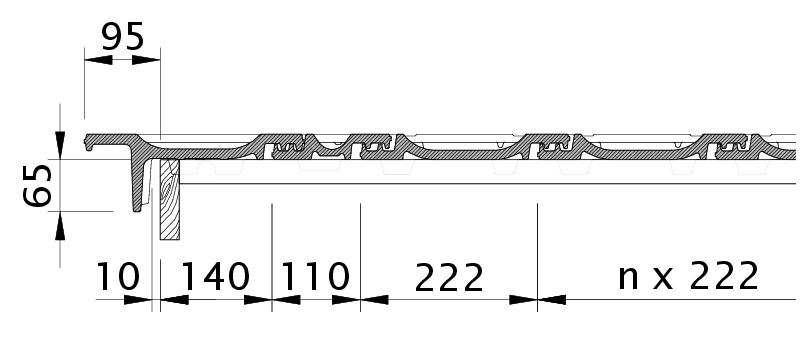

Drawing OPTIMA verge tile left with barge board OBL
Drawing OPTIMA verge tile left with barge board OBL

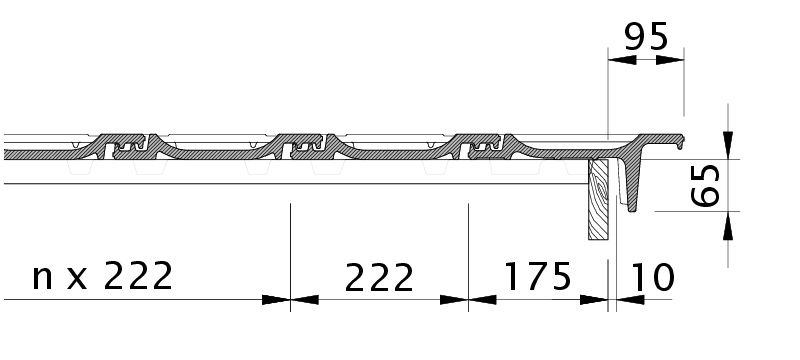

Drawing OPTIMA verge tile right with barge board OBR
Drawing OPTIMA verge tile right with barge board OBR

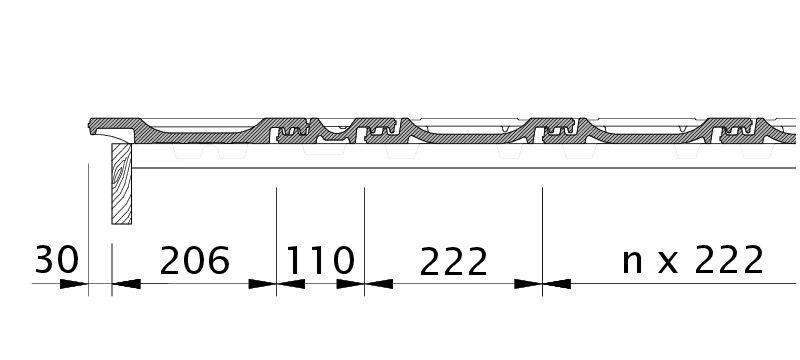

Drawing OPTIMA verge left with verge sheet metal and double roll ODL
Drawing OPTIMA verge left with verge sheet metal and double roll ODL

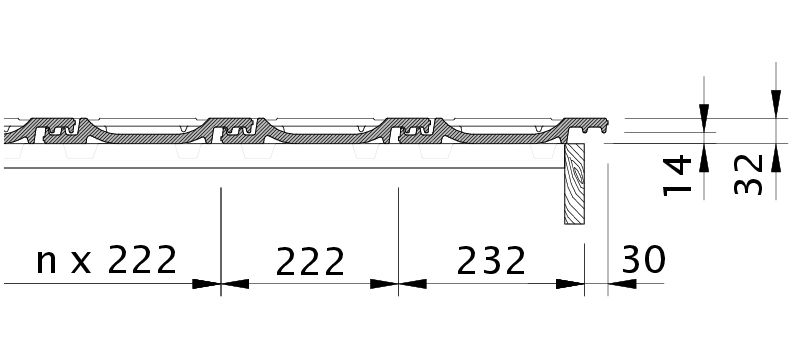

Drawing OPTIMA verge right with verge sheet metal and field tile OFR
Drawing OPTIMA verge right with verge sheet metal and field tile OFR

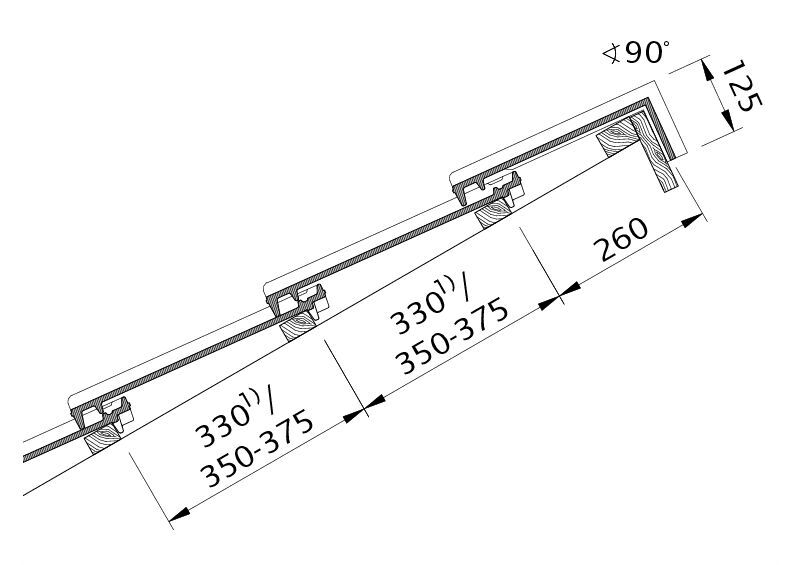

Drawing OPTIMA shed roof version PDA
Drawing OPTIMA shed roof version PDA

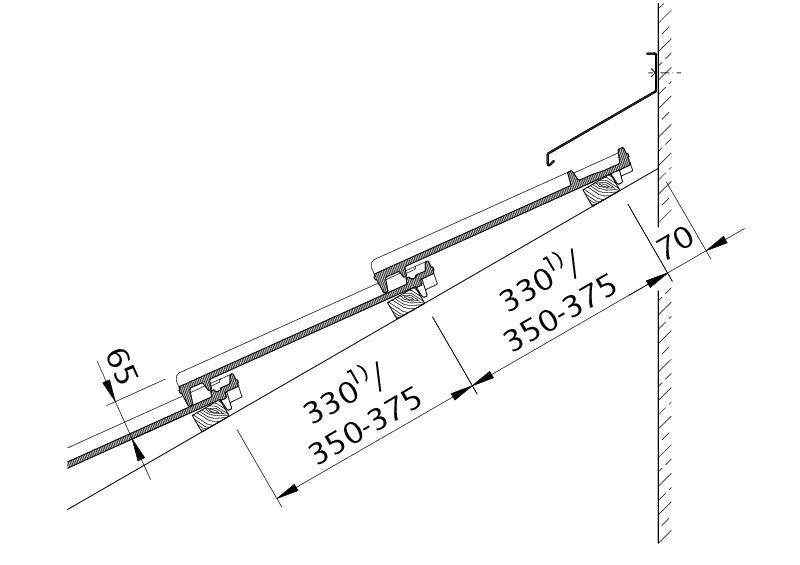

Drawing OPTIMA wall connection (above) with FALZ WMF
Drawing OPTIMA wall connection (above) with FALZ WMF

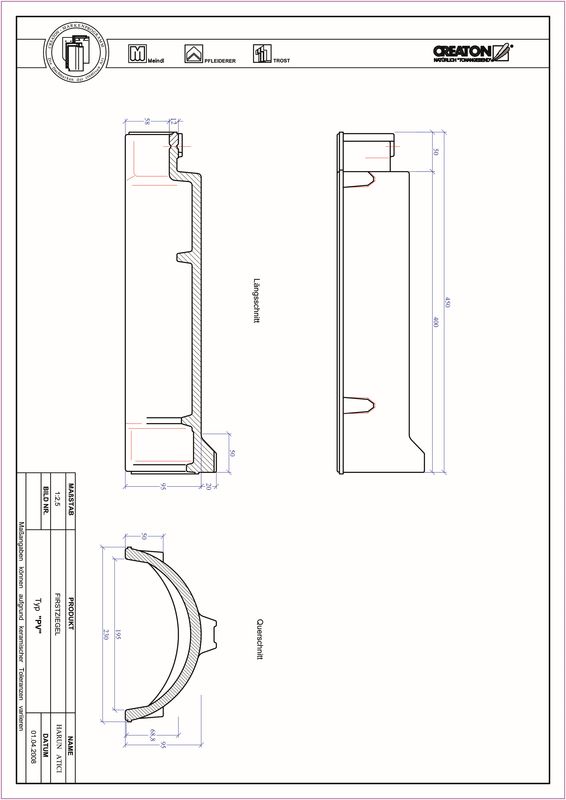

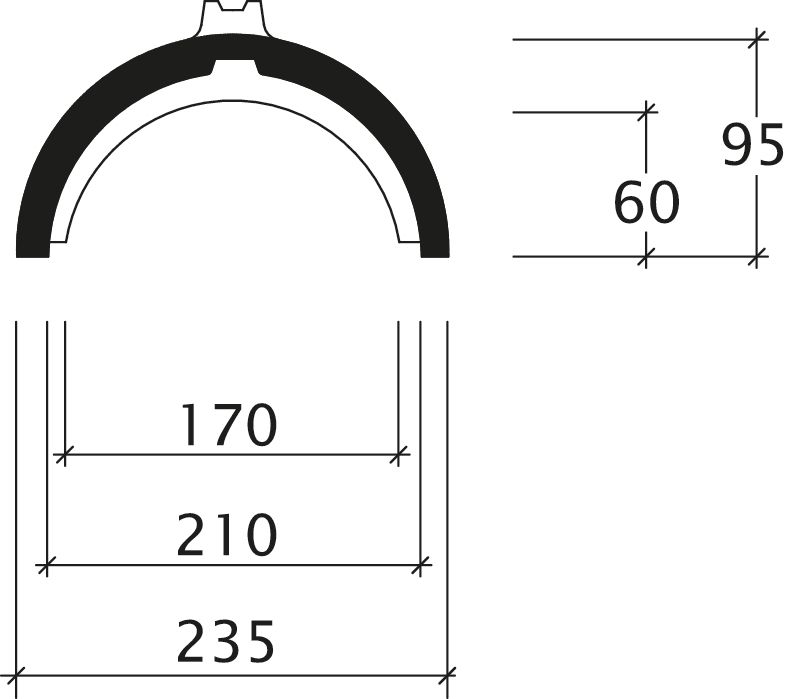

Drawing ridge and hip tile product range PV-Firstziegel
Drawing ridge and hip tile product range PV-Firstziegel

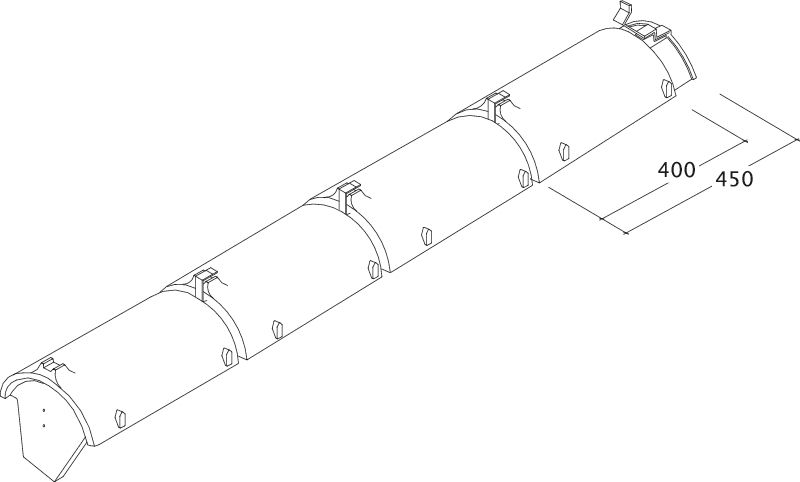

Drawing ridge and hip tile product range PV-Firstziegel-Perspektive
Drawing ridge and hip tile product range PV-Firstziegel-Perspektive

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • With 330 mm > 350 mm gauge, verges must be notched.
  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN15°20°25°30°35°40°45°50°55°60°
PH 2.6 pcs/mLAF6055504545403535
PH 2.6 pcs/mFLA9080757055555050
PV 2.5 pcs/mLAF60606055554545454040
PV 2.5 pcs/mFLA90807565605045353535
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN20°25°30°35°40°45°50°55°60°
PH 2.6 pcs/mLAF55454040352520
PH 2.6 pcs/mFLA90858065656060
PV 2.5 pcs/mLAF605550504035303030
PV 2.5 pcs/mFLA908575706055454545
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN20°25°30°35°40°45°50°
PH 2.6 pcs/mLAF50403530251510
PH 2.6 pcs/mFLA100959080807580
PV 2.5 pcs/mLAF55504540302520
PV 2.5 pcs/mFLA100958585757065

References

more

more

more

Accessory range

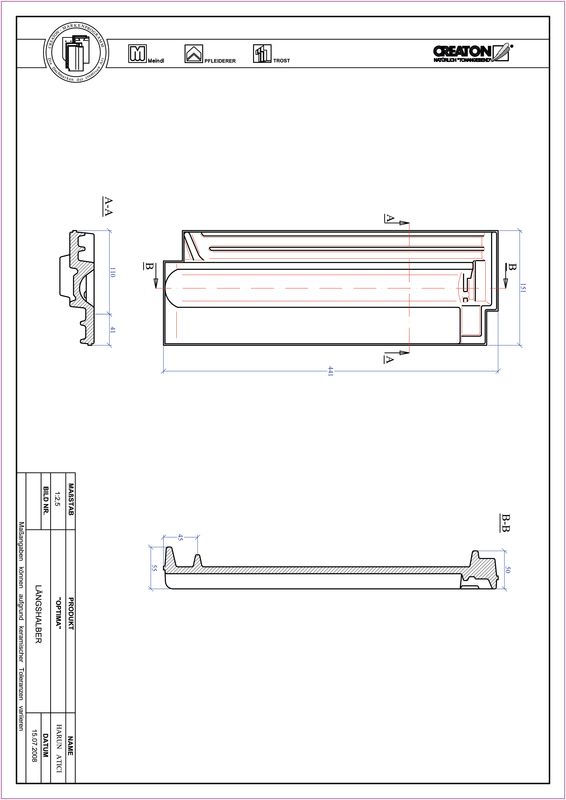

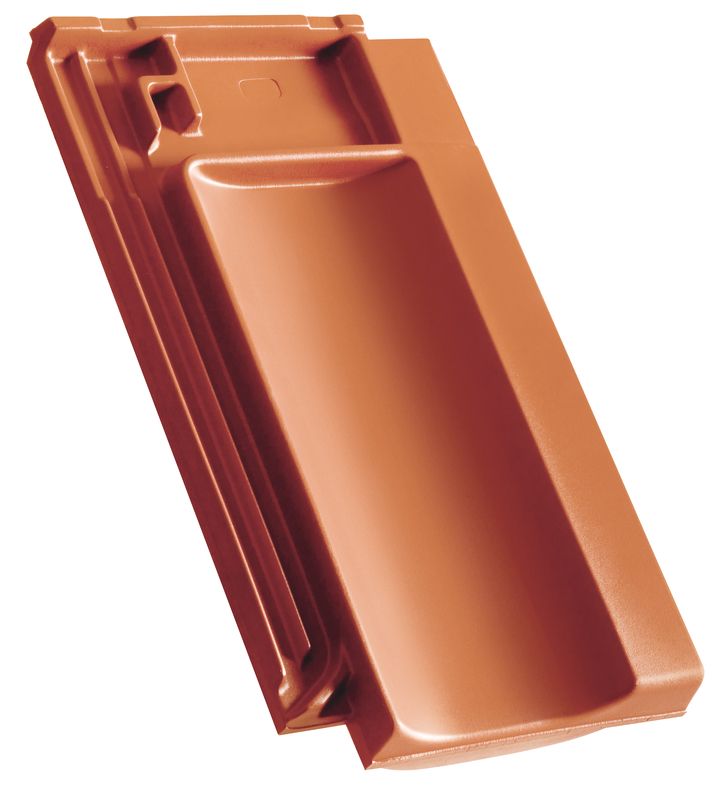

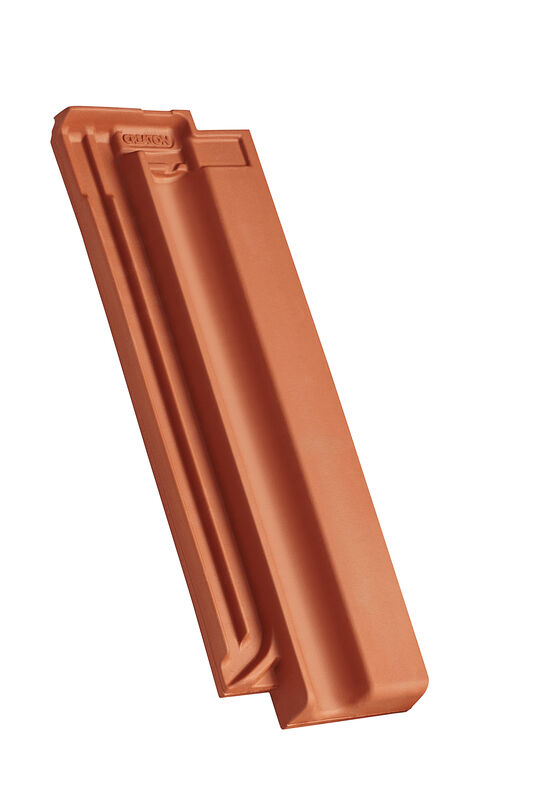

OPT half-width tile

OPT half-width tile

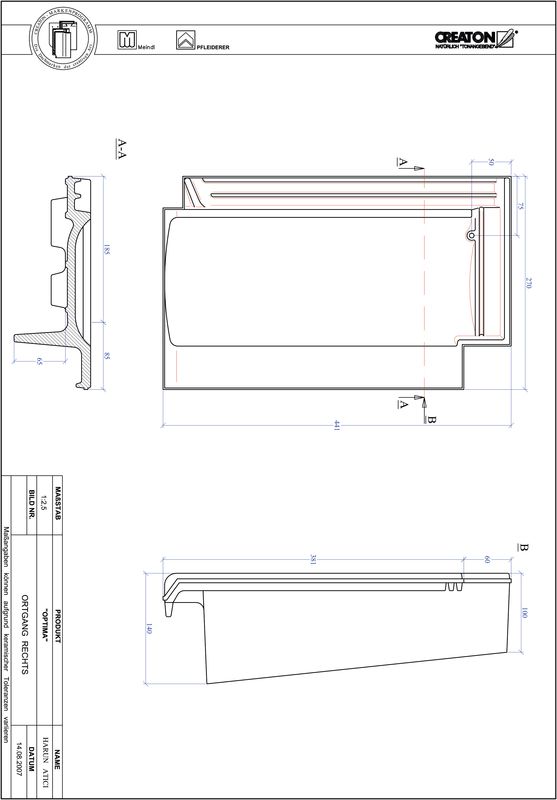

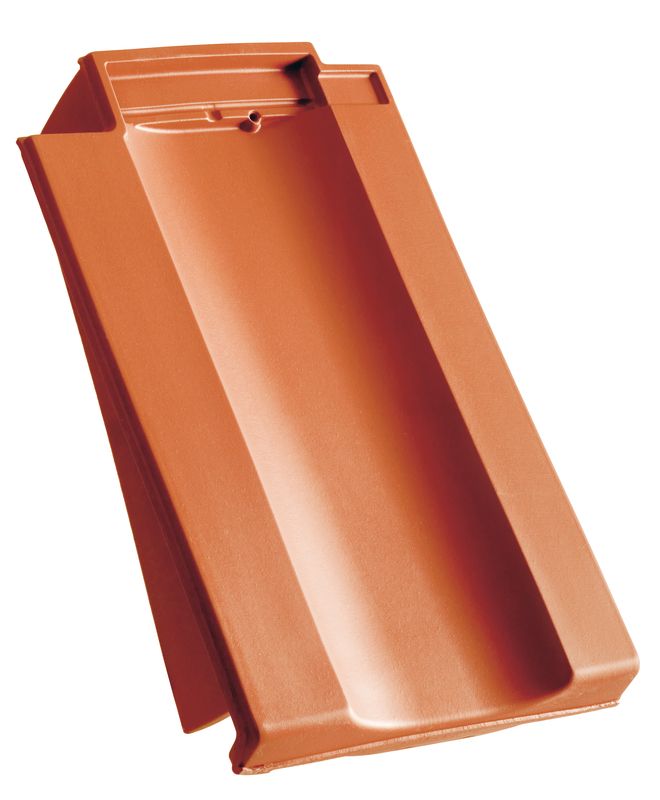

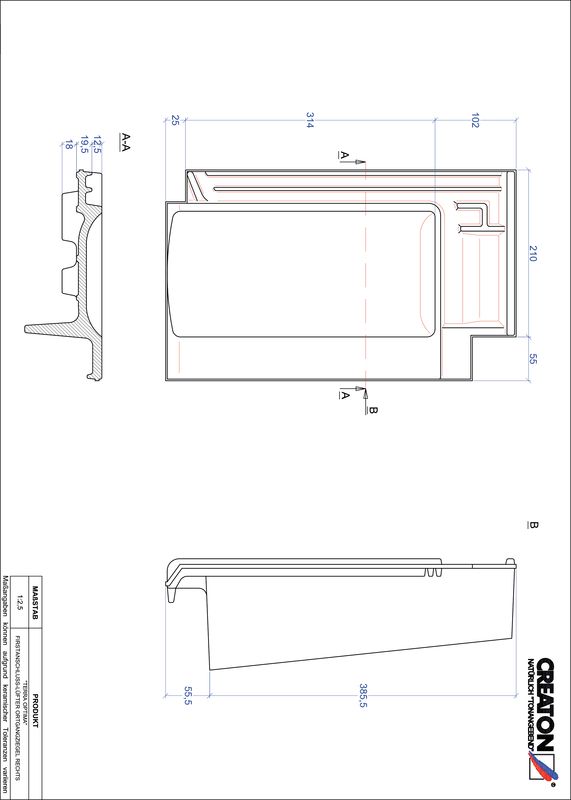

OPT verge tile right

OPT verge tile right

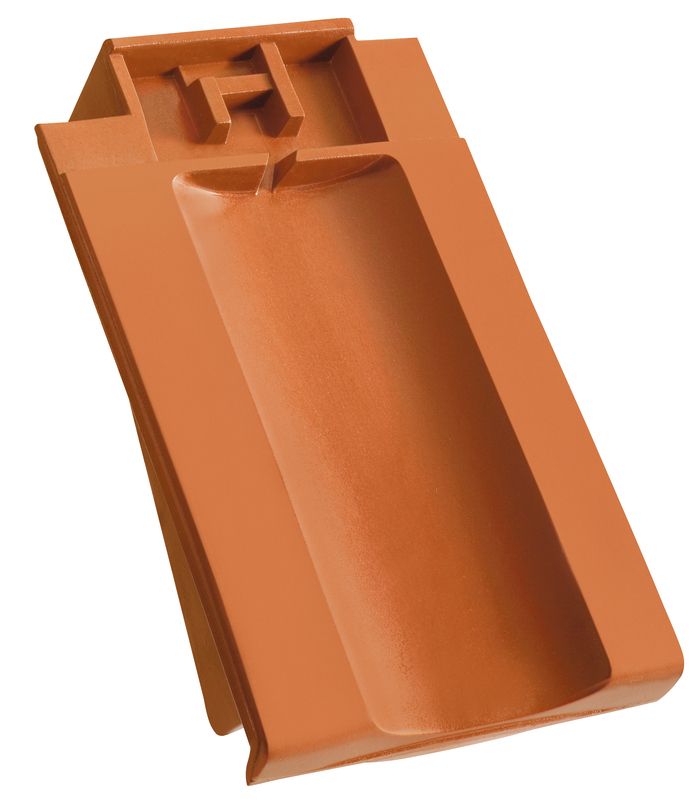

OPT verge tile left

OPT verge tile left

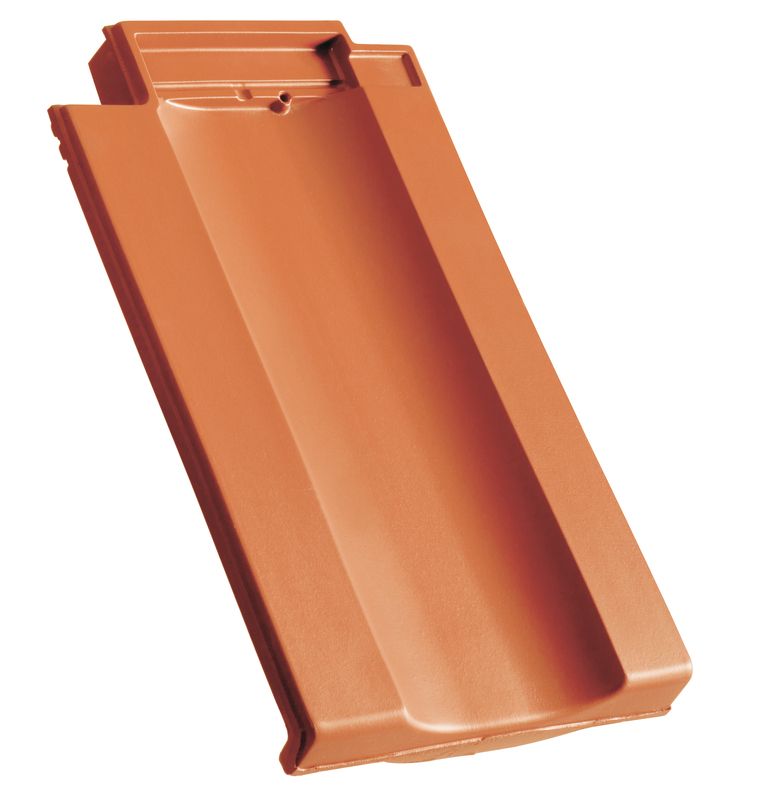

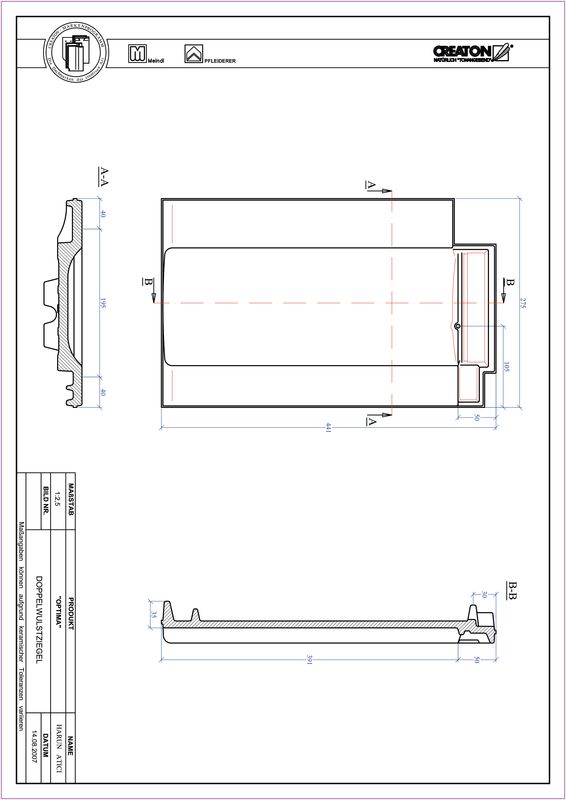

OPT double roll tile

OPT double roll tile

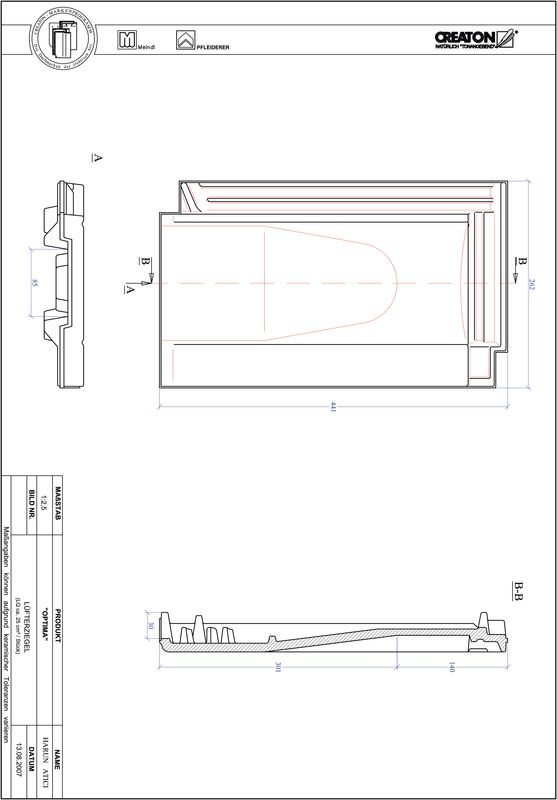

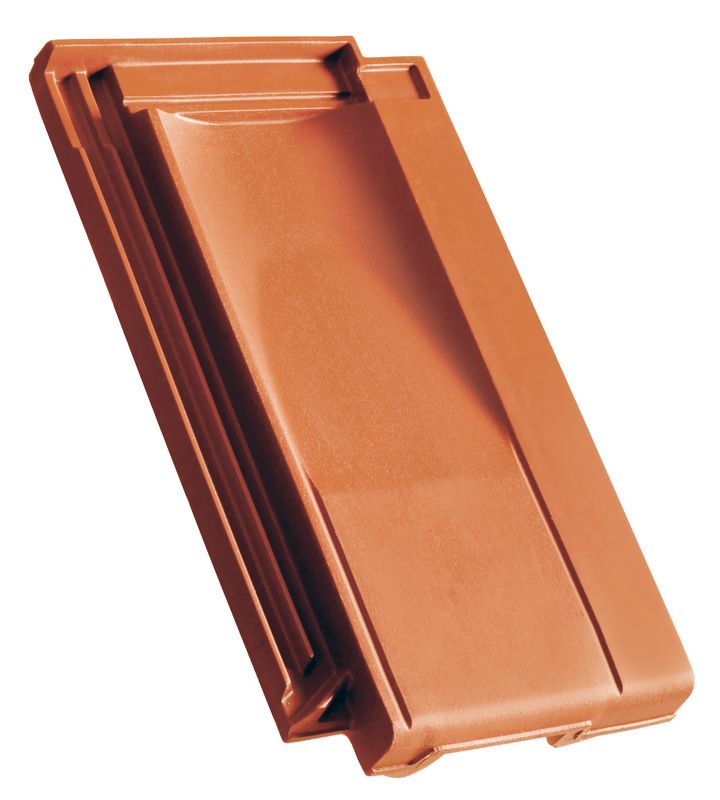

OPT ventilating tile

OPT ventilating tile

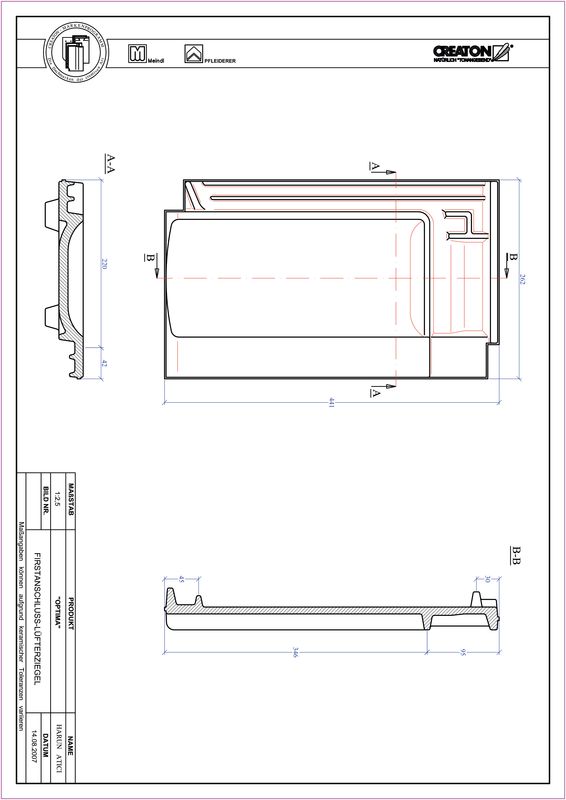

OPT ridge connection ventilating tile

OPT ridge connection ventilating tile

OPT ridge connection ventilating verge tile right

OPT ridge connection ventilating verge tile right

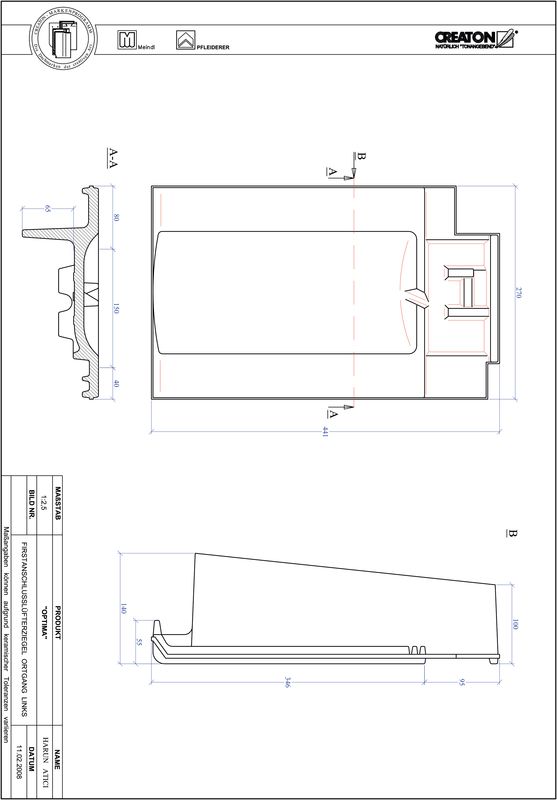

OPT ridge connection ventilating verge tile left

OPT ridge connection ventilating verge tile left

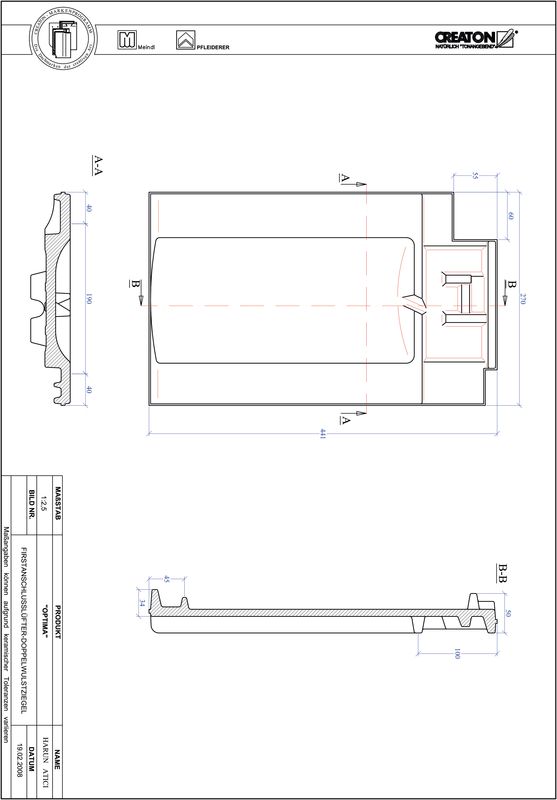

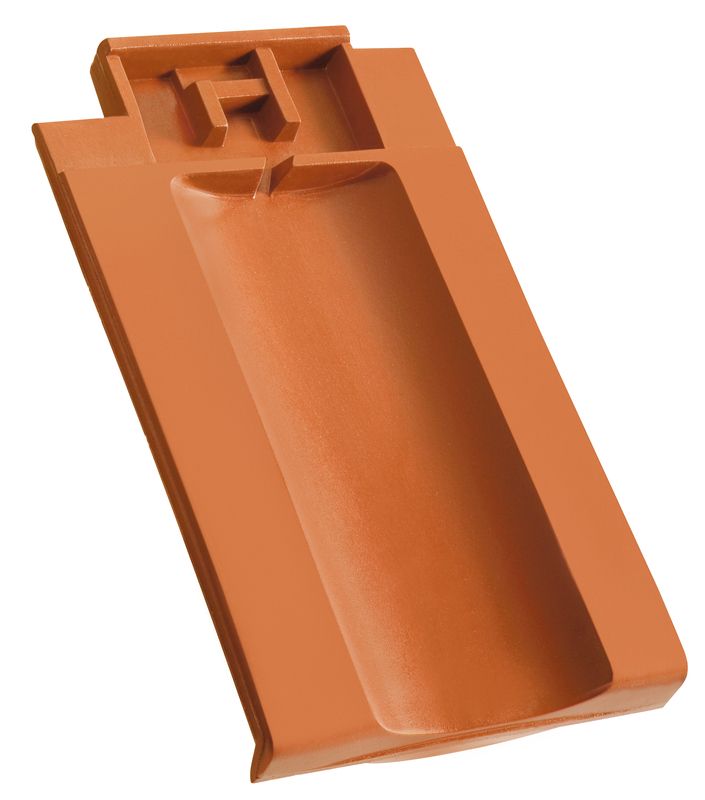

OPT ridge connection ventilating double roll tile

OPT ridge connection ventilating double roll tile

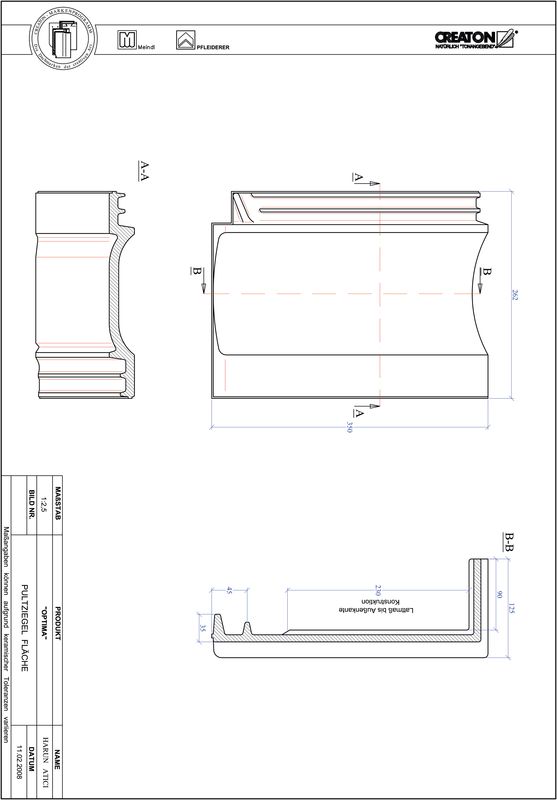

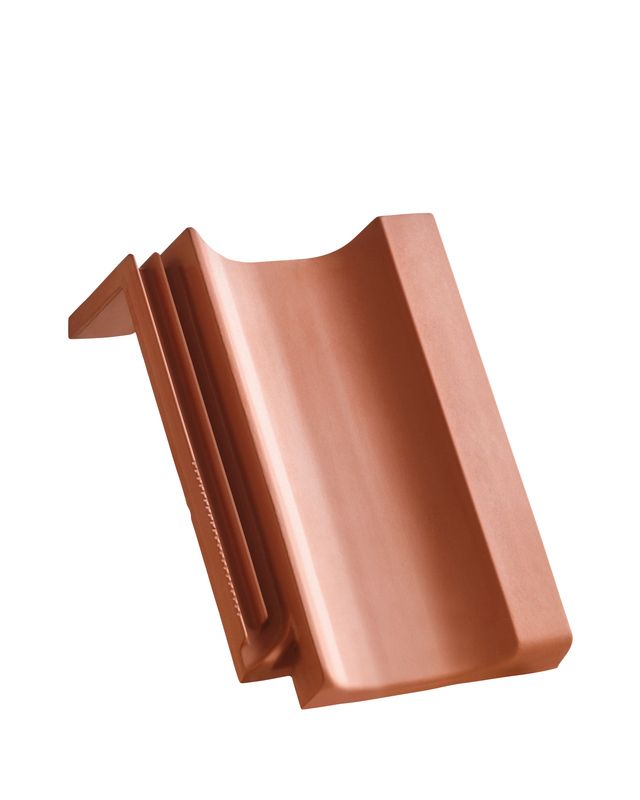

OPT shed roof tile decorated standard

OPT shed roof tile decorated standard

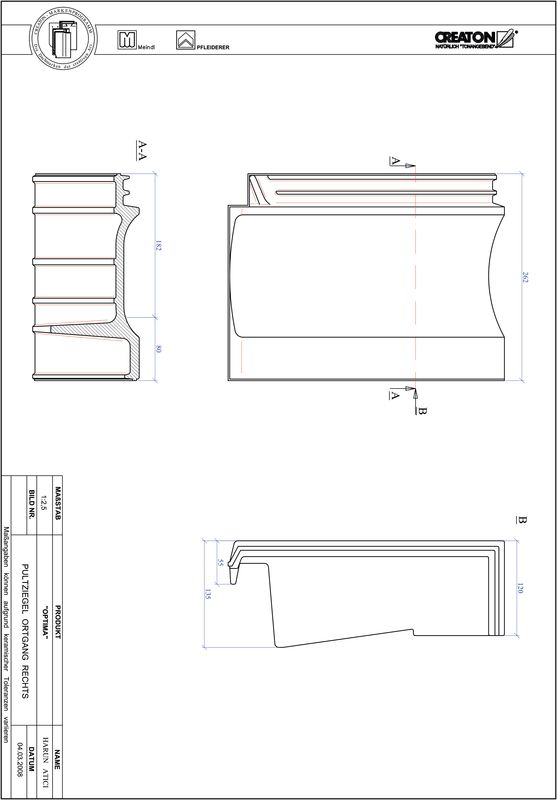

OPT shed roof verge tile decorated standard right

OPT shed roof verge tile decorated standard right

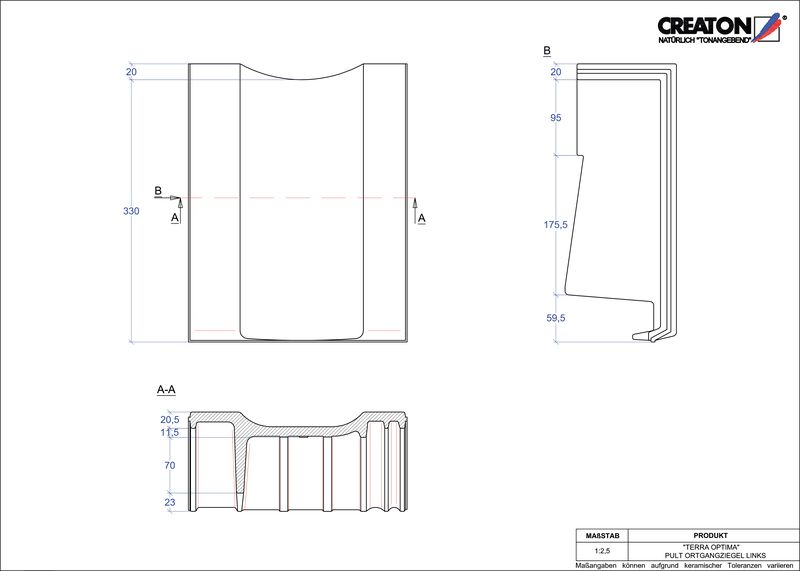

OPT shed roof verge tile decorated standard left

OPT shed roof verge tile decorated standard left

OPT shed roof tile decorated special size

OPT shed roof tile decorated special size

OPT shed roof verge tile decorated special size right

OPT shed roof verge tile decorated special size right

OPT shed roof verge tile decorated special size left

OPT shed roof verge tile decorated special size left

OPT mansard/pitch transition tile decorated special size

OPT mansard/pitch transition tile decorated special size

OPT mansard/pitch transition verge tile decorated special size right

OPT mansard/pitch transition verge tile decorated special size right

OPT mansard/pitch transition verge tile decorated special size left

OPT mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

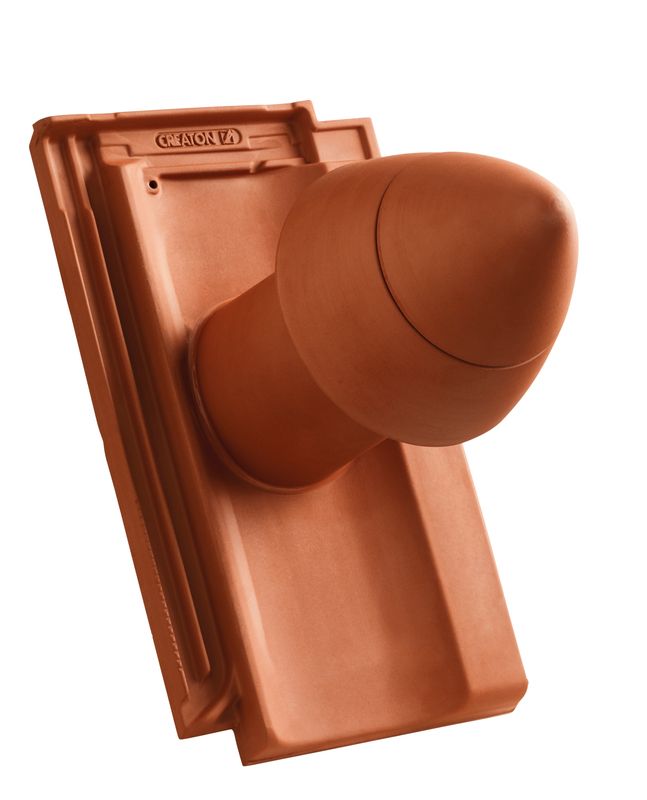

OPT SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

OPT SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

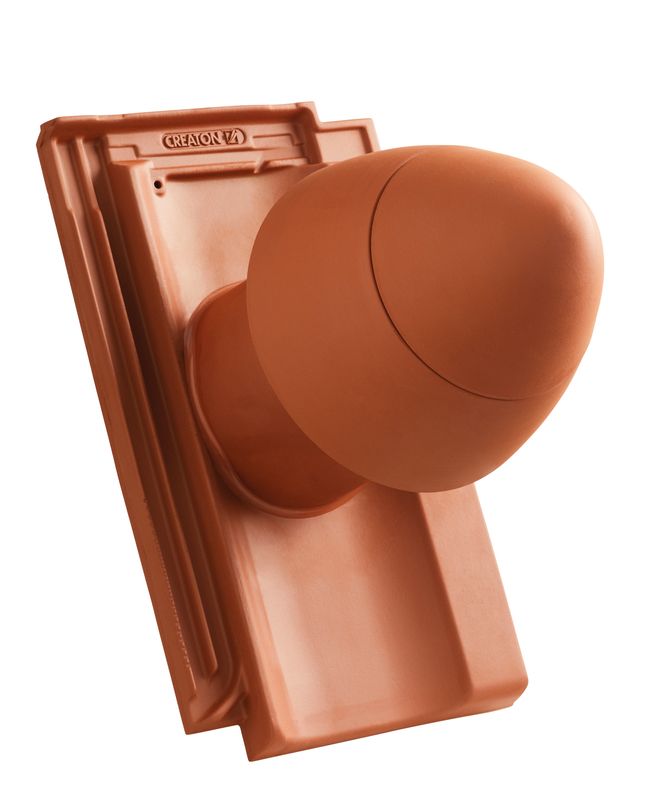

OPT SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

OPT SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

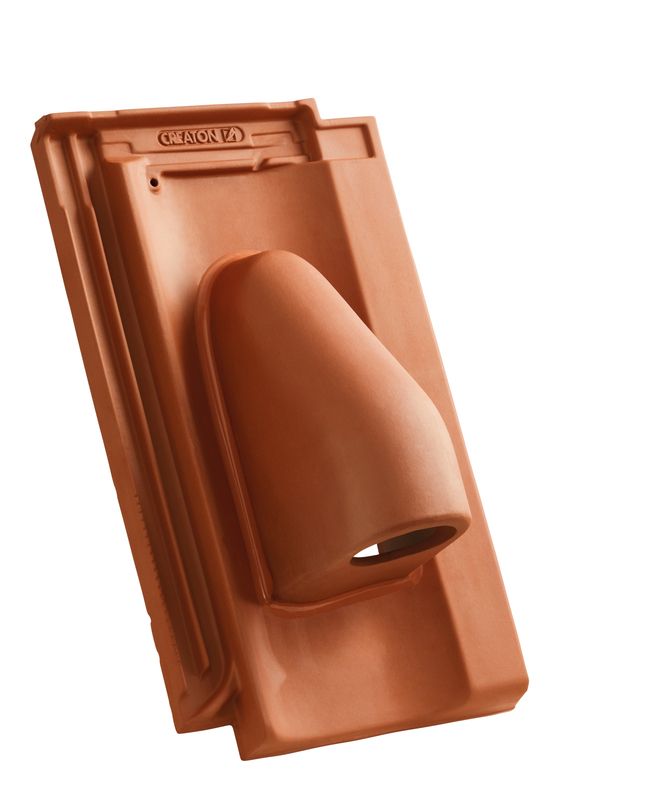

OPT SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

OPT SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

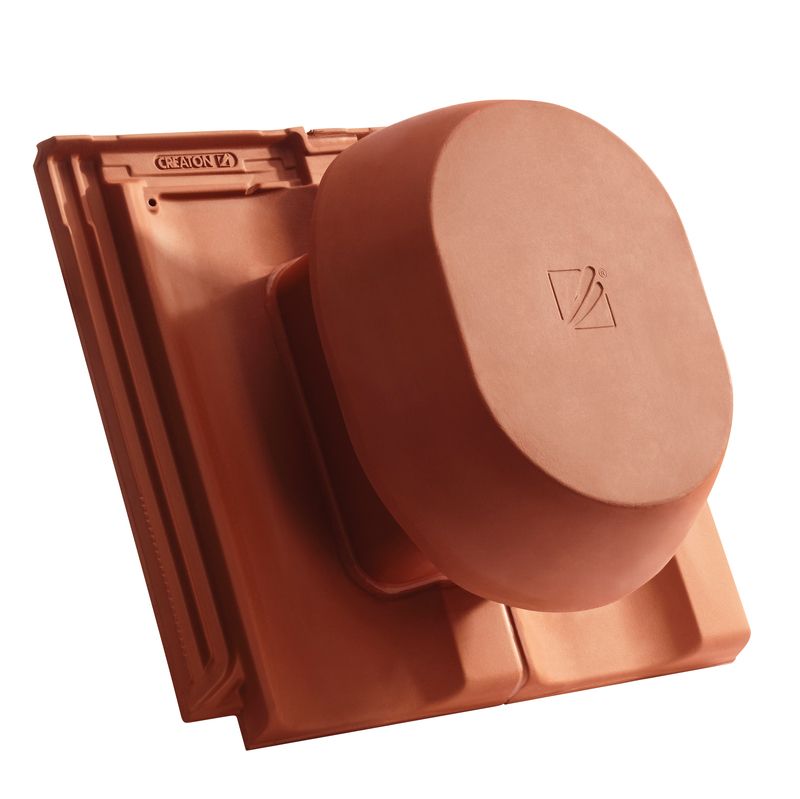

OPT SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

OPT SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

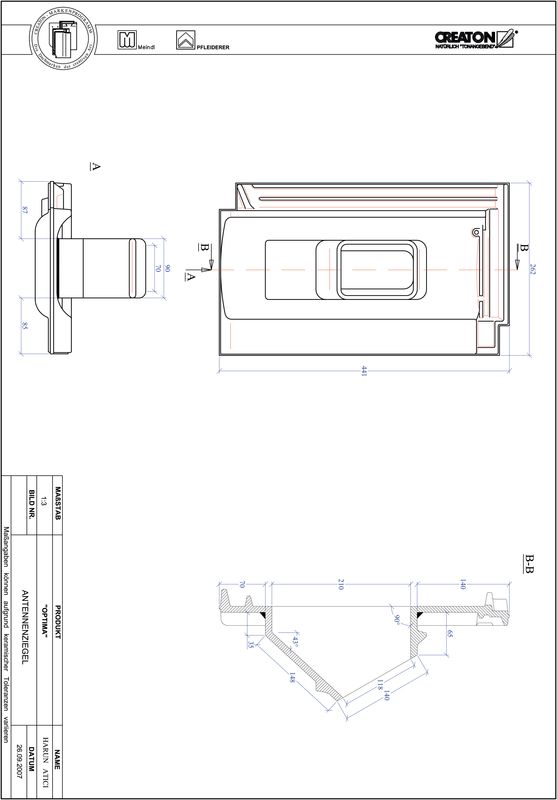

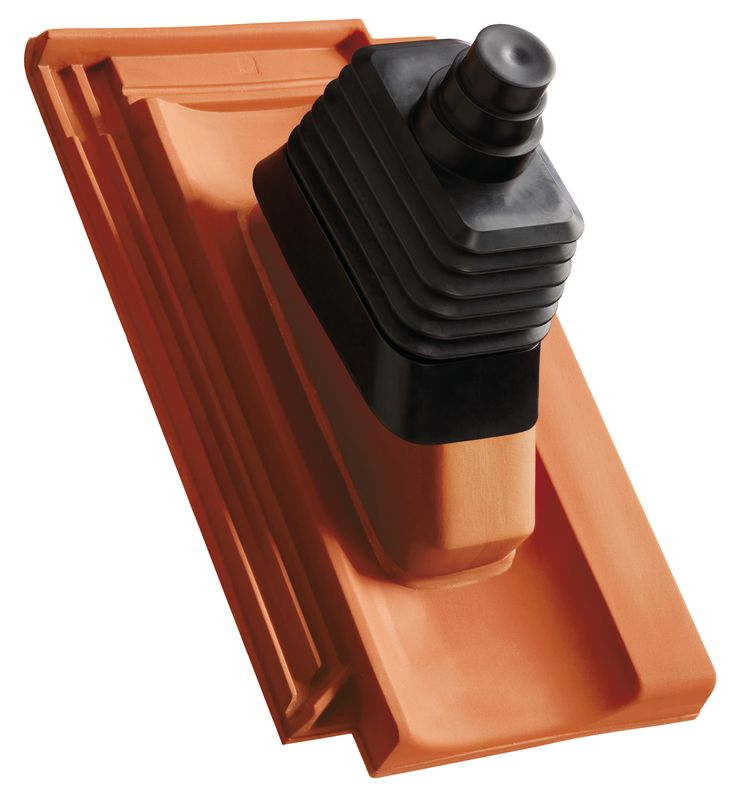

OPT aerial entry

OPT aerial entry

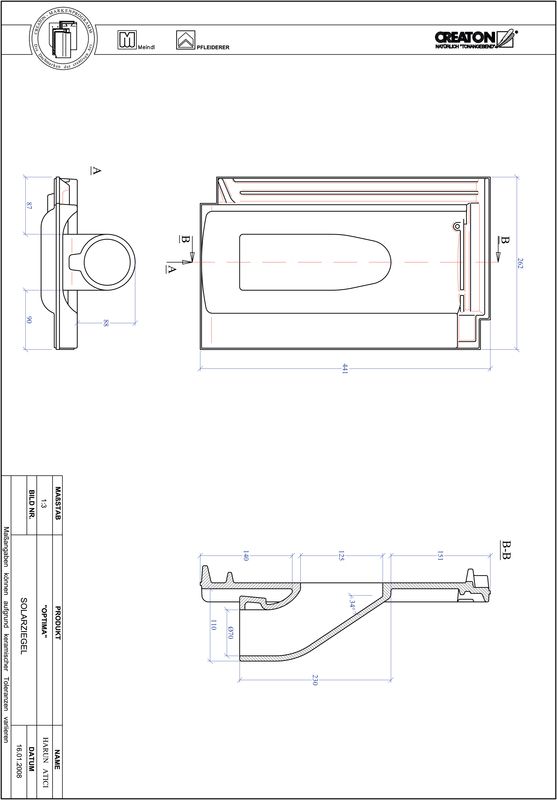

OPT solar entry tile

OPT solar entry tile

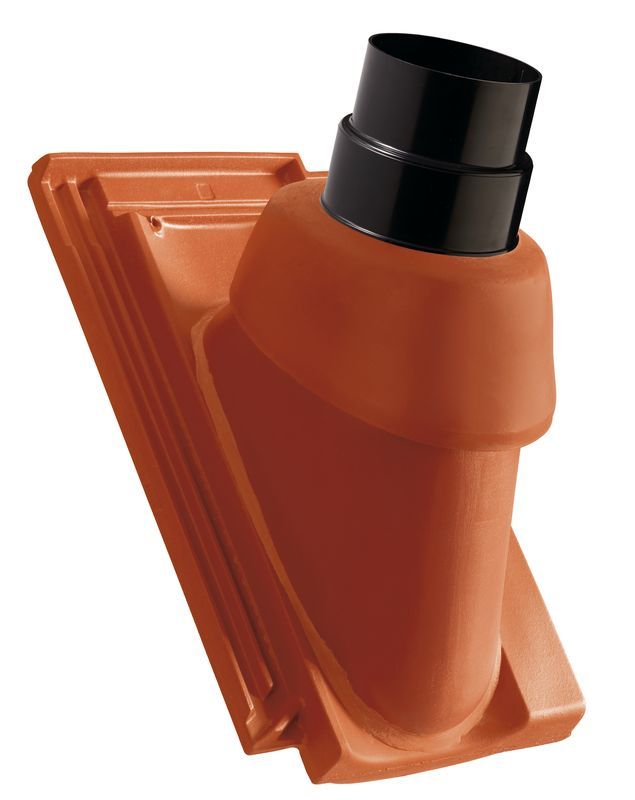

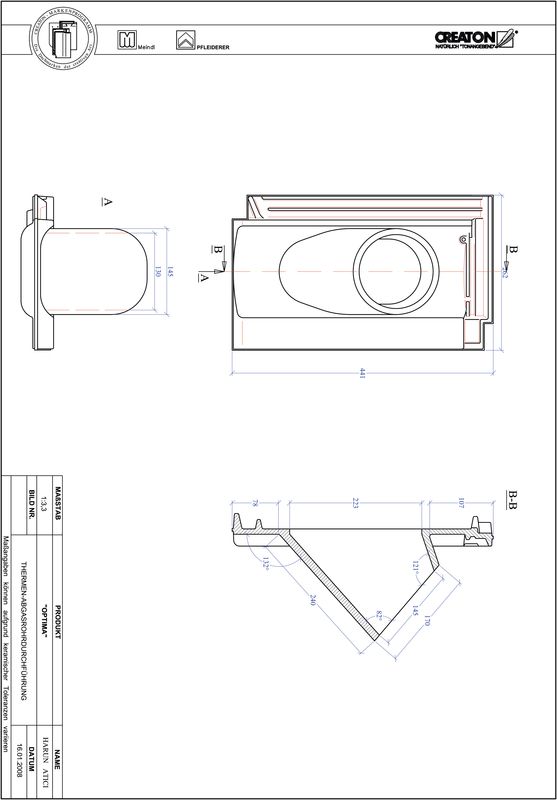

OPT flue pipe penetration NW 110/125

OPT flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Product range for snow protection, roof access and solar installation in metal

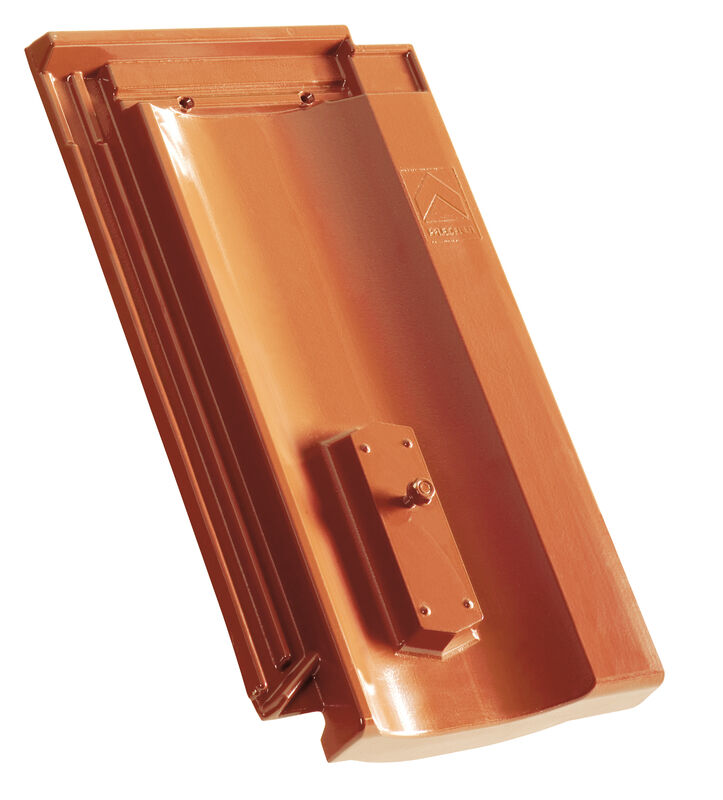

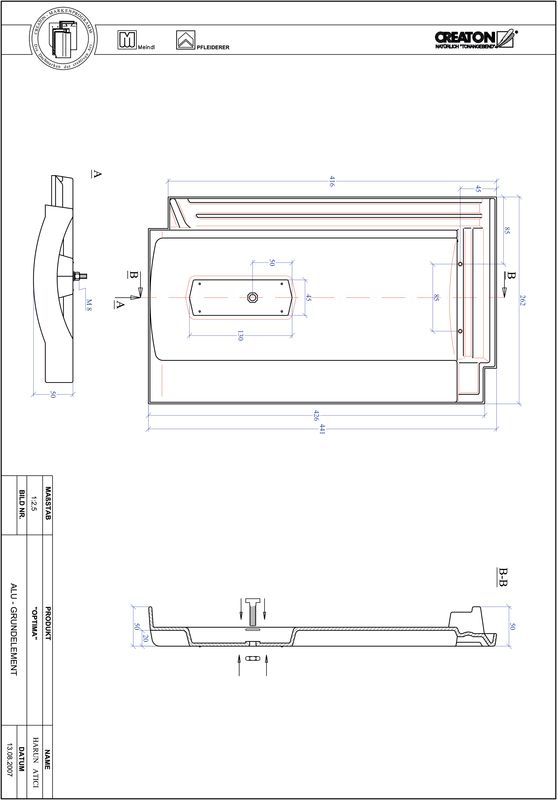

OPT aluminium base element

OPT aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

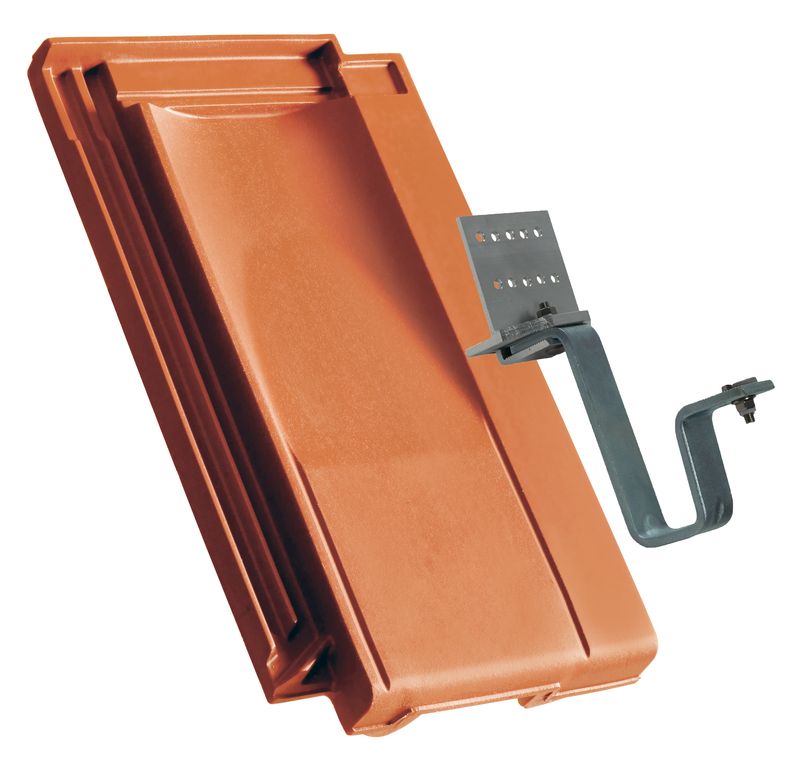

OPT solar system bracket kit for plank installation

OPT solar system bracket kit for plank installation

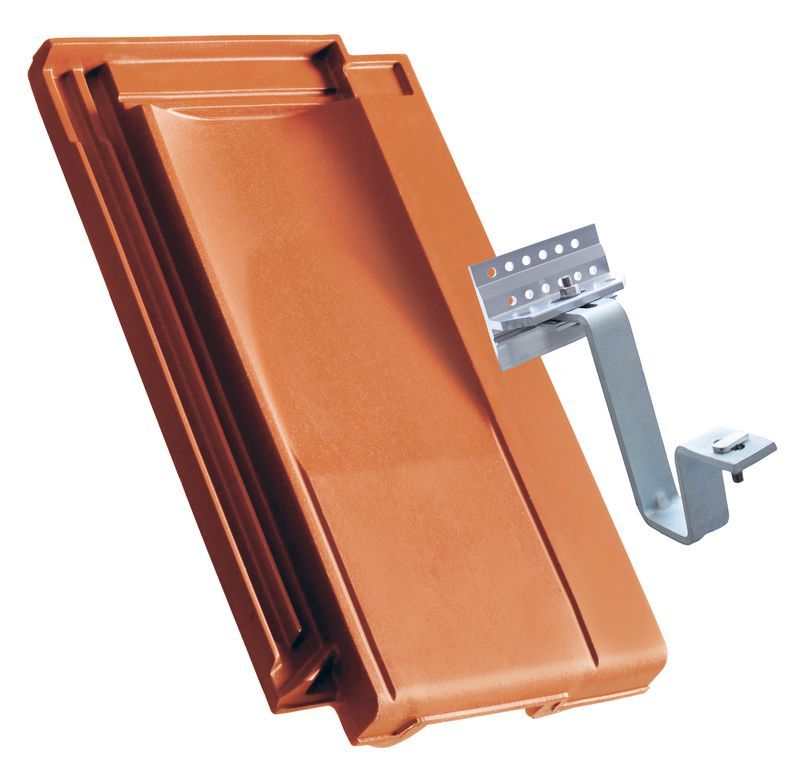

OPT solar system bracket kit for rafter installation

OPT solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

MAG snow clip

MAG snow clip

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

Product range for roof details and uplift protection

OPT transparent tile (acrylic)

OPT transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (HAR, HER, ELE, CAN)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (OPT, DOM, HAR, RUS, GAL, CAN, VIS)

Storm clip in zinc-aluminium, drive-in clip, all battens (MZ3, HAR, OPT)

Storm clip in zinc-aluminium, drive-in clip, all battens (MZ3, HAR, OPT)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 50 mm

Stainless steel screw with seal, length 50 mm

Hip and valley clip 10-13 mm

Hip and valley clip 10-13 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paint 250 ml

Acrylic paint 250 ml

Ridge and hip tile product range

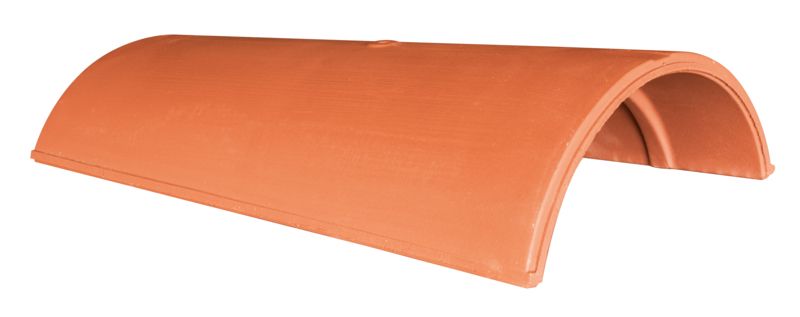

Ridge tile PH HÖN (clay)

Ridge tile PH HÖN (clay)

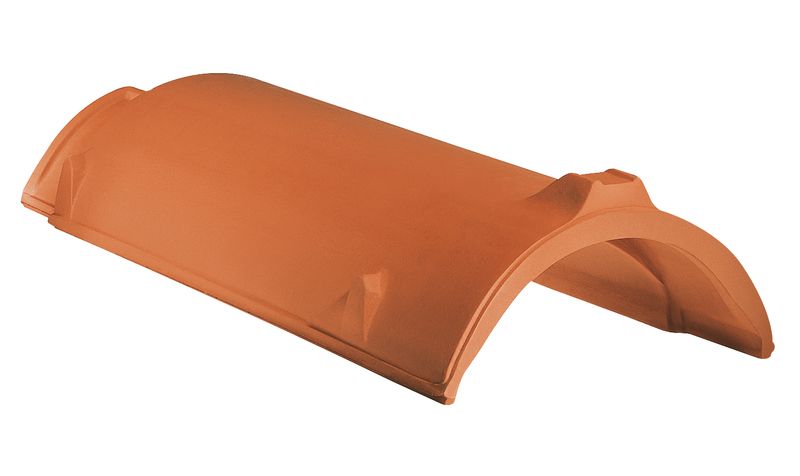

HÖN ridge tile PV

HÖN ridge tile PV

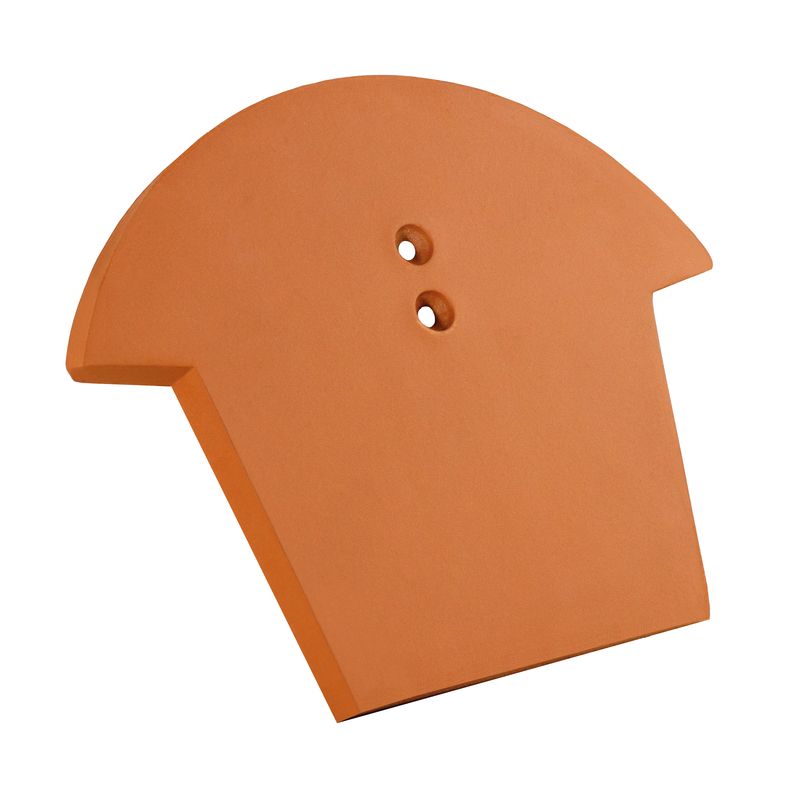

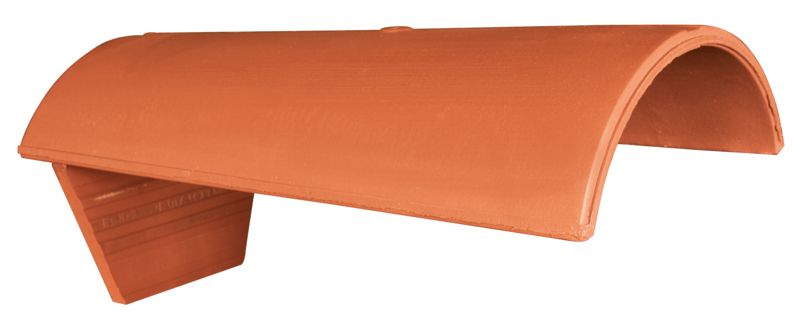

Ridge starter and termination plate with scallop PH HÖN (clay)

Ridge starter and termination plate with scallop PH HÖN (clay)

HÖN ridge starter and termination plate ceramic PV

HÖN ridge starter and termination plate ceramic PV

HÖN function starter and termination plate ceramic PV

HÖN function starter and termination plate ceramic PV

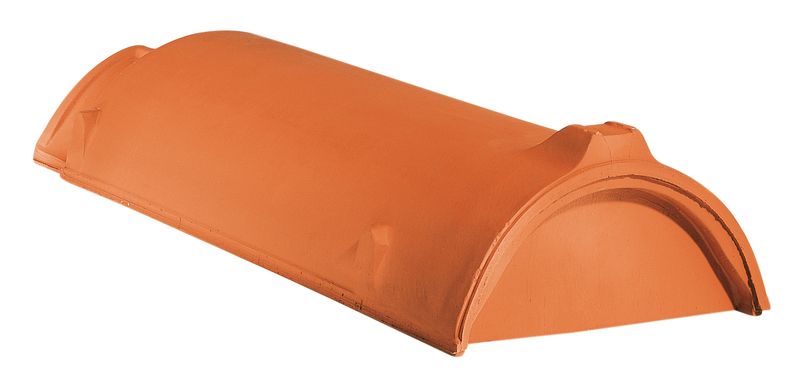

Hip starter ceramic PH HÖN (clay)

Hip starter ceramic PH HÖN (clay)

Hip starter ceramic PV HÖN (clay)

Hip starter ceramic PV HÖN (clay)

Hip starter ceramic round closure PH HÖN (clay)

Hip starter ceramic round closure PH HÖN (clay)

Ridge clip aluminium PH HÖN

Ridge clip aluminium PH HÖN

Ridge clip aluminium PV

Ridge clip aluminium PV

FIRSTFIX ridge clip stainless steel PH HÖN

FIRSTFIX ridge clip stainless steel PH HÖN

FIRSTFIX ridge clip stainless steel PV

FIRSTFIX ridge clip stainless steel PV

HÖN ridge tile PKH conical

HÖN ridge tile PKH conical

Ridge starter and termination plate ceramic PH HÖN (clay)

Ridge starter and termination plate ceramic PH HÖN (clay)

Ridge starter ceramic with tongue tapered PKH HÖN (clay)

Ridge starter ceramic with tongue tapered PKH HÖN (clay)

Ridge termination ceramic with tongue tapered PKH HÖN (clay)

Ridge termination ceramic with tongue tapered PKH HÖN (clay)

Ridge clip aluminium PKH HÖN

Ridge clip aluminium PKH HÖN

FIRSTFIX ridge clip stainless steel PKH HÖN

FIRSTFIX ridge clip stainless steel PKH HÖN

Function starter and termination plate ceramic type 1 PH HÖN (clay)

Function starter and termination plate ceramic type 1 PH HÖN (clay)

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge termination ceramic without tongue tapered PKH HÖN (clay)

Ridge termination ceramic without tongue tapered PKH HÖN (clay)

Ridge starter ceramic without tongue tapered PKH HÖN (clay)

Ridge starter ceramic without tongue tapered PKH HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 3-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Hip cap 4-axis type W2 HÖN (clay)

Downloads
