VISIO

Simply coloured throughout.

  • The sinter firing process, at over 1,100°C (CREATON "HOCHBRANDFAKTOR"), ensures a uniform matte sheen surface. Tiles become stronger, more homogeneous and have a greater clay density
  • Sophisticated interlock technology allows water to drain away effectively and protects against rain intrusion. Rear ribs ensure condensed water drains away reliably.
  • Homogeneous tile body with a beautiful even colour thanks to the finest "KERALIS" raw materials and meticulous processing. No more need to rework cut or damaged edges.

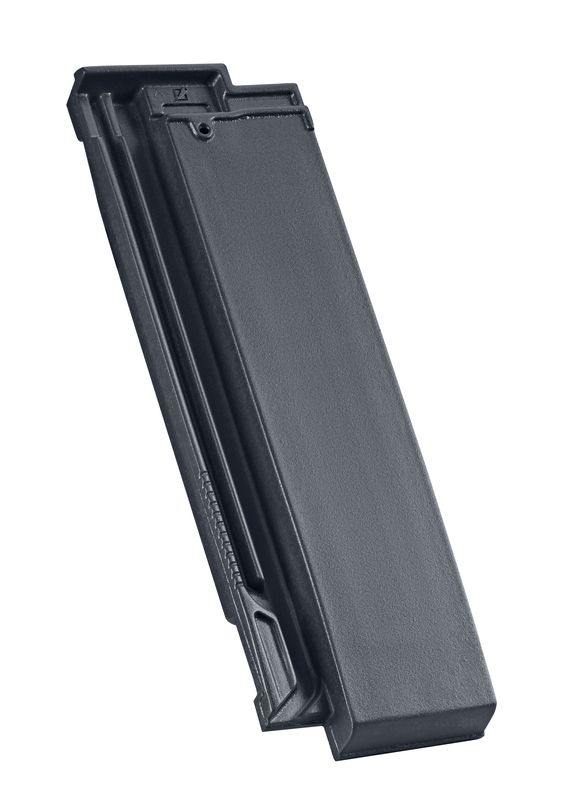

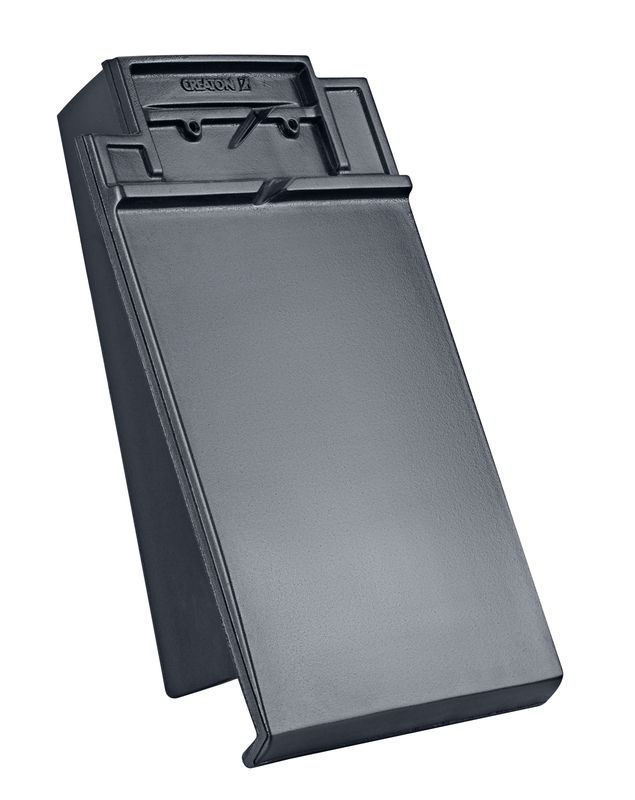

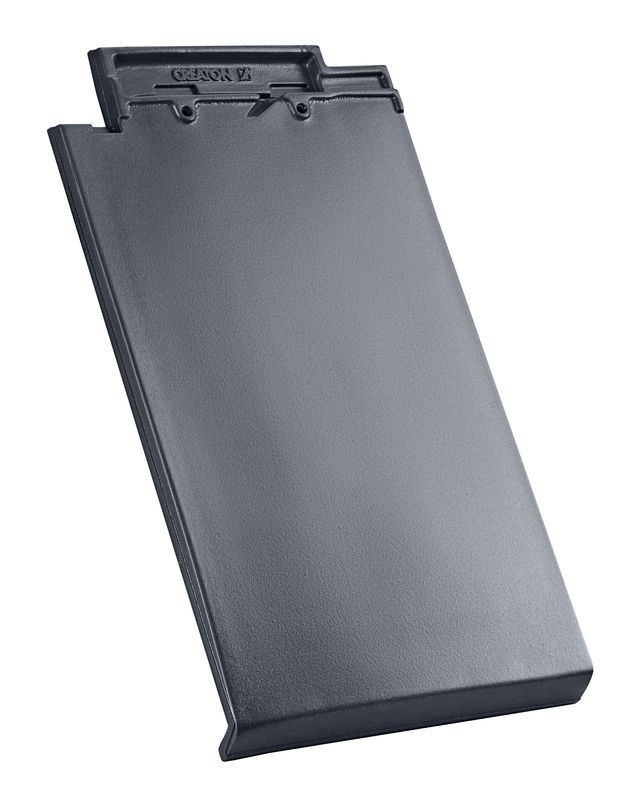

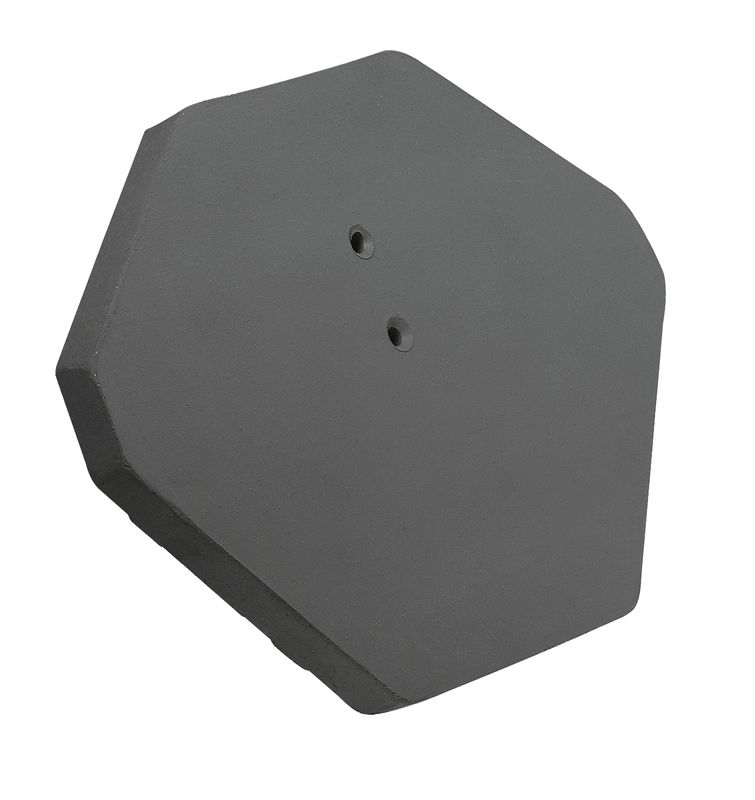

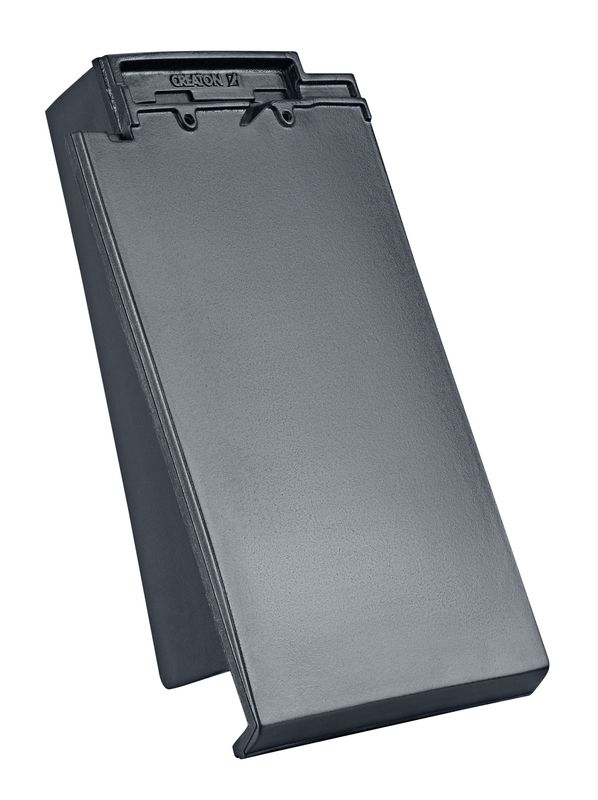

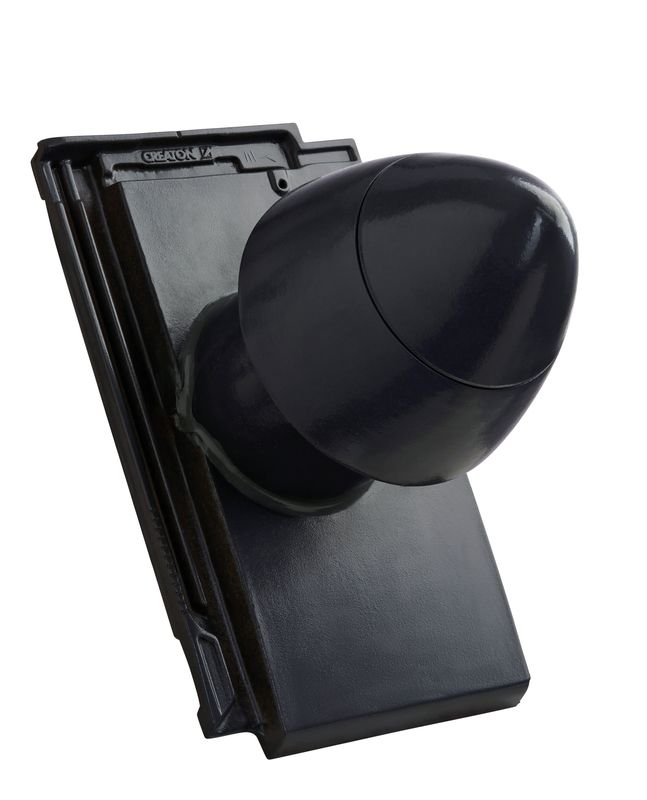

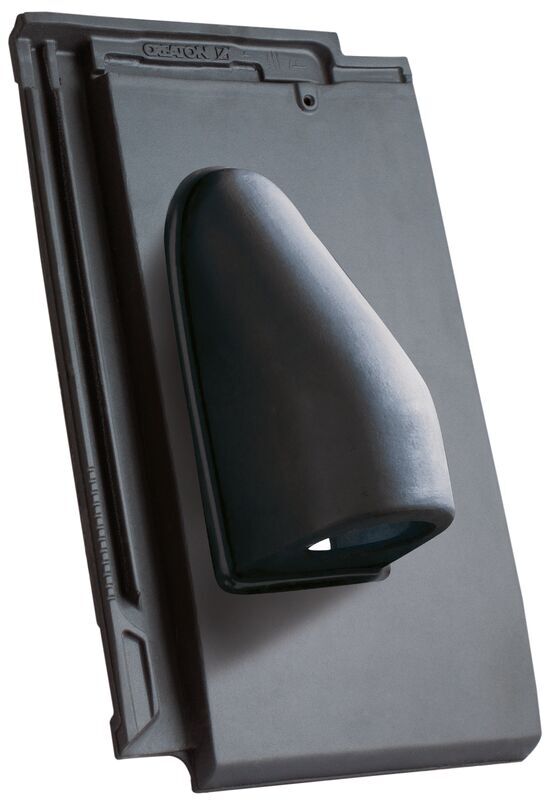

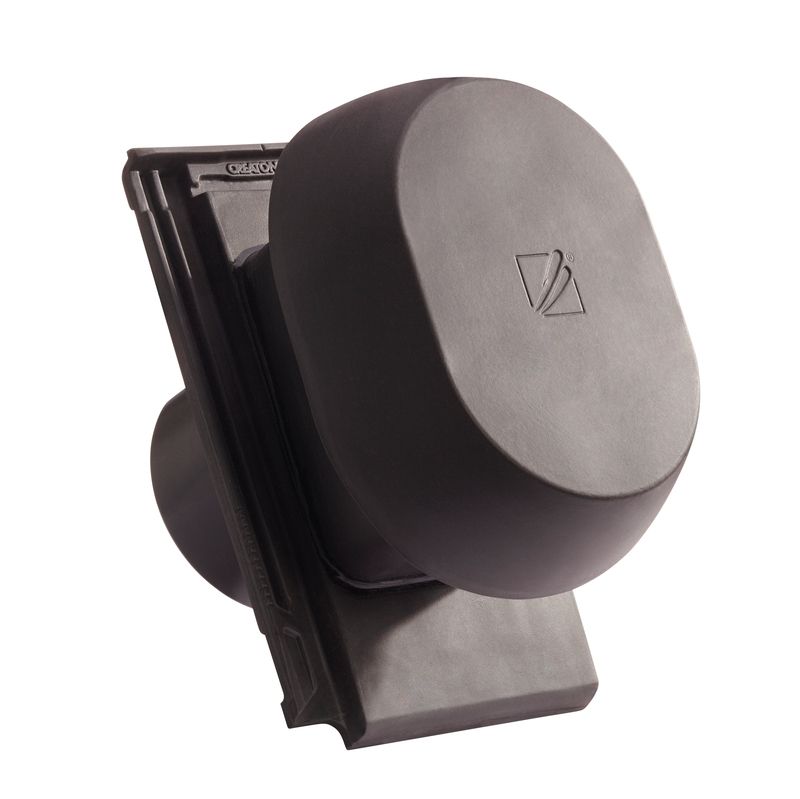

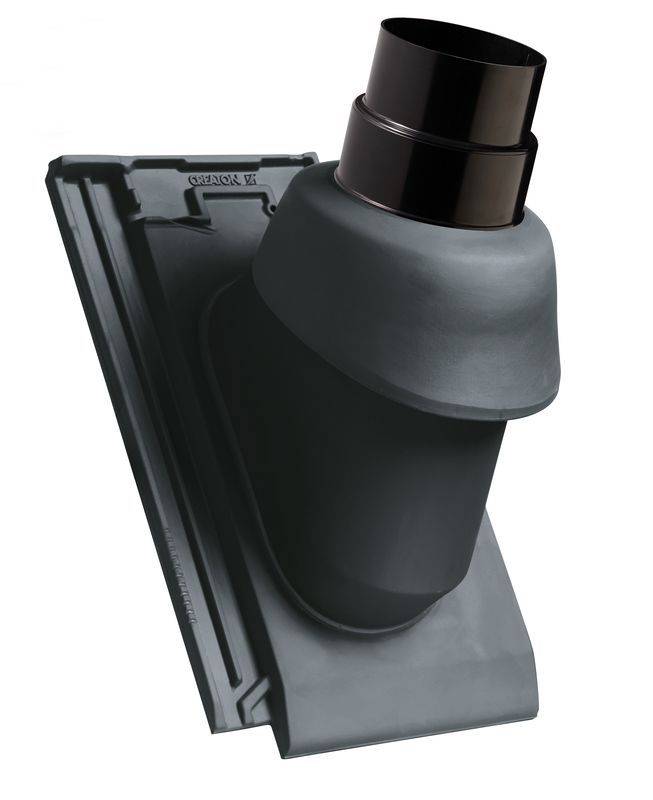

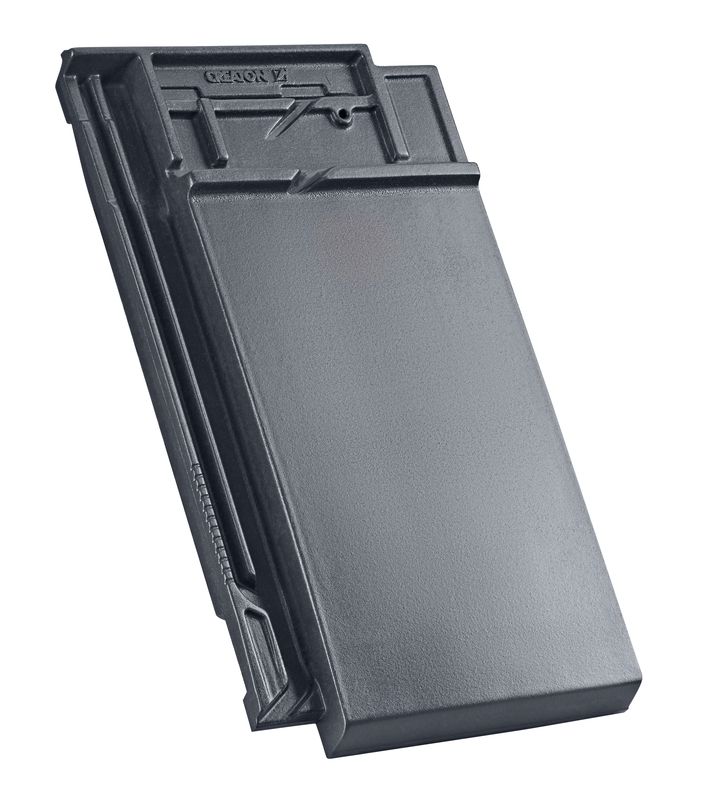

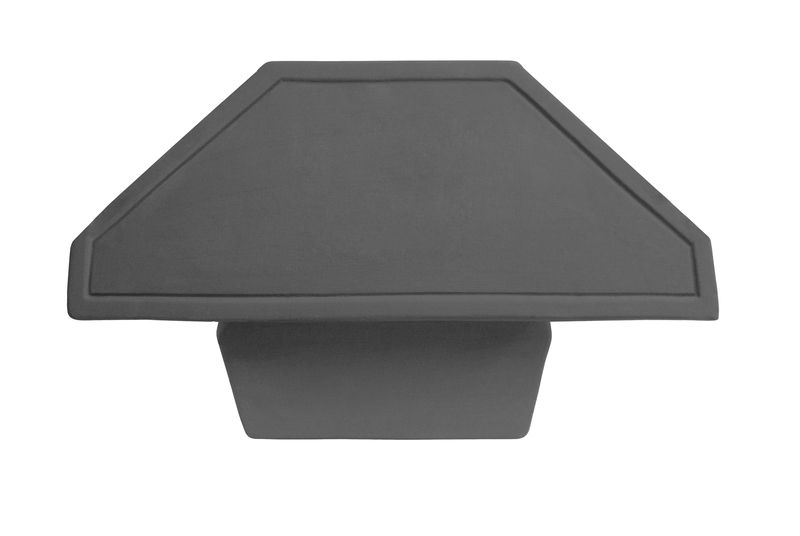

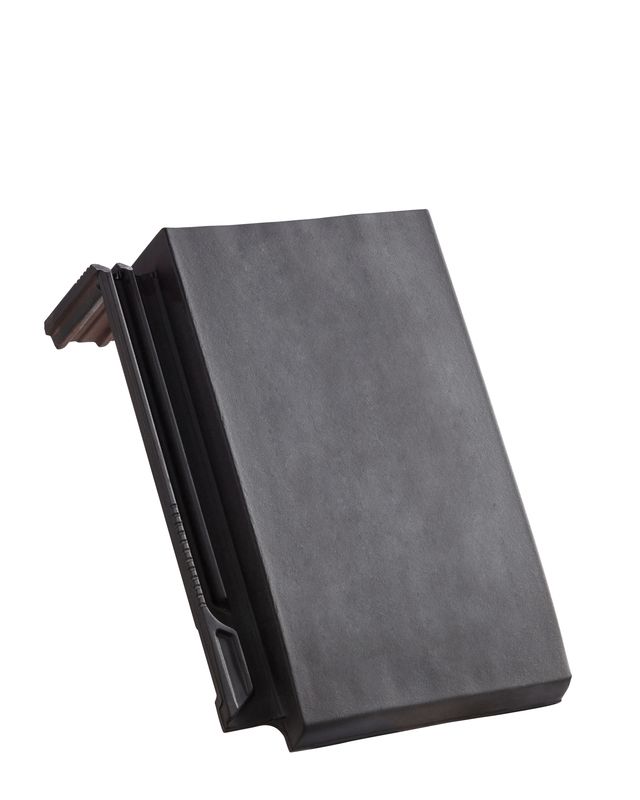

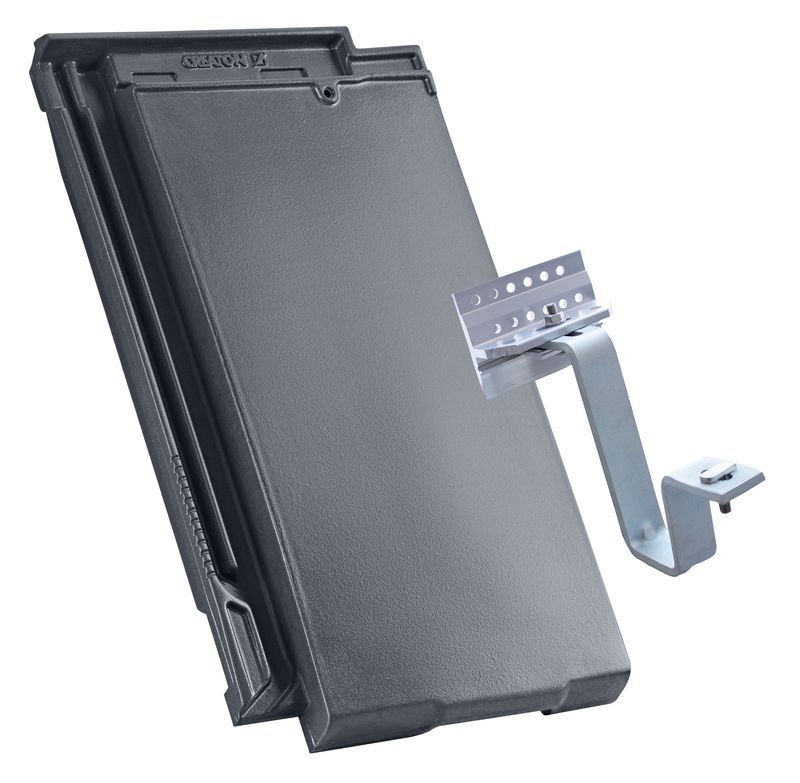

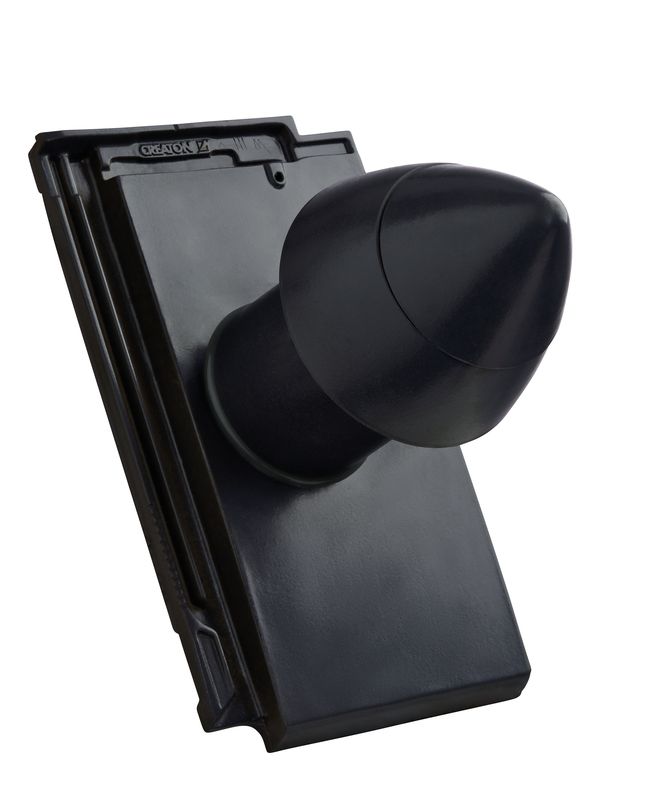

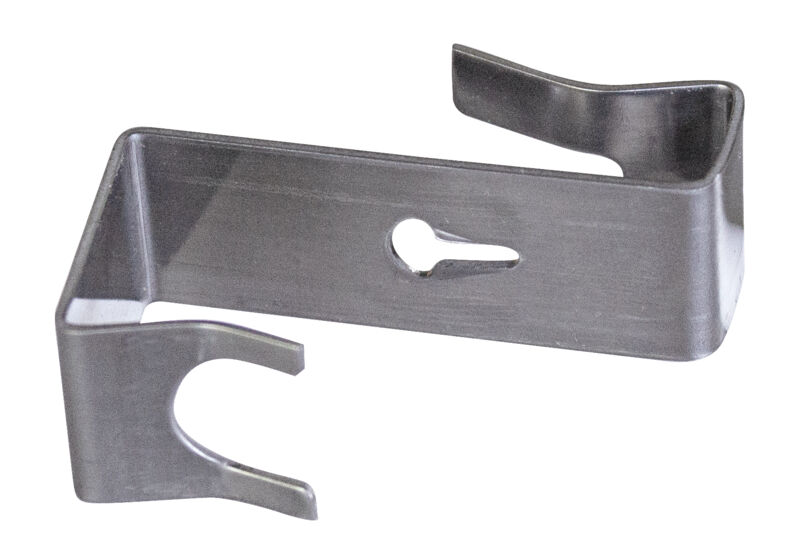

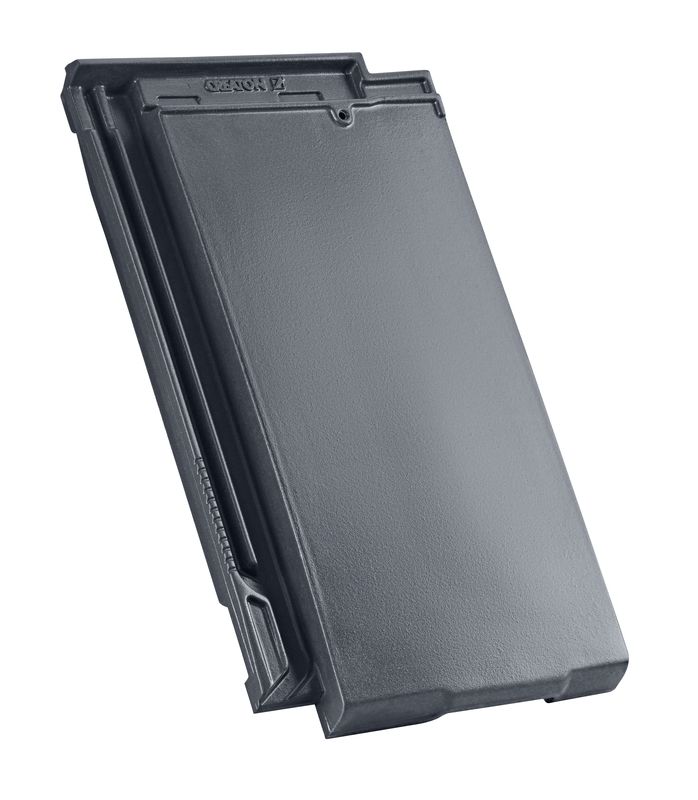

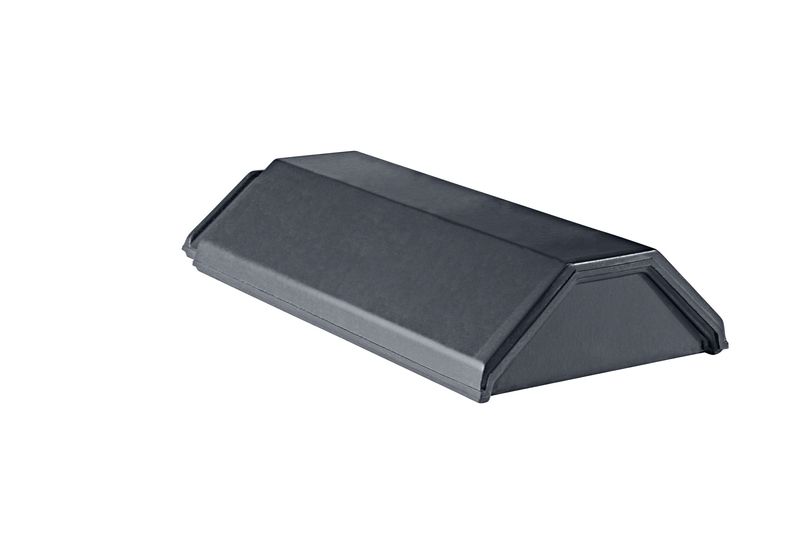

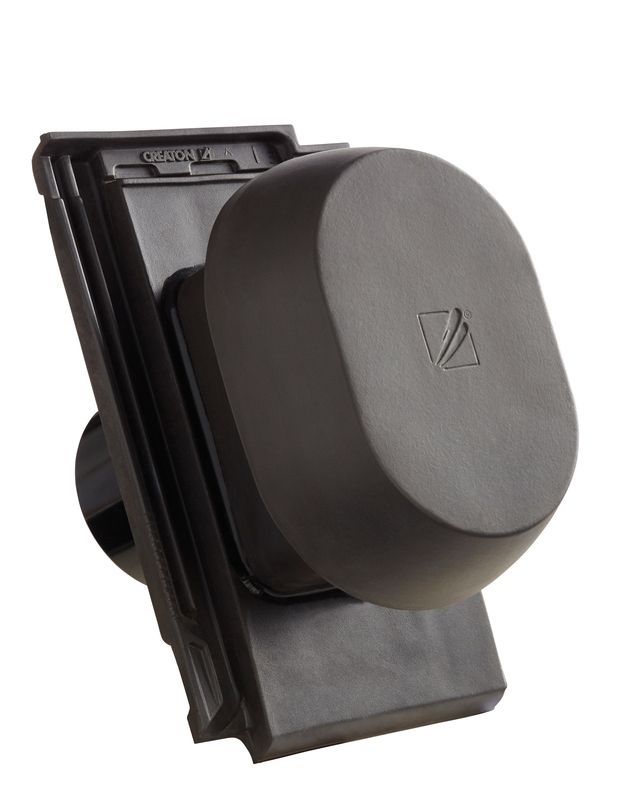

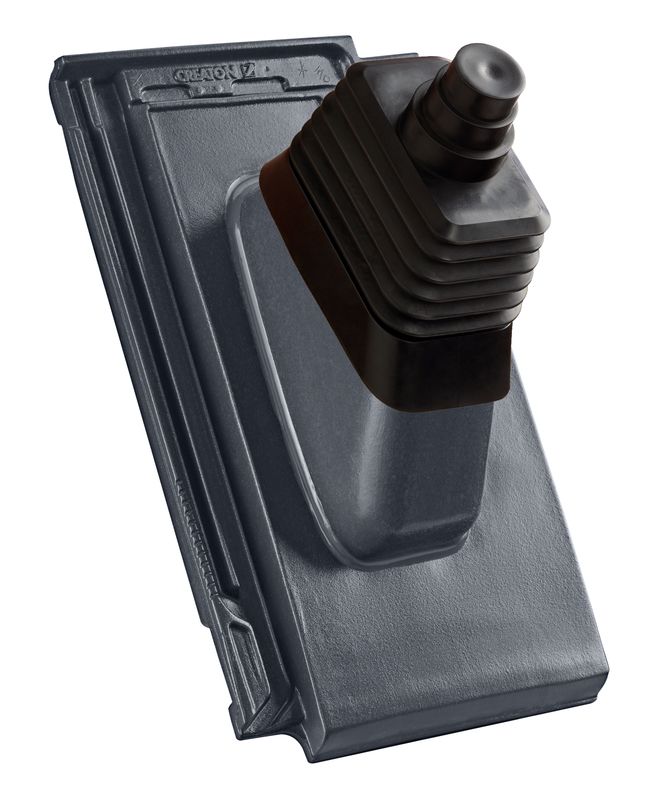

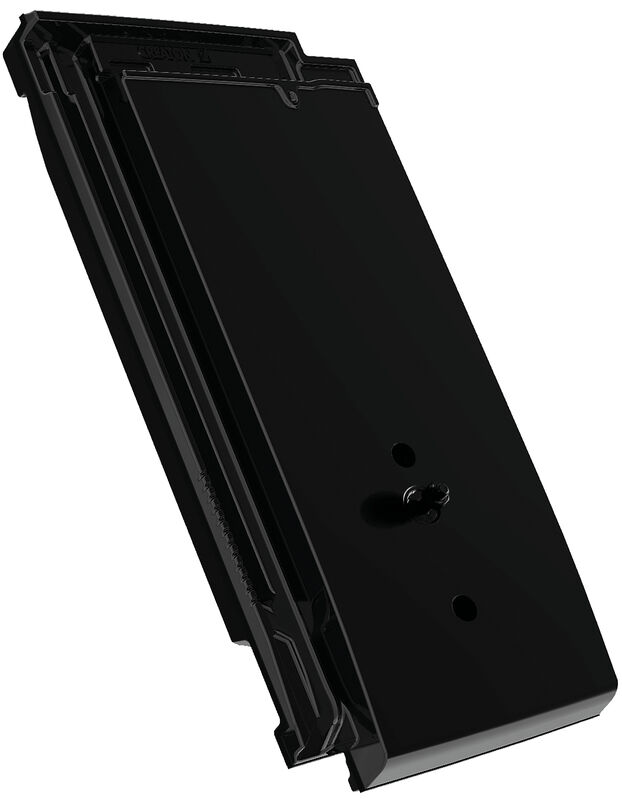

  • Extensive accessory range includes half verge tiles, which enable the half offset pattern to begin at the verge

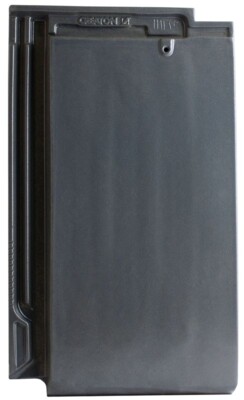

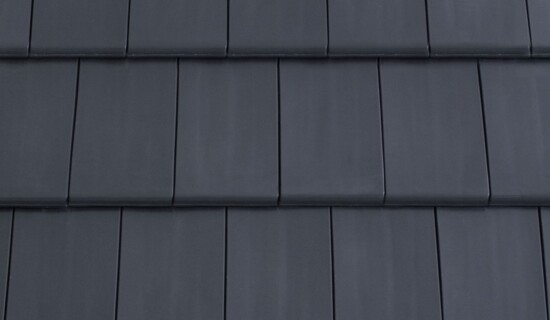

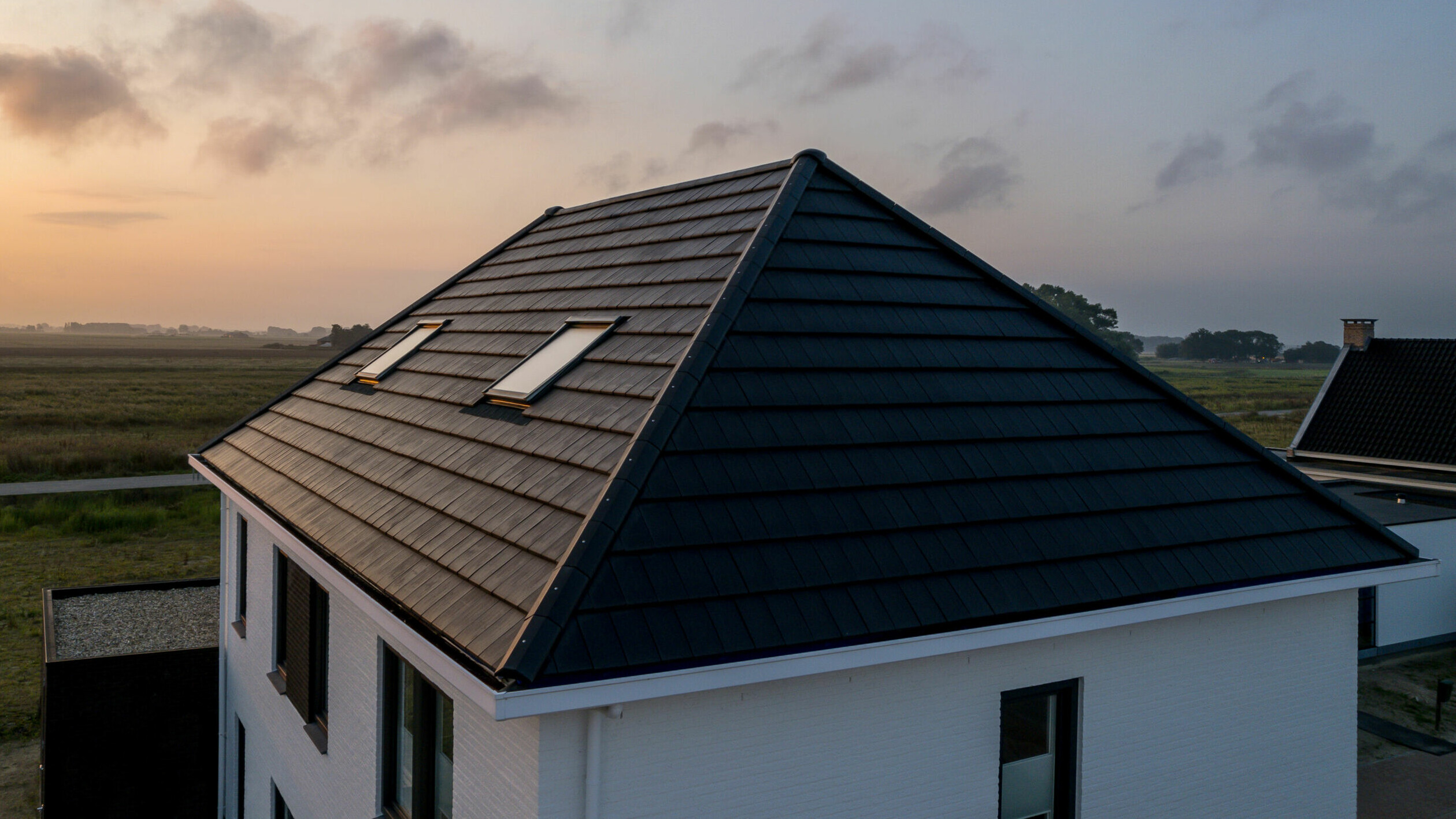

NUANCE slate grey engobed
NUANCE slate grey engobed

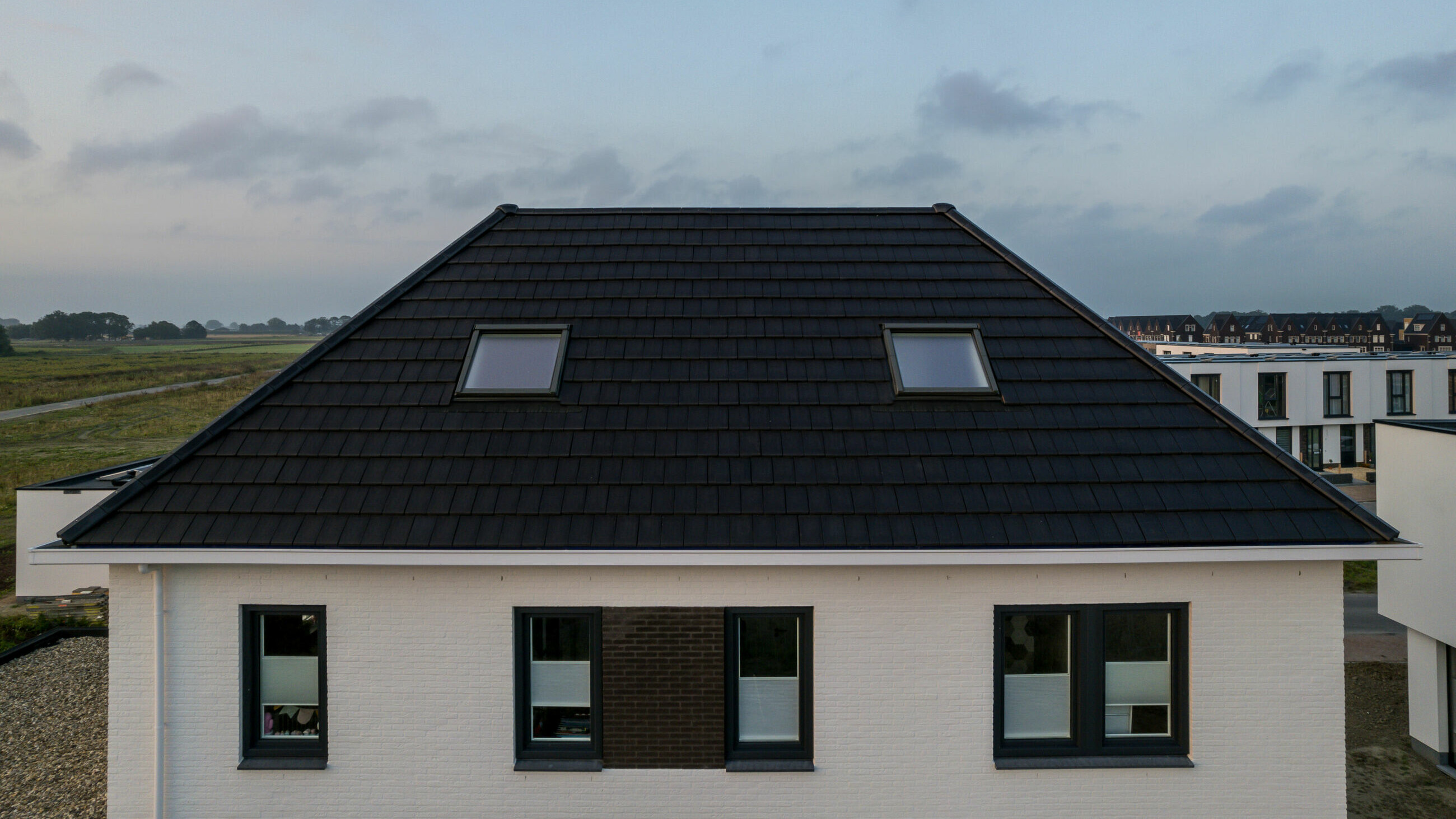

NUANCE black matt engobed
NUANCE black matt engobed

Technical data

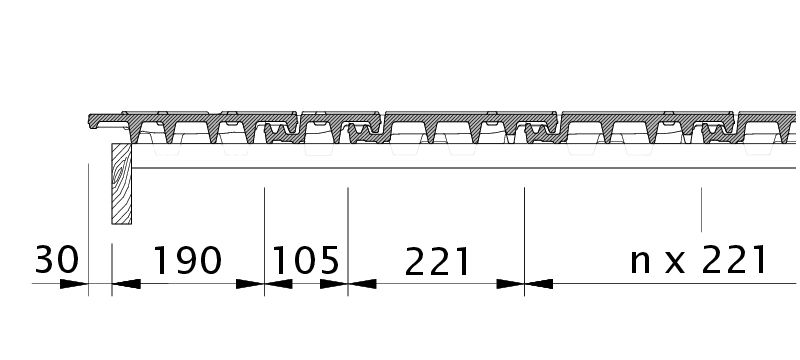

Size (appr.)265 x 450 mm
Covering width min. approx.220 mm
Covering width on av. approx.221 mm
Max. coverage width (approx.)222 mm
Min. gauge (approx.)350 mm
Covering length on av. approx.365 mm
Max. gauge (approx.)380 mm
Tile requirement min. (approx.)11.8 pcs/m²
Average tile requirement (approx.)12.4 pcs/m²
Brickware max. approx.13.0 pcs/m²
Unit weight (approx.)3.5 kg/piece
Weight per m² (approx.)43.4 kg/m²
Weight per pallet (approx.)865 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Pitch limit (Germany)
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

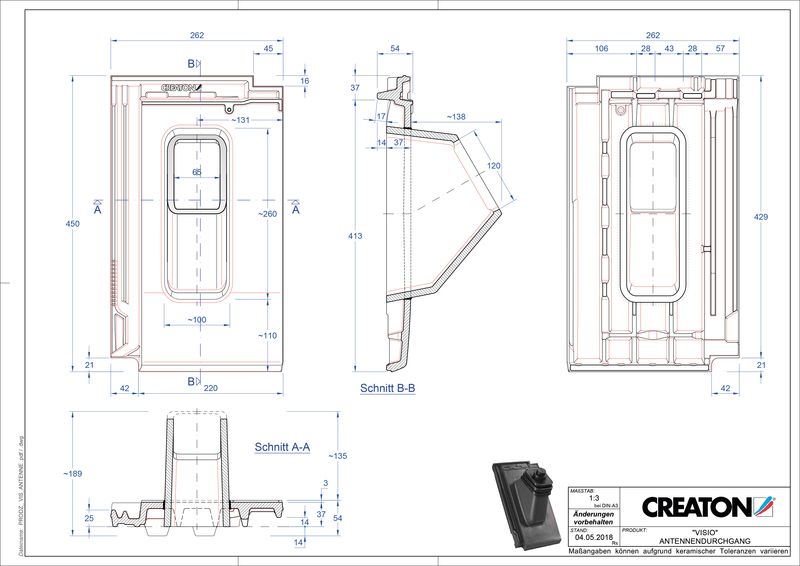

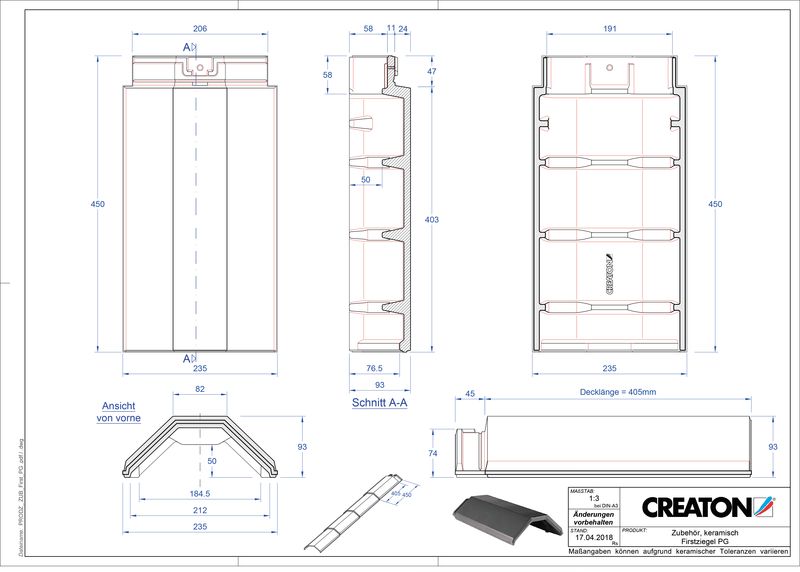

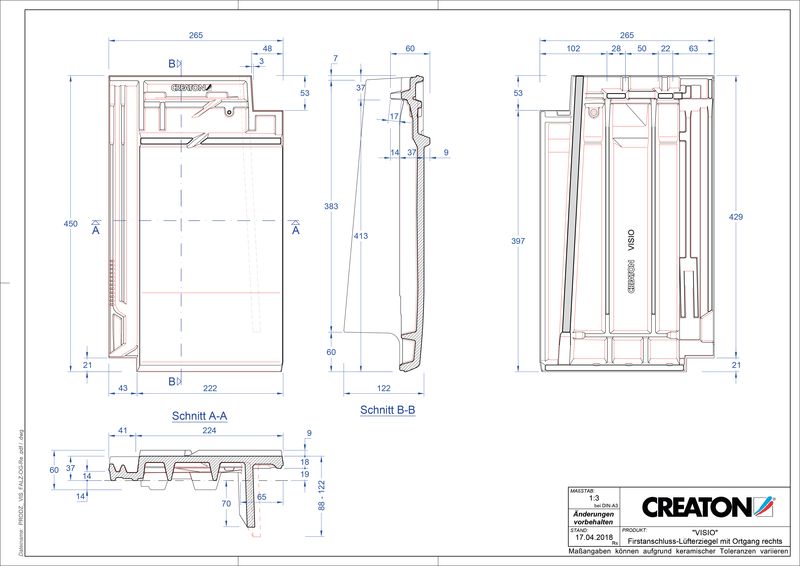

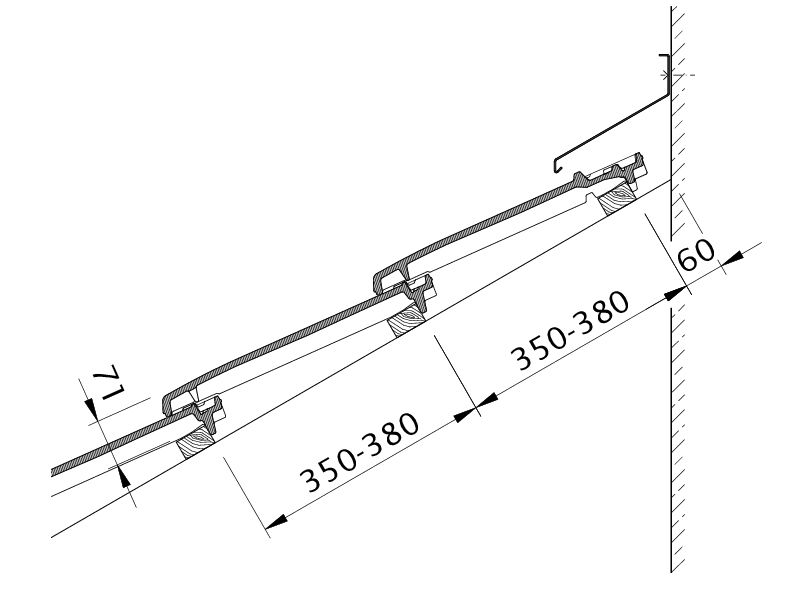

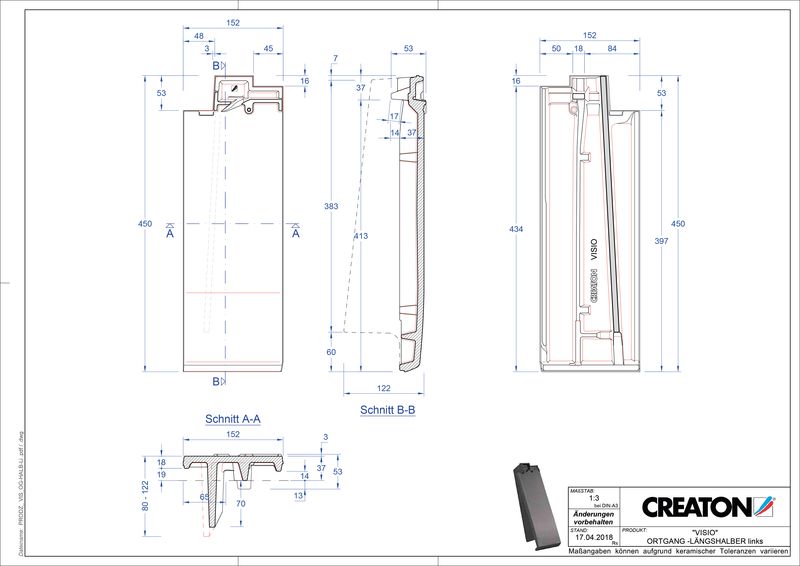

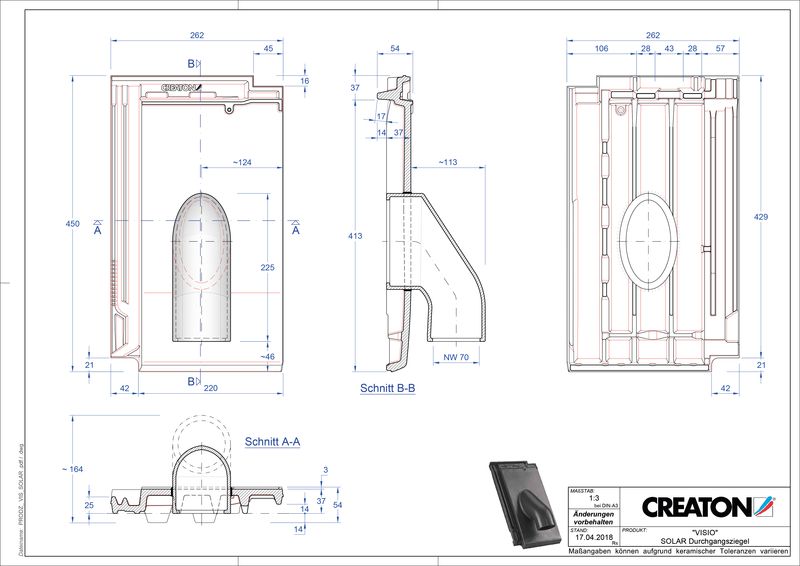

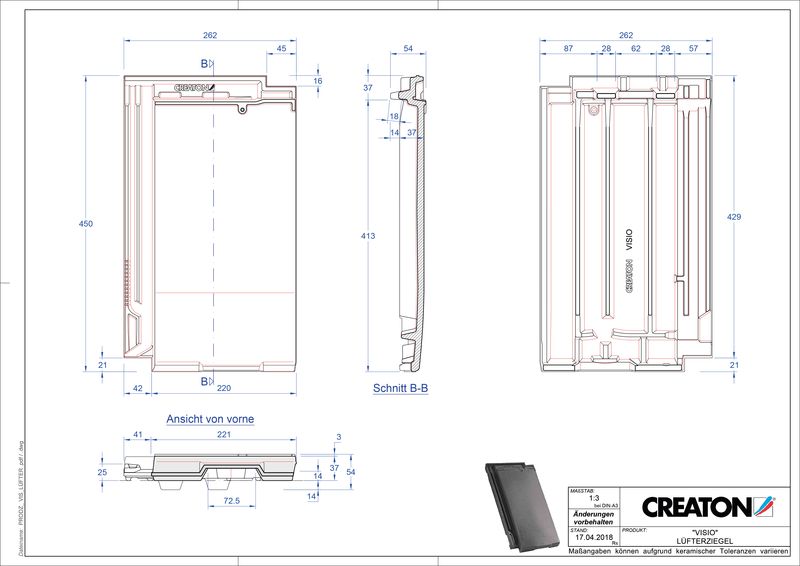

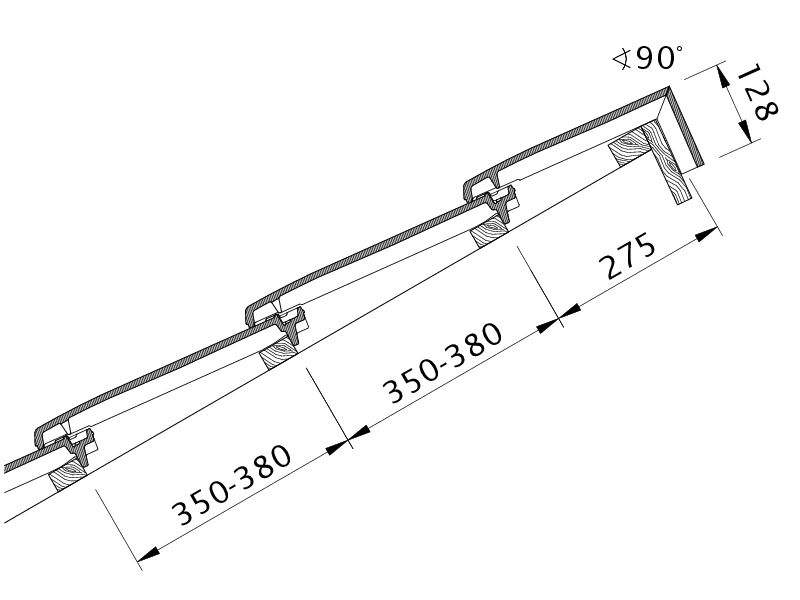

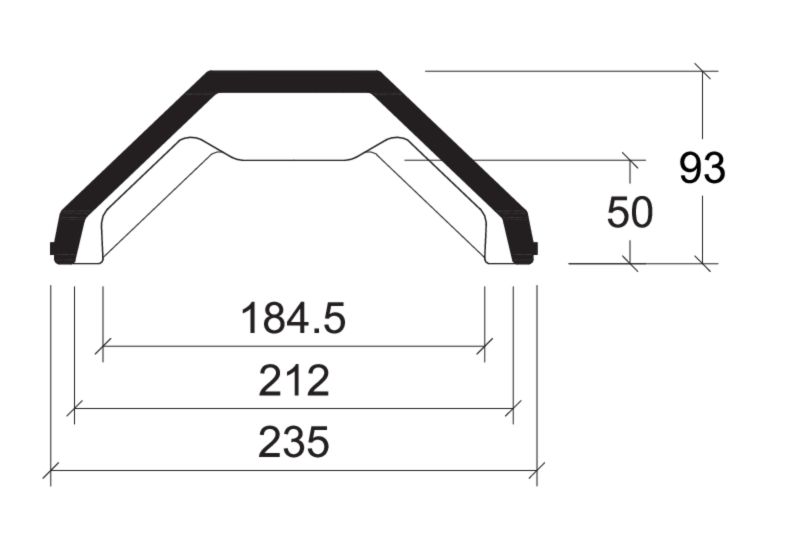

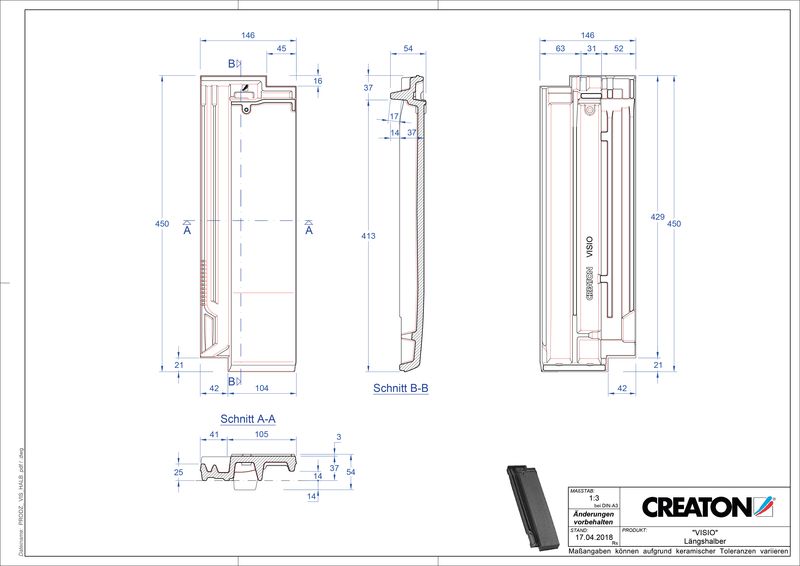

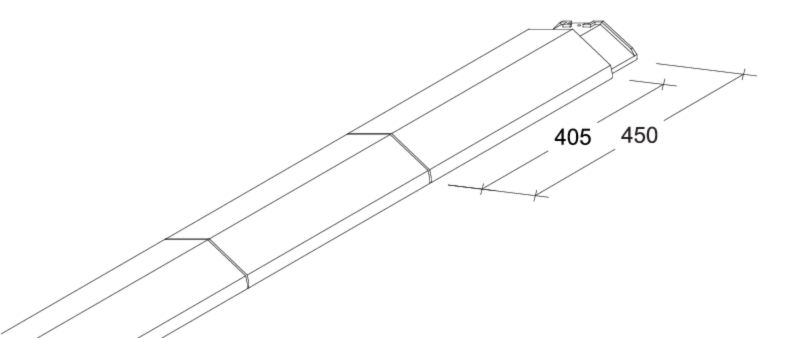

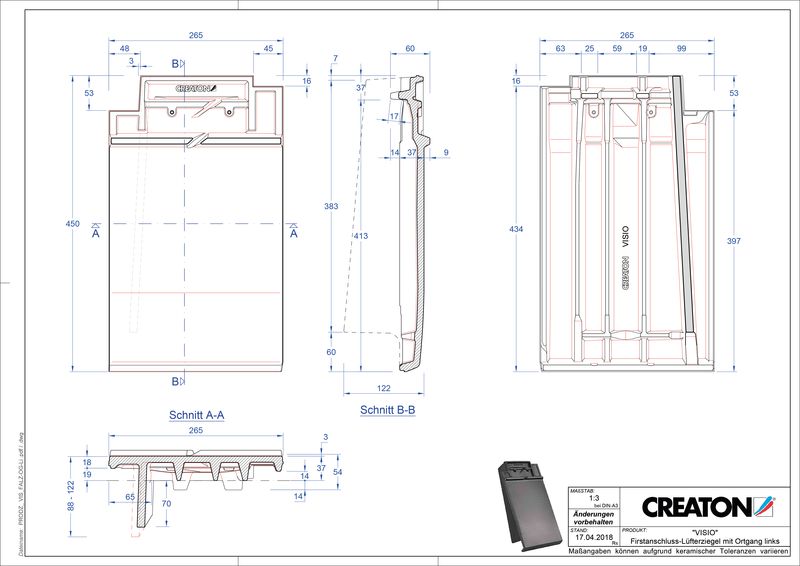

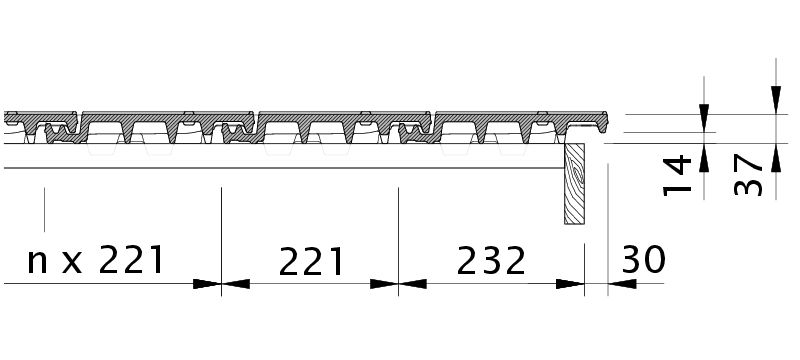

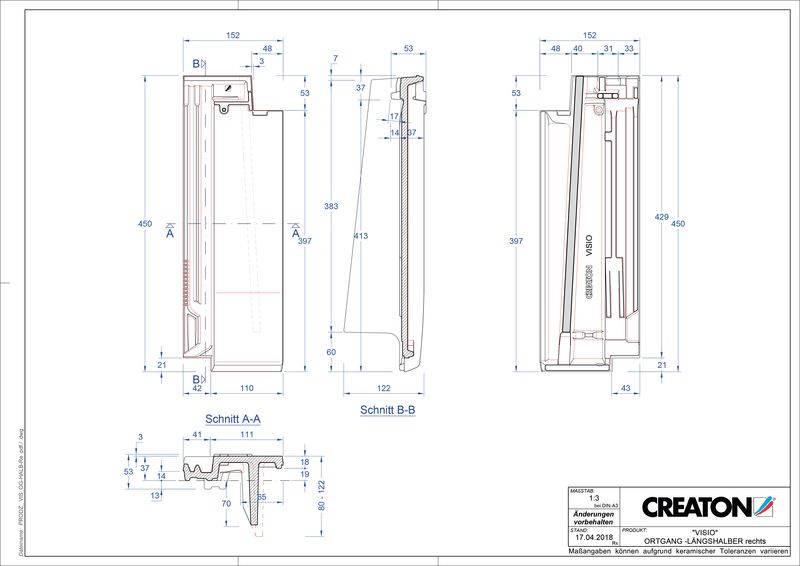

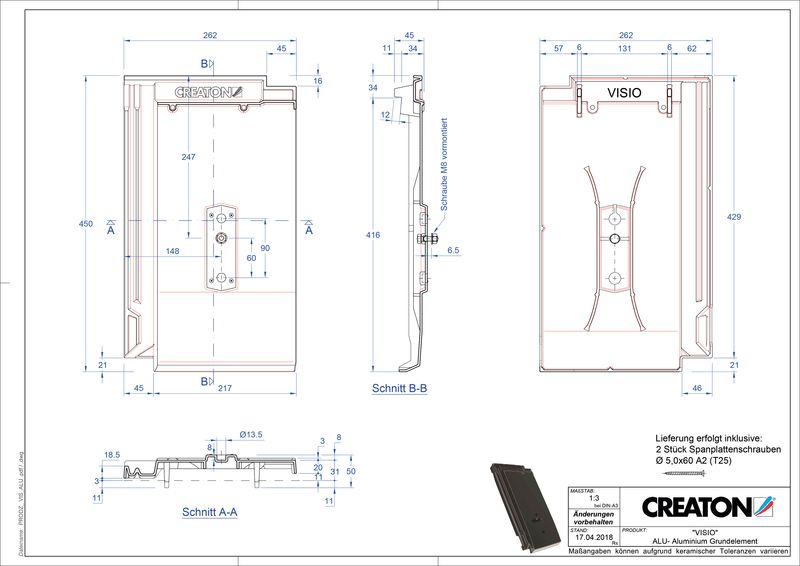

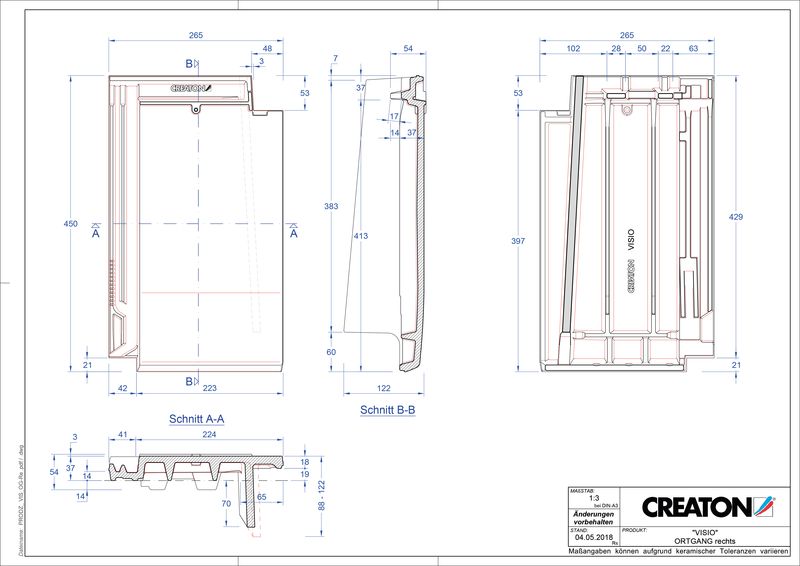

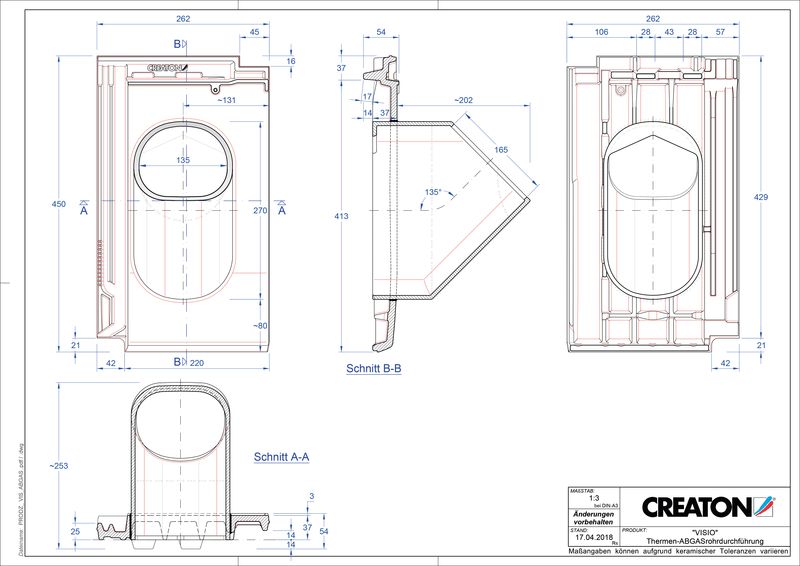

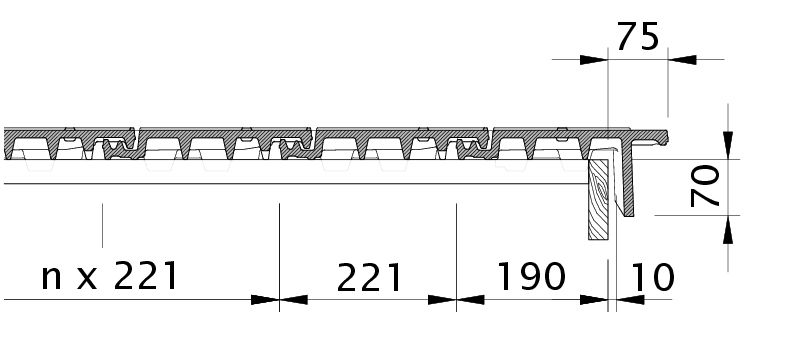

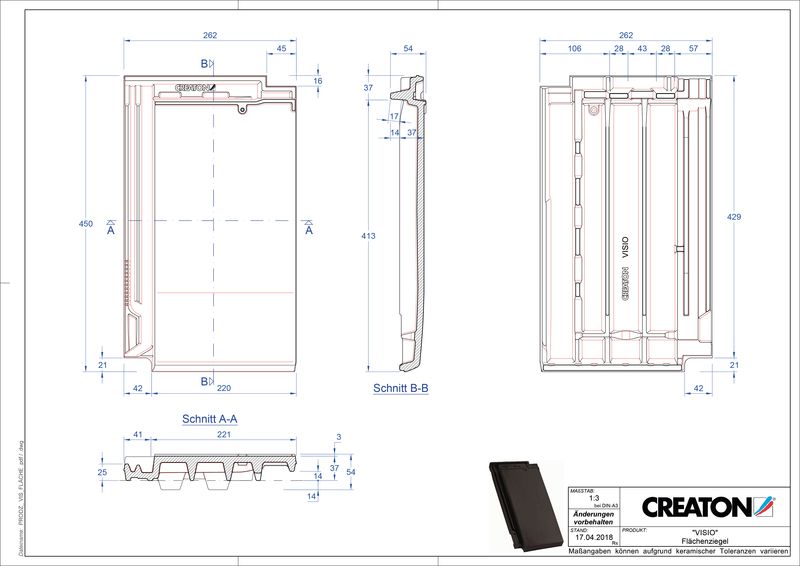

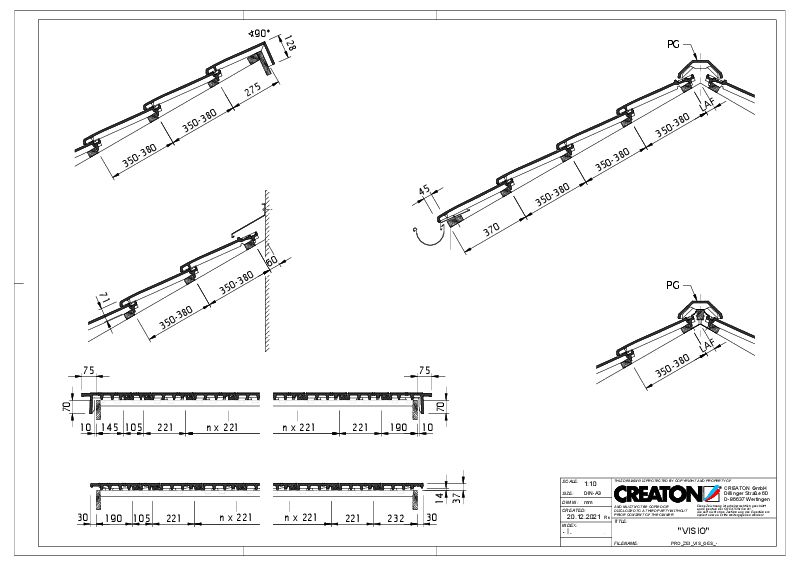

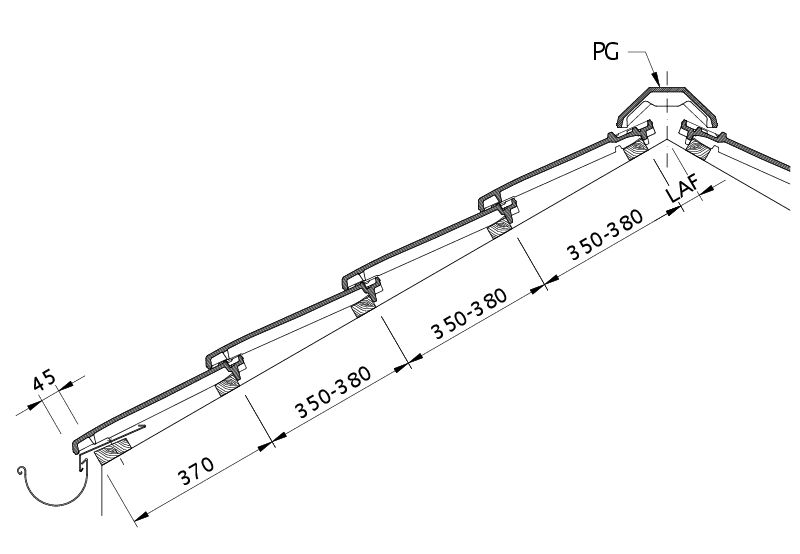

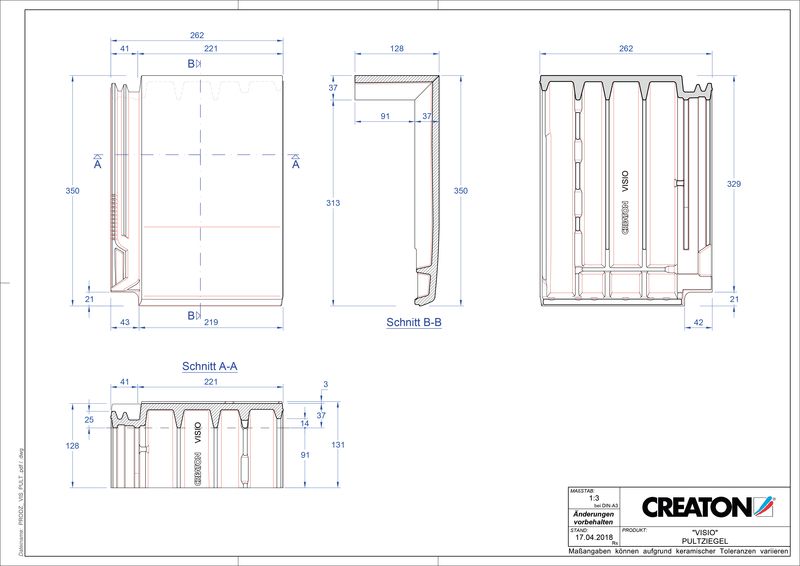

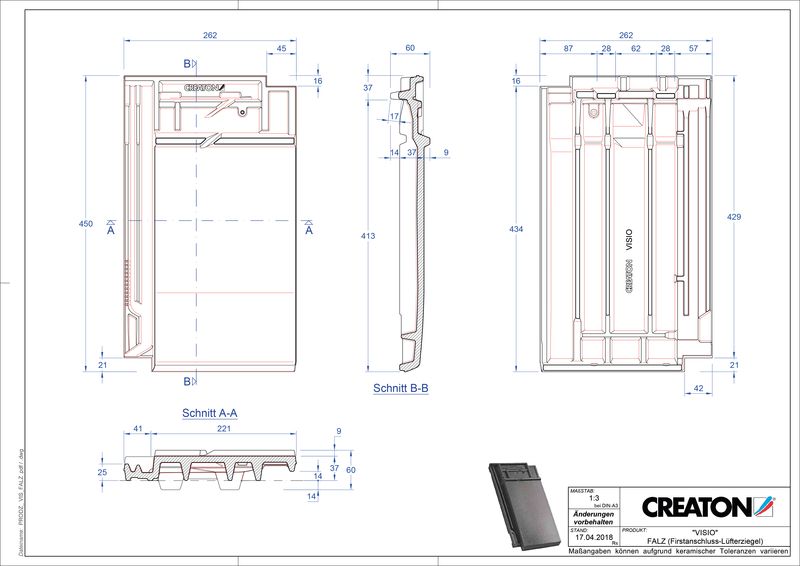

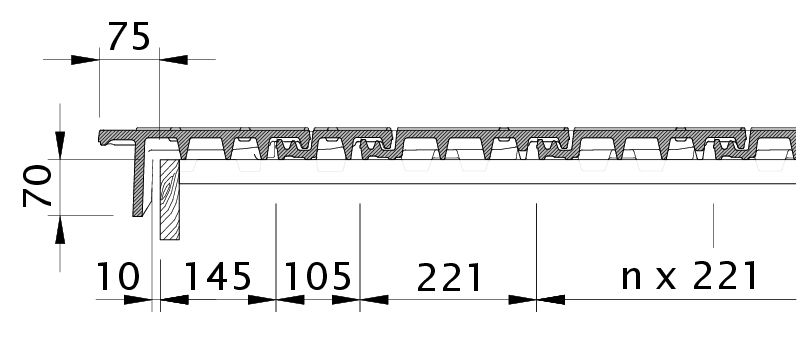

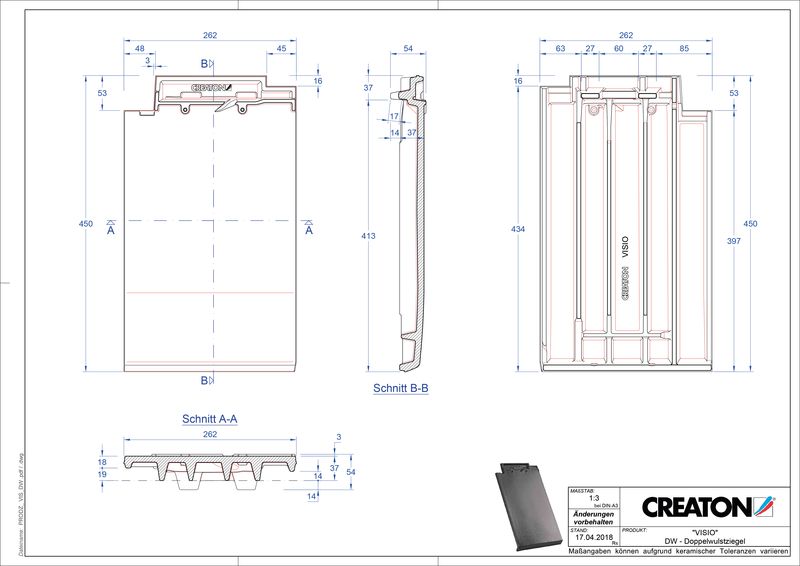

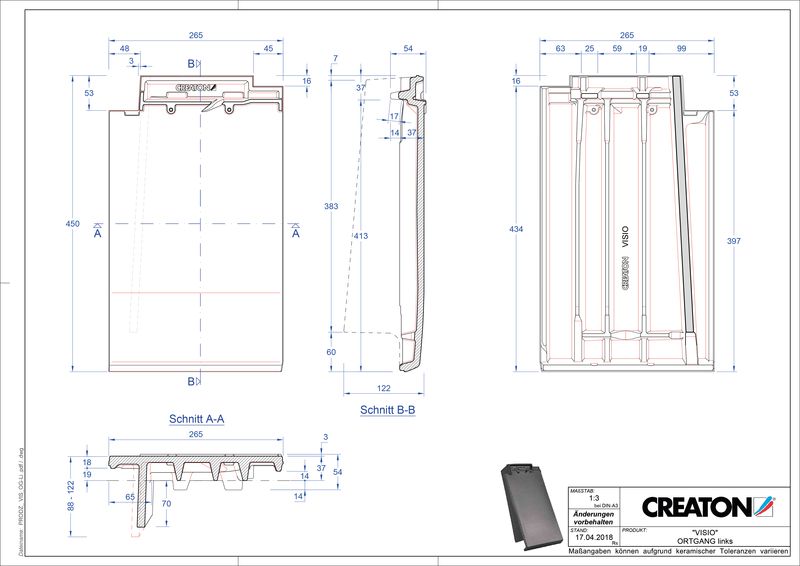

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Bitte berücksichtigen Sie das Musterschreiben für die Regeldachneigungen CREATON.

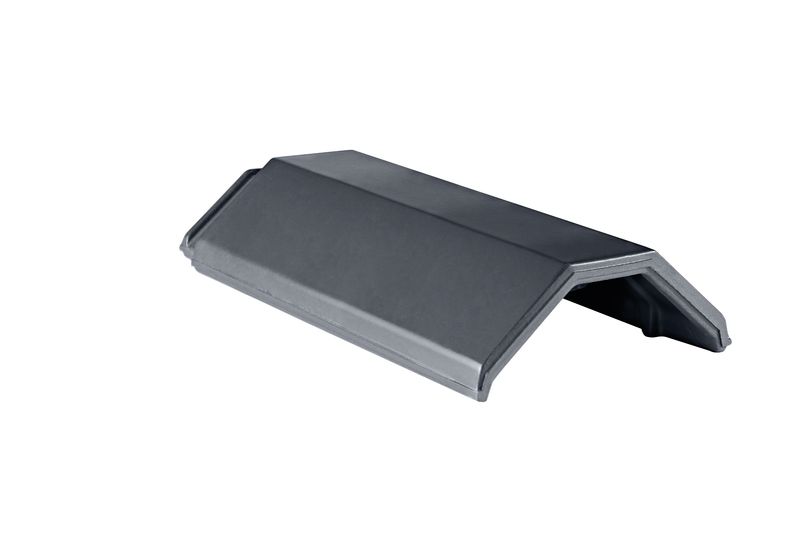

LAF-/FLA-VALUES

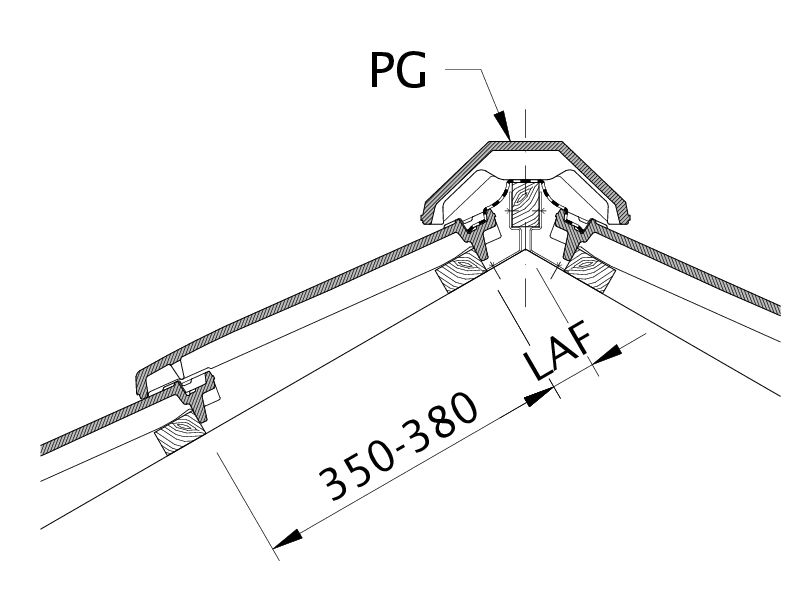

LAF-/FLA values in mm with FALZ for 30X50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PG 2.5 pcs/mLAF6560605550454040302020
LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PG 2.5 pcs/mFLA10095858070656055504040
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PG 2.5 pcs/mLAF65606050454035301555
PG 2.5 pcs/mFLA110105959080757065605050
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°
PG 2.5 pcs/mLAF60555545403025205
PG 2.5 pcs/mFLA1201151051009090858075
