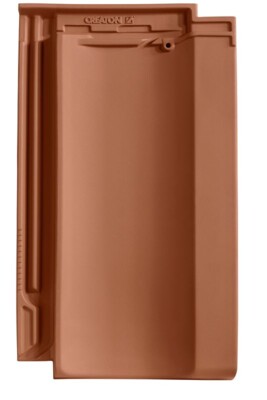

CANTUS NUANCE dark brown engobed

CANTUS

Sophisticated and coloured throughout.

  • Homogeneous tile body with a beautiful even colour thanks to the finest "KERALIS" raw materials and meticulous processing No more need to rework cut or damaged edges.
  • Very versatile and easy to install, thanks to a generous 38 mm adjustment range
  • Sophisticated interlock technology allows water to drain away effectively and protects against rain intrusion
  • The highest quality is guaranteed by the finest raw materials, our contact-free firing process in the flat firing cassette and on-going optimisation of the production process

In order to generally ensure the highest possible availability for you in the most important core products, we have decided to forego the production of isolated color and model combinations, at least temporarily. For the CANTUS model, the colors natural red and FINESSE wine red glazed are not available until further notice.

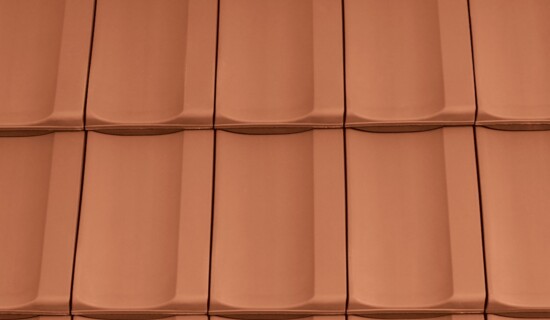

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed
FINESSE wine red glazed
FINESSE wine red glazed
FINESSE black glazed
FINESSE black glazed
NOBLESSE crystalline slate glazed
NOBLESSE crystalline slate glazed
NOBLESSE crystalline black glazed
NOBLESSE crystalline black glazed

Technical data

Size (appr.)265 x 450 mm
Covering width min. approx.222 mm
Covering width on av. approx.223 mm
Max. coverage width (approx.)224 mm
Min. gauge (approx.)348 mm
Covering length on av. approx.366 mm
Max. gauge (approx.)384 mm
Tile requirement min. (approx.)11.8 pcs/m²
Average tile requirement (approx.)12.3 pcs/m²
Brickware max. approx.12.9 pcs/m²
Unit weight (approx.)3.55 kg/piece
Weight per m² (approx.)44.4 kg/m²
Weight per pallet (approx.)877 kg
Pcs per mini-pack5 piece
Pcs per pallet240 piece

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

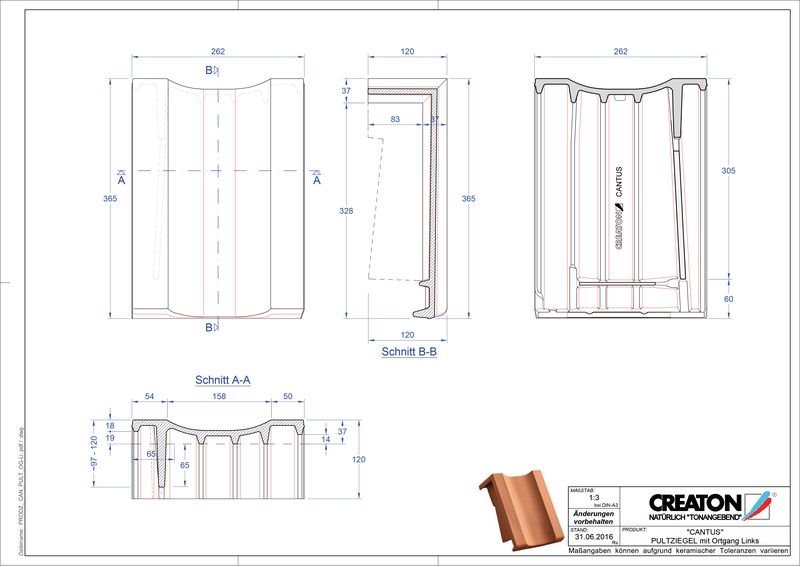

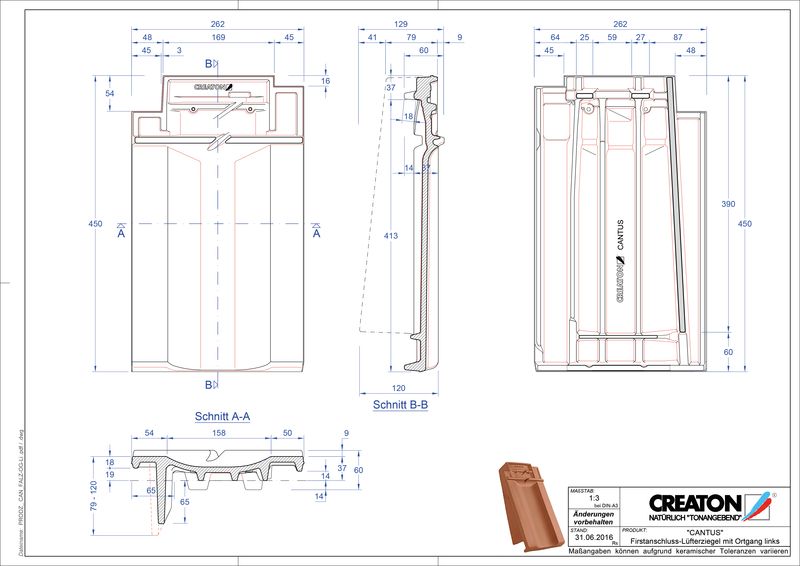

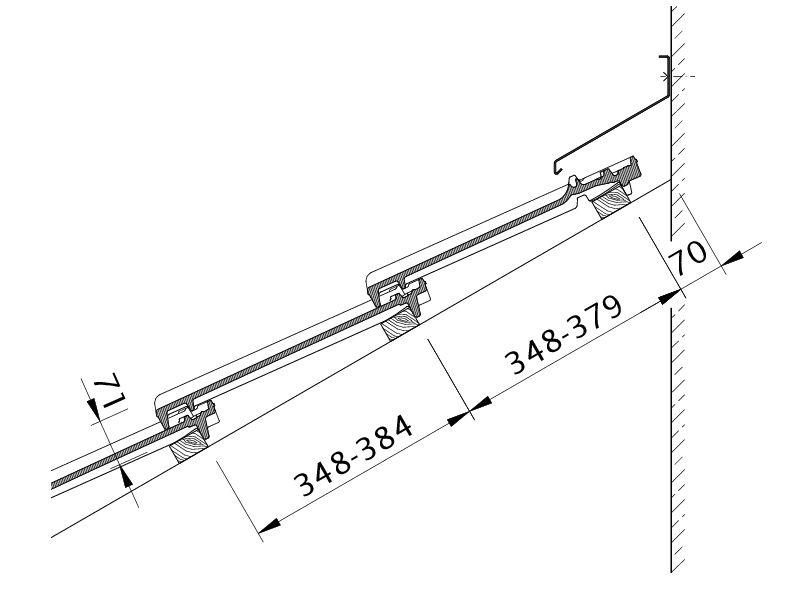

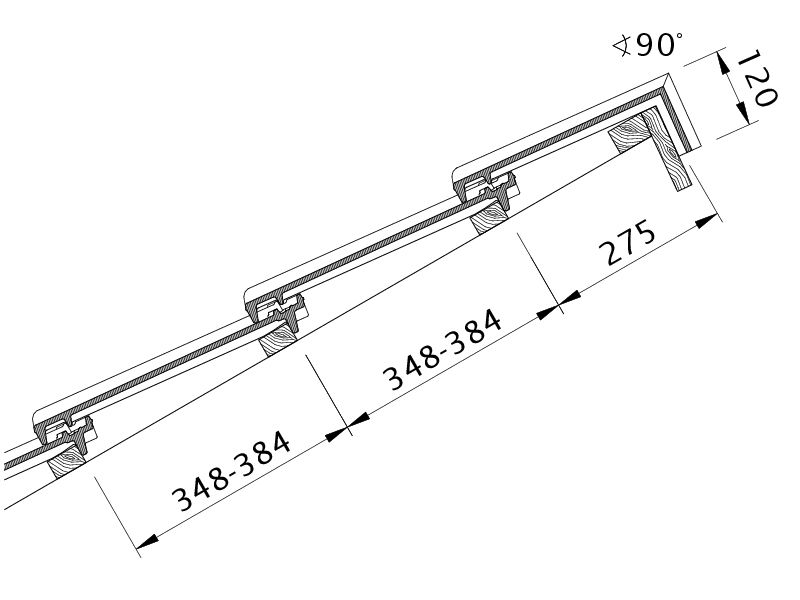

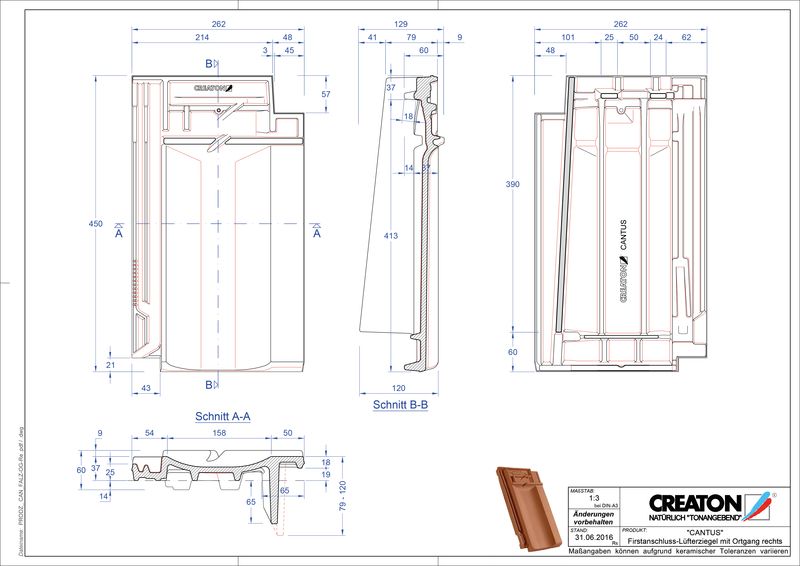

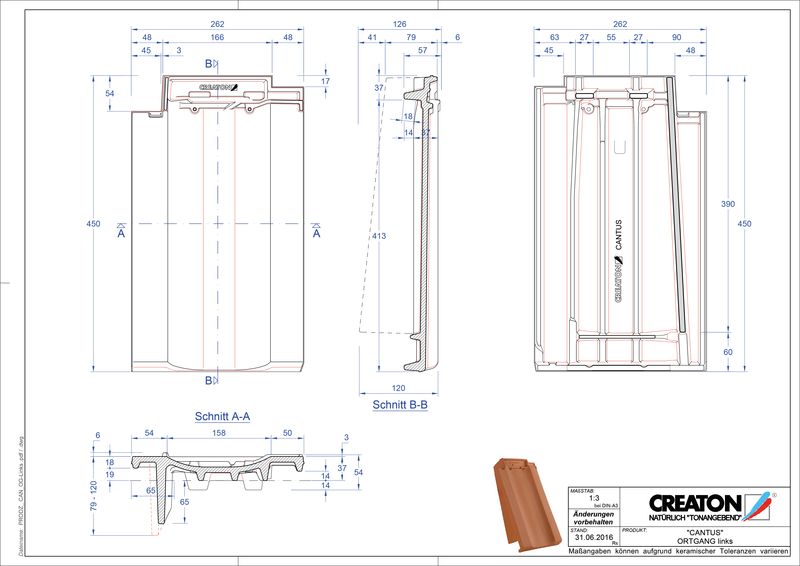

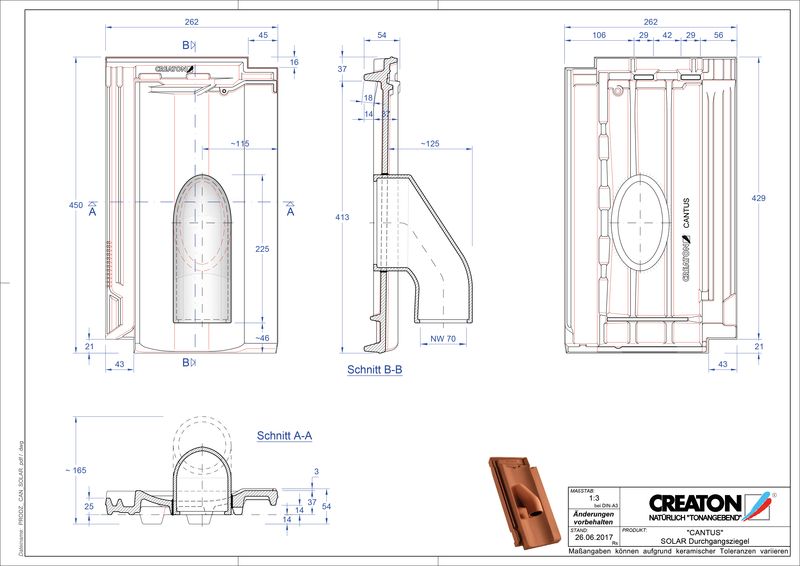

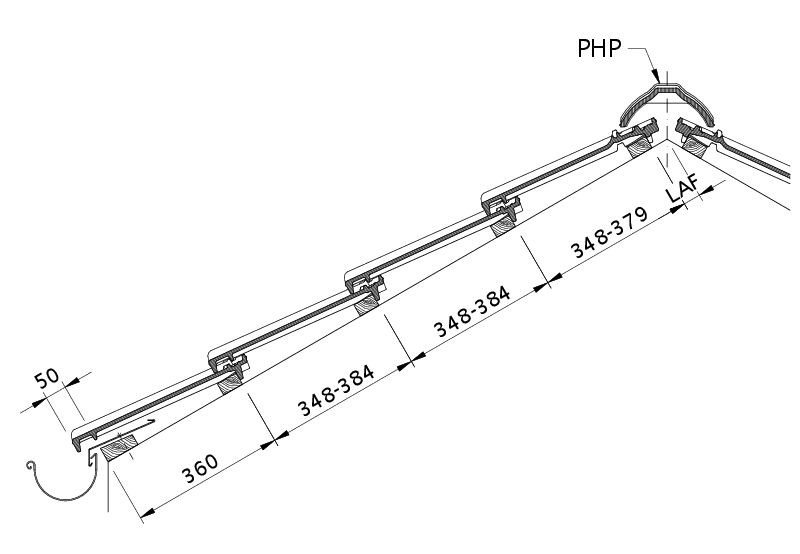

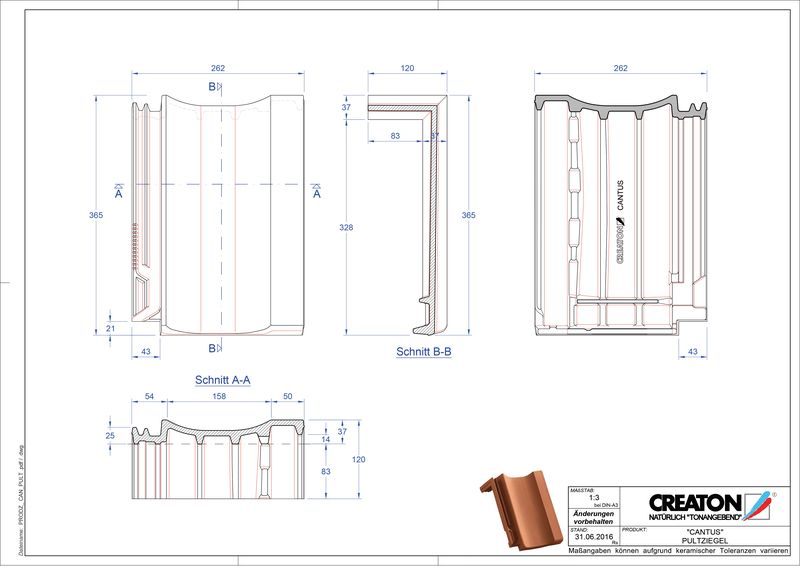

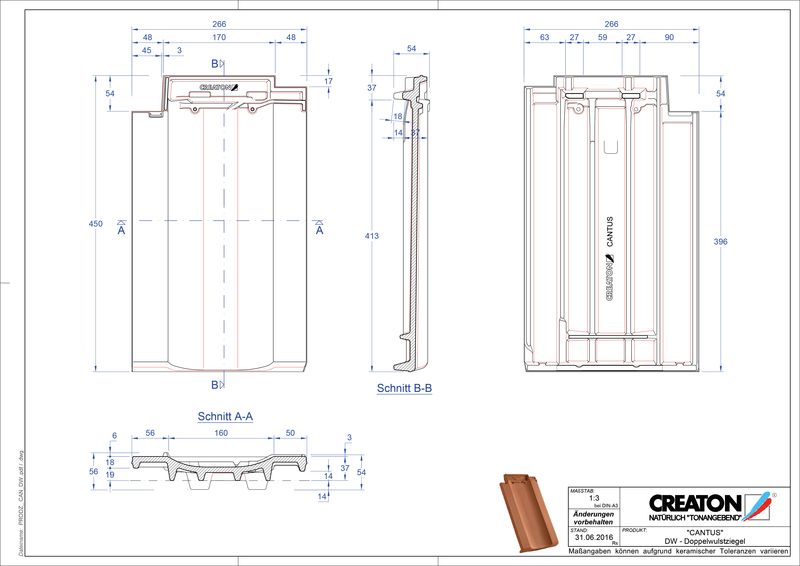

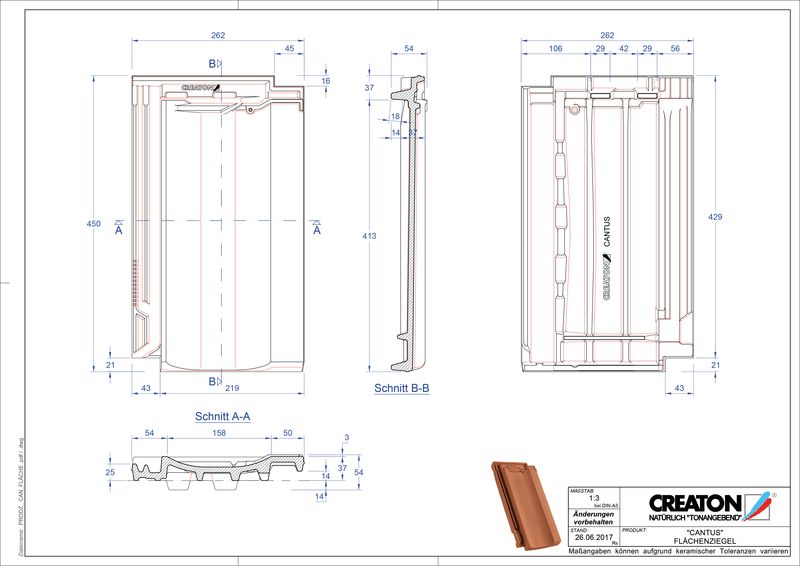

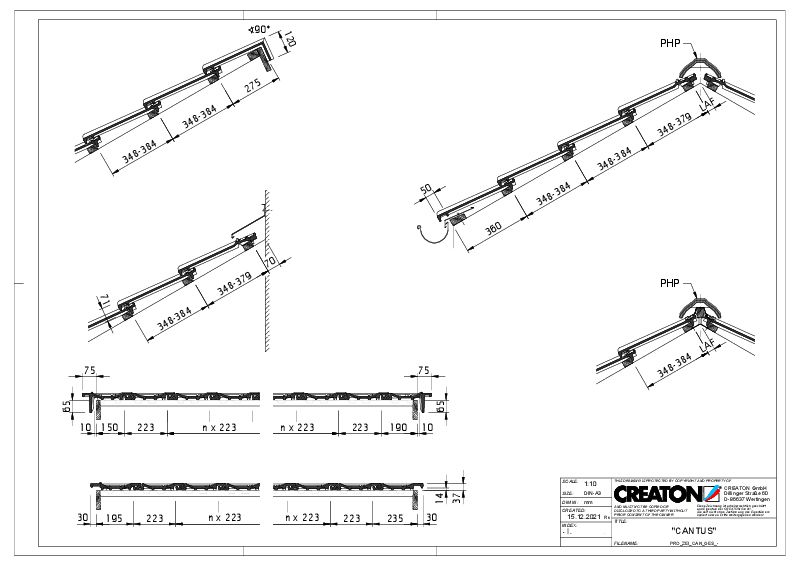

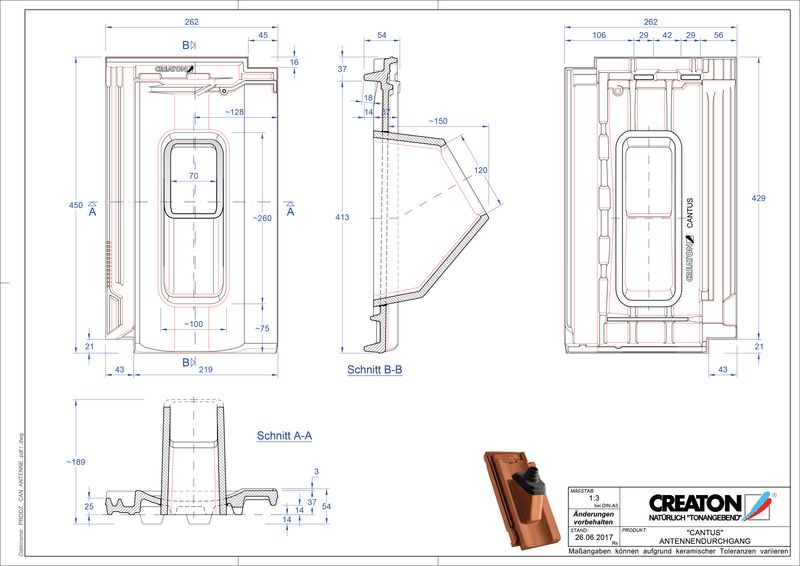

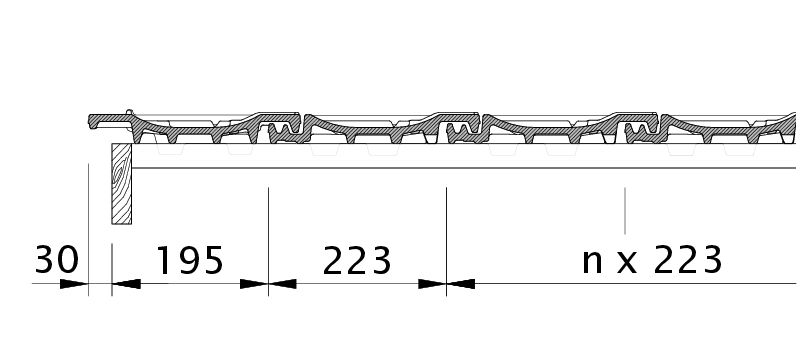

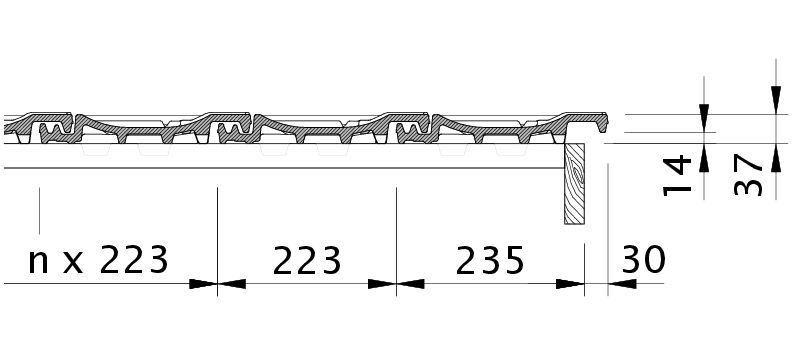

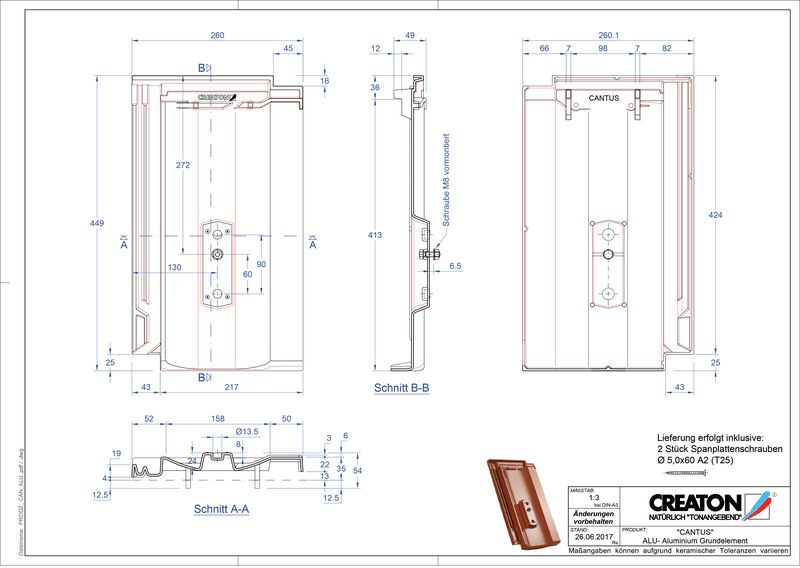

  • The technical drawing shown is merely an example.

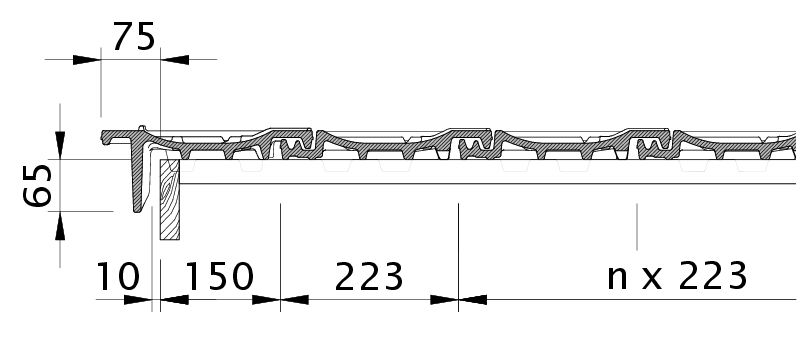

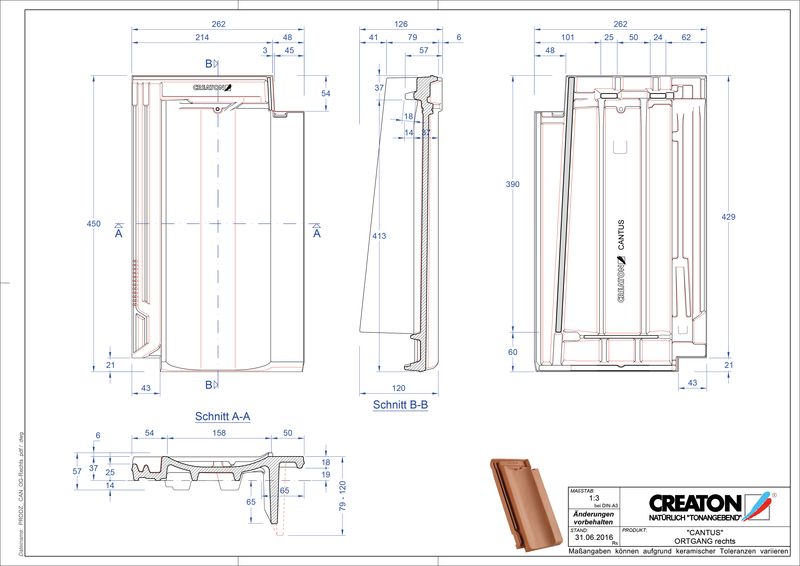

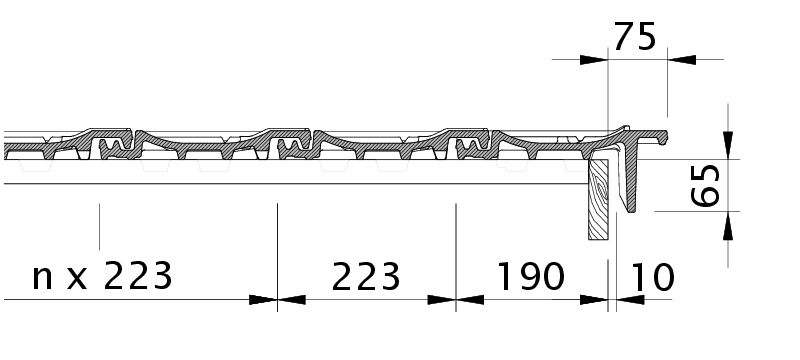

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

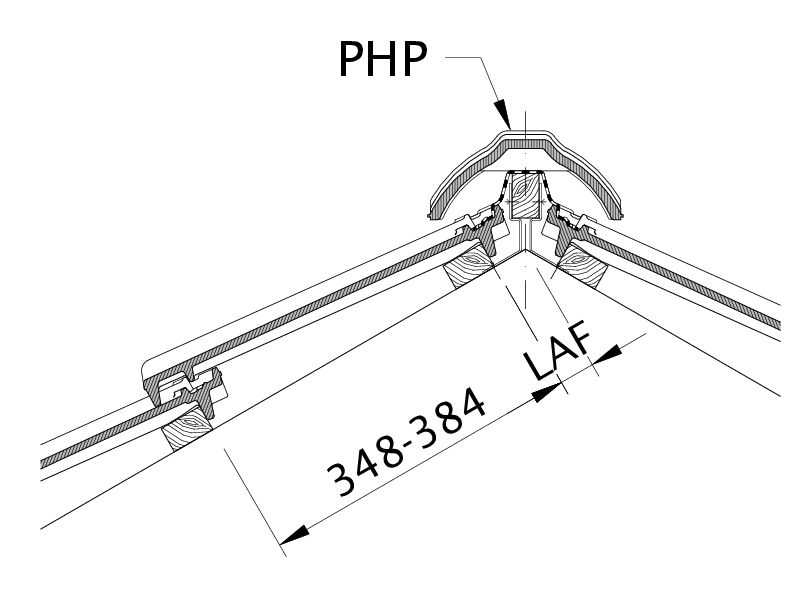

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.6 pcs/mLAF60555550403530201510
PHP 2.6 pcs/mFLA1101059590858075706560
PP 2.5 pcs/mLAF7065605550454035353020
PP 2.5 pcs/mFLA105100908580706560504545
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.6 pcs/mLAF60555545353025105
PHP 2.6 pcs/mFLA1201151051009590858075
PP 2.5 pcs/mLAF706560504540352520155
PP 2.5 pcs/mFLA1151101009590807570605555
