REGIUS NUANCE slate shade engobed

REGIUS

Tradition meets modernity.

  • Classic technically mature model from the traditional works in Autenried, Bavaria, Germany
  • Extremely versatile and easy to install, with an adjustment range of 21 mm, making it ideal for renovation projects
  • Its large format makes this tile especially cost-effective
  • Support ribs add robustness and channel away any condensed water
  • Labyrinth technology, with five specially-shaped protruding side ribs, prevents rainwater penetration, even in the fiercest storms
  • Can be used either in rows or in a bonded pattern

Note: For this model, a color change was made to the NUANCE slate grey. Further information can be found here: Product range info

natural red
natural red
NUANCE copper red engobed
NUANCE copper red engobed
NUANCE slate grey engobed
NUANCE slate grey engobed
NUANCE black matt engobed
NUANCE black matt engobed

Technical data

Size (appr.)295 x 475 mm
Covering width min. approx.254 mm
Covering width on av. approx.255 mm
Max. coverage width (approx.)256 mm
Min. gauge (approx.)392 mm
Covering length on av. approx.402 mm
Max. gauge (approx.)412 mm
Tile requirement min. (approx.)9.3 pcs/m²
Average tile requirement (approx.)9.6 pcs/m²
Brickware max. approx.9.9 pcs/m²
Unit weight (approx.)4.3 kg/piece
Weight per m² (approx.)40 kg/m²
Weight per pallet (approx.)975 kg
Pcs per mini-pack4 piece
Pcs per pallet224 piece

Technical drawings

Drawing REGIUS roof cross-section DQF
Drawing REGIUS roof cross-section DQF
Drawing REGIUS verge tile left with barge board OBL
Drawing REGIUS verge tile left with barge board OBL
Drawing REGIUS verge tile right with barge board OBR
Drawing REGIUS verge tile right with barge board OBR
Drawing REGIUS verge left with verge sheet metal and double roll ODL
Drawing REGIUS verge left with verge sheet metal and double roll ODL
Drawing REGIUS verge right with verge sheet metal and field tile OFR
Drawing REGIUS verge right with verge sheet metal and field tile OFR
Drawing REGIUS shed roof version PDA
Drawing REGIUS shed roof version PDA
Drawing REGIUS wall connection (above) with FALZ WMF
Drawing REGIUS wall connection (above) with FALZ WMF
Drawing REGIUS distance from batten to ridge intersection point, ridge batten spacing LAF
Drawing REGIUS distance from batten to ridge intersection point, ridge batten spacing LAF

Applications

Additional measures according to CREATON manufacturer's specifications
18 °Standard roof pitch CREATON DE in combination with additional measures according to manufacturer's specificationsStandard roof pitch CREATON DE in combination with additional measures according to manufacturer's specifications
≥ 18 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 16 °Installation of a trussing sheet/glued sub-roof without nail seals, possible CREATON products: DUO longlife ND extra
≥ 16 °Installation of a trussing sheet/glued sub-roof with nail seals, possible CREATON products: DUO extra, DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 14 °Installation as a rainproof sub-roof, possible CREATON products: DUO longlife ND extra, TRIO extra, QUATTRO longlife extra
≥ 10 °Installation as a watertight sub-roof, possible CREATON products: QUATTRO longlife extra
- Installation as a watertight sub-roof welded in a 7° special solution, please observe separate installation guidelines, possible CREATON products: QUATTRO longlife extra

Technical informations

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Please consider the sample letter for the standard CREATON roof pitches.

LAF-/FLA-VALUES

LAF-/FLA values in mm with FALZ for 30x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PA 2.4 pcs/mLAF8580757570706565656055
PA 2.4 pcs/mFLA10595857565554535302520
PF 2.5 pcs/mLAF959085757570706560
PF 2.5 pcs/mFLA1009080655545352520
LAF-/FLA values in mm with FALZ for 40x60-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PA 2.4 pcs/mLAF8580757065656055504540
PA 2.4 pcs/mFLA115105958575655545403530
PF 2.5 pcs/mLAF959085757570706560
PF 2.5 pcs/mFLA11010090756555453530
LAF-/FLA values in mm with FALZ for 50x50-battens
requirement ridgetile (approx.)DN10°15°20°25°30°35°40°45°50°55°60°
PA 2.4 pcs/mLAF8075706560555045403530
PA 2.4 pcs/mFLA1251151059585807060605540
PF 2.5 pcs/mLAF908580707060605550
PF 2.5 pcs/mFLA120110100857570605050

Accessory range

MAG half-width tile

MAG half-width tile

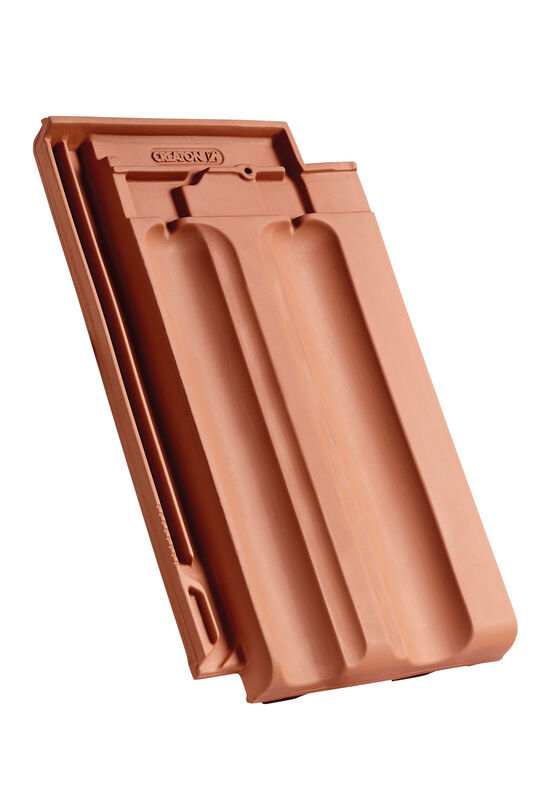

MAG verge tile right

MAG verge tile right

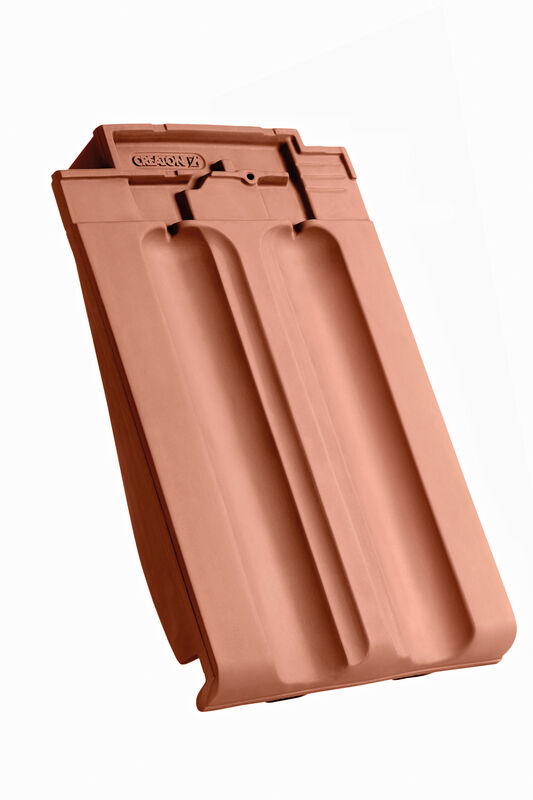

MAG verge tile left

MAG verge tile left

MAG double roll tile

MAG double roll tile

MAG ventilating tile

MAG ventilating tile

MAG ridge connection ventilating tile

MAG ridge connection ventilating tile

MAG ridge connection ventilating half-width tile

MAG ridge connection ventilating half-width tile

MAG ridge connection ventilating verge tile right

MAG ridge connection ventilating verge tile right

MAG ridge connection ventilating verge tile left

MAG ridge connection ventilating verge tile left

MAG ridge connection ventilating double roll tile

MAG ridge connection ventilating double roll tile

MAG shed roof tile decorated standard

MAG shed roof tile decorated standard

MAG shed roof verge tile decorated standard right

MAG shed roof verge tile decorated standard right

MAG shed roof verge tile decorated standard left

MAG shed roof verge tile decorated standard left

MAG shed half-width tile decorated standard

MAG shed half-width tile decorated standard

MAG shed roof tile decorated special size

MAG shed roof tile decorated special size

MAG shed roof verge tile decorated special size right

MAG shed roof verge tile decorated special size right

MAG shed roof verge tile decorated special size left

MAG shed roof verge tile decorated special size left

MAG mansard/pitch transition tile decorated special size

MAG mansard/pitch transition tile decorated special size

MAG mansard/pitch transition verge tile decorated special size right

MAG mansard/pitch transition verge tile decorated special size right

MAG mansard/pitch transition verge tile decorated special size left

MAG mansard/pitch transition verge tile decorated special size left

Product range for roof ventilation and penetrations

REG SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

REG SIGNUM ceramic vent pipe DN 110 mm with screw-on hood, incl. sub-roof connection adapter

REG SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

REG SIGNUM ceramic vent pipe DN 125 mm with screw-on hood, incl. sub-roof connection adapter

REG SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

REG SIGNUM ceramic vapour vent DN 160 mm, incl. sub-roof connection adapter

MAG SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MAG SIGNUM ceramic vapour vent DN 200 mm, incl. sub-roof connection adapter

MAG aerial entry

MAG aerial entry

MAG solar entry tile

MAG solar entry tile

REG flue pipe penetration NW 110/125

REG flue pipe penetration NW 110/125

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Universal flexible duct DN 200

Universal flexible duct DN 200

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 13.5

Universal sub-roof connection adapter NW 20

Universal sub-roof connection adapter NW 20

Universal flexible duct DN 150/160

Universal flexible duct DN 150/160

Metal product range for snow protection, roof access and solar installation

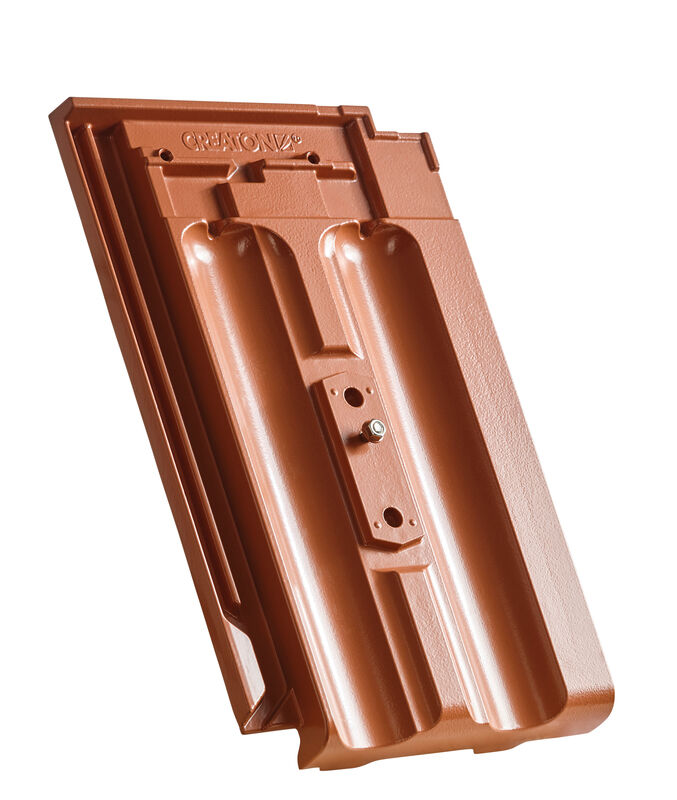

MAG aluminium base element

MAG aluminium base element

Solar element bracket GRUEL standard (clay)

Solar element bracket GRUEL standard (clay)

REG solar system bracket kit for plank installation

REG solar system bracket kit for plank installation

REG solar system bracket kit for rafter installation

REG solar system bracket kit for rafter installation

Single tread

Single tread

Short grid

Short grid

Long grating

Long grating

Log bracket

Log bracket

Mountain snow guard pipe support

Mountain snow guard pipe support

Mountain snow guard pipe Ø 40 mm, length 3 m

Mountain snow guard pipe Ø 40 mm, length 3 m

Universal mountain snow guard end caps

Universal mountain snow guard end caps

Roof ladder

Roof ladder

Roof ladder bracket

Roof ladder bracket

Log bracket

Log bracket

Grid tread aluminium 150 x 25 cm

Grid tread aluminium 150 x 25 cm

Snow guard grid solid 1.50 m

Snow guard grid solid 1.50 m

Connection sleeve for mountain snow guard pipe Ø 40 mm

Connection sleeve for mountain snow guard pipe Ø 40 mm

MAG snow clip

MAG snow clip

Product range for roof details and uplift protection

MAG transparent tile (acrylic)

MAG transparent tile (acrylic)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MEL, VIS)

Storm clip in zinc-aluminium, hanger clip for 30/50 battens (MEL, VIS)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/60 battens (MEL) and 40/50 battens (BAL, PRE)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Storm clip in zinc-aluminium, hanger clip for 40/50 battens (HER, MZ3, ELE, RAP, MEL)

Ridge clip aluminium PDZ (universal shed fastening clip)

Ridge clip aluminium PDZ (universal shed fastening clip)

Stainless steel screw with seal, length 60 mm

Stainless steel screw with seal, length 60 mm

Hip and valley clip 13-17 mm

Hip and valley clip 13-17 mm

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 300 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Universal aluminium flashing tape 450 mm (CREAFLEX ALU)

Eave ventilating screen, screen height 55 mm

Eave ventilating screen, screen height 55 mm

Eaves ventilation comb

Eaves ventilation comb

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Roof access hatch 45 x 55 cm in metal with single glazed safety glass

Thermally-insulated roof access hatch 55 x 78 cm

Thermally-insulated roof access hatch 55 x 78 cm

Satellite and aerial mast galvanised or colour coated

Satellite and aerial mast galvanised or colour coated

Acrylic paints 250 ml AUT

Acrylic paints 250 ml AUT

Ridge and hip tile product range

Ridge tile PF AUT (clay)

Ridge tile PF AUT (clay)

Ridge tile PA AUT (clay)

Ridge tile PA AUT (clay)

Ridge starter and termination plate ceramic PF AUT (clay)

Ridge starter and termination plate ceramic PF AUT (clay)

AUT function starter and termination plate ceramic PF

AUT function starter and termination plate ceramic PF

Function starter and termination plate ceramic type 1 PA AUT (clay)

Function starter and termination plate ceramic type 1 PA AUT (clay)

Hip starter ceramic PF AUT (clay)

Hip starter ceramic PF AUT (clay)

Hip starter ceramic round closure PF AUT (clay)

Hip starter ceramic round closure PF AUT (clay)

Hip starter ceramic with scallop PF AUT (clay)

Hip starter ceramic with scallop PF AUT (clay)

Hip cap 3-axis type W1 AUT (clay)

Hip cap 3-axis type W1 AUT (clay)

Hip cap 4-axis type W1 AUT (clay)

Hip cap 4-axis type W1 AUT (clay)

Ridge clip aluminium PF AUT

Ridge clip aluminium PF AUT

Ridge clip aluminium PA AUT

Ridge clip aluminium PA AUT

FIRSTFIX ridge clip stainless steel PF AUT

FIRSTFIX ridge clip stainless steel PF AUT

FIRSTFIX ridge clip stainless steel PA AUT

FIRSTFIX ridge clip stainless steel PA AUT

Ridge starter and termination plate ceramic PA AUT (clay)

Ridge starter and termination plate ceramic PA AUT (clay)

Hip starter ceramic PA AUT (clay)

Hip starter ceramic PA AUT (clay)

Hip starter ceramic with scallop PA AUT (clay)

Hip starter ceramic with scallop PA AUT (clay)

FIRSTFIX ridge clip wire universal

FIRSTFIX ridge clip wire universal

FIRSTFIX clip kit universal

FIRSTFIX clip kit universal

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 300 (CREAROLL ALU)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 220 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 310 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Ridge/hip roll 390 (CREAROLL PP)

Downloads
