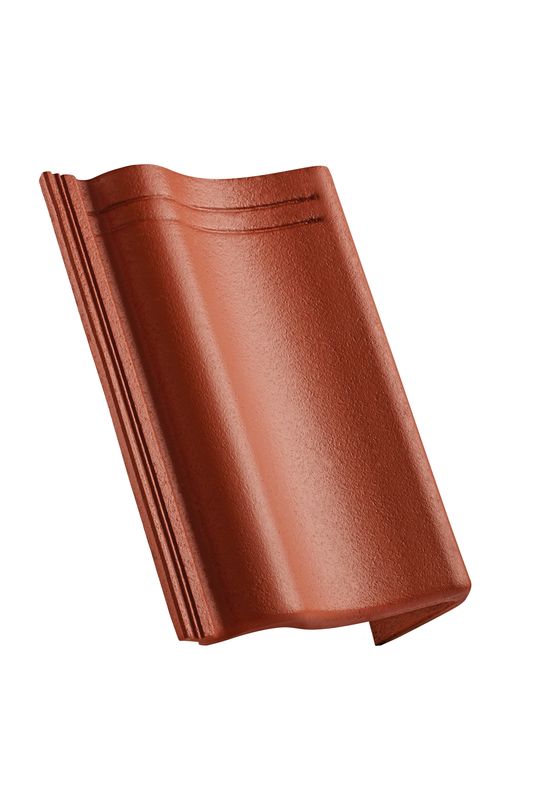

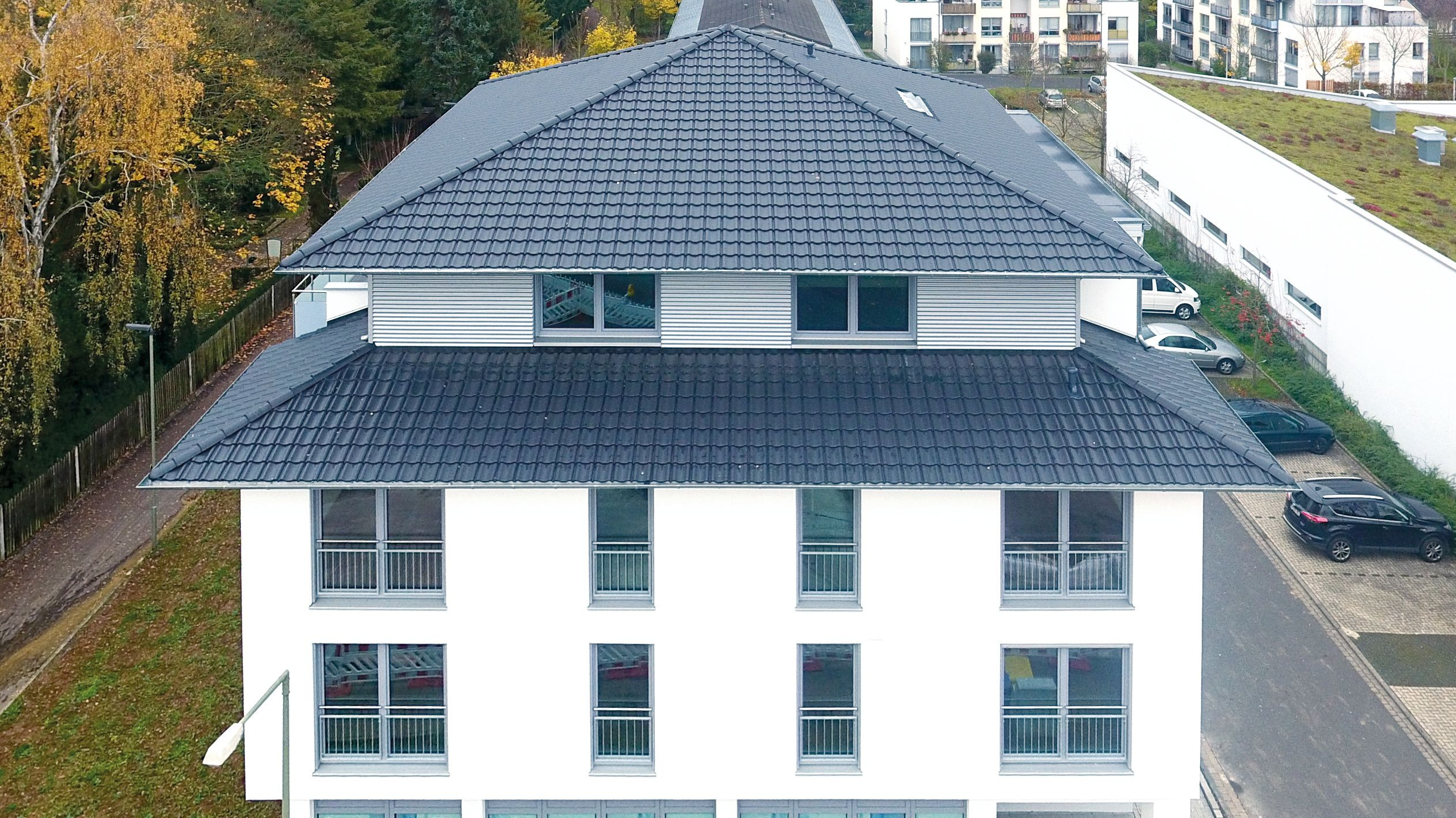

VERONA planar dark grey perla

VERONA

The Mediterranean One

  • Unique geometry removes the strain from side interlocks
  • Double water traps provide extra protection against rain intrusion
  • High side interlock with joint open to the side provides helps water drain more effectively, reduces strain on the interlock relief and prevents the growth of moss
  • Distinctive bottom ribbing reduces the penetration of drifting snow or driving rain
  • Smoothly undulating shape make it unmistakable

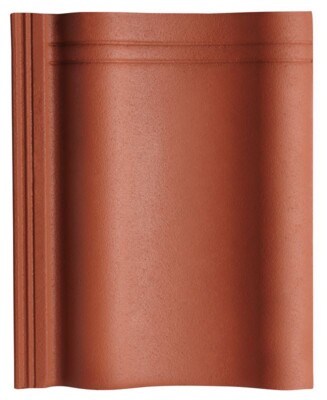

planar classic red
planar classic red
planar dark red
planar dark red
planar dark grey
planar dark grey
planar perla dark red perla
planar perla dark red perla
planar perla dark grey perla
planar perla dark grey perla

Technical data

Size (appr.)334 x 420 mm
Covering width on av. approx.300 mm
Max. coverage width (approx.)300 mm
Covering width min. approx.300 mm
Covering length on av. approx.328 mm
Max. gauge (approx.)345 mm
Min. gauge (approx.)310 mm
Average tile requirement (approx.)10.2 pcs/m²
Brickware max. approx.10.7 pcs/m²
Tile requirement min. (approx.)9.7 pcs/m²
Weight per m² (approx.)47 kg/m²
Pieces per packing unit40 piece
Unit weight (approx.)4.7 kg/piece

Applications

Valid for Austria
Roof pitch DUO longlife ND extra (Austria)≥ 17 °
Roof pitch DUO extra (Austria)≥ 17 °
Roof pitch QUATTRO longlife extra (Austria)≥ 15 °
Roof pitch TRIO extra (Austria)≥ 17 °

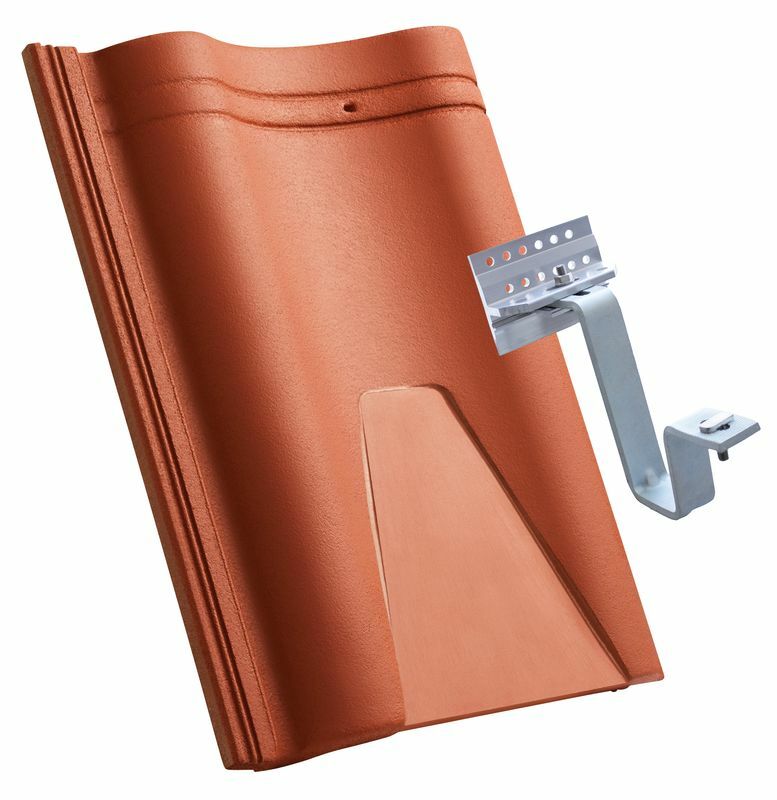

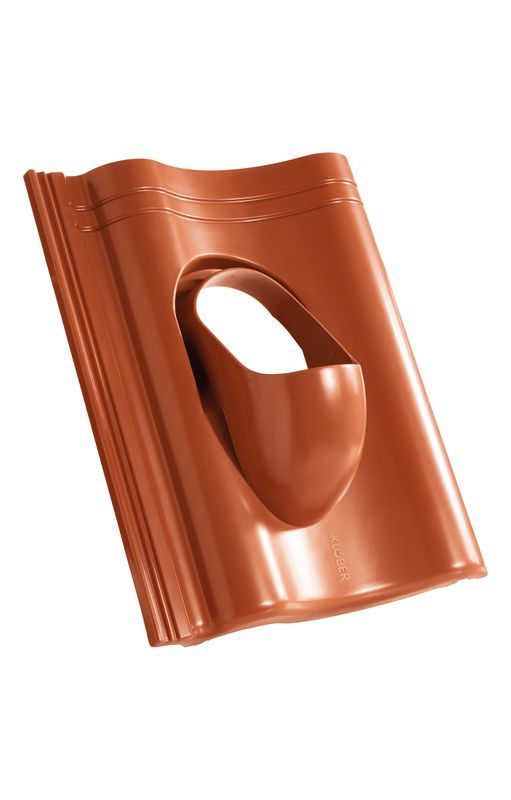

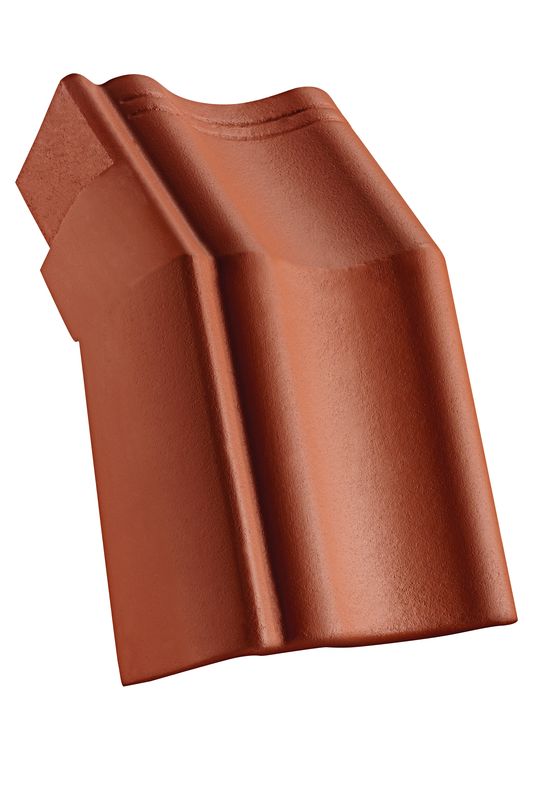

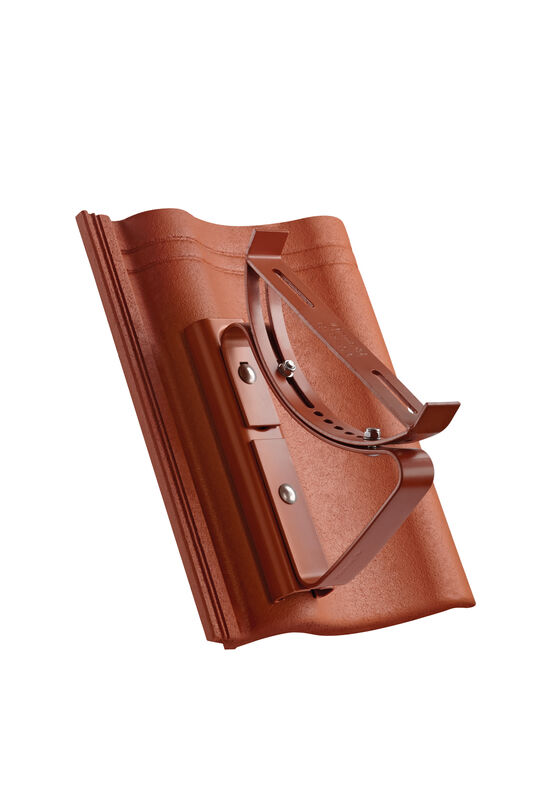

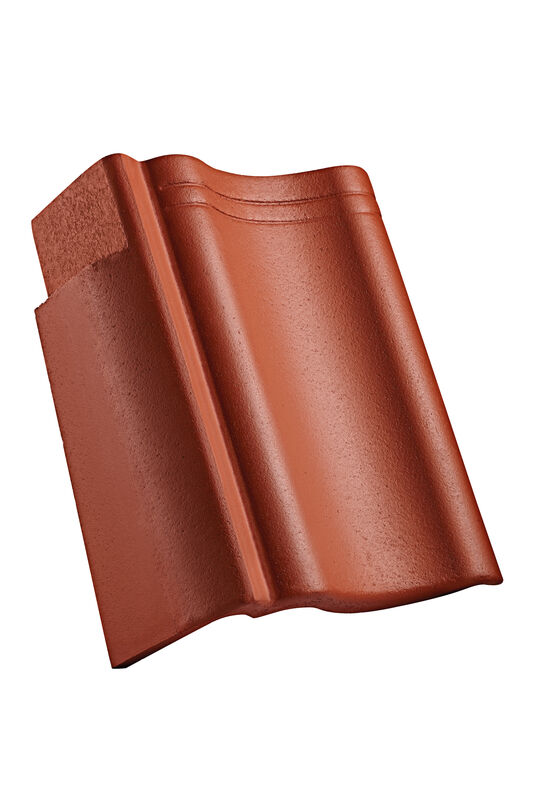

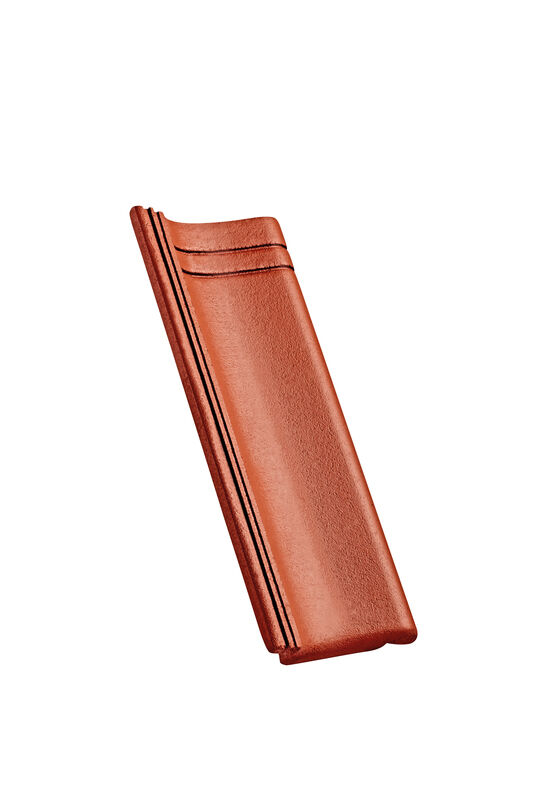

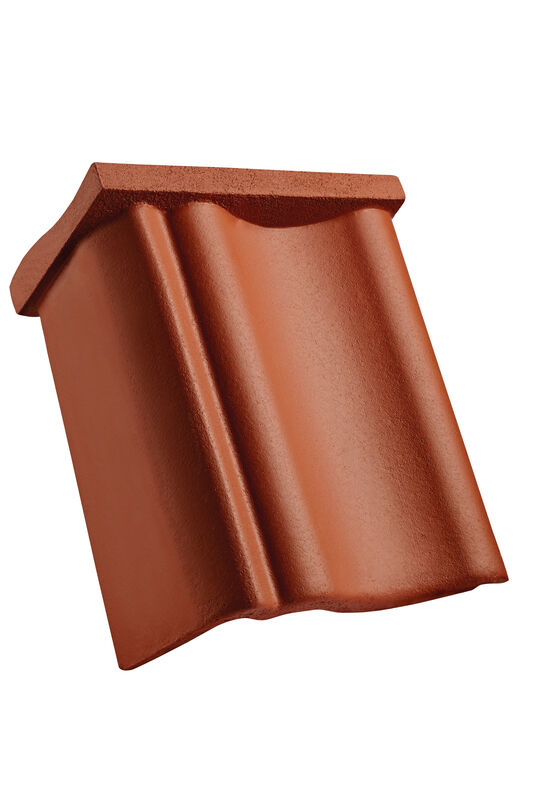

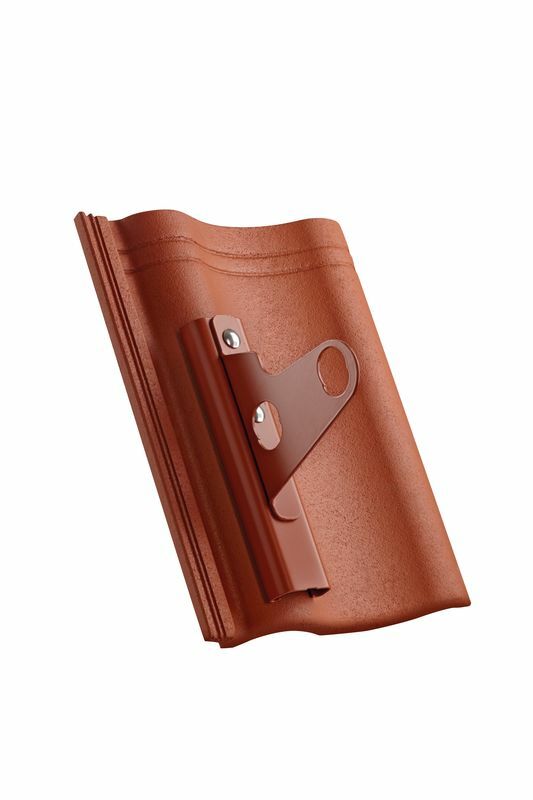

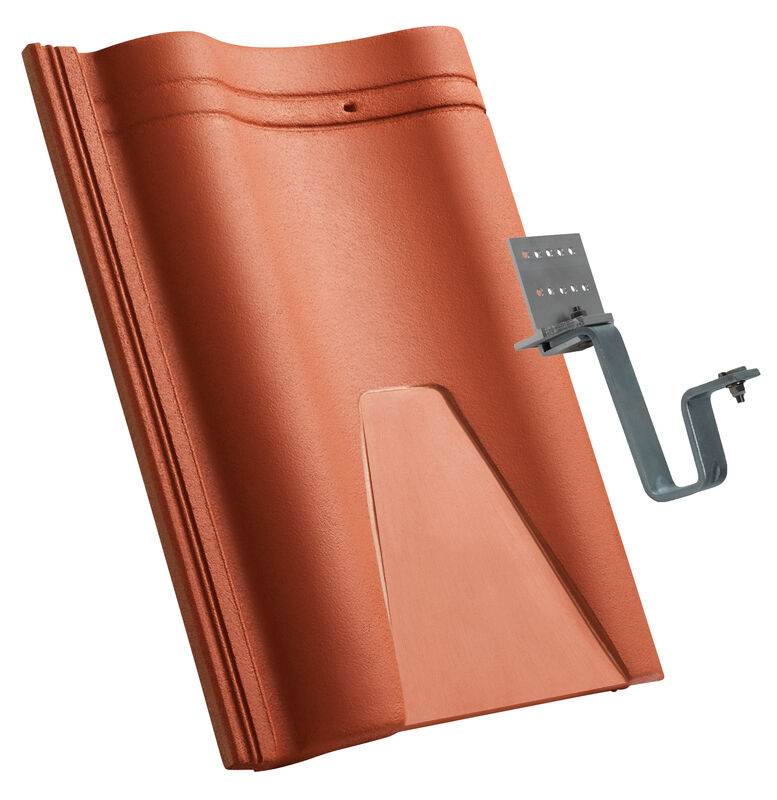

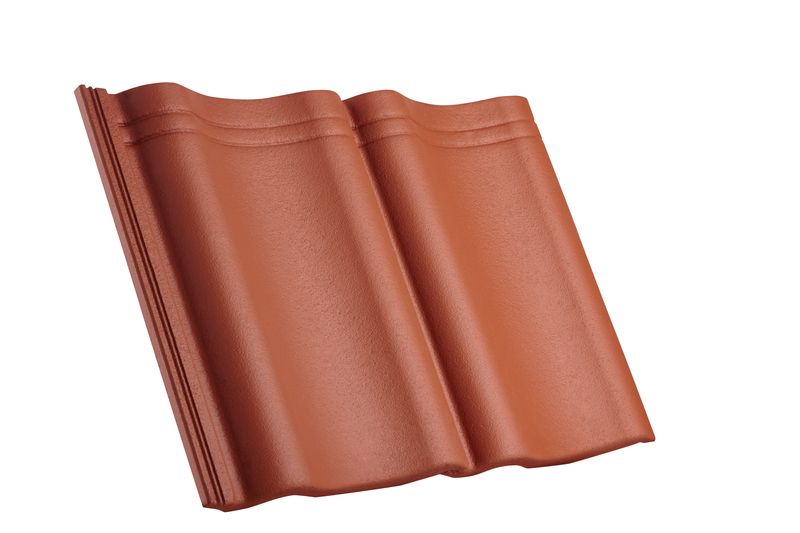

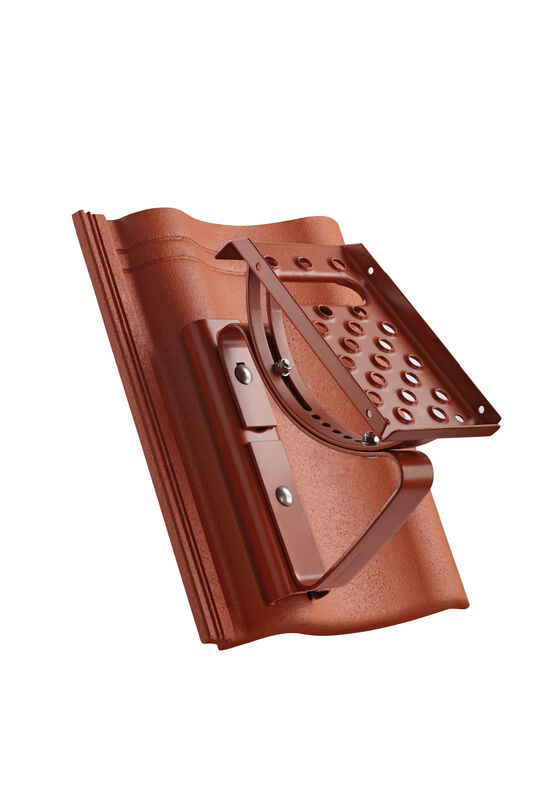

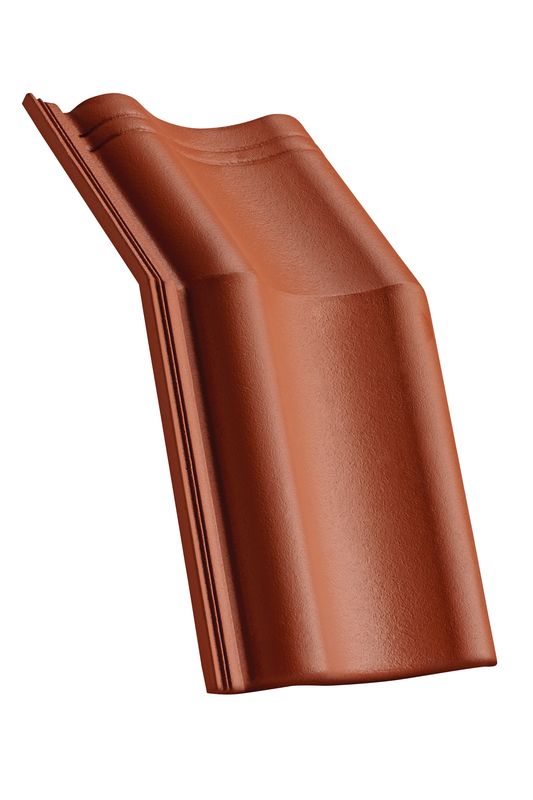

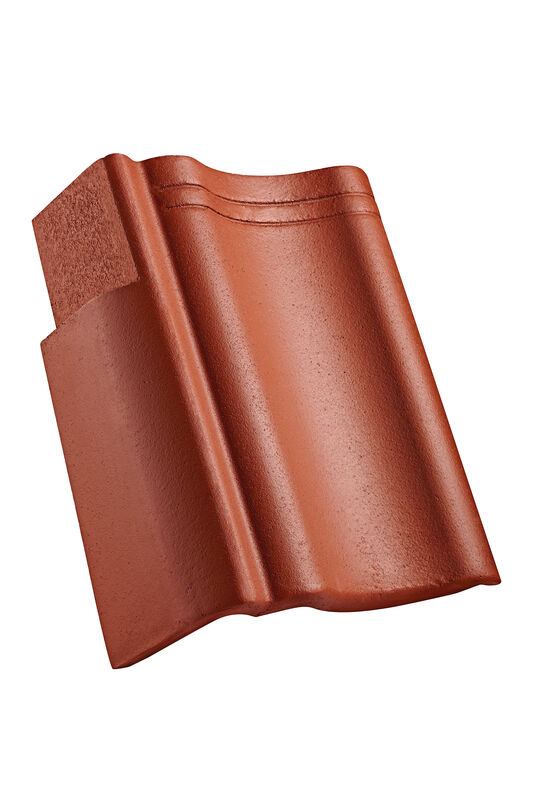

Technical informations

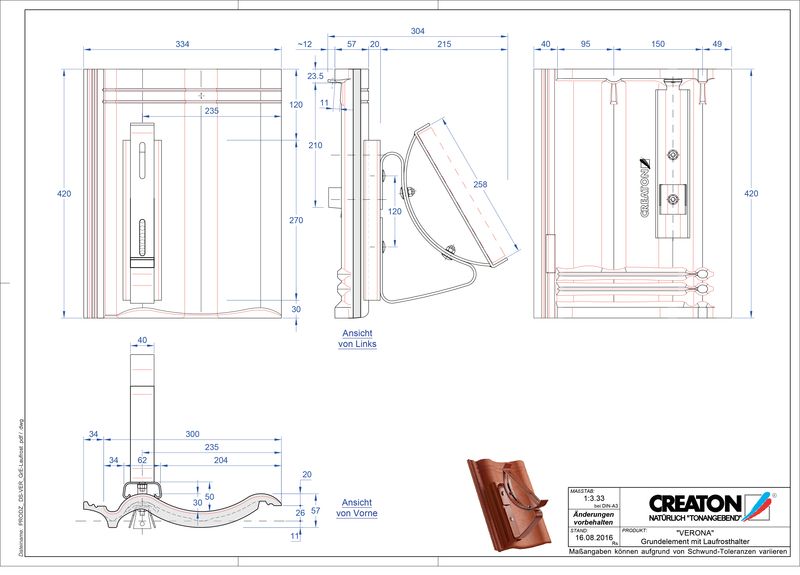

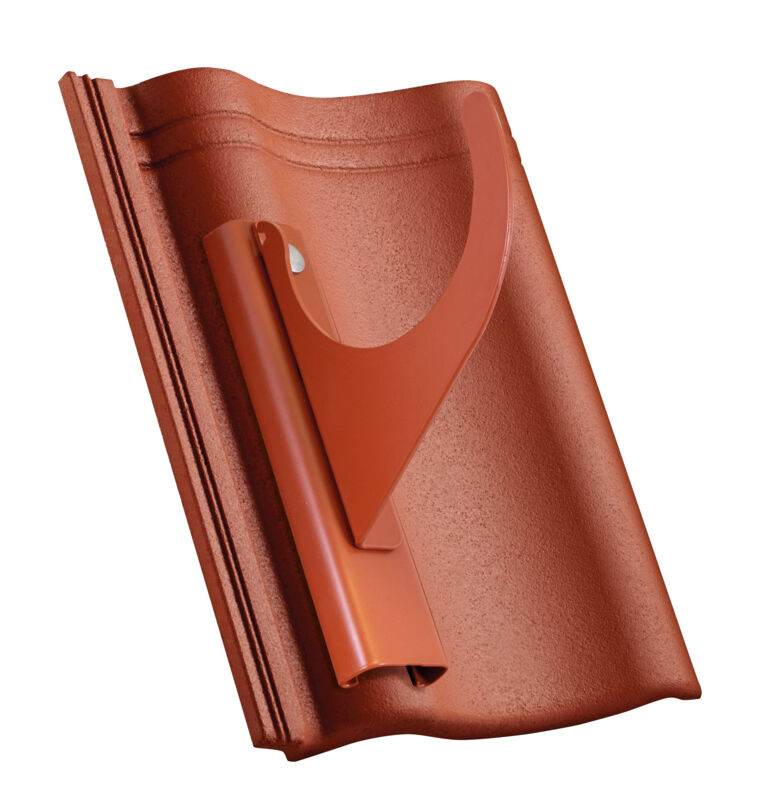

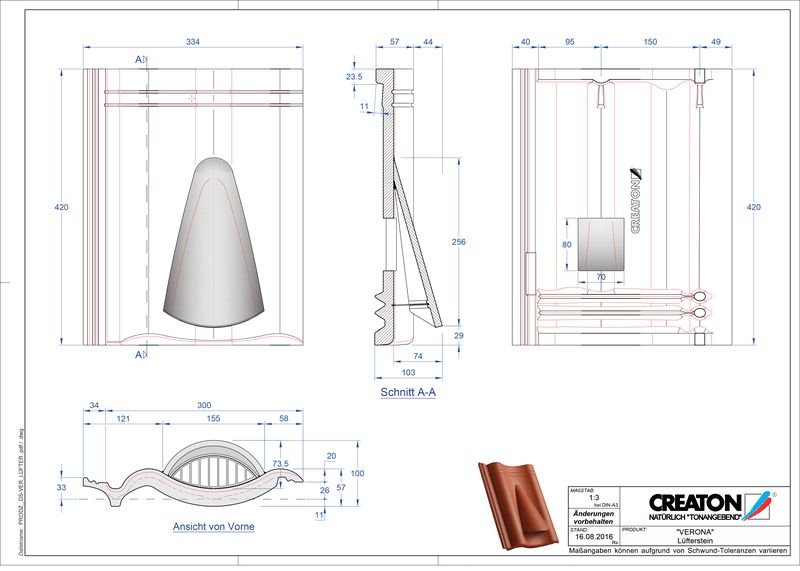

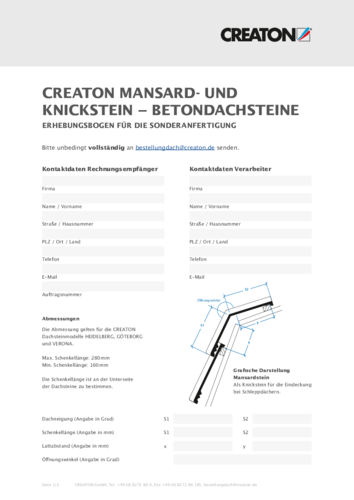

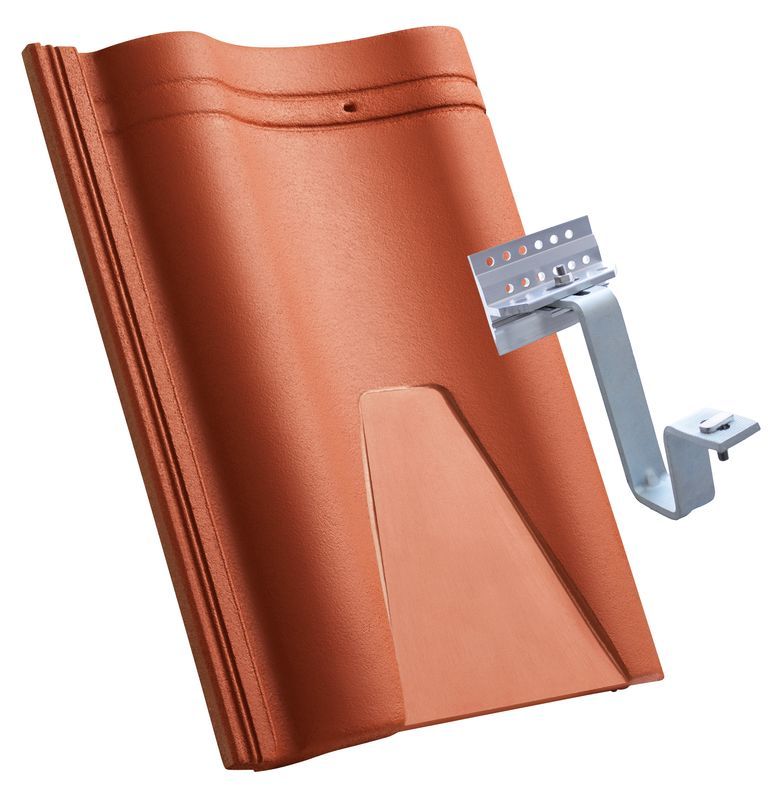

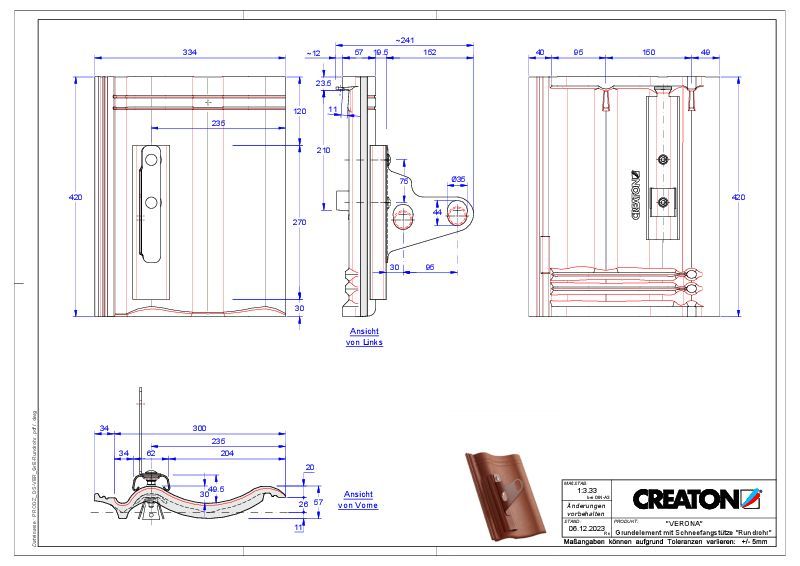

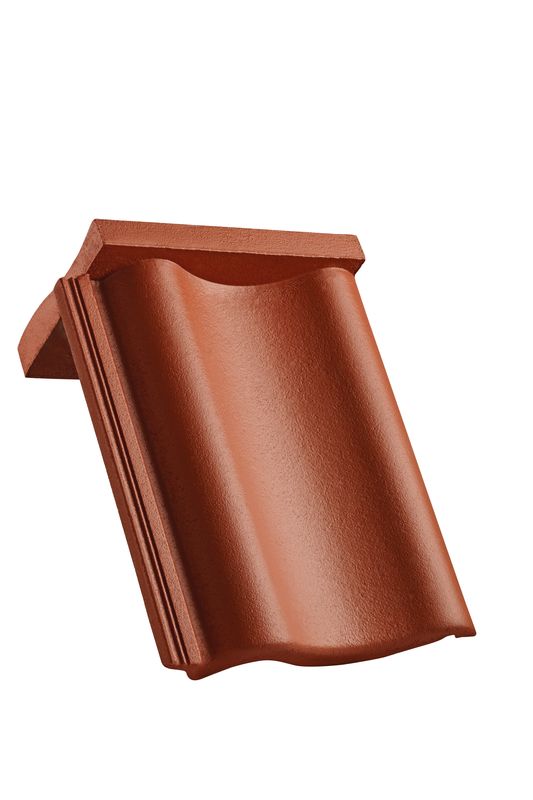

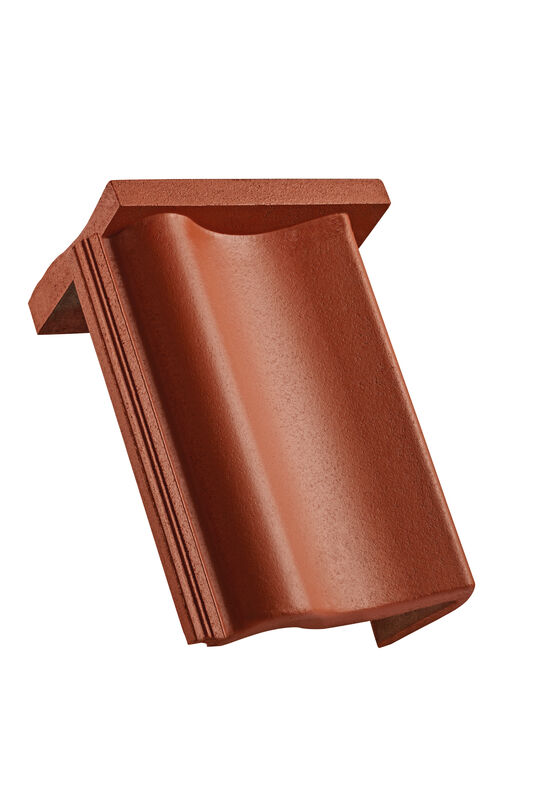

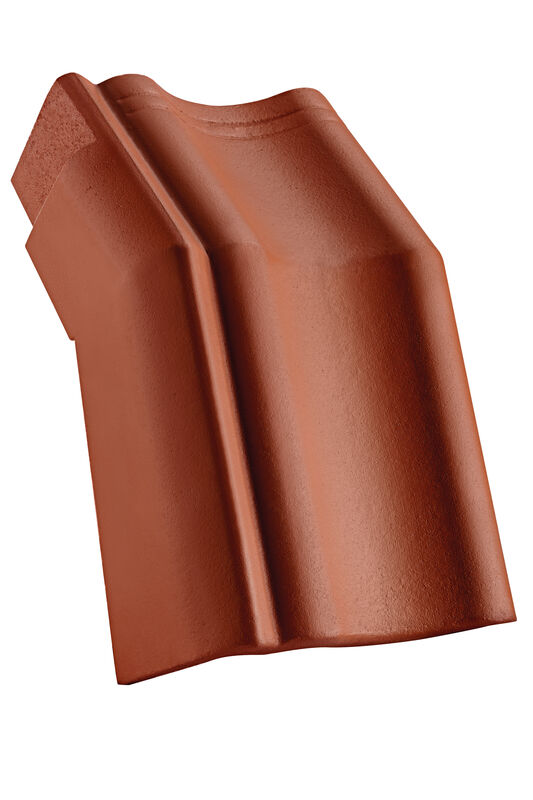

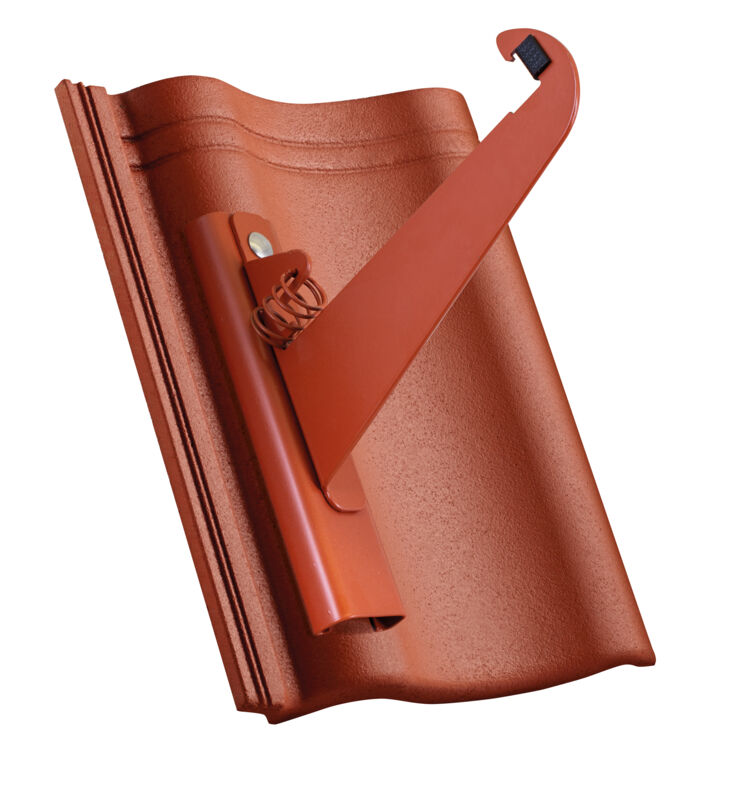

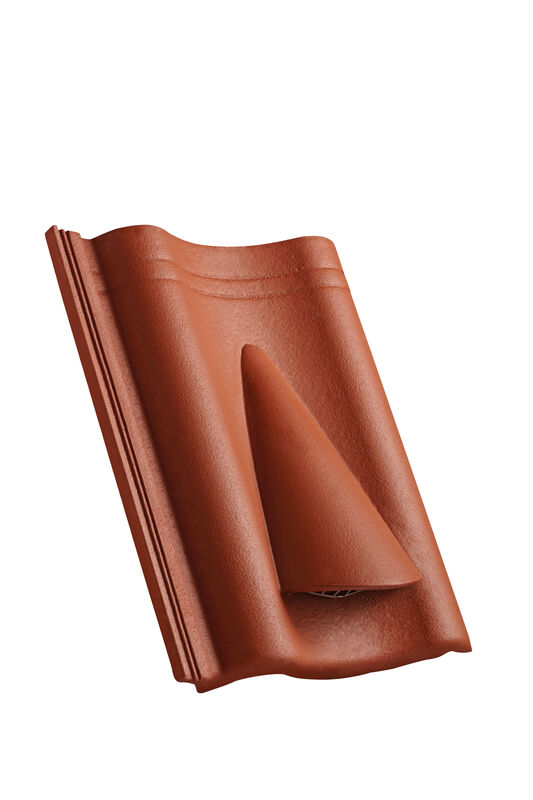

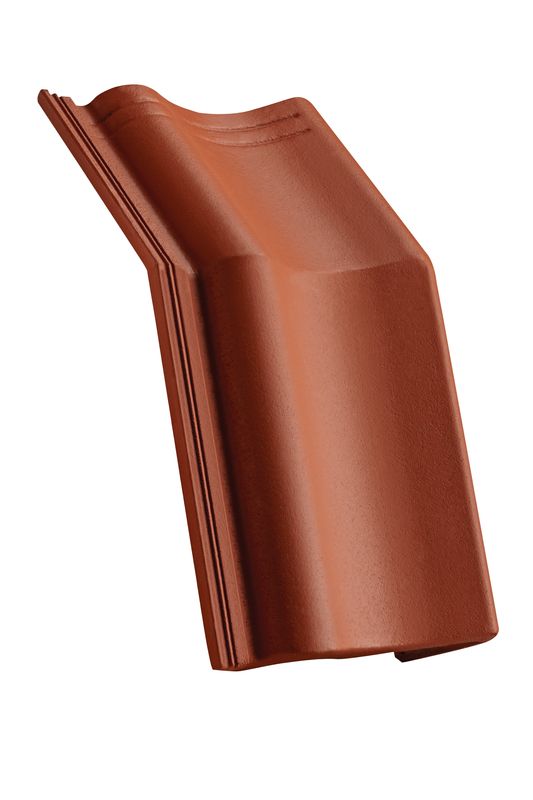

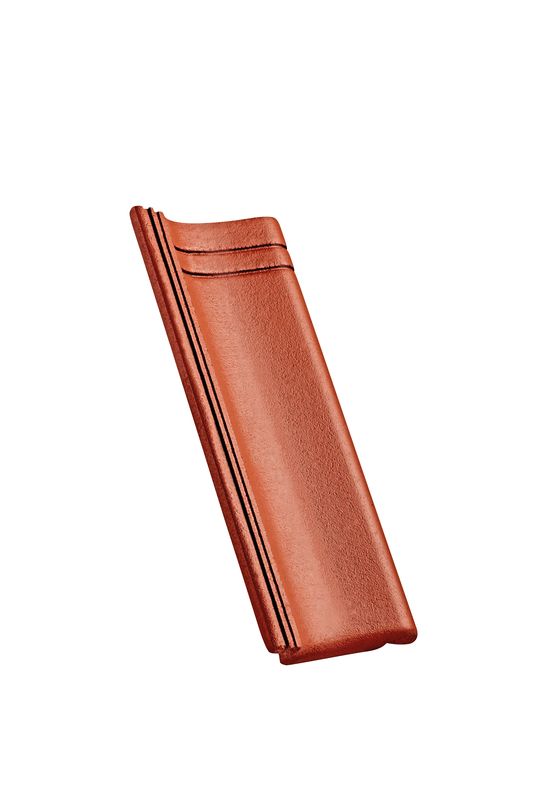

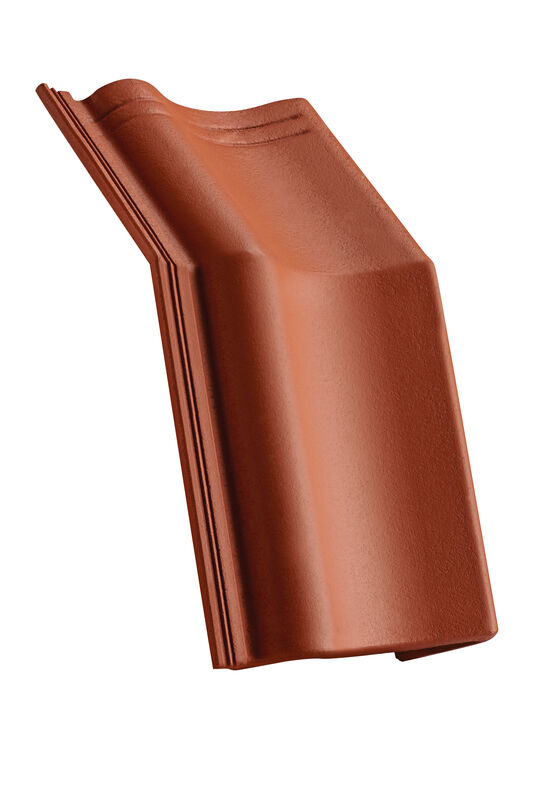

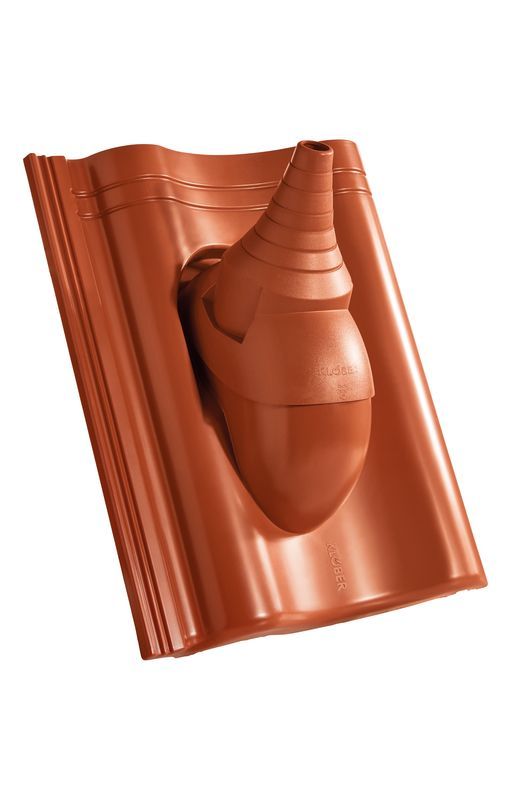

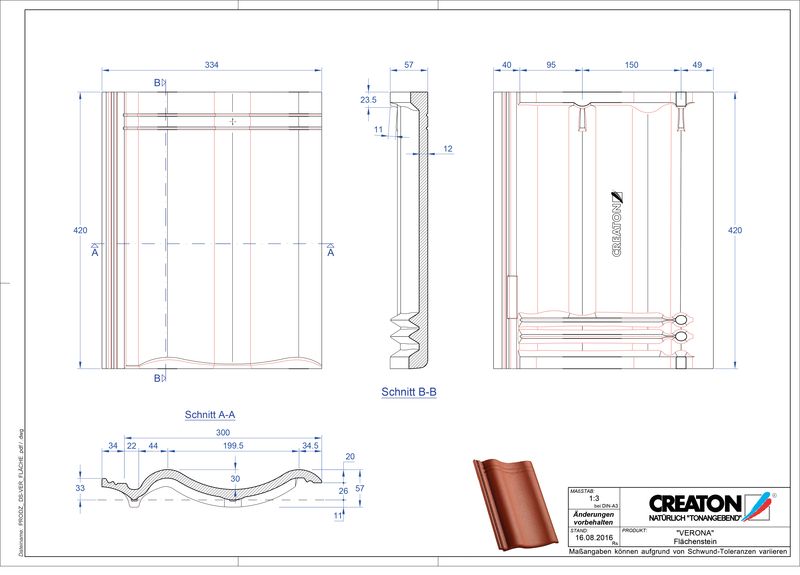

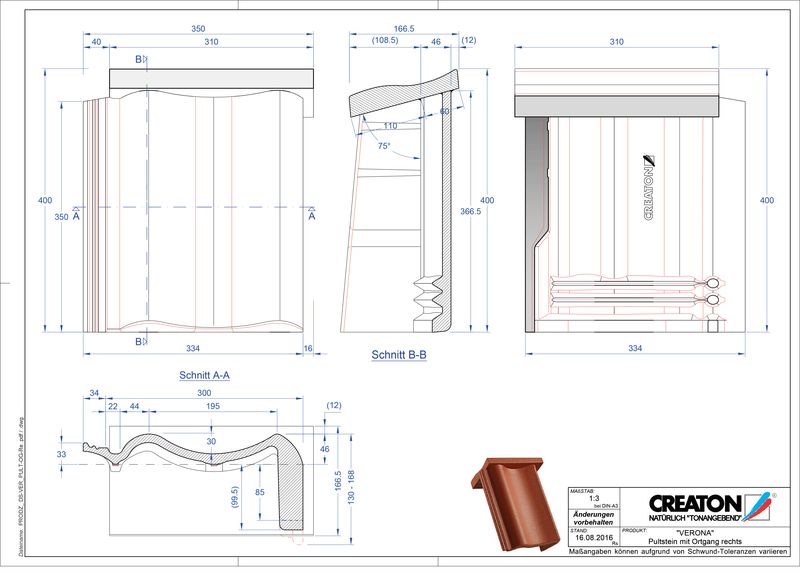

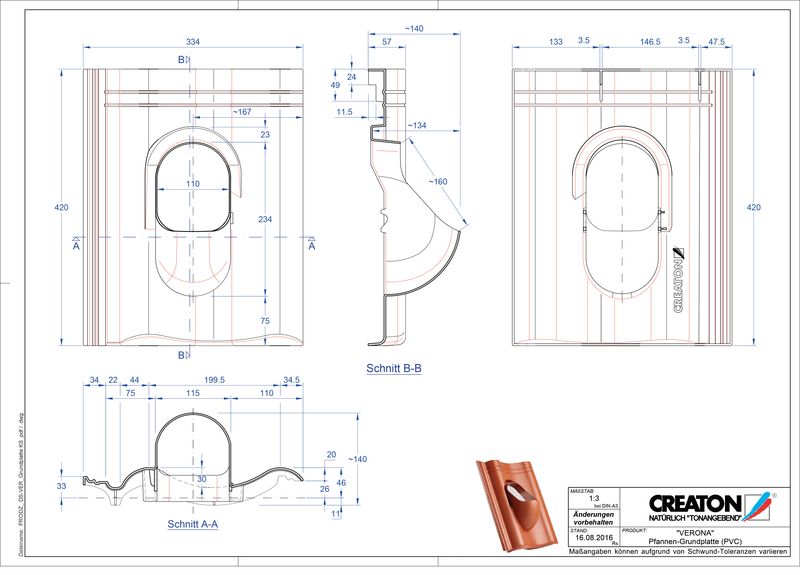

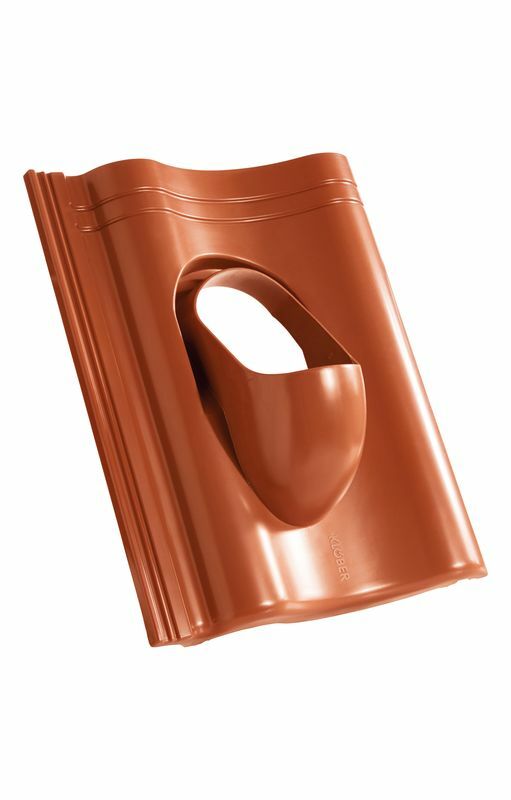

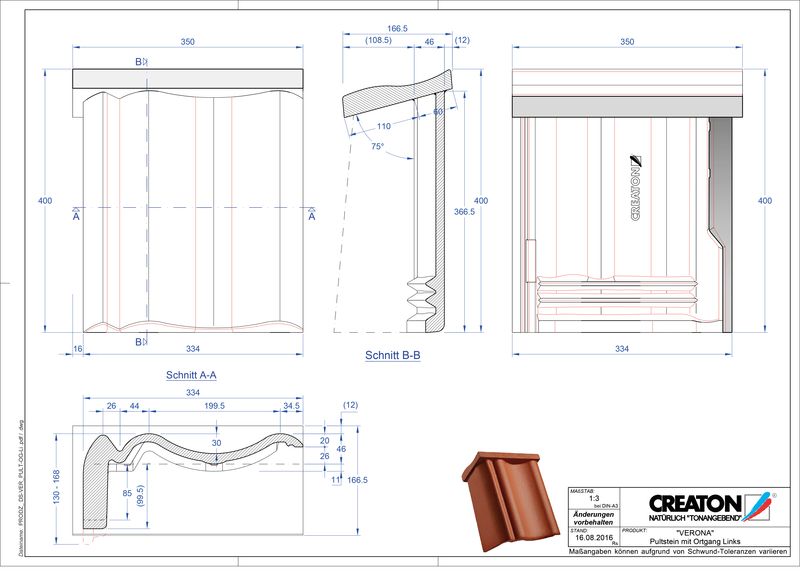

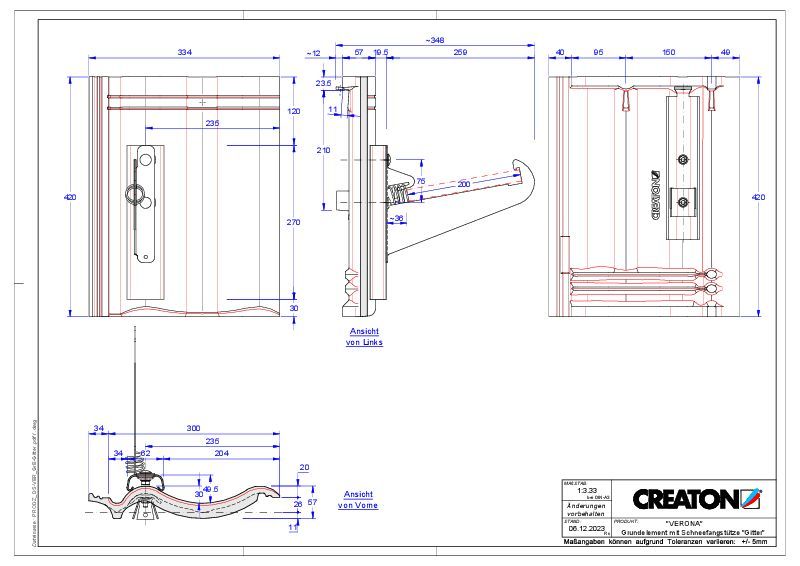

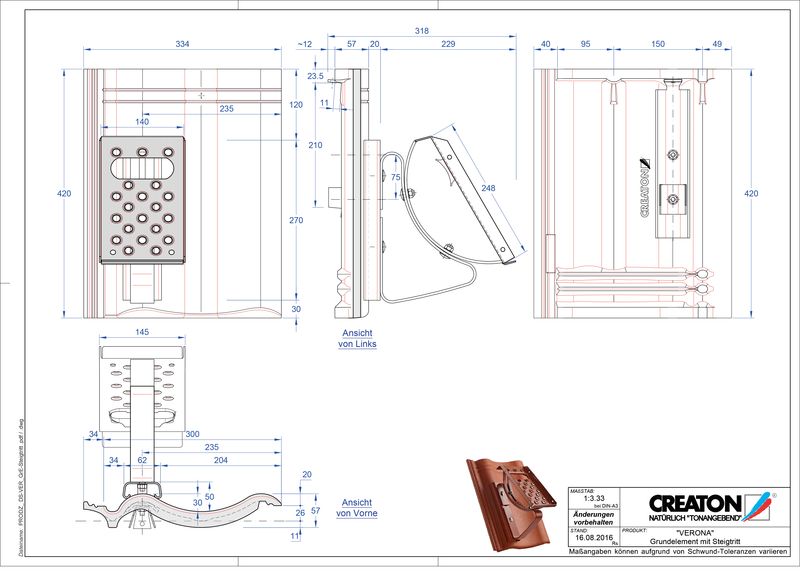

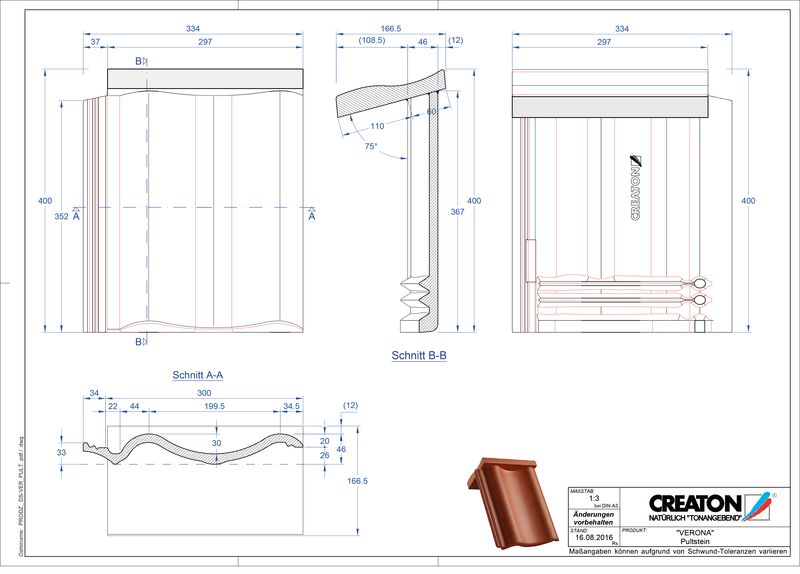

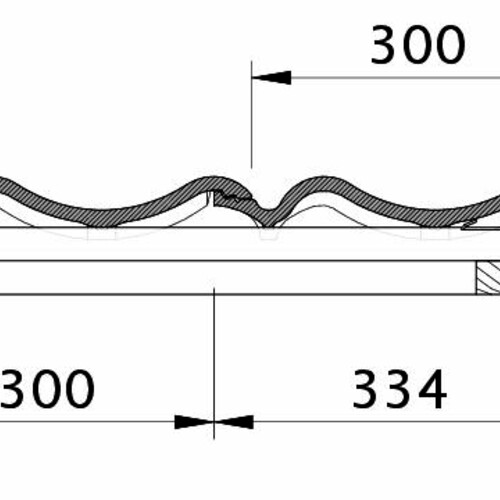

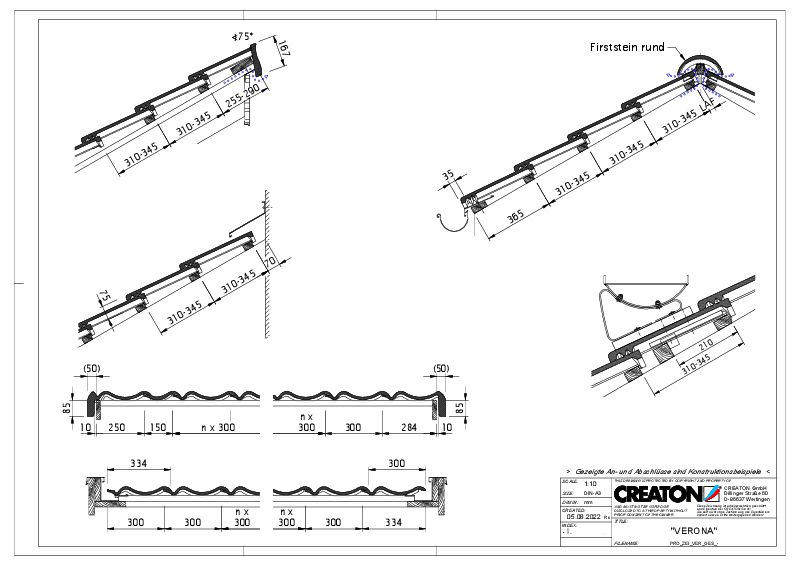

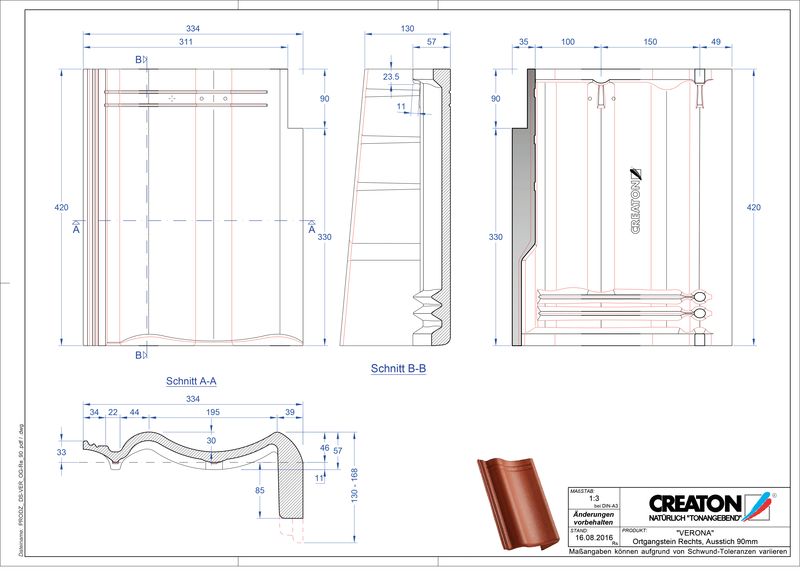

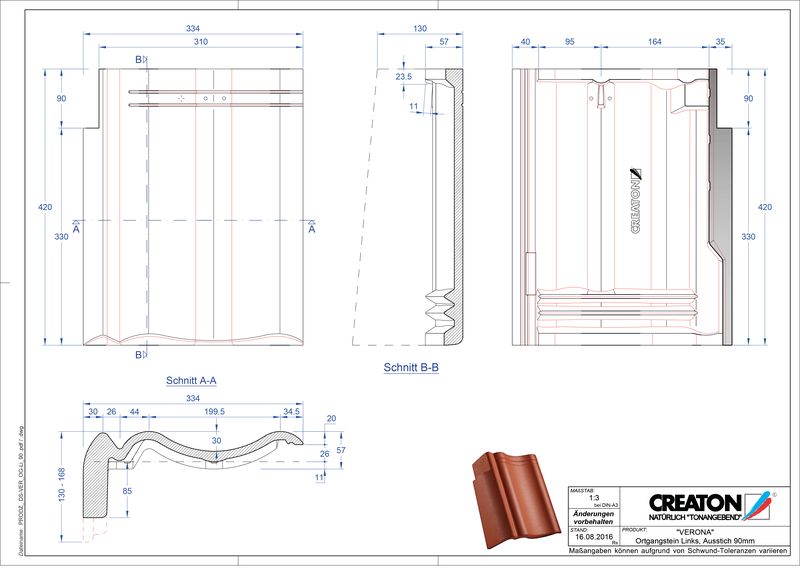

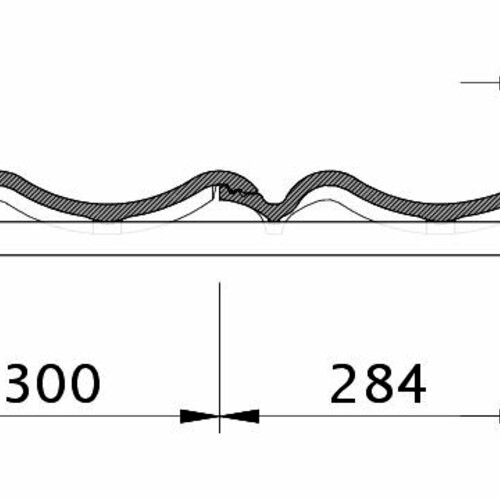

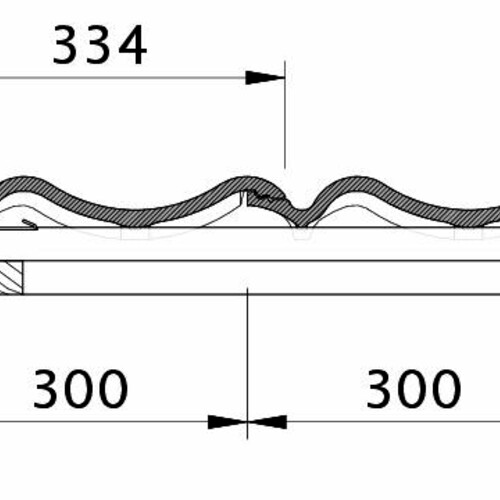

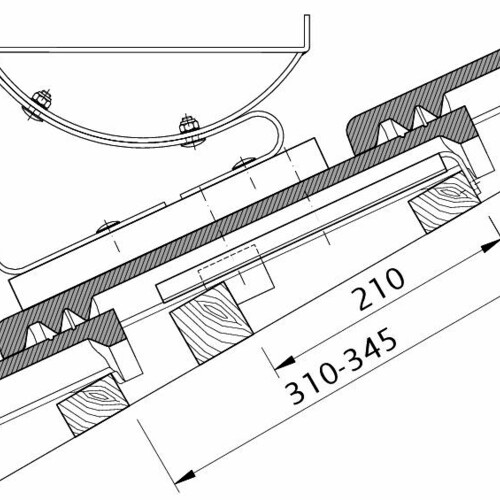

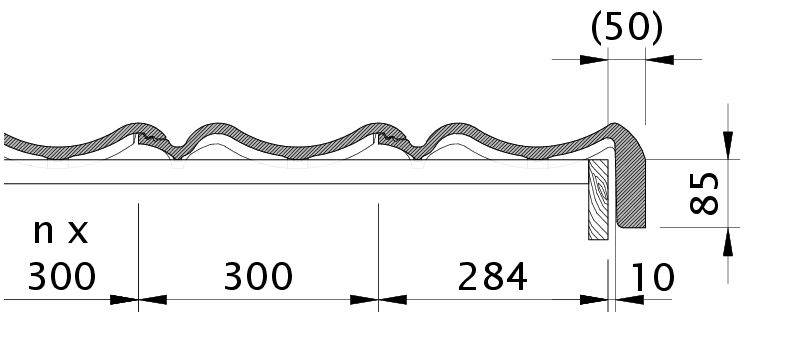

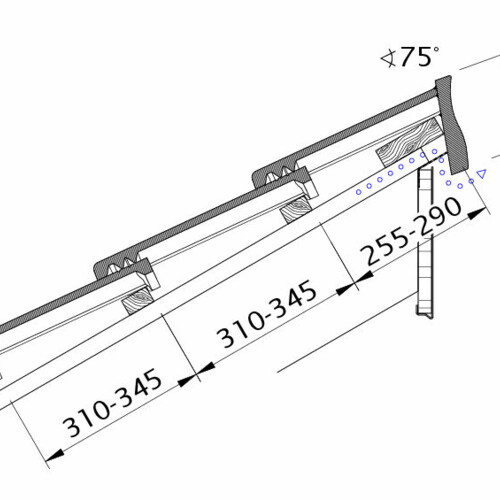

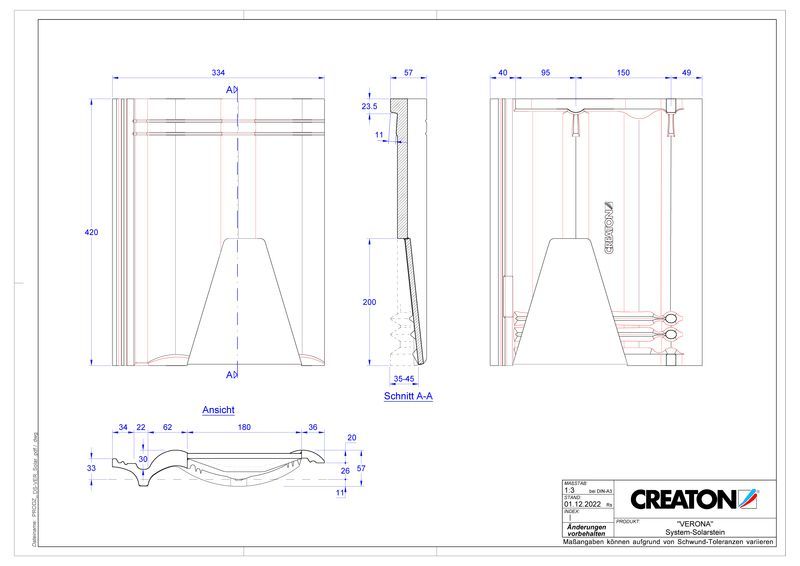

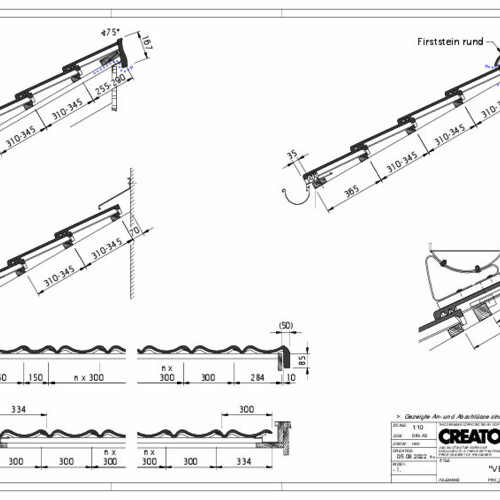

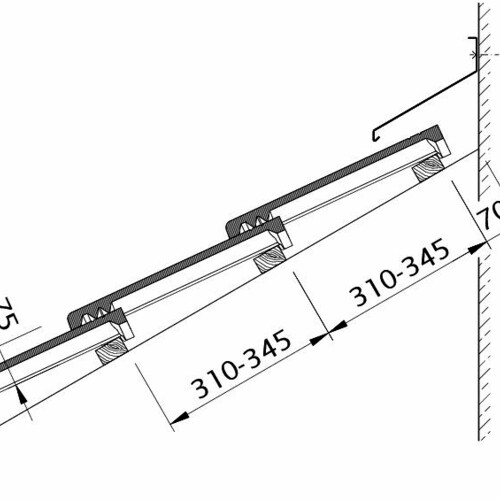

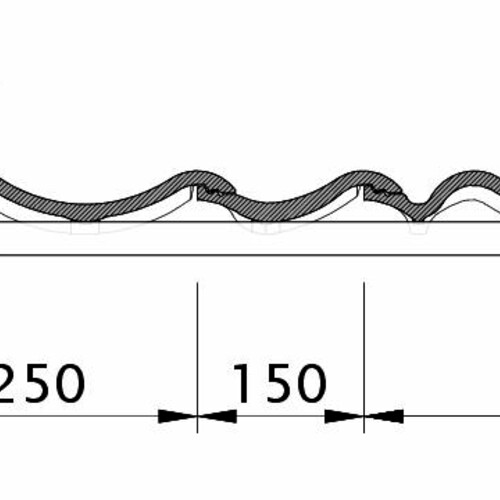

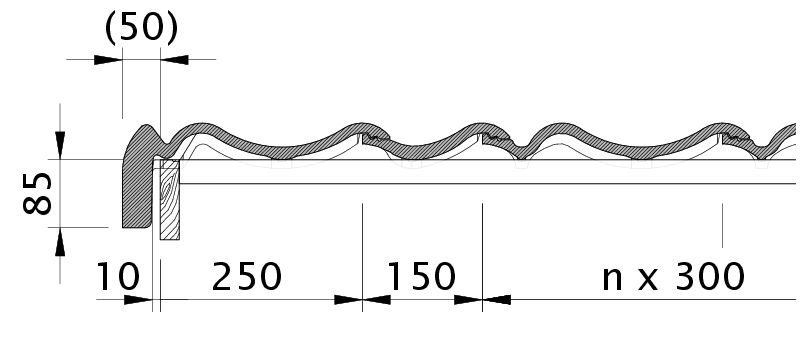

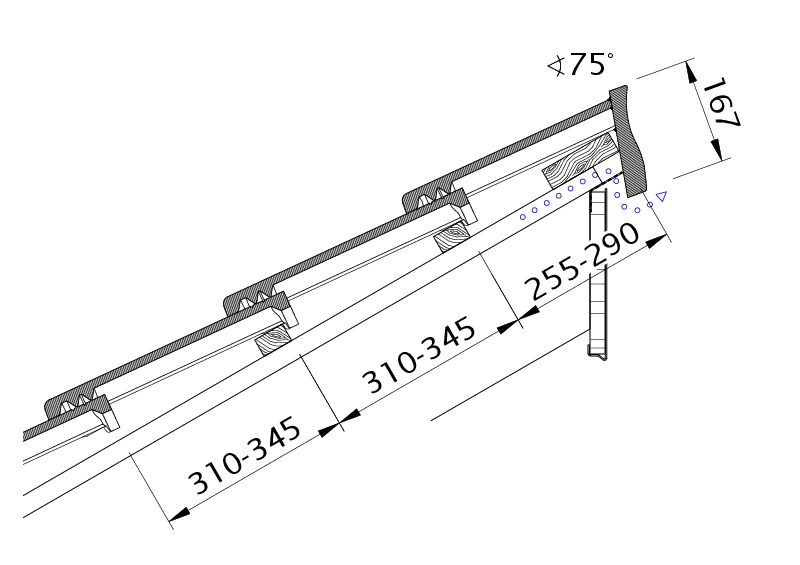

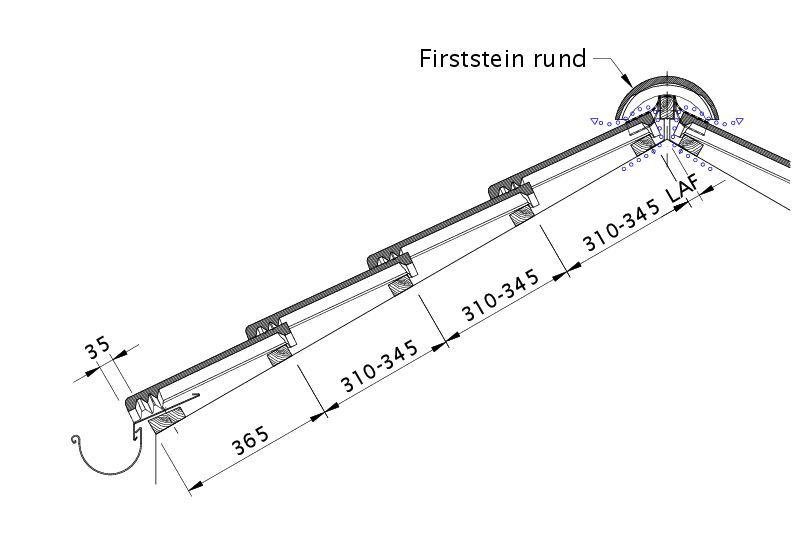

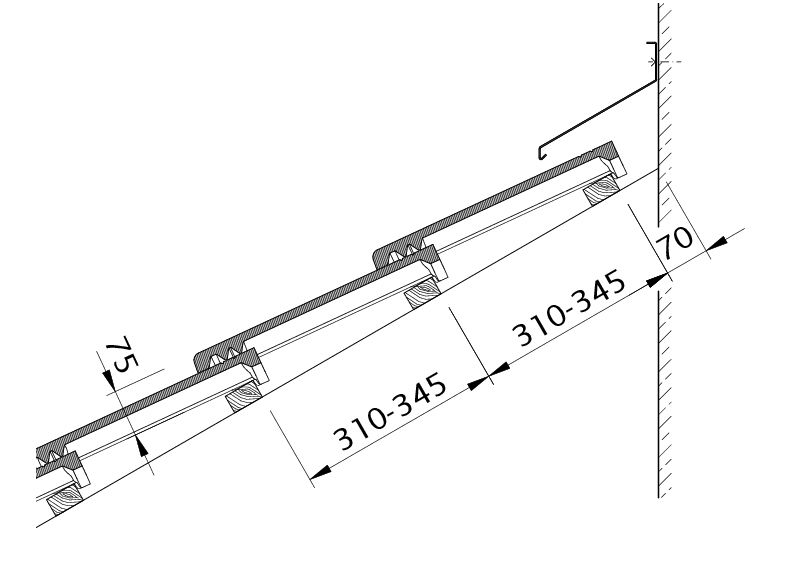

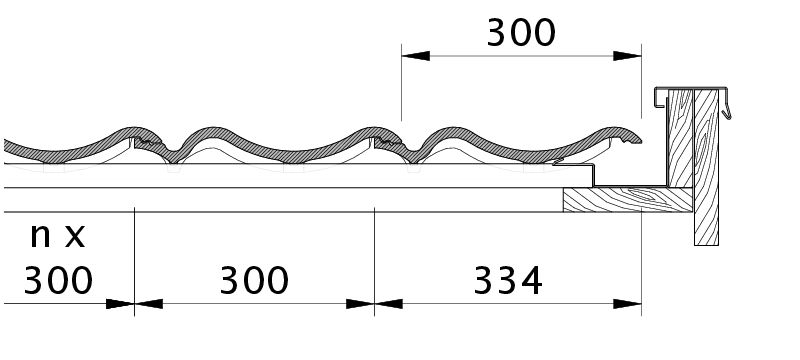

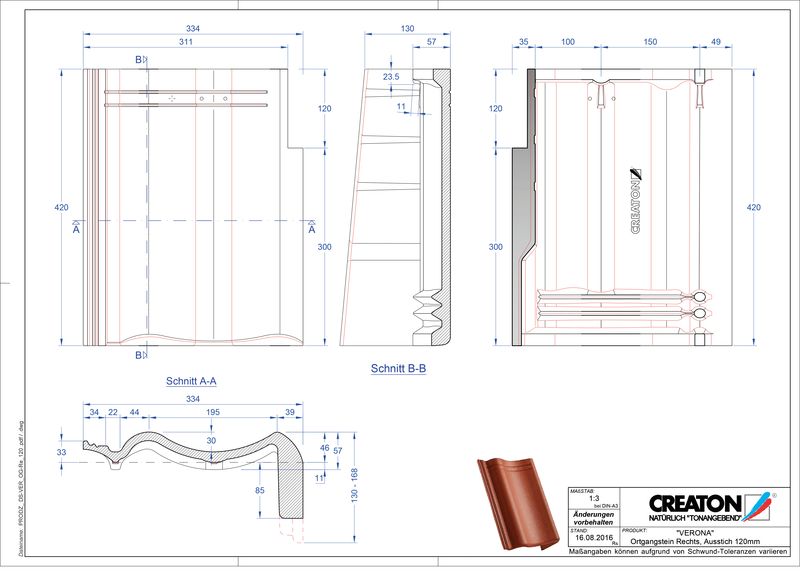

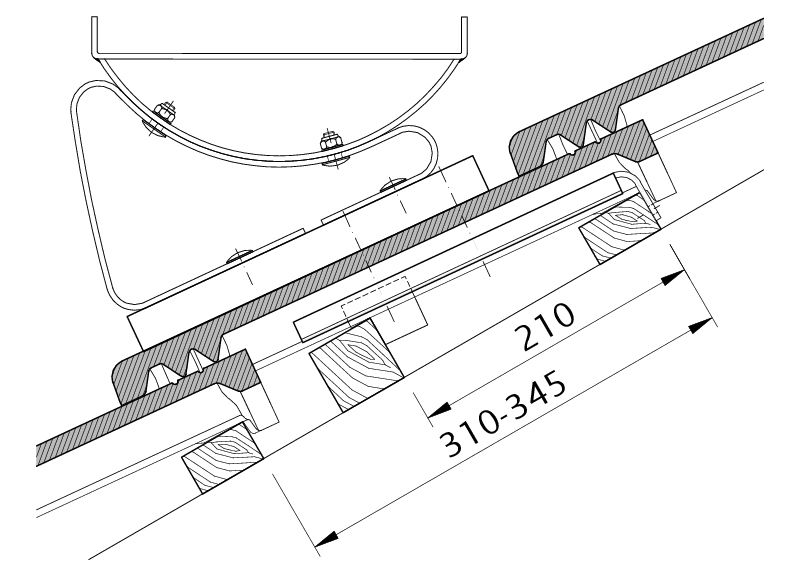

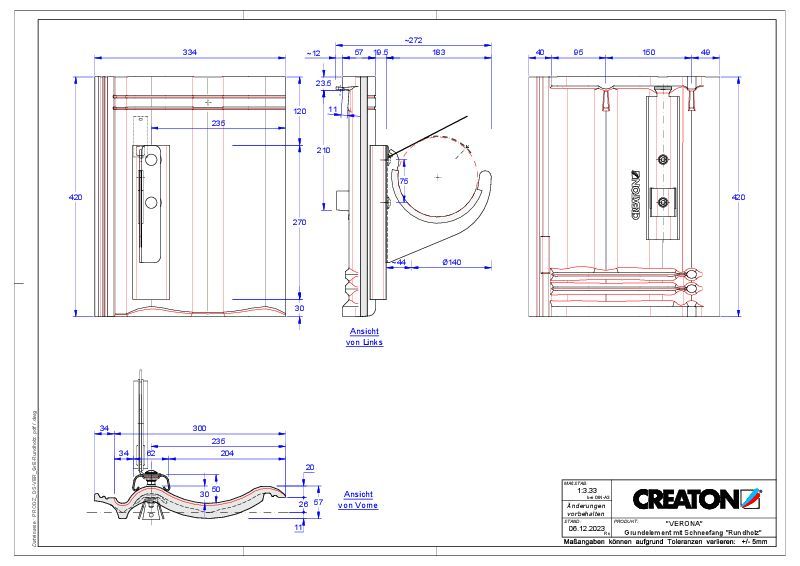

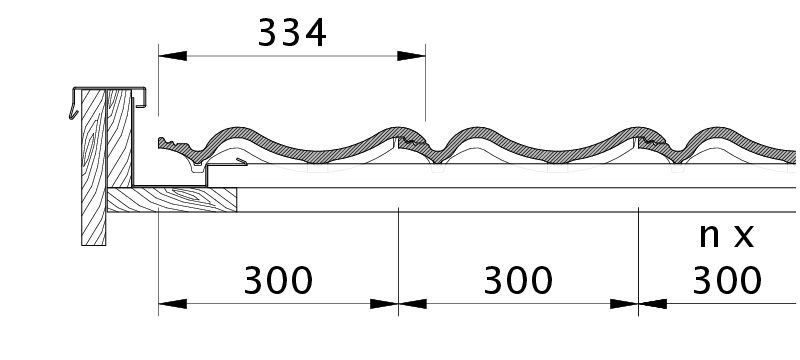

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.

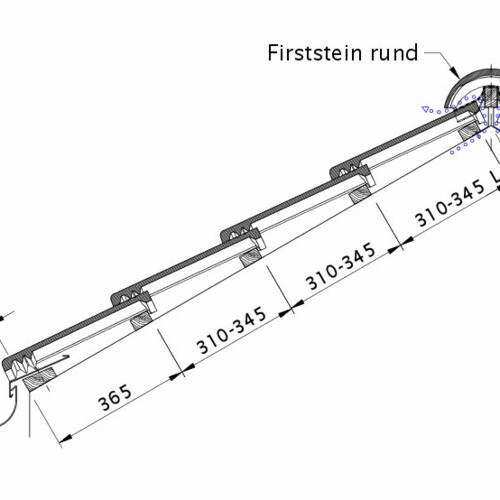

  • Batten spacing / tile gauge is dependent on the roof pitch.
  • Bitte berücksichtigen Sie das Musterschreiben für die Regeldachneigungen CREATON.

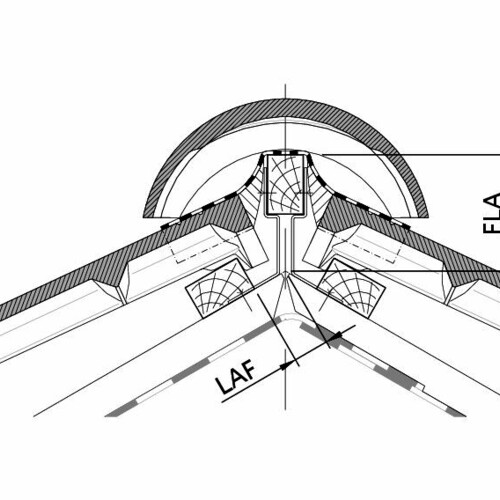

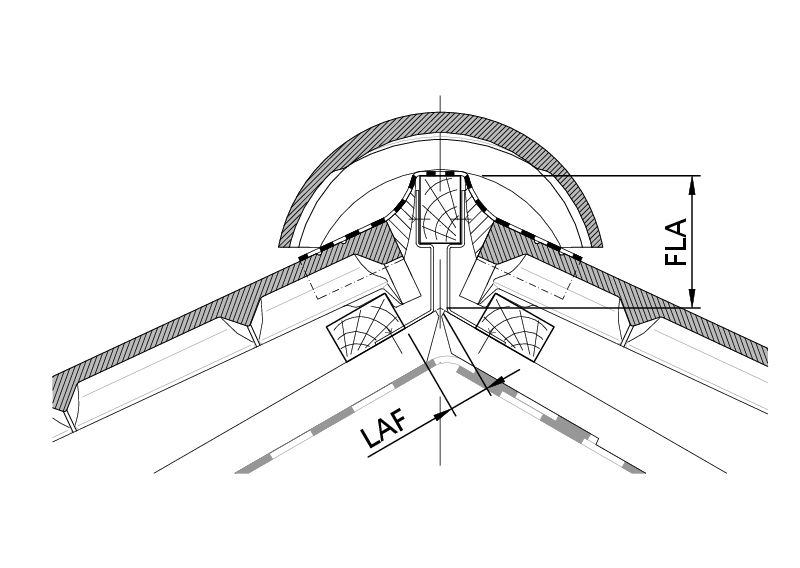

LAF-/FLA-VALUES

LAF-/FLA values in mm for 30x50-battens
Ridge tileDN15°20°25°30°35°40°45°50°55°60°
FIR 2.5 pcs./m.LAF35333230292826252525
FIR 2.5 pcs./m.FLA11310710298938985827976
LAF-/FLA values in mm for 40x60-battens
Ridge tileDN15°20°25°30°35°40°45°50°55°60°
FIR 2.5 pcs./m.LAF35333230292826252525
FIR 2.5 pcs./m.FLA12211711210810410198928986
